Collection: Gears - Worm
Gears -> WormThere are 237 products in the sub-categories of Gears - Worm. Scroll down or follow the link to Gears - Worm in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.
Gears - Worm - 24DP
A selection of 24DP Worm Gears. This is the main category in...
Gears - Worm - 32DP
A selection of 32DP Worm Gears. This is the main category in...
Gears - Worm - 48DP
A selection of 48DP Worm Gears. This is the main category in...
Gears - Worm - Module 0.5
A selection of Module 0.5 Worm Gears. This is the main category...
Gears - Worm - Module 0.8
A selection of Module 0.8 Worm Gears. This is the main category...
Gears - Worm - Module 1.0
A selection of Module 1.0 Worm Gears. This is the main category...
Gears - Worm - Module 1.25
A selection of Module 1.25 Worm Gears. This is the main category...
Gears - Worm - Module 1.5
A selection of Module 1.5 Worm Gears. This is the main category...
Category Details
This category includes various types of worm gears.
- Worms and Gears must be chosen from the same pitch, direction and lead angle match. DP is Diametrical Pitch, which is an imperial standard.
- A single start worm and gear will provide a ratio equivalent to the number of teeth on the gear. A double start worm and gear will provide a ratio of half the number of teeth on the gear.
- If there is no matching worm for a stocked gear, please contact us for a special procurement. An expanded range may be available on special order. Please enquire.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Gears - Worm category on the Small Parts & Bearings online store.
| Pitch | Teeth | Lead Angle | Direction | Bore (B) | Overall Length (l) |

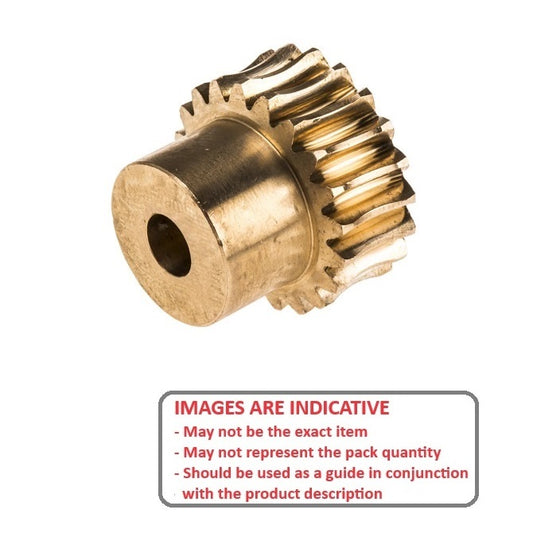

Indicative Image |
|---|---|---|---|---|---|---|

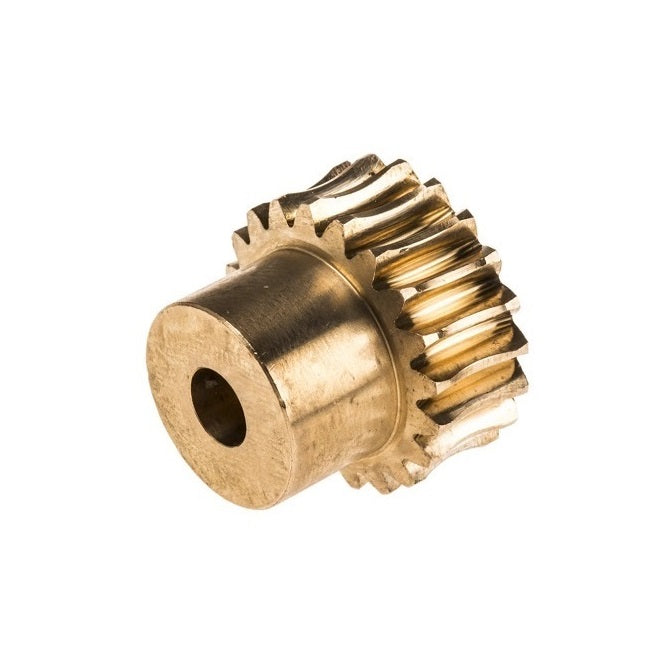

| Worm Gears - Pitch Module 0.5 - 20 tooth - 3 Deg 11 Min Module 0.5 - Brass - C3604B Gear | ||||||
|
Pitch
Module 0.5
|
Teeth
20
|
Lead Angle
3 Deg 11 Min
|
Direction
Right
|
Bore (B)
3.000
|
Overall Length (l)
11
|
|
|
Material: Brass - C3604B
Pitch Diameter (C): 10 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WG1R-050-020-030-BR (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Pitch | Teeth | Lead Angle | Direction |
Indicative Image |
||
| Worm Gears - Pitch Module 0.5 - 20 tooth - 3 Deg 11 Min Module 0.5 - Brass - C3604B Gear | ||||||
|
Pitch
Module 0.5
|
Teeth
20
|
Lead Angle
3 Deg 11 Min
|
Direction
Right
|
|
||
|
Material: Brass - C3604B
Bore (B): 3.000
Overall Length (l): 11
Pitch Diameter (C): 10 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WG1R-050-020-030-BR (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Jan 25, 2029 |
||||||
| Worm Gears - Pitch Module 0.5 - 20 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear | ||||||
|
Pitch
Module 0.5
|
Teeth
20
|
Lead Angle
2 Deg 36 Min
|
Direction
Right
|
Bore (B)
4.000
|
Overall Length (l)
12
|
|
|
Material: Copper Alloy - CAC502
Pitch Diameter (C): 10.01 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WG1R-050-020-040-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Worm Gears - Pitch Module 0.5 - 20 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear | ||||||
|
Pitch
Module 0.5
|
Teeth
20
|
Lead Angle
2 Deg 36 Min
|
Direction
Right
|
|
||
|
Material: Copper Alloy - CAC502
Bore (B): 4.000
Overall Length (l): 12
Pitch Diameter (C): 10.01 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WG1R-050-020-040-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Jan 25, 2029 |
||||||
| Worm Gears - Pitch Module 0.5 - 20 tooth - 5 Deg 13 Min Module 0.5 - Copper Alloy - CAC502 Gear | ||||||
|
Pitch
Module 0.5
|
Teeth
20
|
Lead Angle
5 Deg 13 Min
|
Direction
Right
|
Bore (B)
4.000
|
Overall Length (l)
12
|
|
|
Material: Copper Alloy - CAC502
Pitch Diameter (C): 10.04 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WG2R-050-020-040-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Worm Gears - Pitch Module 0.5 - 20 tooth - 5 Deg 13 Min Module 0.5 - Copper Alloy - CAC502 Gear | ||||||
|
Pitch
Module 0.5
|
Teeth
20
|
Lead Angle
5 Deg 13 Min
|
Direction
Right
|
|
||
|
Material: Copper Alloy - CAC502
Bore (B): 4.000
Overall Length (l): 12
Pitch Diameter (C): 10.04 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WG2R-050-020-040-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Jan 25, 2029 |
||||||
| Worm Gears - Pitch Module 0.5 - 30 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear | ||||||
|
Pitch
Module 0.5
|
Teeth
30
|
Lead Angle
2 Deg 36 Min
|
Direction
Right
|
Bore (B)
4.000
|
Overall Length (l)
12
|
|
|
Material: Copper Alloy - CAC502
Pitch Diameter (C): 15.02 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WG1R-050-030-040-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Worm Gears - Pitch Module 0.5 - 30 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear | ||||||
|
Pitch
Module 0.5
|
Teeth
30
|
Lead Angle
2 Deg 36 Min
|
Direction
Right
|
|
||
|
Material: Copper Alloy - CAC502
Bore (B): 4.000
Overall Length (l): 12
Pitch Diameter (C): 15.02 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WG1R-050-030-040-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Jan 25, 2029 |
||||||
| Worm Gears - Pitch Module 0.5 - 30 tooth - 3 Deg 11 Min Module 0.5 - Brass - C3604B Gear | ||||||
|
Pitch
Module 0.5
|
Teeth
30
|
Lead Angle
3 Deg 11 Min
|
Direction
Right
|
Bore (B)
4.000
|
Overall Length (l)
11
|
|
|
Material: Brass - C3604B
Pitch Diameter (C): 15 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WG1R-050-030-040-BR (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Worm Gears - Pitch Module 0.5 - 30 tooth - 3 Deg 11 Min Module 0.5 - Brass - C3604B Gear | ||||||
|
Pitch
Module 0.5
|
Teeth
30
|
Lead Angle
3 Deg 11 Min
|
Direction
Right
|
|
||
|
Material: Brass - C3604B
Bore (B): 4.000
Overall Length (l): 11
Pitch Diameter (C): 15 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WG1R-050-030-040-BR (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Jan 25, 2029 |
||||||
| Worm Gears - Pitch Module 0.5 - 30 tooth - 5 Deg 13 Min Module 0.5 - Copper Alloy - CAC502 Gear | ||||||
|
Pitch
Module 0.5
|
Teeth
30
|
Lead Angle
5 Deg 13 Min
|
Direction
Right
|
Bore (B)
4.000
|
Overall Length (l)
12
|
|
|
Material: Copper Alloy - CAC502
Pitch Diameter (C): 15.06 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WG2R-050-030-040-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Worm Gears - Pitch Module 0.5 - 30 tooth - 5 Deg 13 Min Module 0.5 - Copper Alloy - CAC502 Gear | ||||||
|
Pitch
Module 0.5
|
Teeth
30
|
Lead Angle
5 Deg 13 Min
|
Direction
Right
|
|
||
|
Material: Copper Alloy - CAC502
Bore (B): 4.000
Overall Length (l): 12
Pitch Diameter (C): 15.06 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WG2R-050-030-040-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Jan 25, 2029 |
||||||
| Worm Gears - Pitch Module 0.5 - 40 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear | ||||||
|
Pitch
Module 0.5
|
Teeth
40
|
Lead Angle
2 Deg 36 Min
|
Direction
Right
|
Bore (B)
5.000
|
Overall Length (l)
12
|
|
|
Material: Copper Alloy - CAC502
Pitch Diameter (C): 20.02 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WG1R-050-040-050-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Worm Gears - Pitch Module 0.5 - 40 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear | ||||||
|
Pitch
Module 0.5
|
Teeth
40
|
Lead Angle
2 Deg 36 Min
|
Direction
Right
|
|
||
|
Material: Copper Alloy - CAC502
Bore (B): 5.000
Overall Length (l): 12
Pitch Diameter (C): 20.02 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WG1R-050-040-050-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Jan 25, 2029 |
||||||
| Worm Gears - Pitch Module 0.5 - 40 tooth - 3 Deg 11 Min Module 0.5 - Brass - C3604B Gear | ||||||
|
Pitch
Module 0.5
|
Teeth
40
|
Lead Angle
3 Deg 11 Min
|
Direction
Right
|
Bore (B)
5.000
|
Overall Length (l)
13
|
|
|
Material: Brass - C3604B
Pitch Diameter (C): 20 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WG1R-050-040-050-BR (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Worm Gears - Pitch Module 0.5 - 40 tooth - 3 Deg 11 Min Module 0.5 - Brass - C3604B Gear | ||||||
|
Pitch
Module 0.5
|
Teeth
40
|
Lead Angle
3 Deg 11 Min
|
Direction
Right
|
|
||
|
Material: Brass - C3604B
Bore (B): 5.000
Overall Length (l): 13
Pitch Diameter (C): 20 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WG1R-050-040-050-BR (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Jan 25, 2029 |
||||||
| Worm Gears - Pitch Module 0.5 - 50 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear | ||||||
|
Pitch
Module 0.5
|
Teeth
50
|
Lead Angle
2 Deg 36 Min
|
Direction
Right
|
Bore (B)
5.000
|
Overall Length (l)
12
|
|
|
Material: Copper Alloy - CAC502
Pitch Diameter (C): 25.03 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WG1R-050-050-050-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Worm Gears - Pitch Module 0.5 - 50 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear | ||||||
|
Pitch
Module 0.5
|
Teeth
50
|
Lead Angle
2 Deg 36 Min
|
Direction
Right
|
|
||
|
Material: Copper Alloy - CAC502
Bore (B): 5.000
Overall Length (l): 12
Pitch Diameter (C): 25.03 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WG1R-050-050-050-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Jan 25, 2029 |
||||||
| Worm Gears - Pitch Module 0.5 - 50 tooth - 3 Deg 11 Min Module 0.5 - Brass - C3604B Gear | ||||||
|
Pitch
Module 0.5
|
Teeth
50
|
Lead Angle
3 Deg 11 Min
|
Direction
Right
|
Bore (B)
5.000
|
Overall Length (l)
13
|
|
|
Material: Brass - C3604B
Pitch Diameter (C): 25 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WG1R-050-050-050-BR (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Worm Gears - Pitch Module 0.5 - 50 tooth - 3 Deg 11 Min Module 0.5 - Brass - C3604B Gear | ||||||
|
Pitch
Module 0.5
|
Teeth
50
|
Lead Angle
3 Deg 11 Min
|
Direction
Right
|
|
||
|
Material: Brass - C3604B
Bore (B): 5.000
Overall Length (l): 13
Pitch Diameter (C): 25 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WG1R-050-050-050-BR (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Jan 25, 2029 |
||||||
| Worm Gears - Pitch Module 0.5 - 60 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear | ||||||
|
Pitch
Module 0.5
|
Teeth
60
|
Lead Angle
2 Deg 36 Min
|
Direction
Right
|
Bore (B)
5.000
|
Overall Length (l)
12
|
|
|
Material: Copper Alloy - CAC502
Pitch Diameter (C): 30.03 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WG1R-050-060-050-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Worm Gears - Pitch Module 0.5 - 60 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear | ||||||
|
Pitch
Module 0.5
|
Teeth
60
|
Lead Angle
2 Deg 36 Min
|
Direction
Right
|
|
||
|
Material: Copper Alloy - CAC502
Bore (B): 5.000
Overall Length (l): 12
Pitch Diameter (C): 30.03 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WG1R-050-060-050-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Jan 25, 2029 |
||||||
| Worm Gears - Pitch Module 0.5 - Worm - 1 Start tooth - 3 Deg 11 Min Module 0.5 - 304 Stainless | ||||||
|
Pitch
Module 0.5
|
Teeth
Worm - 1 Start
|
Lead Angle
3 Deg 11 Min
|
Direction
Right
|
Bore (B)
13.000
|
Overall Length (l)
18.00
|
|
|
Material: 304 Stainless
Pitch Diameter (C): 9 mm
Face Width (fw): 3.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WM1R-050-030-130-S4 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Worm Gears - Pitch Module 0.5 - Worm - 1 Start tooth - 3 Deg 11 Min Module 0.5 - 304 Stainless | ||||||
|
Pitch
Module 0.5
|
Teeth
Worm - 1 Start
|
Lead Angle
3 Deg 11 Min
|
Direction
Right
|
|
||
|
Material: 304 Stainless
Bore (B): 13.000
Overall Length (l): 18.00
Pitch Diameter (C): 9 mm
Face Width (fw): 3.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WM1R-050-030-130-S4 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Jan 25, 2029 |
||||||
| Worm Gears - Pitch Module 0.5 - Worm - 1 Start tooth - 2 Deg 36 Min Module 0.5 - 303 Stainless | ||||||
|
Pitch
Module 0.5
|
Teeth
Worm - 1 Start
|
Lead Angle
2 Deg 36 Min
|
Direction
Right
|
Bore (B)
18.000
|
Overall Length (l)
18.00
|
|
|

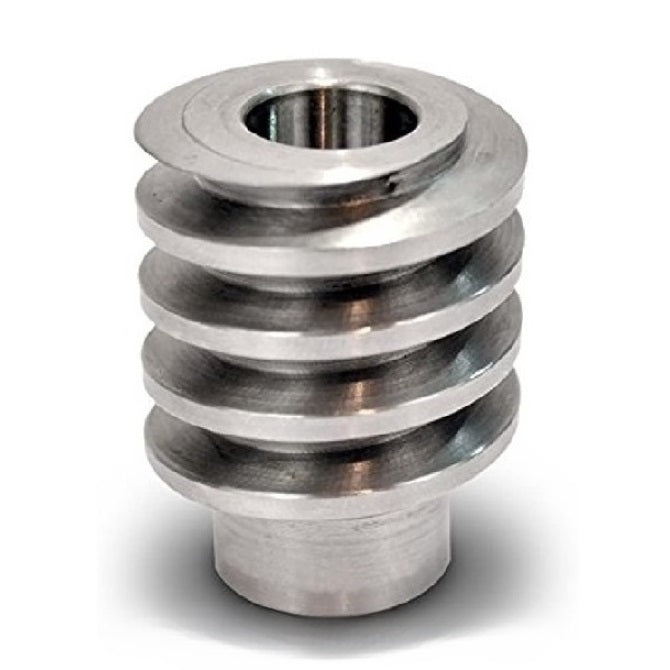

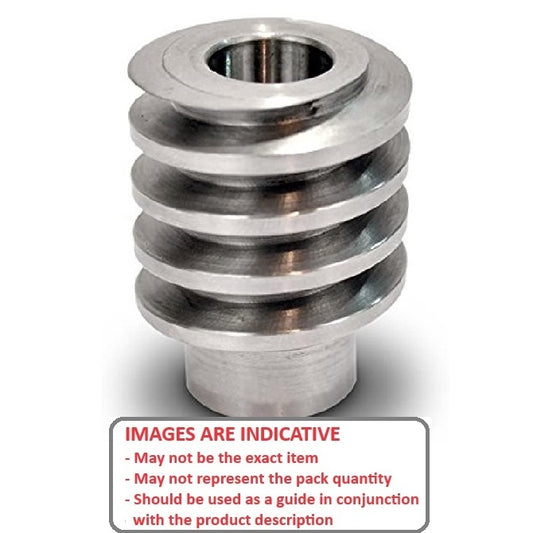

Material: 303 Stainless
Pitch Diameter (C): 11 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WM1R-050-050-180-S3 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Worm Gears - Pitch Module 0.5 - Worm - 1 Start tooth - 2 Deg 36 Min Module 0.5 - 303 Stainless | ||||||
|
Pitch
Module 0.5
|
Teeth
Worm - 1 Start
|
Lead Angle
2 Deg 36 Min
|
Direction
Right
|
|
||
|
Material: 303 Stainless
Bore (B): 18.000
Overall Length (l): 18.00
Pitch Diameter (C): 11 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WM1R-050-050-180-S3 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Jan 25, 2029 |
||||||
| Worm Gears - Pitch Module 0.5 - Worm - 1 Start tooth - 2 Deg 36 Min Module 0.5 - Carbon Steel | ||||||
|
Pitch
Module 0.5
|
Teeth
Worm - 1 Start
|
Lead Angle
2 Deg 36 Min
|
Direction
Right
|
Bore (B)
18.000
|
Overall Length (l)
18.00
|
|
|

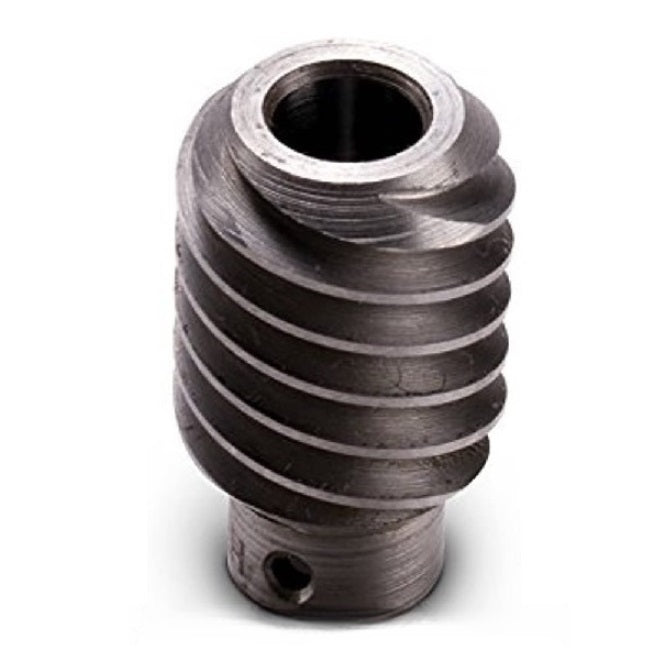

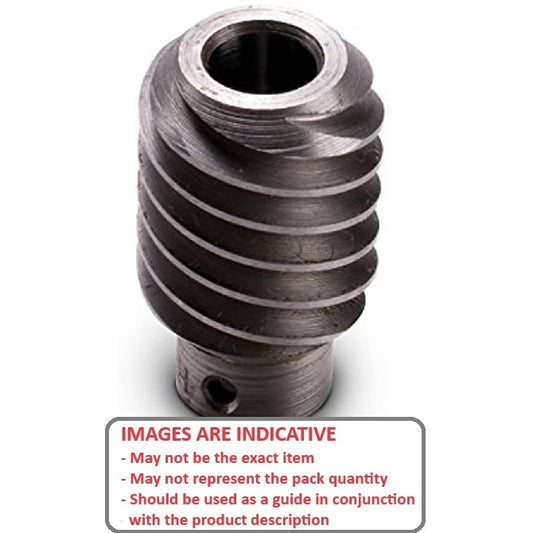

Material: Carbon Steel
Pitch Diameter (C): 11 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WM1R-050-050-180-CS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Worm Gears - Pitch Module 0.5 - Worm - 1 Start tooth - 2 Deg 36 Min Module 0.5 - Carbon Steel | ||||||
|
Pitch
Module 0.5
|
Teeth
Worm - 1 Start
|
Lead Angle
2 Deg 36 Min
|
Direction
Right
|
|
||
|
Material: Carbon Steel
Bore (B): 18.000
Overall Length (l): 18.00
Pitch Diameter (C): 11 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WM1R-050-050-180-CS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Jan 25, 2029 |
||||||
| Worm Gears - Pitch Module 0.5 - Worm - 2 Start tooth - 5 Deg 13 Min Module 0.5 - Carbon Steel | ||||||
|
Pitch
Module 0.5
|
Teeth
Worm - 2 Start
|
Lead Angle
5 Deg 13 Min
|
Direction
Right
|
Bore (B)
18.000
|
Overall Length (l)
18.00
|
|
|
Material: Carbon Steel
Pitch Diameter (C): 11 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WM2R-050-050-180-CS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Worm Gears - Pitch Module 0.5 - Worm - 2 Start tooth - 5 Deg 13 Min Module 0.5 - Carbon Steel | ||||||
|
Pitch
Module 0.5
|
Teeth
Worm - 2 Start
|
Lead Angle
5 Deg 13 Min
|
Direction
Right
|
|
||
|
Material: Carbon Steel
Bore (B): 18.000
Overall Length (l): 18.00
Pitch Diameter (C): 11 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WM2R-050-050-180-CS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Jan 25, 2029 |
||||||
| Worm Gears - Pitch Module 0.5 - Worm - 2 Start tooth - 5 Deg 13 Min Module 0.5 - 303 Stainless | ||||||
|
Pitch
Module 0.5
|
Teeth
Worm - 2 Start
|
Lead Angle
5 Deg 13 Min
|
Direction
Right
|
Bore (B)
18.000
|
Overall Length (l)
18.00
|
|
|
Material: 303 Stainless
Pitch Diameter (C): 11 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WM2R-050-050-180-S3 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Worm Gears - Pitch Module 0.5 - Worm - 2 Start tooth - 5 Deg 13 Min Module 0.5 - 303 Stainless | ||||||
|
Pitch
Module 0.5
|
Teeth
Worm - 2 Start
|
Lead Angle
5 Deg 13 Min
|
Direction
Right
|
|
||
|
Material: 303 Stainless
Bore (B): 18.000
Overall Length (l): 18.00
Pitch Diameter (C): 11 mm
Face Width (fw): 5.00 mm
Category: Gears - Worm - Module 0.5 |
||||||
|
Part Number: WM2R-050-050-180-S3 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Jan 25, 2029 |
||||||
| Worm Gears - Pitch Module 0.8 - 20 tooth - 3 Deg 17 Min Module 0.8 - Copper Alloy - CAC502 Gear | ||||||
|
Pitch
Module 0.8
|
Teeth
20
|
Lead Angle
3 Deg 17 Min
|
Direction
Right
|
Bore (B)
5.000
|
Overall Length (l)
18
|
|
|

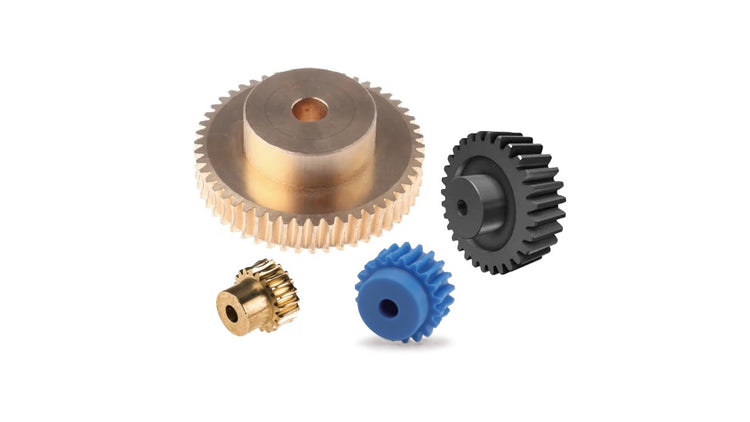

Material: Copper Alloy - CAC502
Pitch Diameter (C): 16.03 mm
Face Width (fw): 9.00 mm
Category: Gears - Worm - Module 0.8 |
||||||
|
Part Number: WG1R-080-020-050-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Worm Gears - Pitch Module 0.8 - 20 tooth - 3 Deg 17 Min Module 0.8 - Copper Alloy - CAC502 Gear | ||||||
|
Pitch
Module 0.8
|
Teeth
20
|
Lead Angle
3 Deg 17 Min
|
Direction
Right
|
|
||
|
Material: Copper Alloy - CAC502
Bore (B): 5.000
Overall Length (l): 18
Pitch Diameter (C): 16.03 mm
Face Width (fw): 9.00 mm
Category: Gears - Worm - Module 0.8 |
||||||
|
Part Number: WG1R-080-020-050-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Jan 25, 2029 |
||||||
| Worm Gears - Pitch Module 0.8 - 20 tooth - 4 Deg 24 Min Module 0.8 - Aluminium Bronze - CAC702 Gear | ||||||
|
Pitch
Module 0.8
|
Teeth
20
|
Lead Angle
4 Deg 24 Min
|
Direction
Right
|
Bore (B)
5.000
|
Overall Length (l)
12
|
|
|
Material: Aluminium Bronze - CAC702
Pitch Diameter (C): 16 mm
Face Width (fw): 6.00 mm
Category: Gears - Worm - Module 0.8 |
||||||
|
Part Number: WG1R-080-020-050-BZ (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Worm Gears - Pitch Module 0.8 - 20 tooth - 4 Deg 24 Min Module 0.8 - Aluminium Bronze - CAC702 Gear | ||||||
|
Pitch
Module 0.8
|
Teeth
20
|
Lead Angle
4 Deg 24 Min
|
Direction
Right
|
|
||
|
Material: Aluminium Bronze - CAC702
Bore (B): 5.000
Overall Length (l): 12
Pitch Diameter (C): 16 mm
Face Width (fw): 6.00 mm
Category: Gears - Worm - Module 0.8 |
||||||
|
Part Number: WG1R-080-020-050-BZ (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Jan 25, 2029 |
||||||
| Worm Gears - Pitch Module 0.8 - 20 tooth - 4 Deg 24 Min Module 0.8 - Polyacetal White Gear | ||||||
|
Pitch
Module 0.8
|
Teeth
20
|
Lead Angle
4 Deg 24 Min
|
Direction
Right
|
Bore (B)
5.000
|
Overall Length (l)
12
|
|
|
Material: Polyacetal (White)
Pitch Diameter (C): 16 mm
Face Width (fw): 6.00 mm
Category: Gears - Worm - Module 0.8 |
||||||
|
Part Number: WG1R-080-020-050-ACE (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Worm Gears - Pitch Module 0.8 - 20 tooth - 4 Deg 24 Min Module 0.8 - Polyacetal White Gear | ||||||
|
Pitch
Module 0.8
|
Teeth
20
|
Lead Angle
4 Deg 24 Min
|
Direction
Right
|
|
||
|
Material: Polyacetal (White)
Bore (B): 5.000
Overall Length (l): 12
Pitch Diameter (C): 16 mm
Face Width (fw): 6.00 mm
Category: Gears - Worm - Module 0.8 |
||||||
|
Part Number: WG1R-080-020-050-ACE (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Jan 25, 2029 |
||||||
| Worm Gears - Pitch Module 0.8 - 20 tooth - 6 Deg 34 Min Module 0.8 - Copper Alloy - CAC502 Gear | ||||||
|
Pitch
Module 0.8
|
Teeth
20
|
Lead Angle
6 Deg 34 Min
|
Direction
Right
|
Bore (B)
5.000
|
Overall Length (l)
18
|
|
|
Material: Copper Alloy - CAC502
Pitch Diameter (C): 16.11 mm
Face Width (fw): 9.00 mm
Category: Gears - Worm - Module 0.8 |
||||||
|
Part Number: WG2R-080-020-050-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Worm Gears - Pitch Module 0.8 - 20 tooth - 6 Deg 34 Min Module 0.8 - Copper Alloy - CAC502 Gear | ||||||
|
Pitch
Module 0.8
|
Teeth
20
|
Lead Angle
6 Deg 34 Min
|
Direction
Right
|
|
||
|
Material: Copper Alloy - CAC502
Bore (B): 5.000
Overall Length (l): 18
Pitch Diameter (C): 16.11 mm
Face Width (fw): 9.00 mm
Category: Gears - Worm - Module 0.8 |
||||||
|
Part Number: WG2R-080-020-050-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Jan 25, 2029 |
||||||
| Worm Gears - Pitch Module 0.8 - 30 tooth - 3 Deg 17 Min Module 0.8 - Copper Alloy - CAC502 Gear | ||||||
|
Pitch
Module 0.8
|
Teeth
30
|
Lead Angle
3 Deg 17 Min
|
Direction
Right
|
Bore (B)
5.000
|
Overall Length (l)
18
|
|
|
Material: Copper Alloy - CAC502
Pitch Diameter (C): 24.04 mm
Face Width (fw): 9.00 mm
Category: Gears - Worm - Module 0.8 |
||||||
|
Part Number: WG1R-080-030-050-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Worm Gears - Pitch Module 0.8 - 30 tooth - 3 Deg 17 Min Module 0.8 - Copper Alloy - CAC502 Gear | ||||||
|
Pitch
Module 0.8
|
Teeth
30
|
Lead Angle
3 Deg 17 Min
|
Direction
Right
|
|
||
|
Material: Copper Alloy - CAC502
Bore (B): 5.000
Overall Length (l): 18
Pitch Diameter (C): 24.04 mm
Face Width (fw): 9.00 mm
Category: Gears - Worm - Module 0.8 |
||||||
|
Part Number: WG1R-080-030-050-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Jan 25, 2029 |
||||||
| Worm Gears - Pitch Module 0.8 - 30 tooth - 4 Deg 24 Min Module 0.8 - Polyacetal White Gear | ||||||
|
Pitch
Module 0.8
|
Teeth
30
|
Lead Angle
4 Deg 24 Min
|
Direction
Right
|
Bore (B)
5.000
|
Overall Length (l)
12
|
|
|
Material: Polyacetal (White)
Pitch Diameter (C): 24 mm
Face Width (fw): 6.00 mm
Category: Gears - Worm - Module 0.8 |
||||||
|
Part Number: WG1R-080-030-050-ACE (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Worm Gears - Pitch Module 0.8 - 30 tooth - 4 Deg 24 Min Module 0.8 - Polyacetal White Gear | ||||||
|
Pitch
Module 0.8
|
Teeth
30
|
Lead Angle
4 Deg 24 Min
|
Direction
Right
|
|
||
|
Material: Polyacetal (White)
Bore (B): 5.000
Overall Length (l): 12
Pitch Diameter (C): 24 mm
Face Width (fw): 6.00 mm
Category: Gears - Worm - Module 0.8 |
||||||
|
Part Number: WG1R-080-030-050-ACE (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Jan 25, 2029 |
||||||
| Worm Gears - Pitch Module 0.8 - 30 tooth - 4 Deg 24 Min Module 0.8 - Aluminium Bronze - CAC702 Gear | ||||||
|
Pitch
Module 0.8
|
Teeth
30
|
Lead Angle
4 Deg 24 Min
|
Direction
Right
|
Bore (B)
5.000
|
Overall Length (l)
12
|
|
|
Material: Aluminium Bronze - CAC702
Pitch Diameter (C): 24 mm
Face Width (fw): 6.00 mm
Category: Gears - Worm - Module 0.8 |
||||||
|
Part Number: WG1R-080-030-050-BZ (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Worm Gears - Pitch Module 0.8 - 30 tooth - 4 Deg 24 Min Module 0.8 - Aluminium Bronze - CAC702 Gear | ||||||
|
Pitch
Module 0.8
|
Teeth
30
|
Lead Angle
4 Deg 24 Min
|
Direction
Right
|
|
||
|
Material: Aluminium Bronze - CAC702
Bore (B): 5.000
Overall Length (l): 12
Pitch Diameter (C): 24 mm
Face Width (fw): 6.00 mm
Category: Gears - Worm - Module 0.8 |
||||||
|
Part Number: WG1R-080-030-050-BZ (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Jan 25, 2029 |
||||||
| Worm Gears - Pitch Module 0.8 - 30 tooth - 6 Deg 34 Min Module 0.8 - Copper Alloy - CAC502 Gear | ||||||
|
Pitch
Module 0.8
|
Teeth
30
|
Lead Angle
6 Deg 34 Min
|
Direction
Right
|
Bore (B)
5.000
|
Overall Length (l)
18
|
|
|
Material: Copper Alloy - CAC502
Pitch Diameter (C): 24.16 mm
Face Width (fw): 9.00 mm
Category: Gears - Worm - Module 0.8 |
||||||
|
Part Number: WG2R-080-030-050-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Worm Gears - Pitch Module 0.8 - 30 tooth - 6 Deg 34 Min Module 0.8 - Copper Alloy - CAC502 Gear | ||||||
|
Pitch
Module 0.8
|
Teeth
30
|
Lead Angle
6 Deg 34 Min
|
Direction
Right
|
|
||
|
Material: Copper Alloy - CAC502
Bore (B): 5.000
Overall Length (l): 18
Pitch Diameter (C): 24.16 mm
Face Width (fw): 9.00 mm
Category: Gears - Worm - Module 0.8 |
||||||
|
Part Number: WG2R-080-030-050-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Jan 25, 2029 |
||||||
