Collection: Gears - Worm - Module 1.0

Gears -> Worm -> Module 1.0

There are 82 products in the sub-categories of Gears - Worm - Module 1.0. Scroll down or follow the link to Gears - Worm - Module 1.0 in the products table to see all these items combined into a handy table with filters.

Category Details

A selection of Module 1.0 Worm Gears. This is the main category in this series

Worms and Gears must be chosen from the same pitch, direction and lead angle match. DP is Diametrical Pitch, which is an imperial standard.
A single start worm and gear will provide a ratio equivalent to the number of teeth on the gear. A double start worm and gear will provide a ratio of half the number of teeth on the gear.
If there is no matching worm for a stocked gear, please contact us for a special procurement. An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Gears - Worm - Module 1.0 category on the Small Parts & Bearings online store.

Pitch	Teeth	Lead Angle	Direction	Bore (B)	Overall Length (l)
Pitch Module 1.0	Teeth 20	Lead Angle 3 Deg 35 Min	Direction Left	Bore (B) 6.000	Overall Length (l) 18
Material: Aluminium Bronze - CAC702 Pitch Diameter (C): 20 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 17 mm Locking Type: Set Screw
Part Number: WG1L-100-020-060-BZ Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $70.68 AUD Regular price Sale price $70.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch	Teeth	Lead Angle	Direction	Indicative Image
Pitch Module 1.0	Teeth 20	Lead Angle 3 Deg 35 Min	Direction Left
Material: Aluminium Bronze - CAC702 Bore (B): 6.000 Overall Length (l): 18 Pitch Diameter (C): 20 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 17 mm Locking Type: Set Screw
Part Number: WG1L-100-020-060-BZ Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $70.68 AUD Regular price Sale price $70.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG1L-100-020-060-BZ --- Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Aluminium Bronze - CAC702 Gear WG1L-100-020-060-BZ --- Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Regular price $70.68 AUD Regular price Sale price $70.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 1.0	Teeth 20	Lead Angle 3 Deg 35 Min	Direction Right	Bore (B) 6.000	Overall Length (l) 17
Material: Polyacetal (White) Pitch Diameter (C): 20 mm Face Width (fw): 8.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 16 mm Locking Type: Set Screw
Part Number: WG1R08-100-020-060-ACE Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Polyacetal White Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $47.95 AUD Regular price Sale price $47.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 1.0	Teeth 20	Lead Angle 3 Deg 35 Min	Direction Right
Material: Polyacetal (White) Bore (B): 6.000 Overall Length (l): 17 Pitch Diameter (C): 20 mm Face Width (fw): 8.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 16 mm Locking Type: Set Screw
Part Number: WG1R08-100-020-060-ACE Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Polyacetal White Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $47.95 AUD Regular price Sale price $47.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG1R08-100-020-060-ACE --- Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Polyacetal White Gear WG1R08-100-020-060-ACE --- Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Polyacetal White Gear Regular price $47.95 AUD Regular price Sale price $47.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 1.0	Teeth 20	Lead Angle 3 Deg 35 Min	Direction Right	Bore (B) 6.000	Overall Length (l) 18
Material: Aluminium Bronze - CAC702 Pitch Diameter (C): 20 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 17 mm Locking Type: Set Screw
Part Number: WG1R-100-020-060-BZ Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $68.68 AUD Regular price Sale price $68.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 1.0	Teeth 20	Lead Angle 3 Deg 35 Min	Direction Right
Material: Aluminium Bronze - CAC702 Bore (B): 6.000 Overall Length (l): 18 Pitch Diameter (C): 20 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 17 mm Locking Type: Set Screw
Part Number: WG1R-100-020-060-BZ Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $68.68 AUD Regular price Sale price $68.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG1R-100-020-060-BZ --- Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Aluminium Bronze - CAC702 Gear WG1R-100-020-060-BZ --- Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Regular price $68.68 AUD Regular price Sale price $68.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 1.0	Teeth 20	Lead Angle 3 Deg 35 Min	Direction Right	Bore (B) 6.000	Overall Length (l) 18
Material: Polyacetal (White) Pitch Diameter (C): 20 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 17 mm
Part Number: WG1R10-100-020-060-ACE Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Polyacetal White Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $20.41 AUD Regular price Sale price $20.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 1.0	Teeth 20	Lead Angle 3 Deg 35 Min	Direction Right
Material: Polyacetal (White) Bore (B): 6.000 Overall Length (l): 18 Pitch Diameter (C): 20 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 17 mm
Part Number: WG1R10-100-020-060-ACE Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Polyacetal White Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $20.41 AUD Regular price Sale price $20.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG1R10-100-020-060-ACE --- Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Polyacetal White Gear WG1R10-100-020-060-ACE --- Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Polyacetal White Gear Regular price $20.41 AUD Regular price Sale price $20.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 1.0	Teeth 20	Lead Angle 3 Deg 35 Min	Direction Right	Bore (B) 6.000	Overall Length (l) 20
Material: Copper Alloy - CAC502 Pitch Diameter (C): 20.05 mm Face Width (fw): 10.00 mm Bore Type: Finished (H7) Hub Diameter (Dh): 16 mm
Part Number: WG1R-100-020-060-COP Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Copper Alloy - CAC502 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $66.41 AUD Regular price Sale price $66.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 1.0	Teeth 20	Lead Angle 3 Deg 35 Min	Direction Right
Material: Copper Alloy - CAC502 Bore (B): 6.000 Overall Length (l): 20 Pitch Diameter (C): 20.05 mm Face Width (fw): 10.00 mm Bore Type: Finished (H7) Hub Diameter (Dh): 16 mm
Part Number: WG1R-100-020-060-COP Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Copper Alloy - CAC502 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $66.41 AUD Regular price Sale price $66.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG1R-100-020-060-COP --- Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Copper Alloy - CAC502 Gear WG1R-100-020-060-COP --- Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Copper Alloy - CAC502 Gear Regular price $66.41 AUD Regular price Sale price $66.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 1.0	Teeth 20	Lead Angle 3 Deg 35 Min	Direction Right	Bore (B) 6.000	Overall Length (l) 20
Material: Copper Alloy - CAC502 Pitch Diameter (C): 20.05 mm Face Width (fw): 10.00 mm Bore Type: Finished (H7) Hub Diameter (Dh): 16 mm Locking Type: Set Screw
Part Number: WG1RP-100-020-060-COP Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Copper Alloy - CAC502 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $95.23 AUD Regular price Sale price $95.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 1.0	Teeth 20	Lead Angle 3 Deg 35 Min	Direction Right
Material: Copper Alloy - CAC502 Bore (B): 6.000 Overall Length (l): 20 Pitch Diameter (C): 20.05 mm Face Width (fw): 10.00 mm Bore Type: Finished (H7) Hub Diameter (Dh): 16 mm Locking Type: Set Screw
Part Number: WG1RP-100-020-060-COP Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Copper Alloy - CAC502 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $95.23 AUD Regular price Sale price $95.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG1RP-100-020-060-COP --- Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Copper Alloy - CAC502 Gear WG1RP-100-020-060-COP --- Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Copper Alloy - CAC502 Gear Regular price $95.23 AUD Regular price Sale price $95.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 1.0	Teeth 20	Lead Angle 7 Deg 11 Min	Direction Left	Bore (B) 6.000	Overall Length (l) 18
Material: Aluminium Bronze - CAC702 Pitch Diameter (C): 20 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 17 mm Locking Type: Set Screw
Part Number: WG2L-100-020-060-BZ Worm Gears - Pitch Module 1.0 - 20 tooth - 7 Deg 11 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $70.68 AUD Regular price Sale price $70.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 1.0	Teeth 20	Lead Angle 7 Deg 11 Min	Direction Left
Material: Aluminium Bronze - CAC702 Bore (B): 6.000 Overall Length (l): 18 Pitch Diameter (C): 20 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 17 mm Locking Type: Set Screw
Part Number: WG2L-100-020-060-BZ Worm Gears - Pitch Module 1.0 - 20 tooth - 7 Deg 11 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $70.68 AUD Regular price Sale price $70.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG2L-100-020-060-BZ --- Worm Gears - Pitch Module 1.0 - 20 tooth - 7 Deg 11 Min Module 1.0 - Aluminium Bronze - CAC702 Gear WG2L-100-020-060-BZ --- Worm Gears - Pitch Module 1.0 - 20 tooth - 7 Deg 11 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Regular price $70.68 AUD Regular price Sale price $70.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 1.0	Teeth 20	Lead Angle 7 Deg 11 Min	Direction Right	Bore (B) 6.000	Overall Length (l) 17
Material: Polyacetal (White) Pitch Diameter (C): 20 mm Face Width (fw): 8.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 16 mm Locking Type: Set Screw
Part Number: WG2R08-100-020-060-ACE Worm Gears - Pitch Module 1.0 - 20 tooth - 7 Deg 11 Min Module 1.0 - Polyacetal White Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $47.95 AUD Regular price Sale price $47.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 1.0	Teeth 20	Lead Angle 7 Deg 11 Min	Direction Right
Material: Polyacetal (White) Bore (B): 6.000 Overall Length (l): 17 Pitch Diameter (C): 20 mm Face Width (fw): 8.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 16 mm Locking Type: Set Screw
Part Number: WG2R08-100-020-060-ACE Worm Gears - Pitch Module 1.0 - 20 tooth - 7 Deg 11 Min Module 1.0 - Polyacetal White Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $47.95 AUD Regular price Sale price $47.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG2R08-100-020-060-ACE --- Worm Gears - Pitch Module 1.0 - 20 tooth - 7 Deg 11 Min Module 1.0 - Polyacetal White Gear WG2R08-100-020-060-ACE --- Worm Gears - Pitch Module 1.0 - 20 tooth - 7 Deg 11 Min Module 1.0 - Polyacetal White Gear Regular price $47.95 AUD Regular price Sale price $47.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 1.0	Teeth 20	Lead Angle 7 Deg 11 Min	Direction Right	Bore (B) 6.000	Overall Length (l) 18
Material: Polyacetal (White) Pitch Diameter (C): 20 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 17 mm
Part Number: WG2R10-100-020-060-ACE Worm Gears - Pitch Module 1.0 - 20 tooth - 7 Deg 11 Min Module 1.0 - Polyacetal White Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $20.41 AUD Regular price Sale price $20.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 1.0	Teeth 20	Lead Angle 7 Deg 11 Min	Direction Right
Material: Polyacetal (White) Bore (B): 6.000 Overall Length (l): 18 Pitch Diameter (C): 20 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 17 mm
Part Number: WG2R10-100-020-060-ACE Worm Gears - Pitch Module 1.0 - 20 tooth - 7 Deg 11 Min Module 1.0 - Polyacetal White Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $20.41 AUD Regular price Sale price $20.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG2R10-100-020-060-ACE --- Worm Gears - Pitch Module 1.0 - 20 tooth - 7 Deg 11 Min Module 1.0 - Polyacetal White Gear WG2R10-100-020-060-ACE --- Worm Gears - Pitch Module 1.0 - 20 tooth - 7 Deg 11 Min Module 1.0 - Polyacetal White Gear Regular price $20.41 AUD Regular price Sale price $20.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 1.0	Teeth 20	Lead Angle 7 Deg 11 Min	Direction Right	Bore (B) 6.000	Overall Length (l) 18
Material: Aluminium Bronze - CAC702 Pitch Diameter (C): 20 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 17 mm Locking Type: Set Screw
Part Number: WG2R-100-020-060-BZ Worm Gears - Pitch Module 1.0 - 20 tooth - 7 Deg 11 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $69.23 AUD Regular price Sale price $69.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 1.0	Teeth 20	Lead Angle 7 Deg 11 Min	Direction Right
Material: Aluminium Bronze - CAC702 Bore (B): 6.000 Overall Length (l): 18 Pitch Diameter (C): 20 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 17 mm Locking Type: Set Screw
Part Number: WG2R-100-020-060-BZ Worm Gears - Pitch Module 1.0 - 20 tooth - 7 Deg 11 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $69.23 AUD Regular price Sale price $69.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG2R-100-020-060-BZ --- Worm Gears - Pitch Module 1.0 - 20 tooth - 7 Deg 11 Min Module 1.0 - Aluminium Bronze - CAC702 Gear WG2R-100-020-060-BZ --- Worm Gears - Pitch Module 1.0 - 20 tooth - 7 Deg 11 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Regular price $69.23 AUD Regular price Sale price $69.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 1.0	Teeth 20	Lead Angle 7 Deg 11 Min	Direction Right	Bore (B) 6.000	Overall Length (l) 20
Material: Copper Alloy - CAC502 Pitch Diameter (C): 20.16 mm Face Width (fw): 10.00 mm Bore Type: Finished (H7) Hub Diameter (Dh): 16 mm Locking Type: Set Screw
Part Number: WG2RP-100-020-060-COP Worm Gears - Pitch Module 1.0 - 20 tooth - 7 Deg 11 Min Module 1.0 - Copper Alloy - CAC502 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $95.23 AUD Regular price Sale price $95.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 1.0	Teeth 20	Lead Angle 7 Deg 11 Min	Direction Right
Material: Copper Alloy - CAC502 Bore (B): 6.000 Overall Length (l): 20 Pitch Diameter (C): 20.16 mm Face Width (fw): 10.00 mm Bore Type: Finished (H7) Hub Diameter (Dh): 16 mm Locking Type: Set Screw
Part Number: WG2RP-100-020-060-COP Worm Gears - Pitch Module 1.0 - 20 tooth - 7 Deg 11 Min Module 1.0 - Copper Alloy - CAC502 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $95.23 AUD Regular price Sale price $95.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG2RP-100-020-060-COP --- Worm Gears - Pitch Module 1.0 - 20 tooth - 7 Deg 11 Min Module 1.0 - Copper Alloy - CAC502 Gear WG2RP-100-020-060-COP --- Worm Gears - Pitch Module 1.0 - 20 tooth - 7 Deg 11 Min Module 1.0 - Copper Alloy - CAC502 Gear Regular price $95.23 AUD Regular price Sale price $95.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 1.0	Teeth 20	Lead Angle 7 Deg 11 Min	Direction Right	Bore (B) 6.000	Overall Length (l) 20
Material: Copper Alloy - CAC502 Pitch Diameter (C): 20.16 mm Face Width (fw): 10.00 mm Bore Type: Finished (H7) Hub Diameter (Dh): 16 mm
Part Number: WG2R-100-020-060-COP Worm Gears - Pitch Module 1.0 - 20 tooth - 7 Deg 11 Min Module 1.0 - Copper Alloy - CAC502 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $66.41 AUD Regular price Sale price $66.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 1.0	Teeth 20	Lead Angle 7 Deg 11 Min	Direction Right
Material: Copper Alloy - CAC502 Bore (B): 6.000 Overall Length (l): 20 Pitch Diameter (C): 20.16 mm Face Width (fw): 10.00 mm Bore Type: Finished (H7) Hub Diameter (Dh): 16 mm
Part Number: WG2R-100-020-060-COP Worm Gears - Pitch Module 1.0 - 20 tooth - 7 Deg 11 Min Module 1.0 - Copper Alloy - CAC502 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $66.41 AUD Regular price Sale price $66.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG2R-100-020-060-COP --- Worm Gears - Pitch Module 1.0 - 20 tooth - 7 Deg 11 Min Module 1.0 - Copper Alloy - CAC502 Gear WG2R-100-020-060-COP --- Worm Gears - Pitch Module 1.0 - 20 tooth - 7 Deg 11 Min Module 1.0 - Copper Alloy - CAC502 Gear Regular price $66.41 AUD Regular price Sale price $66.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 1.0	Teeth 20	Lead Angle 3 Deg 35 Min	Direction Right	Bore (B) 8.000	Overall Length (l) 18
Material: Aluminium Bronze - CAC702 Pitch Diameter (C): 20 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 17 mm Locking Type: Set Screw
Part Number: WG1RP-100-020-080-BZ Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $71.68 AUD Regular price Sale price $71.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 1.0	Teeth 20	Lead Angle 3 Deg 35 Min	Direction Right
Material: Aluminium Bronze - CAC702 Bore (B): 8.000 Overall Length (l): 18 Pitch Diameter (C): 20 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 17 mm Locking Type: Set Screw
Part Number: WG1RP-100-020-080-BZ Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $71.68 AUD Regular price Sale price $71.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG1RP-100-020-080-BZ --- Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Aluminium Bronze - CAC702 Gear WG1RP-100-020-080-BZ --- Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Regular price $71.68 AUD Regular price Sale price $71.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 1.0	Teeth 20	Lead Angle 3 Deg 35 Min	Direction Right	Bore (B) 8.000	Overall Length (l) 18
Material: Aluminium Bronze - CAC702 Pitch Diameter (C): 20 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 17 mm Locking Type: Set Screw
Part Number: WG1R-100-020-080-BZ Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $69.14 AUD Regular price Sale price $69.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 1.0	Teeth 20	Lead Angle 3 Deg 35 Min	Direction Right
Material: Aluminium Bronze - CAC702 Bore (B): 8.000 Overall Length (l): 18 Pitch Diameter (C): 20 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 17 mm Locking Type: Set Screw
Part Number: WG1R-100-020-080-BZ Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $69.14 AUD Regular price Sale price $69.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG1R-100-020-080-BZ --- Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Aluminium Bronze - CAC702 Gear WG1R-100-020-080-BZ --- Worm Gears - Pitch Module 1.0 - 20 tooth - 3 Deg 35 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Regular price $69.14 AUD Regular price Sale price $69.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 1.0	Teeth 20	Lead Angle 7 Deg 11 Min	Direction Right	Bore (B) 8.000	Overall Length (l) 18
Material: Aluminium Bronze - CAC702 Pitch Diameter (C): 20 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 17 mm Locking Type: Set Screw
Part Number: WG2R-100-020-080-BZ Worm Gears - Pitch Module 1.0 - 20 tooth - 7 Deg 11 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $69.14 AUD Regular price Sale price $69.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 1.0	Teeth 20	Lead Angle 7 Deg 11 Min	Direction Right
Material: Aluminium Bronze - CAC702 Bore (B): 8.000 Overall Length (l): 18 Pitch Diameter (C): 20 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 17 mm Locking Type: Set Screw
Part Number: WG2R-100-020-080-BZ Worm Gears - Pitch Module 1.0 - 20 tooth - 7 Deg 11 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $69.14 AUD Regular price Sale price $69.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG2R-100-020-080-BZ --- Worm Gears - Pitch Module 1.0 - 20 tooth - 7 Deg 11 Min Module 1.0 - Aluminium Bronze - CAC702 Gear WG2R-100-020-080-BZ --- Worm Gears - Pitch Module 1.0 - 20 tooth - 7 Deg 11 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Regular price $69.14 AUD Regular price Sale price $69.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 1.0	Teeth 30	Lead Angle 3 Deg 35 Min	Direction Left	Bore (B) 6.000	Overall Length (l) 18
Material: Aluminium Bronze - CAC702 Pitch Diameter (C): 30 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 22 mm Locking Type: Set Screw
Part Number: WG1L-100-030-060-BZ Worm Gears - Pitch Module 1.0 - 30 tooth - 3 Deg 35 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $94.23 AUD Regular price Sale price $94.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 1.0	Teeth 30	Lead Angle 3 Deg 35 Min	Direction Left
Material: Aluminium Bronze - CAC702 Bore (B): 6.000 Overall Length (l): 18 Pitch Diameter (C): 30 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 22 mm Locking Type: Set Screw
Part Number: WG1L-100-030-060-BZ Worm Gears - Pitch Module 1.0 - 30 tooth - 3 Deg 35 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $94.23 AUD Regular price Sale price $94.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG1L-100-030-060-BZ --- Worm Gears - Pitch Module 1.0 - 30 tooth - 3 Deg 35 Min Module 1.0 - Aluminium Bronze - CAC702 Gear WG1L-100-030-060-BZ --- Worm Gears - Pitch Module 1.0 - 30 tooth - 3 Deg 35 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Regular price $94.23 AUD Regular price Sale price $94.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 1.0	Teeth 30	Lead Angle 3 Deg 35 Min	Direction Right	Bore (B) 6.000	Overall Length (l) 17
Material: Polyacetal (White) Pitch Diameter (C): 30 mm Face Width (fw): 8.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 20 mm Locking Type: Set Screw
Part Number: WG1R08-100-030-060-ACE Worm Gears - Pitch Module 1.0 - 30 tooth - 3 Deg 35 Min Module 1.0 - Polyacetal White Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $57.50 AUD Regular price Sale price $57.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 1.0	Teeth 30	Lead Angle 3 Deg 35 Min	Direction Right
Material: Polyacetal (White) Bore (B): 6.000 Overall Length (l): 17 Pitch Diameter (C): 30 mm Face Width (fw): 8.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 20 mm Locking Type: Set Screw
Part Number: WG1R08-100-030-060-ACE Worm Gears - Pitch Module 1.0 - 30 tooth - 3 Deg 35 Min Module 1.0 - Polyacetal White Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $57.50 AUD Regular price Sale price $57.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG1R08-100-030-060-ACE --- Worm Gears - Pitch Module 1.0 - 30 tooth - 3 Deg 35 Min Module 1.0 - Polyacetal White Gear WG1R08-100-030-060-ACE --- Worm Gears - Pitch Module 1.0 - 30 tooth - 3 Deg 35 Min Module 1.0 - Polyacetal White Gear Regular price $57.50 AUD Regular price Sale price $57.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 1.0	Teeth 30	Lead Angle 3 Deg 35 Min	Direction Right	Bore (B) 6.000	Overall Length (l) 18
Material: Polyacetal (White) Pitch Diameter (C): 30 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 22 mm
Part Number: WG1R10-100-030-060-ACE Worm Gears - Pitch Module 1.0 - 30 tooth - 3 Deg 35 Min Module 1.0 - Polyacetal White Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $29.32 AUD Regular price Sale price $29.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 1.0	Teeth 30	Lead Angle 3 Deg 35 Min	Direction Right
Material: Polyacetal (White) Bore (B): 6.000 Overall Length (l): 18 Pitch Diameter (C): 30 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 22 mm
Part Number: WG1R10-100-030-060-ACE Worm Gears - Pitch Module 1.0 - 30 tooth - 3 Deg 35 Min Module 1.0 - Polyacetal White Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $29.32 AUD Regular price Sale price $29.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG1R10-100-030-060-ACE --- Worm Gears - Pitch Module 1.0 - 30 tooth - 3 Deg 35 Min Module 1.0 - Polyacetal White Gear WG1R10-100-030-060-ACE --- Worm Gears - Pitch Module 1.0 - 30 tooth - 3 Deg 35 Min Module 1.0 - Polyacetal White Gear Regular price $29.32 AUD Regular price Sale price $29.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 1.0	Teeth 30	Lead Angle 3 Deg 35 Min	Direction Right	Bore (B) 6.000	Overall Length (l) 18
Material: Aluminium Bronze - CAC702 Pitch Diameter (C): 30 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 22 mm Locking Type: Set Screw
Part Number: WG1R-100-030-060-BZ Worm Gears - Pitch Module 1.0 - 30 tooth - 3 Deg 35 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $92.23 AUD Regular price Sale price $92.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 1.0	Teeth 30	Lead Angle 3 Deg 35 Min	Direction Right
Material: Aluminium Bronze - CAC702 Bore (B): 6.000 Overall Length (l): 18 Pitch Diameter (C): 30 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 22 mm Locking Type: Set Screw
Part Number: WG1R-100-030-060-BZ Worm Gears - Pitch Module 1.0 - 30 tooth - 3 Deg 35 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $92.23 AUD Regular price Sale price $92.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG1R-100-030-060-BZ --- Worm Gears - Pitch Module 1.0 - 30 tooth - 3 Deg 35 Min Module 1.0 - Aluminium Bronze - CAC702 Gear WG1R-100-030-060-BZ --- Worm Gears - Pitch Module 1.0 - 30 tooth - 3 Deg 35 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Regular price $92.23 AUD Regular price Sale price $92.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 1.0	Teeth 30	Lead Angle 3 Deg 35 Min	Direction Right	Bore (B) 6.000	Overall Length (l) 20
Material: Copper Alloy - CAC502 Pitch Diameter (C): 30.07 mm Face Width (fw): 10.00 mm Bore Type: Finished (H7) Hub Diameter (Dh): 20 mm
Part Number: WG1R-100-030-060-COP Worm Gears - Pitch Module 1.0 - 30 tooth - 3 Deg 35 Min Module 1.0 - Copper Alloy - CAC502 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $85.59 AUD Regular price Sale price $85.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 1.0	Teeth 30	Lead Angle 3 Deg 35 Min	Direction Right
Material: Copper Alloy - CAC502 Bore (B): 6.000 Overall Length (l): 20 Pitch Diameter (C): 30.07 mm Face Width (fw): 10.00 mm Bore Type: Finished (H7) Hub Diameter (Dh): 20 mm
Part Number: WG1R-100-030-060-COP Worm Gears - Pitch Module 1.0 - 30 tooth - 3 Deg 35 Min Module 1.0 - Copper Alloy - CAC502 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $85.59 AUD Regular price Sale price $85.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG1R-100-030-060-COP --- Worm Gears - Pitch Module 1.0 - 30 tooth - 3 Deg 35 Min Module 1.0 - Copper Alloy - CAC502 Gear WG1R-100-030-060-COP --- Worm Gears - Pitch Module 1.0 - 30 tooth - 3 Deg 35 Min Module 1.0 - Copper Alloy - CAC502 Gear Regular price $85.59 AUD Regular price Sale price $85.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 1.0	Teeth 30	Lead Angle 3 Deg 35 Min	Direction Right	Bore (B) 6.000	Overall Length (l) 20
Material: Copper Alloy - CAC502 Pitch Diameter (C): 30.07 mm Face Width (fw): 10.00 mm Bore Type: Finished (H7) Hub Diameter (Dh): 20 mm Locking Type: Set Screw
Part Number: WG1RP-100-030-060-COP Worm Gears - Pitch Module 1.0 - 30 tooth - 3 Deg 35 Min Module 1.0 - Copper Alloy - CAC502 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $114.41 AUD Regular price Sale price $114.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 1.0	Teeth 30	Lead Angle 3 Deg 35 Min	Direction Right
Material: Copper Alloy - CAC502 Bore (B): 6.000 Overall Length (l): 20 Pitch Diameter (C): 30.07 mm Face Width (fw): 10.00 mm Bore Type: Finished (H7) Hub Diameter (Dh): 20 mm Locking Type: Set Screw
Part Number: WG1RP-100-030-060-COP Worm Gears - Pitch Module 1.0 - 30 tooth - 3 Deg 35 Min Module 1.0 - Copper Alloy - CAC502 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $114.41 AUD Regular price Sale price $114.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG1RP-100-030-060-COP --- Worm Gears - Pitch Module 1.0 - 30 tooth - 3 Deg 35 Min Module 1.0 - Copper Alloy - CAC502 Gear WG1RP-100-030-060-COP --- Worm Gears - Pitch Module 1.0 - 30 tooth - 3 Deg 35 Min Module 1.0 - Copper Alloy - CAC502 Gear Regular price $114.41 AUD Regular price Sale price $114.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 1.0	Teeth 30	Lead Angle 7 Deg 11 Min	Direction Left	Bore (B) 6.000	Overall Length (l) 18
Material: Aluminium Bronze - CAC702 Pitch Diameter (C): 30 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 22 mm Locking Type: Set Screw
Part Number: WG2L-100-030-060-BZ Worm Gears - Pitch Module 1.0 - 30 tooth - 7 Deg 11 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $94.23 AUD Regular price Sale price $94.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 1.0	Teeth 30	Lead Angle 7 Deg 11 Min	Direction Left
Material: Aluminium Bronze - CAC702 Bore (B): 6.000 Overall Length (l): 18 Pitch Diameter (C): 30 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 22 mm Locking Type: Set Screw
Part Number: WG2L-100-030-060-BZ Worm Gears - Pitch Module 1.0 - 30 tooth - 7 Deg 11 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $94.23 AUD Regular price Sale price $94.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG2L-100-030-060-BZ --- Worm Gears - Pitch Module 1.0 - 30 tooth - 7 Deg 11 Min Module 1.0 - Aluminium Bronze - CAC702 Gear WG2L-100-030-060-BZ --- Worm Gears - Pitch Module 1.0 - 30 tooth - 7 Deg 11 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Regular price $94.23 AUD Regular price Sale price $94.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 1.0	Teeth 30	Lead Angle 7 Deg 11 Min	Direction Right	Bore (B) 6.000	Overall Length (l) 18

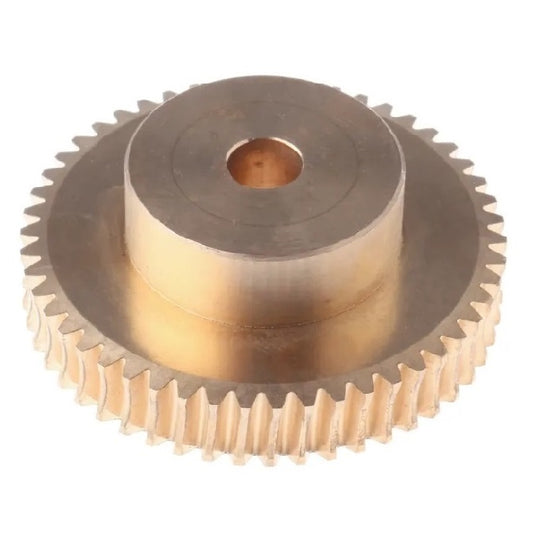

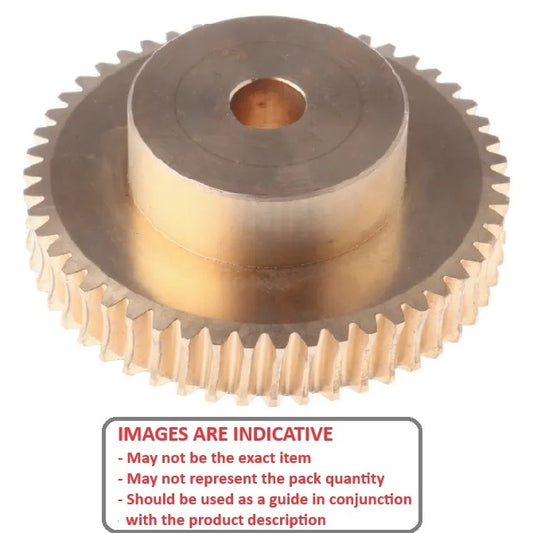

Material: Aluminium Bronze - CAC702 Pitch Diameter (C): 30 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 22 mm Locking Type: Set Screw
Part Number: WG2R-100-030-060-BZ Worm Gears - Pitch Module 1.0 - 30 tooth - 7 Deg 11 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $92.23 AUD Regular price Sale price $92.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 1.0	Teeth 30	Lead Angle 7 Deg 11 Min	Direction Right
Material: Aluminium Bronze - CAC702 Bore (B): 6.000 Overall Length (l): 18 Pitch Diameter (C): 30 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 22 mm Locking Type: Set Screw
Part Number: WG2R-100-030-060-BZ Worm Gears - Pitch Module 1.0 - 30 tooth - 7 Deg 11 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $92.23 AUD Regular price Sale price $92.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG2R-100-030-060-BZ --- Worm Gears - Pitch Module 1.0 - 30 tooth - 7 Deg 11 Min Module 1.0 - Aluminium Bronze - CAC702 Gear WG2R-100-030-060-BZ --- Worm Gears - Pitch Module 1.0 - 30 tooth - 7 Deg 11 Min Module 1.0 - Aluminium Bronze - CAC702 Gear Regular price $92.23 AUD Regular price Sale price $92.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 1.0	Teeth 30	Lead Angle 7 Deg 11 Min	Direction Right	Bore (B) 6.000	Overall Length (l) 18
Material: Polyacetal (White) Pitch Diameter (C): 30 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 22 mm
Part Number: WG2R-100-030-060-ACE Worm Gears - Pitch Module 1.0 - 30 tooth - 7 Deg 11 Min Module 1.0 - Polyacetal White Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $30.23 AUD Regular price Sale price $30.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 1.0	Teeth 30	Lead Angle 7 Deg 11 Min	Direction Right
Material: Polyacetal (White) Bore (B): 6.000 Overall Length (l): 18 Pitch Diameter (C): 30 mm Face Width (fw): 10.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 22 mm
Part Number: WG2R-100-030-060-ACE Worm Gears - Pitch Module 1.0 - 30 tooth - 7 Deg 11 Min Module 1.0 - Polyacetal White Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $30.23 AUD Regular price Sale price $30.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG2R-100-030-060-ACE --- Worm Gears - Pitch Module 1.0 - 30 tooth - 7 Deg 11 Min Module 1.0 - Polyacetal White Gear WG2R-100-030-060-ACE --- Worm Gears - Pitch Module 1.0 - 30 tooth - 7 Deg 11 Min Module 1.0 - Polyacetal White Gear Regular price $30.23 AUD Regular price Sale price $30.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now

Country/region

Miniature Bearings Australia

Collection: Gears - Worm - Module 1.0

Category Details

Filter

Filter

Subscribe to our emails
