Locknuts

Category Details

Combined category including sub-categories of locknuts. These include stainless insert.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Locknuts category on the Small Parts & Bearings online store.
Thread Size Diameter Distance from Groove to Groove Depth of Groove (T) Thickness of Groove (S) Overall Thickness Indicative
Thread Size
M12 Super Fine (12x1mm)

Diameter
22-0.2
mm

(Equiv. 0.866 in.)
Distance from Groove to Groove
18-0.2
mm

(Equiv. 0.709 in.)
Depth of Groove (T)
2.00
mm
Thickness of Groove (S)
3+/-0.1
mm
Overall Thickness
5.4+/-0.3
mm

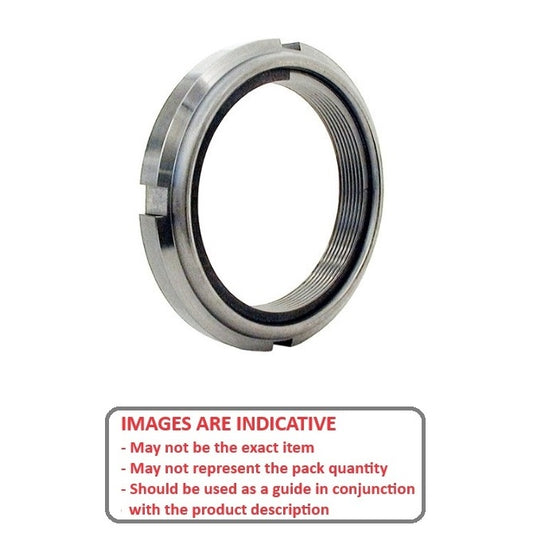

Stainless Insert Locknuts - M12 Super Fine -12x1mm- 22-0.2 - 18-0.2
Nut Prevailing Torque: 1.30 Nm    Max Tightening: 23.50 Nm
Category:
Part Number: FU01SS-OUK
Stainless Insert Locknuts - M12 Super Fine - 12x1mm - 22-0.2 - 18-0.2
4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity
$22.00 AUD
$41.80 AUD $22.00 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

4 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Thread Size Diameter Distance from Groove to Groove Depth of Groove (T) Indicative
Thread Size
M12 Super Fine (12x1mm)

Diameter
22-0.2
mm

(Equiv. 0.866 in.)
Distance from Groove to Groove
18-0.2
mm

(Equiv. 0.709 in.)
Depth of Groove (T)
2.00
mm
Stainless Insert Locknuts - M12 Super Fine -12x1mm- 22-0.2 - 18-0.2
Thickness of Groove (S): 3+/-0.1 mm    Overall Thickness: 5.4+/-0.3 mm    Nut Prevailing Torque: 1.30 Nm    Max Tightening: 23.50 Nm
Category:
Part Number: FU01SS-OUK
Stainless Insert Locknuts - M12 Super Fine - 12x1mm - 22-0.2 - 18-0.2
4 Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity
$22.00 AUD
$41.80 AUD $22.00 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

4 Available Now. These are priced to quit. Please contact us for a quote if you require more.
