Locking Assemblies

Category Details

Combined category including sub-categories of locking assemblies. These include flanged.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Locking Assemblies category on the Small Parts & Bearings online store.
ID x OD (d x D) D1 L Overall L1 L Transmittable Torque (T) Indicative
ID x OD (d x D)
10 x 16
mm

(Equiv. 0.394 in.)
D1
29.0
mm

(Equiv. 1.142 in.)
L Overall
31.0
mm

(Equiv. 1.22 in.)
L1
14.0
mm
L
27.0
mm
Transmittable Torque (T)
50
Nm

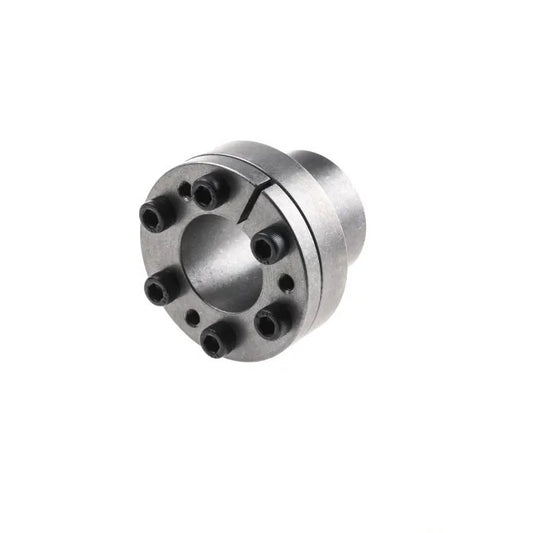

Flanged Locking Assemblies - 10 x 16 29x31 mm
Transmittable Axial Force: 9 kN    Contact Pressure Shaft pw: 125 N/mm2
Category:
Part Number: PSV2010.1-10
Flanged Locking Assemblies - 10 x 16 29x31 mm
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
ID x OD (d x D) D1 L Overall L1 Indicative
ID x OD (d x D)
10 x 16
mm

(Equiv. 0.394 in.)
D1
29.0
mm

(Equiv. 1.142 in.)
L Overall
31.0
mm

(Equiv. 1.22 in.)
L1
14.0
mm

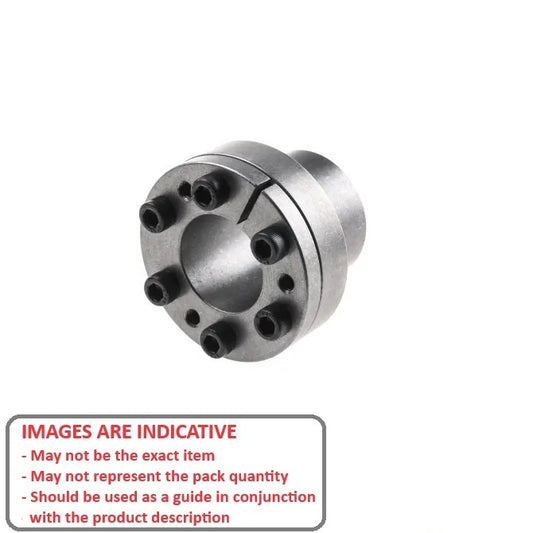

Flanged Locking Assemblies - 10 x 16 29x31 mm
L: 27.0 mm    Transmittable Torque (T): 50 Nm    Transmittable Axial Force: 9 kN    Contact Pressure Shaft pw: 125 N/mm2
Category:
Part Number: PSV2010.1-10
Flanged Locking Assemblies - 10 x 16 29x31 mm
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$20.00 AUD
$38.00 AUD $20.00 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
