Collection: Gears - Worm - 48DP

Gears -> Worm -> 48DP

There are 4 products in the sub-categories of Gears - Worm - 48DP. Browse the Gears - Worm - 48DP products table.

Category Details

A selection of 48DP Worm Gears. This is the main category in this series

Worms and Gears must be chosen from the same pitch, direction and lead angle match. DP is Diametrical Pitch, which is an imperial standard.
A single start worm and gear will provide a ratio equivalent to the number of teeth on the gear. A double start worm and gear will provide a ratio of half the number of teeth on the gear.
If there is no matching worm for a stocked gear, please contact us for a special procurement. An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Gears - Worm - 48DP category on the Small Parts & Bearings online store.

Pitch	Teeth	Lead Angle	Direction	Bore (B)	Overall Length (l)

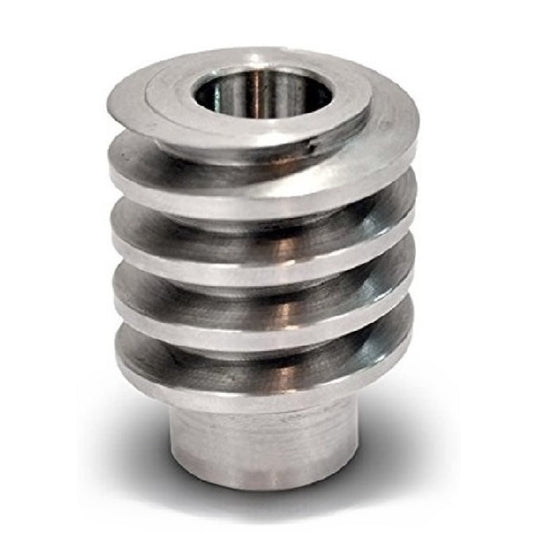

Pitch 48DP	Teeth Worm - 1 Start	Lead Angle 3 Deg 45 Min with 14.5 Deg Pressure Angle	Direction Right Hand	Bore (B) 3.170	Overall Length (l) 19.050
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Pitch Diameter (C): 8.382 mm Face Width (fw): 14.288 mm Bore Type: Finished Hub Diameter (Dh): 7.925 mm Locking Type: Set Screw (2-56)
Part Number: WM1R48-1-019HS032-303 Worm Gears - Pitch 48DP - Worm - 1 Start tooth - 3 Deg 45 Min with 14.5 Deg Pressure Angle 48DP - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Contact Us \| Special Order Only - Please contact us if you need a large quantity
Pitch	Teeth	Lead Angle	Direction	Indicative Image
Pitch 48DP	Teeth Worm - 1 Start	Lead Angle 3 Deg 45 Min with 14.5 Deg Pressure Angle	Direction Right Hand
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Bore (B): 3.170 Overall Length (l): 19.050 Pitch Diameter (C): 8.382 mm Face Width (fw): 14.288 mm Bore Type: Finished Hub Diameter (Dh): 7.925 mm Locking Type: Set Screw (2-56)
Part Number: WM1R48-1-019HS032-303 Worm Gears - Pitch 48DP - Worm - 1 Start tooth - 3 Deg 45 Min with 14.5 Deg Pressure Angle 48DP - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Orders can be expected around Tue, Jul 11, 2028
Pitch 48DP	Teeth Worm - 1 Start	Lead Angle 3 Deg 45 Min with 14.5 Deg Pressure Angle	Direction Right Hand	Bore (B) 4.757	Overall Length (l) 19.050
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Pitch Diameter (C): 8.382 mm Face Width (fw): 14.288 mm Bore Type: Finished Hub Diameter (Dh): 7.925 mm Locking Type: Set Screw (4-40)
Part Number: WM1R48-1-019HS048-303 Worm Gears - Pitch 48DP - Worm - 1 Start tooth - 3 Deg 45 Min with 14.5 Deg Pressure Angle 48DP - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Contact Us \| Special Order Only - Please contact us if you need a large quantity
Pitch 48DP	Teeth Worm - 1 Start	Lead Angle 3 Deg 45 Min with 14.5 Deg Pressure Angle	Direction Right Hand
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Bore (B): 4.757 Overall Length (l): 19.050 Pitch Diameter (C): 8.382 mm Face Width (fw): 14.288 mm Bore Type: Finished Hub Diameter (Dh): 7.925 mm Locking Type: Set Screw (4-40)
Part Number: WM1R48-1-019HS048-303 Worm Gears - Pitch 48DP - Worm - 1 Start tooth - 3 Deg 45 Min with 14.5 Deg Pressure Angle 48DP - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Orders can be expected around Tue, Jul 11, 2028

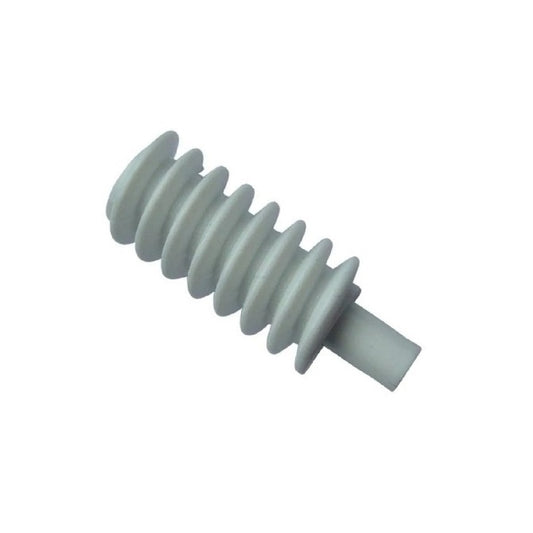

Pitch 48DP	Teeth Worm - 1 Start	Lead Angle 3 Deg 45 Min with 14.5 Deg Pressure Angle	Direction Right Hand	Bore (B) 4.762	Overall Length (l) 18.653
Material: Nylon (Polyamide 6/6) Pitch Diameter (C): 8.458 mm Face Width (fw): 13.891 mm Bore Type: Finished Hub Diameter (Dh): 6.604 mm Locking Type: No Locking
Part Number: WM1R48-1-019HP048-NY Worm Gears - Pitch 48DP - Worm - 1 Start tooth - 3 Deg 45 Min with 14.5 Deg Pressure Angle 48DP - Nylon Polyamide 6/6 Contact Us \| Special Order Only - Please contact us if you need a large quantity
Pitch 48DP	Teeth Worm - 1 Start	Lead Angle 3 Deg 45 Min with 14.5 Deg Pressure Angle	Direction Right Hand
Material: Nylon (Polyamide 6/6) Bore (B): 4.762 Overall Length (l): 18.653 Pitch Diameter (C): 8.458 mm Face Width (fw): 13.891 mm Bore Type: Finished Hub Diameter (Dh): 6.604 mm Locking Type: No Locking
Part Number: WM1R48-1-019HP048-NY Worm Gears - Pitch 48DP - Worm - 1 Start tooth - 3 Deg 45 Min with 14.5 Deg Pressure Angle 48DP - Nylon Polyamide 6/6 Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Orders can be expected around Tue, Jul 11, 2028
Pitch 48DP	Teeth 30	Lead Angle 3 Deg 45 Min with 14.5 Deg Pressure Angle	Direction Right Hand	Bore (B) 4.757	Overall Length (l) 10.351
Material: Bronze Pitch Diameter (C): 15.88 mm Face Width (fw): 4.762 mm Bore Type: Finished Hub Diameter (Dh): 9.52 mm Locking Type: Set Screw Deleted Item. Available while stocks last.

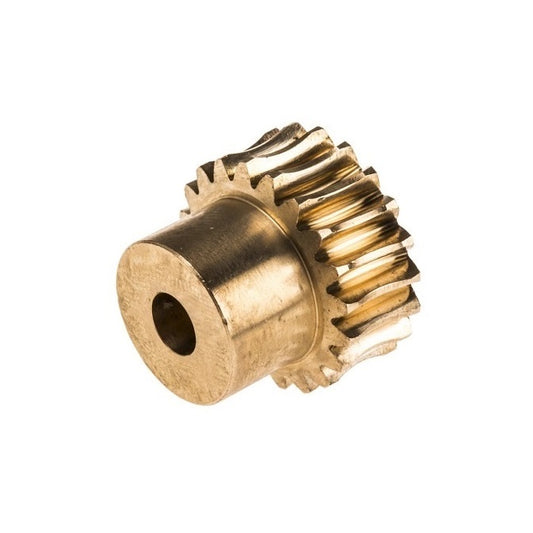

Part Number: WG1R48-030-05HS0476-BRZ Worm Gears - Pitch 48DP - 30 tooth - 3 Deg 45 Min with 14.5 Deg Pressure Angle 48DP - Bronze 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Pitch 48DP	Teeth 30	Lead Angle 3 Deg 45 Min with 14.5 Deg Pressure Angle	Direction Right Hand
Material: Bronze Bore (B): 4.757 Overall Length (l): 10.351 Pitch Diameter (C): 15.88 mm Face Width (fw): 4.762 mm Bore Type: Finished Hub Diameter (Dh): 9.52 mm Locking Type: Set Screw Deleted Item. Available while stocks last.
Part Number: WG1R48-030-05HS0476-BRZ Worm Gears - Pitch 48DP - 30 tooth - 3 Deg 45 Min with 14.5 Deg Pressure Angle 48DP - Bronze 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
WG1R48-030-05HS0476-BRZ --- Worm Gears - Pitch 48DP - 30 tooth - 3 Deg 45 Min with 14.5 Deg Pressure Angle 48DP - Bronze Sale WG1R48-030-05HS0476-BRZ --- Worm Gears - Pitch 48DP - 30 tooth - 3 Deg 45 Min with 14.5 Deg Pressure Angle 48DP - Bronze Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 1 Available Now Sale
