Collection: Gears - Worm - Module 0.5

Gears -> Worm -> Module 0.5

There are 16 products in the sub-categories of Gears - Worm - Module 0.5. Browse the Gears - Worm - Module 0.5 products table.

Category Details

A selection of Module 0.5 Worm Gears. This is the main category in this series

Worms and Gears must be chosen from the same pitch, direction and lead angle match. DP is Diametrical Pitch, which is an imperial standard.
A single start worm and gear will provide a ratio equivalent to the number of teeth on the gear. A double start worm and gear will provide a ratio of half the number of teeth on the gear.
If there is no matching worm for a stocked gear, please contact us for a special procurement. An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Gears - Worm - Module 0.5 category on the Small Parts & Bearings online store.

Pitch	Teeth	Lead Angle	Direction	Bore (B)	Overall Length (l)

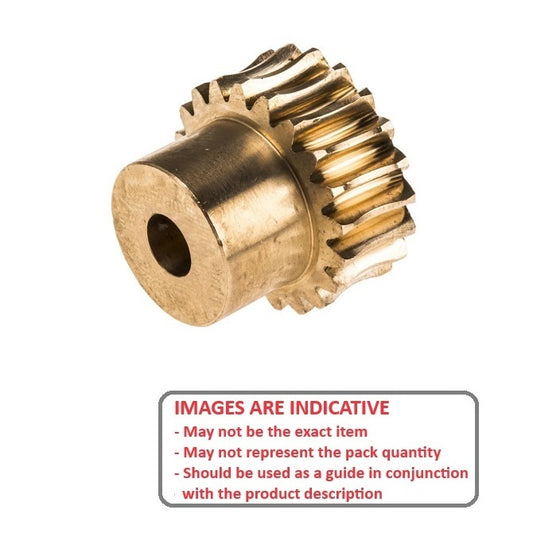

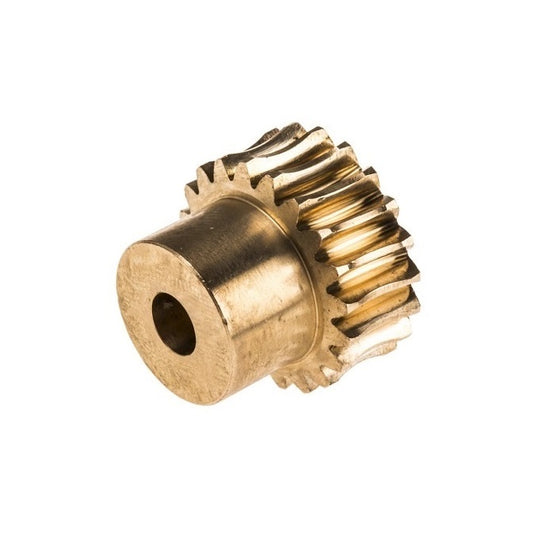

Pitch Module 0.5	Teeth 20	Lead Angle 3 Deg 11 Min	Direction Right	Bore (B) 3.000	Overall Length (l) 11
Material: Brass - C3604B Pitch Diameter (C): 10 mm Face Width (fw): 5.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 9 mm Locking Type: Set Screw
Part Number: WG1R-050-020-030-BR Worm Gears - Pitch Module 0.5 - 20 tooth - 3 Deg 11 Min Module 0.5 - Brass - C3604B Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $56.95 AUD Regular price Sale price $56.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch	Teeth	Lead Angle	Direction	Indicative Image
Pitch Module 0.5	Teeth 20	Lead Angle 3 Deg 11 Min	Direction Right
Material: Brass - C3604B Bore (B): 3.000 Overall Length (l): 11 Pitch Diameter (C): 10 mm Face Width (fw): 5.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 9 mm Locking Type: Set Screw
Part Number: WG1R-050-020-030-BR Worm Gears - Pitch Module 0.5 - 20 tooth - 3 Deg 11 Min Module 0.5 - Brass - C3604B Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $56.95 AUD Regular price Sale price $56.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG1R-050-020-030-BR --- Worm Gears - Pitch Module 0.5 - 20 tooth - 3 Deg 11 Min Module 0.5 - Brass - C3604B Gear WG1R-050-020-030-BR --- Worm Gears - Pitch Module 0.5 - 20 tooth - 3 Deg 11 Min Module 0.5 - Brass - C3604B Gear Regular price $56.95 AUD Regular price Sale price $56.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 0.5	Teeth 20	Lead Angle 2 Deg 36 Min	Direction Right	Bore (B) 4.000	Overall Length (l) 12
Material: Copper Alloy - CAC502 Pitch Diameter (C): 10.01 mm Face Width (fw): 5.00 mm Bore Type: Finished (H7) Hub Diameter (Dh): 9 mm Locking Type: Set Screw
Part Number: WG1R-050-020-040-COP Worm Gears - Pitch Module 0.5 - 20 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $43.59 AUD Regular price Sale price $43.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 0.5	Teeth 20	Lead Angle 2 Deg 36 Min	Direction Right
Material: Copper Alloy - CAC502 Bore (B): 4.000 Overall Length (l): 12 Pitch Diameter (C): 10.01 mm Face Width (fw): 5.00 mm Bore Type: Finished (H7) Hub Diameter (Dh): 9 mm Locking Type: Set Screw
Part Number: WG1R-050-020-040-COP Worm Gears - Pitch Module 0.5 - 20 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $43.59 AUD Regular price Sale price $43.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG1R-050-020-040-COP --- Worm Gears - Pitch Module 0.5 - 20 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear WG1R-050-020-040-COP --- Worm Gears - Pitch Module 0.5 - 20 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear Regular price $43.59 AUD Regular price Sale price $43.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 0.5	Teeth 20	Lead Angle 5 Deg 13 Min	Direction Right	Bore (B) 4.000	Overall Length (l) 12
Material: Copper Alloy - CAC502 Pitch Diameter (C): 10.04 mm Face Width (fw): 5.00 mm Bore Type: Finished (H7) Hub Diameter (Dh): 9 mm Locking Type: Set Screw
Part Number: WG2R-050-020-040-COP Worm Gears - Pitch Module 0.5 - 20 tooth - 5 Deg 13 Min Module 0.5 - Copper Alloy - CAC502 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $43.59 AUD Regular price Sale price $43.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 0.5	Teeth 20	Lead Angle 5 Deg 13 Min	Direction Right
Material: Copper Alloy - CAC502 Bore (B): 4.000 Overall Length (l): 12 Pitch Diameter (C): 10.04 mm Face Width (fw): 5.00 mm Bore Type: Finished (H7) Hub Diameter (Dh): 9 mm Locking Type: Set Screw
Part Number: WG2R-050-020-040-COP Worm Gears - Pitch Module 0.5 - 20 tooth - 5 Deg 13 Min Module 0.5 - Copper Alloy - CAC502 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $43.59 AUD Regular price Sale price $43.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG2R-050-020-040-COP --- Worm Gears - Pitch Module 0.5 - 20 tooth - 5 Deg 13 Min Module 0.5 - Copper Alloy - CAC502 Gear WG2R-050-020-040-COP --- Worm Gears - Pitch Module 0.5 - 20 tooth - 5 Deg 13 Min Module 0.5 - Copper Alloy - CAC502 Gear Regular price $43.59 AUD Regular price Sale price $43.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 0.5	Teeth 30	Lead Angle 2 Deg 36 Min	Direction Right	Bore (B) 4.000	Overall Length (l) 12
Material: Copper Alloy - CAC502 Pitch Diameter (C): 15.02 mm Face Width (fw): 5.00 mm Bore Type: Finished (H7) Hub Diameter (Dh): 12 mm Locking Type: Set Screw
Part Number: WG1R-050-030-040-COP Worm Gears - Pitch Module 0.5 - 30 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $54.86 AUD Regular price Sale price $54.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 0.5	Teeth 30	Lead Angle 2 Deg 36 Min	Direction Right
Material: Copper Alloy - CAC502 Bore (B): 4.000 Overall Length (l): 12 Pitch Diameter (C): 15.02 mm Face Width (fw): 5.00 mm Bore Type: Finished (H7) Hub Diameter (Dh): 12 mm Locking Type: Set Screw
Part Number: WG1R-050-030-040-COP Worm Gears - Pitch Module 0.5 - 30 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $54.86 AUD Regular price Sale price $54.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG1R-050-030-040-COP --- Worm Gears - Pitch Module 0.5 - 30 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear WG1R-050-030-040-COP --- Worm Gears - Pitch Module 0.5 - 30 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear Regular price $54.86 AUD Regular price Sale price $54.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 0.5	Teeth 30	Lead Angle 3 Deg 11 Min	Direction Right	Bore (B) 4.000	Overall Length (l) 11
Material: Brass - C3604B Pitch Diameter (C): 15 mm Face Width (fw): 5.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 12 mm Locking Type: Set Screw
Part Number: WG1R-050-030-040-BR Worm Gears - Pitch Module 0.5 - 30 tooth - 3 Deg 11 Min Module 0.5 - Brass - C3604B Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $60.23 AUD Regular price Sale price $60.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 0.5	Teeth 30	Lead Angle 3 Deg 11 Min	Direction Right
Material: Brass - C3604B Bore (B): 4.000 Overall Length (l): 11 Pitch Diameter (C): 15 mm Face Width (fw): 5.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 12 mm Locking Type: Set Screw
Part Number: WG1R-050-030-040-BR Worm Gears - Pitch Module 0.5 - 30 tooth - 3 Deg 11 Min Module 0.5 - Brass - C3604B Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $60.23 AUD Regular price Sale price $60.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG1R-050-030-040-BR --- Worm Gears - Pitch Module 0.5 - 30 tooth - 3 Deg 11 Min Module 0.5 - Brass - C3604B Gear WG1R-050-030-040-BR --- Worm Gears - Pitch Module 0.5 - 30 tooth - 3 Deg 11 Min Module 0.5 - Brass - C3604B Gear Regular price $60.23 AUD Regular price Sale price $60.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 0.5	Teeth 30	Lead Angle 5 Deg 13 Min	Direction Right	Bore (B) 4.000	Overall Length (l) 12
Material: Copper Alloy - CAC502 Pitch Diameter (C): 15.06 mm Face Width (fw): 5.00 mm Bore Type: Finished (H7) Hub Diameter (Dh): 12 mm Locking Type: Set Screw
Part Number: WG2R-050-030-040-COP Worm Gears - Pitch Module 0.5 - 30 tooth - 5 Deg 13 Min Module 0.5 - Copper Alloy - CAC502 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $54.86 AUD Regular price Sale price $54.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 0.5	Teeth 30	Lead Angle 5 Deg 13 Min	Direction Right
Material: Copper Alloy - CAC502 Bore (B): 4.000 Overall Length (l): 12 Pitch Diameter (C): 15.06 mm Face Width (fw): 5.00 mm Bore Type: Finished (H7) Hub Diameter (Dh): 12 mm Locking Type: Set Screw
Part Number: WG2R-050-030-040-COP Worm Gears - Pitch Module 0.5 - 30 tooth - 5 Deg 13 Min Module 0.5 - Copper Alloy - CAC502 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $54.86 AUD Regular price Sale price $54.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG2R-050-030-040-COP --- Worm Gears - Pitch Module 0.5 - 30 tooth - 5 Deg 13 Min Module 0.5 - Copper Alloy - CAC502 Gear WG2R-050-030-040-COP --- Worm Gears - Pitch Module 0.5 - 30 tooth - 5 Deg 13 Min Module 0.5 - Copper Alloy - CAC502 Gear Regular price $54.86 AUD Regular price Sale price $54.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 0.5	Teeth 40	Lead Angle 2 Deg 36 Min	Direction Right	Bore (B) 5.000	Overall Length (l) 12
Material: Copper Alloy - CAC502 Pitch Diameter (C): 20.02 mm Face Width (fw): 5.00 mm Bore Type: Finished (H7) Hub Diameter (Dh): 15 mm Locking Type: Set Screw
Part Number: WG1R-050-040-050-COP Worm Gears - Pitch Module 0.5 - 40 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $66.05 AUD Regular price Sale price $66.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 0.5	Teeth 40	Lead Angle 2 Deg 36 Min	Direction Right
Material: Copper Alloy - CAC502 Bore (B): 5.000 Overall Length (l): 12 Pitch Diameter (C): 20.02 mm Face Width (fw): 5.00 mm Bore Type: Finished (H7) Hub Diameter (Dh): 15 mm Locking Type: Set Screw
Part Number: WG1R-050-040-050-COP Worm Gears - Pitch Module 0.5 - 40 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $66.05 AUD Regular price Sale price $66.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG1R-050-040-050-COP --- Worm Gears - Pitch Module 0.5 - 40 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear WG1R-050-040-050-COP --- Worm Gears - Pitch Module 0.5 - 40 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear Regular price $66.05 AUD Regular price Sale price $66.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 0.5	Teeth 40	Lead Angle 3 Deg 11 Min	Direction Right	Bore (B) 5.000	Overall Length (l) 13
Material: Brass - C3604B Pitch Diameter (C): 20 mm Face Width (fw): 5.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 15 mm Locking Type: Set Screw
Part Number: WG1R-050-040-050-BR Worm Gears - Pitch Module 0.5 - 40 tooth - 3 Deg 11 Min Module 0.5 - Brass - C3604B Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $65.50 AUD Regular price Sale price $65.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 0.5	Teeth 40	Lead Angle 3 Deg 11 Min	Direction Right
Material: Brass - C3604B Bore (B): 5.000 Overall Length (l): 13 Pitch Diameter (C): 20 mm Face Width (fw): 5.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 15 mm Locking Type: Set Screw
Part Number: WG1R-050-040-050-BR Worm Gears - Pitch Module 0.5 - 40 tooth - 3 Deg 11 Min Module 0.5 - Brass - C3604B Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $65.50 AUD Regular price Sale price $65.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG1R-050-040-050-BR --- Worm Gears - Pitch Module 0.5 - 40 tooth - 3 Deg 11 Min Module 0.5 - Brass - C3604B Gear WG1R-050-040-050-BR --- Worm Gears - Pitch Module 0.5 - 40 tooth - 3 Deg 11 Min Module 0.5 - Brass - C3604B Gear Regular price $65.50 AUD Regular price Sale price $65.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now

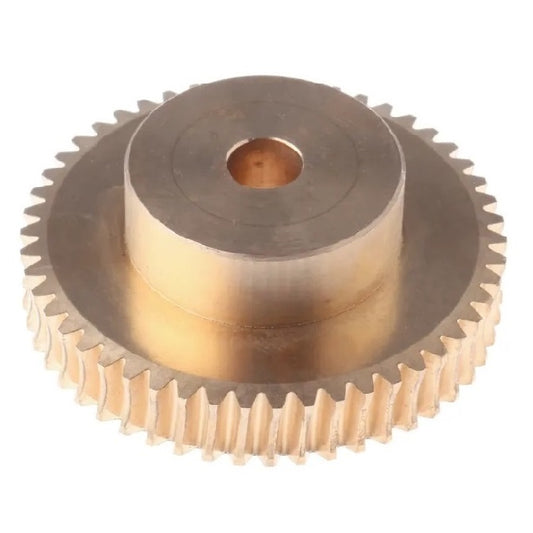

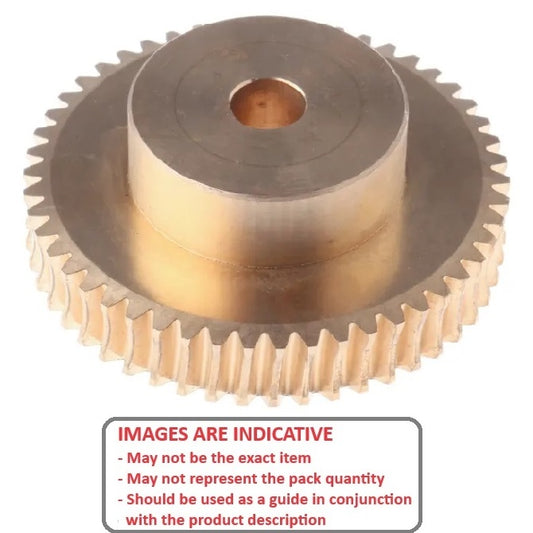

Pitch Module 0.5	Teeth 50	Lead Angle 2 Deg 36 Min	Direction Right	Bore (B) 5.000	Overall Length (l) 12
Material: Copper Alloy - CAC502 Pitch Diameter (C): 25.03 mm Face Width (fw): 5.00 mm Bore Type: Finished (H7) Hub Diameter (Dh): 20 mm Locking Type: Set Screw
Part Number: WG1R-050-050-050-COP Worm Gears - Pitch Module 0.5 - 50 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $77.41 AUD Regular price Sale price $77.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 0.5	Teeth 50	Lead Angle 2 Deg 36 Min	Direction Right
Material: Copper Alloy - CAC502 Bore (B): 5.000 Overall Length (l): 12 Pitch Diameter (C): 25.03 mm Face Width (fw): 5.00 mm Bore Type: Finished (H7) Hub Diameter (Dh): 20 mm Locking Type: Set Screw
Part Number: WG1R-050-050-050-COP Worm Gears - Pitch Module 0.5 - 50 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $77.41 AUD Regular price Sale price $77.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG1R-050-050-050-COP --- Worm Gears - Pitch Module 0.5 - 50 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear WG1R-050-050-050-COP --- Worm Gears - Pitch Module 0.5 - 50 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear Regular price $77.41 AUD Regular price Sale price $77.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 0.5	Teeth 50	Lead Angle 3 Deg 11 Min	Direction Right	Bore (B) 5.000	Overall Length (l) 13
Material: Brass - C3604B Pitch Diameter (C): 25 mm Face Width (fw): 5.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 16 mm Locking Type: Set Screw
Part Number: WG1R-050-050-050-BR Worm Gears - Pitch Module 0.5 - 50 tooth - 3 Deg 11 Min Module 0.5 - Brass - C3604B Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $72.05 AUD Regular price Sale price $72.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 0.5	Teeth 50	Lead Angle 3 Deg 11 Min	Direction Right
Material: Brass - C3604B Bore (B): 5.000 Overall Length (l): 13 Pitch Diameter (C): 25 mm Face Width (fw): 5.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 16 mm Locking Type: Set Screw
Part Number: WG1R-050-050-050-BR Worm Gears - Pitch Module 0.5 - 50 tooth - 3 Deg 11 Min Module 0.5 - Brass - C3604B Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $72.05 AUD Regular price Sale price $72.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG1R-050-050-050-BR --- Worm Gears - Pitch Module 0.5 - 50 tooth - 3 Deg 11 Min Module 0.5 - Brass - C3604B Gear WG1R-050-050-050-BR --- Worm Gears - Pitch Module 0.5 - 50 tooth - 3 Deg 11 Min Module 0.5 - Brass - C3604B Gear Regular price $72.05 AUD Regular price Sale price $72.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 0.5	Teeth 60	Lead Angle 2 Deg 36 Min	Direction Right	Bore (B) 5.000	Overall Length (l) 12
Material: Copper Alloy - CAC502 Pitch Diameter (C): 30.03 mm Face Width (fw): 5.00 mm Bore Type: Finished (H7) Hub Diameter (Dh): 25 mm Locking Type: Set Screw
Part Number: WG1R-050-060-050-COP Worm Gears - Pitch Module 0.5 - 60 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $88.77 AUD Regular price Sale price $88.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 0.5	Teeth 60	Lead Angle 2 Deg 36 Min	Direction Right
Material: Copper Alloy - CAC502 Bore (B): 5.000 Overall Length (l): 12 Pitch Diameter (C): 30.03 mm Face Width (fw): 5.00 mm Bore Type: Finished (H7) Hub Diameter (Dh): 25 mm Locking Type: Set Screw
Part Number: WG1R-050-060-050-COP Worm Gears - Pitch Module 0.5 - 60 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $88.77 AUD Regular price Sale price $88.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WG1R-050-060-050-COP --- Worm Gears - Pitch Module 0.5 - 60 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear WG1R-050-060-050-COP --- Worm Gears - Pitch Module 0.5 - 60 tooth - 2 Deg 36 Min Module 0.5 - Copper Alloy - CAC502 Gear Regular price $88.77 AUD Regular price Sale price $88.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now

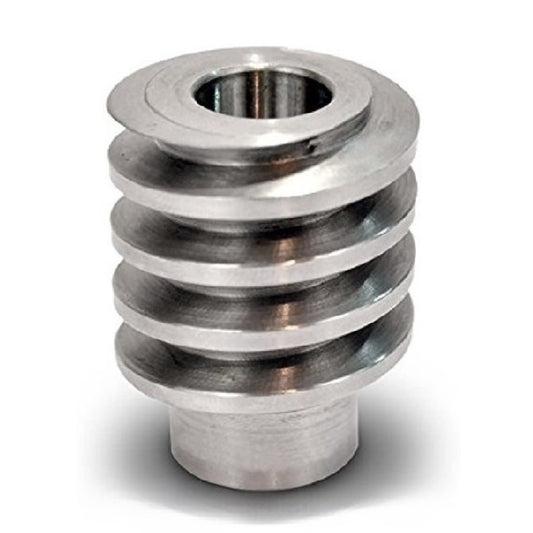

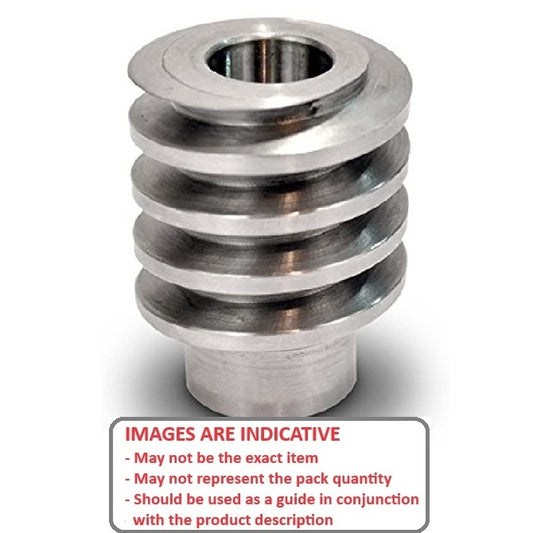

Pitch Module 0.5	Teeth Worm - 1 Start	Lead Angle 3 Deg 11 Min	Direction Right	Bore (B) 13.000	Overall Length (l) 18.00
Material: 304 Stainless Pitch Diameter (C): 9 mm Face Width (fw): 3.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 7.60 mm Locking Type: Set Screw
Part Number: WM1R-050-030-130-S4 Worm Gears - Pitch Module 0.5 - Worm - 1 Start tooth - 3 Deg 11 Min Module 0.5 - 304 Stainless Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $54.23 AUD Regular price Sale price $54.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 0.5	Teeth Worm - 1 Start	Lead Angle 3 Deg 11 Min	Direction Right
Material: 304 Stainless Bore (B): 13.000 Overall Length (l): 18.00 Pitch Diameter (C): 9 mm Face Width (fw): 3.00 mm Bore Type: Finished (H8) Hub Diameter (Dh): 7.60 mm Locking Type: Set Screw
Part Number: WM1R-050-030-130-S4 Worm Gears - Pitch Module 0.5 - Worm - 1 Start tooth - 3 Deg 11 Min Module 0.5 - 304 Stainless Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $54.23 AUD Regular price Sale price $54.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WM1R-050-030-130-S4 --- Worm Gears - Pitch Module 0.5 - Worm - 1 Start tooth - 3 Deg 11 Min Module 0.5 - 304 Stainless WM1R-050-030-130-S4 --- Worm Gears - Pitch Module 0.5 - Worm - 1 Start tooth - 3 Deg 11 Min Module 0.5 - 304 Stainless Regular price $54.23 AUD Regular price Sale price $54.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now

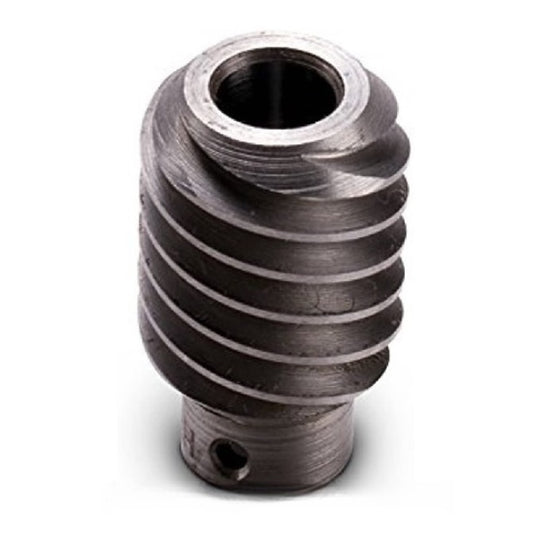

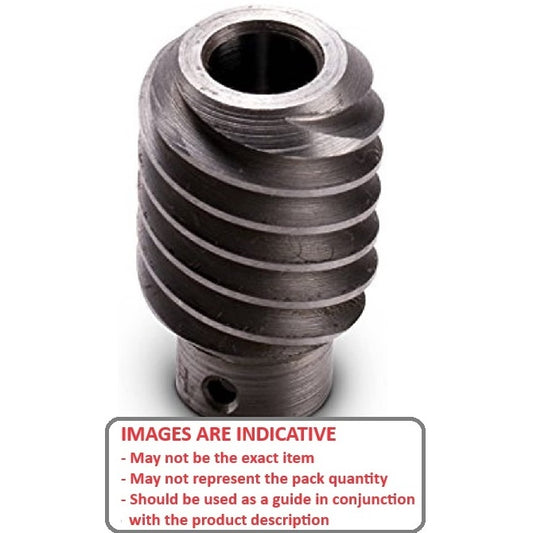

Pitch Module 0.5	Teeth Worm - 1 Start	Lead Angle 2 Deg 36 Min	Direction Right	Bore (B) 18.000	Overall Length (l) 18.00
Material: Carbon Steel Pitch Diameter (C): 11 mm Face Width (fw): 5.00 mm Bore Type: Finished (H7) Locking Type: Set Screw
Part Number: WM1R-050-050-180-CS Worm Gears - Pitch Module 0.5 - Worm - 1 Start tooth - 2 Deg 36 Min Module 0.5 - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $29.77 AUD Regular price Sale price $29.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 0.5	Teeth Worm - 1 Start	Lead Angle 2 Deg 36 Min	Direction Right
Material: Carbon Steel Bore (B): 18.000 Overall Length (l): 18.00 Pitch Diameter (C): 11 mm Face Width (fw): 5.00 mm Bore Type: Finished (H7) Locking Type: Set Screw
Part Number: WM1R-050-050-180-CS Worm Gears - Pitch Module 0.5 - Worm - 1 Start tooth - 2 Deg 36 Min Module 0.5 - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $29.77 AUD Regular price Sale price $29.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WM1R-050-050-180-CS --- Worm Gears - Pitch Module 0.5 - Worm - 1 Start tooth - 2 Deg 36 Min Module 0.5 - Carbon Steel WM1R-050-050-180-CS --- Worm Gears - Pitch Module 0.5 - Worm - 1 Start tooth - 2 Deg 36 Min Module 0.5 - Carbon Steel Regular price $29.77 AUD Regular price Sale price $29.77 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 0.5	Teeth Worm - 1 Start	Lead Angle 2 Deg 36 Min	Direction Right	Bore (B) 18.000	Overall Length (l) 18.00
Material: 303 Stainless Pitch Diameter (C): 11 mm Face Width (fw): 5.00 mm Bore Type: Finished (H8) Locking Type: Set Screw
Part Number: WM1R-050-050-180-S3 Worm Gears - Pitch Module 0.5 - Worm - 1 Start tooth - 2 Deg 36 Min Module 0.5 - 303 Stainless Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $64.95 AUD Regular price Sale price $64.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 0.5	Teeth Worm - 1 Start	Lead Angle 2 Deg 36 Min	Direction Right
Material: 303 Stainless Bore (B): 18.000 Overall Length (l): 18.00 Pitch Diameter (C): 11 mm Face Width (fw): 5.00 mm Bore Type: Finished (H8) Locking Type: Set Screw
Part Number: WM1R-050-050-180-S3 Worm Gears - Pitch Module 0.5 - Worm - 1 Start tooth - 2 Deg 36 Min Module 0.5 - 303 Stainless Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $64.95 AUD Regular price Sale price $64.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WM1R-050-050-180-S3 --- Worm Gears - Pitch Module 0.5 - Worm - 1 Start tooth - 2 Deg 36 Min Module 0.5 - 303 Stainless WM1R-050-050-180-S3 --- Worm Gears - Pitch Module 0.5 - Worm - 1 Start tooth - 2 Deg 36 Min Module 0.5 - 303 Stainless Regular price $64.95 AUD Regular price Sale price $64.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 0.5	Teeth Worm - 2 Start	Lead Angle 5 Deg 13 Min	Direction Right	Bore (B) 18.000	Overall Length (l) 18.00
Material: Carbon Steel Pitch Diameter (C): 11 mm Face Width (fw): 5.00 mm Bore Type: Finished (H7) Locking Type: Set Screw
Part Number: WM2R-050-050-180-CS Worm Gears - Pitch Module 0.5 - Worm - 2 Start tooth - 5 Deg 13 Min Module 0.5 - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $30.23 AUD Regular price Sale price $30.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 0.5	Teeth Worm - 2 Start	Lead Angle 5 Deg 13 Min	Direction Right
Material: Carbon Steel Bore (B): 18.000 Overall Length (l): 18.00 Pitch Diameter (C): 11 mm Face Width (fw): 5.00 mm Bore Type: Finished (H7) Locking Type: Set Screw
Part Number: WM2R-050-050-180-CS Worm Gears - Pitch Module 0.5 - Worm - 2 Start tooth - 5 Deg 13 Min Module 0.5 - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $30.23 AUD Regular price Sale price $30.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WM2R-050-050-180-CS --- Worm Gears - Pitch Module 0.5 - Worm - 2 Start tooth - 5 Deg 13 Min Module 0.5 - Carbon Steel WM2R-050-050-180-CS --- Worm Gears - Pitch Module 0.5 - Worm - 2 Start tooth - 5 Deg 13 Min Module 0.5 - Carbon Steel Regular price $30.23 AUD Regular price Sale price $30.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Pitch Module 0.5	Teeth Worm - 2 Start	Lead Angle 5 Deg 13 Min	Direction Right	Bore (B) 18.000	Overall Length (l) 18.00
Material: 303 Stainless Pitch Diameter (C): 11 mm Face Width (fw): 5.00 mm Bore Type: Finished (H8) Locking Type: Set Screw
Part Number: WM2R-050-050-180-S3 Worm Gears - Pitch Module 0.5 - Worm - 2 Start tooth - 5 Deg 13 Min Module 0.5 - 303 Stainless Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $64.05 AUD Regular price Sale price $64.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Pitch Module 0.5	Teeth Worm - 2 Start	Lead Angle 5 Deg 13 Min	Direction Right
Material: 303 Stainless Bore (B): 18.000 Overall Length (l): 18.00 Pitch Diameter (C): 11 mm Face Width (fw): 5.00 mm Bore Type: Finished (H8) Locking Type: Set Screw
Part Number: WM2R-050-050-180-S3 Worm Gears - Pitch Module 0.5 - Worm - 2 Start tooth - 5 Deg 13 Min Module 0.5 - 303 Stainless Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $64.05 AUD Regular price Sale price $64.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
WM2R-050-050-180-S3 --- Worm Gears - Pitch Module 0.5 - Worm - 2 Start tooth - 5 Deg 13 Min Module 0.5 - 303 Stainless WM2R-050-050-180-S3 --- Worm Gears - Pitch Module 0.5 - Worm - 2 Start tooth - 5 Deg 13 Min Module 0.5 - 303 Stainless Regular price $64.05 AUD Regular price Sale price $64.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
