Gears - Worm - Module 1.5

Gears -> Worm -> Module 1.5

There are 57 products in the sub-categories of Gears - Worm - Module 1.5. Scroll down or follow the link to Gears - Worm - Module 1.5 in the products table to see all these items combined into a handy table with filters.

Category Details

A selection of Module 1.5 Worm Gears. This is the main category in this series

  • Worms and Gears must be chosen from the same pitch, direction and lead angle match. DP is Diametrical Pitch, which is an imperial standard.
  • A single start worm and gear will provide a ratio equivalent to the number of teeth on the gear. A double start worm and gear will provide a ratio of half the number of teeth on the gear.
  • If there is no matching worm for a stocked gear, please contact us for a special procurement. An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Gears - Worm - Module 1.5 category on the Small Parts & Bearings online store.
Pitch Teeth Lead Angle Direction Bore (B) Overall Length (l) Indicative

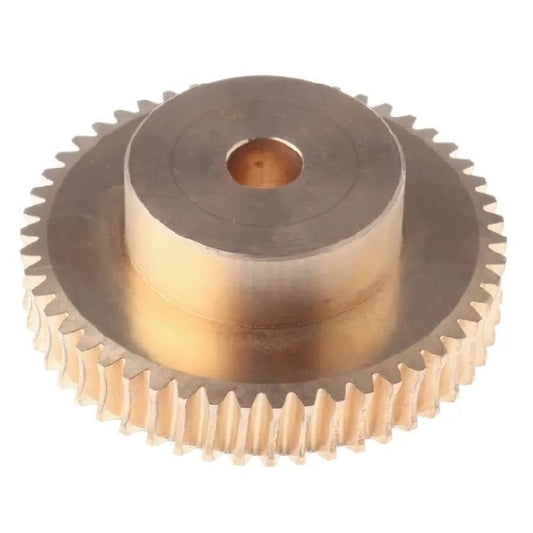

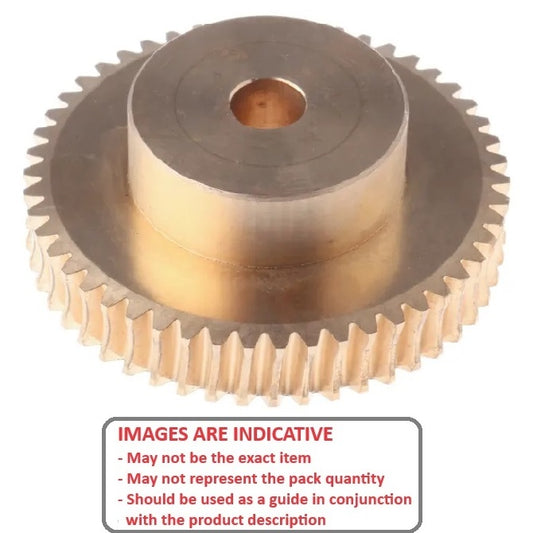

Worm Gears - Pitch Module 1.5 - 20 tooth - 3 Deg 26 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
20
Lead Angle
3 Deg 26 Min
Direction
Right
Bore (B)
8.000
Overall Length (l)
22
Worm Gears - Pitch Module 1.5 20 - 3 Deg 26 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Pitch Diameter (C): 30.05 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7)    Hub Diameter (Dh): 22 mm
Part Number: WG1R-150-020-080-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Pitch Teeth Lead Angle Direction Indicative
Worm Gears - Pitch Module 1.5 - 20 tooth - 3 Deg 26 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
20
Lead Angle
3 Deg 26 Min
Direction
Right
Worm Gears - Pitch Module 1.5 20 - 3 Deg 26 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Bore (B): 8.000    Overall Length (l): 22    Pitch Diameter (C): 30.05 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7)    Hub Diameter (Dh): 22 mm
Part Number: WG1R-150-020-080-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 03, 2029
Worm Gears - Pitch Module 1.5 - 20 tooth - 3 Deg 26 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
20
Lead Angle
3 Deg 26 Min
Direction
Right
Bore (B)
8.000
Overall Length (l)
22
Worm Gears - Pitch Module 1.5 20 - 3 Deg 26 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Pitch Diameter (C): 30.05 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7)    Hub Diameter (Dh): 22 mm    Locking Type: Set Screw
Part Number: WG1RP-150-020-080-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Worm Gears - Pitch Module 1.5 - 20 tooth - 3 Deg 26 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
20
Lead Angle
3 Deg 26 Min
Direction
Right
Worm Gears - Pitch Module 1.5 20 - 3 Deg 26 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Bore (B): 8.000    Overall Length (l): 22    Pitch Diameter (C): 30.05 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7)    Hub Diameter (Dh): 22 mm    Locking Type: Set Screw
Part Number: WG1RP-150-020-080-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 03, 2029
Worm Gears - Pitch Module 1.5 - 20 tooth - 6 Deg 54 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
20
Lead Angle
6 Deg 54 Min
Direction
Right
Bore (B)
8.000
Overall Length (l)
22
Worm Gears - Pitch Module 1.5 20 - 6 Deg 54 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Pitch Diameter (C): 30.22 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7)    Hub Diameter (Dh): 22 mm
Part Number: WG2R-150-020-080-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Worm Gears - Pitch Module 1.5 - 20 tooth - 6 Deg 54 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
20
Lead Angle
6 Deg 54 Min
Direction
Right
Worm Gears - Pitch Module 1.5 20 - 6 Deg 54 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Bore (B): 8.000    Overall Length (l): 22    Pitch Diameter (C): 30.22 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7)    Hub Diameter (Dh): 22 mm
Part Number: WG2R-150-020-080-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 03, 2029
Worm Gears - Pitch Module 1.5 - 20 tooth - 6 Deg 54 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
20
Lead Angle
6 Deg 54 Min
Direction
Right
Bore (B)
8.000
Overall Length (l)
22
Worm Gears - Pitch Module 1.5 20 - 6 Deg 54 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Pitch Diameter (C): 30.22 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7)    Hub Diameter (Dh): 22 mm    Locking Type: Set Screw
Part Number: WG2RP-150-020-080-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Worm Gears - Pitch Module 1.5 - 20 tooth - 6 Deg 54 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
20
Lead Angle
6 Deg 54 Min
Direction
Right
Worm Gears - Pitch Module 1.5 20 - 6 Deg 54 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Bore (B): 8.000    Overall Length (l): 22    Pitch Diameter (C): 30.22 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7)    Hub Diameter (Dh): 22 mm    Locking Type: Set Screw
Part Number: WG2RP-150-020-080-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 03, 2029
Worm Gears - Pitch Module 1.5 - 20 tooth - 3 Deg 26 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
20
Lead Angle
3 Deg 26 Min
Direction
Right
Bore (B)
10.00
Overall Length (l)
22
Worm Gears - Pitch Module 1.5 20 - 3 Deg 26 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Pitch Diameter (C): 30.05 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 22 mm    Locking Type: Set Screw
Part Number: WG1R-150-020-100-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Worm Gears - Pitch Module 1.5 - 20 tooth - 3 Deg 26 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
20
Lead Angle
3 Deg 26 Min
Direction
Right
Worm Gears - Pitch Module 1.5 20 - 3 Deg 26 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Bore (B): 10.00    Overall Length (l): 22    Pitch Diameter (C): 30.05 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 22 mm    Locking Type: Set Screw
Part Number: WG1R-150-020-100-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 03, 2029
Worm Gears - Pitch Module 1.5 - 20 tooth - 6 Deg 54 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
20
Lead Angle
6 Deg 54 Min
Direction
Right
Bore (B)
10.00
Overall Length (l)
22
Worm Gears - Pitch Module 1.5 20 - 6 Deg 54 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Pitch Diameter (C): 30.22 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 22 mm    Locking Type: Set Screw
Part Number: WG2R-150-020-100-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Worm Gears - Pitch Module 1.5 - 20 tooth - 6 Deg 54 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
20
Lead Angle
6 Deg 54 Min
Direction
Right
Worm Gears - Pitch Module 1.5 20 - 6 Deg 54 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Bore (B): 10.00    Overall Length (l): 22    Pitch Diameter (C): 30.22 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 22 mm    Locking Type: Set Screw
Part Number: WG2R-150-020-100-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 03, 2029
Worm Gears - Pitch Module 1.5 - 30 tooth - 3 Deg 26 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
30
Lead Angle
3 Deg 26 Min
Direction
Right
Bore (B)
10.00
Overall Length (l)
22
Worm Gears - Pitch Module 1.5 30 - 3 Deg 26 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Pitch Diameter (C): 45.08 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG1RP-150-030-100-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Worm Gears - Pitch Module 1.5 - 30 tooth - 3 Deg 26 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
30
Lead Angle
3 Deg 26 Min
Direction
Right
Worm Gears - Pitch Module 1.5 30 - 3 Deg 26 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Bore (B): 10.00    Overall Length (l): 22    Pitch Diameter (C): 45.08 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG1RP-150-030-100-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 03, 2029
Worm Gears - Pitch Module 1.5 - 30 tooth - 3 Deg 26 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
30
Lead Angle
3 Deg 26 Min
Direction
Right
Bore (B)
10.000
Overall Length (l)
22
Worm Gears - Pitch Module 1.5 30 - 3 Deg 26 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Pitch Diameter (C): 45.08 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7)    Hub Diameter (Dh): 30 mm
Part Number: WG1R-150-030-100-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Worm Gears - Pitch Module 1.5 - 30 tooth - 3 Deg 26 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
30
Lead Angle
3 Deg 26 Min
Direction
Right
Worm Gears - Pitch Module 1.5 30 - 3 Deg 26 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Bore (B): 10.000    Overall Length (l): 22    Pitch Diameter (C): 45.08 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7)    Hub Diameter (Dh): 30 mm
Part Number: WG1R-150-030-100-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 03, 2029
Worm Gears - Pitch Module 1.5 - 30 tooth - 6 Deg 54 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
30
Lead Angle
6 Deg 54 Min
Direction
Right
Bore (B)
10.00
Overall Length (l)
22
Worm Gears - Pitch Module 1.5 30 - 6 Deg 54 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Pitch Diameter (C): 45.33 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG2RP-150-030-100-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Worm Gears - Pitch Module 1.5 - 30 tooth - 6 Deg 54 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
30
Lead Angle
6 Deg 54 Min
Direction
Right
Worm Gears - Pitch Module 1.5 30 - 6 Deg 54 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Bore (B): 10.00    Overall Length (l): 22    Pitch Diameter (C): 45.33 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG2RP-150-030-100-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 03, 2029
Worm Gears - Pitch Module 1.5 - 30 tooth - 6 Deg 54 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
30
Lead Angle
6 Deg 54 Min
Direction
Right
Bore (B)
10.000
Overall Length (l)
22
Worm Gears - Pitch Module 1.5 30 - 6 Deg 54 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Pitch Diameter (C): 45.33 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7)    Hub Diameter (Dh): 30 mm
Part Number: WG2R-150-030-100-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Worm Gears - Pitch Module 1.5 - 30 tooth - 6 Deg 54 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
30
Lead Angle
6 Deg 54 Min
Direction
Right
Worm Gears - Pitch Module 1.5 30 - 6 Deg 54 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Bore (B): 10.000    Overall Length (l): 22    Pitch Diameter (C): 45.33 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7)    Hub Diameter (Dh): 30 mm
Part Number: WG2R-150-030-100-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 03, 2029
Worm Gears - Pitch Module 1.5 - 30 tooth - 3 Deg 26 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
30
Lead Angle
3 Deg 26 Min
Direction
Right
Bore (B)
12.00
Overall Length (l)
22
Worm Gears - Pitch Module 1.5 30 - 3 Deg 26 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Pitch Diameter (C): 45.08 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG1R-150-030-120-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Worm Gears - Pitch Module 1.5 - 30 tooth - 3 Deg 26 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
30
Lead Angle
3 Deg 26 Min
Direction
Right
Worm Gears - Pitch Module 1.5 30 - 3 Deg 26 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Bore (B): 12.00    Overall Length (l): 22    Pitch Diameter (C): 45.08 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG1R-150-030-120-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 03, 2029
Worm Gears - Pitch Module 1.5 - 30 tooth - 6 Deg 54 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
30
Lead Angle
6 Deg 54 Min
Direction
Right
Bore (B)
12.00
Overall Length (l)
22
Worm Gears - Pitch Module 1.5 30 - 6 Deg 54 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Pitch Diameter (C): 45.33 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG2R-150-030-120-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Worm Gears - Pitch Module 1.5 - 30 tooth - 6 Deg 54 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
30
Lead Angle
6 Deg 54 Min
Direction
Right
Worm Gears - Pitch Module 1.5 30 - 6 Deg 54 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Bore (B): 12.00    Overall Length (l): 22    Pitch Diameter (C): 45.33 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG2R-150-030-120-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 03, 2029
Worm Gears - Pitch Module 1.5 - 30 tooth - 3 Deg 26 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
30
Lead Angle
3 Deg 26 Min
Direction
Right
Bore (B)
14.00
Overall Length (l)
22
Worm Gears - Pitch Module 1.5 30 - 3 Deg 26 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Pitch Diameter (C): 45.08 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG1R-150-030-140-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Worm Gears - Pitch Module 1.5 - 30 tooth - 3 Deg 26 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
30
Lead Angle
3 Deg 26 Min
Direction
Right
Worm Gears - Pitch Module 1.5 30 - 3 Deg 26 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Bore (B): 14.00    Overall Length (l): 22    Pitch Diameter (C): 45.08 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG1R-150-030-140-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 03, 2029
Worm Gears - Pitch Module 1.5 - 30 tooth - 6 Deg 54 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
30
Lead Angle
6 Deg 54 Min
Direction
Right
Bore (B)
14.00
Overall Length (l)
22
Worm Gears - Pitch Module 1.5 30 - 6 Deg 54 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Pitch Diameter (C): 45.33 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG2R-150-030-140-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Worm Gears - Pitch Module 1.5 - 30 tooth - 6 Deg 54 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
30
Lead Angle
6 Deg 54 Min
Direction
Right
Worm Gears - Pitch Module 1.5 30 - 6 Deg 54 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Bore (B): 14.00    Overall Length (l): 22    Pitch Diameter (C): 45.33 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG2R-150-030-140-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 03, 2029
Worm Gears - Pitch Module 1.5 - 30 tooth - 3 Deg 26 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
30
Lead Angle
3 Deg 26 Min
Direction
Right
Bore (B)
15.00
Overall Length (l)
22
Worm Gears - Pitch Module 1.5 30 - 3 Deg 26 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Pitch Diameter (C): 45.08 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG1R-150-030-150-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Worm Gears - Pitch Module 1.5 - 30 tooth - 3 Deg 26 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
30
Lead Angle
3 Deg 26 Min
Direction
Right
Worm Gears - Pitch Module 1.5 30 - 3 Deg 26 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Bore (B): 15.00    Overall Length (l): 22    Pitch Diameter (C): 45.08 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG1R-150-030-150-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 03, 2029
Worm Gears - Pitch Module 1.5 - 30 tooth - 6 Deg 54 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
30
Lead Angle
6 Deg 54 Min
Direction
Right
Bore (B)
15.00
Overall Length (l)
22
Worm Gears - Pitch Module 1.5 30 - 6 Deg 54 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Pitch Diameter (C): 45.33 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG2R-150-030-150-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Worm Gears - Pitch Module 1.5 - 30 tooth - 6 Deg 54 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
30
Lead Angle
6 Deg 54 Min
Direction
Right
Worm Gears - Pitch Module 1.5 30 - 6 Deg 54 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Bore (B): 15.00    Overall Length (l): 22    Pitch Diameter (C): 45.33 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG2R-150-030-150-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 03, 2029
Worm Gears - Pitch Module 1.5 - 30 tooth - 3 Deg 26 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
30
Lead Angle
3 Deg 26 Min
Direction
Right
Bore (B)
16.00
Overall Length (l)
22
Worm Gears - Pitch Module 1.5 30 - 3 Deg 26 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Pitch Diameter (C): 45.08 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG1R-150-030-160-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Worm Gears - Pitch Module 1.5 - 30 tooth - 3 Deg 26 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
30
Lead Angle
3 Deg 26 Min
Direction
Right
Worm Gears - Pitch Module 1.5 30 - 3 Deg 26 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Bore (B): 16.00    Overall Length (l): 22    Pitch Diameter (C): 45.08 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG1R-150-030-160-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 03, 2029
Worm Gears - Pitch Module 1.5 - 30 tooth - 6 Deg 54 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
30
Lead Angle
6 Deg 54 Min
Direction
Right
Bore (B)
16.00
Overall Length (l)
22
Worm Gears - Pitch Module 1.5 30 - 6 Deg 54 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Pitch Diameter (C): 45.33 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG2R-150-030-160-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Worm Gears - Pitch Module 1.5 - 30 tooth - 6 Deg 54 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
30
Lead Angle
6 Deg 54 Min
Direction
Right
Worm Gears - Pitch Module 1.5 30 - 6 Deg 54 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Bore (B): 16.00    Overall Length (l): 22    Pitch Diameter (C): 45.33 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG2R-150-030-160-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 03, 2029
Worm Gears - Pitch Module 1.5 - 30 tooth - 3 Deg 26 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
30
Lead Angle
3 Deg 26 Min
Direction
Right
Bore (B)
17.00
Overall Length (l)
22
Worm Gears - Pitch Module 1.5 30 - 3 Deg 26 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Pitch Diameter (C): 45.08 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG1R-150-030-170-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Worm Gears - Pitch Module 1.5 - 30 tooth - 3 Deg 26 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
30
Lead Angle
3 Deg 26 Min
Direction
Right
Worm Gears - Pitch Module 1.5 30 - 3 Deg 26 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Bore (B): 17.00    Overall Length (l): 22    Pitch Diameter (C): 45.08 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG1R-150-030-170-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 03, 2029
Worm Gears - Pitch Module 1.5 - 30 tooth - 6 Deg 54 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
30
Lead Angle
6 Deg 54 Min
Direction
Right
Bore (B)
17.00
Overall Length (l)
22
Worm Gears - Pitch Module 1.5 30 - 6 Deg 54 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Pitch Diameter (C): 45.33 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG2R-150-030-170-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Worm Gears - Pitch Module 1.5 - 30 tooth - 6 Deg 54 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
30
Lead Angle
6 Deg 54 Min
Direction
Right
Worm Gears - Pitch Module 1.5 30 - 6 Deg 54 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Bore (B): 17.00    Overall Length (l): 22    Pitch Diameter (C): 45.33 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG2R-150-030-170-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 03, 2029
Worm Gears - Pitch Module 1.5 - 40 tooth - 3 Deg 26 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
40
Lead Angle
3 Deg 26 Min
Direction
Right
Bore (B)
12.00
Overall Length (l)
22
Worm Gears - Pitch Module 1.5 40 - 3 Deg 26 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Pitch Diameter (C): 60.11 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG1RP-150-040-120-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Worm Gears - Pitch Module 1.5 - 40 tooth - 3 Deg 26 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
40
Lead Angle
3 Deg 26 Min
Direction
Right
Worm Gears - Pitch Module 1.5 40 - 3 Deg 26 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Bore (B): 12.00    Overall Length (l): 22    Pitch Diameter (C): 60.11 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG1RP-150-040-120-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 03, 2029
Worm Gears - Pitch Module 1.5 - 40 tooth - 3 Deg 26 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
40
Lead Angle
3 Deg 26 Min
Direction
Right
Bore (B)
12.000
Overall Length (l)
22
Worm Gears - Pitch Module 1.5 40 - 3 Deg 26 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Pitch Diameter (C): 60.11 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7)    Hub Diameter (Dh): 30 mm
Part Number: WG1R-150-040-120-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Worm Gears - Pitch Module 1.5 - 40 tooth - 3 Deg 26 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
40
Lead Angle
3 Deg 26 Min
Direction
Right
Worm Gears - Pitch Module 1.5 40 - 3 Deg 26 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Bore (B): 12.000    Overall Length (l): 22    Pitch Diameter (C): 60.11 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7)    Hub Diameter (Dh): 30 mm
Part Number: WG1R-150-040-120-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 03, 2029
Worm Gears - Pitch Module 1.5 - 40 tooth - 3 Deg 26 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
40
Lead Angle
3 Deg 26 Min
Direction
Right
Bore (B)
14.00
Overall Length (l)
22
Worm Gears - Pitch Module 1.5 40 - 3 Deg 26 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Pitch Diameter (C): 60.11 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG1R-150-040-140-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Worm Gears - Pitch Module 1.5 - 40 tooth - 3 Deg 26 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
40
Lead Angle
3 Deg 26 Min
Direction
Right
Worm Gears - Pitch Module 1.5 40 - 3 Deg 26 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Bore (B): 14.00    Overall Length (l): 22    Pitch Diameter (C): 60.11 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7) with Keyway    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG1R-150-040-140-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 03, 2029
Worm Gears - Pitch Module 1.5 - 40 tooth - 3 Deg 26 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
40
Lead Angle
3 Deg 26 Min
Direction
Right
Bore (B)
15.000
Overall Length (l)
22
Worm Gears - Pitch Module 1.5 40 - 3 Deg 26 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Pitch Diameter (C): 60.11 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7)    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG1R-150-040-150-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Worm Gears - Pitch Module 1.5 - 40 tooth - 3 Deg 26 Min Module 1.5 - Copper Alloy - CAC502 Gear
Pitch
Module 1.5
Teeth
40
Lead Angle
3 Deg 26 Min
Direction
Right
Worm Gears - Pitch Module 1.5 40 - 3 Deg 26 Min - Copper Alloy - CAC502
Material: Copper Alloy - CAC502    Bore (B): 15.000    Overall Length (l): 22    Pitch Diameter (C): 60.11 mm    Face Width (fw): 12.00 mm    Bore Type: Finished (H7)    Hub Diameter (Dh): 30 mm    Locking Type: Set Screw
Part Number: WG1R-150-040-150-COP (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 03, 2029
