Collection: Retaining Rings - Internal - Circlips - Standard

Retaining Rings -> Internal -> Circlips -> Standard

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)	Indicative Image
Housing Bore (B) 18.00 mm (Equiv. 0.709 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 19.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.748 in.)	Approx. Loose Circlip OD (Dr) 19.50 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 9.40 mm Clearance in Groove (C1): 10.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01800-S15 (50 Pcs) Internal Retaining Rings - 18x1x19 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $39.86 AUD Regular price ~~$93.60 AUD~~ Sale price $39.86 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Housing Bore (B) 18.00 mm (Equiv. 0.709 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 19.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.748 in.)	Approx. Loose Circlip OD (Dr) 19.50 mm + 0.42 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 9.40 mm Clearance in Groove (C1): 10.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01800-S15 (50 Pcs) Internal Retaining Rings - 18x1x19 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $39.86 AUD Regular price ~~$93.60 AUD~~ Sale price $39.86 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
CCI-01800-S15 (50 Pcs) --- Internal Retaining Rings - 18x1x19 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-01800-S15 (50 Pcs) --- Internal Retaining Rings - 18x1x19 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $39.86 AUD Regular price ~~$93.60 AUD~~ Sale price $39.86 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 18.00 mm (Equiv. 0.709 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 19.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.748 in.)	Approx. Loose Circlip OD (Dr) 19.50 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00

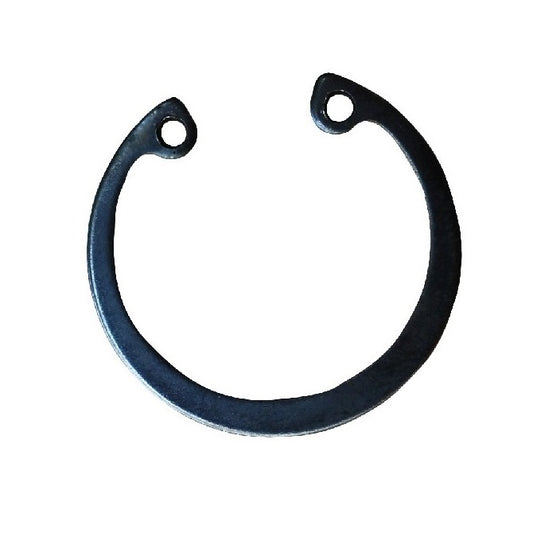

Material: Carbon Steel Clearance in Bore (C): 9.40 mm Clearance in Groove (C1): 10.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01800-C (20 Pcs) Internal Retaining Rings - 18x1x19 mm Circlips - Carbon Steel Circlip 3 units (60 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per Per 20 Quantity Required 3 units (60 pcs) Available Now. Backorder if more than 3.
Housing Bore (B) 18.00 mm (Equiv. 0.709 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 19.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.748 in.)	Approx. Loose Circlip OD (Dr) 19.50 mm + 0.42 / - 0.13
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 9.40 mm Clearance in Groove (C1): 10.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01800-C (20 Pcs) Internal Retaining Rings - 18x1x19 mm Circlips - Carbon Steel Circlip 3 units (60 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per Per 20 Quantity Required 3 units (60 pcs) Available Now. Backorder if more than 3.
CCI-01800-C (20 Pcs) --- Internal Retaining Rings - 18x1x19 mm Circlips - Carbon Steel Circlip CCI-01800-C (20 Pcs) --- Internal Retaining Rings - 18x1x19 mm Circlips - Carbon Steel Circlip Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per 3 Available Now
Housing Bore (B) 19.00 mm (Equiv. 0.748 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 20.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.787 in.)	Approx. Loose Circlip OD (Dr) 20.50 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 10.40 mm Clearance in Groove (C1): 11.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01900-S15 (4 Pcs) Internal Retaining Rings - 19x1x20 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $9.14 AUD Regular price ~~$20.75 AUD~~ Sale price $9.14 AUD Unit price per Per 4 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 19.00 mm (Equiv. 0.748 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 20.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.787 in.)	Approx. Loose Circlip OD (Dr) 20.50 mm + 0.42 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 10.40 mm Clearance in Groove (C1): 11.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01900-S15 (4 Pcs) Internal Retaining Rings - 19x1x20 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $9.14 AUD Regular price ~~$20.75 AUD~~ Sale price $9.14 AUD Unit price per Per 4 Quantity Required Backorder: Out of Stock.
CCI-01900-S15 (4 Pcs) --- Internal Retaining Rings - 19x1x20 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-01900-S15 (4 Pcs) --- Internal Retaining Rings - 19x1x20 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $9.14 AUD Regular price ~~$20.75 AUD~~ Sale price $9.14 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 19.00 mm (Equiv. 0.748 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 20.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.787 in.)	Approx. Loose Circlip OD (Dr) 20.50 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 10.40 mm Clearance in Groove (C1): 11.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01900-C (100 Pcs) Internal Retaining Rings - 19x1x20 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $21.68 AUD Regular price ~~$26.02 AUD~~ Sale price $21.68 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 19.00 mm (Equiv. 0.748 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 20.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.787 in.)	Approx. Loose Circlip OD (Dr) 20.50 mm + 0.42 / - 0.13
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 10.40 mm Clearance in Groove (C1): 11.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01900-C (100 Pcs) Internal Retaining Rings - 19x1x20 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $21.68 AUD Regular price ~~$26.02 AUD~~ Sale price $21.68 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
CCI-01900-C (100 Pcs) --- Internal Retaining Rings - 19x1x20 mm Circlips - Carbon Steel Circlip Sale CCI-01900-C (100 Pcs) --- Internal Retaining Rings - 19x1x20 mm Circlips - Carbon Steel Circlip Regular price $21.68 AUD Regular price ~~$26.02 AUD~~ Sale price $21.68 AUD Unit price per Out of stock! Backorder Now Sale

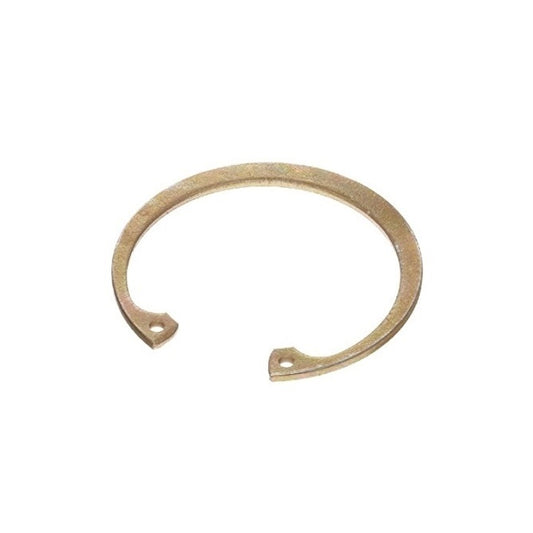

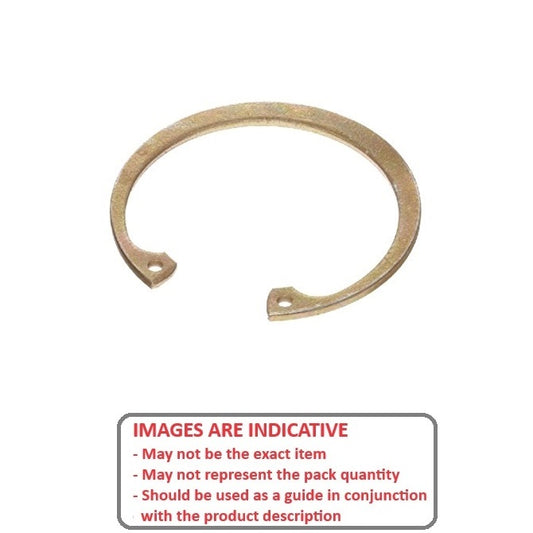

Housing Bore (B) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 20.22 mm _{+ 0.00 / - 0.06} (Equiv. 0.796 in.)	Approx. Loose Circlip OD (Dr) 21.11 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 11.43 mm Clearance in Groove (C1): 12.70 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.75 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-01905-CZY (5 Pcs) Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Zinc Plated Circlip 60 units (300 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.86 AUD Regular price ~~$5.10 AUD~~ Sale price $1.86 AUD Unit price per Per 5 Quantity Required 60 units (300 pcs) Available Now. Backorder if more than 60.
Housing Bore (B) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 20.22 mm _{+ 0.00 / - 0.06} (Equiv. 0.796 in.)	Approx. Loose Circlip OD (Dr) 21.11 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 11.43 mm Clearance in Groove (C1): 12.70 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.75 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-01905-CZY (5 Pcs) Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Zinc Plated Circlip 60 units (300 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.86 AUD Regular price ~~$5.10 AUD~~ Sale price $1.86 AUD Unit price per Per 5 Quantity Required 60 units (300 pcs) Available Now. Backorder if more than 60.
CCI-01905-CZY (5 Pcs) --- Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-01905-CZY (5 Pcs) --- Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $1.86 AUD Regular price ~~$5.10 AUD~~ Sale price $1.86 AUD Unit price per 60 Available Now Sale
Housing Bore (B) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 20.22 mm _{+ 0.00 / - 0.06} (Equiv. 0.796 in.)	Approx. Loose Circlip OD (Dr) 21.11 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 11.43 mm Clearance in Groove (C1): 12.70 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.75 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01905-S15 (5 Pcs) Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $9.23 AUD Regular price ~~$21.10 AUD~~ Sale price $9.23 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 20.22 mm _{+ 0.00 / - 0.06} (Equiv. 0.796 in.)	Approx. Loose Circlip OD (Dr) 21.11 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 11.43 mm Clearance in Groove (C1): 12.70 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.75 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01905-S15 (5 Pcs) Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $9.23 AUD Regular price ~~$21.10 AUD~~ Sale price $9.23 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
CCI-01905-S15 (5 Pcs) --- Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-01905-S15 (5 Pcs) --- Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $9.23 AUD Regular price ~~$21.10 AUD~~ Sale price $9.23 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 20.22 mm _{+ 0.00 / - 0.06} (Equiv. 0.796 in.)	Approx. Loose Circlip OD (Dr) 21.11 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 11.43 mm Clearance in Groove (C1): 12.70 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.75 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01905-C (10 Pcs) Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Circlip 6 units (60 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per Per 10 Quantity Required 6 units (60 pcs) Available Now. Backorder if more than 6.
Housing Bore (B) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 20.22 mm _{+ 0.00 / - 0.06} (Equiv. 0.796 in.)	Approx. Loose Circlip OD (Dr) 21.11 mm + 0.25 / - 0.13
Material: Carbon Steel Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 11.43 mm Clearance in Groove (C1): 12.70 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.75 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01905-C (10 Pcs) Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Circlip 6 units (60 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per Per 10 Quantity Required 6 units (60 pcs) Available Now. Backorder if more than 6.
CCI-01905-C (10 Pcs) --- Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Circlip CCI-01905-C (10 Pcs) --- Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Circlip Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per 6 Available Now
Housing Bore (B) 19.74 mm (Equiv. 0.777 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.96 mm _{+ 0.00 / - 0.06} (Equiv. 0.825 in.)	Approx. Loose Circlip OD (Dr) 21.82 mm + 0.25 / - 0.13		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 11.94 mm Clearance in Groove (C1): 13.21 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.83 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01974-S15 (4 Pcs) Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $8.86 AUD Regular price ~~$20.24 AUD~~ Sale price $8.86 AUD Unit price per Per 4 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 19.74 mm (Equiv. 0.777 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.96 mm _{+ 0.00 / - 0.06} (Equiv. 0.825 in.)	Approx. Loose Circlip OD (Dr) 21.82 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 11.94 mm Clearance in Groove (C1): 13.21 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.83 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01974-S15 (4 Pcs) Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $8.86 AUD Regular price ~~$20.24 AUD~~ Sale price $8.86 AUD Unit price per Per 4 Quantity Required Backorder: Out of Stock.
CCI-01974-S15 (4 Pcs) --- Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-01974-S15 (4 Pcs) --- Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $8.86 AUD Regular price ~~$20.24 AUD~~ Sale price $8.86 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 19.74 mm (Equiv. 0.777 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.96 mm _{+ 0.00 / - 0.06} (Equiv. 0.825 in.)	Approx. Loose Circlip OD (Dr) 21.82 mm + 0.25 / - 0.13		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 11.94 mm Clearance in Groove (C1): 13.21 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.83 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-01974-CZY (50 Pcs) Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $22.05 AUD Regular price ~~$51.60 AUD~~ Sale price $22.05 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 19.74 mm (Equiv. 0.777 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.96 mm _{+ 0.00 / - 0.06} (Equiv. 0.825 in.)	Approx. Loose Circlip OD (Dr) 21.82 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 11.94 mm Clearance in Groove (C1): 13.21 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.83 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-01974-CZY (50 Pcs) Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $22.05 AUD Regular price ~~$51.60 AUD~~ Sale price $22.05 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
CCI-01974-CZY (50 Pcs) --- Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-01974-CZY (50 Pcs) --- Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $22.05 AUD Regular price ~~$51.60 AUD~~ Sale price $22.05 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 19.74 mm (Equiv. 0.777 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.96 mm _{+ 0.00 / - 0.06} (Equiv. 0.825 in.)	Approx. Loose Circlip OD (Dr) 21.82 mm + 0.25 / - 0.13		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 11.94 mm Clearance in Groove (C1): 13.21 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.83 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01974-C (10 Pcs) Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Carbon Steel Circlip 15 units (150 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 10 Quantity Required 15 units (150 pcs) Available Now. Backorder if more than 15.
Housing Bore (B) 19.74 mm (Equiv. 0.777 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.96 mm _{+ 0.00 / - 0.06} (Equiv. 0.825 in.)	Approx. Loose Circlip OD (Dr) 21.82 mm + 0.25 / - 0.13
Material: Carbon Steel Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 11.94 mm Clearance in Groove (C1): 13.21 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.83 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01974-C (10 Pcs) Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Carbon Steel Circlip 15 units (150 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 10 Quantity Required 15 units (150 pcs) Available Now. Backorder if more than 15.
CCI-01974-C (10 Pcs) --- Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Carbon Steel Circlip CCI-01974-C (10 Pcs) --- Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Carbon Steel Circlip Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per 15 Available Now
Housing Bore (B) 20.00 mm (Equiv. 0.787 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 21.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.827 in.)	Approx. Loose Circlip OD (Dr) 21.50 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 11.20 mm Clearance in Groove (C1): 12.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02000-C (20 Pcs) Internal Retaining Rings - 20x1x21 mm Circlips - Carbon Steel Circlip 38 units (760 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.23 AUD Regular price ~~$6.09 AUD~~ Sale price $3.23 AUD Unit price per Per 20 Quantity Required 38 units (760 pcs) Available Now. Backorder if more than 38.
Housing Bore (B) 20.00 mm (Equiv. 0.787 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 21.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.827 in.)	Approx. Loose Circlip OD (Dr) 21.50 mm + 0.42 / - 0.13
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 11.20 mm Clearance in Groove (C1): 12.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02000-C (20 Pcs) Internal Retaining Rings - 20x1x21 mm Circlips - Carbon Steel Circlip 38 units (760 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.23 AUD Regular price ~~$6.09 AUD~~ Sale price $3.23 AUD Unit price per Per 20 Quantity Required 38 units (760 pcs) Available Now. Backorder if more than 38.
CCI-02000-C (20 Pcs) --- Internal Retaining Rings - 20x1x21 mm Circlips - Carbon Steel Circlip Sale CCI-02000-C (20 Pcs) --- Internal Retaining Rings - 20x1x21 mm Circlips - Carbon Steel Circlip Regular price $3.23 AUD Regular price ~~$6.09 AUD~~ Sale price $3.23 AUD Unit price per 38 Available Now Sale
Housing Bore (B) 20.00 mm (Equiv. 0.787 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 21.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.827 in.)	Approx. Loose Circlip OD (Dr) 21.50 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 11.20 mm Clearance in Groove (C1): 12.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02000-S15 (4 Pcs) Internal Retaining Rings - 20x1x21 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $9.23 AUD Regular price ~~$20.99 AUD~~ Sale price $9.23 AUD Unit price per Per 4 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 20.00 mm (Equiv. 0.787 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 21.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.827 in.)	Approx. Loose Circlip OD (Dr) 21.50 mm + 0.42 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 11.20 mm Clearance in Groove (C1): 12.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02000-S15 (4 Pcs) Internal Retaining Rings - 20x1x21 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $9.23 AUD Regular price ~~$20.99 AUD~~ Sale price $9.23 AUD Unit price per Per 4 Quantity Required Backorder: Out of Stock.
CCI-02000-S15 (4 Pcs) --- Internal Retaining Rings - 20x1x21 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-02000-S15 (4 Pcs) --- Internal Retaining Rings - 20x1x21 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $9.23 AUD Regular price ~~$20.99 AUD~~ Sale price $9.23 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 20.00 mm (Equiv. 0.787 in.)	Clip Thickness (T) 1.50 mm _{+ 0.15 / - 0.00} (Equiv. 0.059 in.)	Groove Dia. (Dg) 21.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.827 in.)	Approx. Loose Circlip OD (Dr) 21.50 mm + 0.42 / - 0.13		Groove Width (W) 1.60 mm + 0.08 / - 0.00
Material: Carbon Spring Steel Self Finish Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02000H-C Internal Retaining Rings - 20x1.5x21 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B) 20.00 mm (Equiv. 0.787 in.)	Clip Thickness (T) 1.50 mm _{+ 0.15 / - 0.00} (Equiv. 0.059 in.)	Groove Dia. (Dg) 21.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.827 in.)	Approx. Loose Circlip OD (Dr) 21.50 mm + 0.42 / - 0.13
Material: Carbon Spring Steel Self Finish Groove Width (W): 1.60 mm + 0.08 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02000H-C Internal Retaining Rings - 20x1.5x21 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B) 20.64 mm (Equiv. 0.813 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 21.89 mm _{+ 0.00 / - 0.06} (Equiv. 0.862 in.)	Approx. Loose Circlip OD (Dr) 22.89 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 12.45 mm Clearance in Groove (C1): 13.46 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.91 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02064-S15 (4 Pcs) Internal Retaining Rings - 20.64x1.07x21.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $8.77 AUD Regular price ~~$20.05 AUD~~ Sale price $8.77 AUD Unit price per Per 4 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 20.64 mm (Equiv. 0.813 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 21.89 mm _{+ 0.00 / - 0.06} (Equiv. 0.862 in.)	Approx. Loose Circlip OD (Dr) 22.89 mm + 0.38 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 12.45 mm Clearance in Groove (C1): 13.46 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.91 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02064-S15 (4 Pcs) Internal Retaining Rings - 20.64x1.07x21.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $8.77 AUD Regular price ~~$20.05 AUD~~ Sale price $8.77 AUD Unit price per Per 4 Quantity Required Backorder: Out of Stock.
CCI-02064-S15 (4 Pcs) --- Internal Retaining Rings - 20.64x1.07x21.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-02064-S15 (4 Pcs) --- Internal Retaining Rings - 20.64x1.07x21.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $8.77 AUD Regular price ~~$20.05 AUD~~ Sale price $8.77 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 20.64 mm (Equiv. 0.813 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 21.89 mm _{+ 0.00 / - 0.06} (Equiv. 0.862 in.)	Approx. Loose Circlip OD (Dr) 22.89 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 12.45 mm Clearance in Groove (C1): 13.46 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.91 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02064-C (100 Pcs) Internal Retaining Rings - 20.64x1.07x21.89 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $35.14 AUD Regular price ~~$42.16 AUD~~ Sale price $35.14 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 20.64 mm (Equiv. 0.813 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 21.89 mm _{+ 0.00 / - 0.06} (Equiv. 0.862 in.)	Approx. Loose Circlip OD (Dr) 22.89 mm + 0.38 / - 0.25
Material: Carbon Steel Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 12.45 mm Clearance in Groove (C1): 13.46 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.91 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02064-C (100 Pcs) Internal Retaining Rings - 20.64x1.07x21.89 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $35.14 AUD Regular price ~~$42.16 AUD~~ Sale price $35.14 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
CCI-02064-C (100 Pcs) --- Internal Retaining Rings - 20.64x1.07x21.89 mm Circlips - Carbon Steel Circlip Sale CCI-02064-C (100 Pcs) --- Internal Retaining Rings - 20.64x1.07x21.89 mm Circlips - Carbon Steel Circlip Regular price $35.14 AUD Regular price ~~$42.16 AUD~~ Sale price $35.14 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 20.64 mm (Equiv. 0.813 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 21.89 mm _{+ 0.00 / - 0.06} (Equiv. 0.862 in.)	Approx. Loose Circlip OD (Dr) 22.89 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 12.45 mm Clearance in Groove (C1): 13.46 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.91 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-02064-CZY (250 Pcs) Internal Retaining Rings - 20.64x1.07x21.89 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Wed, Dec 24, 2025 Regular price $94.86 AUD Regular price ~~$223.00 AUD~~ Sale price $94.86 AUD Unit price per Per 250 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 20.64 mm (Equiv. 0.813 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 21.89 mm _{+ 0.00 / - 0.06} (Equiv. 0.862 in.)	Approx. Loose Circlip OD (Dr) 22.89 mm + 0.38 / - 0.25
Material: Carbon Steel Zinc Plated Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 12.45 mm Clearance in Groove (C1): 13.46 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.91 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-02064-CZY (250 Pcs) Internal Retaining Rings - 20.64x1.07x21.89 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Wed, Dec 24, 2025 Regular price $94.86 AUD Regular price ~~$223.00 AUD~~ Sale price $94.86 AUD Unit price per Per 250 Quantity Required Backorder: Out of Stock.
CCI-02064-CZY (250 Pcs) --- Internal Retaining Rings - 20.64x1.07x21.89 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-02064-CZY (250 Pcs) --- Internal Retaining Rings - 20.64x1.07x21.89 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $94.86 AUD Regular price ~~$223.00 AUD~~ Sale price $94.86 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 21.00 mm (Equiv. 0.827 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 22.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.866 in.)	Approx. Loose Circlip OD (Dr) 22.50 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 12.20 mm Clearance in Groove (C1): 13.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02100-S15 (50 Pcs) Internal Retaining Rings - 21x1x22 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $44.86 AUD Regular price ~~$105.20 AUD~~ Sale price $44.86 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 21.00 mm (Equiv. 0.827 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 22.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.866 in.)	Approx. Loose Circlip OD (Dr) 22.50 mm + 0.42 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 12.20 mm Clearance in Groove (C1): 13.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02100-S15 (50 Pcs) Internal Retaining Rings - 21x1x22 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $44.86 AUD Regular price ~~$105.20 AUD~~ Sale price $44.86 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
CCI-02100-S15 (50 Pcs) --- Internal Retaining Rings - 21x1x22 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-02100-S15 (50 Pcs) --- Internal Retaining Rings - 21x1x22 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $44.86 AUD Regular price ~~$105.20 AUD~~ Sale price $44.86 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 21.00 mm (Equiv. 0.827 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 22.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.866 in.)	Approx. Loose Circlip OD (Dr) 22.50 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 12.20 mm Clearance in Groove (C1): 13.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02100-C (20 Pcs) Internal Retaining Rings - 21x1x22 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Per 20 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 21.00 mm (Equiv. 0.827 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 22.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.866 in.)	Approx. Loose Circlip OD (Dr) 22.50 mm + 0.42 / - 0.13
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 12.20 mm Clearance in Groove (C1): 13.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02100-C (20 Pcs) Internal Retaining Rings - 21x1x22 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Per 20 Quantity Required Backorder: Out of Stock.
CCI-02100-C (20 Pcs) --- Internal Retaining Rings - 21x1x22 mm Circlips - Carbon Steel Circlip CCI-02100-C (20 Pcs) --- Internal Retaining Rings - 21x1x22 mm Circlips - Carbon Steel Circlip Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 22.00 mm (Equiv. 0.866 in.)	Clip Thickness (T) 1.00 mm _{+/- 0.075} (Equiv. 0.039 in.)	Groove Dia. (Dg) 23.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.906 in.)	Approx. Loose Circlip OD (Dr) 23.50 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 13.20 mm Clearance in Groove (C1): 14.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-02200N-CZY (50 Pcs) Internal Retaining Rings - 22x1x23 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $22.14 AUD Regular price ~~$51.80 AUD~~ Sale price $22.14 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 22.00 mm (Equiv. 0.866 in.)	Clip Thickness (T) 1.00 mm _{+/- 0.075} (Equiv. 0.039 in.)	Groove Dia. (Dg) 23.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.906 in.)	Approx. Loose Circlip OD (Dr) 23.50 mm + 0.38 / - 0.25
Material: Carbon Steel Zinc Plated Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 13.20 mm Clearance in Groove (C1): 14.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-02200N-CZY (50 Pcs) Internal Retaining Rings - 22x1x23 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $22.14 AUD Regular price ~~$51.80 AUD~~ Sale price $22.14 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
CCI-02200N-CZY (50 Pcs) --- Internal Retaining Rings - 22x1x23 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-02200N-CZY (50 Pcs) --- Internal Retaining Rings - 22x1x23 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $22.14 AUD Regular price ~~$51.80 AUD~~ Sale price $22.14 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 22.00 mm (Equiv. 0.866 in.)	Clip Thickness (T) 1.00 mm _{+/- 0.075} (Equiv. 0.039 in.)	Groove Dia. (Dg) 23.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.906 in.)	Approx. Loose Circlip OD (Dr) 23.50 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 13.20 mm Clearance in Groove (C1): 14.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02200N-S15 Internal Retaining Rings - 22x1x23 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $3.41 AUD Regular price ~~$7.17 AUD~~ Sale price $3.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Housing Bore (B) 22.00 mm (Equiv. 0.866 in.)	Clip Thickness (T) 1.00 mm _{+/- 0.075} (Equiv. 0.039 in.)	Groove Dia. (Dg) 23.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.906 in.)	Approx. Loose Circlip OD (Dr) 23.50 mm + 0.38 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 13.20 mm Clearance in Groove (C1): 14.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02200N-S15 Internal Retaining Rings - 22x1x23 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $3.41 AUD Regular price ~~$7.17 AUD~~ Sale price $3.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CCI-02200N-S15 --- Internal Retaining Rings - 22x1x23 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-02200N-S15 --- Internal Retaining Rings - 22x1x23 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $3.41 AUD Regular price ~~$7.17 AUD~~ Sale price $3.41 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 22.00 mm (Equiv. 0.866 in.)	Clip Thickness (T) 1.00 mm _{+/- 0.075} (Equiv. 0.039 in.)	Groove Dia. (Dg) 23.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.906 in.)	Approx. Loose Circlip OD (Dr) 23.50 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 13.20 mm Clearance in Groove (C1): 14.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02200N-C (10 Pcs) Internal Retaining Rings - 22x1x23 mm Circlips - Carbon Steel Circlip 7 units (70 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Per 10 Quantity Required 7 units (70 pcs) Available Now. Backorder if more than 7.
Housing Bore (B) 22.00 mm (Equiv. 0.866 in.)	Clip Thickness (T) 1.00 mm _{+/- 0.075} (Equiv. 0.039 in.)	Groove Dia. (Dg) 23.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.906 in.)	Approx. Loose Circlip OD (Dr) 23.50 mm + 0.38 / - 0.25
Material: Carbon Steel Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 13.20 mm Clearance in Groove (C1): 14.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02200N-C (10 Pcs) Internal Retaining Rings - 22x1x23 mm Circlips - Carbon Steel Circlip 7 units (70 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Per 10 Quantity Required 7 units (70 pcs) Available Now. Backorder if more than 7.
CCI-02200N-C (10 Pcs) --- Internal Retaining Rings - 22x1x23 mm Circlips - Carbon Steel Circlip CCI-02200N-C (10 Pcs) --- Internal Retaining Rings - 22x1x23 mm Circlips - Carbon Steel Circlip Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per 7 Available Now
Housing Bore (B) 22.00 mm (Equiv. 0.866 in.)	Clip Thickness (T) 1.07 mm _{+ 0.13 / - 0.00} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.37 mm _{+ 0.00 / - 0.06} (Equiv. 0.92 in.)	Approx. Loose Circlip OD (Dr) 24.41 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 13.72 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.06 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02200-C (20 Pcs) Internal Retaining Rings - 22x1.07x23.37 mm Circlips - Carbon Steel Circlip 1 pack (20 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.50 AUD Regular price ~~$6.51 AUD~~ Sale price $3.50 AUD Unit price per Per 20 Quantity Required 1 pack (20 pcs) Available Now. Backorder if more than 1.
Housing Bore (B) 22.00 mm (Equiv. 0.866 in.)	Clip Thickness (T) 1.07 mm _{+ 0.13 / - 0.00} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.37 mm _{+ 0.00 / - 0.06} (Equiv. 0.92 in.)	Approx. Loose Circlip OD (Dr) 24.41 mm + 0.42 / - 0.13
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 13.72 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.06 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02200-C (20 Pcs) Internal Retaining Rings - 22x1.07x23.37 mm Circlips - Carbon Steel Circlip 1 pack (20 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.50 AUD Regular price ~~$6.51 AUD~~ Sale price $3.50 AUD Unit price per Per 20 Quantity Required 1 pack (20 pcs) Available Now. Backorder if more than 1.
CCI-02200-C (20 Pcs) --- Internal Retaining Rings - 22x1.07x23.37 mm Circlips - Carbon Steel Circlip Sale CCI-02200-C (20 Pcs) --- Internal Retaining Rings - 22x1.07x23.37 mm Circlips - Carbon Steel Circlip Regular price $3.50 AUD Regular price ~~$6.51 AUD~~ Sale price $3.50 AUD Unit price per 1 Available Now Sale
Housing Bore (B) 22.00 mm (Equiv. 0.866 in.)	Clip Thickness (T) 1.07 mm _{+ 0.13 / - 0.00} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.37 mm _{+ 0.00 / - 0.06} (Equiv. 0.92 in.)	Approx. Loose Circlip OD (Dr) 24.41 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 13.72 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.06 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02200-S15 (50 Pcs) Internal Retaining Rings - 22x1.07x23.37 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $46.32 AUD Regular price ~~$108.60 AUD~~ Sale price $46.32 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 22.00 mm (Equiv. 0.866 in.)	Clip Thickness (T) 1.07 mm _{+ 0.13 / - 0.00} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.37 mm _{+ 0.00 / - 0.06} (Equiv. 0.92 in.)	Approx. Loose Circlip OD (Dr) 24.41 mm + 0.42 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 13.72 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.06 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-02200-S15 (50 Pcs) Internal Retaining Rings - 22x1.07x23.37 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $46.32 AUD Regular price ~~$108.60 AUD~~ Sale price $46.32 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
CCI-02200-S15 (50 Pcs) --- Internal Retaining Rings - 22x1.07x23.37 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-02200-S15 (50 Pcs) --- Internal Retaining Rings - 22x1.07x23.37 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $46.32 AUD Regular price ~~$108.60 AUD~~ Sale price $46.32 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 22.00 mm (Equiv. 0.866 in.)	Clip Thickness (T) 1.50 mm _{+ 0.15 / - 0.00} (Equiv. 0.059 in.)	Groove Dia. (Dg) 23.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.906 in.)	Approx. Loose Circlip OD (Dr) 24.41 mm + 0.42 / - 0.13		Groove Width (W) 1.60 mm + 0.08 / - 0.00
Material: Carbon Spring Steel Self Finish Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02200H-C Internal Retaining Rings - 22x1.5x23 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B) 22.00 mm (Equiv. 0.866 in.)	Clip Thickness (T) 1.50 mm _{+ 0.15 / - 0.00} (Equiv. 0.059 in.)	Groove Dia. (Dg) 23.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.906 in.)	Approx. Loose Circlip OD (Dr) 24.41 mm + 0.42 / - 0.13
Material: Carbon Spring Steel Self Finish Groove Width (W): 1.60 mm + 0.08 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-02200H-C Internal Retaining Rings - 22x1.5x23 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.

Miniature Bearings Australia Pty Ltd
3/8 Boyland Avenue
Coopers Plains, Queensland, Australia.
(ABN: 94 069 113 800)
