CCI-01900-C (100 Pcs)

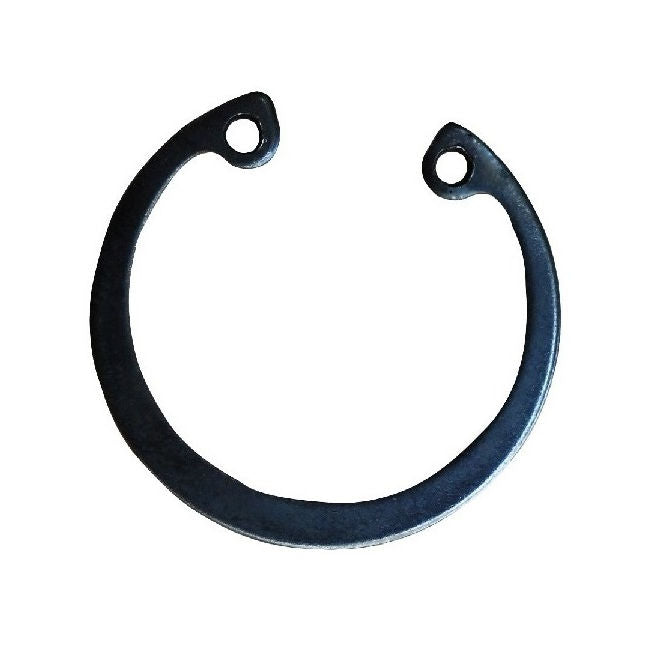

Name: CCI-01900-C (100 Pack) - Internal Retaining Rings - 19x1x20 mm Circlips - Carbon Steel
Brand: MBA
SKU: CCI01900C
Price: 21.68 AUD
Availability: BackOrder

Internal Retaining Rings - 19x1x20 mm Circlips - Carbon Steel

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Collection, Retail, Distributors, Wholesale

Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

Price:

$21.68 AUD

~~$26.02 AUD~~ $21.68 AUD

per 100
Backorder
Order 50 or more pack (5000 pcs) for $19.51 AUD per 100

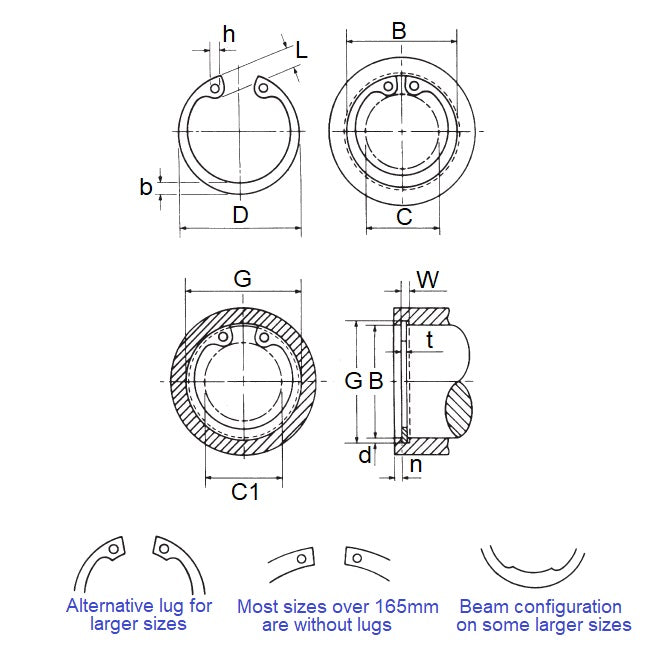

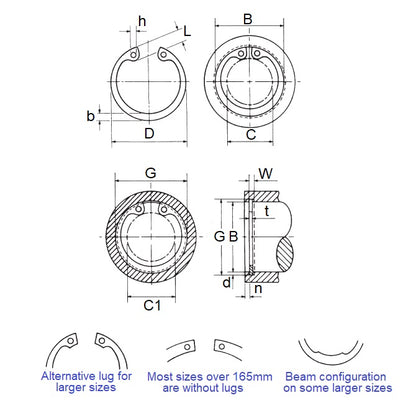

Product Details:

Additional stock available from USA subject to Prior Sale = 5622

Housing Bore (B): 19.00mm
_{(19.00mm is 0.748 in.)}

Carbon Steel

Clip Thickness (T): 1.00mm
_{+ 0.13 / - 0.00}
_{(1.00mm is 0.039 in.)}
Groove Dia. (Dg): 20.00mm
_{+ 0.00 / - 0.06}
_{(20.00mm is 0.787 in.)}
Approx. Loose Circlip OD (Dr): 20.50mm
_{+ 0.42 / - 0.13}
Groove Width (W): 1.10mm
_{+ 0.08 / - 0.00}
Clearance in Bore (C): 10.40mm
Clearance in Groove (C1): 11.80mm
Min. Lug Diameter (h): 2.00mm
Min. Extension (n): 1.50
Standard: DIN472

Brand: MBA
Country of Origin: US

Product Compliance and Data

Alternative Parts Include:

Ellison 472-019
Bossard BN-822-019
Waldes D1300-019
NoCor DHO-019
Rotor Clip DHO-019
Seeger J-019
Seeger J19
Seeger J19-BLS
Seeger J19X1
Seeger NZT.J19
D13000190
D1300-0190
D13000190APP
D1300-0190APP
DHO019
BN822019
MD0472MQB019
J19BLS
J019
472019
CCI01900C

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
