Collection: Retaining Rings - Internal - Circlips - Standard

Retaining Rings -> Internal -> Circlips -> Standard

There are 510 products in the sub-categories of Retaining Rings - Internal - Circlips - Standard. Scroll down or follow the link to Retaining Rings - Internal - Circlips - Standard in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

Internal Retaining Rings - 6.35x0.31x6.81 mm - Carbon Steel

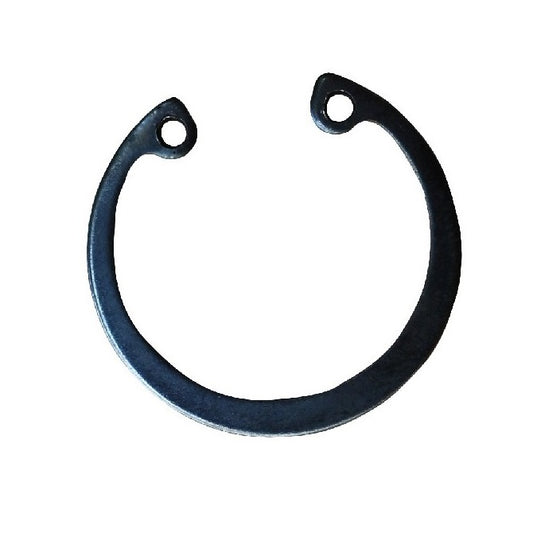

Retaining Rings - Internal - Circlips - Standard - Carbon Steel

A selection of Carbon Steel Standard Circlips Internal Retaining Rings. Imperial and...

Retaining Rings - Internal - Circlips - Standard - Carbon Steel

Internal Retaining Rings - 6.35x0.31x6.81 mm - Stainless Steel Grade PH15-7 Mo

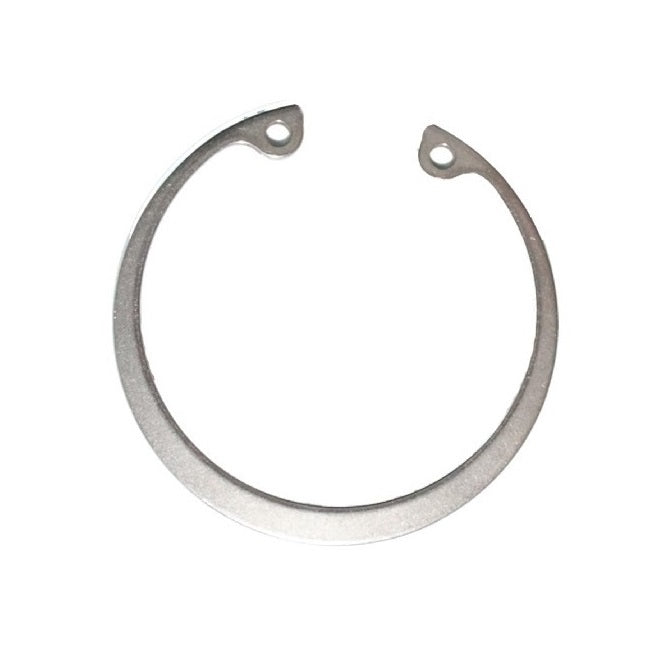

Retaining Rings - Internal - Circlips - Standard - Stainless Steel

A selection of Stainless Steel Standard Circlips Internal Retaining Rings. Imperial and...

Retaining Rings - Internal - Circlips - Standard - Stainless Steel

Internal Retaining Rings - 6.35x0.31x6.81 mm - Carbon Steel Zinc Plated

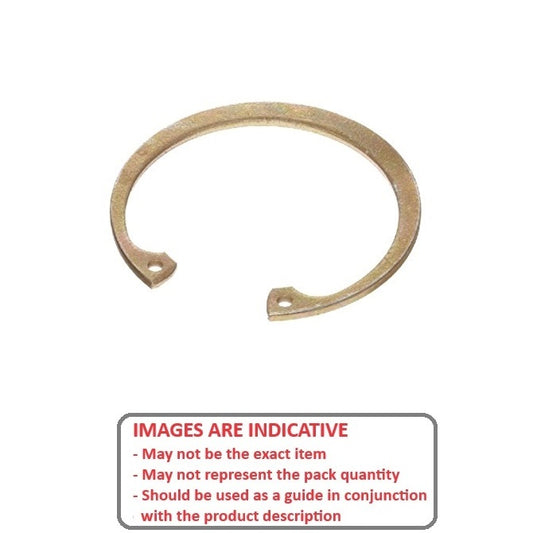

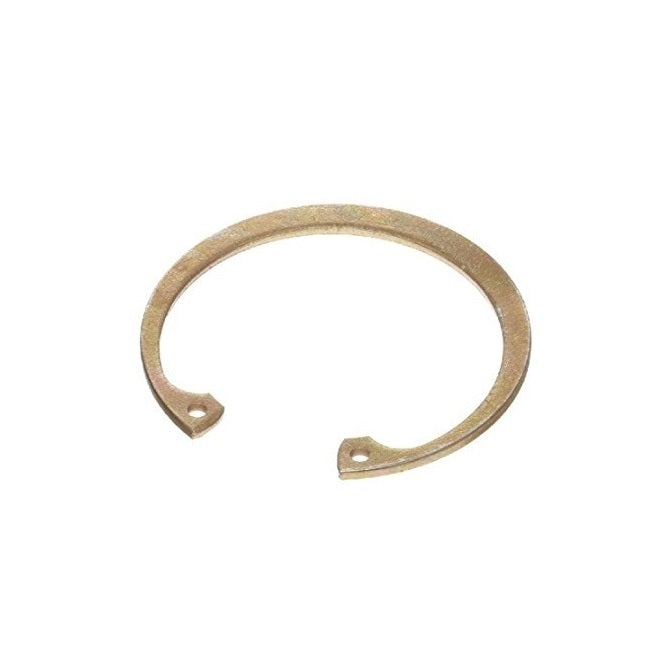

Retaining Rings - Internal - Circlips - Standard - Zinc Plated

A selection of Zinc Plated Standard Circlips Internal Retaining Rings. Imperial and...

Retaining Rings - Internal - Circlips - Standard - Zinc Plated

Category Details

This category includes various types of internal retaining rings.

An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Retaining Rings - Internal - Circlips - Standard category on the Small Parts & Bearings online store.

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)
Housing Bore (B) 6.35 mm (Equiv. 0.25 in.)	Clip Thickness (T) 0.31 mm _{+/- 0.025} (Equiv. 0.012 in.)	Groove Dia. (Dg) 6.81 mm _{+ 0.00 / - 0.05} (Equiv. 0.268 in.)	Approx. Loose Circlip OD (Dr) 7.11 mm + 0.25 / - 0.13		Groove Width (W) 0.51 mm + 0.05 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 2.79 mm Clearance in Groove (C1): 3.30 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-00635-C (50 Pcs) Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $13.32 AUD Regular price Sale price $13.32 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Housing Bore (B) 6.35 mm (Equiv. 0.25 in.)	Clip Thickness (T) 0.31 mm _{+/- 0.025} (Equiv. 0.012 in.)	Groove Dia. (Dg) 6.81 mm _{+ 0.00 / - 0.05} (Equiv. 0.268 in.)	Approx. Loose Circlip OD (Dr) 7.11 mm + 0.25 / - 0.13
Material: Carbon Steel Groove Width (W): 0.51 mm + 0.05 / - 0.00 Clearance in Bore (C): 2.79 mm Clearance in Groove (C1): 3.30 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-00635-C (50 Pcs) Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $13.32 AUD Regular price Sale price $13.32 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
CCI-00635-C (50 Pcs) --- Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Carbon Steel Circlip CCI-00635-C (50 Pcs) --- Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Carbon Steel Circlip Regular price $13.32 AUD Regular price Sale price $13.32 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 6.35 mm (Equiv. 0.25 in.)	Clip Thickness (T) 0.31 mm _{+/- 0.025} (Equiv. 0.012 in.)	Groove Dia. (Dg) 6.81 mm _{+ 0.00 / - 0.05} (Equiv. 0.268 in.)	Approx. Loose Circlip OD (Dr) 7.11 mm + 0.25 / - 0.13		Groove Width (W) 0.51 mm + 0.05 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 2.79 mm Clearance in Groove (C1): 3.30 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-00635-CZY (100 Pcs) Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $21.23 AUD Regular price ~~$49.60 AUD~~ Sale price $21.23 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 6.35 mm (Equiv. 0.25 in.)	Clip Thickness (T) 0.31 mm _{+/- 0.025} (Equiv. 0.012 in.)	Groove Dia. (Dg) 6.81 mm _{+ 0.00 / - 0.05} (Equiv. 0.268 in.)	Approx. Loose Circlip OD (Dr) 7.11 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.51 mm + 0.05 / - 0.00 Clearance in Bore (C): 2.79 mm Clearance in Groove (C1): 3.30 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-00635-CZY (100 Pcs) Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $21.23 AUD Regular price ~~$49.60 AUD~~ Sale price $21.23 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
CCI-00635-CZY (100 Pcs) --- Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-00635-CZY (100 Pcs) --- Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $21.23 AUD Regular price ~~$49.60 AUD~~ Sale price $21.23 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 6.35 mm (Equiv. 0.25 in.)	Clip Thickness (T) 0.31 mm _{+/- 0.025} (Equiv. 0.012 in.)	Groove Dia. (Dg) 6.81 mm _{+ 0.00 / - 0.05} (Equiv. 0.268 in.)	Approx. Loose Circlip OD (Dr) 7.11 mm + 0.25 / - 0.13		Groove Width (W) 0.51 mm + 0.05 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 2.79 mm Clearance in Groove (C1): 3.30 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-00635-S15 (2 Pcs) Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 150 units (300 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Per 2 Quantity Required 150 units (300 pcs) Available Now. Backorder if more than 150.
Housing Bore (B) 6.35 mm (Equiv. 0.25 in.)	Clip Thickness (T) 0.31 mm _{+/- 0.025} (Equiv. 0.012 in.)	Groove Dia. (Dg) 6.81 mm _{+ 0.00 / - 0.05} (Equiv. 0.268 in.)	Approx. Loose Circlip OD (Dr) 7.11 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.51 mm + 0.05 / - 0.00 Clearance in Bore (C): 2.79 mm Clearance in Groove (C1): 3.30 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-00635-S15 (2 Pcs) Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 150 units (300 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Per 2 Quantity Required 150 units (300 pcs) Available Now. Backorder if more than 150.
CCI-00635-S15 (2 Pcs) --- Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCI-00635-S15 (2 Pcs) --- Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per 150 Available Now
Housing Bore (B) 7.94 mm (Equiv. 0.313 in.)	Clip Thickness (T) 0.31 mm _{+/- 0.025} (Equiv. 0.012 in.)	Groove Dia. (Dg) 8.38 mm _{+ 0.00 / - 0.05} (Equiv. 0.33 in.)	Approx. Loose Circlip OD (Dr) 8.79 mm + 0.25 / - 0.13		Groove Width (W) 0.51 mm + 0.05 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 4.32 mm Clearance in Groove (C1): 4.83 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-00794-S15 (5 Pcs) Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 4 units (20 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $11.32 AUD Regular price Sale price $11.32 AUD Unit price per Per 5 Quantity Required 4 units (20 pcs) Available Now. Backorder if more than 4.
Housing Bore (B) 7.94 mm (Equiv. 0.313 in.)	Clip Thickness (T) 0.31 mm _{+/- 0.025} (Equiv. 0.012 in.)	Groove Dia. (Dg) 8.38 mm _{+ 0.00 / - 0.05} (Equiv. 0.33 in.)	Approx. Loose Circlip OD (Dr) 8.79 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.51 mm + 0.05 / - 0.00 Clearance in Bore (C): 4.32 mm Clearance in Groove (C1): 4.83 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-00794-S15 (5 Pcs) Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 4 units (20 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $11.32 AUD Regular price Sale price $11.32 AUD Unit price per Per 5 Quantity Required 4 units (20 pcs) Available Now. Backorder if more than 4.
CCI-00794-S15 (5 Pcs) --- Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCI-00794-S15 (5 Pcs) --- Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $11.32 AUD Regular price Sale price $11.32 AUD Unit price per 4 Available Now
Housing Bore (B) 7.94 mm (Equiv. 0.313 in.)	Clip Thickness (T) 0.31 mm _{+/- 0.025} (Equiv. 0.012 in.)	Groove Dia. (Dg) 8.38 mm _{+ 0.00 / - 0.05} (Equiv. 0.33 in.)	Approx. Loose Circlip OD (Dr) 8.79 mm + 0.25 / - 0.13		Groove Width (W) 0.51 mm + 0.05 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 4.32 mm Clearance in Groove (C1): 4.83 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-00794-CZY (100 Pcs) Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $21.68 AUD Regular price ~~$50.80 AUD~~ Sale price $21.68 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 7.94 mm (Equiv. 0.313 in.)	Clip Thickness (T) 0.31 mm _{+/- 0.025} (Equiv. 0.012 in.)	Groove Dia. (Dg) 8.38 mm _{+ 0.00 / - 0.05} (Equiv. 0.33 in.)	Approx. Loose Circlip OD (Dr) 8.79 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.51 mm + 0.05 / - 0.00 Clearance in Bore (C): 4.32 mm Clearance in Groove (C1): 4.83 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-00794-CZY (100 Pcs) Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $21.68 AUD Regular price ~~$50.80 AUD~~ Sale price $21.68 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
CCI-00794-CZY (100 Pcs) --- Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-00794-CZY (100 Pcs) --- Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $21.68 AUD Regular price ~~$50.80 AUD~~ Sale price $21.68 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 7.94 mm (Equiv. 0.313 in.)	Clip Thickness (T) 0.31 mm _{+/- 0.025} (Equiv. 0.012 in.)	Groove Dia. (Dg) 8.38 mm _{+ 0.00 / - 0.05} (Equiv. 0.33 in.)	Approx. Loose Circlip OD (Dr) 8.79 mm + 0.25 / - 0.13		Groove Width (W) 0.51 mm + 0.05 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 4.32 mm Clearance in Groove (C1): 4.83 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-00794-C (20 Pcs) Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Carbon Steel Circlip 4 units (80 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.95 AUD Regular price ~~$5.50 AUD~~ Sale price $2.95 AUD Unit price per Per 20 Quantity Required 4 units (80 pcs) Available Now. Backorder if more than 4.
Housing Bore (B) 7.94 mm (Equiv. 0.313 in.)	Clip Thickness (T) 0.31 mm _{+/- 0.025} (Equiv. 0.012 in.)	Groove Dia. (Dg) 8.38 mm _{+ 0.00 / - 0.05} (Equiv. 0.33 in.)	Approx. Loose Circlip OD (Dr) 8.79 mm + 0.25 / - 0.13
Material: Carbon Steel Groove Width (W): 0.51 mm + 0.05 / - 0.00 Clearance in Bore (C): 4.32 mm Clearance in Groove (C1): 4.83 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-00794-C (20 Pcs) Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Carbon Steel Circlip 4 units (80 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.95 AUD Regular price ~~$5.50 AUD~~ Sale price $2.95 AUD Unit price per Per 20 Quantity Required 4 units (80 pcs) Available Now. Backorder if more than 4.
CCI-00794-C (20 Pcs) --- Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Carbon Steel Circlip Sale CCI-00794-C (20 Pcs) --- Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Carbon Steel Circlip Regular price $2.95 AUD Regular price ~~$5.50 AUD~~ Sale price $2.95 AUD Unit price per 4 Available Now Sale
Housing Bore (B) 8.00 mm (Equiv. 0.315 in.)	Clip Thickness (T) 0.80 mm _{+ 0.09 / - 0.00} (Equiv. 0.031 in.)	Groove Dia. (Dg) 8.40 mm _{+ 0.00 / - 0.05} (Equiv. 0.331 in.)	Approx. Loose Circlip OD (Dr) 8.70 mm + 0.36 / - 0.10		Groove Width (W) 0.90 mm + 0.05 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 3.00 mm Clearance in Groove (C1): 3.60 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-00800-S15 (5 Pcs) Internal Retaining Rings - 8x0.8x8.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 3 units (15 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $14.50 AUD Regular price Sale price $14.50 AUD Unit price per Per 5 Quantity Required 3 units (15 pcs) Available Now. Backorder if more than 3.
Housing Bore (B) 8.00 mm (Equiv. 0.315 in.)	Clip Thickness (T) 0.80 mm _{+ 0.09 / - 0.00} (Equiv. 0.031 in.)	Groove Dia. (Dg) 8.40 mm _{+ 0.00 / - 0.05} (Equiv. 0.331 in.)	Approx. Loose Circlip OD (Dr) 8.70 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.90 mm + 0.05 / - 0.00 Clearance in Bore (C): 3.00 mm Clearance in Groove (C1): 3.60 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-00800-S15 (5 Pcs) Internal Retaining Rings - 8x0.8x8.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 3 units (15 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $14.50 AUD Regular price Sale price $14.50 AUD Unit price per Per 5 Quantity Required 3 units (15 pcs) Available Now. Backorder if more than 3.
CCI-00800-S15 (5 Pcs) --- Internal Retaining Rings - 8x0.8x8.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCI-00800-S15 (5 Pcs) --- Internal Retaining Rings - 8x0.8x8.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $14.50 AUD Regular price Sale price $14.50 AUD Unit price per 3 Available Now
Housing Bore (B) 8.00 mm (Equiv. 0.315 in.)	Clip Thickness (T) 0.80 mm _{+ 0.09 / - 0.00} (Equiv. 0.031 in.)	Groove Dia. (Dg) 8.40 mm _{+ 0.00 / - 0.05} (Equiv. 0.331 in.)	Approx. Loose Circlip OD (Dr) 8.70 mm + 0.36 / - 0.10		Groove Width (W) 0.90 mm + 0.05 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 3.00 mm Clearance in Groove (C1): 3.60 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-00800-C (50 Pcs) Internal Retaining Rings - 8x0.8x8.4 mm Circlips - Carbon Steel Circlip 373 units (18650 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.14 AUD Regular price ~~$5.87 AUD~~ Sale price $3.14 AUD Unit price per Per 50 Quantity Required 373 units (18650 pcs) Available Now. Backorder if more than 373.
Housing Bore (B) 8.00 mm (Equiv. 0.315 in.)	Clip Thickness (T) 0.80 mm _{+ 0.09 / - 0.00} (Equiv. 0.031 in.)	Groove Dia. (Dg) 8.40 mm _{+ 0.00 / - 0.05} (Equiv. 0.331 in.)	Approx. Loose Circlip OD (Dr) 8.70 mm + 0.36 / - 0.10
Material: Carbon Steel Groove Width (W): 0.90 mm + 0.05 / - 0.00 Clearance in Bore (C): 3.00 mm Clearance in Groove (C1): 3.60 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-00800-C (50 Pcs) Internal Retaining Rings - 8x0.8x8.4 mm Circlips - Carbon Steel Circlip 373 units (18650 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.14 AUD Regular price ~~$5.87 AUD~~ Sale price $3.14 AUD Unit price per Per 50 Quantity Required 373 units (18650 pcs) Available Now. Backorder if more than 373.
CCI-00800-C (50 Pcs) --- Internal Retaining Rings - 8x0.8x8.4 mm Circlips - Carbon Steel Circlip Sale CCI-00800-C (50 Pcs) --- Internal Retaining Rings - 8x0.8x8.4 mm Circlips - Carbon Steel Circlip Regular price $3.14 AUD Regular price ~~$5.87 AUD~~ Sale price $3.14 AUD Unit price per 373 Available Now Sale
Housing Bore (B) 9.00 mm (Equiv. 0.354 in.)	Clip Thickness (T) 0.80 mm _{+ 0.09 / - 0.00} (Equiv. 0.031 in.)	Groove Dia. (Dg) 9.40 mm _{+ 0.00 / - 0.05} (Equiv. 0.37 in.)	Approx. Loose Circlip OD (Dr) 9.80 mm + 0.36 / - 0.10		Groove Width (W) 0.90 mm + 0.05 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 3.70 mm Clearance in Groove (C1): 4.40 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-00900-C (50 Pcs) Internal Retaining Rings - 9x0.8x9.4 mm Circlips - Carbon Steel Circlip 20 units (1000 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.32 AUD Regular price ~~$6.14 AUD~~ Sale price $3.32 AUD Unit price per Per 50 Quantity Required 20 units (1000 pcs) Available Now. Backorder if more than 20.
Housing Bore (B) 9.00 mm (Equiv. 0.354 in.)	Clip Thickness (T) 0.80 mm _{+ 0.09 / - 0.00} (Equiv. 0.031 in.)	Groove Dia. (Dg) 9.40 mm _{+ 0.00 / - 0.05} (Equiv. 0.37 in.)	Approx. Loose Circlip OD (Dr) 9.80 mm + 0.36 / - 0.10
Material: Carbon Steel Groove Width (W): 0.90 mm + 0.05 / - 0.00 Clearance in Bore (C): 3.70 mm Clearance in Groove (C1): 4.40 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-00900-C (50 Pcs) Internal Retaining Rings - 9x0.8x9.4 mm Circlips - Carbon Steel Circlip 20 units (1000 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.32 AUD Regular price ~~$6.14 AUD~~ Sale price $3.32 AUD Unit price per Per 50 Quantity Required 20 units (1000 pcs) Available Now. Backorder if more than 20.
CCI-00900-C (50 Pcs) --- Internal Retaining Rings - 9x0.8x9.4 mm Circlips - Carbon Steel Circlip Sale CCI-00900-C (50 Pcs) --- Internal Retaining Rings - 9x0.8x9.4 mm Circlips - Carbon Steel Circlip Regular price $3.32 AUD Regular price ~~$6.14 AUD~~ Sale price $3.32 AUD Unit price per 20 Available Now Sale
Housing Bore (B) 9.00 mm (Equiv. 0.354 in.)	Clip Thickness (T) 0.80 mm _{+ 0.09 / - 0.00} (Equiv. 0.031 in.)	Groove Dia. (Dg) 9.40 mm _{+ 0.00 / - 0.05} (Equiv. 0.37 in.)	Approx. Loose Circlip OD (Dr) 9.80 mm + 0.36 / - 0.10		Groove Width (W) 0.90 mm + 0.05 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 3.70 mm Clearance in Groove (C1): 4.40 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-00900-S15 (2 Pcs) Internal Retaining Rings - 9x0.8x9.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 38 units (76 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.68 AUD Regular price ~~$4.66 AUD~~ Sale price $1.68 AUD Unit price per Per 2 Quantity Required 38 units (76 pcs) Available Now. Backorder if more than 38.
Housing Bore (B) 9.00 mm (Equiv. 0.354 in.)	Clip Thickness (T) 0.80 mm _{+ 0.09 / - 0.00} (Equiv. 0.031 in.)	Groove Dia. (Dg) 9.40 mm _{+ 0.00 / - 0.05} (Equiv. 0.37 in.)	Approx. Loose Circlip OD (Dr) 9.80 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.90 mm + 0.05 / - 0.00 Clearance in Bore (C): 3.70 mm Clearance in Groove (C1): 4.40 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-00900-S15 (2 Pcs) Internal Retaining Rings - 9x0.8x9.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 38 units (76 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.68 AUD Regular price ~~$4.66 AUD~~ Sale price $1.68 AUD Unit price per Per 2 Quantity Required 38 units (76 pcs) Available Now. Backorder if more than 38.
CCI-00900-S15 (2 Pcs) --- Internal Retaining Rings - 9x0.8x9.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-00900-S15 (2 Pcs) --- Internal Retaining Rings - 9x0.8x9.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $1.68 AUD Regular price ~~$4.66 AUD~~ Sale price $1.68 AUD Unit price per 38 Available Now Sale
Housing Bore (B) 9.53 mm (Equiv. 0.375 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 10.08 mm _{+ 0.00 / - 0.05} (Equiv. 0.397 in.)	Approx. Loose Circlip OD (Dr) 10.54 mm + 0.25 / - 0.13		Groove Width (W) 0.74 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 5.08 mm Clearance in Groove (C1): 5.59 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-00953-CZY (5 Pcs) Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Carbon Steel Zinc Plated Circlip 38 units (190 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $0.95 AUD Regular price ~~$2.48 AUD~~ Sale price $0.95 AUD Unit price per Per 5 Quantity Required 38 units (190 pcs) Available Now. Backorder if more than 38.
Housing Bore (B) 9.53 mm (Equiv. 0.375 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 10.08 mm _{+ 0.00 / - 0.05} (Equiv. 0.397 in.)	Approx. Loose Circlip OD (Dr) 10.54 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm + 0.08 / - 0.00 Clearance in Bore (C): 5.08 mm Clearance in Groove (C1): 5.59 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-00953-CZY (5 Pcs) Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Carbon Steel Zinc Plated Circlip 38 units (190 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $0.95 AUD Regular price ~~$2.48 AUD~~ Sale price $0.95 AUD Unit price per Per 5 Quantity Required 38 units (190 pcs) Available Now. Backorder if more than 38.
CCI-00953-CZY (5 Pcs) --- Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-00953-CZY (5 Pcs) --- Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $0.95 AUD Regular price ~~$2.48 AUD~~ Sale price $0.95 AUD Unit price per 38 Available Now Sale
Housing Bore (B) 9.53 mm (Equiv. 0.375 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 10.08 mm _{+ 0.00 / - 0.05} (Equiv. 0.397 in.)	Approx. Loose Circlip OD (Dr) 10.54 mm + 0.25 / - 0.13		Groove Width (W) 0.74 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 5.08 mm Clearance in Groove (C1): 5.59 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-00953-S15 (2 Pcs) Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 75 units (150 pcs) Available Now \| Further orders can be expected around Wed, Dec 24, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 2 Quantity Required 75 units (150 pcs) Available Now. Backorder if more than 75.
Housing Bore (B) 9.53 mm (Equiv. 0.375 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 10.08 mm _{+ 0.00 / - 0.05} (Equiv. 0.397 in.)	Approx. Loose Circlip OD (Dr) 10.54 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm + 0.08 / - 0.00 Clearance in Bore (C): 5.08 mm Clearance in Groove (C1): 5.59 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-00953-S15 (2 Pcs) Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 75 units (150 pcs) Available Now \| Further orders can be expected around Wed, Dec 24, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 2 Quantity Required 75 units (150 pcs) Available Now. Backorder if more than 75.
CCI-00953-S15 (2 Pcs) --- Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCI-00953-S15 (2 Pcs) --- Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per 75 Available Now
Housing Bore (B) 9.53 mm (Equiv. 0.375 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 10.08 mm _{+ 0.00 / - 0.05} (Equiv. 0.397 in.)	Approx. Loose Circlip OD (Dr) 10.54 mm + 0.25 / - 0.13		Groove Width (W) 0.74 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 5.08 mm Clearance in Groove (C1): 5.59 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-00953-C (100 Pcs) Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $16.41 AUD Regular price ~~$19.69 AUD~~ Sale price $16.41 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 9.53 mm (Equiv. 0.375 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 10.08 mm _{+ 0.00 / - 0.05} (Equiv. 0.397 in.)	Approx. Loose Circlip OD (Dr) 10.54 mm + 0.25 / - 0.13
Material: Carbon Steel Groove Width (W): 0.74 mm + 0.08 / - 0.00 Clearance in Bore (C): 5.08 mm Clearance in Groove (C1): 5.59 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-00953-C (100 Pcs) Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $16.41 AUD Regular price ~~$19.69 AUD~~ Sale price $16.41 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
CCI-00953-C (100 Pcs) --- Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Carbon Steel Circlip Sale CCI-00953-C (100 Pcs) --- Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Carbon Steel Circlip Regular price $16.41 AUD Regular price ~~$19.69 AUD~~ Sale price $16.41 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 10.00 mm (Equiv. 0.394 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 10.40 mm _{+ 0.00 / - 0.06} (Equiv. 0.409 in.)	Approx. Loose Circlip OD (Dr) 10.80 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.05 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 3.30 mm Clearance in Groove (C1): 4.00 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01000-S15 (5 Pcs) Internal Retaining Rings - 10x1x10.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 13 units (65 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $15.95 AUD Regular price Sale price $15.95 AUD Unit price per Per 5 Quantity Required 13 units (65 pcs) Available Now. Backorder if more than 13.
Housing Bore (B) 10.00 mm (Equiv. 0.394 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 10.40 mm _{+ 0.00 / - 0.06} (Equiv. 0.409 in.)	Approx. Loose Circlip OD (Dr) 10.80 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.05 / - 0.00 Clearance in Bore (C): 3.30 mm Clearance in Groove (C1): 4.00 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01000-S15 (5 Pcs) Internal Retaining Rings - 10x1x10.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 13 units (65 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $15.95 AUD Regular price Sale price $15.95 AUD Unit price per Per 5 Quantity Required 13 units (65 pcs) Available Now. Backorder if more than 13.
CCI-01000-S15 (5 Pcs) --- Internal Retaining Rings - 10x1x10.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCI-01000-S15 (5 Pcs) --- Internal Retaining Rings - 10x1x10.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $15.95 AUD Regular price Sale price $15.95 AUD Unit price per 13 Available Now
Housing Bore (B) 10.00 mm (Equiv. 0.394 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 10.40 mm _{+ 0.00 / - 0.06} (Equiv. 0.409 in.)	Approx. Loose Circlip OD (Dr) 10.80 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.05 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 3.30 mm Clearance in Groove (C1): 4.00 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01000-C (50 Pcs) Internal Retaining Rings - 10x1x10.4 mm Circlips - Carbon Steel Circlip 18 units (900 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Per 50 Quantity Required 18 units (900 pcs) Available Now. Backorder if more than 18.
Housing Bore (B) 10.00 mm (Equiv. 0.394 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 10.40 mm _{+ 0.00 / - 0.06} (Equiv. 0.409 in.)	Approx. Loose Circlip OD (Dr) 10.80 mm + 0.36 / - 0.10
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.05 / - 0.00 Clearance in Bore (C): 3.30 mm Clearance in Groove (C1): 4.00 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01000-C (50 Pcs) Internal Retaining Rings - 10x1x10.4 mm Circlips - Carbon Steel Circlip 18 units (900 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Per 50 Quantity Required 18 units (900 pcs) Available Now. Backorder if more than 18.
CCI-01000-C (50 Pcs) --- Internal Retaining Rings - 10x1x10.4 mm Circlips - Carbon Steel Circlip CCI-01000-C (50 Pcs) --- Internal Retaining Rings - 10x1x10.4 mm Circlips - Carbon Steel Circlip Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per 18 Available Now
Housing Bore (B) 11.00 mm (Equiv. 0.433 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 11.40 mm _{+ 0.00 / - 0.06} (Equiv. 0.449 in.)	Approx. Loose Circlip OD (Dr) 11.80 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.05 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 4.10 mm Clearance in Groove (C1): 4.80 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01100-C (50 Pcs) Internal Retaining Rings - 11x1x11.4 mm Circlips - Carbon Steel Circlip 15 units (750 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.23 AUD Regular price ~~$6.01 AUD~~ Sale price $3.23 AUD Unit price per Per 50 Quantity Required 15 units (750 pcs) Available Now. Backorder if more than 15.
Housing Bore (B) 11.00 mm (Equiv. 0.433 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 11.40 mm _{+ 0.00 / - 0.06} (Equiv. 0.449 in.)	Approx. Loose Circlip OD (Dr) 11.80 mm + 0.36 / - 0.10
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.05 / - 0.00 Clearance in Bore (C): 4.10 mm Clearance in Groove (C1): 4.80 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01100-C (50 Pcs) Internal Retaining Rings - 11x1x11.4 mm Circlips - Carbon Steel Circlip 15 units (750 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.23 AUD Regular price ~~$6.01 AUD~~ Sale price $3.23 AUD Unit price per Per 50 Quantity Required 15 units (750 pcs) Available Now. Backorder if more than 15.
CCI-01100-C (50 Pcs) --- Internal Retaining Rings - 11x1x11.4 mm Circlips - Carbon Steel Circlip Sale CCI-01100-C (50 Pcs) --- Internal Retaining Rings - 11x1x11.4 mm Circlips - Carbon Steel Circlip Regular price $3.23 AUD Regular price ~~$6.01 AUD~~ Sale price $3.23 AUD Unit price per 15 Available Now Sale
Housing Bore (B) 11.00 mm (Equiv. 0.433 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 11.40 mm _{+ 0.00 / - 0.06} (Equiv. 0.449 in.)	Approx. Loose Circlip OD (Dr) 11.80 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.05 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 4.10 mm Clearance in Groove (C1): 4.80 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01100-S15 (2 Pcs) Internal Retaining Rings - 11x1x11.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 12 units (24 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.32 AUD Regular price ~~$6.38 AUD~~ Sale price $2.32 AUD Unit price per Per 2 Quantity Required 12 units (24 pcs) Available Now. Backorder if more than 12.
Housing Bore (B) 11.00 mm (Equiv. 0.433 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 11.40 mm _{+ 0.00 / - 0.06} (Equiv. 0.449 in.)	Approx. Loose Circlip OD (Dr) 11.80 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.05 / - 0.00 Clearance in Bore (C): 4.10 mm Clearance in Groove (C1): 4.80 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01100-S15 (2 Pcs) Internal Retaining Rings - 11x1x11.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 12 units (24 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.32 AUD Regular price ~~$6.38 AUD~~ Sale price $2.32 AUD Unit price per Per 2 Quantity Required 12 units (24 pcs) Available Now. Backorder if more than 12.
CCI-01100-S15 (2 Pcs) --- Internal Retaining Rings - 11x1x11.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-01100-S15 (2 Pcs) --- Internal Retaining Rings - 11x1x11.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $2.32 AUD Regular price ~~$6.38 AUD~~ Sale price $2.32 AUD Unit price per 12 Available Now Sale
Housing Bore (B) 11.11 mm (Equiv. 0.437 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.71 mm _{+ 0.00 / - 0.06} (Equiv. 0.461 in.)	Approx. Loose Circlip OD (Dr) 12.24 mm + 0.25 / - 0.13		Groove Width (W) 0.74 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 5.84 mm Clearance in Groove (C1): 6.35 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-01111-CZY (5 Pcs) Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Carbon Steel Zinc Plated Circlip 40 units (200 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $0.95 AUD Regular price ~~$2.62 AUD~~ Sale price $0.95 AUD Unit price per Per 5 Quantity Required 40 units (200 pcs) Available Now. Backorder if more than 40.
Housing Bore (B) 11.11 mm (Equiv. 0.437 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.71 mm _{+ 0.00 / - 0.06} (Equiv. 0.461 in.)	Approx. Loose Circlip OD (Dr) 12.24 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm + 0.08 / - 0.00 Clearance in Bore (C): 5.84 mm Clearance in Groove (C1): 6.35 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-01111-CZY (5 Pcs) Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Carbon Steel Zinc Plated Circlip 40 units (200 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $0.95 AUD Regular price ~~$2.62 AUD~~ Sale price $0.95 AUD Unit price per Per 5 Quantity Required 40 units (200 pcs) Available Now. Backorder if more than 40.
CCI-01111-CZY (5 Pcs) --- Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-01111-CZY (5 Pcs) --- Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $0.95 AUD Regular price ~~$2.62 AUD~~ Sale price $0.95 AUD Unit price per 40 Available Now Sale
Housing Bore (B) 11.11 mm (Equiv. 0.437 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.71 mm _{+ 0.00 / - 0.06} (Equiv. 0.461 in.)	Approx. Loose Circlip OD (Dr) 12.24 mm + 0.25 / - 0.13		Groove Width (W) 0.74 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 5.84 mm Clearance in Groove (C1): 6.35 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01111-S15 (2 Pcs) Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 195 units (390 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 2 Quantity Required 195 units (390 pcs) Available Now. Backorder if more than 195.
Housing Bore (B) 11.11 mm (Equiv. 0.437 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.71 mm _{+ 0.00 / - 0.06} (Equiv. 0.461 in.)	Approx. Loose Circlip OD (Dr) 12.24 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm + 0.08 / - 0.00 Clearance in Bore (C): 5.84 mm Clearance in Groove (C1): 6.35 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01111-S15 (2 Pcs) Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 195 units (390 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 2 Quantity Required 195 units (390 pcs) Available Now. Backorder if more than 195.
CCI-01111-S15 (2 Pcs) --- Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCI-01111-S15 (2 Pcs) --- Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per 195 Available Now
Housing Bore (B) 11.11 mm (Equiv. 0.437 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.71 mm _{+ 0.00 / - 0.06} (Equiv. 0.461 in.)	Approx. Loose Circlip OD (Dr) 12.24 mm + 0.25 / - 0.13		Groove Width (W) 0.74 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 5.84 mm Clearance in Groove (C1): 6.35 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01111-C (20 Pcs) Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Carbon Steel Circlip 22 units (440 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.86 AUD Regular price ~~$5.39 AUD~~ Sale price $2.86 AUD Unit price per Per 20 Quantity Required 22 units (440 pcs) Available Now. Backorder if more than 22.
Housing Bore (B) 11.11 mm (Equiv. 0.437 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.71 mm _{+ 0.00 / - 0.06} (Equiv. 0.461 in.)	Approx. Loose Circlip OD (Dr) 12.24 mm + 0.25 / - 0.13
Material: Carbon Steel Groove Width (W): 0.74 mm + 0.08 / - 0.00 Clearance in Bore (C): 5.84 mm Clearance in Groove (C1): 6.35 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01111-C (20 Pcs) Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Carbon Steel Circlip 22 units (440 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.86 AUD Regular price ~~$5.39 AUD~~ Sale price $2.86 AUD Unit price per Per 20 Quantity Required 22 units (440 pcs) Available Now. Backorder if more than 22.
CCI-01111-C (20 Pcs) --- Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Carbon Steel Circlip Sale CCI-01111-C (20 Pcs) --- Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Carbon Steel Circlip Regular price $2.86 AUD Regular price ~~$5.39 AUD~~ Sale price $2.86 AUD Unit price per 22 Available Now Sale
Housing Bore (B) 11.51 mm (Equiv. 0.453 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 12.12 mm _{+ 0.00 / - 0.06} (Equiv. 0.477 in.)	Approx. Loose Circlip OD (Dr) 12.65 mm + 0.25 / - 0.13		Groove Width (W) 0.74 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 6.35 mm Clearance in Groove (C1): 6.86 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01151-C (100 Pcs) Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $28.68 AUD Regular price ~~$34.42 AUD~~ Sale price $28.68 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 11.51 mm (Equiv. 0.453 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 12.12 mm _{+ 0.00 / - 0.06} (Equiv. 0.477 in.)	Approx. Loose Circlip OD (Dr) 12.65 mm + 0.25 / - 0.13
Material: Carbon Steel Groove Width (W): 0.74 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.35 mm Clearance in Groove (C1): 6.86 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01151-C (100 Pcs) Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $28.68 AUD Regular price ~~$34.42 AUD~~ Sale price $28.68 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
CCI-01151-C (100 Pcs) --- Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Carbon Steel Circlip Sale CCI-01151-C (100 Pcs) --- Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Carbon Steel Circlip Regular price $28.68 AUD Regular price ~~$34.42 AUD~~ Sale price $28.68 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 11.51 mm (Equiv. 0.453 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 12.12 mm _{+ 0.00 / - 0.06} (Equiv. 0.477 in.)	Approx. Loose Circlip OD (Dr) 12.65 mm + 0.25 / - 0.13		Groove Width (W) 0.74 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 6.35 mm Clearance in Groove (C1): 6.86 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01151-S15 Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 17 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.23 AUD Regular price Sale price $4.23 AUD Unit price per Each Quantity Required 17 Available Now. Backorder if more than 17.
Housing Bore (B) 11.51 mm (Equiv. 0.453 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 12.12 mm _{+ 0.00 / - 0.06} (Equiv. 0.477 in.)	Approx. Loose Circlip OD (Dr) 12.65 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.35 mm Clearance in Groove (C1): 6.86 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01151-S15 Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 17 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.23 AUD Regular price Sale price $4.23 AUD Unit price per Each Quantity Required 17 Available Now. Backorder if more than 17.
CCI-01151-S15 --- Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCI-01151-S15 --- Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $4.23 AUD Regular price Sale price $4.23 AUD Unit price per 17 Available Now
Housing Bore (B) 11.51 mm (Equiv. 0.453 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 12.12 mm _{+ 0.00 / - 0.06} (Equiv. 0.477 in.)	Approx. Loose Circlip OD (Dr) 12.65 mm + 0.25 / - 0.13		Groove Width (W) 0.74 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 6.35 mm Clearance in Groove (C1): 6.86 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-01151-CZY (5 Pcs) Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Carbon Steel Zinc Plated Circlip 40 units (200 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.32 AUD Regular price ~~$3.66 AUD~~ Sale price $1.32 AUD Unit price per Per 5 Quantity Required 40 units (200 pcs) Available Now. Backorder if more than 40.
Housing Bore (B) 11.51 mm (Equiv. 0.453 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 12.12 mm _{+ 0.00 / - 0.06} (Equiv. 0.477 in.)	Approx. Loose Circlip OD (Dr) 12.65 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.35 mm Clearance in Groove (C1): 6.86 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 0.91 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-01151-CZY (5 Pcs) Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Carbon Steel Zinc Plated Circlip 40 units (200 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.32 AUD Regular price ~~$3.66 AUD~~ Sale price $1.32 AUD Unit price per Per 5 Quantity Required 40 units (200 pcs) Available Now. Backorder if more than 40.
CCI-01151-CZY (5 Pcs) --- Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-01151-CZY (5 Pcs) --- Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $1.32 AUD Regular price ~~$3.66 AUD~~ Sale price $1.32 AUD Unit price per 40 Available Now Sale
Housing Bore (B) 12.00 mm (Equiv. 0.472 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 12.50 mm _{+ 0.00 / - 0.06} (Equiv. 0.492 in.)	Approx. Loose Circlip OD (Dr) 13.00 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 4.90 mm Clearance in Groove (C1): 5.70 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.80 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01200-C (50 Pcs) Internal Retaining Rings - 12x1x12.5 mm Circlips - Carbon Steel Circlip 9 units (450 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.95 AUD Regular price ~~$7.34 AUD~~ Sale price $3.95 AUD Unit price per Per 50 Quantity Required 9 units (450 pcs) Available Now. Backorder if more than 9.
Housing Bore (B) 12.00 mm (Equiv. 0.472 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 12.50 mm _{+ 0.00 / - 0.06} (Equiv. 0.492 in.)	Approx. Loose Circlip OD (Dr) 13.00 mm + 0.36 / - 0.10
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 4.90 mm Clearance in Groove (C1): 5.70 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.80 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01200-C (50 Pcs) Internal Retaining Rings - 12x1x12.5 mm Circlips - Carbon Steel Circlip 9 units (450 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.95 AUD Regular price ~~$7.34 AUD~~ Sale price $3.95 AUD Unit price per Per 50 Quantity Required 9 units (450 pcs) Available Now. Backorder if more than 9.
CCI-01200-C (50 Pcs) --- Internal Retaining Rings - 12x1x12.5 mm Circlips - Carbon Steel Circlip Sale CCI-01200-C (50 Pcs) --- Internal Retaining Rings - 12x1x12.5 mm Circlips - Carbon Steel Circlip Regular price $3.95 AUD Regular price ~~$7.34 AUD~~ Sale price $3.95 AUD Unit price per 9 Available Now Sale

Country/region

Collection: Retaining Rings - Internal - Circlips - Standard

Category Details

Filter

Filter

Subscribe to our emails
