Collection: Retaining Rings - Internal - Circlips - Standard - Zinc Plated

Retaining Rings -> Internal -> Circlips -> Standard -> Zinc Plated

There are 53 products in the sub-categories of Retaining Rings - Internal - Circlips - Standard - Zinc Plated. Scroll down or follow the link to Retaining Rings - Internal - Circlips - Standard - Zinc Plated in the products table to see all these items combined into a handy table with filters.

Category Details

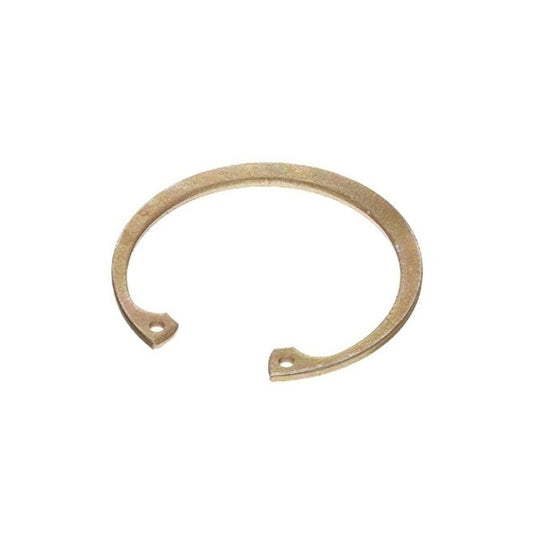

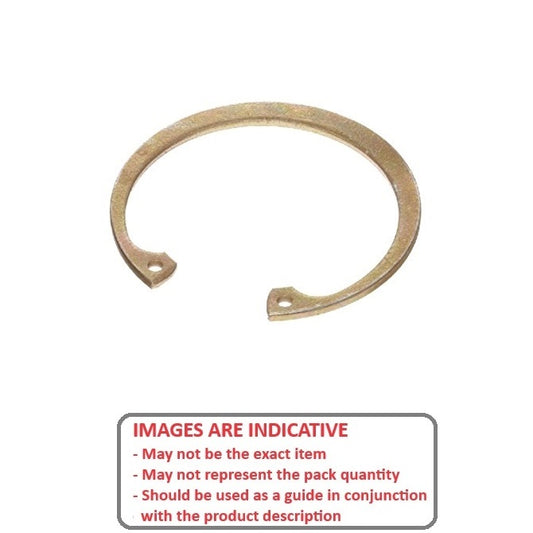

A selection of Zinc Plated Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).

An expanded range may be available on special order. Please enquire.
Zinc plated carbon steel
Tolerances on request.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Retaining Rings - Internal - Circlips - Standard - Zinc Plated category on the Small Parts & Bearings online store.

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)
Housing Bore (B) 6.35 mm (Equiv. 0.25 in.)	Clip Thickness (T) 0.31 mm _{+/- 0.025} (Equiv. 0.012 in.)	Groove Dia. (Dg) 6.81 mm _{+ 0.00 / - 0.05} (Equiv. 0.268 in.)	Approx. Loose Circlip OD (Dr) 7.11 mm + 0.25 / - 0.13		Groove Width (W) 0.51 mm + 0.05 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 2.79 mm Clearance in Groove (C1): 3.30 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Standard: MIL-16625
Part Number: CCI-00635-CZY (100 Pcs) Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $21.23 AUD Regular price ~~$49.60 AUD~~ Sale price $21.23 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Housing Bore (B) 6.35 mm (Equiv. 0.25 in.)	Clip Thickness (T) 0.31 mm _{+/- 0.025} (Equiv. 0.012 in.)	Groove Dia. (Dg) 6.81 mm _{+ 0.00 / - 0.05} (Equiv. 0.268 in.)	Approx. Loose Circlip OD (Dr) 7.11 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.51 mm + 0.05 / - 0.00 Clearance in Bore (C): 2.79 mm Clearance in Groove (C1): 3.30 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Standard: MIL-16625
Part Number: CCI-00635-CZY (100 Pcs) Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $21.23 AUD Regular price ~~$49.60 AUD~~ Sale price $21.23 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
CCI-00635-CZY (100 Pcs) --- Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-00635-CZY (100 Pcs) --- Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $21.23 AUD Regular price ~~$49.60 AUD~~ Sale price $21.23 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 7.94 mm (Equiv. 0.313 in.)	Clip Thickness (T) 0.31 mm _{+/- 0.025} (Equiv. 0.012 in.)	Groove Dia. (Dg) 8.38 mm _{+ 0.00 / - 0.05} (Equiv. 0.33 in.)	Approx. Loose Circlip OD (Dr) 8.79 mm + 0.25 / - 0.13		Groove Width (W) 0.51 mm + 0.05 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 4.32 mm Clearance in Groove (C1): 4.83 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Standard: MIL-16625
Part Number: CCI-00794-CZY (100 Pcs) Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $21.68 AUD Regular price ~~$50.80 AUD~~ Sale price $21.68 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 7.94 mm (Equiv. 0.313 in.)	Clip Thickness (T) 0.31 mm _{+/- 0.025} (Equiv. 0.012 in.)	Groove Dia. (Dg) 8.38 mm _{+ 0.00 / - 0.05} (Equiv. 0.33 in.)	Approx. Loose Circlip OD (Dr) 8.79 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.51 mm + 0.05 / - 0.00 Clearance in Bore (C): 4.32 mm Clearance in Groove (C1): 4.83 mm Min. Lug Diameter (h): 0.74 mm Min. Extension (n): 0.69 Standard: MIL-16625
Part Number: CCI-00794-CZY (100 Pcs) Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $21.68 AUD Regular price ~~$50.80 AUD~~ Sale price $21.68 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
CCI-00794-CZY (100 Pcs) --- Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-00794-CZY (100 Pcs) --- Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $21.68 AUD Regular price ~~$50.80 AUD~~ Sale price $21.68 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 9.53 mm (Equiv. 0.375 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 10.08 mm _{+ 0.00 / - 0.05} (Equiv. 0.397 in.)	Approx. Loose Circlip OD (Dr) 10.54 mm + 0.25 / - 0.13		Groove Width (W) 0.74 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 5.08 mm Clearance in Groove (C1): 5.59 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Standard: MIL-16625
Part Number: CCI-00953-CZY (5 Pcs) Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Carbon Steel Zinc Plated Circlip 38 units (190 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $0.95 AUD Regular price ~~$2.48 AUD~~ Sale price $0.95 AUD Unit price per Per 5 Quantity Required 38 units (190 pcs) Available Now. Backorder if more than 38.
Housing Bore (B) 9.53 mm (Equiv. 0.375 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 10.08 mm _{+ 0.00 / - 0.05} (Equiv. 0.397 in.)	Approx. Loose Circlip OD (Dr) 10.54 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm + 0.08 / - 0.00 Clearance in Bore (C): 5.08 mm Clearance in Groove (C1): 5.59 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Standard: MIL-16625
Part Number: CCI-00953-CZY (5 Pcs) Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Carbon Steel Zinc Plated Circlip 38 units (190 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $0.95 AUD Regular price ~~$2.48 AUD~~ Sale price $0.95 AUD Unit price per Per 5 Quantity Required 38 units (190 pcs) Available Now. Backorder if more than 38.
CCI-00953-CZY (5 Pcs) --- Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-00953-CZY (5 Pcs) --- Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $0.95 AUD Regular price ~~$2.48 AUD~~ Sale price $0.95 AUD Unit price per 38 Available Now Sale
Housing Bore (B) 11.11 mm (Equiv. 0.437 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.71 mm _{+ 0.00 / - 0.06} (Equiv. 0.461 in.)	Approx. Loose Circlip OD (Dr) 12.24 mm + 0.25 / - 0.13		Groove Width (W) 0.74 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 5.84 mm Clearance in Groove (C1): 6.35 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.91 Standard: MIL-16625
Part Number: CCI-01111-CZY (5 Pcs) Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Carbon Steel Zinc Plated Circlip 40 units (200 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $0.95 AUD Regular price ~~$2.62 AUD~~ Sale price $0.95 AUD Unit price per Per 5 Quantity Required 40 units (200 pcs) Available Now. Backorder if more than 40.
Housing Bore (B) 11.11 mm (Equiv. 0.437 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.71 mm _{+ 0.00 / - 0.06} (Equiv. 0.461 in.)	Approx. Loose Circlip OD (Dr) 12.24 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm + 0.08 / - 0.00 Clearance in Bore (C): 5.84 mm Clearance in Groove (C1): 6.35 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.91 Standard: MIL-16625
Part Number: CCI-01111-CZY (5 Pcs) Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Carbon Steel Zinc Plated Circlip 40 units (200 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $0.95 AUD Regular price ~~$2.62 AUD~~ Sale price $0.95 AUD Unit price per Per 5 Quantity Required 40 units (200 pcs) Available Now. Backorder if more than 40.
CCI-01111-CZY (5 Pcs) --- Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-01111-CZY (5 Pcs) --- Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $0.95 AUD Regular price ~~$2.62 AUD~~ Sale price $0.95 AUD Unit price per 40 Available Now Sale
Housing Bore (B) 11.51 mm (Equiv. 0.453 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 12.12 mm _{+ 0.00 / - 0.06} (Equiv. 0.477 in.)	Approx. Loose Circlip OD (Dr) 12.65 mm + 0.25 / - 0.13		Groove Width (W) 0.74 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 6.35 mm Clearance in Groove (C1): 6.86 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 0.91 Standard: MIL-16625
Part Number: CCI-01151-CZY (5 Pcs) Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Carbon Steel Zinc Plated Circlip 40 units (200 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.32 AUD Regular price ~~$3.66 AUD~~ Sale price $1.32 AUD Unit price per Per 5 Quantity Required 40 units (200 pcs) Available Now. Backorder if more than 40.
Housing Bore (B) 11.51 mm (Equiv. 0.453 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.050} (Equiv. 0.025 in.)	Groove Dia. (Dg) 12.12 mm _{+ 0.00 / - 0.06} (Equiv. 0.477 in.)	Approx. Loose Circlip OD (Dr) 12.65 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.74 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.35 mm Clearance in Groove (C1): 6.86 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 0.91 Standard: MIL-16625
Part Number: CCI-01151-CZY (5 Pcs) Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Carbon Steel Zinc Plated Circlip 40 units (200 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.32 AUD Regular price ~~$3.66 AUD~~ Sale price $1.32 AUD Unit price per Per 5 Quantity Required 40 units (200 pcs) Available Now. Backorder if more than 40.
CCI-01151-CZY (5 Pcs) --- Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-01151-CZY (5 Pcs) --- Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $1.32 AUD Regular price ~~$3.66 AUD~~ Sale price $1.32 AUD Unit price per 40 Available Now Sale
Housing Bore (B) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.46 mm _{+ 0.00 / - 0.06} (Equiv. 0.53 in.)	Approx. Loose Circlip OD (Dr) 13.92 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 6.60 mm Clearance in Groove (C1): 7.37 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.14 Standard: MIL-16625
Part Number: CCI-01270-CZY (5 Pcs) Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Carbon Steel Zinc Plated Circlip 148 units (740 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.14 AUD Regular price ~~$3.04 AUD~~ Sale price $1.14 AUD Unit price per Per 5 Quantity Required 148 units (740 pcs) Available Now. Backorder if more than 148.
Housing Bore (B) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.46 mm _{+ 0.00 / - 0.06} (Equiv. 0.53 in.)	Approx. Loose Circlip OD (Dr) 13.92 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.60 mm Clearance in Groove (C1): 7.37 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.14 Standard: MIL-16625
Part Number: CCI-01270-CZY (5 Pcs) Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Carbon Steel Zinc Plated Circlip 148 units (740 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.14 AUD Regular price ~~$3.04 AUD~~ Sale price $1.14 AUD Unit price per Per 5 Quantity Required 148 units (740 pcs) Available Now. Backorder if more than 148.
CCI-01270-CZY (5 Pcs) --- Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-01270-CZY (5 Pcs) --- Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $1.14 AUD Regular price ~~$3.04 AUD~~ Sale price $1.14 AUD Unit price per 148 Available Now Sale
Housing Bore (B) 14.29 mm (Equiv. 0.563 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 15.14 mm _{+ 0.00 / - 0.06} (Equiv. 0.596 in.)	Approx. Loose Circlip OD (Dr) 15.75 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 7.11 mm Clearance in Groove (C1): 8.13 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.30 Standard: MIL-16625
Part Number: CCI-01429-CZY (250 Pcs) Internal Retaining Rings - 14.29x0.89x15.14 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $68.50 AUD Regular price ~~$161.00 AUD~~ Sale price $68.50 AUD Unit price per Per 250 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 14.29 mm (Equiv. 0.563 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 15.14 mm _{+ 0.00 / - 0.06} (Equiv. 0.596 in.)	Approx. Loose Circlip OD (Dr) 15.75 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 7.11 mm Clearance in Groove (C1): 8.13 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.30 Standard: MIL-16625
Part Number: CCI-01429-CZY (250 Pcs) Internal Retaining Rings - 14.29x0.89x15.14 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $68.50 AUD Regular price ~~$161.00 AUD~~ Sale price $68.50 AUD Unit price per Per 250 Quantity Required Backorder: Out of Stock.
CCI-01429-CZY (250 Pcs) --- Internal Retaining Rings - 14.29x0.89x15.14 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-01429-CZY (250 Pcs) --- Internal Retaining Rings - 14.29x0.89x15.14 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $68.50 AUD Regular price ~~$161.00 AUD~~ Sale price $68.50 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 16.89 mm _{+ 0.00 / - 0.06} (Equiv. 0.665 in.)	Approx. Loose Circlip OD (Dr) 17.63 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 8.89 mm Clearance in Groove (C1): 9.91 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.52 Standard: MIL-16625
Part Number: CCI-01588-CZY (5 Pcs) Internal Retaining Rings - 15.88x0.89x16.89 mm Circlips - Carbon Steel Zinc Plated Circlip 10 units (50 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.32 AUD Regular price ~~$3.56 AUD~~ Sale price $1.32 AUD Unit price per Per 5 Quantity Required 10 units (50 pcs) Available Now. Backorder if more than 10.
Housing Bore (B) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 16.89 mm _{+ 0.00 / - 0.06} (Equiv. 0.665 in.)	Approx. Loose Circlip OD (Dr) 17.63 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 8.89 mm Clearance in Groove (C1): 9.91 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.52 Standard: MIL-16625
Part Number: CCI-01588-CZY (5 Pcs) Internal Retaining Rings - 15.88x0.89x16.89 mm Circlips - Carbon Steel Zinc Plated Circlip 10 units (50 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.32 AUD Regular price ~~$3.56 AUD~~ Sale price $1.32 AUD Unit price per Per 5 Quantity Required 10 units (50 pcs) Available Now. Backorder if more than 10.
CCI-01588-CZY (5 Pcs) --- Internal Retaining Rings - 15.88x0.89x16.89 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-01588-CZY (5 Pcs) --- Internal Retaining Rings - 15.88x0.89x16.89 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $1.32 AUD Regular price ~~$3.56 AUD~~ Sale price $1.32 AUD Unit price per 10 Available Now Sale
Housing Bore (B) 17.46 mm (Equiv. 0.687 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 18.59 mm _{+ 0.00 / - 0.06} (Equiv. 0.732 in.)	Approx. Loose Circlip OD (Dr) 19.38 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 10.41 mm Clearance in Groove (C1): 11.43 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.68 Standard: MIL-16625
Part Number: CCI-01746-CZY (100 Pcs) Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $38.68 AUD Regular price ~~$90.80 AUD~~ Sale price $38.68 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 17.46 mm (Equiv. 0.687 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 18.59 mm _{+ 0.00 / - 0.06} (Equiv. 0.732 in.)	Approx. Loose Circlip OD (Dr) 19.38 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 10.41 mm Clearance in Groove (C1): 11.43 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.68 Standard: MIL-16625
Part Number: CCI-01746-CZY (100 Pcs) Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $38.68 AUD Regular price ~~$90.80 AUD~~ Sale price $38.68 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
CCI-01746-CZY (100 Pcs) --- Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-01746-CZY (100 Pcs) --- Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $38.68 AUD Regular price ~~$90.80 AUD~~ Sale price $38.68 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 20.22 mm _{+ 0.00 / - 0.06} (Equiv. 0.796 in.)	Approx. Loose Circlip OD (Dr) 21.11 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 11.43 mm Clearance in Groove (C1): 12.70 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.75 Standard: MIL-16625
Part Number: CCI-01905-CZY (5 Pcs) Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Zinc Plated Circlip 60 units (300 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.86 AUD Regular price ~~$5.10 AUD~~ Sale price $1.86 AUD Unit price per Per 5 Quantity Required 60 units (300 pcs) Available Now. Backorder if more than 60.
Housing Bore (B) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 20.22 mm _{+ 0.00 / - 0.06} (Equiv. 0.796 in.)	Approx. Loose Circlip OD (Dr) 21.11 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 11.43 mm Clearance in Groove (C1): 12.70 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.75 Standard: MIL-16625
Part Number: CCI-01905-CZY (5 Pcs) Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Zinc Plated Circlip 60 units (300 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.86 AUD Regular price ~~$5.10 AUD~~ Sale price $1.86 AUD Unit price per Per 5 Quantity Required 60 units (300 pcs) Available Now. Backorder if more than 60.
CCI-01905-CZY (5 Pcs) --- Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-01905-CZY (5 Pcs) --- Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $1.86 AUD Regular price ~~$5.10 AUD~~ Sale price $1.86 AUD Unit price per 60 Available Now Sale
Housing Bore (B) 19.74 mm (Equiv. 0.777 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.96 mm _{+ 0.00 / - 0.06} (Equiv. 0.825 in.)	Approx. Loose Circlip OD (Dr) 21.82 mm + 0.25 / - 0.13		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 11.94 mm Clearance in Groove (C1): 13.21 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.83 Standard: MIL-16625
Part Number: CCI-01974-CZY (50 Pcs) Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $22.05 AUD Regular price ~~$51.60 AUD~~ Sale price $22.05 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 19.74 mm (Equiv. 0.777 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.96 mm _{+ 0.00 / - 0.06} (Equiv. 0.825 in.)	Approx. Loose Circlip OD (Dr) 21.82 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 11.94 mm Clearance in Groove (C1): 13.21 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.83 Standard: MIL-16625
Part Number: CCI-01974-CZY (50 Pcs) Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $22.05 AUD Regular price ~~$51.60 AUD~~ Sale price $22.05 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
CCI-01974-CZY (50 Pcs) --- Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-01974-CZY (50 Pcs) --- Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $22.05 AUD Regular price ~~$51.60 AUD~~ Sale price $22.05 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 20.64 mm (Equiv. 0.813 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 21.89 mm _{+ 0.00 / - 0.06} (Equiv. 0.862 in.)	Approx. Loose Circlip OD (Dr) 22.89 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 12.45 mm Clearance in Groove (C1): 13.46 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.91 Standard: MIL-16625
Part Number: CCI-02064-CZY (250 Pcs) Internal Retaining Rings - 20.64x1.07x21.89 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Wed, Dec 24, 2025 Regular price $94.86 AUD Regular price ~~$223.00 AUD~~ Sale price $94.86 AUD Unit price per Per 250 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 20.64 mm (Equiv. 0.813 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 21.89 mm _{+ 0.00 / - 0.06} (Equiv. 0.862 in.)	Approx. Loose Circlip OD (Dr) 22.89 mm + 0.38 / - 0.25
Material: Carbon Steel Zinc Plated Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 12.45 mm Clearance in Groove (C1): 13.46 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.91 Standard: MIL-16625
Part Number: CCI-02064-CZY (250 Pcs) Internal Retaining Rings - 20.64x1.07x21.89 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Wed, Dec 24, 2025 Regular price $94.86 AUD Regular price ~~$223.00 AUD~~ Sale price $94.86 AUD Unit price per Per 250 Quantity Required Backorder: Out of Stock.
CCI-02064-CZY (250 Pcs) --- Internal Retaining Rings - 20.64x1.07x21.89 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-02064-CZY (250 Pcs) --- Internal Retaining Rings - 20.64x1.07x21.89 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $94.86 AUD Regular price ~~$223.00 AUD~~ Sale price $94.86 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 22.00 mm (Equiv. 0.866 in.)	Clip Thickness (T) 1.00 mm _{+/- 0.075} (Equiv. 0.039 in.)	Groove Dia. (Dg) 23.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.906 in.)	Approx. Loose Circlip OD (Dr) 23.50 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 13.20 mm Clearance in Groove (C1): 14.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Standard: MIL-16625
Part Number: CCI-02200N-CZY (50 Pcs) Internal Retaining Rings - 22x1x23 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $22.14 AUD Regular price ~~$51.80 AUD~~ Sale price $22.14 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 22.00 mm (Equiv. 0.866 in.)	Clip Thickness (T) 1.00 mm _{+/- 0.075} (Equiv. 0.039 in.)	Groove Dia. (Dg) 23.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.906 in.)	Approx. Loose Circlip OD (Dr) 23.50 mm + 0.38 / - 0.25
Material: Carbon Steel Zinc Plated Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 13.20 mm Clearance in Groove (C1): 14.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Standard: MIL-16625
Part Number: CCI-02200N-CZY (50 Pcs) Internal Retaining Rings - 22x1x23 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $22.14 AUD Regular price ~~$51.80 AUD~~ Sale price $22.14 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
CCI-02200N-CZY (50 Pcs) --- Internal Retaining Rings - 22x1x23 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-02200N-CZY (50 Pcs) --- Internal Retaining Rings - 22x1x23 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $22.14 AUD Regular price ~~$51.80 AUD~~ Sale price $22.14 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 22.23 mm (Equiv. 0.875 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.65 mm _{+ 0.00 / - 0.06} (Equiv. 0.931 in.)	Approx. Loose Circlip OD (Dr) 24.66 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 13.97 mm Clearance in Groove (C1): 15.24 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.13 Standard: MIL-16625
Part Number: CCI-02223-CZY (50 Pcs) Internal Retaining Rings - 22.23x1.07x23.65 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $21.14 AUD Regular price ~~$49.40 AUD~~ Sale price $21.14 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 22.23 mm (Equiv. 0.875 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.65 mm _{+ 0.00 / - 0.06} (Equiv. 0.931 in.)	Approx. Loose Circlip OD (Dr) 24.66 mm + 0.38 / - 0.25
Material: Carbon Steel Zinc Plated Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 13.97 mm Clearance in Groove (C1): 15.24 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.13 Standard: MIL-16625
Part Number: CCI-02223-CZY (50 Pcs) Internal Retaining Rings - 22.23x1.07x23.65 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $21.14 AUD Regular price ~~$49.40 AUD~~ Sale price $21.14 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
CCI-02223-CZY (50 Pcs) --- Internal Retaining Rings - 22.23x1.07x23.65 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-02223-CZY (50 Pcs) --- Internal Retaining Rings - 22.23x1.07x23.65 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $21.14 AUD Regular price ~~$49.40 AUD~~ Sale price $21.14 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 22.89 mm (Equiv. 0.901 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 24.36 mm _{+ 0.00 / - 0.06} (Equiv. 0.959 in.)	Approx. Loose Circlip OD (Dr) 25.40 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 14.73 mm Clearance in Groove (C1): 16.00 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.21 Standard: MIL-16625
Part Number: CCI-02289-CZY (50 Pcs) Internal Retaining Rings - 22.89x1.07x24.36 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $65.59 AUD Regular price ~~$154.00 AUD~~ Sale price $65.59 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 22.89 mm (Equiv. 0.901 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 24.36 mm _{+ 0.00 / - 0.06} (Equiv. 0.959 in.)	Approx. Loose Circlip OD (Dr) 25.40 mm + 0.38 / - 0.25
Material: Carbon Steel Zinc Plated Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 14.73 mm Clearance in Groove (C1): 16.00 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.21 Standard: MIL-16625
Part Number: CCI-02289-CZY (50 Pcs) Internal Retaining Rings - 22.89x1.07x24.36 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $65.59 AUD Regular price ~~$154.00 AUD~~ Sale price $65.59 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
CCI-02289-CZY (50 Pcs) --- Internal Retaining Rings - 22.89x1.07x24.36 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-02289-CZY (50 Pcs) --- Internal Retaining Rings - 22.89x1.07x24.36 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $65.59 AUD Regular price ~~$154.00 AUD~~ Sale price $65.59 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 23.81 mm (Equiv. 0.937 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 25.40 mm _{+ 0.00 / - 0.06} (Equiv. 1 in.)	Approx. Loose Circlip OD (Dr) 26.44 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 15.49 mm Clearance in Groove (C1): 17.02 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.36 Standard: MIL-16625
Part Number: CCI-02381-CZY (250 Pcs) Internal Retaining Rings - 23.81x1.07x25.4 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $108.95 AUD Regular price ~~$256.00 AUD~~ Sale price $108.95 AUD Unit price per Per 250 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 23.81 mm (Equiv. 0.937 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 25.40 mm _{+ 0.00 / - 0.06} (Equiv. 1 in.)	Approx. Loose Circlip OD (Dr) 26.44 mm + 0.38 / - 0.25
Material: Carbon Steel Zinc Plated Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 15.49 mm Clearance in Groove (C1): 17.02 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.36 Standard: MIL-16625
Part Number: CCI-02381-CZY (250 Pcs) Internal Retaining Rings - 23.81x1.07x25.4 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $108.95 AUD Regular price ~~$256.00 AUD~~ Sale price $108.95 AUD Unit price per Per 250 Quantity Required Backorder: Out of Stock.
CCI-02381-CZY (250 Pcs) --- Internal Retaining Rings - 23.81x1.07x25.4 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-02381-CZY (250 Pcs) --- Internal Retaining Rings - 23.81x1.07x25.4 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $108.95 AUD Regular price ~~$256.00 AUD~~ Sale price $108.95 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 27.08 mm _{+ 0.00 / - 0.06} (Equiv. 1.066 in.)	Approx. Loose Circlip OD (Dr) 28.22 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 17.27 mm Clearance in Groove (C1): 18.80 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.51 Standard: MIL-16625
Part Number: CCI-02540-CZY (50 Pcs) Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $25.59 AUD Regular price ~~$60.00 AUD~~ Sale price $25.59 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 27.08 mm _{+ 0.00 / - 0.06} (Equiv. 1.066 in.)	Approx. Loose Circlip OD (Dr) 28.22 mm + 0.38 / - 0.25
Material: Carbon Steel Zinc Plated Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 17.27 mm Clearance in Groove (C1): 18.80 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.51 Standard: MIL-16625
Part Number: CCI-02540-CZY (50 Pcs) Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $25.59 AUD Regular price ~~$60.00 AUD~~ Sale price $25.59 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
CCI-02540-CZY (50 Pcs) --- Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-02540-CZY (50 Pcs) --- Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $25.59 AUD Regular price ~~$60.00 AUD~~ Sale price $25.59 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 25.98 mm (Equiv. 1.023 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 27.71 mm _{+ 0.00 / - 0.06} (Equiv. 1.091 in.)	Approx. Loose Circlip OD (Dr) 28.85 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 17.78 mm Clearance in Groove (C1): 19.30 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.59 Standard: MIL-16625
Part Number: CCI-02598-CZY (500 Pcs) Internal Retaining Rings - 25.98x1.07x27.71 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 21, 2025 Regular price $218.59 AUD Regular price ~~$514.00 AUD~~ Sale price $218.59 AUD Unit price per Per 500 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 25.98 mm (Equiv. 1.023 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 27.71 mm _{+ 0.00 / - 0.06} (Equiv. 1.091 in.)	Approx. Loose Circlip OD (Dr) 28.85 mm + 0.38 / - 0.25
Material: Carbon Steel Zinc Plated Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 17.78 mm Clearance in Groove (C1): 19.30 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.59 Standard: MIL-16625
Part Number: CCI-02598-CZY (500 Pcs) Internal Retaining Rings - 25.98x1.07x27.71 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 21, 2025 Regular price $218.59 AUD Regular price ~~$514.00 AUD~~ Sale price $218.59 AUD Unit price per Per 500 Quantity Required Backorder: Out of Stock.
CCI-02598-CZY (500 Pcs) --- Internal Retaining Rings - 25.98x1.07x27.71 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-02598-CZY (500 Pcs) --- Internal Retaining Rings - 25.98x1.07x27.71 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $218.59 AUD Regular price ~~$514.00 AUD~~ Sale price $218.59 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 26.99 mm (Equiv. 1.063 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.102} (Equiv. 0.05 in.)	Groove Dia. (Dg) 28.70 mm _{+ 0.00 / - 0.06} (Equiv. 1.13 in.)	Approx. Loose Circlip OD (Dr) 29.97 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 17.53 mm Clearance in Groove (C1): 19.05 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 2.59 Standard: MIL-16625
Part Number: CCI-02699-CZY (50 Pcs) Internal Retaining Rings - 26.99x1.27x28.7 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $34.14 AUD Regular price ~~$80.00 AUD~~ Sale price $34.14 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 26.99 mm (Equiv. 1.063 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.102} (Equiv. 0.05 in.)	Groove Dia. (Dg) 28.70 mm _{+ 0.00 / - 0.06} (Equiv. 1.13 in.)	Approx. Loose Circlip OD (Dr) 29.97 mm + 0.64 / - 0.38
Material: Carbon Steel Zinc Plated Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 17.53 mm Clearance in Groove (C1): 19.05 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 2.59 Standard: MIL-16625
Part Number: CCI-02699-CZY (50 Pcs) Internal Retaining Rings - 26.99x1.27x28.7 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $34.14 AUD Regular price ~~$80.00 AUD~~ Sale price $34.14 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
CCI-02699-CZY (50 Pcs) --- Internal Retaining Rings - 26.99x1.27x28.7 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-02699-CZY (50 Pcs) --- Internal Retaining Rings - 26.99x1.27x28.7 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $34.14 AUD Regular price ~~$80.00 AUD~~ Sale price $34.14 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 28.58 mm (Equiv. 1.125 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.102} (Equiv. 0.05 in.)	Groove Dia. (Dg) 30.40 mm _{+ 0.00 / - 0.06} (Equiv. 1.197 in.)	Approx. Loose Circlip OD (Dr) 31.72 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 19.05 mm Clearance in Groove (C1): 20.83 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 2.74 Standard: MIL-16625
Part Number: CCI-02858-CZY (50 Pcs) Internal Retaining Rings - 28.58x1.27x30.4 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $34.68 AUD Regular price ~~$81.40 AUD~~ Sale price $34.68 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 28.58 mm (Equiv. 1.125 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.102} (Equiv. 0.05 in.)	Groove Dia. (Dg) 30.40 mm _{+ 0.00 / - 0.06} (Equiv. 1.197 in.)	Approx. Loose Circlip OD (Dr) 31.72 mm + 0.64 / - 0.38
Material: Carbon Steel Zinc Plated Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 19.05 mm Clearance in Groove (C1): 20.83 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 2.74 Standard: MIL-16625
Part Number: CCI-02858-CZY (50 Pcs) Internal Retaining Rings - 28.58x1.27x30.4 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $34.68 AUD Regular price ~~$81.40 AUD~~ Sale price $34.68 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
CCI-02858-CZY (50 Pcs) --- Internal Retaining Rings - 28.58x1.27x30.4 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-02858-CZY (50 Pcs) --- Internal Retaining Rings - 28.58x1.27x30.4 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $34.68 AUD Regular price ~~$81.40 AUD~~ Sale price $34.68 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 30.16 mm (Equiv. 1.187 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.102} (Equiv. 0.05 in.)	Groove Dia. (Dg) 32.05 mm _{+ 0.00 / - 0.06} (Equiv. 1.262 in.)	Approx. Loose Circlip OD (Dr) 33.50 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 20.57 mm Clearance in Groove (C1): 22.35 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 2.82 Standard: MIL-16625
Part Number: CCI-03016-CZY (50 Pcs) Internal Retaining Rings - 30.16x1.27x32.05 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $37.86 AUD Regular price ~~$88.80 AUD~~ Sale price $37.86 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 30.16 mm (Equiv. 1.187 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.102} (Equiv. 0.05 in.)	Groove Dia. (Dg) 32.05 mm _{+ 0.00 / - 0.06} (Equiv. 1.262 in.)	Approx. Loose Circlip OD (Dr) 33.50 mm + 0.64 / - 0.38
Material: Carbon Steel Zinc Plated Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 20.57 mm Clearance in Groove (C1): 22.35 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 2.82 Standard: MIL-16625
Part Number: CCI-03016-CZY (50 Pcs) Internal Retaining Rings - 30.16x1.27x32.05 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $37.86 AUD Regular price ~~$88.80 AUD~~ Sale price $37.86 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
CCI-03016-CZY (50 Pcs) --- Internal Retaining Rings - 30.16x1.27x32.05 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-03016-CZY (50 Pcs) --- Internal Retaining Rings - 30.16x1.27x32.05 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $37.86 AUD Regular price ~~$88.80 AUD~~ Sale price $37.86 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 31.75 mm (Equiv. 1.25 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.102} (Equiv. 0.05 in.)	Groove Dia. (Dg) 33.72 mm _{+ 0.00 / - 0.06} (Equiv. 1.328 in.)	Approx. Loose Circlip OD (Dr) 35.26 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 22.35 mm Clearance in Groove (C1): 24.13 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.05 Standard: MIL-16625
Part Number: CCI-03175-CZY (7 Pcs) Internal Retaining Rings - 31.75x1.27x33.72 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $7.59 AUD Regular price ~~$17.47 AUD~~ Sale price $7.59 AUD Unit price per Per 7 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 31.75 mm (Equiv. 1.25 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.102} (Equiv. 0.05 in.)	Groove Dia. (Dg) 33.72 mm _{+ 0.00 / - 0.06} (Equiv. 1.328 in.)	Approx. Loose Circlip OD (Dr) 35.26 mm + 0.64 / - 0.38
Material: Carbon Steel Zinc Plated Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 22.35 mm Clearance in Groove (C1): 24.13 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.05 Standard: MIL-16625
Part Number: CCI-03175-CZY (7 Pcs) Internal Retaining Rings - 31.75x1.27x33.72 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $7.59 AUD Regular price ~~$17.47 AUD~~ Sale price $7.59 AUD Unit price per Per 7 Quantity Required Backorder: Out of Stock.
CCI-03175-CZY (7 Pcs) --- Internal Retaining Rings - 31.75x1.27x33.72 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-03175-CZY (7 Pcs) --- Internal Retaining Rings - 31.75x1.27x33.72 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $7.59 AUD Regular price ~~$17.47 AUD~~ Sale price $7.59 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 33.38 mm (Equiv. 1.314 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.102} (Equiv. 0.05 in.)	Groove Dia. (Dg) 35.46 mm _{+ 0.00 / - 0.06} (Equiv. 1.396 in.)	Approx. Loose Circlip OD (Dr) 36.98 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 23.88 mm Clearance in Groove (C1): 25.91 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.20 Standard: MIL-16625
Part Number: CCI-03338-CZY (5 Pcs) Internal Retaining Rings - 33.38x1.27x35.46 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $6.32 AUD Regular price ~~$14.44 AUD~~ Sale price $6.32 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 33.38 mm (Equiv. 1.314 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.102} (Equiv. 0.05 in.)	Groove Dia. (Dg) 35.46 mm _{+ 0.00 / - 0.06} (Equiv. 1.396 in.)	Approx. Loose Circlip OD (Dr) 36.98 mm + 0.64 / - 0.38
Material: Carbon Steel Zinc Plated Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 23.88 mm Clearance in Groove (C1): 25.91 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.20 Standard: MIL-16625
Part Number: CCI-03338-CZY (5 Pcs) Internal Retaining Rings - 33.38x1.27x35.46 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $6.32 AUD Regular price ~~$14.44 AUD~~ Sale price $6.32 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
CCI-03338-CZY (5 Pcs) --- Internal Retaining Rings - 33.38x1.27x35.46 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-03338-CZY (5 Pcs) --- Internal Retaining Rings - 33.38x1.27x35.46 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $6.32 AUD Regular price ~~$14.44 AUD~~ Sale price $6.32 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 34.93 mm (Equiv. 1.375 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.102} (Equiv. 0.05 in.)	Groove Dia. (Dg) 37.11 mm _{+ 0.00 / - 0.06} (Equiv. 1.461 in.)	Approx. Loose Circlip OD (Dr) 38.76 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 25.40 mm Clearance in Groove (C1): 27.43 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.28 Standard: MIL-16625
Part Number: CCI-03493-CZY (50 Pcs) Internal Retaining Rings - 34.93x1.27x37.11 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $47.50 AUD Regular price ~~$111.40 AUD~~ Sale price $47.50 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 34.93 mm (Equiv. 1.375 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.102} (Equiv. 0.05 in.)	Groove Dia. (Dg) 37.11 mm _{+ 0.00 / - 0.06} (Equiv. 1.461 in.)	Approx. Loose Circlip OD (Dr) 38.76 mm + 0.64 / - 0.38
Material: Carbon Steel Zinc Plated Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 25.40 mm Clearance in Groove (C1): 27.43 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.28 Standard: MIL-16625
Part Number: CCI-03493-CZY (50 Pcs) Internal Retaining Rings - 34.93x1.27x37.11 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $47.50 AUD Regular price ~~$111.40 AUD~~ Sale price $47.50 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
CCI-03493-CZY (50 Pcs) --- Internal Retaining Rings - 34.93x1.27x37.11 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-03493-CZY (50 Pcs) --- Internal Retaining Rings - 34.93x1.27x37.11 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $47.50 AUD Regular price ~~$111.40 AUD~~ Sale price $47.50 AUD Unit price per Out of stock! Backorder Now Sale
