Retaining Rings - Internal - Circlips - Standard - Stainless Steel

Retaining Rings -> Internal -> Circlips -> Standard -> Stainless Steel

There are 130 products in the sub-categories of Retaining Rings - Internal - Circlips - Standard - Stainless Steel. Scroll down or follow the link to Retaining Rings - Internal - Circlips - Standard - Stainless Steel in the products table to see all these items combined into a handy table with filters.

Category Details

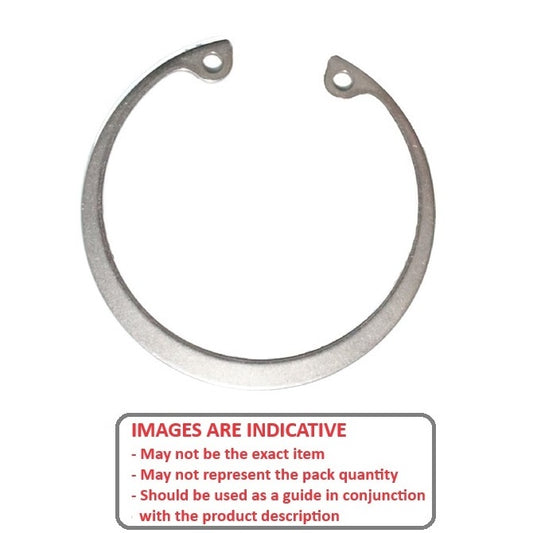

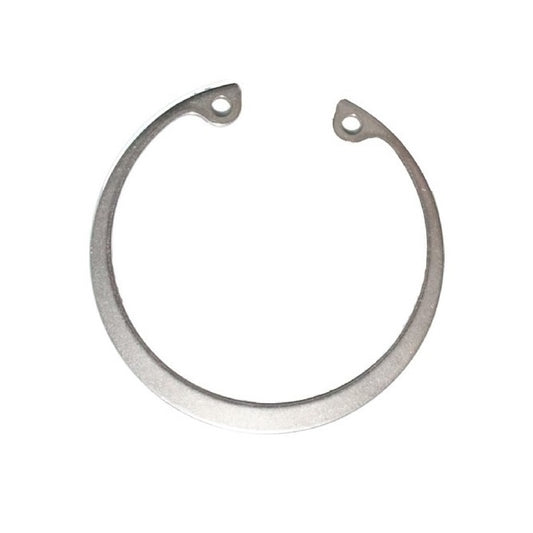

A selection of Stainless Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.
  • PH15-7 Mo Stainless Steel.
  • Tolerances on request.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Retaining Rings - Internal - Circlips - Standard - Stainless Steel category on the Small Parts & Bearings online store.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Radial Wall (S) Approx. Groove Width (W) Indicative
Housing Bore (B)
6.35
mm

(Equiv. 0.25 in.)
Clip Thickness (T)
0.31
mm
+/- 0.025
(Equiv. 0.012 in.)
Groove Dia. (Dg)
6.81
mm
+ 0.00 / - 0.05
(Equiv. 0.268 in.)
Approx. Loose Circlip OD (Dr)
7.11
mm
+ 0.25 / - 0.13
Groove Width (W)
0.51
mm
+ 0.05 / - 0.00
Internal Retaining Rings - 6.35x0.31x6.81 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 2.79 mm    Clearance in Groove (C1): 3.30 mm    Min. Lug Diameter (h): 0.74 mm    Min. Extension (n): 0.69    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 525
Part Number: CCI-00635-S15 (PK-2)
Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
150 units (300 pcs) Available Now | Further orders can be expected around Mon, Dec 29, 2025
$4.86 AUD
$4.86 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

150 units (300 pcs) Available Now. Backorder if more than 150.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
Housing Bore (B)
6.35
mm

(Equiv. 0.25 in.)
Clip Thickness (T)
0.31
mm
+/- 0.025
(Equiv. 0.012 in.)
Groove Dia. (Dg)
6.81
mm
+ 0.00 / - 0.05
(Equiv. 0.268 in.)
Approx. Loose Circlip OD (Dr)
7.11
mm
+ 0.25 / - 0.13
Internal Retaining Rings - 6.35x0.31x6.81 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 0.51 mm + 0.05 / - 0.00   Clearance in Bore (C): 2.79 mm    Clearance in Groove (C1): 3.30 mm    Min. Lug Diameter (h): 0.74 mm    Min. Extension (n): 0.69    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 525
Part Number: CCI-00635-S15 (PK-2)
Internal Retaining Rings - 6.35x0.31x6.81 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
150 units (300 pcs) Available Now | Further orders can be expected around Mon, Dec 29, 2025
$4.86 AUD
$4.86 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

150 units (300 pcs) Available Now. Backorder if more than 150.
Housing Bore (B)
7.94
mm

(Equiv. 0.313 in.)
Clip Thickness (T)
0.31
mm
+/- 0.025
(Equiv. 0.012 in.)
Groove Dia. (Dg)
8.38
mm
+ 0.00 / - 0.05
(Equiv. 0.33 in.)
Approx. Loose Circlip OD (Dr)
8.79
mm
+ 0.25 / - 0.13
Groove Width (W)
0.51
mm
+ 0.05 / - 0.00
Internal Retaining Rings - 7.94x0.31x8.38 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 4.32 mm    Clearance in Groove (C1): 4.83 mm    Min. Lug Diameter (h): 0.74 mm    Min. Extension (n): 0.69    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 920
Part Number: CCI-00794-S15 (PK-5)
Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
14 units (70 pcs) Available Now | Further orders can be expected around Mon, Dec 29, 2025
$11.23 AUD
$11.23 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

14 units (70 pcs) Available Now. Backorder if more than 14.
Housing Bore (B)
7.94
mm

(Equiv. 0.313 in.)
Clip Thickness (T)
0.31
mm
+/- 0.025
(Equiv. 0.012 in.)
Groove Dia. (Dg)
8.38
mm
+ 0.00 / - 0.05
(Equiv. 0.33 in.)
Approx. Loose Circlip OD (Dr)
8.79
mm
+ 0.25 / - 0.13
Internal Retaining Rings - 7.94x0.31x8.38 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 0.51 mm + 0.05 / - 0.00   Clearance in Bore (C): 4.32 mm    Clearance in Groove (C1): 4.83 mm    Min. Lug Diameter (h): 0.74 mm    Min. Extension (n): 0.69    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 920
Part Number: CCI-00794-S15 (PK-5)
Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
14 units (70 pcs) Available Now | Further orders can be expected around Mon, Dec 29, 2025
$11.23 AUD
$11.23 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

14 units (70 pcs) Available Now. Backorder if more than 14.
Housing Bore (B)
8.00
mm

(Equiv. 0.315 in.)
Clip Thickness (T)
0.80
mm
+ 0.09 / - 0.00
(Equiv. 0.031 in.)
Groove Dia. (Dg)
8.40
mm
+ 0.00 / - 0.05
(Equiv. 0.331 in.)
Approx. Loose Circlip OD (Dr)
8.70
mm
+ 0.36 / - 0.10
Groove Width (W)
0.90
mm
+ 0.05 / - 0.00
Internal Retaining Rings - 8x0.8x8.4 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 3.00 mm    Clearance in Groove (C1): 3.60 mm    Min. Lug Diameter (h): 1.00 mm    Min. Extension (n): 0.60    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 15446
Part Number: CCI-00800-S15 (PK-5)
Internal Retaining Rings - 8x0.8x8.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
13 units (65 pcs) Available Now | Further orders can be expected around Mon, Dec 29, 2025
$14.32 AUD
$14.32 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

13 units (65 pcs) Available Now. Backorder if more than 13.
Housing Bore (B)
8.00
mm

(Equiv. 0.315 in.)
Clip Thickness (T)
0.80
mm
+ 0.09 / - 0.00
(Equiv. 0.031 in.)
Groove Dia. (Dg)
8.40
mm
+ 0.00 / - 0.05
(Equiv. 0.331 in.)
Approx. Loose Circlip OD (Dr)
8.70
mm
+ 0.36 / - 0.10
Internal Retaining Rings - 8x0.8x8.4 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 0.90 mm + 0.05 / - 0.00   Clearance in Bore (C): 3.00 mm    Clearance in Groove (C1): 3.60 mm    Min. Lug Diameter (h): 1.00 mm    Min. Extension (n): 0.60    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 15446
Part Number: CCI-00800-S15 (PK-5)
Internal Retaining Rings - 8x0.8x8.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
13 units (65 pcs) Available Now | Further orders can be expected around Mon, Dec 29, 2025
$14.32 AUD
$14.32 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

13 units (65 pcs) Available Now. Backorder if more than 13.
Housing Bore (B)
9.00
mm

(Equiv. 0.354 in.)
Clip Thickness (T)
0.80
mm
+ 0.09 / - 0.00
(Equiv. 0.031 in.)
Groove Dia. (Dg)
9.40
mm
+ 0.00 / - 0.05
(Equiv. 0.37 in.)
Approx. Loose Circlip OD (Dr)
9.80
mm
+ 0.36 / - 0.10
Groove Width (W)
0.90
mm
+ 0.05 / - 0.00
Internal Retaining Rings - 9x0.8x9.4 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 3.70 mm    Clearance in Groove (C1): 4.40 mm    Min. Lug Diameter (h): 1.00 mm    Min. Extension (n): 0.60    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 1190
Part Number: CCI-00900-S15 (PK-2)
Internal Retaining Rings - 9x0.8x9.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
38 units (76 pcs) Available Now | Further orders can be expected around Mon, Dec 29, 2025
$1.68 AUD
$4.59 AUD $1.68 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

38 units (76 pcs) Available Now. Backorder if more than 38.
Housing Bore (B)
9.00
mm

(Equiv. 0.354 in.)
Clip Thickness (T)
0.80
mm
+ 0.09 / - 0.00
(Equiv. 0.031 in.)
Groove Dia. (Dg)
9.40
mm
+ 0.00 / - 0.05
(Equiv. 0.37 in.)
Approx. Loose Circlip OD (Dr)
9.80
mm
+ 0.36 / - 0.10
Internal Retaining Rings - 9x0.8x9.4 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 0.90 mm + 0.05 / - 0.00   Clearance in Bore (C): 3.70 mm    Clearance in Groove (C1): 4.40 mm    Min. Lug Diameter (h): 1.00 mm    Min. Extension (n): 0.60    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 1190
Part Number: CCI-00900-S15 (PK-2)
Internal Retaining Rings - 9x0.8x9.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
38 units (76 pcs) Available Now | Further orders can be expected around Mon, Dec 29, 2025
$1.68 AUD
$4.59 AUD $1.68 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

38 units (76 pcs) Available Now. Backorder if more than 38.
Housing Bore (B)
9.53
mm

(Equiv. 0.375 in.)
Clip Thickness (T)
0.64
mm
+/- 0.050
(Equiv. 0.025 in.)
Groove Dia. (Dg)
10.08
mm
+ 0.00 / - 0.05
(Equiv. 0.397 in.)
Approx. Loose Circlip OD (Dr)
10.54
mm
+ 0.25 / - 0.13
Groove Width (W)
0.74
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 9.53x0.64x10.08 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 5.08 mm    Clearance in Groove (C1): 5.59 mm    Min. Lug Diameter (h): 0.99 mm    Min. Extension (n): 0.84    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1486
Part Number: CCI-00953-S15 (PK-2)
Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
75 units (150 pcs) Available Now | Further orders can be expected around Mon, Dec 29, 2025
$5.95 AUD
$5.95 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

75 units (150 pcs) Available Now. Backorder if more than 75.
Housing Bore (B)
9.53
mm

(Equiv. 0.375 in.)
Clip Thickness (T)
0.64
mm
+/- 0.050
(Equiv. 0.025 in.)
Groove Dia. (Dg)
10.08
mm
+ 0.00 / - 0.05
(Equiv. 0.397 in.)
Approx. Loose Circlip OD (Dr)
10.54
mm
+ 0.25 / - 0.13
Internal Retaining Rings - 9.53x0.64x10.08 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 0.74 mm + 0.08 / - 0.00   Clearance in Bore (C): 5.08 mm    Clearance in Groove (C1): 5.59 mm    Min. Lug Diameter (h): 0.99 mm    Min. Extension (n): 0.84    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1486
Part Number: CCI-00953-S15 (PK-2)
Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
75 units (150 pcs) Available Now | Further orders can be expected around Mon, Dec 29, 2025
$5.95 AUD
$5.95 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

75 units (150 pcs) Available Now. Backorder if more than 75.
Housing Bore (B)
10.00
mm

(Equiv. 0.394 in.)
Clip Thickness (T)
1.00
mm
+ 0.11 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
10.40
mm
+ 0.00 / - 0.06
(Equiv. 0.409 in.)
Approx. Loose Circlip OD (Dr)
10.80
mm
+ 0.36 / - 0.10
Groove Width (W)
1.10
mm
+ 0.05 / - 0.00
Internal Retaining Rings - 10x1x10.4 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 3.30 mm    Clearance in Groove (C1): 4.00 mm    Min. Lug Diameter (h): 1.20 mm    Min. Extension (n): 0.60    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 25939
Part Number: CCI-01000-S15 (PK-5)
Internal Retaining Rings - 10x1x10.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
23 units (115 pcs) Available Now | Further orders can be expected around Mon, Dec 29, 2025
$15.77 AUD
$15.77 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

23 units (115 pcs) Available Now. Backorder if more than 23.
Housing Bore (B)
10.00
mm

(Equiv. 0.394 in.)
Clip Thickness (T)
1.00
mm
+ 0.11 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
10.40
mm
+ 0.00 / - 0.06
(Equiv. 0.409 in.)
Approx. Loose Circlip OD (Dr)
10.80
mm
+ 0.36 / - 0.10
Internal Retaining Rings - 10x1x10.4 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 1.10 mm + 0.05 / - 0.00   Clearance in Bore (C): 3.30 mm    Clearance in Groove (C1): 4.00 mm    Min. Lug Diameter (h): 1.20 mm    Min. Extension (n): 0.60    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 25939
Part Number: CCI-01000-S15 (PK-5)
Internal Retaining Rings - 10x1x10.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
23 units (115 pcs) Available Now | Further orders can be expected around Mon, Dec 29, 2025
$15.77 AUD
$15.77 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

23 units (115 pcs) Available Now. Backorder if more than 23.
Housing Bore (B)
11.00
mm

(Equiv. 0.433 in.)
Clip Thickness (T)
1.00
mm
+ 0.11 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
11.40
mm
+ 0.00 / - 0.06
(Equiv. 0.449 in.)
Approx. Loose Circlip OD (Dr)
11.80
mm
+ 0.36 / - 0.10
Groove Width (W)
1.10
mm
+ 0.05 / - 0.00
Internal Retaining Rings - 11x1x11.4 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 4.10 mm    Clearance in Groove (C1): 4.80 mm    Min. Lug Diameter (h): 1.20 mm    Min. Extension (n): 0.60    Standard: DIN472
Part Number: CCI-01100-S15 (PK-2)
Internal Retaining Rings - 11x1x11.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
12 units (24 pcs) Available Now | Further orders can be expected around Sat, Feb 14, 2026
$2.32 AUD
$6.30 AUD $2.32 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

12 units (24 pcs) Available Now. Backorder if more than 12.
Housing Bore (B)
11.00
mm

(Equiv. 0.433 in.)
Clip Thickness (T)
1.00
mm
+ 0.11 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
11.40
mm
+ 0.00 / - 0.06
(Equiv. 0.449 in.)
Approx. Loose Circlip OD (Dr)
11.80
mm
+ 0.36 / - 0.10
Internal Retaining Rings - 11x1x11.4 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 1.10 mm + 0.05 / - 0.00   Clearance in Bore (C): 4.10 mm    Clearance in Groove (C1): 4.80 mm    Min. Lug Diameter (h): 1.20 mm    Min. Extension (n): 0.60    Standard: DIN472
Part Number: CCI-01100-S15 (PK-2)
Internal Retaining Rings - 11x1x11.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
12 units (24 pcs) Available Now | Further orders can be expected around Sat, Feb 14, 2026
$2.32 AUD
$6.30 AUD $2.32 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

12 units (24 pcs) Available Now. Backorder if more than 12.
Housing Bore (B)
11.11
mm

(Equiv. 0.437 in.)
Clip Thickness (T)
0.64
mm
+/- 0.050
(Equiv. 0.025 in.)
Groove Dia. (Dg)
11.71
mm
+ 0.00 / - 0.06
(Equiv. 0.461 in.)
Approx. Loose Circlip OD (Dr)
12.24
mm
+ 0.25 / - 0.13
Groove Width (W)
0.74
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 11.11x0.64x11.71 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 5.84 mm    Clearance in Groove (C1): 6.35 mm    Min. Lug Diameter (h): 0.99 mm    Min. Extension (n): 0.91    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1079
Part Number: CCI-01111-S15 (PK-2)
Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
195 units (390 pcs) Available Now | Further orders can be expected around Mon, Dec 29, 2025
$6.14 AUD
$6.14 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

195 units (390 pcs) Available Now. Backorder if more than 195.
Housing Bore (B)
11.11
mm

(Equiv. 0.437 in.)
Clip Thickness (T)
0.64
mm
+/- 0.050
(Equiv. 0.025 in.)
Groove Dia. (Dg)
11.71
mm
+ 0.00 / - 0.06
(Equiv. 0.461 in.)
Approx. Loose Circlip OD (Dr)
12.24
mm
+ 0.25 / - 0.13
Internal Retaining Rings - 11.11x0.64x11.71 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 0.74 mm + 0.08 / - 0.00   Clearance in Bore (C): 5.84 mm    Clearance in Groove (C1): 6.35 mm    Min. Lug Diameter (h): 0.99 mm    Min. Extension (n): 0.91    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1079
Part Number: CCI-01111-S15 (PK-2)
Internal Retaining Rings - 11.11x0.64x11.71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
195 units (390 pcs) Available Now | Further orders can be expected around Mon, Dec 29, 2025
$6.14 AUD
$6.14 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

195 units (390 pcs) Available Now. Backorder if more than 195.
Housing Bore (B)
11.51
mm

(Equiv. 0.453 in.)
Clip Thickness (T)
0.64
mm
+/- 0.050
(Equiv. 0.025 in.)
Groove Dia. (Dg)
12.12
mm
+ 0.00 / - 0.06
(Equiv. 0.477 in.)
Approx. Loose Circlip OD (Dr)
12.65
mm
+ 0.25 / - 0.13
Groove Width (W)
0.74
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 11.51x0.64x12.12 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 6.35 mm    Clearance in Groove (C1): 6.86 mm    Min. Lug Diameter (h): 1.14 mm    Min. Extension (n): 0.91    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1596
Part Number: CCI-01151-S15 (Each)
Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
17 Available Now | Further orders can be expected around Mon, Dec 29, 2025
$4.14 AUD
$4.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

17 Available Now. Backorder if more than 17.
Housing Bore (B)
11.51
mm

(Equiv. 0.453 in.)
Clip Thickness (T)
0.64
mm
+/- 0.050
(Equiv. 0.025 in.)
Groove Dia. (Dg)
12.12
mm
+ 0.00 / - 0.06
(Equiv. 0.477 in.)
Approx. Loose Circlip OD (Dr)
12.65
mm
+ 0.25 / - 0.13
Internal Retaining Rings - 11.51x0.64x12.12 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 0.74 mm + 0.08 / - 0.00   Clearance in Bore (C): 6.35 mm    Clearance in Groove (C1): 6.86 mm    Min. Lug Diameter (h): 1.14 mm    Min. Extension (n): 0.91    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1596
Part Number: CCI-01151-S15 (Each)
Internal Retaining Rings - 11.51x0.64x12.12 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
17 Available Now | Further orders can be expected around Mon, Dec 29, 2025
$4.14 AUD
$4.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

17 Available Now. Backorder if more than 17.
Housing Bore (B)
12.00
mm

(Equiv. 0.472 in.)
Clip Thickness (T)
1.00
mm
+ 0.11 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
12.50
mm
+ 0.00 / - 0.06
(Equiv. 0.492 in.)
Approx. Loose Circlip OD (Dr)
13.00
mm
+ 0.36 / - 0.10
Groove Width (W)
1.10
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 12x1x12.5 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 4.90 mm    Clearance in Groove (C1): 5.70 mm    Min. Lug Diameter (h): 1.50 mm    Min. Extension (n): 0.80    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 2634
Part Number: CCI-01200-S15 (PK-2)
Internal Retaining Rings - 12x1x12.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
31 units (62 pcs) Available Now | Further orders can be expected around Mon, Dec 29, 2025
$7.05 AUD
$7.05 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

31 units (62 pcs) Available Now. Backorder if more than 31.
Housing Bore (B)
12.00
mm

(Equiv. 0.472 in.)
Clip Thickness (T)
1.00
mm
+ 0.11 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
12.50
mm
+ 0.00 / - 0.06
(Equiv. 0.492 in.)
Approx. Loose Circlip OD (Dr)
13.00
mm
+ 0.36 / - 0.10
Internal Retaining Rings - 12x1x12.5 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 1.10 mm + 0.08 / - 0.00   Clearance in Bore (C): 4.90 mm    Clearance in Groove (C1): 5.70 mm    Min. Lug Diameter (h): 1.50 mm    Min. Extension (n): 0.80    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 2634
Part Number: CCI-01200-S15 (PK-2)
Internal Retaining Rings - 12x1x12.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
31 units (62 pcs) Available Now | Further orders can be expected around Mon, Dec 29, 2025
$7.05 AUD
$7.05 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

31 units (62 pcs) Available Now. Backorder if more than 31.
Housing Bore (B)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.)
Groove Dia. (Dg)
13.46
mm
+ 0.00 / - 0.06
(Equiv. 0.53 in.)
Approx. Loose Circlip OD (Dr)
13.92
mm
+ 0.25 / - 0.13
Groove Width (W)
0.99
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 12.7x0.89x13.46 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 6.60 mm    Clearance in Groove (C1): 7.37 mm    Min. Lug Diameter (h): 1.14 mm    Min. Extension (n): 1.14    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 21125
Part Number: CCI-01270-S15 (PK-2)
Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
12 units (24 pcs) Available Now | Further orders can be expected around Mon, Dec 29, 2025
$2.50 AUD
$6.74 AUD $2.50 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

12 units (24 pcs) Available Now. Backorder if more than 12.
Housing Bore (B)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.)
Groove Dia. (Dg)
13.46
mm
+ 0.00 / - 0.06
(Equiv. 0.53 in.)
Approx. Loose Circlip OD (Dr)
13.92
mm
+ 0.25 / - 0.13
Internal Retaining Rings - 12.7x0.89x13.46 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 0.99 mm + 0.08 / - 0.00   Clearance in Bore (C): 6.60 mm    Clearance in Groove (C1): 7.37 mm    Min. Lug Diameter (h): 1.14 mm    Min. Extension (n): 1.14    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 21125
Part Number: CCI-01270-S15 (PK-2)
Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
12 units (24 pcs) Available Now | Further orders can be expected around Mon, Dec 29, 2025
$2.50 AUD
$6.74 AUD $2.50 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

12 units (24 pcs) Available Now. Backorder if more than 12.
Housing Bore (B)
13.00
mm

(Equiv. 0.512 in.)
Clip Thickness (T)
1.00
mm
+ 0.11 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
13.60
mm
+ 0.00 / - 0.06
(Equiv. 0.535 in.)
Approx. Loose Circlip OD (Dr)
14.10
mm
+ 0.36 / - 0.10
Groove Width (W)
1.10
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 13x1x13.6 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 5.40 mm    Clearance in Groove (C1): 6.40 mm    Min. Lug Diameter (h): 1.50 mm    Min. Extension (n): 0.90    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 649
Part Number: CCI-01300-S15 (PK-5)
Internal Retaining Rings - 13x1x13.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
58 units (290 pcs) Available Now | Further orders can be expected around Mon, Dec 29, 2025
$2.23 AUD
$6.20 AUD $2.23 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

58 units (290 pcs) Available Now. Backorder if more than 58.
Housing Bore (B)
13.00
mm

(Equiv. 0.512 in.)
Clip Thickness (T)
1.00
mm
+ 0.11 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
13.60
mm
+ 0.00 / - 0.06
(Equiv. 0.535 in.)
Approx. Loose Circlip OD (Dr)
14.10
mm
+ 0.36 / - 0.10
Internal Retaining Rings - 13x1x13.6 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 1.10 mm + 0.08 / - 0.00   Clearance in Bore (C): 5.40 mm    Clearance in Groove (C1): 6.40 mm    Min. Lug Diameter (h): 1.50 mm    Min. Extension (n): 0.90    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 649
Part Number: CCI-01300-S15 (PK-5)
Internal Retaining Rings - 13x1x13.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
58 units (290 pcs) Available Now | Further orders can be expected around Mon, Dec 29, 2025
$2.23 AUD
$6.20 AUD $2.23 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

58 units (290 pcs) Available Now. Backorder if more than 58.
Housing Bore (B)
14.00
mm

(Equiv. 0.551 in.)
Clip Thickness (T)
1.00
mm
+ 0.11 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
14.60
mm
+ 0.00 / - 0.06
(Equiv. 0.575 in.)
Approx. Loose Circlip OD (Dr)
15.10
mm
+ 0.36 / - 0.10
Groove Width (W)
1.10
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 14x1x14.6 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 6.20 mm    Clearance in Groove (C1): 7.20 mm    Min. Lug Diameter (h): 1.70 mm    Min. Extension (n): 0.90    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 1005
Part Number: CCI-01400-S15 (PK-5)
Internal Retaining Rings - 14x1x14.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
12 units (60 pcs) Available Now | Further orders can be expected around Mon, Dec 29, 2025
$7.14 AUD
$7.14 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

12 units (60 pcs) Available Now. Backorder if more than 12.
Housing Bore (B)
14.00
mm

(Equiv. 0.551 in.)
Clip Thickness (T)
1.00
mm
+ 0.11 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
14.60
mm
+ 0.00 / - 0.06
(Equiv. 0.575 in.)
Approx. Loose Circlip OD (Dr)
15.10
mm
+ 0.36 / - 0.10
Internal Retaining Rings - 14x1x14.6 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 1.10 mm + 0.08 / - 0.00   Clearance in Bore (C): 6.20 mm    Clearance in Groove (C1): 7.20 mm    Min. Lug Diameter (h): 1.70 mm    Min. Extension (n): 0.90    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 1005
Part Number: CCI-01400-S15 (PK-5)
Internal Retaining Rings - 14x1x14.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
12 units (60 pcs) Available Now | Further orders can be expected around Mon, Dec 29, 2025
$7.14 AUD
$7.14 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

12 units (60 pcs) Available Now. Backorder if more than 12.
Housing Bore (B)
14.29
mm

(Equiv. 0.563 in.)
Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.)
Groove Dia. (Dg)
15.14
mm
+ 0.00 / - 0.06
(Equiv. 0.596 in.)
Approx. Loose Circlip OD (Dr)
15.75
mm
+ 0.25 / - 0.13
Groove Width (W)
0.99
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 14.29x0.89x15.14 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 7.11 mm    Clearance in Groove (C1): 8.13 mm    Min. Lug Diameter (h): 1.14 mm    Min. Extension (n): 1.30    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 2865
Part Number: CCI-01429-S15 (PK-4)
Internal Retaining Rings - 14.29x0.89x15.14 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Dec 29, 2025
$8.41 AUD
$19.22 AUD $8.41 AUD
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
14.29
mm

(Equiv. 0.563 in.)
Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.)
Groove Dia. (Dg)
15.14
mm
+ 0.00 / - 0.06
(Equiv. 0.596 in.)
Approx. Loose Circlip OD (Dr)
15.75
mm
+ 0.25 / - 0.13
Internal Retaining Rings - 14.29x0.89x15.14 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 0.99 mm + 0.08 / - 0.00   Clearance in Bore (C): 7.11 mm    Clearance in Groove (C1): 8.13 mm    Min. Lug Diameter (h): 1.14 mm    Min. Extension (n): 1.30    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 2865
Part Number: CCI-01429-S15 (PK-4)
Internal Retaining Rings - 14.29x0.89x15.14 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Dec 29, 2025
$8.41 AUD
$19.22 AUD $8.41 AUD
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
15.00
mm

(Equiv. 0.591 in.)
Clip Thickness (T)
1.00
mm
+ 0.11 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
15.70
mm
+ 0.00 / - 0.06
(Equiv. 0.618 in.)
Approx. Loose Circlip OD (Dr)
16.20
mm
+ 0.36 / - 0.10
Groove Width (W)
1.10
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 15x1x15.7 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 7.20 mm    Clearance in Groove (C1): 8.30 mm    Min. Lug Diameter (h): 1.70 mm    Min. Extension (n): 1.10    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 297
Part Number: CCI-01500-S15 (PK-5)
Internal Retaining Rings - 15x1x15.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Dec 29, 2025
$9.14 AUD
$21.04 AUD $9.14 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
15.00
mm

(Equiv. 0.591 in.)
Clip Thickness (T)
1.00
mm
+ 0.11 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
15.70
mm
+ 0.00 / - 0.06
(Equiv. 0.618 in.)
Approx. Loose Circlip OD (Dr)
16.20
mm
+ 0.36 / - 0.10
Internal Retaining Rings - 15x1x15.7 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 1.10 mm + 0.08 / - 0.00   Clearance in Bore (C): 7.20 mm    Clearance in Groove (C1): 8.30 mm    Min. Lug Diameter (h): 1.70 mm    Min. Extension (n): 1.10    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 297
Part Number: CCI-01500-S15 (PK-5)
Internal Retaining Rings - 15x1x15.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Dec 29, 2025
$9.14 AUD
$21.04 AUD $9.14 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
15.88
mm

(Equiv. 0.625 in.)
Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.)
Groove Dia. (Dg)
16.89
mm
+ 0.00 / - 0.06
(Equiv. 0.665 in.)
Approx. Loose Circlip OD (Dr)
17.63
mm
+ 0.25 / - 0.13
Groove Width (W)
0.99
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 15.88x0.89x16.89 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 8.89 mm    Clearance in Groove (C1): 9.91 mm    Min. Lug Diameter (h): 1.14 mm    Min. Extension (n): 1.52    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 3061
Part Number: CCI-01588-S15 (Each)
Internal Retaining Rings - 15.88x0.89x16.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
24 Available Now | Further orders can be expected around Mon, Dec 29, 2025
$4.41 AUD
$4.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

24 Available Now. Backorder if more than 24.
Housing Bore (B)
15.88
mm

(Equiv. 0.625 in.)
Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.)
Groove Dia. (Dg)
16.89
mm
+ 0.00 / - 0.06
(Equiv. 0.665 in.)
Approx. Loose Circlip OD (Dr)
17.63
mm
+ 0.25 / - 0.13
Internal Retaining Rings - 15.88x0.89x16.89 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 0.99 mm + 0.08 / - 0.00   Clearance in Bore (C): 8.89 mm    Clearance in Groove (C1): 9.91 mm    Min. Lug Diameter (h): 1.14 mm    Min. Extension (n): 1.52    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 3061
Part Number: CCI-01588-S15 (Each)
Internal Retaining Rings - 15.88x0.89x16.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
24 Available Now | Further orders can be expected around Mon, Dec 29, 2025
$4.41 AUD
$4.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

24 Available Now. Backorder if more than 24.
Housing Bore (B)
16.00
mm

(Equiv. 0.63 in.)
Clip Thickness (T)
1.00
mm
+ 0.11 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
16.80
mm
+ 0.00 / - 0.06
(Equiv. 0.661 in.)
Approx. Loose Circlip OD (Dr)
17.30
mm
+ 0.36 / - 0.10
Groove Width (W)
1.10
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 16x1x16.8 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 8.00 mm    Clearance in Groove (C1): 9.20 mm    Min. Lug Diameter (h): 1.70 mm    Min. Extension (n): 1.20    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 869
Part Number: CCI-01600-S15 (PK-5)
Internal Retaining Rings - 16x1x16.8 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
67 units (335 pcs) Available Now | Further orders can be expected around Mon, Dec 29, 2025
$7.41 AUD
$7.41 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

67 units (335 pcs) Available Now. Backorder if more than 67.
Housing Bore (B)
16.00
mm

(Equiv. 0.63 in.)
Clip Thickness (T)
1.00
mm
+ 0.11 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
16.80
mm
+ 0.00 / - 0.06
(Equiv. 0.661 in.)
Approx. Loose Circlip OD (Dr)
17.30
mm
+ 0.36 / - 0.10
Internal Retaining Rings - 16x1x16.8 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 1.10 mm + 0.08 / - 0.00   Clearance in Bore (C): 8.00 mm    Clearance in Groove (C1): 9.20 mm    Min. Lug Diameter (h): 1.70 mm    Min. Extension (n): 1.20    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 869
Part Number: CCI-01600-S15 (PK-5)
Internal Retaining Rings - 16x1x16.8 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
67 units (335 pcs) Available Now | Further orders can be expected around Mon, Dec 29, 2025
$7.41 AUD
$7.41 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

67 units (335 pcs) Available Now. Backorder if more than 67.
Housing Bore (B)
17.00
mm

(Equiv. 0.669 in.)
Clip Thickness (T)
1.00
mm
+ 0.13 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
17.80
mm
+ 0.00 / - 0.06
(Equiv. 0.701 in.)
Approx. Loose Circlip OD (Dr)
18.30
mm
+ 0.42 / - 0.13
Groove Width (W)
1.10
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 17x1x17.8 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 8.80 mm    Clearance in Groove (C1): 10.00 mm    Min. Lug Diameter (h): 1.70 mm    Min. Extension (n): 1.20    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 250
Part Number: CCI-01700-S15 (PK-5)
Internal Retaining Rings - 17x1x17.8 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
5 units (25 pcs) Available Now | Further orders can be expected around Mon, Dec 29, 2025
$3.14 AUD
$8.70 AUD $3.14 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

5 units (25 pcs) Available Now. Backorder if more than 5.
Housing Bore (B)
17.00
mm

(Equiv. 0.669 in.)
Clip Thickness (T)
1.00
mm
+ 0.13 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
17.80
mm
+ 0.00 / - 0.06
(Equiv. 0.701 in.)
Approx. Loose Circlip OD (Dr)
18.30
mm
+ 0.42 / - 0.13
Internal Retaining Rings - 17x1x17.8 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 1.10 mm + 0.08 / - 0.00   Clearance in Bore (C): 8.80 mm    Clearance in Groove (C1): 10.00 mm    Min. Lug Diameter (h): 1.70 mm    Min. Extension (n): 1.20    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 250
Part Number: CCI-01700-S15 (PK-5)
Internal Retaining Rings - 17x1x17.8 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
5 units (25 pcs) Available Now | Further orders can be expected around Mon, Dec 29, 2025
$3.14 AUD
$8.70 AUD $3.14 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

5 units (25 pcs) Available Now. Backorder if more than 5.
Housing Bore (B)
17.46
mm

(Equiv. 0.687 in.)
Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.)
Groove Dia. (Dg)
18.59
mm
+ 0.00 / - 0.06
(Equiv. 0.732 in.)
Approx. Loose Circlip OD (Dr)
19.38
mm
+ 0.25 / - 0.13
Groove Width (W)
0.99
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 17.46x0.89x18.59 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 10.41 mm    Clearance in Groove (C1): 11.43 mm    Min. Lug Diameter (h): 1.52 mm    Min. Extension (n): 1.68    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1285
Part Number: CCI-01746-S15 (PK-5)
Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Dec 29, 2025
$9.32 AUD
$21.48 AUD $9.32 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
17.46
mm

(Equiv. 0.687 in.)
Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.)
Groove Dia. (Dg)
18.59
mm
+ 0.00 / - 0.06
(Equiv. 0.732 in.)
Approx. Loose Circlip OD (Dr)
19.38
mm
+ 0.25 / - 0.13
Internal Retaining Rings - 17.46x0.89x18.59 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 0.99 mm + 0.08 / - 0.00   Clearance in Bore (C): 10.41 mm    Clearance in Groove (C1): 11.43 mm    Min. Lug Diameter (h): 1.52 mm    Min. Extension (n): 1.68    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1285
Part Number: CCI-01746-S15 (PK-5)
Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Dec 29, 2025
$9.32 AUD
$21.48 AUD $9.32 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
18.00
mm

(Equiv. 0.709 in.)
Clip Thickness (T)
1.00
mm
+ 0.13 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
19.00
mm
+ 0.00 / - 0.06
(Equiv. 0.748 in.)
Approx. Loose Circlip OD (Dr)
19.50
mm
+ 0.42 / - 0.13
Groove Width (W)
1.10
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 18x1x19 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 9.40 mm    Clearance in Groove (C1): 10.80 mm    Min. Lug Diameter (h): 2.00 mm    Min. Extension (n): 1.50    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 299
Part Number: CCI-01800-S15 (PK-50)
Internal Retaining Rings - 18x1x19 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Dec 29, 2025
$42.68 AUD
$100.20 AUD $42.68 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
18.00
mm

(Equiv. 0.709 in.)
Clip Thickness (T)
1.00
mm
+ 0.13 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
19.00
mm
+ 0.00 / - 0.06
(Equiv. 0.748 in.)
Approx. Loose Circlip OD (Dr)
19.50
mm
+ 0.42 / - 0.13
Internal Retaining Rings - 18x1x19 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 1.10 mm + 0.08 / - 0.00   Clearance in Bore (C): 9.40 mm    Clearance in Groove (C1): 10.80 mm    Min. Lug Diameter (h): 2.00 mm    Min. Extension (n): 1.50    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 299
Part Number: CCI-01800-S15 (PK-50)
Internal Retaining Rings - 18x1x19 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Dec 29, 2025
$42.68 AUD
$100.20 AUD $42.68 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
19.00
mm

(Equiv. 0.748 in.)
Clip Thickness (T)
1.00
mm
+ 0.13 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
20.00
mm
+ 0.00 / - 0.06
(Equiv. 0.787 in.)
Approx. Loose Circlip OD (Dr)
20.50
mm
+ 0.42 / - 0.13
Groove Width (W)
1.10
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 19x1x20 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 10.40 mm    Clearance in Groove (C1): 11.80 mm    Min. Lug Diameter (h): 2.00 mm    Min. Extension (n): 1.50    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 945
Part Number: CCI-01900-S15 (PK-4)
Internal Retaining Rings - 19x1x20 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Dec 29, 2025
$9.77 AUD
$22.27 AUD $9.77 AUD
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
19.00
mm

(Equiv. 0.748 in.)
Clip Thickness (T)
1.00
mm
+ 0.13 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
20.00
mm
+ 0.00 / - 0.06
(Equiv. 0.787 in.)
Approx. Loose Circlip OD (Dr)
20.50
mm
+ 0.42 / - 0.13
Internal Retaining Rings - 19x1x20 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 1.10 mm + 0.08 / - 0.00   Clearance in Bore (C): 10.40 mm    Clearance in Groove (C1): 11.80 mm    Min. Lug Diameter (h): 2.00 mm    Min. Extension (n): 1.50    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 945
Part Number: CCI-01900-S15 (PK-4)
Internal Retaining Rings - 19x1x20 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Dec 29, 2025
$9.77 AUD
$22.27 AUD $9.77 AUD
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
19.05
mm

(Equiv. 0.75 in.)
Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.)
Groove Dia. (Dg)
20.22
mm
+ 0.00 / - 0.06
(Equiv. 0.796 in.)
Approx. Loose Circlip OD (Dr)
21.11
mm
+ 0.25 / - 0.13
Groove Width (W)
0.99
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 19.05x0.89x20.22 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 11.43 mm    Clearance in Groove (C1): 12.70 mm    Min. Lug Diameter (h): 1.52 mm    Min. Extension (n): 1.75    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 4889
Part Number: CCI-01905-S15 (PK-5)
Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Dec 29, 2025
$9.86 AUD
$22.58 AUD $9.86 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
19.05
mm

(Equiv. 0.75 in.)
Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.)
Groove Dia. (Dg)
20.22
mm
+ 0.00 / - 0.06
(Equiv. 0.796 in.)
Approx. Loose Circlip OD (Dr)
21.11
mm
+ 0.25 / - 0.13
Internal Retaining Rings - 19.05x0.89x20.22 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 0.99 mm + 0.08 / - 0.00   Clearance in Bore (C): 11.43 mm    Clearance in Groove (C1): 12.70 mm    Min. Lug Diameter (h): 1.52 mm    Min. Extension (n): 1.75    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 4889
Part Number: CCI-01905-S15 (PK-5)
Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Dec 29, 2025
$9.86 AUD
$22.58 AUD $9.86 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
19.74
mm

(Equiv. 0.777 in.)
Clip Thickness (T)
1.07
mm
+/- 0.075
(Equiv. 0.042 in.)
Groove Dia. (Dg)
20.96
mm
+ 0.00 / - 0.06
(Equiv. 0.825 in.)
Approx. Loose Circlip OD (Dr)
21.82
mm
+ 0.25 / - 0.13
Groove Width (W)
1.17
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 19.74x1.07x20.96 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 11.94 mm    Clearance in Groove (C1): 13.21 mm    Min. Lug Diameter (h): 1.52 mm    Min. Extension (n): 1.83    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 299
Part Number: CCI-01974-S15 (PK-4)
Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Dec 29, 2025
$9.50 AUD
$21.66 AUD $9.50 AUD
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
19.74
mm

(Equiv. 0.777 in.)
Clip Thickness (T)
1.07
mm
+/- 0.075
(Equiv. 0.042 in.)
Groove Dia. (Dg)
20.96
mm
+ 0.00 / - 0.06
(Equiv. 0.825 in.)
Approx. Loose Circlip OD (Dr)
21.82
mm
+ 0.25 / - 0.13
Internal Retaining Rings - 19.74x1.07x20.96 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 1.17 mm + 0.08 / - 0.00   Clearance in Bore (C): 11.94 mm    Clearance in Groove (C1): 13.21 mm    Min. Lug Diameter (h): 1.52 mm    Min. Extension (n): 1.83    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 299
Part Number: CCI-01974-S15 (PK-4)
Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Dec 29, 2025
$9.50 AUD
$21.66 AUD $9.50 AUD
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
20.00
mm

(Equiv. 0.787 in.)
Clip Thickness (T)
1.00
mm
+ 0.13 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
21.00
mm
+ 0.00 / - 0.06
(Equiv. 0.827 in.)
Approx. Loose Circlip OD (Dr)
21.50
mm
+ 0.42 / - 0.13
Groove Width (W)
1.10
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 20x1x21 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 11.20 mm    Clearance in Groove (C1): 12.60 mm    Min. Lug Diameter (h): 2.00 mm    Min. Extension (n): 1.50    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 376
Part Number: CCI-02000-S15 (PK-4)
Internal Retaining Rings - 20x1x21 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Dec 29, 2025
$9.86 AUD
$22.54 AUD $9.86 AUD
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
20.00
mm

(Equiv. 0.787 in.)
Clip Thickness (T)
1.00
mm
+ 0.13 / - 0.00
(Equiv. 0.039 in.)
Groove Dia. (Dg)
21.00
mm
+ 0.00 / - 0.06
(Equiv. 0.827 in.)
Approx. Loose Circlip OD (Dr)
21.50
mm
+ 0.42 / - 0.13
Internal Retaining Rings - 20x1x21 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 1.10 mm + 0.08 / - 0.00   Clearance in Bore (C): 11.20 mm    Clearance in Groove (C1): 12.60 mm    Min. Lug Diameter (h): 2.00 mm    Min. Extension (n): 1.50    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 376
Part Number: CCI-02000-S15 (PK-4)
Internal Retaining Rings - 20x1x21 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Out of Stock | Backorder Now | Orders can be expected around Mon, Dec 29, 2025
$9.86 AUD
$22.54 AUD $9.86 AUD
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
