Collection: Retaining Rings - Internal - Circlips - Standard

Retaining Rings -> Internal -> Circlips -> Standard

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)	Indicative Image
Housing Bore (B) 12.00 mm (Equiv. 0.472 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 12.50 mm _{+ 0.00 / - 0.06} (Equiv. 0.492 in.)	Approx. Loose Circlip OD (Dr) 13.00 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 4.90 mm Clearance in Groove (C1): 5.70 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.80 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01200-S15 (2 Pcs) Internal Retaining Rings - 12x1x12.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 6 units (12 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per Per 2 Quantity Required 6 units (12 pcs) Available Now. Backorder if more than 6.
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Housing Bore (B) 12.00 mm (Equiv. 0.472 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 12.50 mm _{+ 0.00 / - 0.06} (Equiv. 0.492 in.)	Approx. Loose Circlip OD (Dr) 13.00 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 4.90 mm Clearance in Groove (C1): 5.70 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.80 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01200-S15 (2 Pcs) Internal Retaining Rings - 12x1x12.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 6 units (12 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per Per 2 Quantity Required 6 units (12 pcs) Available Now. Backorder if more than 6.
CCI-01200-S15 (2 Pcs) --- Internal Retaining Rings - 12x1x12.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCI-01200-S15 (2 Pcs) --- Internal Retaining Rings - 12x1x12.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per 6 Available Now
Housing Bore (B) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.46 mm _{+ 0.00 / - 0.06} (Equiv. 0.53 in.)	Approx. Loose Circlip OD (Dr) 13.92 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00

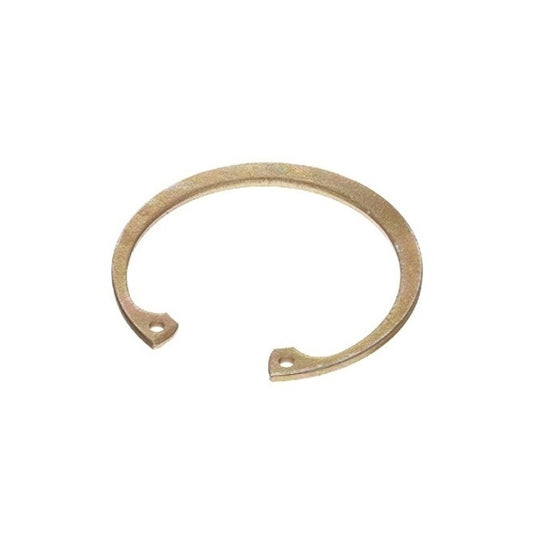

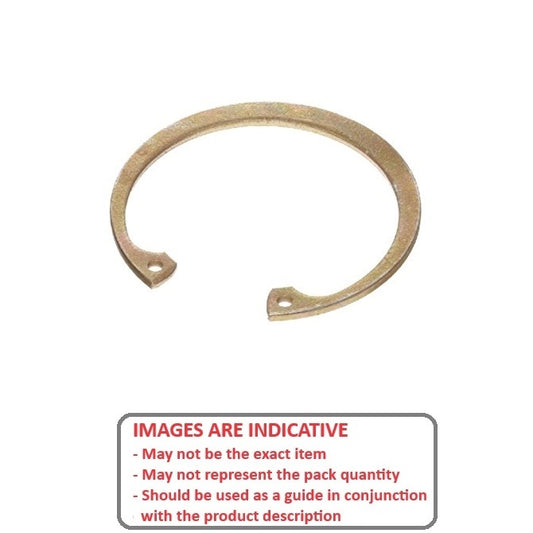

Material: Carbon Steel Zinc Plated Clearance in Bore (C): 6.60 mm Clearance in Groove (C1): 7.37 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.14 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-01270-CZY (5 Pcs) Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Carbon Steel Zinc Plated Circlip 148 units (740 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.14 AUD Regular price ~~$3.04 AUD~~ Sale price $1.14 AUD Unit price per Per 5 Quantity Required 148 units (740 pcs) Available Now. Backorder if more than 148.
Housing Bore (B) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.46 mm _{+ 0.00 / - 0.06} (Equiv. 0.53 in.)	Approx. Loose Circlip OD (Dr) 13.92 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.60 mm Clearance in Groove (C1): 7.37 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.14 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-01270-CZY (5 Pcs) Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Carbon Steel Zinc Plated Circlip 148 units (740 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.14 AUD Regular price ~~$3.04 AUD~~ Sale price $1.14 AUD Unit price per Per 5 Quantity Required 148 units (740 pcs) Available Now. Backorder if more than 148.
CCI-01270-CZY (5 Pcs) --- Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-01270-CZY (5 Pcs) --- Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $1.14 AUD Regular price ~~$3.04 AUD~~ Sale price $1.14 AUD Unit price per 148 Available Now Sale
Housing Bore (B) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.46 mm _{+ 0.00 / - 0.06} (Equiv. 0.53 in.)	Approx. Loose Circlip OD (Dr) 13.92 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 6.60 mm Clearance in Groove (C1): 7.37 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.14 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01270-S15 (2 Pcs) Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 12 units (24 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.50 AUD Regular price ~~$6.84 AUD~~ Sale price $2.50 AUD Unit price per Per 2 Quantity Required 12 units (24 pcs) Available Now. Backorder if more than 12.
Housing Bore (B) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.46 mm _{+ 0.00 / - 0.06} (Equiv. 0.53 in.)	Approx. Loose Circlip OD (Dr) 13.92 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.60 mm Clearance in Groove (C1): 7.37 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.14 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01270-S15 (2 Pcs) Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 12 units (24 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.50 AUD Regular price ~~$6.84 AUD~~ Sale price $2.50 AUD Unit price per Per 2 Quantity Required 12 units (24 pcs) Available Now. Backorder if more than 12.
CCI-01270-S15 (2 Pcs) --- Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-01270-S15 (2 Pcs) --- Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $2.50 AUD Regular price ~~$6.84 AUD~~ Sale price $2.50 AUD Unit price per 12 Available Now Sale
Housing Bore (B) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.46 mm _{+ 0.00 / - 0.06} (Equiv. 0.53 in.)	Approx. Loose Circlip OD (Dr) 13.92 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 6.60 mm Clearance in Groove (C1): 7.37 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.14 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01270-C (100 Pcs) Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $22.23 AUD Regular price ~~$26.67 AUD~~ Sale price $22.23 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.46 mm _{+ 0.00 / - 0.06} (Equiv. 0.53 in.)	Approx. Loose Circlip OD (Dr) 13.92 mm + 0.25 / - 0.13
Material: Carbon Steel Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.60 mm Clearance in Groove (C1): 7.37 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.14 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01270-C (100 Pcs) Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $22.23 AUD Regular price ~~$26.67 AUD~~ Sale price $22.23 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
CCI-01270-C (100 Pcs) --- Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Carbon Steel Circlip Sale CCI-01270-C (100 Pcs) --- Internal Retaining Rings - 12.7x0.89x13.46 mm Circlips - Carbon Steel Circlip Regular price $22.23 AUD Regular price ~~$26.67 AUD~~ Sale price $22.23 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 12.95 mm (Equiv. 0.51 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.72 mm _{+ 0.00 / - 0.06} (Equiv. 0.54 in.)	Approx. Loose Circlip OD (Dr) 14.22 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 6.86 mm Clearance in Groove (C1): 7.62 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.14 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01295-C (100 Pcs) Internal Retaining Rings - 12.95x0.89x13.72 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $36.50 AUD Regular price ~~$43.80 AUD~~ Sale price $36.50 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 12.95 mm (Equiv. 0.51 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.72 mm _{+ 0.00 / - 0.06} (Equiv. 0.54 in.)	Approx. Loose Circlip OD (Dr) 14.22 mm + 0.25 / - 0.13
Material: Carbon Steel Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.86 mm Clearance in Groove (C1): 7.62 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.14 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01295-C (100 Pcs) Internal Retaining Rings - 12.95x0.89x13.72 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $36.50 AUD Regular price ~~$43.80 AUD~~ Sale price $36.50 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
CCI-01295-C (100 Pcs) --- Internal Retaining Rings - 12.95x0.89x13.72 mm Circlips - Carbon Steel Circlip Sale CCI-01295-C (100 Pcs) --- Internal Retaining Rings - 12.95x0.89x13.72 mm Circlips - Carbon Steel Circlip Regular price $36.50 AUD Regular price ~~$43.80 AUD~~ Sale price $36.50 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 13.00 mm (Equiv. 0.512 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 13.60 mm _{+ 0.00 / - 0.06} (Equiv. 0.535 in.)	Approx. Loose Circlip OD (Dr) 14.10 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 5.40 mm Clearance in Groove (C1): 6.40 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.90 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01300-S15 (5 Pcs) Internal Retaining Rings - 13x1x13.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 58 units (290 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.23 AUD Regular price ~~$6.28 AUD~~ Sale price $2.23 AUD Unit price per Per 5 Quantity Required 58 units (290 pcs) Available Now. Backorder if more than 58.
Housing Bore (B) 13.00 mm (Equiv. 0.512 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 13.60 mm _{+ 0.00 / - 0.06} (Equiv. 0.535 in.)	Approx. Loose Circlip OD (Dr) 14.10 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 5.40 mm Clearance in Groove (C1): 6.40 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.90 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01300-S15 (5 Pcs) Internal Retaining Rings - 13x1x13.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 58 units (290 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.23 AUD Regular price ~~$6.28 AUD~~ Sale price $2.23 AUD Unit price per Per 5 Quantity Required 58 units (290 pcs) Available Now. Backorder if more than 58.
CCI-01300-S15 (5 Pcs) --- Internal Retaining Rings - 13x1x13.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-01300-S15 (5 Pcs) --- Internal Retaining Rings - 13x1x13.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $2.23 AUD Regular price ~~$6.28 AUD~~ Sale price $2.23 AUD Unit price per 58 Available Now Sale
Housing Bore (B) 13.00 mm (Equiv. 0.512 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 13.60 mm _{+ 0.00 / - 0.06} (Equiv. 0.535 in.)	Approx. Loose Circlip OD (Dr) 14.10 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 5.40 mm Clearance in Groove (C1): 6.40 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.90 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01300-C (50 Pcs) Internal Retaining Rings - 13x1x13.6 mm Circlips - Carbon Steel Circlip 74 units (3700 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per Per 50 Quantity Required 74 units (3700 pcs) Available Now. Backorder if more than 74.
Housing Bore (B) 13.00 mm (Equiv. 0.512 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 13.60 mm _{+ 0.00 / - 0.06} (Equiv. 0.535 in.)	Approx. Loose Circlip OD (Dr) 14.10 mm + 0.36 / - 0.10
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 5.40 mm Clearance in Groove (C1): 6.40 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.90 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01300-C (50 Pcs) Internal Retaining Rings - 13x1x13.6 mm Circlips - Carbon Steel Circlip 74 units (3700 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per Per 50 Quantity Required 74 units (3700 pcs) Available Now. Backorder if more than 74.
CCI-01300-C (50 Pcs) --- Internal Retaining Rings - 13x1x13.6 mm Circlips - Carbon Steel Circlip CCI-01300-C (50 Pcs) --- Internal Retaining Rings - 13x1x13.6 mm Circlips - Carbon Steel Circlip Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per 74 Available Now
Housing Bore (B) 14.00 mm (Equiv. 0.551 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 14.60 mm _{+ 0.00 / - 0.06} (Equiv. 0.575 in.)	Approx. Loose Circlip OD (Dr) 15.10 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 6.20 mm Clearance in Groove (C1): 7.20 mm Min. Lug Diameter (h): 1.70 mm Min. Extension (n): 0.90 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01400-C (50 Pcs) Internal Retaining Rings - 14x1x14.6 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $10.50 AUD Regular price Sale price $10.50 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 14.00 mm (Equiv. 0.551 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 14.60 mm _{+ 0.00 / - 0.06} (Equiv. 0.575 in.)	Approx. Loose Circlip OD (Dr) 15.10 mm + 0.36 / - 0.10
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.20 mm Clearance in Groove (C1): 7.20 mm Min. Lug Diameter (h): 1.70 mm Min. Extension (n): 0.90 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01400-C (50 Pcs) Internal Retaining Rings - 14x1x14.6 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $10.50 AUD Regular price Sale price $10.50 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
CCI-01400-C (50 Pcs) --- Internal Retaining Rings - 14x1x14.6 mm Circlips - Carbon Steel Circlip CCI-01400-C (50 Pcs) --- Internal Retaining Rings - 14x1x14.6 mm Circlips - Carbon Steel Circlip Regular price $10.50 AUD Regular price Sale price $10.50 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 14.00 mm (Equiv. 0.551 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 14.60 mm _{+ 0.00 / - 0.06} (Equiv. 0.575 in.)	Approx. Loose Circlip OD (Dr) 15.10 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 6.20 mm Clearance in Groove (C1): 7.20 mm Min. Lug Diameter (h): 1.70 mm Min. Extension (n): 0.90 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01400-S15 (5 Pcs) Internal Retaining Rings - 14x1x14.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 12 units (60 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per Per 5 Quantity Required 12 units (60 pcs) Available Now. Backorder if more than 12.
Housing Bore (B) 14.00 mm (Equiv. 0.551 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 14.60 mm _{+ 0.00 / - 0.06} (Equiv. 0.575 in.)	Approx. Loose Circlip OD (Dr) 15.10 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 6.20 mm Clearance in Groove (C1): 7.20 mm Min. Lug Diameter (h): 1.70 mm Min. Extension (n): 0.90 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01400-S15 (5 Pcs) Internal Retaining Rings - 14x1x14.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 12 units (60 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per Per 5 Quantity Required 12 units (60 pcs) Available Now. Backorder if more than 12.
CCI-01400-S15 (5 Pcs) --- Internal Retaining Rings - 14x1x14.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCI-01400-S15 (5 Pcs) --- Internal Retaining Rings - 14x1x14.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $7.23 AUD Regular price Sale price $7.23 AUD Unit price per 12 Available Now
Housing Bore (B) 14.29 mm (Equiv. 0.563 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 15.14 mm _{+ 0.00 / - 0.06} (Equiv. 0.596 in.)	Approx. Loose Circlip OD (Dr) 15.75 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 7.11 mm Clearance in Groove (C1): 8.13 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.30 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01429-C (100 Pcs) Internal Retaining Rings - 14.29x0.89x15.14 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $22.86 AUD Regular price ~~$27.44 AUD~~ Sale price $22.86 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 14.29 mm (Equiv. 0.563 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 15.14 mm _{+ 0.00 / - 0.06} (Equiv. 0.596 in.)	Approx. Loose Circlip OD (Dr) 15.75 mm + 0.25 / - 0.13
Material: Carbon Steel Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 7.11 mm Clearance in Groove (C1): 8.13 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.30 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01429-C (100 Pcs) Internal Retaining Rings - 14.29x0.89x15.14 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $22.86 AUD Regular price ~~$27.44 AUD~~ Sale price $22.86 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
CCI-01429-C (100 Pcs) --- Internal Retaining Rings - 14.29x0.89x15.14 mm Circlips - Carbon Steel Circlip Sale CCI-01429-C (100 Pcs) --- Internal Retaining Rings - 14.29x0.89x15.14 mm Circlips - Carbon Steel Circlip Regular price $22.86 AUD Regular price ~~$27.44 AUD~~ Sale price $22.86 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 14.29 mm (Equiv. 0.563 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 15.14 mm _{+ 0.00 / - 0.06} (Equiv. 0.596 in.)	Approx. Loose Circlip OD (Dr) 15.75 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 7.11 mm Clearance in Groove (C1): 8.13 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.30 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01429-S15 (4 Pcs) Internal Retaining Rings - 14.29x0.89x15.14 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $7.86 AUD Regular price ~~$17.87 AUD~~ Sale price $7.86 AUD Unit price per Per 4 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 14.29 mm (Equiv. 0.563 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 15.14 mm _{+ 0.00 / - 0.06} (Equiv. 0.596 in.)	Approx. Loose Circlip OD (Dr) 15.75 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 7.11 mm Clearance in Groove (C1): 8.13 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.30 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01429-S15 (4 Pcs) Internal Retaining Rings - 14.29x0.89x15.14 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $7.86 AUD Regular price ~~$17.87 AUD~~ Sale price $7.86 AUD Unit price per Per 4 Quantity Required Backorder: Out of Stock.
CCI-01429-S15 (4 Pcs) --- Internal Retaining Rings - 14.29x0.89x15.14 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-01429-S15 (4 Pcs) --- Internal Retaining Rings - 14.29x0.89x15.14 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $7.86 AUD Regular price ~~$17.87 AUD~~ Sale price $7.86 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 14.29 mm (Equiv. 0.563 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 15.14 mm _{+ 0.00 / - 0.06} (Equiv. 0.596 in.)	Approx. Loose Circlip OD (Dr) 15.75 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 7.11 mm Clearance in Groove (C1): 8.13 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.30 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-01429-CZY (250 Pcs) Internal Retaining Rings - 14.29x0.89x15.14 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $68.50 AUD Regular price ~~$161.00 AUD~~ Sale price $68.50 AUD Unit price per Per 250 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 14.29 mm (Equiv. 0.563 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 15.14 mm _{+ 0.00 / - 0.06} (Equiv. 0.596 in.)	Approx. Loose Circlip OD (Dr) 15.75 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 7.11 mm Clearance in Groove (C1): 8.13 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.30 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-01429-CZY (250 Pcs) Internal Retaining Rings - 14.29x0.89x15.14 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $68.50 AUD Regular price ~~$161.00 AUD~~ Sale price $68.50 AUD Unit price per Per 250 Quantity Required Backorder: Out of Stock.
CCI-01429-CZY (250 Pcs) --- Internal Retaining Rings - 14.29x0.89x15.14 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-01429-CZY (250 Pcs) --- Internal Retaining Rings - 14.29x0.89x15.14 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $68.50 AUD Regular price ~~$161.00 AUD~~ Sale price $68.50 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 15.00 mm (Equiv. 0.591 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 15.70 mm _{+ 0.00 / - 0.06} (Equiv. 0.618 in.)	Approx. Loose Circlip OD (Dr) 16.20 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 7.20 mm Clearance in Groove (C1): 8.30 mm Min. Lug Diameter (h): 1.70 mm Min. Extension (n): 1.10 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01500-C (50 Pcs) Internal Retaining Rings - 15x1x15.7 mm Circlips - Carbon Steel Circlip 1 pack (50 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.59 AUD Regular price ~~$10.55 AUD~~ Sale price $5.59 AUD Unit price per Per 50 Quantity Required 1 pack (50 pcs) Available Now. Backorder if more than 1.
Housing Bore (B) 15.00 mm (Equiv. 0.591 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 15.70 mm _{+ 0.00 / - 0.06} (Equiv. 0.618 in.)	Approx. Loose Circlip OD (Dr) 16.20 mm + 0.36 / - 0.10
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 7.20 mm Clearance in Groove (C1): 8.30 mm Min. Lug Diameter (h): 1.70 mm Min. Extension (n): 1.10 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01500-C (50 Pcs) Internal Retaining Rings - 15x1x15.7 mm Circlips - Carbon Steel Circlip 1 pack (50 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.59 AUD Regular price ~~$10.55 AUD~~ Sale price $5.59 AUD Unit price per Per 50 Quantity Required 1 pack (50 pcs) Available Now. Backorder if more than 1.
CCI-01500-C (50 Pcs) --- Internal Retaining Rings - 15x1x15.7 mm Circlips - Carbon Steel Circlip Sale CCI-01500-C (50 Pcs) --- Internal Retaining Rings - 15x1x15.7 mm Circlips - Carbon Steel Circlip Regular price $5.59 AUD Regular price ~~$10.55 AUD~~ Sale price $5.59 AUD Unit price per 1 Available Now Sale
Housing Bore (B) 15.00 mm (Equiv. 0.591 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 15.70 mm _{+ 0.00 / - 0.06} (Equiv. 0.618 in.)	Approx. Loose Circlip OD (Dr) 16.20 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 7.20 mm Clearance in Groove (C1): 8.30 mm Min. Lug Diameter (h): 1.70 mm Min. Extension (n): 1.10 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01500-S15 (5 Pcs) Internal Retaining Rings - 15x1x15.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $8.50 AUD Regular price ~~$19.60 AUD~~ Sale price $8.50 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 15.00 mm (Equiv. 0.591 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 15.70 mm _{+ 0.00 / - 0.06} (Equiv. 0.618 in.)	Approx. Loose Circlip OD (Dr) 16.20 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 7.20 mm Clearance in Groove (C1): 8.30 mm Min. Lug Diameter (h): 1.70 mm Min. Extension (n): 1.10 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01500-S15 (5 Pcs) Internal Retaining Rings - 15x1x15.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $8.50 AUD Regular price ~~$19.60 AUD~~ Sale price $8.50 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
CCI-01500-S15 (5 Pcs) --- Internal Retaining Rings - 15x1x15.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-01500-S15 (5 Pcs) --- Internal Retaining Rings - 15x1x15.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $8.50 AUD Regular price ~~$19.60 AUD~~ Sale price $8.50 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 16.89 mm _{+ 0.00 / - 0.06} (Equiv. 0.665 in.)	Approx. Loose Circlip OD (Dr) 17.63 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 8.89 mm Clearance in Groove (C1): 9.91 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.52 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01588-S15 Internal Retaining Rings - 15.88x0.89x16.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 44 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.50 AUD Regular price Sale price $4.50 AUD Unit price per Each Quantity Required 44 Available Now. Backorder if more than 44.
Housing Bore (B) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 16.89 mm _{+ 0.00 / - 0.06} (Equiv. 0.665 in.)	Approx. Loose Circlip OD (Dr) 17.63 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 8.89 mm Clearance in Groove (C1): 9.91 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.52 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01588-S15 Internal Retaining Rings - 15.88x0.89x16.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 44 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.50 AUD Regular price Sale price $4.50 AUD Unit price per Each Quantity Required 44 Available Now. Backorder if more than 44.
CCI-01588-S15 --- Internal Retaining Rings - 15.88x0.89x16.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCI-01588-S15 --- Internal Retaining Rings - 15.88x0.89x16.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $4.50 AUD Regular price Sale price $4.50 AUD Unit price per 44 Available Now
Housing Bore (B) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 16.89 mm _{+ 0.00 / - 0.06} (Equiv. 0.665 in.)	Approx. Loose Circlip OD (Dr) 17.63 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 8.89 mm Clearance in Groove (C1): 9.91 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.52 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-01588-CZY (5 Pcs) Internal Retaining Rings - 15.88x0.89x16.89 mm Circlips - Carbon Steel Zinc Plated Circlip 10 units (50 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.32 AUD Regular price ~~$3.56 AUD~~ Sale price $1.32 AUD Unit price per Per 5 Quantity Required 10 units (50 pcs) Available Now. Backorder if more than 10.
Housing Bore (B) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 16.89 mm _{+ 0.00 / - 0.06} (Equiv. 0.665 in.)	Approx. Loose Circlip OD (Dr) 17.63 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 8.89 mm Clearance in Groove (C1): 9.91 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.52 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-01588-CZY (5 Pcs) Internal Retaining Rings - 15.88x0.89x16.89 mm Circlips - Carbon Steel Zinc Plated Circlip 10 units (50 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.32 AUD Regular price ~~$3.56 AUD~~ Sale price $1.32 AUD Unit price per Per 5 Quantity Required 10 units (50 pcs) Available Now. Backorder if more than 10.
CCI-01588-CZY (5 Pcs) --- Internal Retaining Rings - 15.88x0.89x16.89 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-01588-CZY (5 Pcs) --- Internal Retaining Rings - 15.88x0.89x16.89 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $1.32 AUD Regular price ~~$3.56 AUD~~ Sale price $1.32 AUD Unit price per 10 Available Now Sale
Housing Bore (B) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 16.89 mm _{+ 0.00 / - 0.06} (Equiv. 0.665 in.)	Approx. Loose Circlip OD (Dr) 17.63 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 8.89 mm Clearance in Groove (C1): 9.91 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.52 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01588-C (20 Pcs) Internal Retaining Rings - 15.88x0.89x16.89 mm Circlips - Carbon Steel Circlip 12 units (240 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $8.14 AUD Regular price Sale price $8.14 AUD Unit price per Per 20 Quantity Required 12 units (240 pcs) Available Now. Backorder if more than 12.
Housing Bore (B) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 16.89 mm _{+ 0.00 / - 0.06} (Equiv. 0.665 in.)	Approx. Loose Circlip OD (Dr) 17.63 mm + 0.25 / - 0.13
Material: Carbon Steel Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 8.89 mm Clearance in Groove (C1): 9.91 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.52 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01588-C (20 Pcs) Internal Retaining Rings - 15.88x0.89x16.89 mm Circlips - Carbon Steel Circlip 12 units (240 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $8.14 AUD Regular price Sale price $8.14 AUD Unit price per Per 20 Quantity Required 12 units (240 pcs) Available Now. Backorder if more than 12.
CCI-01588-C (20 Pcs) --- Internal Retaining Rings - 15.88x0.89x16.89 mm Circlips - Carbon Steel Circlip CCI-01588-C (20 Pcs) --- Internal Retaining Rings - 15.88x0.89x16.89 mm Circlips - Carbon Steel Circlip Regular price $8.14 AUD Regular price Sale price $8.14 AUD Unit price per 12 Available Now
Housing Bore (B) 16.00 mm (Equiv. 0.63 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 16.80 mm _{+ 0.00 / - 0.06} (Equiv. 0.661 in.)	Approx. Loose Circlip OD (Dr) 17.30 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 8.00 mm Clearance in Groove (C1): 9.20 mm Min. Lug Diameter (h): 1.70 mm Min. Extension (n): 1.20 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01600-S15 (5 Pcs) Internal Retaining Rings - 16x1x16.8 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 67 units (335 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Per 5 Quantity Required 67 units (335 pcs) Available Now. Backorder if more than 67.
Housing Bore (B) 16.00 mm (Equiv. 0.63 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 16.80 mm _{+ 0.00 / - 0.06} (Equiv. 0.661 in.)	Approx. Loose Circlip OD (Dr) 17.30 mm + 0.36 / - 0.10
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 8.00 mm Clearance in Groove (C1): 9.20 mm Min. Lug Diameter (h): 1.70 mm Min. Extension (n): 1.20 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01600-S15 (5 Pcs) Internal Retaining Rings - 16x1x16.8 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 67 units (335 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Per 5 Quantity Required 67 units (335 pcs) Available Now. Backorder if more than 67.
CCI-01600-S15 (5 Pcs) --- Internal Retaining Rings - 16x1x16.8 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCI-01600-S15 (5 Pcs) --- Internal Retaining Rings - 16x1x16.8 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per 67 Available Now
Housing Bore (B) 16.00 mm (Equiv. 0.63 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 16.80 mm _{+ 0.00 / - 0.06} (Equiv. 0.661 in.)	Approx. Loose Circlip OD (Dr) 17.30 mm + 0.36 / - 0.10		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 8.00 mm Clearance in Groove (C1): 9.20 mm Min. Lug Diameter (h): 1.70 mm Min. Extension (n): 1.20 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01600-C (20 Pcs) Internal Retaining Rings - 16x1x16.8 mm Circlips - Carbon Steel Circlip 33 units (660 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Per 20 Quantity Required 33 units (660 pcs) Available Now. Backorder if more than 33.
Housing Bore (B) 16.00 mm (Equiv. 0.63 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 16.80 mm _{+ 0.00 / - 0.06} (Equiv. 0.661 in.)	Approx. Loose Circlip OD (Dr) 17.30 mm + 0.36 / - 0.10
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 8.00 mm Clearance in Groove (C1): 9.20 mm Min. Lug Diameter (h): 1.70 mm Min. Extension (n): 1.20 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01600-C (20 Pcs) Internal Retaining Rings - 16x1x16.8 mm Circlips - Carbon Steel Circlip 33 units (660 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Per 20 Quantity Required 33 units (660 pcs) Available Now. Backorder if more than 33.
CCI-01600-C (20 Pcs) --- Internal Retaining Rings - 16x1x16.8 mm Circlips - Carbon Steel Circlip CCI-01600-C (20 Pcs) --- Internal Retaining Rings - 16x1x16.8 mm Circlips - Carbon Steel Circlip Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per 33 Available Now
Housing Bore (B) 17.00 mm (Equiv. 0.669 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 17.80 mm _{+ 0.00 / - 0.06} (Equiv. 0.701 in.)	Approx. Loose Circlip OD (Dr) 18.30 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 8.80 mm Clearance in Groove (C1): 10.00 mm Min. Lug Diameter (h): 1.70 mm Min. Extension (n): 1.20 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01700-S15 (5 Pcs) Internal Retaining Rings - 17x1x17.8 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 5 units (25 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.14 AUD Regular price ~~$8.82 AUD~~ Sale price $3.14 AUD Unit price per Per 5 Quantity Required 5 units (25 pcs) Available Now. Backorder if more than 5.
Housing Bore (B) 17.00 mm (Equiv. 0.669 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 17.80 mm _{+ 0.00 / - 0.06} (Equiv. 0.701 in.)	Approx. Loose Circlip OD (Dr) 18.30 mm + 0.42 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 8.80 mm Clearance in Groove (C1): 10.00 mm Min. Lug Diameter (h): 1.70 mm Min. Extension (n): 1.20 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01700-S15 (5 Pcs) Internal Retaining Rings - 17x1x17.8 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 5 units (25 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.14 AUD Regular price ~~$8.82 AUD~~ Sale price $3.14 AUD Unit price per Per 5 Quantity Required 5 units (25 pcs) Available Now. Backorder if more than 5.
CCI-01700-S15 (5 Pcs) --- Internal Retaining Rings - 17x1x17.8 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-01700-S15 (5 Pcs) --- Internal Retaining Rings - 17x1x17.8 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $3.14 AUD Regular price ~~$8.82 AUD~~ Sale price $3.14 AUD Unit price per 5 Available Now Sale
Housing Bore (B) 17.00 mm (Equiv. 0.669 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 17.80 mm _{+ 0.00 / - 0.06} (Equiv. 0.701 in.)	Approx. Loose Circlip OD (Dr) 18.30 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 8.80 mm Clearance in Groove (C1): 10.00 mm Min. Lug Diameter (h): 1.70 mm Min. Extension (n): 1.20 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01700-C (20 Pcs) Internal Retaining Rings - 17x1x17.8 mm Circlips - Carbon Steel Circlip 1 pack (20 pcs) Available Now \| Further orders can be expected around Fri, Nov 21, 2025 Regular price $2.32 AUD Regular price ~~$4.27 AUD~~ Sale price $2.32 AUD Unit price per Per 20 Quantity Required 1 pack (20 pcs) Available Now. Backorder if more than 1.
Housing Bore (B) 17.00 mm (Equiv. 0.669 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 17.80 mm _{+ 0.00 / - 0.06} (Equiv. 0.701 in.)	Approx. Loose Circlip OD (Dr) 18.30 mm + 0.42 / - 0.13
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 8.80 mm Clearance in Groove (C1): 10.00 mm Min. Lug Diameter (h): 1.70 mm Min. Extension (n): 1.20 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01700-C (20 Pcs) Internal Retaining Rings - 17x1x17.8 mm Circlips - Carbon Steel Circlip 1 pack (20 pcs) Available Now \| Further orders can be expected around Fri, Nov 21, 2025 Regular price $2.32 AUD Regular price ~~$4.27 AUD~~ Sale price $2.32 AUD Unit price per Per 20 Quantity Required 1 pack (20 pcs) Available Now. Backorder if more than 1.
CCI-01700-C (20 Pcs) --- Internal Retaining Rings - 17x1x17.8 mm Circlips - Carbon Steel Circlip Sale CCI-01700-C (20 Pcs) --- Internal Retaining Rings - 17x1x17.8 mm Circlips - Carbon Steel Circlip Regular price $2.32 AUD Regular price ~~$4.27 AUD~~ Sale price $2.32 AUD Unit price per 1 Available Now Sale
Housing Bore (B) 17.46 mm (Equiv. 0.687 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 18.59 mm _{+ 0.00 / - 0.06} (Equiv. 0.732 in.)	Approx. Loose Circlip OD (Dr) 19.38 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 10.41 mm Clearance in Groove (C1): 11.43 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.68 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01746-C (10 Pcs) Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Carbon Steel Circlip 58 units (580 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.68 AUD Regular price ~~$5.02 AUD~~ Sale price $2.68 AUD Unit price per Per 10 Quantity Required 58 units (580 pcs) Available Now. Backorder if more than 58.
Housing Bore (B) 17.46 mm (Equiv. 0.687 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 18.59 mm _{+ 0.00 / - 0.06} (Equiv. 0.732 in.)	Approx. Loose Circlip OD (Dr) 19.38 mm + 0.25 / - 0.13
Material: Carbon Steel Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 10.41 mm Clearance in Groove (C1): 11.43 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.68 Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel
Part Number: CCI-01746-C (10 Pcs) Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Carbon Steel Circlip 58 units (580 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.68 AUD Regular price ~~$5.02 AUD~~ Sale price $2.68 AUD Unit price per Per 10 Quantity Required 58 units (580 pcs) Available Now. Backorder if more than 58.
CCI-01746-C (10 Pcs) --- Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Carbon Steel Circlip Sale CCI-01746-C (10 Pcs) --- Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Carbon Steel Circlip Regular price $2.68 AUD Regular price ~~$5.02 AUD~~ Sale price $2.68 AUD Unit price per 58 Available Now Sale
Housing Bore (B) 17.46 mm (Equiv. 0.687 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 18.59 mm _{+ 0.00 / - 0.06} (Equiv. 0.732 in.)	Approx. Loose Circlip OD (Dr) 19.38 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 10.41 mm Clearance in Groove (C1): 11.43 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.68 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-01746-CZY (100 Pcs) Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $38.68 AUD Regular price ~~$90.80 AUD~~ Sale price $38.68 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 17.46 mm (Equiv. 0.687 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 18.59 mm _{+ 0.00 / - 0.06} (Equiv. 0.732 in.)	Approx. Loose Circlip OD (Dr) 19.38 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 10.41 mm Clearance in Groove (C1): 11.43 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.68 Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Part Number: CCI-01746-CZY (100 Pcs) Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $38.68 AUD Regular price ~~$90.80 AUD~~ Sale price $38.68 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
CCI-01746-CZY (100 Pcs) --- Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-01746-CZY (100 Pcs) --- Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $38.68 AUD Regular price ~~$90.80 AUD~~ Sale price $38.68 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 17.46 mm (Equiv. 0.687 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 18.59 mm _{+ 0.00 / - 0.06} (Equiv. 0.732 in.)	Approx. Loose Circlip OD (Dr) 19.38 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 10.41 mm Clearance in Groove (C1): 11.43 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.68 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01746-S15 (5 Pcs) Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $8.68 AUD Regular price ~~$20.02 AUD~~ Sale price $8.68 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 17.46 mm (Equiv. 0.687 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 18.59 mm _{+ 0.00 / - 0.06} (Equiv. 0.732 in.)	Approx. Loose Circlip OD (Dr) 19.38 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 10.41 mm Clearance in Groove (C1): 11.43 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.68 Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel
Part Number: CCI-01746-S15 (5 Pcs) Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $8.68 AUD Regular price ~~$20.02 AUD~~ Sale price $8.68 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
CCI-01746-S15 (5 Pcs) --- Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-01746-S15 (5 Pcs) --- Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $8.68 AUD Regular price ~~$20.02 AUD~~ Sale price $8.68 AUD Unit price per Out of stock! Backorder Now Sale

Miniature Bearings Australia Pty Ltd
3/8 Boyland Avenue
Coopers Plains, Queensland, Australia.
(ABN: 94 069 113 800)
