CCI-01300-S15 (5 Pcs)

Name: CCI-01300-S15 (5 Pack) - Internal Retaining Rings - 13x1x13.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Brand: MBA
SKU: CCI01300S15
Price: 2.23 AUD
Availability: InStock

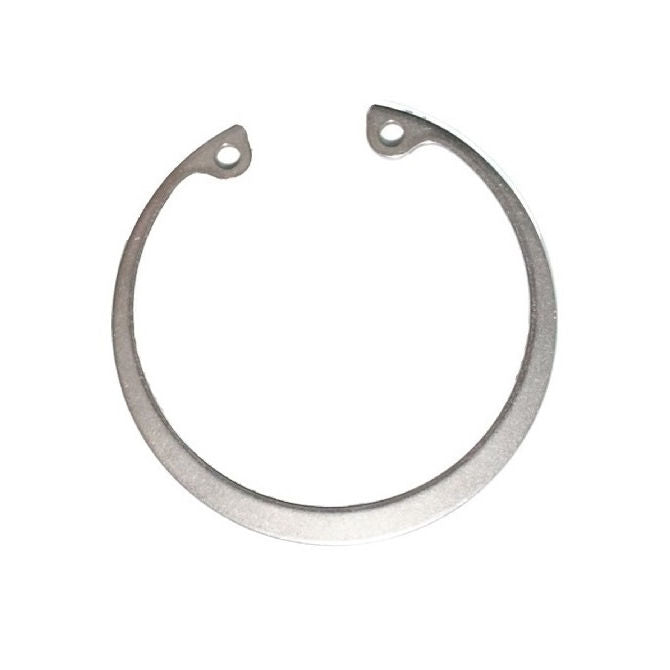

Internal Retaining Rings - 13x1x13.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

Price:

$2.23 AUD

~~$6.28 AUD~~ $2.23 AUD

5 Per Sell Unit

Excludes GST and overseas Taxes & Duties

Qty: 58 available now
Order 50 or more for $2.01 AUD

Product Details

Additional stock available from USA subject to Prior Sale = 689

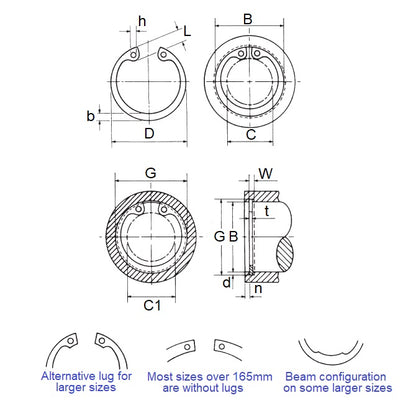

Housing Bore (B): 13.00mm
_{(13.00mm is 0.512 in.)}

Stainless Steel Grade PH15-7 Mo

Housing Bore (B): 13.00mm
_{(13.00mm is 0.512 in.)}
Clip Thickness (T): 1.00mm
_{+ 0.11 / - 0.00}
_{(1.00mm is 0.039 in.)}
Groove Dia. (Dg): 13.60mm
_{+ 0.00 / - 0.06}
_{(13.60mm is 0.535 in.)}
Approx. Loose Circlip OD (Dr): 14.10mm
_{+ 0.36 / - 0.10}
Groove Width (W): 1.10mm
_{+ 0.08 / - 0.00}
Clearance in Bore (C): 5.40mm
Clearance in Groove (C1): 6.40mm
Min. Lug Diameter (h): 1.50mm
Min. Extension (n): 0.90
Standard: DIN472

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

Ellison 472-013-SS
ALTPART
98394A425
Bossard BN-822-013-SS
Waldes D1300-013-SS
NoCor DHO-013-SS
Rotor Clip DHO-013-SS
Seeger J-013-SS
Seeger J13X1-411
BN822013SS
13000130KSF
1300-0130KSF
J013SS
J13X1411
472013SS
DHO013SS
D1300-0130KSF
D13000130KSF
D1300013SS

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
