CCI-01746-S15 (PK-5)

Name: Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip (Sold Per PK-5) - - CCI-01746-S15
Brand: MBA
SKU: CCI01746S15
Price: 9.32 AUD
Availability: BackOrder

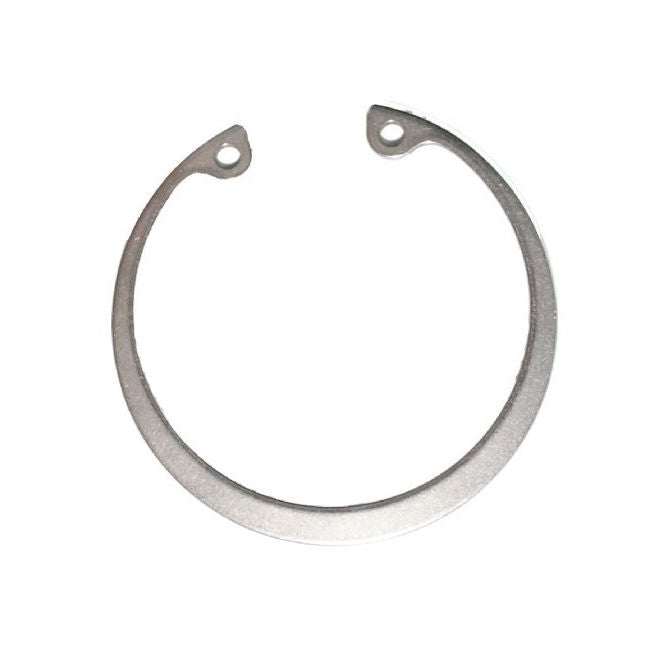

Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

Price:

$9.32 AUD

~~$21.48 AUD~~ $9.32 AUD

Priced, Stocked and Sold Per 5 Units

Excludes GST and overseas Taxes & Duties

Backorder

Order 50 or more packs of 5 (250 pcs)
for $8.39 AUD per 5 pack

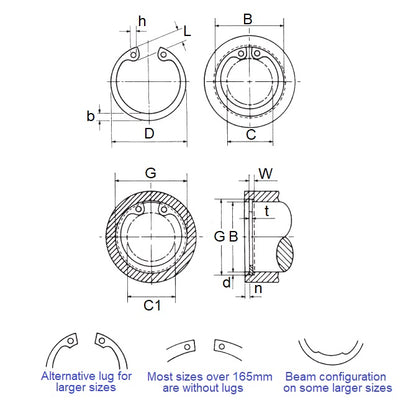

Product Details

Housing Bore (B): 17.46mm
_{(17.46mm is 0.687 in.)}

Stainless Steel Grade PH15-7 Mo

Housing Bore (B): 17.46mm
_{(17.46mm is 0.687 in.)}
Clip Thickness (T): 0.89mm
_{+ 0.00 / - 0.06}
_{(0.89mm is 0.035 in.)}
Groove Dia. (Dg): 18.59mm
_{+/- 0.050}
_{(18.59mm is 0.732 in.)}
Approx. Loose Circlip OD (Dr): 19.38mm
_{+ 0.25 / - 0.13}
Groove Width (W): 0.99mm
_{+ 0.08 / - 0.00}
Clearance in Bore (C): 10.41mm
Clearance in Groove (C1): 11.43mm
Min. Lug Diameter (h): 1.52mm
Min. Extension (n): 1.68
Standard: MIL-16625

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

ALTPART
91580A175
Huyett® HO-068-SS
NoCor® HO-068-SS
HO068SS
N13000068BDS
N1300-0068BDS

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
