CCI-01905-CZY (5 Pcs)

Name: CCI-01905-CZY (5 Pack) - Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Zinc Plated
Brand: MBA
SKU: CCI01905CZY
Price: 1.86 AUD
Availability: InStock

Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Zinc Plated

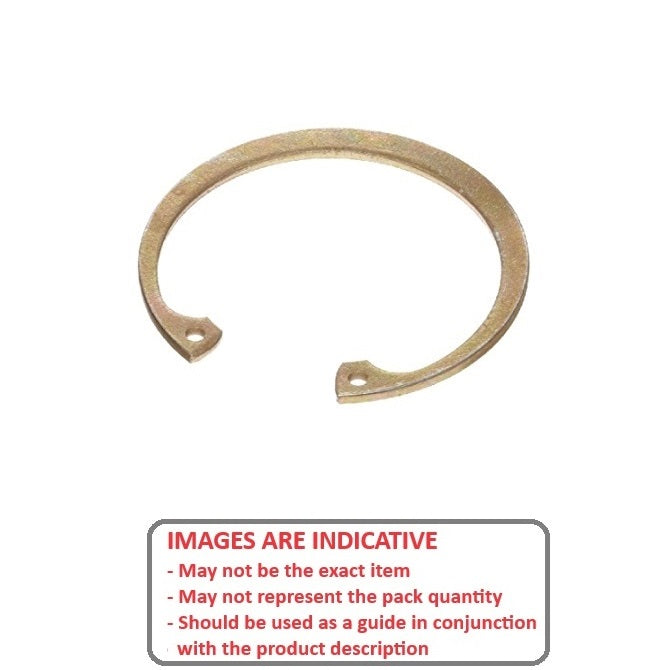

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Collection, Retail, Distributors, Wholesale

Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

Price:

$1.86 AUD

~~$5.10 AUD~~ $1.86 AUD

per 5
Qty: 60 packs (300 pcs) available now
Order 50 or more packs (250 pcs) for $1.67 AUD per 5

Product Details:

Additional stock available from USA subject to Prior Sale = 19954

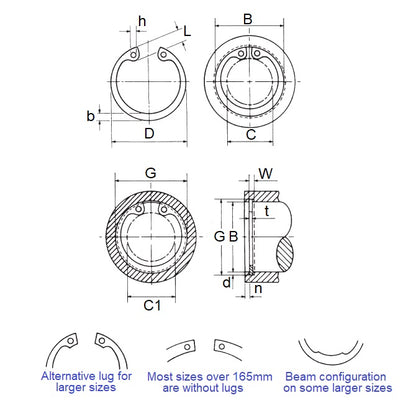

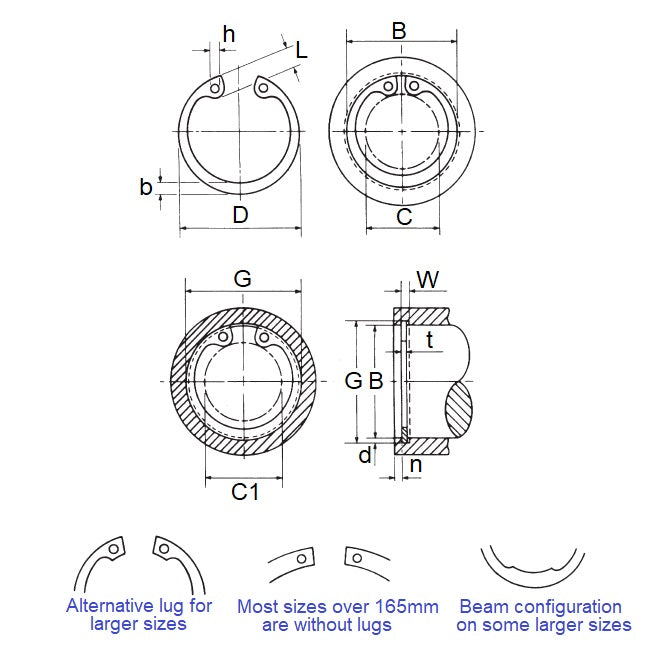

Housing Bore (B): 19.05mm
_{(19.05mm is 0.75 in.)}

Carbon Steel Zinc Plated

Clip Thickness (T): 0.89mm
_{+/- 0.050}
_{(0.89mm is 0.035 in.)}
Groove Dia. (Dg): 20.22mm
_{+ 0.00 / - 0.06}
_{(20.22mm is 0.796 in.)}
Approx. Loose Circlip OD (Dr): 21.11mm
_{+ 0.25 / - 0.13}
Groove Width (W): 0.99mm
_{+ 0.08 / - 0.00}
Clearance in Bore (C): 11.43mm
Clearance in Groove (C1): 12.70mm
Min. Lug Diameter (h): 1.52mm
Min. Extension (n): 1.75
Standard: MIL-16625

Brand: MBA
Country of Origin: US

Product Compliance and Data

Alternative Parts Include:

ALTPART 98409A181
NoCor HO-075-ZD
Small Parts RI-12
N13000075AZD
N1300-0075AZD
HO075ZD
RI12

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
