Collection: Washers - Spring - 3 Wave - Carbon Steel

Washers -> Spring -> 3 Wave -> Carbon Steel

There are 80 products in the sub-categories of Washers - Spring - 3 Wave - Carbon Steel. Scroll down or follow the link to Washers - Spring - 3 Wave - Carbon Steel in the products table to see all these items combined into a handy table with filters.

Category Details

A selection of Carbon Steel 3 Wave Spring Washers. Cabon steel, 3 wave selection. Also known as crinckle wave washers.

Spring washers are available in many different materials and types, including curved and waved series.
They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
An expanded range may be available on special order. Please enquire.
This category includes EPL type bearing pre-load washers.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Washers - Spring - 3 Wave - Carbon Steel category on the Small Parts & Bearings online store.

Nominal Inside Diameter (d)	Nominal Outside Diameter (D)	Nom. Height (H)	Thickness (s)	Info
Nominal Inside Diameter (d) 4.00 mm _{+ 0.3 / + 0.7} (Equiv. 0.157 in.)	Nominal Outside Diameter (D) 10.00 mm _{- 0.3 / - 0.7} (Equiv. 0.394 in.)	Nom. Height (H) 1.10 mm (Equiv. 0.043 in.)	Thickness (s) 0.20 mm	Info Suits OD of 623 Bearings (Equiv EPL001)
Material: Carbon Spring Steel Self Finish Type: 2 Wave Nominal Screw Size: M4, 5/32 Spring Rate: 30 N/mm Max Kg at Yeld Point: 1.6 Kg
Part Number: W0040-T-010-011-W2-C (2 Pcs) Spring Washers - 4x10x1.1 mm 3 Wave - Carbon Spring Steel Self Finish Washer 97 units (194 pcs) Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Per 2 Quantity Required 97 units (194 pcs) Available Now. Backorder if more than 97.
Nominal Inside Diameter (d)	Nominal Outside Diameter (D)	Nom. Height (H)	Thickness (s)	Indicative Image
Nominal Inside Diameter (d) 4.00 mm _{+ 0.3 / + 0.7} (Equiv. 0.157 in.)	Nominal Outside Diameter (D) 10.00 mm _{- 0.3 / - 0.7} (Equiv. 0.394 in.)	Nom. Height (H) 1.10 mm (Equiv. 0.043 in.)	Thickness (s) 0.20 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 623 Bearings (Equiv EPL001) Type: 2 Wave Nominal Screw Size: M4, 5/32 Spring Rate: 30 N/mm Max Kg at Yeld Point: 1.6 Kg
Part Number: W0040-T-010-011-W2-C (2 Pcs) Spring Washers - 4x10x1.1 mm 3 Wave - Carbon Spring Steel Self Finish Washer 97 units (194 pcs) Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Per 2 Quantity Required 97 units (194 pcs) Available Now. Backorder if more than 97.
W0040-T-010-011-W2-C (2 Pcs) --- Spring Washers - 4x10x1.1 mm 3 Wave - Carbon Spring Steel Self Finish Washer W0040-T-010-011-W2-C (2 Pcs) --- Spring Washers - 4x10x1.1 mm 3 Wave - Carbon Spring Steel Self Finish Washer Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per 97 Available Now
Nominal Inside Diameter (d) 7.00 mm _{+ 0.3 / + 0.7} (Equiv. 0.276 in.)	Nominal Outside Diameter (D) 13.00 mm _{- 0.3 / - 0.7} (Equiv. 0.512 in.)	Nom. Height (H) 1.40 mm (Equiv. 0.055 in.)	Thickness (s) 0.20 mm	Info Suits OD of 624 Bearings (Equiv EPL002)
Material: Carbon Spring Steel Self Finish Type: 2 Wave Nominal Screw Size: M7, 9/32 Spring Rate: 38 N/mm Max Kg at Yeld Point: 2.1 Kg
Part Number: W0070-T-013-014-W2-C Spring Washers - 7x13x1.4 mm 3 Wave - Carbon Spring Steel Self Finish Washer 200 Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Quantity Required 200 Available Now. Backorder if more than 200.
Nominal Inside Diameter (d) 7.00 mm _{+ 0.3 / + 0.7} (Equiv. 0.276 in.)	Nominal Outside Diameter (D) 13.00 mm _{- 0.3 / - 0.7} (Equiv. 0.512 in.)	Nom. Height (H) 1.40 mm (Equiv. 0.055 in.)	Thickness (s) 0.20 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 624 Bearings (Equiv EPL002) Type: 2 Wave Nominal Screw Size: M7, 9/32 Spring Rate: 38 N/mm Max Kg at Yeld Point: 2.1 Kg
Part Number: W0070-T-013-014-W2-C Spring Washers - 7x13x1.4 mm 3 Wave - Carbon Spring Steel Self Finish Washer 200 Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Quantity Required 200 Available Now. Backorder if more than 200.
W0070-T-013-014-W2-C --- Spring Washers - 7x13x1.4 mm 3 Wave - Carbon Spring Steel Self Finish Washer W0070-T-013-014-W2-C --- Spring Washers - 7x13x1.4 mm 3 Wave - Carbon Spring Steel Self Finish Washer Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per 200 Available Now
Nominal Inside Diameter (d) 7.94 mm (Equiv. 0.313 in.)	Nominal Outside Diameter (D) 15.24 mm (Equiv. 0.6 in.)	Nom. Height (H) 1.32 mm (Equiv. 0.052 in.)	Thickness (s) 0.36 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M8, 5/16 Actual ID (Ref): 8.4 mm Max Kg at Yeld Point: 21.4 Kg
Part Number: W0079-T-016-013-W3-C (20 Pcs) Spring Washers - 7.94x15.24x1.32 mm 3 Wave - Carbon Spring Steel Self Finish Washer 42 units (840 pcs) Available Now \| Further orders can be expected around Wed, Nov 05, 2025 Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per Per 20 Quantity Required 42 units (840 pcs) Available Now. Backorder if more than 42.
Nominal Inside Diameter (d) 7.94 mm (Equiv. 0.313 in.)	Nominal Outside Diameter (D) 15.24 mm (Equiv. 0.6 in.)	Nom. Height (H) 1.32 mm (Equiv. 0.052 in.)	Thickness (s) 0.36 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M8, 5/16 Actual ID (Ref): 8.4 mm Max Kg at Yeld Point: 21.4 Kg
Part Number: W0079-T-016-013-W3-C (20 Pcs) Spring Washers - 7.94x15.24x1.32 mm 3 Wave - Carbon Spring Steel Self Finish Washer 42 units (840 pcs) Available Now \| Further orders can be expected around Wed, Nov 05, 2025 Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per Per 20 Quantity Required 42 units (840 pcs) Available Now. Backorder if more than 42.
W0079-T-016-013-W3-C (20 Pcs) --- Spring Washers - 7.94x15.24x1.32 mm 3 Wave - Carbon Spring Steel Self Finish Washer W0079-T-016-013-W3-C (20 Pcs) --- Spring Washers - 7.94x15.24x1.32 mm 3 Wave - Carbon Spring Steel Self Finish Washer Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per 42 Available Now
Nominal Inside Diameter (d) 8.73 mm (Equiv. 0.344 in.)	Nominal Outside Diameter (D) 12.70 mm (Equiv. 0.5 in.)	Nom. Height (H) 0.89 mm (Equiv. 0.035 in.)	Thickness (s) 0.18 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: 11/32
Part Number: W0087-T-013-009-W3-C (1000 Pcs) Spring Washers - 8.73x12.7x0.89 mm 3 Wave - Carbon Spring Steel Self Finish Washer Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $532.23 AUD Regular price ~~$638.67 AUD~~ Sale price $532.23 AUD Unit price per Per 1000 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 8.73 mm (Equiv. 0.344 in.)	Nominal Outside Diameter (D) 12.70 mm (Equiv. 0.5 in.)	Nom. Height (H) 0.89 mm (Equiv. 0.035 in.)	Thickness (s) 0.18 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: 11/32
Part Number: W0087-T-013-009-W3-C (1000 Pcs) Spring Washers - 8.73x12.7x0.89 mm 3 Wave - Carbon Spring Steel Self Finish Washer Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $532.23 AUD Regular price ~~$638.67 AUD~~ Sale price $532.23 AUD Unit price per Per 1000 Quantity Required Backorder: Out of Stock.
W0087-T-013-009-W3-C (1000 Pcs) --- Spring Washers - 8.73x12.7x0.89 mm 3 Wave - Carbon Spring Steel Self Finish Washer Sale W0087-T-013-009-W3-C (1000 Pcs) --- Spring Washers - 8.73x12.7x0.89 mm 3 Wave - Carbon Spring Steel Self Finish Washer Regular price $532.23 AUD Regular price ~~$638.67 AUD~~ Sale price $532.23 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 10.00 mm _{+ 0.3 / + 0.7} (Equiv. 0.394 in.)	Nominal Outside Diameter (D) 16.00 mm _{- 0.3 / - 0.7} (Equiv. 0.63 in.)	Nom. Height (H) 1.30 mm (Equiv. 0.051 in.)	Thickness (s) 0.15 mm	Info Suits OD of 625, 634 Bearings (Equiv EPL005)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M10, 3/8 Spring Rate: 38 N/mm Max Kg at Yeld Point: 2.5 Kg
Part Number: W0100-T-016-013-W3-C (2 Pcs) Spring Washers - 10x16x1.3 mm 3 Wave - Carbon Spring Steel Self Finish Washer 47 units (94 pcs) Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Per 2 Quantity Required 47 units (94 pcs) Available Now. Backorder if more than 47.
Nominal Inside Diameter (d) 10.00 mm _{+ 0.3 / + 0.7} (Equiv. 0.394 in.)	Nominal Outside Diameter (D) 16.00 mm _{- 0.3 / - 0.7} (Equiv. 0.63 in.)	Nom. Height (H) 1.30 mm (Equiv. 0.051 in.)	Thickness (s) 0.15 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 625, 634 Bearings (Equiv EPL005) Type: 3 Wave Nominal Screw Size: M10, 3/8 Spring Rate: 38 N/mm Max Kg at Yeld Point: 2.5 Kg
Part Number: W0100-T-016-013-W3-C (2 Pcs) Spring Washers - 10x16x1.3 mm 3 Wave - Carbon Spring Steel Self Finish Washer 47 units (94 pcs) Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Per 2 Quantity Required 47 units (94 pcs) Available Now. Backorder if more than 47.
W0100-T-016-013-W3-C (2 Pcs) --- Spring Washers - 10x16x1.3 mm 3 Wave - Carbon Spring Steel Self Finish Washer W0100-T-016-013-W3-C (2 Pcs) --- Spring Washers - 10x16x1.3 mm 3 Wave - Carbon Spring Steel Self Finish Washer Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per 47 Available Now
Nominal Inside Diameter (d) 10.00 mm _{+ 0.3 / + 0.7} (Equiv. 0.394 in.)	Nominal Outside Diameter (D) 16.00 mm _{- 0.3 / - 0.7} (Equiv. 0.63 in.)	Nom. Height (H) 1.20 mm (Equiv. 0.047 in.)	Thickness (s) 0.15 mm	Info Suits OD of 625, 634 Bearings (Equiv EPL004)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M10, 3/8 Spring Rate: 38 N/mm Actual ID (Ref): 10.5 mm Max Kg at Yeld Point: 2.1 Kg
Part Number: W0100-T-016-012-W3-C Spring Washers - 10x16x1.2 mm 3 Wave - Carbon Spring Steel Self Finish Washer 374 Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Quantity Required 374 Available Now. Backorder if more than 374.
Nominal Inside Diameter (d) 10.00 mm _{+ 0.3 / + 0.7} (Equiv. 0.394 in.)	Nominal Outside Diameter (D) 16.00 mm _{- 0.3 / - 0.7} (Equiv. 0.63 in.)	Nom. Height (H) 1.20 mm (Equiv. 0.047 in.)	Thickness (s) 0.15 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 625, 634 Bearings (Equiv EPL004) Type: 3 Wave Nominal Screw Size: M10, 3/8 Spring Rate: 38 N/mm Actual ID (Ref): 10.5 mm Max Kg at Yeld Point: 2.1 Kg
Part Number: W0100-T-016-012-W3-C Spring Washers - 10x16x1.2 mm 3 Wave - Carbon Spring Steel Self Finish Washer 374 Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Quantity Required 374 Available Now. Backorder if more than 374.
W0100-T-016-012-W3-C --- Spring Washers - 10x16x1.2 mm 3 Wave - Carbon Spring Steel Self Finish Washer W0100-T-016-012-W3-C --- Spring Washers - 10x16x1.2 mm 3 Wave - Carbon Spring Steel Self Finish Washer Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per 374 Available Now
Nominal Inside Diameter (d) 12.00 mm _{+ 0.7 / + 1.0} (Equiv. 0.472 in.)	Nominal Outside Diameter (D) 19.00 mm _{- 0.7 / - 1.0} (Equiv. 0.748 in.)	Nom. Height (H) 1.50 mm (Equiv. 0.059 in.)	Thickness (s) 0.20 mm	Info Suits OD of 607, 626, 635 Bearings (Equiv EPL008)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M12 Spring Rate: 29 N/mm Max Kg at Yeld Point: 14.0 Kg
Part Number: W0120-T-019-015-W3-C (2 Pcs) Spring Washers - 12x19x1.5 mm 3 Wave - Carbon Spring Steel Self Finish Washer 110 units (220 pcs) Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Per 2 Quantity Required 110 units (220 pcs) Available Now. Backorder if more than 110.
Nominal Inside Diameter (d) 12.00 mm _{+ 0.7 / + 1.0} (Equiv. 0.472 in.)	Nominal Outside Diameter (D) 19.00 mm _{- 0.7 / - 1.0} (Equiv. 0.748 in.)	Nom. Height (H) 1.50 mm (Equiv. 0.059 in.)	Thickness (s) 0.20 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 607, 626, 635 Bearings (Equiv EPL008) Type: 3 Wave Nominal Screw Size: M12 Spring Rate: 29 N/mm Max Kg at Yeld Point: 14.0 Kg
Part Number: W0120-T-019-015-W3-C (2 Pcs) Spring Washers - 12x19x1.5 mm 3 Wave - Carbon Spring Steel Self Finish Washer 110 units (220 pcs) Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Per 2 Quantity Required 110 units (220 pcs) Available Now. Backorder if more than 110.
W0120-T-019-015-W3-C (2 Pcs) --- Spring Washers - 12x19x1.5 mm 3 Wave - Carbon Spring Steel Self Finish Washer W0120-T-019-015-W3-C (2 Pcs) --- Spring Washers - 12x19x1.5 mm 3 Wave - Carbon Spring Steel Self Finish Washer Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per 110 Available Now
Nominal Inside Diameter (d) 12.70 mm (Equiv. 0.5 in.)	Nominal Outside Diameter (D) 19.05 mm (Equiv. 0.75 in.)	Nom. Height (H) 1.27 mm (Equiv. 0.05 in.)	Thickness (s) 0.23 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M12, 1/2 Actual ID (Ref): 13.5 mm
Part Number: W0127-T-020-013-W3-C Spring Washers - 12.7x19.05x1.27 mm 3 Wave - Carbon Spring Steel Self Finish Washer 1210 Available Now \| Further orders can be expected around Tue, Oct 14, 2025 Regular price $2.86 AUD Regular price Sale price $2.86 AUD Unit price per Each Quantity Required 1210 Available Now. Backorder if more than 1210.
Nominal Inside Diameter (d) 12.70 mm (Equiv. 0.5 in.)	Nominal Outside Diameter (D) 19.05 mm (Equiv. 0.75 in.)	Nom. Height (H) 1.27 mm (Equiv. 0.05 in.)	Thickness (s) 0.23 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M12, 1/2 Actual ID (Ref): 13.5 mm
Part Number: W0127-T-020-013-W3-C Spring Washers - 12.7x19.05x1.27 mm 3 Wave - Carbon Spring Steel Self Finish Washer 1210 Available Now \| Further orders can be expected around Tue, Oct 14, 2025 Regular price $2.86 AUD Regular price Sale price $2.86 AUD Unit price per Each Quantity Required 1210 Available Now. Backorder if more than 1210.
W0127-T-020-013-W3-C --- Spring Washers - 12.7x19.05x1.27 mm 3 Wave - Carbon Spring Steel Self Finish Washer W0127-T-020-013-W3-C --- Spring Washers - 12.7x19.05x1.27 mm 3 Wave - Carbon Spring Steel Self Finish Washer Regular price $2.86 AUD Regular price Sale price $2.86 AUD Unit price per 1210 Available Now
Nominal Inside Diameter (d) 14.00 mm _{+ 0.7 / + 1.0} (Equiv. 0.551 in.)	Nominal Outside Diameter (D) 21.00 mm _{- 0.7 / - 1.0} (Equiv. 0.827 in.)	Nom. Height (H) 1.80 mm (Equiv. 0.071 in.)	Thickness (s) 0.20 mm	Info Equiv EPL010
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M14, 9/16 Spring Rate: 29 N/mm Max Kg at Yeld Point: 14.0 Kg
Part Number: W0140-T-021-018-W3-C (2 Pcs) Spring Washers - 14x21x1.8 mm 3 Wave - Carbon Spring Steel Self Finish Washer 344 units (688 pcs) Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Per 2 Quantity Required 344 units (688 pcs) Available Now. Backorder if more than 344.
Nominal Inside Diameter (d) 14.00 mm _{+ 0.7 / + 1.0} (Equiv. 0.551 in.)	Nominal Outside Diameter (D) 21.00 mm _{- 0.7 / - 1.0} (Equiv. 0.827 in.)	Nom. Height (H) 1.80 mm (Equiv. 0.071 in.)	Thickness (s) 0.20 mm
Material: Carbon Spring Steel Self Finish Info: Equiv EPL010 Type: 3 Wave Nominal Screw Size: M14, 9/16 Spring Rate: 29 N/mm Max Kg at Yeld Point: 14.0 Kg
Part Number: W0140-T-021-018-W3-C (2 Pcs) Spring Washers - 14x21x1.8 mm 3 Wave - Carbon Spring Steel Self Finish Washer 344 units (688 pcs) Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Per 2 Quantity Required 344 units (688 pcs) Available Now. Backorder if more than 344.
W0140-T-021-018-W3-C (2 Pcs) --- Spring Washers - 14x21x1.8 mm 3 Wave - Carbon Spring Steel Self Finish Washer W0140-T-021-018-W3-C (2 Pcs) --- Spring Washers - 14x21x1.8 mm 3 Wave - Carbon Spring Steel Self Finish Washer Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per 344 Available Now
Nominal Inside Diameter (d) 15.00 mm _{+ 0.7 / + 1.0} (Equiv. 0.591 in.)	Nominal Outside Diameter (D) 22.00 mm _{- 0.7 / - 1.0} (Equiv. 0.866 in.)	Nom. Height (H) 2.10 mm (Equiv. 0.083 in.)	Thickness (s) 0.20 mm	Info Suits OD of 608 and 627 and E7 Bearings (Equiv EPL012)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M15 Spring Rate: 34 N/mm Max Kg at Yeld Point: 16.0 Kg
Part Number: W0150-T-022-021-W3-C Spring Washers - 15x22x2.1 mm 3 Wave - Carbon Spring Steel Self Finish Washer 254 Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Quantity Required 254 Available Now. Backorder if more than 254.
Nominal Inside Diameter (d) 15.00 mm _{+ 0.7 / + 1.0} (Equiv. 0.591 in.)	Nominal Outside Diameter (D) 22.00 mm _{- 0.7 / - 1.0} (Equiv. 0.866 in.)	Nom. Height (H) 2.10 mm (Equiv. 0.083 in.)	Thickness (s) 0.20 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 608 and 627 and E7 Bearings (Equiv EPL012) Type: 3 Wave Nominal Screw Size: M15 Spring Rate: 34 N/mm Max Kg at Yeld Point: 16.0 Kg
Part Number: W0150-T-022-021-W3-C Spring Washers - 15x22x2.1 mm 3 Wave - Carbon Spring Steel Self Finish Washer 254 Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Quantity Required 254 Available Now. Backorder if more than 254.
W0150-T-022-021-W3-C --- Spring Washers - 15x22x2.1 mm 3 Wave - Carbon Spring Steel Self Finish Washer W0150-T-022-021-W3-C --- Spring Washers - 15x22x2.1 mm 3 Wave - Carbon Spring Steel Self Finish Washer Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per 254 Available Now
Nominal Inside Diameter (d) 15.88 mm (Equiv. 0.625 in.)	Nominal Outside Diameter (D) 22.23 mm (Equiv. 0.875 in.)	Nom. Height (H) 1.52 mm (Equiv. 0.06 in.)	Thickness (s) 0.25 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: 5/8
Part Number: W0159-T-023-015-W3-C (5 Pcs) Spring Washers - 15.88x22.23x1.52 mm 3 Wave - Carbon Spring Steel Self Finish Washer 268 units (1340 pcs) Available Now \| Further orders can be expected around Tue, Oct 14, 2025 Regular price $3.50 AUD Regular price ~~$4.20 AUD~~ Sale price $3.50 AUD Unit price per Per 5 Quantity Required 268 units (1340 pcs) Available Now. Backorder if more than 268.
Nominal Inside Diameter (d) 15.88 mm (Equiv. 0.625 in.)	Nominal Outside Diameter (D) 22.23 mm (Equiv. 0.875 in.)	Nom. Height (H) 1.52 mm (Equiv. 0.06 in.)	Thickness (s) 0.25 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: 5/8
Part Number: W0159-T-023-015-W3-C (5 Pcs) Spring Washers - 15.88x22.23x1.52 mm 3 Wave - Carbon Spring Steel Self Finish Washer 268 units (1340 pcs) Available Now \| Further orders can be expected around Tue, Oct 14, 2025 Regular price $3.50 AUD Regular price ~~$4.20 AUD~~ Sale price $3.50 AUD Unit price per Per 5 Quantity Required 268 units (1340 pcs) Available Now. Backorder if more than 268.
W0159-T-023-015-W3-C (5 Pcs) --- Spring Washers - 15.88x22.23x1.52 mm 3 Wave - Carbon Spring Steel Self Finish Washer Sale W0159-T-023-015-W3-C (5 Pcs) --- Spring Washers - 15.88x22.23x1.52 mm 3 Wave - Carbon Spring Steel Self Finish Washer Regular price $3.50 AUD Regular price ~~$4.20 AUD~~ Sale price $3.50 AUD Unit price per 268 Available Now Sale
Nominal Inside Diameter (d) 16.00 mm (Equiv. 0.63 in.)	Nominal Outside Diameter (D) 22.00 mm _{- 0.4 / - 1.0} (Equiv. 0.866 in.)	Nom. Height (H) 2.80 mm (Equiv. 0.11 in.)	Thickness (s) 0.30 mm

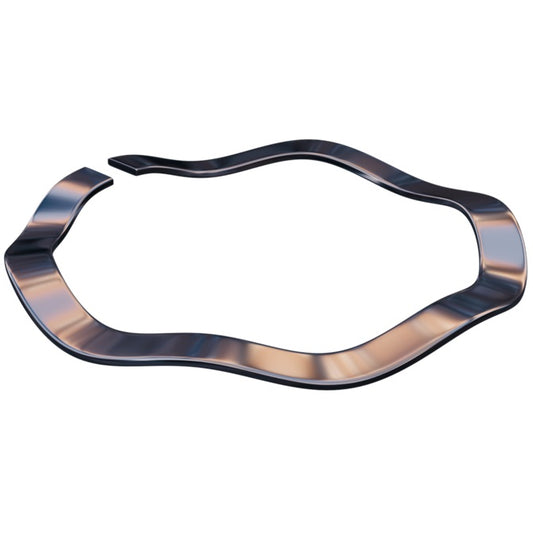

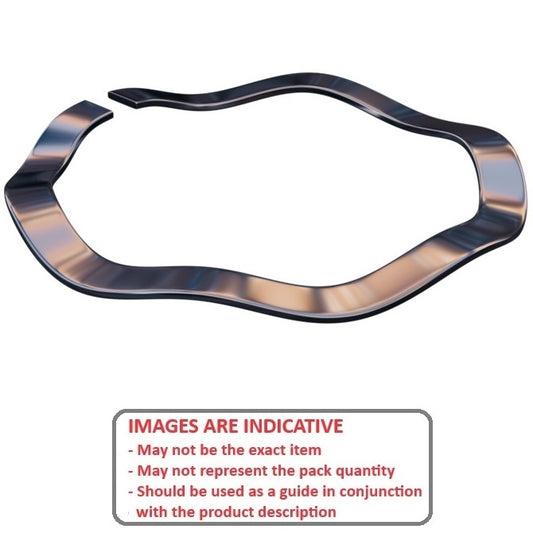

Material: Carbon Spring Steel Self Finish Type: 3 Wave With Split Nominal Screw Size: M16, 5/8
Part Number: W0160-T-022-028-W3S-C Spring Washers - 16x22x2.8 mm 3 Wave - Carbon Spring Steel Self Finish Washer 50 Available Now \| Further orders can be expected around Sat, Sep 20, 2025 Regular price $17.32 AUD Regular price ~~$20.78 AUD~~ Sale price $17.32 AUD Unit price per Each Quantity Required 50 Available Now. Backorder if more than 50.
Nominal Inside Diameter (d) 16.00 mm (Equiv. 0.63 in.)	Nominal Outside Diameter (D) 22.00 mm _{- 0.4 / - 1.0} (Equiv. 0.866 in.)	Nom. Height (H) 2.80 mm (Equiv. 0.11 in.)	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave With Split Nominal Screw Size: M16, 5/8
Part Number: W0160-T-022-028-W3S-C Spring Washers - 16x22x2.8 mm 3 Wave - Carbon Spring Steel Self Finish Washer 50 Available Now \| Further orders can be expected around Sat, Sep 20, 2025 Regular price $17.32 AUD Regular price ~~$20.78 AUD~~ Sale price $17.32 AUD Unit price per Each Quantity Required 50 Available Now. Backorder if more than 50.
W0160-T-022-028-W3S-C --- Spring Washers - 16x22x2.8 mm 3 Wave - Carbon Spring Steel Self Finish Washer Sale W0160-T-022-028-W3S-C --- Spring Washers - 16x22x2.8 mm 3 Wave - Carbon Spring Steel Self Finish Washer Regular price $17.32 AUD Regular price ~~$20.78 AUD~~ Sale price $17.32 AUD Unit price per 50 Available Now Sale
Nominal Inside Diameter (d) 16.00 mm _{+ 0.7 / + 1.0} (Equiv. 0.63 in.)	Nominal Outside Diameter (D) 24.00 mm _{- 0.7 / - 1.0} (Equiv. 0.945 in.)	Nom. Height (H) 2.20 mm (Equiv. 0.087 in.)	Thickness (s) 0.20 mm	Info Suits OD of 609 and E8 Bearing (Equiv EPL013)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M16, 5/8 Spring Rate: 23 N/mm Max Kg at Yeld Point: 16.0 Kg
Part Number: W0160-T-024-022-W3-C (2 Pcs) Spring Washers - 16x24x2.2 mm 3 Wave - Carbon Spring Steel Self Finish Washer 12 units (24 pcs) Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Per 2 Quantity Required 12 units (24 pcs) Available Now. Backorder if more than 12.
Nominal Inside Diameter (d) 16.00 mm _{+ 0.7 / + 1.0} (Equiv. 0.63 in.)	Nominal Outside Diameter (D) 24.00 mm _{- 0.7 / - 1.0} (Equiv. 0.945 in.)	Nom. Height (H) 2.20 mm (Equiv. 0.087 in.)	Thickness (s) 0.20 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 609 and E8 Bearing (Equiv EPL013) Type: 3 Wave Nominal Screw Size: M16, 5/8 Spring Rate: 23 N/mm Max Kg at Yeld Point: 16.0 Kg
Part Number: W0160-T-024-022-W3-C (2 Pcs) Spring Washers - 16x24x2.2 mm 3 Wave - Carbon Spring Steel Self Finish Washer 12 units (24 pcs) Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Per 2 Quantity Required 12 units (24 pcs) Available Now. Backorder if more than 12.
W0160-T-024-022-W3-C (2 Pcs) --- Spring Washers - 16x24x2.2 mm 3 Wave - Carbon Spring Steel Self Finish Washer W0160-T-024-022-W3-C (2 Pcs) --- Spring Washers - 16x24x2.2 mm 3 Wave - Carbon Spring Steel Self Finish Washer Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per 12 Available Now
Nominal Inside Diameter (d) 17.46 mm (Equiv. 0.687 in.)	Nominal Outside Diameter (D) 23.81 mm (Equiv. 0.937 in.)	Nom. Height (H) 2.30 mm (Equiv. 0.091 in.)	Thickness (s) 0.25 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: 11/16
Part Number: W0175-T-024-023-W3-C Spring Washers - 17.46x23.81x2.3 mm 3 Wave - Carbon Spring Steel Self Finish Washer 74 Available Now \| Further orders can be expected around Tue, Oct 14, 2025 Regular price $0.77 AUD Regular price Sale price $0.77 AUD Unit price per Each Quantity Required 74 Available Now. Backorder if more than 74.
Nominal Inside Diameter (d) 17.46 mm (Equiv. 0.687 in.)	Nominal Outside Diameter (D) 23.81 mm (Equiv. 0.937 in.)	Nom. Height (H) 2.30 mm (Equiv. 0.091 in.)	Thickness (s) 0.25 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: 11/16
Part Number: W0175-T-024-023-W3-C Spring Washers - 17.46x23.81x2.3 mm 3 Wave - Carbon Spring Steel Self Finish Washer 74 Available Now \| Further orders can be expected around Tue, Oct 14, 2025 Regular price $0.77 AUD Regular price Sale price $0.77 AUD Unit price per Each Quantity Required 74 Available Now. Backorder if more than 74.
W0175-T-024-023-W3-C --- Spring Washers - 17.46x23.81x2.3 mm 3 Wave - Carbon Spring Steel Self Finish Washer W0175-T-024-023-W3-C --- Spring Washers - 17.46x23.81x2.3 mm 3 Wave - Carbon Spring Steel Self Finish Washer Regular price $0.77 AUD Regular price Sale price $0.77 AUD Unit price per 74 Available Now
Nominal Inside Diameter (d) 18.00 mm _{+ 0.7 / + 1.0} (Equiv. 0.709 in.)	Nominal Outside Diameter (D) 26.00 mm _{- 0.7 / - 1.0} (Equiv. 1.024 in.)	Nom. Height (H) 2.00 mm (Equiv. 0.079 in.)	Thickness (s) 0.30 mm	Info Suits OD of 629 and 6000 Bearings (Equiv EPL015)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M18, 11/16 Spring Rate: 26 N/mm Max Kg at Yeld Point: 18.0 Kg
Part Number: W0180-T-026-020-W3-C Spring Washers - 18x26x2 mm 3 Wave - Carbon Spring Steel Self Finish Washer 112 Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Quantity Required 112 Available Now. Backorder if more than 112.
Nominal Inside Diameter (d) 18.00 mm _{+ 0.7 / + 1.0} (Equiv. 0.709 in.)	Nominal Outside Diameter (D) 26.00 mm _{- 0.7 / - 1.0} (Equiv. 1.024 in.)	Nom. Height (H) 2.00 mm (Equiv. 0.079 in.)	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 629 and 6000 Bearings (Equiv EPL015) Type: 3 Wave Nominal Screw Size: M18, 11/16 Spring Rate: 26 N/mm Max Kg at Yeld Point: 18.0 Kg
Part Number: W0180-T-026-020-W3-C Spring Washers - 18x26x2 mm 3 Wave - Carbon Spring Steel Self Finish Washer 112 Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Quantity Required 112 Available Now. Backorder if more than 112.
W0180-T-026-020-W3-C --- Spring Washers - 18x26x2 mm 3 Wave - Carbon Spring Steel Self Finish Washer W0180-T-026-020-W3-C --- Spring Washers - 18x26x2 mm 3 Wave - Carbon Spring Steel Self Finish Washer Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per 112 Available Now
Nominal Inside Diameter (d) 18.00 mm _{+ 0.7 / + 1.0} (Equiv. 0.709 in.)	Nominal Outside Diameter (D) 26.00 mm _{- 0.7 / - 1.0} (Equiv. 1.024 in.)	Nom. Height (H) 2.10 mm (Equiv. 0.083 in.)	Thickness (s) 0.30 mm	Info Suits OD of 629 and 6000 Bearings (Equiv EPL016)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M18, 11/16 Spring Rate: 29 N/mm Max Kg at Yeld Point: 21.0 Kg
Part Number: W0180-T-026-021-W3-C Spring Washers - 18x26x2.1 mm 3 Wave - Carbon Spring Steel Self Finish Washer 178 Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Quantity Required 178 Available Now. Backorder if more than 178.
Nominal Inside Diameter (d) 18.00 mm _{+ 0.7 / + 1.0} (Equiv. 0.709 in.)	Nominal Outside Diameter (D) 26.00 mm _{- 0.7 / - 1.0} (Equiv. 1.024 in.)	Nom. Height (H) 2.10 mm (Equiv. 0.083 in.)	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 629 and 6000 Bearings (Equiv EPL016) Type: 3 Wave Nominal Screw Size: M18, 11/16 Spring Rate: 29 N/mm Max Kg at Yeld Point: 21.0 Kg
Part Number: W0180-T-026-021-W3-C Spring Washers - 18x26x2.1 mm 3 Wave - Carbon Spring Steel Self Finish Washer 178 Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Quantity Required 178 Available Now. Backorder if more than 178.
W0180-T-026-021-W3-C --- Spring Washers - 18x26x2.1 mm 3 Wave - Carbon Spring Steel Self Finish Washer W0180-T-026-021-W3-C --- Spring Washers - 18x26x2.1 mm 3 Wave - Carbon Spring Steel Self Finish Washer Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per 178 Available Now
Nominal Inside Diameter (d) 19.05 mm (Equiv. 0.75 in.)	Nominal Outside Diameter (D) 26.99 mm (Equiv. 1.063 in.)	Nom. Height (H) 1.80 mm (Equiv. 0.071 in.)	Thickness (s) 0.28 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M19, 3/4
Part Number: W0191-T-027-018-W3-C Spring Washers - 19.05x26.99x1.8 mm 3 Wave - Carbon Spring Steel Self Finish Washer 6 Available Now \| Item Discontinued - Up to 6 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.90 AUD Regular price ~~$7.41 AUD~~ Sale price $3.90 AUD Unit price per Each Quantity Required 6 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (d) 19.05 mm (Equiv. 0.75 in.)	Nominal Outside Diameter (D) 26.99 mm (Equiv. 1.063 in.)	Nom. Height (H) 1.80 mm (Equiv. 0.071 in.)	Thickness (s) 0.28 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M19, 3/4
Part Number: W0191-T-027-018-W3-C Spring Washers - 19.05x26.99x1.8 mm 3 Wave - Carbon Spring Steel Self Finish Washer 6 Available Now \| Item Discontinued - Up to 6 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.90 AUD Regular price ~~$7.41 AUD~~ Sale price $3.90 AUD Unit price per Each Quantity Required 6 Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0191-T-027-018-W3-C --- Spring Washers - 19.05x26.99x1.8 mm 3 Wave - Carbon Spring Steel Self Finish Washer Sale W0191-T-027-018-W3-C --- Spring Washers - 19.05x26.99x1.8 mm 3 Wave - Carbon Spring Steel Self Finish Washer Regular price $3.90 AUD Regular price ~~$7.41 AUD~~ Sale price $3.90 AUD Unit price per 6 Available Now Sale
Nominal Inside Diameter (d) 20.00 mm _{+ 0.7 / + 1.0} (Equiv. 0.787 in.)	Nominal Outside Diameter (D) 28.00 mm _{- 0.7 / - 1.0} (Equiv. 1.102 in.)	Nom. Height (H) 2.20 mm (Equiv. 0.087 in.)	Thickness (s) 0.30 mm	Info Suits OD of 6001 Bearings (Equiv EPL017)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M20 Spring Rate: 36 N/mm Max Kg at Yeld Point: 18.0 Kg
Part Number: W0200-T-028-022-W3-C Spring Washers - 20x28x2.2 mm 3 Wave - Carbon Spring Steel Self Finish Washer 142 Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Quantity Required 142 Available Now. Backorder if more than 142.
Nominal Inside Diameter (d) 20.00 mm _{+ 0.7 / + 1.0} (Equiv. 0.787 in.)	Nominal Outside Diameter (D) 28.00 mm _{- 0.7 / - 1.0} (Equiv. 1.102 in.)	Nom. Height (H) 2.20 mm (Equiv. 0.087 in.)	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 6001 Bearings (Equiv EPL017) Type: 3 Wave Nominal Screw Size: M20 Spring Rate: 36 N/mm Max Kg at Yeld Point: 18.0 Kg
Part Number: W0200-T-028-022-W3-C Spring Washers - 20x28x2.2 mm 3 Wave - Carbon Spring Steel Self Finish Washer 142 Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Quantity Required 142 Available Now. Backorder if more than 142.
W0200-T-028-022-W3-C --- Spring Washers - 20x28x2.2 mm 3 Wave - Carbon Spring Steel Self Finish Washer W0200-T-028-022-W3-C --- Spring Washers - 20x28x2.2 mm 3 Wave - Carbon Spring Steel Self Finish Washer Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per 142 Available Now
Nominal Inside Diameter (d) 20.00 mm _{+ 0.7 / + 1.0} (Equiv. 0.787 in.)	Nominal Outside Diameter (D) 28.00 mm _{- 0.7 / - 1.0} (Equiv. 1.102 in.)	Nom. Height (H) 2.50 mm (Equiv. 0.098 in.)	Thickness (s) 0.30 mm	Info Suits OD of 6001 Bearings (Equiv EPL019)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M20 Spring Rate: 36 N/mm Max Kg at Yeld Point: 25.0 Kg
Part Number: W0200-T-028-025-W3-C Spring Washers - 20x28x2.5 mm 3 Wave - Carbon Spring Steel Self Finish Washer 75 Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Quantity Required 75 Available Now. Backorder if more than 75.
Nominal Inside Diameter (d) 20.00 mm _{+ 0.7 / + 1.0} (Equiv. 0.787 in.)	Nominal Outside Diameter (D) 28.00 mm _{- 0.7 / - 1.0} (Equiv. 1.102 in.)	Nom. Height (H) 2.50 mm (Equiv. 0.098 in.)	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 6001 Bearings (Equiv EPL019) Type: 3 Wave Nominal Screw Size: M20 Spring Rate: 36 N/mm Max Kg at Yeld Point: 25.0 Kg
Part Number: W0200-T-028-025-W3-C Spring Washers - 20x28x2.5 mm 3 Wave - Carbon Spring Steel Self Finish Washer 75 Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Quantity Required 75 Available Now. Backorder if more than 75.
W0200-T-028-025-W3-C --- Spring Washers - 20x28x2.5 mm 3 Wave - Carbon Spring Steel Self Finish Washer W0200-T-028-025-W3-C --- Spring Washers - 20x28x2.5 mm 3 Wave - Carbon Spring Steel Self Finish Washer Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per 75 Available Now
Nominal Inside Diameter (d) 20.64 mm (Equiv. 0.813 in.)	Nominal Outside Diameter (D) 28.58 mm (Equiv. 1.125 in.)	Nom. Height (H) 2.50 mm (Equiv. 0.098 in.)	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M20, 13/16
Part Number: W0206-T-029-025-W3-C (500 Pcs) Spring Washers - 20.64x28.58x2.5 mm 3 Wave - Carbon Spring Steel Self Finish Washer Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $1,554.23 AUD Regular price Sale price $1,554.23 AUD Unit price per Per 500 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 20.64 mm (Equiv. 0.813 in.)	Nominal Outside Diameter (D) 28.58 mm (Equiv. 1.125 in.)	Nom. Height (H) 2.50 mm (Equiv. 0.098 in.)	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M20, 13/16
Part Number: W0206-T-029-025-W3-C (500 Pcs) Spring Washers - 20.64x28.58x2.5 mm 3 Wave - Carbon Spring Steel Self Finish Washer Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 14, 2025 Regular price $1,554.23 AUD Regular price Sale price $1,554.23 AUD Unit price per Per 500 Quantity Required Backorder: Out of Stock.
W0206-T-029-025-W3-C (500 Pcs) --- Spring Washers - 20.64x28.58x2.5 mm 3 Wave - Carbon Spring Steel Self Finish Washer W0206-T-029-025-W3-C (500 Pcs) --- Spring Washers - 20.64x28.58x2.5 mm 3 Wave - Carbon Spring Steel Self Finish Washer Regular price $1,554.23 AUD Regular price Sale price $1,554.23 AUD Unit price per Out of stock! Backorder Now
Nominal Inside Diameter (d) 22.00 mm _{+ 0.7 / + 1.0} (Equiv. 0.866 in.)	Nominal Outside Diameter (D) 30.00 mm _{- 0.7 / - 1.0} (Equiv. 1.181 in.)	Nom. Height (H) 2.50 mm (Equiv. 0.098 in.)	Thickness (s) 0.30 mm	Info Suits OD of 6200 Bearings (Equiv EPL020)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M22 Spring Rate: 22 N/mm Max Kg at Yeld Point: 21.0 Kg
Part Number: W0220-T-030-025-W3-C Spring Washers - 22x30x2.5 mm 3 Wave - Carbon Spring Steel Self Finish Washer 104 Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Quantity Required 104 Available Now. Backorder if more than 104.
Nominal Inside Diameter (d) 22.00 mm _{+ 0.7 / + 1.0} (Equiv. 0.866 in.)	Nominal Outside Diameter (D) 30.00 mm _{- 0.7 / - 1.0} (Equiv. 1.181 in.)	Nom. Height (H) 2.50 mm (Equiv. 0.098 in.)	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 6200 Bearings (Equiv EPL020) Type: 3 Wave Nominal Screw Size: M22 Spring Rate: 22 N/mm Max Kg at Yeld Point: 21.0 Kg
Part Number: W0220-T-030-025-W3-C Spring Washers - 22x30x2.5 mm 3 Wave - Carbon Spring Steel Self Finish Washer 104 Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Quantity Required 104 Available Now. Backorder if more than 104.
W0220-T-030-025-W3-C --- Spring Washers - 22x30x2.5 mm 3 Wave - Carbon Spring Steel Self Finish Washer W0220-T-030-025-W3-C --- Spring Washers - 22x30x2.5 mm 3 Wave - Carbon Spring Steel Self Finish Washer Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per 104 Available Now
Nominal Inside Diameter (d) 24.00 mm _{+ 0.7 / + 1.0} (Equiv. 0.945 in.)	Nominal Outside Diameter (D) 32.00 mm _{- 0.7 / - 1.0} (Equiv. 1.26 in.)	Nom. Height (H) 2.80 mm (Equiv. 0.11 in.)	Thickness (s) 0.30 mm	Info Suits OD of 6002 and 6201 Bearings (Equiv EPL022)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M24, 15/16 Spring Rate: 27 N/mm Max Kg at Yeld Point: 22.0 Kg
Part Number: W0240-T-032-028-W3-C Spring Washers - 24x32x2.8 mm 3 Wave - Carbon Spring Steel Self Finish Washer 197 Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Quantity Required 197 Available Now. Backorder if more than 197.
Nominal Inside Diameter (d) 24.00 mm _{+ 0.7 / + 1.0} (Equiv. 0.945 in.)	Nominal Outside Diameter (D) 32.00 mm _{- 0.7 / - 1.0} (Equiv. 1.26 in.)	Nom. Height (H) 2.80 mm (Equiv. 0.11 in.)	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 6002 and 6201 Bearings (Equiv EPL022) Type: 3 Wave Nominal Screw Size: M24, 15/16 Spring Rate: 27 N/mm Max Kg at Yeld Point: 22.0 Kg
Part Number: W0240-T-032-028-W3-C Spring Washers - 24x32x2.8 mm 3 Wave - Carbon Spring Steel Self Finish Washer 197 Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Quantity Required 197 Available Now. Backorder if more than 197.
W0240-T-032-028-W3-C --- Spring Washers - 24x32x2.8 mm 3 Wave - Carbon Spring Steel Self Finish Washer W0240-T-032-028-W3-C --- Spring Washers - 24x32x2.8 mm 3 Wave - Carbon Spring Steel Self Finish Washer Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per 197 Available Now
Nominal Inside Diameter (d) 24.00 mm (Equiv. 0.945 in.)	Nominal Outside Diameter (D) 32.00 mm (Equiv. 1.26 in.)	Nom. Height (H) 3.10 mm (Equiv. 0.122 in.)	Thickness (s) 0.30 mm	Info Suits OD of 6002, 6201 bearing (Equiv EPL024)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M24, 15/16 Actual ID (Ref): 25.5 mm
Part Number: W0240-T-032-031-W3-C Spring Washers - 24x32x3.1 mm 3 Wave - Carbon Spring Steel Self Finish Washer 204 Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Quantity Required 204 Available Now. Backorder if more than 204.
Nominal Inside Diameter (d) 24.00 mm (Equiv. 0.945 in.)	Nominal Outside Diameter (D) 32.00 mm (Equiv. 1.26 in.)	Nom. Height (H) 3.10 mm (Equiv. 0.122 in.)	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 6002, 6201 bearing (Equiv EPL024) Type: 3 Wave Nominal Screw Size: M24, 15/16 Actual ID (Ref): 25.5 mm
Part Number: W0240-T-032-031-W3-C Spring Washers - 24x32x3.1 mm 3 Wave - Carbon Spring Steel Self Finish Washer 204 Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Quantity Required 204 Available Now. Backorder if more than 204.
W0240-T-032-031-W3-C --- Spring Washers - 24x32x3.1 mm 3 Wave - Carbon Spring Steel Self Finish Washer W0240-T-032-031-W3-C --- Spring Washers - 24x32x3.1 mm 3 Wave - Carbon Spring Steel Self Finish Washer Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per 204 Available Now
Nominal Inside Diameter (d) 24.00 mm _{+ 0.3 / + 0.7} (Equiv. 0.945 in.)	Nominal Outside Diameter (D) 32.00 mm _{- 0.3 / - 0.7} (Equiv. 1.26 in.)	Nom. Height (H) 3.50 mm (Equiv. 0.138 in.)	Thickness (s) 0.30 mm	Info Suits OD of 6002, 6201 bearing (Equiv EPL025)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Nominal Screw Size: M24, 15/16 Actual ID (Ref): 25.5 mm Max Kg at Yeld Point: 7.4 Kg
Part Number: W0240-T-032-035-W3-C Spring Washers - 24x32x3.5 mm 3 Wave - Carbon Spring Steel Self Finish Washer 87 Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Quantity Required 87 Available Now. Backorder if more than 87.
Nominal Inside Diameter (d) 24.00 mm _{+ 0.3 / + 0.7} (Equiv. 0.945 in.)	Nominal Outside Diameter (D) 32.00 mm _{- 0.3 / - 0.7} (Equiv. 1.26 in.)	Nom. Height (H) 3.50 mm (Equiv. 0.138 in.)	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 6002, 6201 bearing (Equiv EPL025) Type: 3 Wave Nominal Screw Size: M24, 15/16 Actual ID (Ref): 25.5 mm Max Kg at Yeld Point: 7.4 Kg
Part Number: W0240-T-032-035-W3-C Spring Washers - 24x32x3.5 mm 3 Wave - Carbon Spring Steel Self Finish Washer 87 Available Now \| Further orders can be expected around Wed, Nov 26, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Quantity Required 87 Available Now. Backorder if more than 87.
W0240-T-032-035-W3-C --- Spring Washers - 24x32x3.5 mm 3 Wave - Carbon Spring Steel Self Finish Washer W0240-T-032-035-W3-C --- Spring Washers - 24x32x3.5 mm 3 Wave - Carbon Spring Steel Self Finish Washer Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per 87 Available Now

Country/region

Collection: Washers - Spring - 3 Wave - Carbon Steel

Category Details

Filter

Filter

Subscribe to our emails
