W0150-T-022-021-W3-C

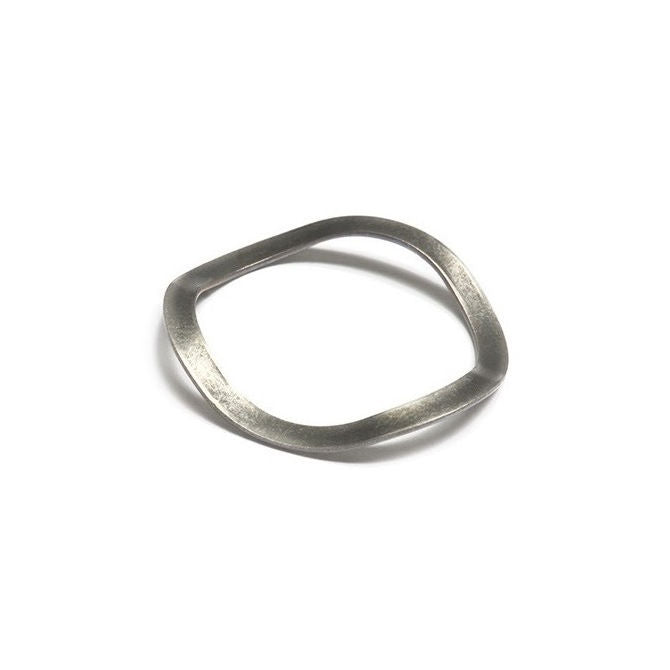

Spring Washers - 15x22x2.1 mm 3 Wave - Carbon Spring Steel Self Finish Washer

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Spring Washers - 15x22x2.1 mm - Carbon Spring Steel Self Finish
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Assortment Kits
Screws
Price:
$4.32 AUD
$4.32 AUD
Excludes GST and overseas Taxes & Duties
 Each
Qty: 254 available now
Order 50 or more for $3.89 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Dec 18, 2025

Base Category: Washers - Spring

Top Level Category: Washers - Spring - 3 Wave - Carbon Steel

Product Details

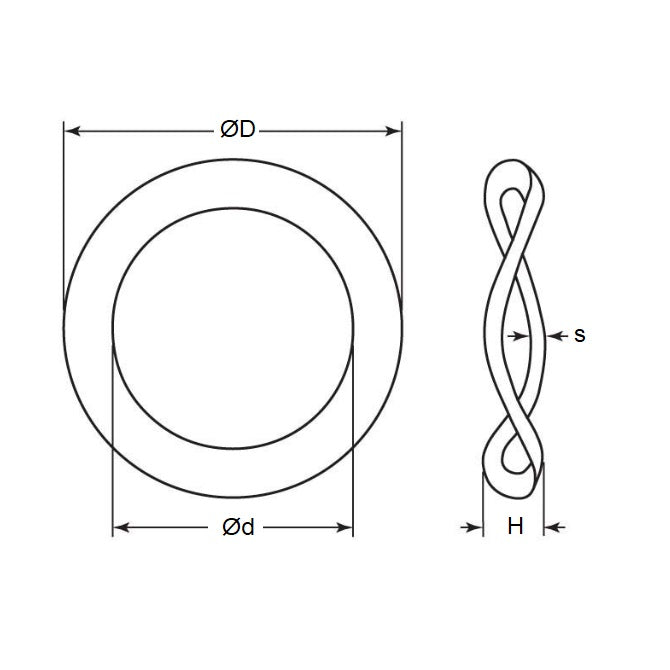

Nominal Inside Diameter (d): 15.00mm
+ 0.7 / + 1.0
(15.00mm is 0.591 in.)

Carbon Spring Steel Self Finish
  • Nominal Outside Diameter (D): 22.00mm
    - 0.7 / - 1.0
    (22.00mm is 0.866 in.)
  • Nom. Height (H): 2.10mm
    (2.10mm is 0.083 in.)
  • Thickness (s): 0.20mm
  • Info: Suits OD of 608 and 627 and E7 Bearings (Equiv EPL012)
  • Type: 3 Wave
  • Nominal Screw Size: M15
  • Spring Rate: 34N/mm
  • Max Kg at Yeld Point: 16.0Kg

Brand: MBA
Country of Origin: GB

Product Compliance and Data

Similar to

  • ExaktKey EPL012
  • NoCor EPL012
  • Springmaster EPL012
  • XOSpring EPL012
  • W0150T022020W3C
  • EPL12

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
