W0100-T-016-013-W3-C (2 Pcs)

Spring Washers - 10x16x1.3 mm 3 Wave - Carbon Spring Steel Self Finish Washer

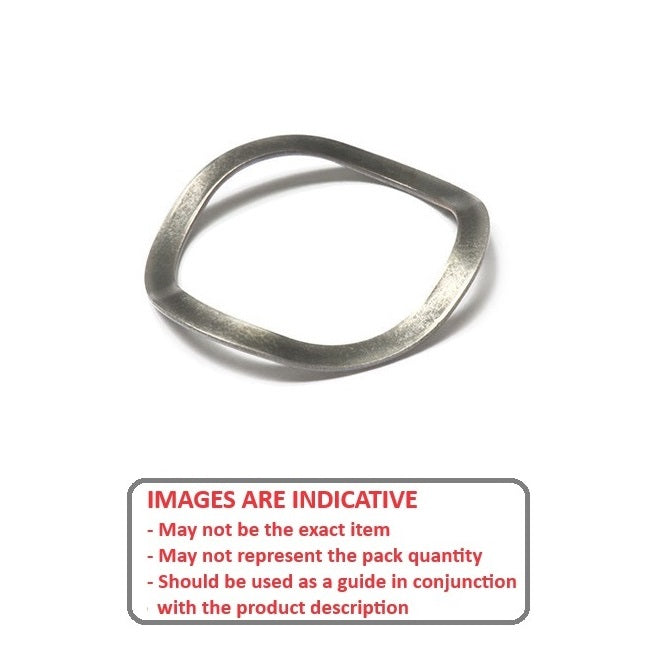

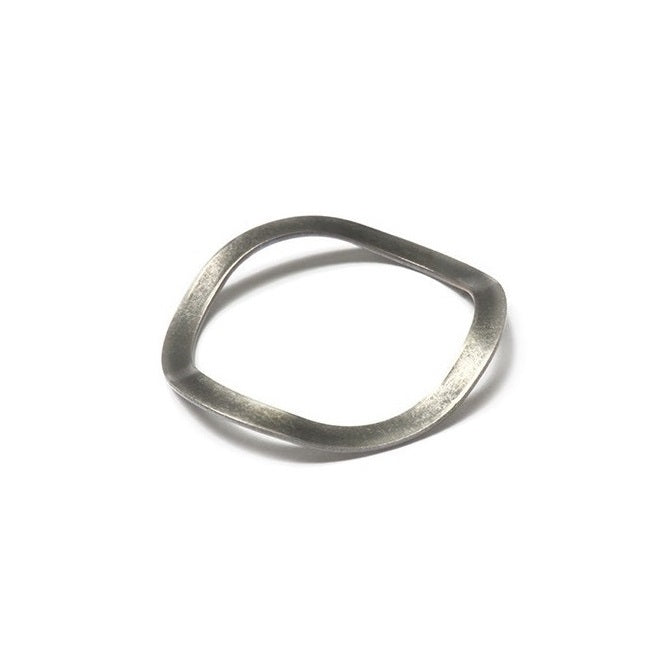

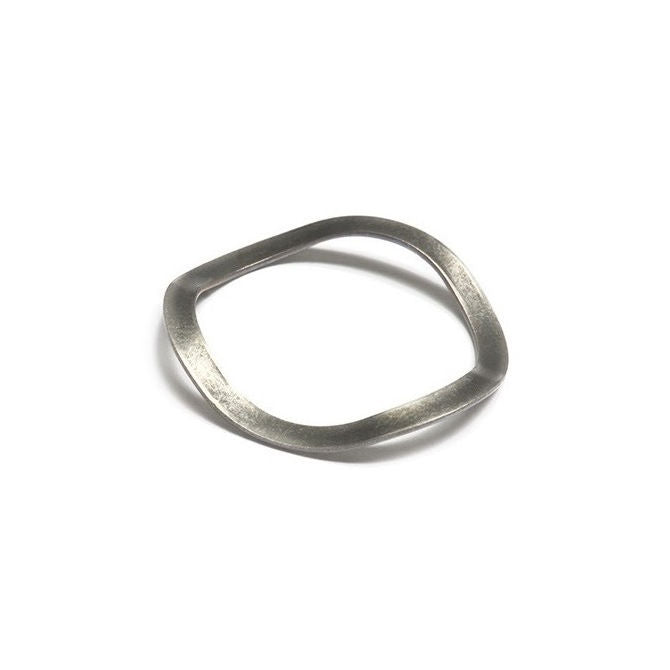

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Spring Washers - 10x16x1.3 mm - Carbon Spring Steel Self Finish
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Assortment Kits
Screws
Price:
$5.77 AUD
$5.77 AUD
per 2
Qty: 47 packs (94 pcs) available now
Order 50 or more packs (100 pcs) for $5.19 AUD per 2

Special Offer: If you purchase the remaining quantity of this item, you will receive the bulk price.
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Nov 26, 2025

Base Category: Washers - Spring

Top Level Category: Washers - Spring - 3 Wave - Carbon Steel

Product Details

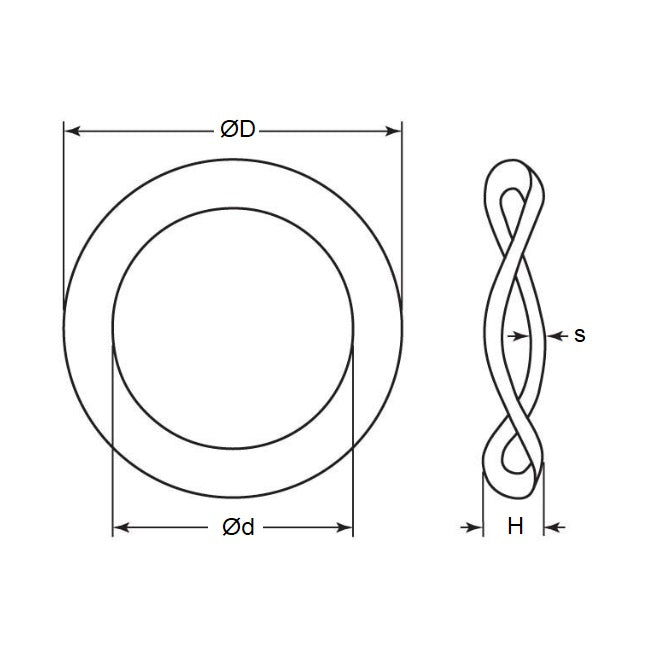

Nominal Inside Diameter (d): 10.00mm
+ 0.3 / + 0.7
(10.00mm is 0.394 in.)

Carbon Spring Steel Self Finish
  • Nominal Outside Diameter (D): 16.00mm
    - 0.3 / - 0.7
    (16.00mm is 0.63 in.)
  • Nom. Height (H): 1.30mm
    (1.30mm is 0.051 in.)
  • Thickness (s): 0.15mm
  • Info: Suits OD of 625, 634 Bearings (Equiv EPL005)
  • Type: 3 Wave
  • Nominal Screw Size: M10, 3/8
  • Spring Rate: 38N/mm
  • Max Kg at Yeld Point: 2.5Kg

Brand: MBA
Country of Origin: GB

Product Compliance and Data

Similar to

  • ExaktKey EPL005
  • NoCor EPL005
  • Springmaster EPL005
  • XOSpring EPL005
  • W0100T016015W3CB

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
