| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) | Groove Width (W) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
17.48
mm (Equiv. 0.688 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
18.29
mm +/- 0.08 (Equiv. 0.72 in.) |
Approx. Loose Circlip OD (Dr)
18.62
mm + 0.64 / - 0.00 |
Radial Wall (S)
1.22
mm +/- 0.08 |
Groove Width (W)
0.99
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 16.18 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0175-LS-O
Internal Retaining Rings - 17.48x0.89x18.29 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
17.48
mm (Equiv. 0.688 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
18.29
mm +/- 0.08 (Equiv. 0.72 in.) |
Approx. Loose Circlip OD (Dr)
18.62
mm + 0.64 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 1.22 mm +/- 0.08
Groove Width (W): 0.99 mm
Clearance in Groove (C1): 16.18 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0175-LS-O
Internal Retaining Rings - 17.48x0.89x18.29 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
17.50
mm (Equiv. 0.689 in.) |
Clip Thickness (T)
1.4
mm + 0.08 / - 0.04 (Equiv. 0.055 in.) |
Groove Dia. (Dg)
19.20
mm Min. (Equiv. 0.756 in.) |
Approx. Loose Circlip OD (Dr)
20.00
mm |
Groove Width (W)
1.50
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Spring Steel
Clearance in Bore (C): 17.2 mm

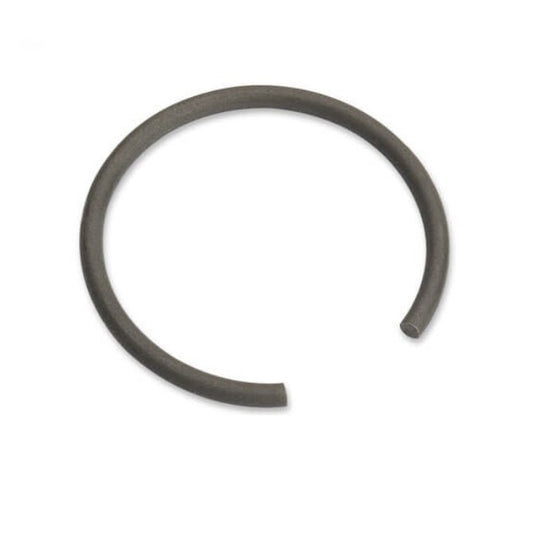

Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0175A-RD
Internal Retaining Rings - 17.5x1.4x19.2 mm Round Wire - Carbon Spring Steel Wire Clip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
17.50
mm (Equiv. 0.689 in.) |
Clip Thickness (T)
1.4
mm + 0.08 / - 0.04 (Equiv. 0.055 in.) |
Groove Dia. (Dg)
19.20
mm Min. (Equiv. 0.756 in.) |
Approx. Loose Circlip OD (Dr)
20.00
mm |
|
||
|
Material: Carbon Spring Steel
Groove Width (W): 1.50 mm + 0.08 / - 0.00
Clearance in Bore (C): 17.2 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0175A-RD
Internal Retaining Rings - 17.5x1.4x19.2 mm Round Wire - Carbon Spring Steel Wire Clip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
18.00
mm (Equiv. 0.709 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
19.00
mm + 0.00 / - 0.06 (Equiv. 0.748 in.) |
Approx. Loose Circlip OD (Dr)
19.50
mm + 0.42 / - 0.13 |
Groove Width (W)
1.10
mm + 0.08 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 9.40 mm
Clearance in Groove (C1): 10.80 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01800-S15 (50 Pcs)
Internal Retaining Rings - 18x1x19 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$39.86 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
18.00
mm (Equiv. 0.709 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
19.00
mm + 0.00 / - 0.06 (Equiv. 0.748 in.) |
Approx. Loose Circlip OD (Dr)
19.50
mm + 0.42 / - 0.13 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.10 mm + 0.08 / - 0.00
Clearance in Bore (C): 9.40 mm
Clearance in Groove (C1): 10.80 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01800-S15 (50 Pcs)
Internal Retaining Rings - 18x1x19 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$39.86 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
18.00
mm (Equiv. 0.709 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
19.00
mm + 0.00 / - 0.06 (Equiv. 0.748 in.) |
Approx. Loose Circlip OD (Dr)
19.50
mm + 0.42 / - 0.13 |
Groove Width (W)
1.10
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 9.40 mm
Clearance in Groove (C1): 10.80 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01800-C (20 Pcs)
Internal Retaining Rings - 18x1x19 mm Circlips - Carbon Steel Circlip 3 units (60 pcs) Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$5.86 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
Housing Bore (B)
18.00
mm (Equiv. 0.709 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
19.00
mm + 0.00 / - 0.06 (Equiv. 0.748 in.) |
Approx. Loose Circlip OD (Dr)
19.50
mm + 0.42 / - 0.13 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.10 mm + 0.08 / - 0.00
Clearance in Bore (C): 9.40 mm
Clearance in Groove (C1): 10.80 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01800-C (20 Pcs)
Internal Retaining Rings - 18x1x19 mm Circlips - Carbon Steel Circlip 3 units (60 pcs) Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$5.86 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
||||||
|
Housing Bore (B)
18.00
mm (Equiv. 0.709 in.) |
Clip Thickness (T)
1.00
mm + 0.15 / - 0.00 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
19.00
mm + 0.00 / - 0.06 (Equiv. 0.748 in.) |
Approx. Loose Circlip OD (Dr)
19.50
mm + 0.42 / - 0.13 |
Radial Wall (S)
2.1 - 2.2
mm |
Groove Width (W)
1.10
mm |
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01800-C-V (500 Pcs)
Internal Retaining Rings - 18x1x19 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025 Regular price
$148.05 AUD
Regular price
Unit price
per
Per 500
|
||||||
|
Housing Bore (B)
18.00
mm (Equiv. 0.709 in.) |
Clip Thickness (T)
1.00
mm + 0.15 / - 0.00 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
19.00
mm + 0.00 / - 0.06 (Equiv. 0.748 in.) |
Approx. Loose Circlip OD (Dr)
19.50
mm + 0.42 / - 0.13 |
|
||
|
Material: Carbon Steel
Radial Wall (S): 2.1 - 2.2 mm
Groove Width (W): 1.10 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01800-C-V (500 Pcs)
Internal Retaining Rings - 18x1x19 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025 Regular price
$148.05 AUD
Regular price
Unit price
per
Per 500
|
||||||
|
||||||
|
Housing Bore (B)
18.00
mm (Equiv. 0.709 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.15 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
19.15
mm + 0.00 / - 0.06 (Equiv. 0.754 in.) |
Approx. Loose Circlip OD (Dr)
19.37
mm |
Radial Wall (S)
2.30
mm |
Groove Width (W)
1.10
mm |
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-018 (100 Pcs)
Internal Retaining Rings - 18x1x19.15 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$29.86 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Housing Bore (B)
18.00
mm (Equiv. 0.709 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.15 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
19.15
mm + 0.00 / - 0.06 (Equiv. 0.754 in.) |
Approx. Loose Circlip OD (Dr)
19.37
mm |
|
||
|
Material: Carbon Steel
Radial Wall (S): 2.30 mm
Groove Width (W): 1.10 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-018 (100 Pcs)
Internal Retaining Rings - 18x1x19.15 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$29.86 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Housing Bore (B)
18.00
mm (Equiv. 0.709 in.) |
Clip Thickness (T)
1.4
mm + 0.08 / - 0.04 (Equiv. 0.055 in.) |
Groove Dia. (Dg)
19.71
mm Min. (Equiv. 0.776 in.) |
Approx. Loose Circlip OD (Dr)
20.50
mm |
Groove Width (W)
1.50
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Spring Steel
Clearance in Bore (C): 17.7 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0180A-RD
Internal Retaining Rings - 18x1.4x19.71 mm Round Wire - Carbon Spring Steel Wire Clip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
18.00
mm (Equiv. 0.709 in.) |
Clip Thickness (T)
1.4
mm + 0.08 / - 0.04 (Equiv. 0.055 in.) |
Groove Dia. (Dg)
19.71
mm Min. (Equiv. 0.776 in.) |
Approx. Loose Circlip OD (Dr)
20.50
mm |
|
||
|
Material: Carbon Spring Steel
Groove Width (W): 1.50 mm + 0.08 / - 0.00
Clearance in Bore (C): 17.7 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0180A-RD
Internal Retaining Rings - 18x1.4x19.71 mm Round Wire - Carbon Spring Steel Wire Clip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
18.00
mm (Equiv. 0.709 in.) |
Clip Thickness (T)
1.20
mm + 0 / - 0.10 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
18.50
mm + 0.13 / - 0.00 (Equiv. 0.728 in.) |
Approx. Loose Circlip OD (Dr)
18.90
mm |
Radial Wall (S)
1.75
mm + 0 / - 0.10 |
Groove Width (W)
1.30
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 15.4 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0180-LS
Internal Retaining Rings - 18x1.2x18.5 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$4.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
18.00
mm (Equiv. 0.709 in.) |
Clip Thickness (T)
1.20
mm + 0 / - 0.10 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
18.50
mm + 0.13 / - 0.00 (Equiv. 0.728 in.) |
Approx. Loose Circlip OD (Dr)
18.90
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 1.75 mm + 0 / - 0.10
Groove Width (W): 1.30 mm
Clearance in Groove (C1): 15.4 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0180-LS
Internal Retaining Rings - 18x1.2x18.5 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$4.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
18.00
mm (Equiv. 0.709 in.) |
Clip Thickness (T)
1.6
mm B DIN 2076 (Equiv. 0.063 in.) |
Groove Dia. (Dg)
19.60
mm + 0.4 / - 0.0 (Equiv. 0.772 in.) |
Approx. Loose Circlip OD (Dr)
19.80
mm |
Groove Width (W)
1.80
mm |
|
|
|
Material: Carbon Spring Steel
Clearance in Bore (C): 16.6 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0180-RD
Internal Retaining Rings - 18x1.6x19.6 mm Round Wire - Carbon Spring Steel Wire Clip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
18.00
mm (Equiv. 0.709 in.) |
Clip Thickness (T)
1.6
mm B DIN 2076 (Equiv. 0.063 in.) |
Groove Dia. (Dg)
19.60
mm + 0.4 / - 0.0 (Equiv. 0.772 in.) |
Approx. Loose Circlip OD (Dr)
19.80
mm |
|
||
|
Material: Carbon Spring Steel
Groove Width (W): 1.80 mm
Clearance in Bore (C): 16.6 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0180-RD
Internal Retaining Rings - 18x1.6x19.6 mm Round Wire - Carbon Spring Steel Wire Clip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
19.00
mm (Equiv. 0.748 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
20.00
mm + 0.00 / - 0.06 (Equiv. 0.787 in.) |
Approx. Loose Circlip OD (Dr)
20.50
mm + 0.42 / - 0.13 |
Groove Width (W)
1.10
mm + 0.08 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 10.40 mm
Clearance in Groove (C1): 11.80 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01900-S15 (4 Pcs)
Internal Retaining Rings - 19x1x20 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$9.14 AUD
Regular price
Unit price
per
Per 4
|
||||||
|
Housing Bore (B)
19.00
mm (Equiv. 0.748 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
20.00
mm + 0.00 / - 0.06 (Equiv. 0.787 in.) |
Approx. Loose Circlip OD (Dr)
20.50
mm + 0.42 / - 0.13 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.10 mm + 0.08 / - 0.00
Clearance in Bore (C): 10.40 mm
Clearance in Groove (C1): 11.80 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01900-S15 (4 Pcs)
Internal Retaining Rings - 19x1x20 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$9.14 AUD
Regular price
Unit price
per
Per 4
|
||||||
|
||||||
|
Housing Bore (B)
19.00
mm (Equiv. 0.748 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
20.00
mm + 0.00 / - 0.06 (Equiv. 0.787 in.) |
Approx. Loose Circlip OD (Dr)
20.50
mm + 0.42 / - 0.13 |
Groove Width (W)
1.10
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 10.40 mm
Clearance in Groove (C1): 11.80 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01900-C (100 Pcs)
Internal Retaining Rings - 19x1x20 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$21.68 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Housing Bore (B)
19.00
mm (Equiv. 0.748 in.) |
Clip Thickness (T)
1.00
mm + 0.13 / - 0.00 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
20.00
mm + 0.00 / - 0.06 (Equiv. 0.787 in.) |
Approx. Loose Circlip OD (Dr)
20.50
mm + 0.42 / - 0.13 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.10 mm + 0.08 / - 0.00
Clearance in Bore (C): 10.40 mm
Clearance in Groove (C1): 11.80 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01900-C (100 Pcs)
Internal Retaining Rings - 19x1x20 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$21.68 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Housing Bore (B)
19.00
mm (Equiv. 0.748 in.) |
Clip Thickness (T)
1.00
mm + 0.15 / - 0.00 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
20.00
mm + 0.00 / - 0.06 (Equiv. 0.787 in.) |
Approx. Loose Circlip OD (Dr)
20.50
mm + 0.42 / - 0.13 |
Radial Wall (S)
2.1 - 2.2
mm |
Groove Width (W)
1.10
mm |
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01900-C-V (5 Pcs)
Internal Retaining Rings - 19x1x20 mm Circlips - Carbon Steel Circlip 80 units (400 pcs) Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$1.41 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
19.00
mm (Equiv. 0.748 in.) |
Clip Thickness (T)
1.00
mm + 0.15 / - 0.00 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
20.00
mm + 0.00 / - 0.06 (Equiv. 0.787 in.) |
Approx. Loose Circlip OD (Dr)
20.50
mm + 0.42 / - 0.13 |
|
||
|
Material: Carbon Steel
Radial Wall (S): 2.1 - 2.2 mm
Groove Width (W): 1.10 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01900-C-V (5 Pcs)
Internal Retaining Rings - 19x1x20 mm Circlips - Carbon Steel Circlip 80 units (400 pcs) Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$1.41 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
19.00
mm (Equiv. 0.748 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.15 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
20.15
mm + 0.00 / - 0.06 (Equiv. 0.793 in.) |
Approx. Loose Circlip OD (Dr)
20.37 - 20.92
mm |
Radial Wall (S)
2.30
mm |
Groove Width (W)
1.10
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-019
Internal Retaining Rings - 19x1x20.15 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
19.00
mm (Equiv. 0.748 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.15 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
20.15
mm + 0.00 / - 0.06 (Equiv. 0.793 in.) |
Approx. Loose Circlip OD (Dr)
20.37 - 20.92
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 2.30 mm
Groove Width (W): 1.10 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-019
Internal Retaining Rings - 19x1x20.15 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
19.00
mm (Equiv. 0.748 in.) |
Clip Thickness (T)
1.20
mm + 0 / - 0.10 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
19.60
mm + 0.13 / - 0.00 (Equiv. 0.772 in.) |
Approx. Loose Circlip OD (Dr)
19.90
mm |
Radial Wall (S)
1.75
mm + 0 / - 0.10 |
Groove Width (W)
1.30
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 16.4 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0190-LS
Internal Retaining Rings - 19x1.2x19.6 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
19.00
mm (Equiv. 0.748 in.) |
Clip Thickness (T)
1.20
mm + 0 / - 0.10 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
19.60
mm + 0.13 / - 0.00 (Equiv. 0.772 in.) |
Approx. Loose Circlip OD (Dr)
19.90
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 1.75 mm + 0 / - 0.10
Groove Width (W): 1.30 mm
Clearance in Groove (C1): 16.4 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0190-LS
Internal Retaining Rings - 19x1.2x19.6 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
19.00
mm (Equiv. 0.748 in.) |
Clip Thickness (T)
1.4
mm + 0.08 / - 0.04 (Equiv. 0.055 in.) |
Groove Dia. (Dg)
20.70
mm Min. (Equiv. 0.815 in.) |
Approx. Loose Circlip OD (Dr)
21.50
mm |
Groove Width (W)
1.50
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Spring Steel
Clearance in Bore (C): 18.7 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0190A-RD
Internal Retaining Rings - 19x1.4x20.7 mm Round Wire - Carbon Spring Steel Wire Clip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
19.00
mm (Equiv. 0.748 in.) |
Clip Thickness (T)
1.4
mm + 0.08 / - 0.04 (Equiv. 0.055 in.) |
Groove Dia. (Dg)
20.70
mm Min. (Equiv. 0.815 in.) |
Approx. Loose Circlip OD (Dr)
21.50
mm |
|
||
|
Material: Carbon Spring Steel
Groove Width (W): 1.50 mm + 0.08 / - 0.00
Clearance in Bore (C): 18.7 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0190A-RD
Internal Retaining Rings - 19x1.4x20.7 mm Round Wire - Carbon Spring Steel Wire Clip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
19.86
mm (Equiv. 0.782 in.) |
Approx. Loose Circlip OD (Dr)
19.89
mm + 0.33 / - 0.00 |
Radial Wall (S)
1.65
mm +/- 0.10 |
Groove Width (W)
0.95
mm +/- 0.05 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Clearance in Groove (C1): 16.59 mm +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RR-075-S02 (38 Pcs)
Internal Retaining Rings - 19.05x0.79x19.86 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$14.59 AUD
Regular price
Unit price
per
Per 38
|
||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
19.86
mm (Equiv. 0.782 in.) |
Approx. Loose Circlip OD (Dr)
19.89
mm + 0.33 / - 0.00 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S): 1.65 mm +/- 0.10
Groove Width (W): 0.95 mm +/- 0.05
Clearance in Groove (C1): 16.59 mm +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RR-075-S02 (38 Pcs)
Internal Retaining Rings - 19.05x0.79x19.86 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$14.59 AUD
Regular price
Unit price
per
Per 38
|
||||||
|
||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
20.22
mm (Equiv. 0.796 in.) |
Approx. Loose Circlip OD (Dr)
20.33
mm + 0.33 / - 0.00 |
Radial Wall (S)
1.65
mm +/- 0.10 |
Groove Width (W)
1.03
mm +/- 0.05 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Clearance in Groove (C1): 17.03 mm +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRN-075-S02 (3 Pcs)
Internal Retaining Rings - 19.05x0.89x20.22 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$11.95 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
20.22
mm (Equiv. 0.796 in.) |
Approx. Loose Circlip OD (Dr)
20.33
mm + 0.33 / - 0.00 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S): 1.65 mm +/- 0.10
Groove Width (W): 1.03 mm +/- 0.05
Clearance in Groove (C1): 17.03 mm +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRN-075-S02 (3 Pcs)
Internal Retaining Rings - 19.05x0.89x20.22 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$11.95 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
19.96
mm +/- 0.08 (Equiv. 0.786 in.) |
Approx. Loose Circlip OD (Dr)
20.30
mm + 0.64 / - 0.00 |
Radial Wall (S)
1.22
mm +/- 0.08 |
Groove Width (W)
0.99
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 17.86 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0191-LS-O
Internal Retaining Rings - 19.05x0.89x19.96 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
19.96
mm +/- 0.08 (Equiv. 0.786 in.) |
Approx. Loose Circlip OD (Dr)
20.30
mm + 0.64 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 1.22 mm +/- 0.08
Groove Width (W): 0.99 mm
Clearance in Groove (C1): 17.86 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0191-LS-O
Internal Retaining Rings - 19.05x0.89x19.96 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
20.22
mm (Equiv. 0.796 in.) |
Approx. Loose Circlip OD (Dr)
20.33
mm + 0.33 / - 0.00 |
Radial Wall (S)
1.65
mm +/- 0.10 |
Groove Width (W)
1.03
mm +/- 0.05 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 17.03 mm +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRN-075 (100 Pcs)
Internal Retaining Rings - 19.05x0.89x20.22 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$13.86 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.05 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
20.22
mm (Equiv. 0.796 in.) |
Approx. Loose Circlip OD (Dr)
20.33
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 1.65 mm +/- 0.10
Groove Width (W): 1.03 mm +/- 0.05
Clearance in Groove (C1): 17.03 mm +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRN-075 (100 Pcs)
Internal Retaining Rings - 19.05x0.89x20.22 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$13.86 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.050 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
20.22
mm + 0.00 / - 0.06 (Equiv. 0.796 in.) |
Approx. Loose Circlip OD (Dr)
21.11
mm + 0.25 / - 0.13 |
Groove Width (W)
0.99
mm + 0.08 / - 0.00 |
|
|
|

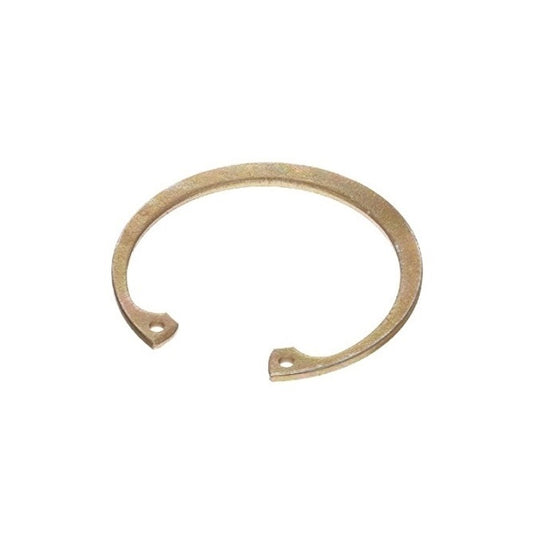

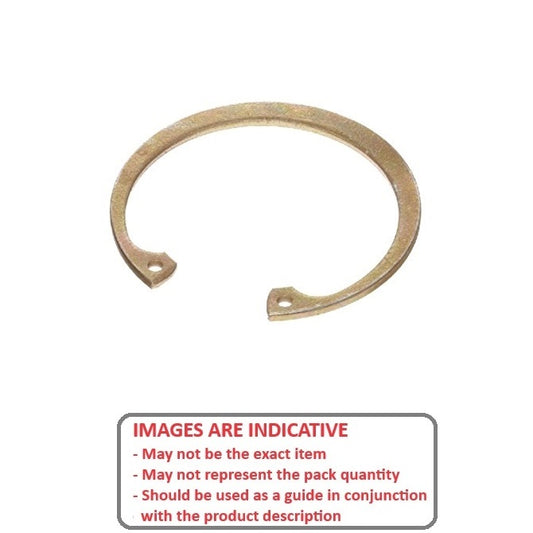

Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 11.43 mm
Clearance in Groove (C1): 12.70 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01905-CZY (5 Pcs)
Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Zinc Plated Circlip 60 units (300 pcs) Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$1.86 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.050 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
20.22
mm + 0.00 / - 0.06 (Equiv. 0.796 in.) |
Approx. Loose Circlip OD (Dr)
21.11
mm + 0.25 / - 0.13 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 0.99 mm + 0.08 / - 0.00
Clearance in Bore (C): 11.43 mm
Clearance in Groove (C1): 12.70 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01905-CZY (5 Pcs)
Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Zinc Plated Circlip 60 units (300 pcs) Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$1.86 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.050 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
20.22
mm + 0.00 / - 0.06 (Equiv. 0.796 in.) |
Approx. Loose Circlip OD (Dr)
21.11
mm + 0.25 / - 0.13 |
Groove Width (W)
0.99
mm + 0.08 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 11.43 mm
Clearance in Groove (C1): 12.70 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01905-S15 (5 Pcs)
Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$9.23 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.050 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
20.22
mm + 0.00 / - 0.06 (Equiv. 0.796 in.) |
Approx. Loose Circlip OD (Dr)
21.11
mm + 0.25 / - 0.13 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 0.99 mm + 0.08 / - 0.00
Clearance in Bore (C): 11.43 mm
Clearance in Groove (C1): 12.70 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01905-S15 (5 Pcs)
Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$9.23 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.050 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
20.22
mm + 0.00 / - 0.06 (Equiv. 0.796 in.) |
Approx. Loose Circlip OD (Dr)
21.11
mm + 0.25 / - 0.13 |
Groove Width (W)
0.99
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 11.43 mm
Clearance in Groove (C1): 12.70 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01905-C (10 Pcs)
Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Circlip 6 units (60 pcs) Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$6.50 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.050 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
20.22
mm + 0.00 / - 0.06 (Equiv. 0.796 in.) |
Approx. Loose Circlip OD (Dr)
21.11
mm + 0.25 / - 0.13 |
|
||
|
Material: Carbon Steel
Groove Width (W): 0.99 mm + 0.08 / - 0.00
Clearance in Bore (C): 11.43 mm
Clearance in Groove (C1): 12.70 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01905-C (10 Pcs)
Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Circlip 6 units (60 pcs) Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$6.50 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.050 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
20.22
mm +/- 0.052 (Equiv. 0.796 in.) |
Approx. Loose Circlip OD (Dr)
21.11
mm |
Radial Wall (S)
1.07 - 2.16
mm |
Groove Width (W)
0.99
mm |
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01905-C-V (50 Pcs)
Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$47.95 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.89
mm +/- 0.050 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
20.22
mm +/- 0.052 (Equiv. 0.796 in.) |
Approx. Loose Circlip OD (Dr)
21.11
mm |
|
||
|
Material: Carbon Steel
Radial Wall (S): 1.07 - 2.16 mm
Groove Width (W): 0.99 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01905-C-V (50 Pcs)
Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$47.95 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
19.74
mm (Equiv. 0.777 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
20.65
mm +/- 0.08 (Equiv. 0.813 in.) |
Approx. Loose Circlip OD (Dr)
21.01
mm + 0.64 / - 0.00 |
Radial Wall (S)
1.58
mm +/- 0.08 |
Groove Width (W)
1.17
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 17.85 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0197-LS-O
Internal Retaining Rings - 19.74x1.07x20.65 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
19.74
mm (Equiv. 0.777 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
20.65
mm +/- 0.08 (Equiv. 0.813 in.) |
Approx. Loose Circlip OD (Dr)
21.01
mm + 0.64 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 1.58 mm +/- 0.08
Groove Width (W): 1.17 mm
Clearance in Groove (C1): 17.85 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0197-LS-O
Internal Retaining Rings - 19.74x1.07x20.65 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
