WRI-0190-LS

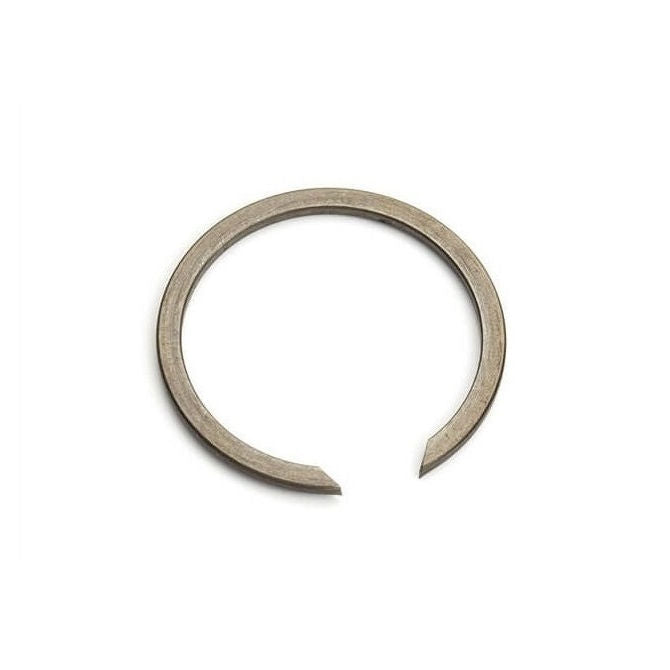

Internal Retaining Rings - 19x1.2x19.6 mm Snap Rings - Carbon Spring Steel Snap Ring
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Snap Rings and Spiral Rings PDF
Base Category: Retaining Rings - Internal
Top Level Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel
Product Details

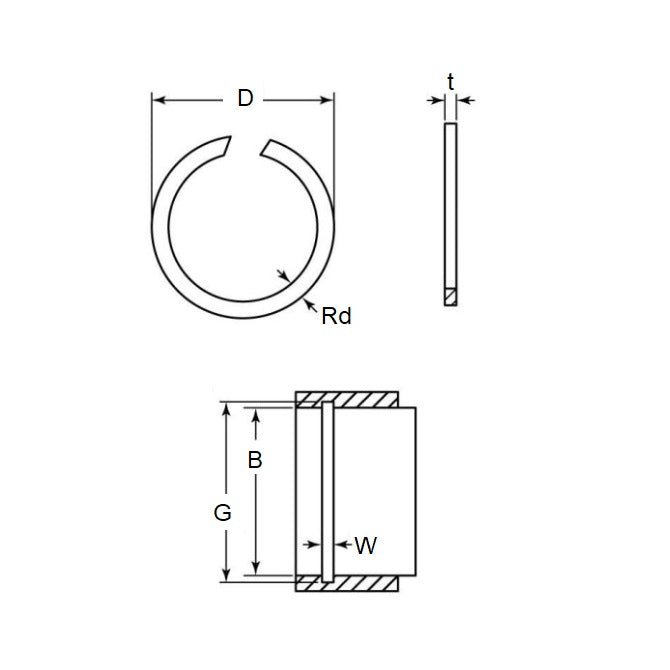

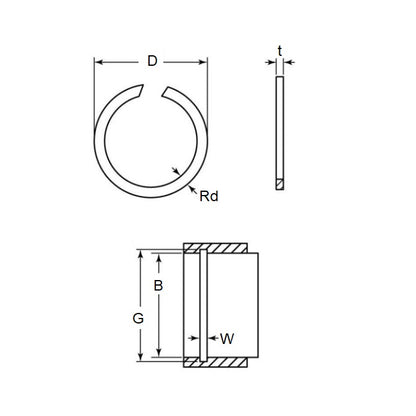

Housing Bore (B): 19.00mm(19.00mm is 0.748 in.)
Carbon Spring Steel
- Clip Thickness (T): 1.20mm
+ 0 / - 0.10
(1.20mm is 0.047 in.)
- Groove Dia. (Dg): 19.60mm
+ 0.13 / - 0.00
(19.60mm is 0.772 in.)
- Approx. Loose Circlip OD (Dr): 19.90mm
- Section (Rd): 1.75mm
+ 0 / - 0.10
- Groove Width (W): 1.30mm
- Approx. Loose Clip ID: 16.4
- Section Profile: Rectangular with Square Edge
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- NoCor DSB-019
- Seeger SB19
- Seeger SB19-BLS
- DSB019
- WRI0190SQ
- SB19BLS
- M23000190APP
- M2300-0190APP
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
