| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) Approx. | Groove Width (W) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
53.98
mm (Equiv. 2.125 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
57.18
mm +/- 0.076 (Equiv. 2.251 in.) |
Approx. Loose Circlip OD (Dr)
59.69
mm |
Groove Width (W)
2.18
mm |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 1056 |
||||||
|
Part Number: CCI-05398-C-V (3 Pcs)
Internal Retaining Rings - 53.98x1.98x57.18 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 19, 2025 Regular price
$11.95 AUD
Regular price
Unit price
per
3 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
53.98
mm (Equiv. 2.125 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
57.18
mm +/- 0.076 (Equiv. 2.251 in.) |
Approx. Loose Circlip OD (Dr)
59.69
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.18 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 1056 |
||||||
|
Part Number: CCI-05398-C-V (3 Pcs)
Internal Retaining Rings - 53.98x1.98x57.18 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 19, 2025 Regular price
$11.95 AUD
Regular price
Unit price
per
3 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
53.98
mm (Equiv. 2.125 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
57.18
mm + 0.00 / - 0.07 (Equiv. 2.251 in.) |
Approx. Loose Circlip OD (Dr)
59.69
mm + 1.02 / - 0.76 |
Groove Width (W)
2.18
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 41.91 mm
Clearance in Groove (C1): 45.21 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 7395 |
||||||
|
Part Number: CCI-05398-C (2 Pcs)
Internal Retaining Rings - 53.98x1.98x57.18 mm Circlips - Carbon Steel Circlip 33 units (66 pcs) Available Now | Further orders can be expected around Wed, Nov 19, 2025 Regular price
$5.32 AUD
Regular price
Unit price
per
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
53.98
mm (Equiv. 2.125 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
57.18
mm + 0.00 / - 0.07 (Equiv. 2.251 in.) |
Approx. Loose Circlip OD (Dr)
59.69
mm + 1.02 / - 0.76 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.18 mm + 0.13 / - 0.00
Clearance in Bore (C): 41.91 mm
Clearance in Groove (C1): 45.21 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 7395 |
||||||
|
Part Number: CCI-05398-C (2 Pcs)
Internal Retaining Rings - 53.98x1.98x57.18 mm Circlips - Carbon Steel Circlip 33 units (66 pcs) Available Now | Further orders can be expected around Wed, Nov 19, 2025 Regular price
$5.32 AUD
Regular price
Unit price
per
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
54.00
mm (Equiv. 2.126 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
57.00
mm + 0.00 / - 0.07 (Equiv. 2.244 in.) |
Approx. Loose Circlip OD (Dr)
58.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 519 |
||||||
|
Part Number: CCI-05400-C (250 Pcs)
Internal Retaining Rings - 54x2x57 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 19, 2025 Regular price
$325.68 AUD
Regular price
Unit price
per
250 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
54.00
mm (Equiv. 2.126 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
57.00
mm + 0.00 / - 0.07 (Equiv. 2.244 in.) |
Approx. Loose Circlip OD (Dr)
58.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.15 mm + 0.13 / - 0.00
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 519 |
||||||
|
Part Number: CCI-05400-C (250 Pcs)
Internal Retaining Rings - 54x2x57 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 19, 2025 Regular price
$325.68 AUD
Regular price
Unit price
per
250 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
54.00
mm (Equiv. 2.126 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
57.00
mm + 0.00 / - 0.07 (Equiv. 2.244 in.) |
Approx. Loose Circlip OD (Dr)
58.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05400-S15
Internal Retaining Rings - 54x2x57 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
54.00
mm (Equiv. 2.126 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
57.00
mm + 0.00 / - 0.07 (Equiv. 2.244 in.) |
Approx. Loose Circlip OD (Dr)
58.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.15 mm + 0.13 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05400-S15
Internal Retaining Rings - 54x2x57 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jul 17, 2028 |
||||||
|
Housing Bore (B)
54.99
mm (Equiv. 2.165 in.) |
Clip Thickness (T)
1.91
mm + 0.15 / - 0.00 (Equiv. 0.075 in.) |
Groove Dia. (Dg)
59.11
mm +/- 0.08 (Equiv. 2.327 in.) |
Approx. Loose Circlip OD (Dr)
60.58
mm + 1.78 / - 0.00 |
Groove Width (W)
1.63
mm + 0.04 / - 0.00 |
|
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-05499-C
Internal Retaining Rings - 54.99x1.91x59.11 mm Circlips - Carbon Spring Steel Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
54.99
mm (Equiv. 2.165 in.) |
Clip Thickness (T)
1.91
mm + 0.15 / - 0.00 (Equiv. 0.075 in.) |
Groove Dia. (Dg)
59.11
mm +/- 0.08 (Equiv. 2.327 in.) |
Approx. Loose Circlip OD (Dr)
60.58
mm + 1.78 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Groove Width (W): 1.63 mm + 0.04 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-05499-C
Internal Retaining Rings - 54.99x1.91x59.11 mm Circlips - Carbon Spring Steel Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jul 17, 2028 |
||||||
|
Housing Bore (B)
54.99
mm (Equiv. 2.165 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
58.29
mm +/- 0.15 (Equiv. 2.295 in.) |
Approx. Loose Circlip OD (Dr)
59.39
mm + 1.80 / - 0.00 |
Radial Wall (S) Approx.
4.34
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 50.71 mm

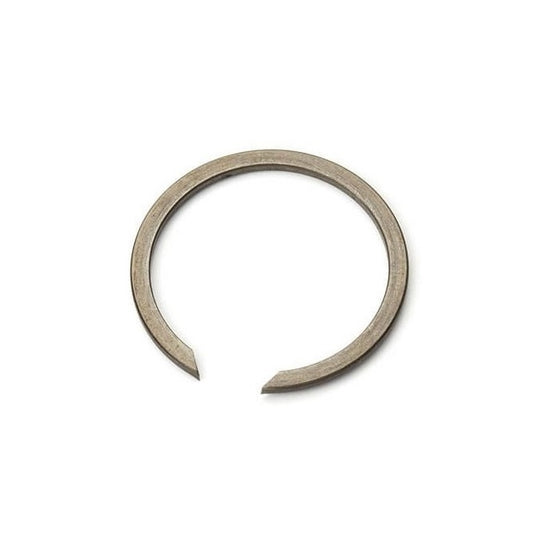

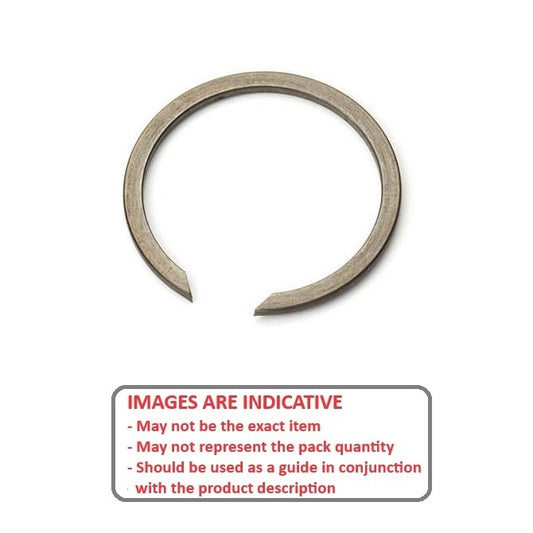

Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0550-LS-N
Internal Retaining Rings - 54.99x1.98x58.29 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
54.99
mm (Equiv. 2.165 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
58.29
mm +/- 0.15 (Equiv. 2.295 in.) |
Approx. Loose Circlip OD (Dr)
59.39
mm + 1.80 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.34 mm +/- 0.13
Groove Width (W): 2.18 mm
Clearance in Groove (C1): 50.71 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0550-LS-N
Internal Retaining Rings - 54.99x1.98x58.29 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jul 17, 2028 |
||||||
|
Housing Bore (B)
55.00
mm (Equiv. 2.165 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
56.50
mm + 0.19 / - 0.00 (Equiv. 2.224 in.) |
Approx. Loose Circlip OD (Dr)
57.30
mm |
Radial Wall (S) Approx.
2.30
mm + 0 / - 0.10 |
Groove Width (W)
1.60
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 52.7 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0550-LS (5 Pcs)
Internal Retaining Rings - 55x1.5x56.5 mm Snap Rings - Carbon Spring Steel Snap Ring 2 units (10 pcs) Available Now | Further orders can be expected around Sat, Nov 29, 2025 Regular price
$22.68 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
55.00
mm (Equiv. 2.165 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
56.50
mm + 0.19 / - 0.00 (Equiv. 2.224 in.) |
Approx. Loose Circlip OD (Dr)
57.30
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.30 mm + 0 / - 0.10
Groove Width (W): 1.60 mm
Clearance in Groove (C1): 52.7 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0550-LS (5 Pcs)
Internal Retaining Rings - 55x1.5x56.5 mm Snap Rings - Carbon Spring Steel Snap Ring 2 units (10 pcs) Available Now | Further orders can be expected around Sat, Nov 29, 2025 Regular price
$22.68 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
55.00
mm (Equiv. 2.165 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
58.00
mm + 0.00 / - 0.07 (Equiv. 2.283 in.) |
Approx. Loose Circlip OD (Dr)
59.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.65
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05500H-C
Internal Retaining Rings - 55x2.5x58 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
55.00
mm (Equiv. 2.165 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
58.00
mm + 0.00 / - 0.07 (Equiv. 2.283 in.) |
Approx. Loose Circlip OD (Dr)
59.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 2.65 mm + 0.13 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05500H-C
Internal Retaining Rings - 55x2.5x58 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jul 17, 2028 |
||||||
|
Housing Bore (B)
55.00
mm (Equiv. 2.165 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
58.00
mm + 0.00 / - 0.07 (Equiv. 2.283 in.) |
Approx. Loose Circlip OD (Dr)
59.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 40.70 mm
Clearance in Groove (C1): 44.40 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 365 |
||||||
|
Part Number: CCI-05500-S15 (2 Pcs)
Internal Retaining Rings - 55x2x58 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 19, 2025 Regular price
$15.41 AUD
Regular price
Unit price
per
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
55.00
mm (Equiv. 2.165 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
58.00
mm + 0.00 / - 0.07 (Equiv. 2.283 in.) |
Approx. Loose Circlip OD (Dr)
59.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 40.70 mm
Clearance in Groove (C1): 44.40 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 365 |
||||||
|
Part Number: CCI-05500-S15 (2 Pcs)
Internal Retaining Rings - 55x2x58 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 19, 2025 Regular price
$15.41 AUD
Regular price
Unit price
per
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
55.00
mm (Equiv. 2.165 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
58.00
mm + 0.00 / - 0.07 (Equiv. 2.283 in.) |
Approx. Loose Circlip OD (Dr)
59.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 40.70 mm
Clearance in Groove (C1): 44.40 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 1173 |
||||||
|
Part Number: CCI-05500-C (5 Pcs)
Internal Retaining Rings - 55x2x58 mm Circlips - Carbon Steel Circlip 41 units (205 pcs) Available Now | Further orders can be expected around Wed, Nov 19, 2025 Regular price
$9.86 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
55.00
mm (Equiv. 2.165 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
58.00
mm + 0.00 / - 0.07 (Equiv. 2.283 in.) |
Approx. Loose Circlip OD (Dr)
59.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 40.70 mm
Clearance in Groove (C1): 44.40 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 1173 |
||||||
|
Part Number: CCI-05500-C (5 Pcs)
Internal Retaining Rings - 55x2x58 mm Circlips - Carbon Steel Circlip 41 units (205 pcs) Available Now | Further orders can be expected around Wed, Nov 19, 2025 Regular price
$9.86 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
55.00
mm (Equiv. 2.165 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
58.00
mm + 0.00 / - 0.07 (Equiv. 2.283 in.) |
Approx. Loose Circlip OD (Dr)
59.20
mm + 1.10 / - 0.46 |
Radial Wall (S) Approx.
5.0 - 5.2
mm |
Groove Width (W)
2.15
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05500-C-V
Internal Retaining Rings - 55x2x58 mm Circlips - Carbon Spring Steel Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
55.00
mm (Equiv. 2.165 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
58.00
mm + 0.00 / - 0.07 (Equiv. 2.283 in.) |
Approx. Loose Circlip OD (Dr)
59.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 5.0 - 5.2 mm
Groove Width (W): 2.15 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05500-C-V
Internal Retaining Rings - 55x2x58 mm Circlips - Carbon Spring Steel Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jul 17, 2028 |
||||||
|
Housing Bore (B)
55.00
mm (Equiv. 2.165 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
58.30
mm + 0.00 / - 0.07 (Equiv. 2.295 in.) |
Approx. Loose Circlip OD (Dr)
58.76 - 60.30
mm |
Radial Wall (S) Approx.
5.10
mm |
Groove Width (W)
2.15
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-055
Internal Retaining Rings - 55x2x58.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
55.00
mm (Equiv. 2.165 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
58.30
mm + 0.00 / - 0.07 (Equiv. 2.295 in.) |
Approx. Loose Circlip OD (Dr)
58.76 - 60.30
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 5.10 mm
Groove Width (W): 2.15 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-055
Internal Retaining Rings - 55x2x58.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jul 17, 2028 |
||||||
|

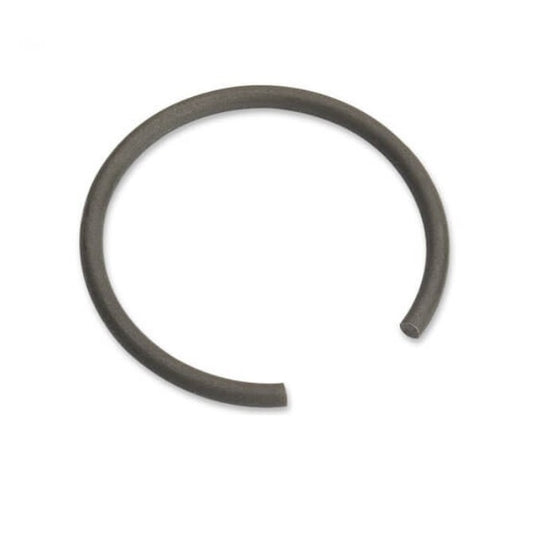

Housing Bore (B)
55.00
mm (Equiv. 2.165 in.) |
Clip Thickness (T)
3.2
mm B DIN 2076 (Equiv. 0.126 in.) |
Groove Dia. (Dg)
58.20
mm + 0.8 / - 0.0 (Equiv. 2.291 in.) |
Approx. Loose Circlip OD (Dr)
58.90
mm |
Groove Width (W)
3.60
mm |
|
|
|
Material: Carbon Spring Steel
Clearance in Bore (C): 52.5 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0550-RD
Internal Retaining Rings - 55x3.2x58.2 mm Round Wire - Carbon Spring Steel Wire Clip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
55.00
mm (Equiv. 2.165 in.) |
Clip Thickness (T)
3.2
mm B DIN 2076 (Equiv. 0.126 in.) |
Groove Dia. (Dg)
58.20
mm + 0.8 / - 0.0 (Equiv. 2.291 in.) |
Approx. Loose Circlip OD (Dr)
58.90
mm |
|
||
|
Material: Carbon Spring Steel
Groove Width (W): 3.60 mm
Clearance in Bore (C): 52.5 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0550-RD
Internal Retaining Rings - 55x3.2x58.2 mm Round Wire - Carbon Spring Steel Wire Clip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jul 17, 2028 |
||||||
|
Housing Bore (B)
55.55
mm (Equiv. 2.187 in.) |
Clip Thickness (T)
1.07
mm +/- 0.06 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
57.84
mm +/- 0.15 (Equiv. 2.277 in.) |
Approx. Loose Circlip OD (Dr)
58.47
mm + 1.58 / - 0.00 |
Radial Wall (S) Approx.
3.96
mm +/- 0.13 |
Groove Width (W)
1.17
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 50.55 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0556-LS-O
Internal Retaining Rings - 55.55x1.07x57.84 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
55.55
mm (Equiv. 2.187 in.) |
Clip Thickness (T)
1.07
mm +/- 0.06 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
57.84
mm +/- 0.15 (Equiv. 2.277 in.) |
Approx. Loose Circlip OD (Dr)
58.47
mm + 1.58 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 3.96 mm +/- 0.13
Groove Width (W): 1.17 mm
Clearance in Groove (C1): 50.55 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0556-LS-O
Internal Retaining Rings - 55.55x1.07x57.84 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jul 17, 2028 |
||||||
|
Housing Bore (B)
55.55
mm (Equiv. 2.187 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
57.48
mm (Equiv. 2.263 in.) |
Approx. Loose Circlip OD (Dr)
58.22
mm + 0.64 / - 0.00 |
Radial Wall (S) Approx.
4.01
mm + 0.08 / - 0.13 |
Groove Width (W)
1.00
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 50.2 mm + 0.07 / - 0.00
Category: Retaining Rings - Internal - Spiral Rings Deleted Item. Available while stocks last. |
||||||
|
Part Number: UR-218 (5 Pcs)
Internal Retaining Rings - 55.55x0.79x57.48 mm Spiral Rings - Carbon Spring Steel Spiral Ring 9 units (45 pcs) Available Now | Item Discontinued - Up to 9 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$10.00 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
55.55
mm (Equiv. 2.187 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
57.48
mm (Equiv. 2.263 in.) |
Approx. Loose Circlip OD (Dr)
58.22
mm + 0.64 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.01 mm + 0.08 / - 0.13
Groove Width (W): 1.00 mm +/- 0.15
Clearance in Groove (C1): 50.2 mm + 0.07 / - 0.00
Category: Retaining Rings - Internal - Spiral Rings Deleted Item. Available while stocks last. |
||||||
|
Part Number: UR-218 (5 Pcs)
Internal Retaining Rings - 55.55x0.79x57.48 mm Spiral Rings - Carbon Spring Steel Spiral Ring 9 units (45 pcs) Available Now | Item Discontinued - Up to 9 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$10.00 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
55.58
mm (Equiv. 2.188 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
58.32
mm +/- 0.15 (Equiv. 2.296 in.) |
Approx. Loose Circlip OD (Dr)
59.21
mm + 1.20 / - 0.00 |
Radial Wall (S) Approx.
4.34
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 50.53 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0556-LS-HO
Internal Retaining Rings - 55.58x1.98x58.32 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
55.58
mm (Equiv. 2.188 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
58.32
mm +/- 0.15 (Equiv. 2.296 in.) |
Approx. Loose Circlip OD (Dr)
59.21
mm + 1.20 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.34 mm +/- 0.13
Groove Width (W): 2.18 mm
Clearance in Groove (C1): 50.53 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0556-LS-HO
Internal Retaining Rings - 55.58x1.98x58.32 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jul 17, 2028 |
||||||
|
Housing Bore (B)
55.58
mm (Equiv. 2.188 in.) |
Clip Thickness (T)
1.91
mm + 0.15 / - 0.00 (Equiv. 0.075 in.) |
Groove Dia. (Dg)
59.69
mm +/- 0.08 (Equiv. 2.35 in.) |
Approx. Loose Circlip OD (Dr)
60.58
mm + 1.78 / - 0.00 |
Groove Width (W)
1.63
mm + 0.04 / - 0.00 |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 590 |
||||||
|
Part Number: CIB-05558-C (3 Pcs)
Internal Retaining Rings - 55.58x1.91x59.69 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 19, 2025 Regular price
$8.59 AUD
Regular price
Unit price
per
3 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
55.58
mm (Equiv. 2.188 in.) |
Clip Thickness (T)
1.91
mm + 0.15 / - 0.00 (Equiv. 0.075 in.) |
Groove Dia. (Dg)
59.69
mm +/- 0.08 (Equiv. 2.35 in.) |
Approx. Loose Circlip OD (Dr)
60.58
mm + 1.78 / - 0.00 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.63 mm + 0.04 / - 0.00
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 590 |
||||||
|
Part Number: CIB-05558-C (3 Pcs)
Internal Retaining Rings - 55.58x1.91x59.69 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 19, 2025 Regular price
$8.59 AUD
Regular price
Unit price
per
3 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
55.58
mm (Equiv. 2.188 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
58.88
mm +/- 0.15 (Equiv. 2.318 in.) |
Approx. Loose Circlip OD (Dr)
59.39
mm + 1.80 / - 0.00 |
Radial Wall (S) Approx.
4.34
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 50.71 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0556-LS-N
Internal Retaining Rings - 55.58x1.98x58.88 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
55.58
mm (Equiv. 2.188 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
58.88
mm +/- 0.15 (Equiv. 2.318 in.) |
Approx. Loose Circlip OD (Dr)
59.39
mm + 1.80 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.34 mm +/- 0.13
Groove Width (W): 2.18 mm
Clearance in Groove (C1): 50.71 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0556-LS-N
Internal Retaining Rings - 55.58x1.98x58.88 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jul 17, 2028 |
||||||
|
Housing Bore (B)
55.58
mm (Equiv. 2.188 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
58.88
mm + 0.00 / - 0.07 (Equiv. 2.318 in.) |
Approx. Loose Circlip OD (Dr)
61.34
mm + 1.02 / - 0.76 |
Groove Width (W)
2.18
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 43.43 mm
Clearance in Groove (C1): 46.74 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 239 |
||||||
|
Part Number: CCI-05558-S15
Internal Retaining Rings - 55.58x1.98x58.88 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 19, 2025 Regular price
$25.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
55.58
mm (Equiv. 2.188 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
58.88
mm + 0.00 / - 0.07 (Equiv. 2.318 in.) |
Approx. Loose Circlip OD (Dr)
61.34
mm + 1.02 / - 0.76 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.18 mm + 0.13 / - 0.00
Clearance in Bore (C): 43.43 mm
Clearance in Groove (C1): 46.74 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 239 |
||||||
|
Part Number: CCI-05558-S15
Internal Retaining Rings - 55.58x1.98x58.88 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 19, 2025 Regular price
$25.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
55.58
mm (Equiv. 2.188 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
58.88
mm + 0.00 / - 0.07 (Equiv. 2.318 in.) |
Approx. Loose Circlip OD (Dr)
61.34
mm + 1.02 / - 0.76 |
Groove Width (W)
2.18
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 43.43 mm
Clearance in Groove (C1): 46.74 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 1473 |
||||||
|
Part Number: CCI-05558-C (5 Pcs)
Internal Retaining Rings - 55.58x1.98x58.88 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 19, 2025 Regular price
$10.05 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
55.58
mm (Equiv. 2.188 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
58.88
mm + 0.00 / - 0.07 (Equiv. 2.318 in.) |
Approx. Loose Circlip OD (Dr)
61.34
mm + 1.02 / - 0.76 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.18 mm + 0.13 / - 0.00
Clearance in Bore (C): 43.43 mm
Clearance in Groove (C1): 46.74 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 1473 |
||||||
|
Part Number: CCI-05558-C (5 Pcs)
Internal Retaining Rings - 55.58x1.98x58.88 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 19, 2025 Regular price
$10.05 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
56.00
mm (Equiv. 2.205 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
59.00
mm + 0.00 / - 0.07 (Equiv. 2.323 in.) |
Approx. Loose Circlip OD (Dr)
60.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 41.70 mm
Clearance in Groove (C1): 45.40 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 381 |
||||||
|
Part Number: CCI-05600-C (5 Pcs)
Internal Retaining Rings - 56x2x59 mm Circlips - Carbon Steel Circlip 6 units (30 pcs) Available Now | Further orders can be expected around Wed, Nov 19, 2025 Regular price
$5.41 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
56.00
mm (Equiv. 2.205 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
59.00
mm + 0.00 / - 0.07 (Equiv. 2.323 in.) |
Approx. Loose Circlip OD (Dr)
60.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 41.70 mm
Clearance in Groove (C1): 45.40 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 381 |
||||||
|
Part Number: CCI-05600-C (5 Pcs)
Internal Retaining Rings - 56x2x59 mm Circlips - Carbon Steel Circlip 6 units (30 pcs) Available Now | Further orders can be expected around Wed, Nov 19, 2025 Regular price
$5.41 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
56.00
mm (Equiv. 2.205 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
59.00
mm + 0.00 / - 0.07 (Equiv. 2.323 in.) |
Approx. Loose Circlip OD (Dr)
60.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 41.70 mm
Clearance in Groove (C1): 45.40 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05600-S15
Internal Retaining Rings - 56x2x59 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
56.00
mm (Equiv. 2.205 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
59.00
mm + 0.00 / - 0.07 (Equiv. 2.323 in.) |
Approx. Loose Circlip OD (Dr)
60.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 41.70 mm
Clearance in Groove (C1): 45.40 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05600-S15
Internal Retaining Rings - 56x2x59 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jul 17, 2028 |
||||||
|
Housing Bore (B)
57.00
mm (Equiv. 2.244 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
58.50
mm + 0.19 / - 0.00 (Equiv. 2.303 in.) |
Approx. Loose Circlip OD (Dr)
59.30
mm |
Radial Wall (S) Approx.
2.30
mm + 0 / - 0.10 |
Groove Width (W)
1.60
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 54.7 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0570-LS
Internal Retaining Rings - 57x1.5x58.5 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
57.00
mm (Equiv. 2.244 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
58.50
mm + 0.19 / - 0.00 (Equiv. 2.303 in.) |
Approx. Loose Circlip OD (Dr)
59.30
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.30 mm + 0 / - 0.10
Groove Width (W): 1.60 mm
Clearance in Groove (C1): 54.7 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0570-LS
Internal Retaining Rings - 57x1.5x58.5 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jul 17, 2028 |
||||||
|
Housing Bore (B)
57.00
mm (Equiv. 2.244 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
60.00
mm + 0.00 / - 0.07 (Equiv. 2.362 in.) |
Approx. Loose Circlip OD (Dr)
61.20
mm + 1.10 / - 0.46 |
Radial Wall (S) Approx.
5.0 - 5.2
mm |
Groove Width (W)
2.15
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05700-C-V
Internal Retaining Rings - 57x2x60 mm Circlips - Carbon Spring Steel Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
57.00
mm (Equiv. 2.244 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
60.00
mm + 0.00 / - 0.07 (Equiv. 2.362 in.) |
Approx. Loose Circlip OD (Dr)
61.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 5.0 - 5.2 mm
Groove Width (W): 2.15 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05700-C-V
Internal Retaining Rings - 57x2x60 mm Circlips - Carbon Spring Steel Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jul 17, 2028 |
||||||
