| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) | Groove Width (W) |

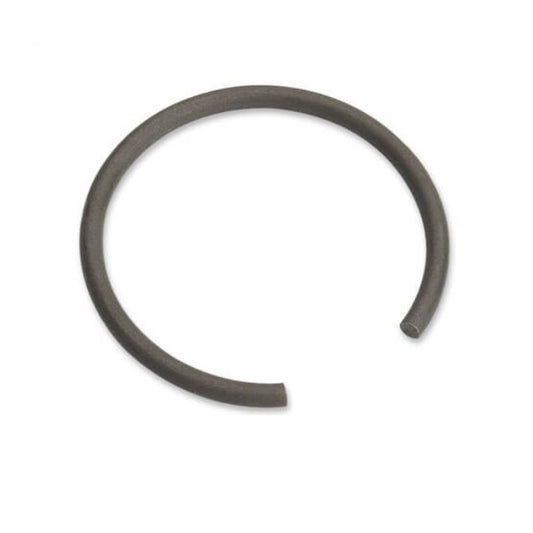

Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
58.73
mm (Equiv. 2.312 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
62.23
mm +/- 0.15 (Equiv. 2.45 in.) |
Approx. Loose Circlip OD (Dr)
62.74
mm + 1.80 / - 0.00 |
Radial Wall (S)
4.34
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 54.06 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0587-LS-N
Internal Retaining Rings - 58.73x1.98x62.23 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
58.73
mm (Equiv. 2.312 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
62.23
mm +/- 0.15 (Equiv. 2.45 in.) |
Approx. Loose Circlip OD (Dr)
62.74
mm + 1.80 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 4.34 mm +/- 0.13
Groove Width (W): 2.18 mm
Clearance in Groove (C1): 54.06 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0587-LS-N
Internal Retaining Rings - 58.73x1.98x62.23 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
58.73
mm (Equiv. 2.312 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
61.57
mm +/- 0.15 (Equiv. 2.424 in.) |
Approx. Loose Circlip OD (Dr)
62.46
mm + 1.20 / - 0.00 |
Radial Wall (S)
4.34
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 53.78 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0587-LS-HO
Internal Retaining Rings - 58.73x1.98x61.57 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
58.73
mm (Equiv. 2.312 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
61.57
mm +/- 0.15 (Equiv. 2.424 in.) |
Approx. Loose Circlip OD (Dr)
62.46
mm + 1.20 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 4.34 mm +/- 0.13
Groove Width (W): 2.18 mm
Clearance in Groove (C1): 53.78 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0587-LS-HO
Internal Retaining Rings - 58.73x1.98x61.57 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
58.74
mm (Equiv. 2.313 in.) |
Clip Thickness (T)
1.91
mm + 0.15 / - 0.00 (Equiv. 0.075 in.) |
Groove Dia. (Dg)
63.01
mm +/- 0.08 (Equiv. 2.481 in.) |
Approx. Loose Circlip OD (Dr)
63.63
mm + 1.78 / - 0.00 |
Radial Wall (S)
2.54 - 5.23
mm |
Groove Width (W)
1.60
mm + 0.04 / - 0.00 |
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-05874-C (3 Pcs)
Internal Retaining Rings - 58.74x1.91x63.01 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$8.50 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
Housing Bore (B)
58.74
mm (Equiv. 2.313 in.) |
Clip Thickness (T)
1.91
mm + 0.15 / - 0.00 (Equiv. 0.075 in.) |
Groove Dia. (Dg)
63.01
mm +/- 0.08 (Equiv. 2.481 in.) |
Approx. Loose Circlip OD (Dr)
63.63
mm + 1.78 / - 0.00 |
|
||
|
Material: Carbon Steel
Radial Wall (S): 2.54 - 5.23 mm
Groove Width (W): 1.60 mm + 0.04 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-05874-C (3 Pcs)
Internal Retaining Rings - 58.74x1.91x63.01 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$8.50 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
||||||
|
Housing Bore (B)
58.74
mm (Equiv. 2.313 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
62.23
mm + 0.00 / - 0.07 (Equiv. 2.45 in.) |
Approx. Loose Circlip OD (Dr)
65.02
mm + 1.02 / - 0.76 |
Groove Width (W)
2.18
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 46.74 mm
Clearance in Groove (C1): 50.29 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05874-C (5 Pcs)
Internal Retaining Rings - 58.74x1.98x62.23 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$10.41 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
58.74
mm (Equiv. 2.313 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
62.23
mm + 0.00 / - 0.07 (Equiv. 2.45 in.) |
Approx. Loose Circlip OD (Dr)
65.02
mm + 1.02 / - 0.76 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.18 mm + 0.13 / - 0.00
Clearance in Bore (C): 46.74 mm
Clearance in Groove (C1): 50.29 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05874-C (5 Pcs)
Internal Retaining Rings - 58.74x1.98x62.23 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$10.41 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
58.74
mm (Equiv. 2.313 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
62.23
mm + 0.00 / - 0.07 (Equiv. 2.45 in.) |
Approx. Loose Circlip OD (Dr)
65.02
mm + 1.02 / - 0.76 |
Groove Width (W)
2.18
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 46.74 mm
Clearance in Groove (C1): 50.29 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05874-S15
Internal Retaining Rings - 58.74x1.98x62.23 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Dec 26, 2025 Regular price
$24.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
58.74
mm (Equiv. 2.313 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
62.23
mm + 0.00 / - 0.07 (Equiv. 2.45 in.) |
Approx. Loose Circlip OD (Dr)
65.02
mm + 1.02 / - 0.76 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.18 mm + 0.13 / - 0.00
Clearance in Bore (C): 46.74 mm
Clearance in Groove (C1): 50.29 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05874-S15
Internal Retaining Rings - 58.74x1.98x62.23 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Dec 26, 2025 Regular price
$24.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
58.74
mm (Equiv. 2.313 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
62.23
mm + 0.00 / - 0.07 (Equiv. 2.45 in.) |
Approx. Loose Circlip OD (Dr)
65.02
mm + 1.02 / - 0.76 |
Groove Width (W)
2.18
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 46.74 mm
Clearance in Groove (C1): 50.29 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05874-CZY (5 Pcs)
Internal Retaining Rings - 58.74x1.98x62.23 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$21.14 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
58.74
mm (Equiv. 2.313 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
62.23
mm + 0.00 / - 0.07 (Equiv. 2.45 in.) |
Approx. Loose Circlip OD (Dr)
65.02
mm + 1.02 / - 0.76 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 2.18 mm + 0.13 / - 0.00
Clearance in Bore (C): 46.74 mm
Clearance in Groove (C1): 50.29 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05874-CZY (5 Pcs)
Internal Retaining Rings - 58.74x1.98x62.23 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$21.14 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
60.00
mm (Equiv. 2.362 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
61.50
mm + 0.19 / - 0.00 (Equiv. 2.421 in.) |
Approx. Loose Circlip OD (Dr)
62.30
mm |
Radial Wall (S)
2.30
mm + 0 / - 0.10 |
Groove Width (W)
1.60
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 57.7 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0600-LS
Internal Retaining Rings - 60x1.5x61.5 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
60.00
mm (Equiv. 2.362 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
61.50
mm + 0.19 / - 0.00 (Equiv. 2.421 in.) |
Approx. Loose Circlip OD (Dr)
62.30
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 2.30 mm + 0 / - 0.10
Groove Width (W): 1.60 mm
Clearance in Groove (C1): 57.7 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0600-LS
Internal Retaining Rings - 60x1.5x61.5 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
60.00
mm (Equiv. 2.362 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
63.00
mm + 0.00 / - 0.07 (Equiv. 2.48 in.) |
Approx. Loose Circlip OD (Dr)
64.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 44.70 mm
Clearance in Groove (C1): 48.40 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06000-S15
Internal Retaining Rings - 60x2x63 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$8.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
60.00
mm (Equiv. 2.362 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
63.00
mm + 0.00 / - 0.07 (Equiv. 2.48 in.) |
Approx. Loose Circlip OD (Dr)
64.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 44.70 mm
Clearance in Groove (C1): 48.40 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06000-S15
Internal Retaining Rings - 60x2x63 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$8.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
60.00
mm (Equiv. 2.362 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
63.00
mm + 0.00 / - 0.07 (Equiv. 2.48 in.) |
Approx. Loose Circlip OD (Dr)
64.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 44.70 mm
Clearance in Groove (C1): 48.40 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06000-C (2 Pcs)
Internal Retaining Rings - 60x2x63 mm Circlips - Carbon Steel Circlip 150 units (300 pcs) Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$2.59 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
60.00
mm (Equiv. 2.362 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
63.00
mm + 0.00 / - 0.07 (Equiv. 2.48 in.) |
Approx. Loose Circlip OD (Dr)
64.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 44.70 mm
Clearance in Groove (C1): 48.40 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06000-C (2 Pcs)
Internal Retaining Rings - 60x2x63 mm Circlips - Carbon Steel Circlip 150 units (300 pcs) Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$2.59 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
60.00
mm (Equiv. 2.362 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
63.00
mm + 0.00 / - 0.07 (Equiv. 2.48 in.) |
Approx. Loose Circlip OD (Dr)
64.20
mm + 1.10 / - 0.46 |
Radial Wall (S)
5.0 - 5.2
mm |
Groove Width (W)
2.15
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06000-C-V (50 Pcs)
Internal Retaining Rings - 60x2x63 mm Circlips - Carbon Spring Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025 Regular price
$337.32 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
60.00
mm (Equiv. 2.362 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
63.00
mm + 0.00 / - 0.07 (Equiv. 2.48 in.) |
Approx. Loose Circlip OD (Dr)
64.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 5.0 - 5.2 mm
Groove Width (W): 2.15 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06000-C-V (50 Pcs)
Internal Retaining Rings - 60x2x63 mm Circlips - Carbon Spring Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025 Regular price
$337.32 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
60.00
mm (Equiv. 2.362 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
63.30
mm + 0.00 / - 0.07 (Equiv. 2.492 in.) |
Approx. Loose Circlip OD (Dr)
63.76 - 65.30
mm |
Radial Wall (S)
5.50
mm |
Groove Width (W)
2.15
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-060
Internal Retaining Rings - 60x2x63.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
60.00
mm (Equiv. 2.362 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
63.30
mm + 0.00 / - 0.07 (Equiv. 2.492 in.) |
Approx. Loose Circlip OD (Dr)
63.76 - 65.30
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 5.50 mm
Groove Width (W): 2.15 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-060
Internal Retaining Rings - 60x2x63.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
60.00
mm (Equiv. 2.362 in.) |
Clip Thickness (T)
3.00
mm + 0.30 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
63.00
mm + 0.00 / - 0.08 (Equiv. 2.48 in.) |
Approx. Loose Circlip OD (Dr)
64.20
mm + 1.10 / - 0.46 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06000H-C (250 Pcs)
Internal Retaining Rings - 60x3x63 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025 Regular price
$631.86 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
Housing Bore (B)
60.00
mm (Equiv. 2.362 in.) |
Clip Thickness (T)
3.00
mm + 0.30 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
63.00
mm + 0.00 / - 0.08 (Equiv. 2.48 in.) |
Approx. Loose Circlip OD (Dr)
64.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.15 mm + 0.13 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06000H-C (250 Pcs)
Internal Retaining Rings - 60x3x63 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025 Regular price
$631.86 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
||||||
|
Housing Bore (B)
60.00
mm (Equiv. 2.362 in.) |
Clip Thickness (T)
3.2
mm B DIN 2076 (Equiv. 0.126 in.) |
Groove Dia. (Dg)
63.20
mm + 0.8 / - 0.0 (Equiv. 2.488 in.) |
Approx. Loose Circlip OD (Dr)
63.90
mm |
Groove Width (W)
3.60
mm |
|
|
|
Material: Carbon Spring Steel
Clearance in Bore (C): 57.5 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0600-RD
Internal Retaining Rings - 60x3.2x63.2 mm Round Wire - Carbon Spring Steel Wire Clip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
60.00
mm (Equiv. 2.362 in.) |
Clip Thickness (T)
3.2
mm B DIN 2076 (Equiv. 0.126 in.) |
Groove Dia. (Dg)
63.20
mm + 0.8 / - 0.0 (Equiv. 2.488 in.) |
Approx. Loose Circlip OD (Dr)
63.90
mm |
|
||
|
Material: Carbon Spring Steel
Groove Width (W): 3.60 mm
Clearance in Bore (C): 57.5 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0600-RD
Internal Retaining Rings - 60x3.2x63.2 mm Round Wire - Carbon Spring Steel Wire Clip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
60.33
mm (Equiv. 2.375 in.) |
Clip Thickness (T)
1.25
mm +/- 0.08 (Equiv. 0.049 in.) |
Groove Dia. (Dg)
62.30
mm (Equiv. 2.453 in.) |
Approx. Loose Circlip OD (Dr)
62.98
mm + 0.64 / - 0.00 |
Radial Wall (S)
3.51
mm +/- 0.11 |
Groove Width (W)
1.47
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 55.96 mm +/- 0.05
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RR-237
Internal Retaining Rings - 60.33x1.25x62.3 mm Spiral Rings - Carbon Spring Steel Spiral Ring 60 Available Now | Further orders can be expected around Sun, Oct 05, 2025 Regular price
$6.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
60.33
mm (Equiv. 2.375 in.) |
Clip Thickness (T)
1.25
mm +/- 0.08 (Equiv. 0.049 in.) |
Groove Dia. (Dg)
62.30
mm (Equiv. 2.453 in.) |
Approx. Loose Circlip OD (Dr)
62.98
mm + 0.64 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 3.51 mm +/- 0.11
Groove Width (W): 1.47 mm +/- 0.15
Clearance in Groove (C1): 55.96 mm +/- 0.05
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RR-237
Internal Retaining Rings - 60.33x1.25x62.3 mm Spiral Rings - Carbon Spring Steel Spiral Ring 60 Available Now | Further orders can be expected around Sun, Oct 05, 2025 Regular price
$6.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
60.33
mm (Equiv. 2.375 in.) |
Clip Thickness (T)
1.91
mm + 0.15 / - 0.00 (Equiv. 0.075 in.) |
Groove Dia. (Dg)
64.78
mm +/- 0.08 (Equiv. 2.55 in.) |
Approx. Loose Circlip OD (Dr)
66.04
mm + 1.78 / - 0.00 |
Radial Wall (S)
2.59 - 5.26
mm |
Groove Width (W)
1.60
mm + 0.04 / - 0.00 |
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-06033-C (3 Pcs)
Internal Retaining Rings - 60.33x1.91x64.78 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$8.68 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
Housing Bore (B)
60.33
mm (Equiv. 2.375 in.) |
Clip Thickness (T)
1.91
mm + 0.15 / - 0.00 (Equiv. 0.075 in.) |
Groove Dia. (Dg)
64.78
mm +/- 0.08 (Equiv. 2.55 in.) |
Approx. Loose Circlip OD (Dr)
66.04
mm + 1.78 / - 0.00 |
|
||
|
Material: Carbon Steel
Radial Wall (S): 2.59 - 5.26 mm
Groove Width (W): 1.60 mm + 0.04 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-06033-C (3 Pcs)
Internal Retaining Rings - 60.33x1.91x64.78 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$8.68 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
||||||
|
Housing Bore (B)
60.33
mm (Equiv. 2.375 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
63.93
mm +/- 0.15 (Equiv. 2.517 in.) |
Approx. Loose Circlip OD (Dr)
64.44
mm + 1.80 / - 0.00 |
Radial Wall (S)
4.78
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 54.88 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0603-LS-N
Internal Retaining Rings - 60.33x1.98x63.93 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
60.33
mm (Equiv. 2.375 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
63.93
mm +/- 0.15 (Equiv. 2.517 in.) |
Approx. Loose Circlip OD (Dr)
64.44
mm + 1.80 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 4.78 mm +/- 0.13
Groove Width (W): 2.18 mm
Clearance in Groove (C1): 54.88 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0603-LS-N
Internal Retaining Rings - 60.33x1.98x63.93 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
60.33
mm (Equiv. 2.375 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
63.17
mm +/- 0.15 (Equiv. 2.487 in.) |
Approx. Loose Circlip OD (Dr)
64.08
mm + 1.20 / - 0.00 |
Radial Wall (S)
4.34
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 55.4 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0603-LS-O
Internal Retaining Rings - 60.33x1.98x63.17 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
60.33
mm (Equiv. 2.375 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
63.17
mm +/- 0.15 (Equiv. 2.487 in.) |
Approx. Loose Circlip OD (Dr)
64.08
mm + 1.20 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 4.34 mm +/- 0.13
Groove Width (W): 2.18 mm
Clearance in Groove (C1): 55.4 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0603-LS-O
Internal Retaining Rings - 60.33x1.98x63.17 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
60.33
mm (Equiv. 2.375 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
63.93
mm + 0.00 / - 0.07 (Equiv. 2.517 in.) |
Approx. Loose Circlip OD (Dr)
66.80
mm + 1.02 / - 0.76 |
Groove Width (W)
2.18
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 48.26 mm
Clearance in Groove (C1): 51.82 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06033-CZY (4 Pcs)
Internal Retaining Rings - 60.33x1.98x63.93 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$17.41 AUD
Regular price
Unit price
per
Per 4
|
||||||
|
Housing Bore (B)
60.33
mm (Equiv. 2.375 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
63.93
mm + 0.00 / - 0.07 (Equiv. 2.517 in.) |
Approx. Loose Circlip OD (Dr)
66.80
mm + 1.02 / - 0.76 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 2.18 mm + 0.13 / - 0.00
Clearance in Bore (C): 48.26 mm
Clearance in Groove (C1): 51.82 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06033-CZY (4 Pcs)
Internal Retaining Rings - 60.33x1.98x63.93 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$17.41 AUD
Regular price
Unit price
per
Per 4
|
||||||
|
||||||
|
Housing Bore (B)
60.33
mm (Equiv. 2.375 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
63.93
mm + 0.00 / - 0.07 (Equiv. 2.517 in.) |
Approx. Loose Circlip OD (Dr)
66.80
mm + 1.02 / - 0.76 |
Groove Width (W)
2.18
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 48.26 mm
Clearance in Groove (C1): 51.82 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06033-S15
Internal Retaining Rings - 60.33x1.98x63.93 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$27.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
60.33
mm (Equiv. 2.375 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
63.93
mm + 0.00 / - 0.07 (Equiv. 2.517 in.) |
Approx. Loose Circlip OD (Dr)
66.80
mm + 1.02 / - 0.76 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.18 mm + 0.13 / - 0.00
Clearance in Bore (C): 48.26 mm
Clearance in Groove (C1): 51.82 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06033-S15
Internal Retaining Rings - 60.33x1.98x63.93 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$27.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
60.33
mm (Equiv. 2.375 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
63.93
mm + 0.00 / - 0.07 (Equiv. 2.517 in.) |
Approx. Loose Circlip OD (Dr)
66.80
mm + 1.02 / - 0.76 |
Groove Width (W)
2.18
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 48.26 mm
Clearance in Groove (C1): 51.82 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06033-C (2 Pcs)
Internal Retaining Rings - 60.33x1.98x63.93 mm Circlips - Carbon Steel Circlip 23 units (46 pcs) Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$3.59 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
60.33
mm (Equiv. 2.375 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
63.93
mm + 0.00 / - 0.07 (Equiv. 2.517 in.) |
Approx. Loose Circlip OD (Dr)
66.80
mm + 1.02 / - 0.76 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.18 mm + 0.13 / - 0.00
Clearance in Bore (C): 48.26 mm
Clearance in Groove (C1): 51.82 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06033-C (2 Pcs)
Internal Retaining Rings - 60.33x1.98x63.93 mm Circlips - Carbon Steel Circlip 23 units (46 pcs) Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$3.59 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
60.33
mm (Equiv. 2.375 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
63.93
mm +/- 0.076 (Equiv. 2.517 in.) |
Approx. Loose Circlip OD (Dr)
66.80
mm |
Radial Wall (S)
2.92 - 6.17
mm |
Groove Width (W)
2.18
mm |
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06033-C-V
Internal Retaining Rings - 60.33x1.98x63.93 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$12.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
60.33
mm (Equiv. 2.375 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
63.93
mm +/- 0.076 (Equiv. 2.517 in.) |
Approx. Loose Circlip OD (Dr)
66.80
mm |
|
||
|
Material: Carbon Steel
Radial Wall (S): 2.92 - 6.17 mm
Groove Width (W): 2.18 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06033-C-V
Internal Retaining Rings - 60.33x1.98x63.93 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$12.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
60.33
mm (Equiv. 2.375 in.) |
Clip Thickness (T)
1.99
mm +/- 0.08 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
63.63
mm (Equiv. 2.505 in.) |
Approx. Loose Circlip OD (Dr)
64.07
mm + 0.64 / - 0.00 |
Radial Wall (S)
4.78
mm +/- 0.13 |
Groove Width (W)
2.25
mm +/- 0.16 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 54.51 mm +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRT-237 (8 Pcs)
Internal Retaining Rings - 60.33x1.99x63.63 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$10.68 AUD
Regular price
Unit price
per
Per 8
|
||||||
|
Housing Bore (B)
60.33
mm (Equiv. 2.375 in.) |
Clip Thickness (T)
1.99
mm +/- 0.08 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
63.63
mm (Equiv. 2.505 in.) |
Approx. Loose Circlip OD (Dr)
64.07
mm + 0.64 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 4.78 mm +/- 0.13
Groove Width (W): 2.25 mm +/- 0.16
Clearance in Groove (C1): 54.51 mm +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRT-237 (8 Pcs)
Internal Retaining Rings - 60.33x1.99x63.63 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$10.68 AUD
Regular price
Unit price
per
Per 8
|
||||||
|
||||||
|
Housing Bore (B)
61.79
mm (Equiv. 2.433 in.) |
Clip Thickness (T)
1.25
mm +/- 0.08 (Equiv. 0.049 in.) |
Groove Dia. (Dg)
63.98
mm (Equiv. 2.519 in.) |
Approx. Loose Circlip OD (Dr)
64.51
mm + 0.64 / - 0.00 |
Radial Wall (S)
3.76
mm +/- 0.10 |
Groove Width (W)
1.47
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 56.99 mm +/- 0.05
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RR-243 (26 Pcs)
Internal Retaining Rings - 61.79x1.25x63.98 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 05, 2025 Regular price
$439.14 AUD
Regular price
Unit price
per
Per 26
|
||||||
|
Housing Bore (B)
61.79
mm (Equiv. 2.433 in.) |
Clip Thickness (T)
1.25
mm +/- 0.08 (Equiv. 0.049 in.) |
Groove Dia. (Dg)
63.98
mm (Equiv. 2.519 in.) |
Approx. Loose Circlip OD (Dr)
64.51
mm + 0.64 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 3.76 mm +/- 0.10
Groove Width (W): 1.47 mm +/- 0.15
Clearance in Groove (C1): 56.99 mm +/- 0.05
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RR-243 (26 Pcs)
Internal Retaining Rings - 61.79x1.25x63.98 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 05, 2025 Regular price
$439.14 AUD
Regular price
Unit price
per
Per 26
|
||||||
|
||||||
|
Housing Bore (B)
61.90
mm (Equiv. 2.437 in.) |
Clip Thickness (T)
1.07
mm +/- 0.06 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
64.19
mm +/- 0.15 (Equiv. 2.527 in.) |
Approx. Loose Circlip OD (Dr)
64.95
mm + 1.58 / - 0.00 |
Radial Wall (S)
3.96
mm +/- 0.13 |
Groove Width (W)
1.17
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 57.03 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0619-LS-O
Internal Retaining Rings - 61.9x1.07x64.19 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
61.90
mm (Equiv. 2.437 in.) |
Clip Thickness (T)
1.07
mm +/- 0.06 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
64.19
mm +/- 0.15 (Equiv. 2.527 in.) |
Approx. Loose Circlip OD (Dr)
64.95
mm + 1.58 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 3.96 mm +/- 0.13
Groove Width (W): 1.17 mm
Clearance in Groove (C1): 57.03 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0619-LS-O
Internal Retaining Rings - 61.9x1.07x64.19 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
