| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) | Groove Width (W) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
64.00
mm (Equiv. 2.52 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
67.00
mm + 0.00 / - 0.07 (Equiv. 2.638 in.) |
Approx. Loose Circlip OD (Dr)
68.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 48.70 mm
Clearance in Groove (C1): 52.40 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06400-S15
Internal Retaining Rings - 64x2x67 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
64.00
mm (Equiv. 2.52 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
67.00
mm + 0.00 / - 0.07 (Equiv. 2.638 in.) |
Approx. Loose Circlip OD (Dr)
68.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 48.70 mm
Clearance in Groove (C1): 52.40 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06400-S15
Internal Retaining Rings - 64x2x67 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
64.00
mm (Equiv. 2.52 in.) |
Clip Thickness (T)
3.00
mm + 0.30 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
67.00
mm + 0.00 / - 0.08 (Equiv. 2.638 in.) |
Approx. Loose Circlip OD (Dr)
68.20
mm + 1.10 / - 0.46 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06400H-C
Internal Retaining Rings - 64x3x67 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
64.00
mm (Equiv. 2.52 in.) |
Clip Thickness (T)
3.00
mm + 0.30 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
67.00
mm + 0.00 / - 0.08 (Equiv. 2.638 in.) |
Approx. Loose Circlip OD (Dr)
68.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 3.15 mm + 0.13 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06400H-C
Internal Retaining Rings - 64x3x67 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
64.29
mm (Equiv. 2.531 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
68.10
mm +/- 0.15 (Equiv. 2.681 in.) |
Approx. Loose Circlip OD (Dr)
68.73
mm + 2.05 / - 0.00 |
Radial Wall (S)
4.78
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 59.17 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0643-LS-N
Internal Retaining Rings - 64.29x1.98x68.1 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
64.29
mm (Equiv. 2.531 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
68.10
mm +/- 0.15 (Equiv. 2.681 in.) |
Approx. Loose Circlip OD (Dr)
68.73
mm + 2.05 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 4.78 mm +/- 0.13
Groove Width (W): 2.18 mm
Clearance in Groove (C1): 59.17 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0643-LS-N
Internal Retaining Rings - 64.29x1.98x68.1 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
64.29
mm (Equiv. 2.531 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
67.34
mm +/- 0.15 (Equiv. 2.651 in.) |
Approx. Loose Circlip OD (Dr)
68.28
mm + 1.20 / - 0.00 |
Radial Wall (S)
4.75
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 58.78 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0643-LS-O
Internal Retaining Rings - 64.29x1.98x67.34 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
64.29
mm (Equiv. 2.531 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
67.34
mm +/- 0.15 (Equiv. 2.651 in.) |
Approx. Loose Circlip OD (Dr)
68.28
mm + 1.20 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 4.75 mm +/- 0.13
Groove Width (W): 2.18 mm
Clearance in Groove (C1): 58.78 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0643-LS-O
Internal Retaining Rings - 64.29x1.98x67.34 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
65.00
mm (Equiv. 2.559 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
66.50
mm + 0.19 / - 0.00 (Equiv. 2.618 in.) |
Approx. Loose Circlip OD (Dr)
67.30
mm |
Radial Wall (S)
2.30
mm + 0 / - 0.10 |
Groove Width (W)
1.60
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 62.7 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0650-LS
Internal Retaining Rings - 65x1.5x66.5 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025 Regular price
$10.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
65.00
mm (Equiv. 2.559 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
66.50
mm + 0.19 / - 0.00 (Equiv. 2.618 in.) |
Approx. Loose Circlip OD (Dr)
67.30
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 2.30 mm + 0 / - 0.10
Groove Width (W): 1.60 mm
Clearance in Groove (C1): 62.7 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0650-LS
Internal Retaining Rings - 65x1.5x66.5 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025 Regular price
$10.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
65.00
mm (Equiv. 2.559 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
68.00
mm + 0.00 / - 0.07 (Equiv. 2.677 in.) |
Approx. Loose Circlip OD (Dr)
69.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.65
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 49.00 mm
Clearance in Groove (C1): 52.80 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06500-C (2 Pcs)
Internal Retaining Rings - 65x2.5x68 mm Circlips - Carbon Steel Circlip 97 units (194 pcs) Available Now | Further orders can be expected around Wed, Sep 24, 2025 Regular price
$7.05 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
65.00
mm (Equiv. 2.559 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
68.00
mm + 0.00 / - 0.07 (Equiv. 2.677 in.) |
Approx. Loose Circlip OD (Dr)
69.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.65 mm + 0.13 / - 0.00
Clearance in Bore (C): 49.00 mm
Clearance in Groove (C1): 52.80 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06500-C (2 Pcs)
Internal Retaining Rings - 65x2.5x68 mm Circlips - Carbon Steel Circlip 97 units (194 pcs) Available Now | Further orders can be expected around Wed, Sep 24, 2025 Regular price
$7.05 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
65.00
mm (Equiv. 2.559 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
68.00
mm + 0.00 / - 0.07 (Equiv. 2.677 in.) |
Approx. Loose Circlip OD (Dr)
69.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.65
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 49.00 mm
Clearance in Groove (C1): 52.80 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06500-S15
Internal Retaining Rings - 65x2.5x68 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 5 Available Now | Further orders can be expected around Wed, Sep 24, 2025 Regular price
$21.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
65.00
mm (Equiv. 2.559 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
68.00
mm + 0.00 / - 0.07 (Equiv. 2.677 in.) |
Approx. Loose Circlip OD (Dr)
69.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.65 mm + 0.13 / - 0.00
Clearance in Bore (C): 49.00 mm
Clearance in Groove (C1): 52.80 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06500-S15
Internal Retaining Rings - 65x2.5x68 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 5 Available Now | Further orders can be expected around Wed, Sep 24, 2025 Regular price
$21.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
65.00
mm (Equiv. 2.559 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
68.00
mm + 0.00 / - 0.07 (Equiv. 2.677 in.) |
Approx. Loose Circlip OD (Dr)
69.20
mm + 1.10 / - 0.46 |
Radial Wall (S)
5.5 - 5.7
mm |
Groove Width (W)
2.65
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06500-C-V
Internal Retaining Rings - 65x2.5x68 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
65.00
mm (Equiv. 2.559 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
68.00
mm + 0.00 / - 0.07 (Equiv. 2.677 in.) |
Approx. Loose Circlip OD (Dr)
69.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 5.5 - 5.7 mm
Groove Width (W): 2.65 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06500-C-V
Internal Retaining Rings - 65x2.5x68 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
65.00
mm (Equiv. 2.559 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
68.30
mm + 0.00 / - 0.07 (Equiv. 2.689 in.) |
Approx. Loose Circlip OD (Dr)
68.76 - 70.30
mm |
Radial Wall (S)
5.80
mm |
Groove Width (W)
2.65
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-065
Internal Retaining Rings - 65x2.5x68.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
65.00
mm (Equiv. 2.559 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
68.30
mm + 0.00 / - 0.07 (Equiv. 2.689 in.) |
Approx. Loose Circlip OD (Dr)
68.76 - 70.30
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 5.80 mm
Groove Width (W): 2.65 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-065
Internal Retaining Rings - 65x2.5x68.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
65.00
mm (Equiv. 2.559 in.) |
Clip Thickness (T)
3.2
mm B DIN 2076 (Equiv. 0.126 in.) |
Groove Dia. (Dg)
68.20
mm + 0.8 / - 0.0 (Equiv. 2.685 in.) |
Approx. Loose Circlip OD (Dr)
68.90
mm |
Groove Width (W)
3.60
mm |
|
|
|
Material: Carbon Spring Steel
Clearance in Bore (C): 62.5 mm

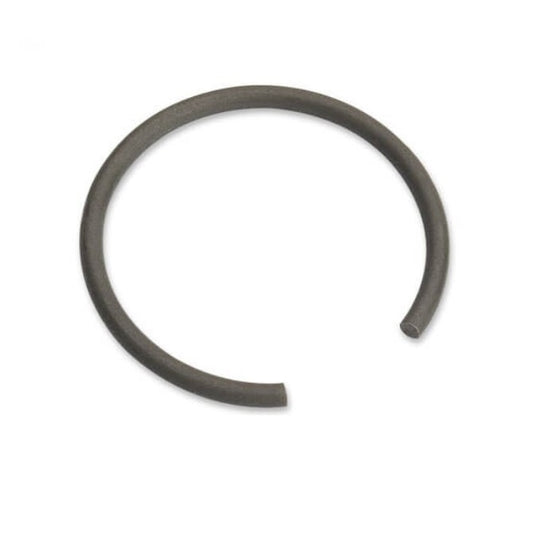

Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0650-RD
Internal Retaining Rings - 65x3.2x68.2 mm Round Wire - Carbon Spring Steel Wire Clip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
65.00
mm (Equiv. 2.559 in.) |
Clip Thickness (T)
3.2
mm B DIN 2076 (Equiv. 0.126 in.) |
Groove Dia. (Dg)
68.20
mm + 0.8 / - 0.0 (Equiv. 2.685 in.) |
Approx. Loose Circlip OD (Dr)
68.90
mm |
|
||
|
Material: Carbon Spring Steel
Groove Width (W): 3.60 mm
Clearance in Bore (C): 62.5 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0650-RD
Internal Retaining Rings - 65x3.2x68.2 mm Round Wire - Carbon Spring Steel Wire Clip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
64.29
mm (Equiv. 2.531 in.) |
Clip Thickness (T)
1.91
mm + 0.15 / - 0.00 (Equiv. 0.075 in.) |
Groove Dia. (Dg)
69.01
mm +/- 0.08 (Equiv. 2.717 in.) |
Approx. Loose Circlip OD (Dr)
69.72
mm + 1.78 / - 0.00 |
Radial Wall (S)
2.62 - 5.33
mm |
Groove Width (W)
1.57
mm + 0.04 / - 0.00 |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-06429-C
Internal Retaining Rings - 64.29x1.91x69.01 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
64.29
mm (Equiv. 2.531 in.) |
Clip Thickness (T)
1.91
mm + 0.15 / - 0.00 (Equiv. 0.075 in.) |
Groove Dia. (Dg)
69.01
mm +/- 0.08 (Equiv. 2.717 in.) |
Approx. Loose Circlip OD (Dr)
69.72
mm + 1.78 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 2.62 - 5.33 mm
Groove Width (W): 1.57 mm + 0.04 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-06429-C
Internal Retaining Rings - 64.29x1.91x69.01 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
65.00
mm (Equiv. 2.559 in.) |
Clip Thickness (T)
3.00
mm + 0.30 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
68.00
mm + 0.00 / - 0.08 (Equiv. 2.677 in.) |
Approx. Loose Circlip OD (Dr)
69.20
mm + 1.10 / - 0.46 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06500H-C (125 Pcs)
Internal Retaining Rings - 65x3x68 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$422.23 AUD
Regular price
Unit price
per
Per 125
|
||||||
|
Housing Bore (B)
65.00
mm (Equiv. 2.559 in.) |
Clip Thickness (T)
3.00
mm + 0.30 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
68.00
mm + 0.00 / - 0.08 (Equiv. 2.677 in.) |
Approx. Loose Circlip OD (Dr)
69.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.15 mm + 0.13 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06500H-C (125 Pcs)
Internal Retaining Rings - 65x3x68 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$422.23 AUD
Regular price
Unit price
per
Per 125
|
||||||
|
||||||
|
Housing Bore (B)
65.07
mm (Equiv. 2.562 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
68.94
mm + 0.00 / - 0.07 (Equiv. 2.714 in.) |
Approx. Loose Circlip OD (Dr)
72.24
mm + 1.02 / - 0.76 |
Groove Width (W)
2.62
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 51.31 mm
Clearance in Groove (C1): 55.37 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06507-C (4 Pcs)
Internal Retaining Rings - 65.07x2.36x68.94 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$10.05 AUD
Regular price
Unit price
per
Per 4
|
||||||
|
Housing Bore (B)
65.07
mm (Equiv. 2.562 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
68.94
mm + 0.00 / - 0.07 (Equiv. 2.714 in.) |
Approx. Loose Circlip OD (Dr)
72.24
mm + 1.02 / - 0.76 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.62 mm + 0.13 / - 0.00
Clearance in Bore (C): 51.31 mm
Clearance in Groove (C1): 55.37 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06507-C (4 Pcs)
Internal Retaining Rings - 65.07x2.36x68.94 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$10.05 AUD
Regular price
Unit price
per
Per 4
|
||||||
|
||||||
|
Housing Bore (B)
65.07
mm (Equiv. 2.562 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
68.94
mm + 0.00 / - 0.07 (Equiv. 2.714 in.) |
Approx. Loose Circlip OD (Dr)
72.24
mm + 1.02 / - 0.76 |
Groove Width (W)
2.62
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 51.31 mm
Clearance in Groove (C1): 55.37 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06507-CZY (50 Pcs)
Internal Retaining Rings - 65.07x2.36x68.94 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 18, 2025 Regular price
$366.77 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
65.07
mm (Equiv. 2.562 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
68.94
mm + 0.00 / - 0.07 (Equiv. 2.714 in.) |
Approx. Loose Circlip OD (Dr)
72.24
mm + 1.02 / - 0.76 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 2.62 mm + 0.13 / - 0.00
Clearance in Bore (C): 51.31 mm
Clearance in Groove (C1): 55.37 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06507-CZY (50 Pcs)
Internal Retaining Rings - 65.07x2.36x68.94 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 18, 2025 Regular price
$366.77 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
65.08
mm (Equiv. 2.562 in.) |
Clip Thickness (T)
1.07
mm +/- 0.06 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
67.36
mm +/- 0.15 (Equiv. 2.652 in.) |
Approx. Loose Circlip OD (Dr)
68.12
mm + 1.58 / - 0.00 |
Radial Wall (S)
3.96
mm +/- 0.13 |
Groove Width (W)
1.17
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 60.2 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0651-LS-O
Internal Retaining Rings - 65.08x1.07x67.36 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
65.08
mm (Equiv. 2.562 in.) |
Clip Thickness (T)
1.07
mm +/- 0.06 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
67.36
mm +/- 0.15 (Equiv. 2.652 in.) |
Approx. Loose Circlip OD (Dr)
68.12
mm + 1.58 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 3.96 mm +/- 0.13
Groove Width (W): 1.17 mm
Clearance in Groove (C1): 60.2 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0651-LS-O
Internal Retaining Rings - 65.08x1.07x67.36 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
65.08
mm (Equiv. 2.562 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
68.22
mm +/- 0.15 (Equiv. 2.686 in.) |
Approx. Loose Circlip OD (Dr)
69.24
mm + 1.20 / - 0.00 |
Radial Wall (S)
4.75
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 59.74 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0651-LS-HO
Internal Retaining Rings - 65.08x2.36x68.22 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
65.08
mm (Equiv. 2.562 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
68.22
mm +/- 0.15 (Equiv. 2.686 in.) |
Approx. Loose Circlip OD (Dr)
69.24
mm + 1.20 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 4.75 mm +/- 0.13
Groove Width (W): 2.62 mm
Clearance in Groove (C1): 59.74 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0651-LS-HO
Internal Retaining Rings - 65.08x2.36x68.22 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
66.00
mm (Equiv. 2.598 in.) |
Clip Thickness (T)
1.50
mm (Equiv. 0.059 in.) |
Groove Dia. (Dg)
67.50
mm (Equiv. 2.657 in.) |
Approx. Loose Circlip OD (Dr)
68.30
mm |
|
||
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 63.7 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0660-LS
Internal Retaining Rings - 66x1.5x67.5 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025 Regular price
$6.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
66.00
mm (Equiv. 2.598 in.) |
Clip Thickness (T)
1.50
mm (Equiv. 0.059 in.) |
Groove Dia. (Dg)
67.50
mm (Equiv. 2.657 in.) |
Approx. Loose Circlip OD (Dr)
68.30
mm |
|
||
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 63.7 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0660-LS
Internal Retaining Rings - 66x1.5x67.5 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025 Regular price
$6.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
65.07
mm (Equiv. 2.562 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
68.94
mm + 0.00 / - 0.07 (Equiv. 2.714 in.) |
Approx. Loose Circlip OD (Dr)
72.24
mm + 1.02 / - 0.76 |
Groove Width (W)
2.62
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 51.31 mm
Clearance in Groove (C1): 55.37 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06507-S15 (50 Pcs)
Internal Retaining Rings - 65.07x2.36x68.94 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$1,770.59 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
65.07
mm (Equiv. 2.562 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
68.94
mm + 0.00 / - 0.07 (Equiv. 2.714 in.) |
Approx. Loose Circlip OD (Dr)
72.24
mm + 1.02 / - 0.76 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.62 mm + 0.13 / - 0.00
Clearance in Bore (C): 51.31 mm
Clearance in Groove (C1): 55.37 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06507-S15 (50 Pcs)
Internal Retaining Rings - 65.07x2.36x68.94 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$1,770.59 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
65.07
mm (Equiv. 2.562 in.) |
Clip Thickness (T)
2.29
mm + 0.15 / - 0.00 (Equiv. 0.09 in.) |
Groove Dia. (Dg)
69.85
mm +/- 0.08 (Equiv. 2.75 in.) |
Approx. Loose Circlip OD (Dr)
71.48
mm + 1.78 / - 0.00 |
Radial Wall (S)
2.77 - 5.64
mm |
Groove Width (W)
1.98
mm + 0.04 / - 0.00 |
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-06507-C
Internal Retaining Rings - 65.07x2.29x69.85 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$5.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
65.07
mm (Equiv. 2.562 in.) |
Clip Thickness (T)
2.29
mm + 0.15 / - 0.00 (Equiv. 0.09 in.) |
Groove Dia. (Dg)
69.85
mm +/- 0.08 (Equiv. 2.75 in.) |
Approx. Loose Circlip OD (Dr)
71.48
mm + 1.78 / - 0.00 |
|
||
|
Material: Carbon Steel
Radial Wall (S): 2.77 - 5.64 mm
Groove Width (W): 1.98 mm + 0.04 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-06507-C
Internal Retaining Rings - 65.07x2.29x69.85 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$5.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
66.68
mm (Equiv. 2.625 in.) |
Clip Thickness (T)
2.29
mm + 0.15 / - 0.00 (Equiv. 0.09 in.) |
Groove Dia. (Dg)
71.63
mm +/- 0.08 (Equiv. 2.82 in.) |
Approx. Loose Circlip OD (Dr)
73.15
mm + 1.78 / - 0.00 |
Radial Wall (S)
2.82 - 5.74
mm |
Groove Width (W)
1.96
mm + 0.04 / - 0.00 |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-06668-C (25 Pcs)
Internal Retaining Rings - 66.68x2.29x71.63 mm Circlips - Carbon Spring Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$334.41 AUD
Regular price
Unit price
per
Per 25
|
||||||
|
Housing Bore (B)
66.68
mm (Equiv. 2.625 in.) |
Clip Thickness (T)
2.29
mm + 0.15 / - 0.00 (Equiv. 0.09 in.) |
Groove Dia. (Dg)
71.63
mm +/- 0.08 (Equiv. 2.82 in.) |
Approx. Loose Circlip OD (Dr)
73.15
mm + 1.78 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 2.82 - 5.74 mm
Groove Width (W): 1.96 mm + 0.04 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-06668-C (25 Pcs)
Internal Retaining Rings - 66.68x2.29x71.63 mm Circlips - Carbon Spring Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$334.41 AUD
Regular price
Unit price
per
Per 25
|
||||||
|
||||||
|
Housing Bore (B)
66.68
mm (Equiv. 2.625 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
69.85
mm +/- 0.15 (Equiv. 2.75 in.) |
Approx. Loose Circlip OD (Dr)
70.87
mm + 1.20 / - 0.00 |
Radial Wall (S)
4.75
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 61.37 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0667-LS-O
Internal Retaining Rings - 66.68x2.36x69.85 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
66.68
mm (Equiv. 2.625 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
69.85
mm +/- 0.15 (Equiv. 2.75 in.) |
Approx. Loose Circlip OD (Dr)
70.87
mm + 1.20 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 4.75 mm +/- 0.13
Groove Width (W): 2.62 mm
Clearance in Groove (C1): 61.37 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0667-LS-O
Internal Retaining Rings - 66.68x2.36x69.85 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
66.68
mm (Equiv. 2.625 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
70.64
mm +/- 0.15 (Equiv. 2.781 in.) |
Approx. Loose Circlip OD (Dr)
71.27
mm + 2.05 / - 0.00 |
Radial Wall (S)
4.78
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 61.71 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0667-LS-N
Internal Retaining Rings - 66.68x2.36x70.64 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
66.68
mm (Equiv. 2.625 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
70.64
mm +/- 0.15 (Equiv. 2.781 in.) |
Approx. Loose Circlip OD (Dr)
71.27
mm + 2.05 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 4.78 mm +/- 0.13
Groove Width (W): 2.62 mm
Clearance in Groove (C1): 61.71 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0667-LS-N
Internal Retaining Rings - 66.68x2.36x70.64 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
66.68
mm (Equiv. 2.625 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
70.64
mm + 0.00 / - 0.07 (Equiv. 2.781 in.) |
Approx. Loose Circlip OD (Dr)
73.91
mm + 1.02 / - 0.76 |
Groove Width (W)
2.62
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 52.83 mm
Clearance in Groove (C1): 56.90 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06668-S15
Internal Retaining Rings - 66.68x2.36x70.64 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$33.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
66.68
mm (Equiv. 2.625 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
70.64
mm + 0.00 / - 0.07 (Equiv. 2.781 in.) |
Approx. Loose Circlip OD (Dr)
73.91
mm + 1.02 / - 0.76 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.62 mm + 0.13 / - 0.00
Clearance in Bore (C): 52.83 mm
Clearance in Groove (C1): 56.90 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06668-S15
Internal Retaining Rings - 66.68x2.36x70.64 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$33.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
66.68
mm (Equiv. 2.625 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
70.64
mm + 0.00 / - 0.07 (Equiv. 2.781 in.) |
Approx. Loose Circlip OD (Dr)
73.91
mm + 1.02 / - 0.76 |
Groove Width (W)
2.62
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 52.83 mm
Clearance in Groove (C1): 56.90 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06668-C (4 Pcs)
Internal Retaining Rings - 66.68x2.36x70.64 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$12.68 AUD
Regular price
Unit price
per
Per 4
|
||||||
|
Housing Bore (B)
66.68
mm (Equiv. 2.625 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
70.64
mm + 0.00 / - 0.07 (Equiv. 2.781 in.) |
Approx. Loose Circlip OD (Dr)
73.91
mm + 1.02 / - 0.76 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.62 mm + 0.13 / - 0.00
Clearance in Bore (C): 52.83 mm
Clearance in Groove (C1): 56.90 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06668-C (4 Pcs)
Internal Retaining Rings - 66.68x2.36x70.64 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$12.68 AUD
Regular price
Unit price
per
Per 4
|
||||||
|
||||||
