| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) | Groove Width (W) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
69.85
mm (Equiv. 2.75 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
74.02
mm + 0.00 / - 0.07 (Equiv. 2.914 in.) |
Approx. Loose Circlip OD (Dr)
77.47
mm + 1.02 / - 0.76 |
Groove Width (W)
2.62
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 55.37 mm
Clearance in Groove (C1): 59.44 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06985-S15
Internal Retaining Rings - 69.85x2.36x74.02 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Dec 27, 2025 Regular price
$33.77 AUD
Regular price
Unit price
per
Each
|
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
69.85
mm (Equiv. 2.75 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
74.02
mm + 0.00 / - 0.07 (Equiv. 2.914 in.) |
Approx. Loose Circlip OD (Dr)
77.47
mm + 1.02 / - 0.76 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.62 mm + 0.13 / - 0.00
Clearance in Bore (C): 55.37 mm
Clearance in Groove (C1): 59.44 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-06985-S15
Internal Retaining Rings - 69.85x2.36x74.02 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Dec 27, 2025 Regular price
$33.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
69.85
mm (Equiv. 2.75 in.) |
Clip Thickness (T)
2.37
mm +/- 0.08 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
73.66
mm (Equiv. 2.9 in.) |
Approx. Loose Circlip OD (Dr)
74.18
mm + 0.64 / - 0.00 |
Radial Wall (S)
4.78
mm +/- 0.13 |
Groove Width (W)
2.68
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 64.62 mm +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRT-275
Internal Retaining Rings - 69.85x2.37x73.66 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$3.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
69.85
mm (Equiv. 2.75 in.) |
Clip Thickness (T)
2.37
mm +/- 0.08 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
73.66
mm (Equiv. 2.9 in.) |
Approx. Loose Circlip OD (Dr)
74.18
mm + 0.64 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 4.78 mm +/- 0.13
Groove Width (W): 2.68 mm +/- 0.15
Clearance in Groove (C1): 64.62 mm +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRT-275
Internal Retaining Rings - 69.85x2.37x73.66 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$3.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
70.00
mm (Equiv. 2.756 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
71.50
mm + 0.19 / - 0.00 (Equiv. 2.815 in.) |
Approx. Loose Circlip OD (Dr)
72.30
mm |
Radial Wall (S)
2.30
mm + 0 / - 0.10 |
Groove Width (W)
1.60
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 67.7 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0700-LS
Internal Retaining Rings - 70x1.5x71.5 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025 Regular price
$7.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
70.00
mm (Equiv. 2.756 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
71.50
mm + 0.19 / - 0.00 (Equiv. 2.815 in.) |
Approx. Loose Circlip OD (Dr)
72.30
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 2.30 mm + 0 / - 0.10
Groove Width (W): 1.60 mm
Clearance in Groove (C1): 67.7 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0700-LS
Internal Retaining Rings - 70x1.5x71.5 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025 Regular price
$7.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
70.00
mm (Equiv. 2.756 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
73.00
mm + 0.00 / - 0.07 (Equiv. 2.874 in.) |
Approx. Loose Circlip OD (Dr)
74.50
mm + 1.10 / - 0.46 |
Groove Width (W)
2.65
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 53.60 mm
Clearance in Groove (C1): 57.40 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-07000-S15 (50 Pcs)
Internal Retaining Rings - 70x2.5x73 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$1,719.41 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
70.00
mm (Equiv. 2.756 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
73.00
mm + 0.00 / - 0.07 (Equiv. 2.874 in.) |
Approx. Loose Circlip OD (Dr)
74.50
mm + 1.10 / - 0.46 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.65 mm + 0.13 / - 0.00
Clearance in Bore (C): 53.60 mm
Clearance in Groove (C1): 57.40 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-07000-S15 (50 Pcs)
Internal Retaining Rings - 70x2.5x73 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$1,719.41 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
70.00
mm (Equiv. 2.756 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
73.00
mm + 0.00 / - 0.07 (Equiv. 2.874 in.) |
Approx. Loose Circlip OD (Dr)
74.50
mm + 1.10 / - 0.46 |
Groove Width (W)
2.65
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 53.60 mm
Clearance in Groove (C1): 57.40 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-07000-C (2 Pcs)
Internal Retaining Rings - 70x2.5x73 mm Circlips - Carbon Steel Circlip 232 units (464 pcs) Available Now | Further orders can be expected around Wed, Sep 24, 2025 Regular price
$4.05 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
70.00
mm (Equiv. 2.756 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
73.00
mm + 0.00 / - 0.07 (Equiv. 2.874 in.) |
Approx. Loose Circlip OD (Dr)
74.50
mm + 1.10 / - 0.46 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.65 mm + 0.13 / - 0.00
Clearance in Bore (C): 53.60 mm
Clearance in Groove (C1): 57.40 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-07000-C (2 Pcs)
Internal Retaining Rings - 70x2.5x73 mm Circlips - Carbon Steel Circlip 232 units (464 pcs) Available Now | Further orders can be expected around Wed, Sep 24, 2025 Regular price
$4.05 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
70.00
mm (Equiv. 2.756 in.) |
Clip Thickness (T)
3.00
mm + 0.30 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
73.00
mm + 0.00 / - 0.08 (Equiv. 2.874 in.) |
Approx. Loose Circlip OD (Dr)
74.50
mm + 1.10 / - 0.46 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-07000H-C
Internal Retaining Rings - 70x3x73 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
70.00
mm (Equiv. 2.756 in.) |
Clip Thickness (T)
3.00
mm + 0.30 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
73.00
mm + 0.00 / - 0.08 (Equiv. 2.874 in.) |
Approx. Loose Circlip OD (Dr)
74.50
mm + 1.10 / - 0.46 |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 3.15 mm + 0.13 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-07000H-C
Internal Retaining Rings - 70x3x73 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
70.00
mm (Equiv. 2.756 in.) |
Clip Thickness (T)
3.2
mm B DIN 2076 (Equiv. 0.126 in.) |
Groove Dia. (Dg)
73.20
mm + 1.0 / - 0.0 (Equiv. 2.882 in.) |
Approx. Loose Circlip OD (Dr)
74.00
mm |
Groove Width (W)
3.60
mm |
|
|
|
Material: Carbon Spring Steel
Clearance in Bore (C): 67.6 mm

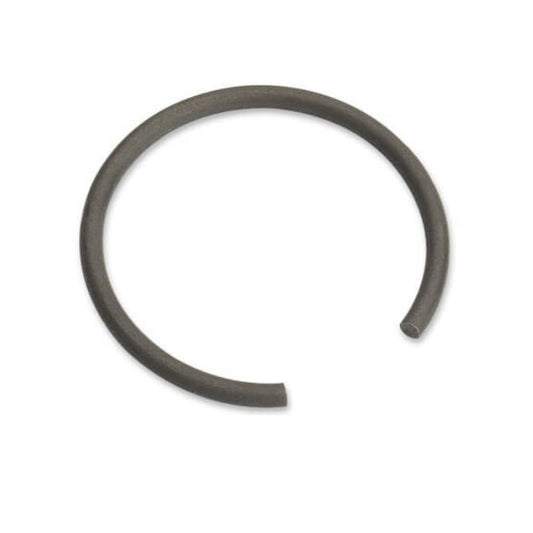

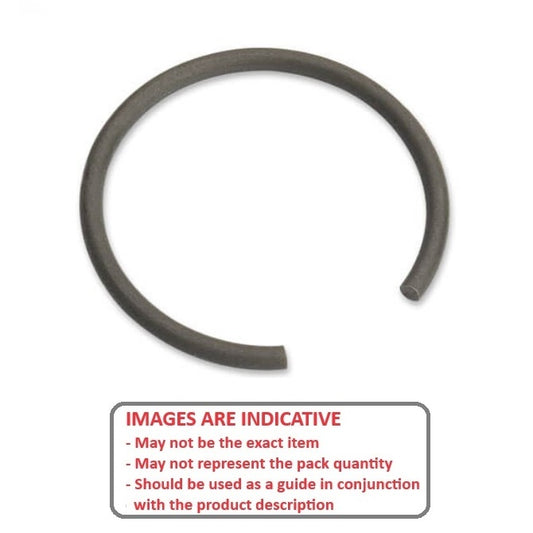

Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0700-RD (6 Pcs)
Internal Retaining Rings - 70x3.2x73.2 mm Round Wire - Carbon Spring Steel Wire Clip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$10.05 AUD
Regular price
Unit price
per
Per 6
|
||||||
|
Housing Bore (B)
70.00
mm (Equiv. 2.756 in.) |
Clip Thickness (T)
3.2
mm B DIN 2076 (Equiv. 0.126 in.) |
Groove Dia. (Dg)
73.20
mm + 1.0 / - 0.0 (Equiv. 2.882 in.) |
Approx. Loose Circlip OD (Dr)
74.00
mm |
|
||
|
Material: Carbon Spring Steel
Groove Width (W): 3.60 mm
Clearance in Bore (C): 67.6 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0700-RD (6 Pcs)
Internal Retaining Rings - 70x3.2x73.2 mm Round Wire - Carbon Spring Steel Wire Clip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$10.05 AUD
Regular price
Unit price
per
Per 6
|
||||||
|
||||||
|
Housing Bore (B)
70.00
mm (Equiv. 2.756 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
73.30
mm + 0.00 / - 0.07 (Equiv. 2.886 in.) |
Approx. Loose Circlip OD (Dr)
74.04 - 75.60
mm |
Radial Wall (S)
6.20
mm |
Groove Width (W)
2.65
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-070
Internal Retaining Rings - 70x2.5x73.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
70.00
mm (Equiv. 2.756 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
73.30
mm + 0.00 / - 0.07 (Equiv. 2.886 in.) |
Approx. Loose Circlip OD (Dr)
74.04 - 75.60
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 6.20 mm
Groove Width (W): 2.65 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-070
Internal Retaining Rings - 70x2.5x73.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
71.42
mm (Equiv. 2.812 in.) |
Clip Thickness (T)
2.29
mm + 0.15 / - 0.00 (Equiv. 0.09 in.) |
Groove Dia. (Dg)
76.71
mm +/- 0.08 (Equiv. 3.02 in.) |
Approx. Loose Circlip OD (Dr)
78.51
mm + 1.78 / - 0.00 |
Radial Wall (S)
2.92 - 5.84
mm |
Groove Width (W)
1.93
mm + 0.04 / - 0.00 |
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-07142-C (2 Pcs)
Internal Retaining Rings - 71.42x2.29x76.71 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$8.95 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
71.42
mm (Equiv. 2.812 in.) |
Clip Thickness (T)
2.29
mm + 0.15 / - 0.00 (Equiv. 0.09 in.) |
Groove Dia. (Dg)
76.71
mm +/- 0.08 (Equiv. 3.02 in.) |
Approx. Loose Circlip OD (Dr)
78.51
mm + 1.78 / - 0.00 |
|
||
|
Material: Carbon Steel
Radial Wall (S): 2.92 - 5.84 mm
Groove Width (W): 1.93 mm + 0.04 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-07142-C (2 Pcs)
Internal Retaining Rings - 71.42x2.29x76.71 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$8.95 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
71.42
mm (Equiv. 2.812 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
75.69
mm + 0.00 / - 0.07 (Equiv. 2.98 in.) |
Approx. Loose Circlip OD (Dr)
79.27
mm + 1.02 / - 0.76 |
Groove Width (W)
2.62
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 56.90 mm
Clearance in Groove (C1): 60.96 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-07142-S15
Internal Retaining Rings - 71.42x2.36x75.69 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$36.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
71.42
mm (Equiv. 2.812 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
75.69
mm + 0.00 / - 0.07 (Equiv. 2.98 in.) |
Approx. Loose Circlip OD (Dr)
79.27
mm + 1.02 / - 0.76 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.62 mm + 0.13 / - 0.00
Clearance in Bore (C): 56.90 mm
Clearance in Groove (C1): 60.96 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-07142-S15
Internal Retaining Rings - 71.42x2.36x75.69 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$36.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
71.42
mm (Equiv. 2.812 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
75.69
mm + 0.00 / - 0.07 (Equiv. 2.98 in.) |
Approx. Loose Circlip OD (Dr)
79.27
mm + 1.02 / - 0.76 |
Groove Width (W)
2.62
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 56.90 mm
Clearance in Groove (C1): 60.96 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-07142-CZY (3 Pcs)
Internal Retaining Rings - 71.42x2.36x75.69 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$21.14 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
Housing Bore (B)
71.42
mm (Equiv. 2.812 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
75.69
mm + 0.00 / - 0.07 (Equiv. 2.98 in.) |
Approx. Loose Circlip OD (Dr)
79.27
mm + 1.02 / - 0.76 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 2.62 mm + 0.13 / - 0.00
Clearance in Bore (C): 56.90 mm
Clearance in Groove (C1): 60.96 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-07142-CZY (3 Pcs)
Internal Retaining Rings - 71.42x2.36x75.69 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$21.14 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
||||||
|
Housing Bore (B)
71.42
mm (Equiv. 2.812 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
75.69
mm + 0.00 / - 0.07 (Equiv. 2.98 in.) |
Approx. Loose Circlip OD (Dr)
79.27
mm + 1.02 / - 0.76 |
Groove Width (W)
2.62
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 56.90 mm
Clearance in Groove (C1): 60.96 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-07142-C (3 Pcs)
Internal Retaining Rings - 71.42x2.36x75.69 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$10.32 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
Housing Bore (B)
71.42
mm (Equiv. 2.812 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
75.69
mm + 0.00 / - 0.07 (Equiv. 2.98 in.) |
Approx. Loose Circlip OD (Dr)
79.27
mm + 1.02 / - 0.76 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.62 mm + 0.13 / - 0.00
Clearance in Bore (C): 56.90 mm
Clearance in Groove (C1): 60.96 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-07142-C (3 Pcs)
Internal Retaining Rings - 71.42x2.36x75.69 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$10.32 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
||||||
|
Housing Bore (B)
71.45
mm (Equiv. 2.813 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
74.80
mm +/- 0.15 (Equiv. 2.945 in.) |
Approx. Loose Circlip OD (Dr)
75.82
mm + 1.60 / - 0.00 |
Radial Wall (S)
4.75
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 66.32 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0715-LS-O
Internal Retaining Rings - 71.45x2.36x74.8 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
71.45
mm (Equiv. 2.813 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
74.80
mm +/- 0.15 (Equiv. 2.945 in.) |
Approx. Loose Circlip OD (Dr)
75.82
mm + 1.60 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 4.75 mm +/- 0.13
Groove Width (W): 2.62 mm
Clearance in Groove (C1): 66.32 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0715-LS-O
Internal Retaining Rings - 71.45x2.36x74.8 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
71.98
mm (Equiv. 2.834 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
75.34
mm +/- 0.15 (Equiv. 2.966 in.) |
Approx. Loose Circlip OD (Dr)
76.35
mm + 1.60 / - 0.00 |
Radial Wall (S)
4.75
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 66.85 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0720-LS-O
Internal Retaining Rings - 71.98x2.36x75.34 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
71.98
mm (Equiv. 2.834 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
75.34
mm +/- 0.15 (Equiv. 2.966 in.) |
Approx. Loose Circlip OD (Dr)
76.35
mm + 1.60 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 4.75 mm +/- 0.13
Groove Width (W): 2.62 mm
Clearance in Groove (C1): 66.85 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0720-LS-O
Internal Retaining Rings - 71.98x2.36x75.34 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
72.00
mm (Equiv. 2.835 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
73.80
mm + 0.19 / - 0.00 (Equiv. 2.906 in.) |
Approx. Loose Circlip OD (Dr)
74.60
mm |
Radial Wall (S)
2.80
mm + 0 / - 0.10 |
Groove Width (W)
2.20
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 69 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0720-LS (5 Pcs)
Internal Retaining Rings - 72x2x73.8 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$12.41 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
72.00
mm (Equiv. 2.835 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
73.80
mm + 0.19 / - 0.00 (Equiv. 2.906 in.) |
Approx. Loose Circlip OD (Dr)
74.60
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 2.80 mm + 0 / - 0.10
Groove Width (W): 2.20 mm
Clearance in Groove (C1): 69 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0720-LS (5 Pcs)
Internal Retaining Rings - 72x2x73.8 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$12.41 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
72.00
mm (Equiv. 2.835 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
75.00
mm + 0.00 / - 0.07 (Equiv. 2.953 in.) |
Approx. Loose Circlip OD (Dr)
76.50
mm + 1.10 / - 0.46 |
Groove Width (W)
2.65
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 55.60 mm
Clearance in Groove (C1): 59.40 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-07200-S15
Internal Retaining Rings - 72x2.5x75 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$15.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
72.00
mm (Equiv. 2.835 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
75.00
mm + 0.00 / - 0.07 (Equiv. 2.953 in.) |
Approx. Loose Circlip OD (Dr)
76.50
mm + 1.10 / - 0.46 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.65 mm + 0.13 / - 0.00
Clearance in Bore (C): 55.60 mm
Clearance in Groove (C1): 59.40 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-07200-S15
Internal Retaining Rings - 72x2.5x75 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$15.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
72.00
mm (Equiv. 2.835 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
75.00
mm + 0.00 / - 0.07 (Equiv. 2.953 in.) |
Approx. Loose Circlip OD (Dr)
76.50
mm + 1.10 / - 0.46 |
Groove Width (W)
2.65
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 55.60 mm
Clearance in Groove (C1): 59.40 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-07200-C (2 Pcs)
Internal Retaining Rings - 72x2.5x75 mm Circlips - Carbon Steel Circlip 87 units (174 pcs) Available Now | Further orders can be expected around Wed, Sep 24, 2025 Regular price
$3.95 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
72.00
mm (Equiv. 2.835 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
75.00
mm + 0.00 / - 0.07 (Equiv. 2.953 in.) |
Approx. Loose Circlip OD (Dr)
76.50
mm + 1.10 / - 0.46 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.65 mm + 0.13 / - 0.00
Clearance in Bore (C): 55.60 mm
Clearance in Groove (C1): 59.40 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-07200-C (2 Pcs)
Internal Retaining Rings - 72x2.5x75 mm Circlips - Carbon Steel Circlip 87 units (174 pcs) Available Now | Further orders can be expected around Wed, Sep 24, 2025 Regular price
$3.95 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
72.00
mm (Equiv. 2.835 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
75.30
mm + 0.00 / - 0.07 (Equiv. 2.965 in.) |
Approx. Loose Circlip OD (Dr)
76.04
mm |
Radial Wall (S)
6.40
mm |
Groove Width (W)
2.65
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-072
Internal Retaining Rings - 72x2.5x75.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
72.00
mm (Equiv. 2.835 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
75.30
mm + 0.00 / - 0.07 (Equiv. 2.965 in.) |
Approx. Loose Circlip OD (Dr)
76.04
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 6.40 mm
Groove Width (W): 2.65 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-072
Internal Retaining Rings - 72x2.5x75.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
72.00
mm (Equiv. 2.835 in.) |
Clip Thickness (T)
3.00
mm + 0.30 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
75.00
mm + 0.00 / - 0.08 (Equiv. 2.953 in.) |
Approx. Loose Circlip OD (Dr)
76.50
mm + 1.10 / - 0.46 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-07200H-C (3 Pcs)
Internal Retaining Rings - 72x3x75 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$11.50 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
Housing Bore (B)
72.00
mm (Equiv. 2.835 in.) |
Clip Thickness (T)
3.00
mm + 0.30 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
75.00
mm + 0.00 / - 0.08 (Equiv. 2.953 in.) |
Approx. Loose Circlip OD (Dr)
76.50
mm + 1.10 / - 0.46 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.15 mm + 0.13 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-07200H-C (3 Pcs)
Internal Retaining Rings - 72x3x75 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$11.50 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
||||||
|
Housing Bore (B)
71.42
mm (Equiv. 2.812 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
76.35
mm +/- 0.076 (Equiv. 3.006 in.) |
Approx. Loose Circlip OD (Dr)
79.27
mm |
Radial Wall (S)
3.53 - 7.26
mm |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-07142-C-V
Internal Retaining Rings - 71.42x2.36x76.35 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$4.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
71.42
mm (Equiv. 2.812 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
76.35
mm +/- 0.076 (Equiv. 3.006 in.) |
Approx. Loose Circlip OD (Dr)
79.27
mm |
|
||
|
Material: Carbon Steel
Radial Wall (S): 3.53 - 7.26 mm
Groove Width (W): 2.62 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-07142-C-V
Internal Retaining Rings - 71.42x2.36x76.35 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$4.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
71.43
mm (Equiv. 2.812 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
75.69
mm +/- 0.15 (Equiv. 2.98 in.) |
Approx. Loose Circlip OD (Dr)
76.84
mm + 2.05 / - 0.00 |
Radial Wall (S)
4.78
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 67.28 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0714-LS-N (2 Pcs)
Internal Retaining Rings - 71.43x2.36x75.69 mm Snap Rings - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$10.05 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
71.43
mm (Equiv. 2.812 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
75.69
mm +/- 0.15 (Equiv. 2.98 in.) |
Approx. Loose Circlip OD (Dr)
76.84
mm + 2.05 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 4.78 mm +/- 0.13
Groove Width (W): 2.62 mm
Clearance in Groove (C1): 67.28 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0714-LS-N (2 Pcs)
Internal Retaining Rings - 71.43x2.36x75.69 mm Snap Rings - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$10.05 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
71.98
mm (Equiv. 2.834 in.) |
Clip Thickness (T)
2.37
mm +/- 0.08 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
75.87
mm (Equiv. 2.987 in.) |
Approx. Loose Circlip OD (Dr)
76.44
mm + 0.64 / - 0.00 |
Radial Wall (S)
4.78
mm +/- 0.13 |
Groove Width (W)
2.68
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 66.88 mm +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRT-283
Internal Retaining Rings - 71.98x2.37x75.87 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$19.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
71.98
mm (Equiv. 2.834 in.) |
Clip Thickness (T)
2.37
mm +/- 0.08 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
75.87
mm (Equiv. 2.987 in.) |
Approx. Loose Circlip OD (Dr)
76.44
mm + 0.64 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 4.78 mm +/- 0.13
Groove Width (W): 2.68 mm +/- 0.15
Clearance in Groove (C1): 66.88 mm +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRT-283
Internal Retaining Rings - 71.98x2.37x75.87 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$19.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
72.01
mm (Equiv. 2.835 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
76.33
mm +/- 0.15 (Equiv. 3.005 in.) |
Approx. Loose Circlip OD (Dr)
76.84
mm + 2.05 / - 0.00 |
Radial Wall (S)
4.78
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 67.28 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0720-LS-N
Internal Retaining Rings - 72.01x2.36x76.33 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
72.01
mm (Equiv. 2.835 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
76.33
mm +/- 0.15 (Equiv. 3.005 in.) |
Approx. Loose Circlip OD (Dr)
76.84
mm + 2.05 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 4.78 mm +/- 0.13
Groove Width (W): 2.62 mm
Clearance in Groove (C1): 67.28 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0720-LS-N
Internal Retaining Rings - 72.01x2.36x76.33 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
72.01
mm (Equiv. 2.835 in.) |
Clip Thickness (T)
2.29
mm + 0.15 / - 0.00 (Equiv. 0.09 in.) |
Groove Dia. (Dg)
77.29
mm +/- 0.08 (Equiv. 3.043 in.) |
Approx. Loose Circlip OD (Dr)
78.51
mm + 1.78 / - 0.00 |
Radial Wall (S)
2.92 - 5.84
mm |
Groove Width (W)
1.93
mm + 0.04 / - 0.00 |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-07201-C
Internal Retaining Rings - 72.01x2.29x77.29 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
72.01
mm (Equiv. 2.835 in.) |
Clip Thickness (T)
2.29
mm + 0.15 / - 0.00 (Equiv. 0.09 in.) |
Groove Dia. (Dg)
77.29
mm +/- 0.08 (Equiv. 3.043 in.) |
Approx. Loose Circlip OD (Dr)
78.51
mm + 1.78 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 2.92 - 5.84 mm
Groove Width (W): 1.93 mm + 0.04 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-07201-C
Internal Retaining Rings - 72.01x2.29x77.29 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
