| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) Approx. | Groove Width (W) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
73.03
mm (Equiv. 2.875 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
77.50
mm + 0.00 / - 0.07 (Equiv. 3.051 in.) |
Approx. Loose Circlip OD (Dr)
81.05
mm + 1.02 / - 0.76 |
Groove Width (W)
2.62
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 58.42 mm
Clearance in Groove (C1): 62.74 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 1688 |
||||||
|
Part Number: CCI-07303-CZY (3 Pcs)
Internal Retaining Rings - 73.03x2.36x77.5 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 19, 2025 Regular price
$23.23 AUD
Regular price
Unit price
per
3 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
73.03
mm (Equiv. 2.875 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
77.50
mm + 0.00 / - 0.07 (Equiv. 3.051 in.) |
Approx. Loose Circlip OD (Dr)
81.05
mm + 1.02 / - 0.76 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 2.62 mm + 0.13 / - 0.00
Clearance in Bore (C): 58.42 mm
Clearance in Groove (C1): 62.74 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 1688 |
||||||
|
Part Number: CCI-07303-CZY (3 Pcs)
Internal Retaining Rings - 73.03x2.36x77.5 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 19, 2025 Regular price
$23.23 AUD
Regular price
Unit price
per
3 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
73.03
mm (Equiv. 2.875 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
77.50
mm + 0.00 / - 0.07 (Equiv. 3.051 in.) |
Approx. Loose Circlip OD (Dr)
81.05
mm + 1.02 / - 0.76 |
Groove Width (W)
2.62
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 58.42 mm
Clearance in Groove (C1): 62.74 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 772 |
||||||
|
Part Number: CCI-07303-C
Internal Retaining Rings - 73.03x2.36x77.5 mm Circlips - Carbon Steel Circlip 10 Available Now | Further orders can be expected around Wed, Nov 19, 2025 Regular price
$2.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
73.03
mm (Equiv. 2.875 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
77.50
mm + 0.00 / - 0.07 (Equiv. 3.051 in.) |
Approx. Loose Circlip OD (Dr)
81.05
mm + 1.02 / - 0.76 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.62 mm + 0.13 / - 0.00
Clearance in Bore (C): 58.42 mm
Clearance in Groove (C1): 62.74 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 772 |
||||||
|
Part Number: CCI-07303-C
Internal Retaining Rings - 73.03x2.36x77.5 mm Circlips - Carbon Steel Circlip 10 Available Now | Further orders can be expected around Wed, Nov 19, 2025 Regular price
$2.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
74.00
mm (Equiv. 2.913 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
75.80
mm + 0.19 / - 0.00 (Equiv. 2.984 in.) |
Approx. Loose Circlip OD (Dr)
76.60
mm |
Radial Wall (S) Approx.
2.80
mm + 0 / - 0.10 |
Groove Width (W)
2.20
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 71 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0740-LS
Internal Retaining Rings - 74x2x75.8 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
74.00
mm (Equiv. 2.913 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
75.80
mm + 0.19 / - 0.00 (Equiv. 2.984 in.) |
Approx. Loose Circlip OD (Dr)
76.60
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.80 mm + 0 / - 0.10
Groove Width (W): 2.20 mm
Clearance in Groove (C1): 71 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0740-LS
Internal Retaining Rings - 74x2x75.8 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jul 17, 2028 |
||||||
|
Housing Bore (B)
75.00
mm (Equiv. 2.953 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
78.00
mm + 0.00 / - 0.07 (Equiv. 3.071 in.) |
Approx. Loose Circlip OD (Dr)
79.50
mm + 1.10 / - 0.46 |
Groove Width (W)
2.65
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 58.60 mm
Clearance in Groove (C1): 62.40 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 767 |
||||||
|
Part Number: CCI-07500-C (2 Pcs)
Internal Retaining Rings - 75x2.5x78 mm Circlips - Carbon Steel Circlip 67 units (134 pcs) Available Now | Further orders can be expected around Wed, Nov 19, 2025 Regular price
$8.23 AUD
Regular price
Unit price
per
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
75.00
mm (Equiv. 2.953 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
78.00
mm + 0.00 / - 0.07 (Equiv. 3.071 in.) |
Approx. Loose Circlip OD (Dr)
79.50
mm + 1.10 / - 0.46 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.65 mm + 0.13 / - 0.00
Clearance in Bore (C): 58.60 mm
Clearance in Groove (C1): 62.40 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 767 |
||||||
|
Part Number: CCI-07500-C (2 Pcs)
Internal Retaining Rings - 75x2.5x78 mm Circlips - Carbon Steel Circlip 67 units (134 pcs) Available Now | Further orders can be expected around Wed, Nov 19, 2025 Regular price
$8.23 AUD
Regular price
Unit price
per
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
75.00
mm (Equiv. 2.953 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
78.00
mm + 0.00 / - 0.07 (Equiv. 3.071 in.) |
Approx. Loose Circlip OD (Dr)
79.50
mm + 1.10 / - 0.46 |
Groove Width (W)
2.65
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 58.60 mm
Clearance in Groove (C1): 62.40 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-07500-CZ (63 Pcs)
Internal Retaining Rings - 75x2.5x78 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026 Regular price
$257.77 AUD
Regular price
Unit price
per
63 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
75.00
mm (Equiv. 2.953 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
78.00
mm + 0.00 / - 0.07 (Equiv. 3.071 in.) |
Approx. Loose Circlip OD (Dr)
79.50
mm + 1.10 / - 0.46 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 2.65 mm + 0.13 / - 0.00
Clearance in Bore (C): 58.60 mm
Clearance in Groove (C1): 62.40 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-07500-CZ (63 Pcs)
Internal Retaining Rings - 75x2.5x78 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026 Regular price
$257.77 AUD
Regular price
Unit price
per
63 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
75.00
mm (Equiv. 2.953 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
78.30
mm + 0.00 / - 0.07 (Equiv. 3.083 in.) |
Approx. Loose Circlip OD (Dr)
79.04 - 80.60
mm |
Radial Wall (S) Approx.
6.60
mm |
Groove Width (W)
2.65
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-075
Internal Retaining Rings - 75x2.5x78.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
75.00
mm (Equiv. 2.953 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
78.30
mm + 0.00 / - 0.07 (Equiv. 3.083 in.) |
Approx. Loose Circlip OD (Dr)
79.04 - 80.60
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 6.60 mm
Groove Width (W): 2.65 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-075
Internal Retaining Rings - 75x2.5x78.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jul 17, 2028 |
||||||
|
Housing Bore (B)
75.00
mm (Equiv. 2.953 in.) |
Clip Thickness (T)
3.00
mm + 0.30 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
78.00
mm + 0.00 / - 0.08 (Equiv. 3.071 in.) |
Approx. Loose Circlip OD (Dr)
79.50
mm + 1.10 / - 0.46 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-07500H-C (100 Pcs)
Internal Retaining Rings - 75x3x78 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Thu, Feb 12, 2026 Regular price
$799.41 AUD
Regular price
Unit price
per
100 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
75.00
mm (Equiv. 2.953 in.) |
Clip Thickness (T)
3.00
mm + 0.30 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
78.00
mm + 0.00 / - 0.08 (Equiv. 3.071 in.) |
Approx. Loose Circlip OD (Dr)
79.50
mm + 1.10 / - 0.46 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.15 mm + 0.13 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-07500H-C (100 Pcs)
Internal Retaining Rings - 75x3x78 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Thu, Feb 12, 2026 Regular price
$799.41 AUD
Regular price
Unit price
per
100 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
75.00
mm (Equiv. 2.953 in.) |
Clip Thickness (T)
3.2
mm B DIN 2076 (Equiv. 0.126 in.) |
Groove Dia. (Dg)
78.20
mm + 1.0 / - 0.0 (Equiv. 3.079 in.) |
Approx. Loose Circlip OD (Dr)
79.00
mm |
Groove Width (W)
3.60
mm |
|
|
|
Material: Carbon Spring Steel
Clearance in Bore (C): 72.6 mm

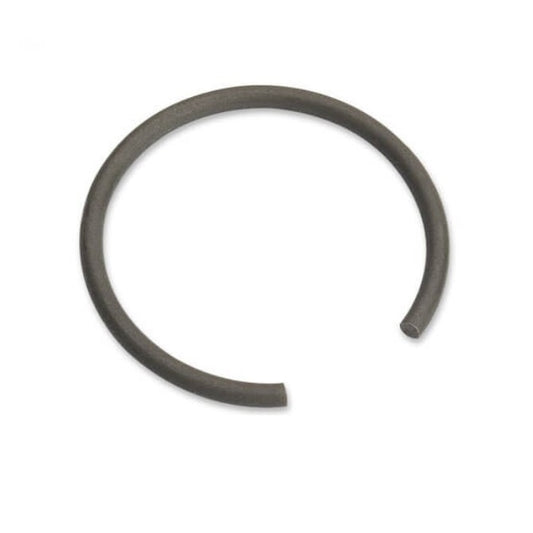

Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0750-RD (150 Pcs)
Internal Retaining Rings - 75x3.2x78.2 mm Round Wire - Carbon Spring Steel Wire Clip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
75.00
mm (Equiv. 2.953 in.) |
Clip Thickness (T)
3.2
mm B DIN 2076 (Equiv. 0.126 in.) |
Groove Dia. (Dg)
78.20
mm + 1.0 / - 0.0 (Equiv. 3.079 in.) |
Approx. Loose Circlip OD (Dr)
79.00
mm |
|
||
|
Material: Carbon Spring Steel
Groove Width (W): 3.60 mm
Clearance in Bore (C): 72.6 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0750-RD (150 Pcs)
Internal Retaining Rings - 75x3.2x78.2 mm Round Wire - Carbon Spring Steel Wire Clip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Feb 22, 2026 |
||||||
|
Housing Bore (B)
75.01
mm (Equiv. 2.953 in.) |
Clip Thickness (T)
2.29
mm + 0.15 / - 0.00 (Equiv. 0.09 in.) |
Groove Dia. (Dg)
80.72
mm +/- 0.08 (Equiv. 3.178 in.) |
Approx. Loose Circlip OD (Dr)
83.69
mm + 1.78 / - 0.00 |
Groove Width (W)
1.88
mm + 0.04 / - 0.00 |
|
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-07501-C
Internal Retaining Rings - 75.01x2.29x80.72 mm Circlips - Carbon Spring Steel Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
75.01
mm (Equiv. 2.953 in.) |
Clip Thickness (T)
2.29
mm + 0.15 / - 0.00 (Equiv. 0.09 in.) |
Groove Dia. (Dg)
80.72
mm +/- 0.08 (Equiv. 3.178 in.) |
Approx. Loose Circlip OD (Dr)
83.69
mm + 1.78 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Groove Width (W): 1.88 mm + 0.04 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-07501-C
Internal Retaining Rings - 75.01x2.29x80.72 mm Circlips - Carbon Spring Steel Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jul 17, 2028 |
||||||
|
Housing Bore (B)
75.01
mm (Equiv. 2.953 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
79.63
mm +/- 0.15 (Equiv. 3.135 in.) |
Approx. Loose Circlip OD (Dr)
80.65
mm + 2.05 / - 0.00 |
Radial Wall (S) Approx.
5.16
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 70.33 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0750-LS-N
Internal Retaining Rings - 75.01x2.36x79.63 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
75.01
mm (Equiv. 2.953 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
79.63
mm +/- 0.15 (Equiv. 3.135 in.) |
Approx. Loose Circlip OD (Dr)
80.65
mm + 2.05 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 5.16 mm +/- 0.13
Groove Width (W): 2.62 mm
Clearance in Groove (C1): 70.33 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0750-LS-N
Internal Retaining Rings - 75.01x2.36x79.63 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jul 17, 2028 |
||||||
|
Housing Bore (B)
76.00
mm (Equiv. 2.992 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
77.80
mm + 0.19 / - 0.00 (Equiv. 3.063 in.) |
Approx. Loose Circlip OD (Dr)
78.60
mm |
Radial Wall (S) Approx.
2.80
mm + 0 / - 0.10 |
Groove Width (W)
2.20
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 73 mm
Category: Retaining Rings - Internal - Snap Rings Additional stock available from USA subject to Prior Sale = 1 |
||||||
|
Part Number: WRI-0760-LS (5 Pcs)
Internal Retaining Rings - 76x2x77.8 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 19, 2025 Regular price
$13.50 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
76.00
mm (Equiv. 2.992 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
77.80
mm + 0.19 / - 0.00 (Equiv. 3.063 in.) |
Approx. Loose Circlip OD (Dr)
78.60
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.80 mm + 0 / - 0.10
Groove Width (W): 2.20 mm
Clearance in Groove (C1): 73 mm
Category: Retaining Rings - Internal - Snap Rings Additional stock available from USA subject to Prior Sale = 1 |
||||||
|
Part Number: WRI-0760-LS (5 Pcs)
Internal Retaining Rings - 76x2x77.8 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 19, 2025 Regular price
$13.50 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
76.00
mm (Equiv. 2.992 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
79.00
mm + 0.00 / - 0.07 (Equiv. 3.11 in.) |
Approx. Loose Circlip OD (Dr)
80.70
mm + 1.30 / - 0.54 |
Groove Width (W)
2.65
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 59.60 mm
Clearance in Groove (C1): 63.40 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-07600-C
Internal Retaining Rings - 76x2.5x79 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 30, 2025 Regular price
$10.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
76.00
mm (Equiv. 2.992 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
79.00
mm + 0.00 / - 0.07 (Equiv. 3.11 in.) |
Approx. Loose Circlip OD (Dr)
80.70
mm + 1.30 / - 0.54 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.65 mm + 0.13 / - 0.00
Clearance in Bore (C): 59.60 mm
Clearance in Groove (C1): 63.40 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-07600-C
Internal Retaining Rings - 76x2.5x79 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 30, 2025 Regular price
$10.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
76.00
mm (Equiv. 2.992 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
79.00
mm + 0.00 / - 0.07 (Equiv. 3.11 in.) |
Approx. Loose Circlip OD (Dr)
80.70
mm + 1.10 / - 0.46 |
Groove Width (W)
2.65
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 59.60 mm
Clearance in Groove (C1): 63.40 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-07600-S15
Internal Retaining Rings - 76x2.5x79 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
76.00
mm (Equiv. 2.992 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
79.00
mm + 0.00 / - 0.07 (Equiv. 3.11 in.) |
Approx. Loose Circlip OD (Dr)
80.70
mm + 1.10 / - 0.46 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.65 mm + 0.13 / - 0.00
Clearance in Bore (C): 59.60 mm
Clearance in Groove (C1): 63.40 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-07600-S15
Internal Retaining Rings - 76x2.5x79 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jul 17, 2028 |
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
78.13
mm (Equiv. 3.076 in.) |
Approx. Loose Circlip OD (Dr)
79.86
mm + 0.64 / - 0.00 |
Radial Wall (S) Approx.
4.01
mm +/- 0.10 |
Groove Width (W)
1.00
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 71.84 mm + 0.07 / - 0.00
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: UR-300 (25 Pcs)
Internal Retaining Rings - 76.2x0.79x78.13 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$196.59 AUD
Regular price
Unit price
per
25 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
78.13
mm (Equiv. 3.076 in.) |
Approx. Loose Circlip OD (Dr)
79.86
mm + 0.64 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.01 mm +/- 0.10
Groove Width (W): 1.00 mm +/- 0.15
Clearance in Groove (C1): 71.84 mm + 0.07 / - 0.00
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: UR-300 (25 Pcs)
Internal Retaining Rings - 76.2x0.79x78.13 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Dec 03, 2025 Regular price
$196.59 AUD
Regular price
Unit price
per
25 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
78.64
mm (Equiv. 3.096 in.) |
Approx. Loose Circlip OD (Dr)
79.55
mm + 0.64 / - 0.00 |
Radial Wall (S) Approx.
4.27
mm +/- 0.13 |
Groove Width (W)
1.79
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 71.01 mm +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings Deleted Item. Available while stocks last. |
||||||
|
Part Number: RR-300
Internal Retaining Rings - 76.2x1.55x78.64 mm Spiral Rings - Carbon Spring Steel Spiral Ring 85 Available Now | Item Discontinued - Up to 85 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
78.64
mm (Equiv. 3.096 in.) |
Approx. Loose Circlip OD (Dr)
79.55
mm + 0.64 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.27 mm +/- 0.13
Groove Width (W): 1.79 mm +/- 0.15
Clearance in Groove (C1): 71.01 mm +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings Deleted Item. Available while stocks last. |
||||||
|
Part Number: RR-300
Internal Retaining Rings - 76.2x1.55x78.64 mm Spiral Rings - Carbon Spring Steel Spiral Ring 85 Available Now | Item Discontinued - Up to 85 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
1.58
mm +/- 0.06 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
79.35
mm +/- 0.15 (Equiv. 3.124 in.) |
Approx. Loose Circlip OD (Dr)
80.11
mm + 1.98 / - 0.00 |
Radial Wall (S) Approx.
4.75
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 70.61 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0762-LS-O
Internal Retaining Rings - 76.2x1.58x79.35 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
1.58
mm +/- 0.06 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
79.35
mm +/- 0.15 (Equiv. 3.124 in.) |
Approx. Loose Circlip OD (Dr)
80.11
mm + 1.98 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.75 mm +/- 0.13
Groove Width (W): 1.73 mm
Clearance in Groove (C1): 70.61 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0762-LS-O
Internal Retaining Rings - 76.2x1.58x79.35 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jul 17, 2028 |
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
80.82
mm +/- 0.15 (Equiv. 3.182 in.) |
Approx. Loose Circlip OD (Dr)
81.84
mm + 2.05 / - 0.00 |
Radial Wall (S) Approx.
5.16
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 71.52 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0762-LS-N
Internal Retaining Rings - 76.2x2.36x80.82 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
80.82
mm +/- 0.15 (Equiv. 3.182 in.) |
Approx. Loose Circlip OD (Dr)
81.84
mm + 2.05 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 5.16 mm +/- 0.13
Groove Width (W): 2.62 mm
Clearance in Groove (C1): 71.52 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0762-LS-N
Internal Retaining Rings - 76.2x2.36x80.82 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jul 17, 2028 |
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
80.82
mm + 0.00 / - 0.07 (Equiv. 3.182 in.) |
Approx. Loose Circlip OD (Dr)
84.46
mm + 1.02 / - 0.76 |
Groove Width (W)
2.62
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 61.72 mm
Clearance in Groove (C1): 66.04 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 78 |
||||||
|
Part Number: CCI-07620-S15
Internal Retaining Rings - 76.2x2.36x80.82 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 19, 2025 Regular price
$47.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
80.82
mm + 0.00 / - 0.07 (Equiv. 3.182 in.) |
Approx. Loose Circlip OD (Dr)
84.46
mm + 1.02 / - 0.76 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.62 mm + 0.13 / - 0.00
Clearance in Bore (C): 61.72 mm
Clearance in Groove (C1): 66.04 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 78 |
||||||
|
Part Number: CCI-07620-S15
Internal Retaining Rings - 76.2x2.36x80.82 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 19, 2025 Regular price
$47.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
80.82
mm + 0.00 / - 0.07 (Equiv. 3.182 in.) |
Approx. Loose Circlip OD (Dr)
84.46
mm + 1.02 / - 0.76 |
Groove Width (W)
2.62
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 61.72 mm
Clearance in Groove (C1): 66.04 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 590 |
||||||
|
Part Number: CCI-07620-C (3 Pcs)
Internal Retaining Rings - 76.2x2.36x80.82 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 19, 2025 Regular price
$12.59 AUD
Regular price
Unit price
per
3 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
80.82
mm + 0.00 / - 0.07 (Equiv. 3.182 in.) |
Approx. Loose Circlip OD (Dr)
84.46
mm + 1.02 / - 0.76 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.62 mm + 0.13 / - 0.00
Clearance in Bore (C): 61.72 mm
Clearance in Groove (C1): 66.04 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 590 |
||||||
|
Part Number: CCI-07620-C (3 Pcs)
Internal Retaining Rings - 76.2x2.36x80.82 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 19, 2025 Regular price
$12.59 AUD
Regular price
Unit price
per
3 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.29
mm + 0.15 / - 0.00 (Equiv. 0.09 in.) |
Groove Dia. (Dg)
81.92
mm +/- 0.08 (Equiv. 3.225 in.) |
Approx. Loose Circlip OD (Dr)
83.69
mm + 1.78 / - 0.00 |
Groove Width (W)
1.88
mm + 0.04 / - 0.00 |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 363 |
||||||
|
Part Number: CIB-07620-C (2 Pcs)
Internal Retaining Rings - 76.2x2.29x81.92 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 19, 2025 Regular price
$10.59 AUD
Regular price
Unit price
per
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.29
mm + 0.15 / - 0.00 (Equiv. 0.09 in.) |
Groove Dia. (Dg)
81.92
mm +/- 0.08 (Equiv. 3.225 in.) |
Approx. Loose Circlip OD (Dr)
83.69
mm + 1.78 / - 0.00 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.88 mm + 0.04 / - 0.00
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 363 |
||||||
|
Part Number: CIB-07620-C (2 Pcs)
Internal Retaining Rings - 76.2x2.29x81.92 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 19, 2025 Regular price
$10.59 AUD
Regular price
Unit price
per
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.37
mm +/- 0.08 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
80.39
mm (Equiv. 3.165 in.) |
Approx. Loose Circlip OD (Dr)
80.92
mm + 0.76 / - 0.00 |
Radial Wall (S) Approx.
4.78
mm +/- 0.13 |
Groove Width (W)
2.68
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 71.36 mm +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings Additional stock available from USA subject to Prior Sale = 519 |
||||||
|
Part Number: RRT-300 (8 Pcs)
Internal Retaining Rings - 76.2x2.37x80.39 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 19, 2025 Regular price
$9.95 AUD
Regular price
Unit price
per
8 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.37
mm +/- 0.08 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
80.39
mm (Equiv. 3.165 in.) |
Approx. Loose Circlip OD (Dr)
80.92
mm + 0.76 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.78 mm +/- 0.13
Groove Width (W): 2.68 mm +/- 0.15
Clearance in Groove (C1): 71.36 mm +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings Additional stock available from USA subject to Prior Sale = 519 |
||||||
|
Part Number: RRT-300 (8 Pcs)
Internal Retaining Rings - 76.2x2.37x80.39 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 19, 2025 Regular price
$9.95 AUD
Regular price
Unit price
per
8 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.37
mm +/- 0.08 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
80.83
mm (Equiv. 3.182 in.) |
Approx. Loose Circlip OD (Dr)
81.31
mm + 0.76 / - 0.00 |
Radial Wall (S) Approx.
5.72
mm +/- 0.13 |
Groove Width (W)
2.68
mm +/- 0.16 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 69.87 mm +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings Additional stock available from USA subject to Prior Sale = 2 |
||||||
|
Part Number: RRN-300 (2 Pcs)
Internal Retaining Rings - 76.2x2.37x80.83 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 19, 2025 Regular price
$28.50 AUD
Regular price
Unit price
per
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.37
mm +/- 0.08 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
80.83
mm (Equiv. 3.182 in.) |
Approx. Loose Circlip OD (Dr)
81.31
mm + 0.76 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 5.72 mm +/- 0.13
Groove Width (W): 2.68 mm +/- 0.16
Clearance in Groove (C1): 69.87 mm +/- 0.06
Category: Retaining Rings - Internal - Spiral Rings Additional stock available from USA subject to Prior Sale = 2 |
||||||
|
Part Number: RRN-300 (2 Pcs)
Internal Retaining Rings - 76.2x2.37x80.83 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 19, 2025 Regular price
$28.50 AUD
Regular price
Unit price
per
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
79.65
mm +/- 0.15 (Equiv. 3.136 in.) |
Approx. Loose Circlip OD (Dr)
80.80
mm + 1.60 / - 0.00 |
Radial Wall (S) Approx.
4.75
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 71.3 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0762-LS-HO
Internal Retaining Rings - 76.2x2.77x79.65 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
79.65
mm +/- 0.15 (Equiv. 3.136 in.) |
Approx. Loose Circlip OD (Dr)
80.80
mm + 1.60 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.75 mm +/- 0.13
Groove Width (W): 2.62 mm
Clearance in Groove (C1): 71.3 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0762-LS-HO
Internal Retaining Rings - 76.2x2.77x79.65 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Mon, Jul 17, 2028 |
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
80.82
mm +/- 0.076 (Equiv. 3.182 in.) |
Approx. Loose Circlip OD (Dr)
84.46
mm |
Groove Width (W)
2.62
mm |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 83 |
||||||
|
Part Number: CCI-07620-C-V
Internal Retaining Rings - 76.2x2.36x80.82 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 19, 2025 Regular price
$19.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
80.82
mm +/- 0.076 (Equiv. 3.182 in.) |
Approx. Loose Circlip OD (Dr)
84.46
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.62 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 83 |
||||||
|
Part Number: CCI-07620-C-V
Internal Retaining Rings - 76.2x2.36x80.82 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Nov 19, 2025 Regular price
$19.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
