| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) | Groove Width (W) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
47.63
mm (Equiv. 1.875 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
50.52
mm + 0.00 / - 0.06 (Equiv. 1.989 in.) |
Approx. Loose Circlip OD (Dr)
52.63
mm + 0.89 / - 0.64 |
Groove Width (W)
1.73
mm + 0.10 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 37.08 mm
Clearance in Groove (C1): 40.13 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04763-CZY (4 Pcs)
Internal Retaining Rings - 47.63x1.57x50.52 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$9.59 AUD
Regular price
Unit price
per
Per 4
|
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
47.63
mm (Equiv. 1.875 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
50.52
mm + 0.00 / - 0.06 (Equiv. 1.989 in.) |
Approx. Loose Circlip OD (Dr)
52.63
mm + 0.89 / - 0.64 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 1.73 mm + 0.10 / - 0.00
Clearance in Bore (C): 37.08 mm
Clearance in Groove (C1): 40.13 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04763-CZY (4 Pcs)
Internal Retaining Rings - 47.63x1.57x50.52 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$9.59 AUD
Regular price
Unit price
per
Per 4
|
||||||
|
||||||
|
Housing Bore (B)
47.63
mm (Equiv. 1.875 in.) |
Clip Thickness (T)
1.58
mm +/- 0.08 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
50.17
mm (Equiv. 1.975 in.) |
Approx. Loose Circlip OD (Dr)
50.58
mm + 0.51 / - 0.00 |
Radial Wall (S)
3.25
mm +/- 0.10 |
Groove Width (W)
1.78
mm +/- 0.13 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 44.08 mm +/- 0.05
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRT-187 (28 Pcs)
Internal Retaining Rings - 47.63x1.58x50.17 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$8.95 AUD
Regular price
Unit price
per
Per 28
|
||||||
|
Housing Bore (B)
47.63
mm (Equiv. 1.875 in.) |
Clip Thickness (T)
1.58
mm +/- 0.08 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
50.17
mm (Equiv. 1.975 in.) |
Approx. Loose Circlip OD (Dr)
50.58
mm + 0.51 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 3.25 mm +/- 0.10
Groove Width (W): 1.78 mm +/- 0.13
Clearance in Groove (C1): 44.08 mm +/- 0.05
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRT-187 (28 Pcs)
Internal Retaining Rings - 47.63x1.58x50.17 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$8.95 AUD
Regular price
Unit price
per
Per 28
|
||||||
|
||||||
|
Housing Bore (B)
49.23
mm (Equiv. 1.938 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
52.22
mm + 0.00 / - 0.07 (Equiv. 2.056 in.) |
Approx. Loose Circlip OD (Dr)
54.38
mm + 0.89 / - 0.64 |
Groove Width (W)
1.73
mm + 0.10 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 38.61 mm
Clearance in Groove (C1): 41.66 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04923-S15
Internal Retaining Rings - 49.23x1.57x52.22 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$20.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
49.23
mm (Equiv. 1.938 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
52.22
mm + 0.00 / - 0.07 (Equiv. 2.056 in.) |
Approx. Loose Circlip OD (Dr)
54.38
mm + 0.89 / - 0.64 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.73 mm + 0.10 / - 0.00
Clearance in Bore (C): 38.61 mm
Clearance in Groove (C1): 41.66 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04923-S15
Internal Retaining Rings - 49.23x1.57x52.22 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$20.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
49.23
mm (Equiv. 1.938 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
51.77
mm +/- 0.13 (Equiv. 2.038 in.) |
Approx. Loose Circlip OD (Dr)
52.53
mm + 1.20 / - 0.00 |
Radial Wall (S)
3.96
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 44.61 mm

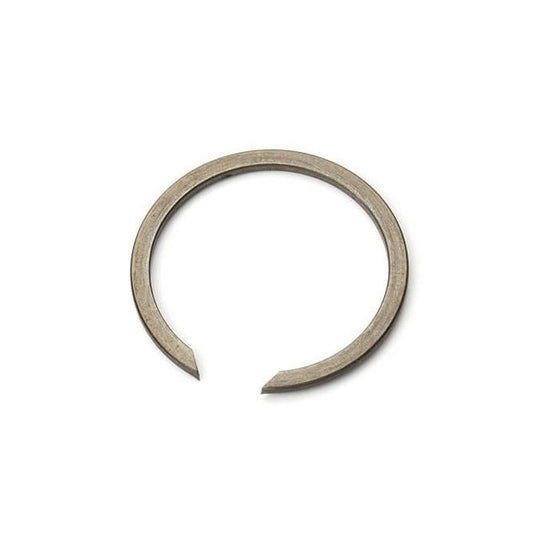

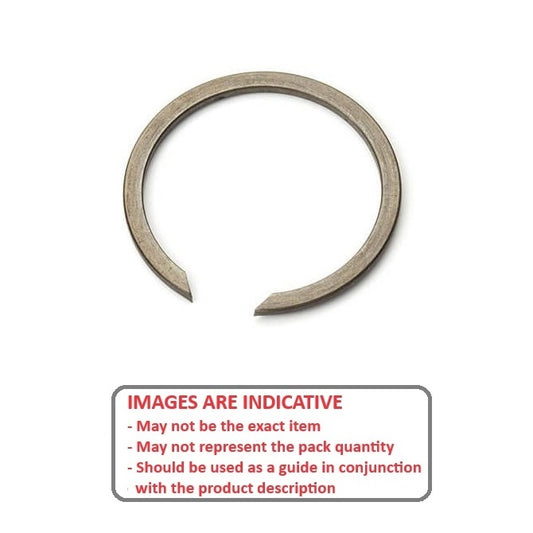

Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0492-LS-O
Internal Retaining Rings - 49.23x1.58x51.77 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
49.23
mm (Equiv. 1.938 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
51.77
mm +/- 0.13 (Equiv. 2.038 in.) |
Approx. Loose Circlip OD (Dr)
52.53
mm + 1.20 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 3.96 mm +/- 0.13
Groove Width (W): 1.73 mm
Clearance in Groove (C1): 44.61 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0492-LS-O
Internal Retaining Rings - 49.23x1.58x51.77 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
49.23
mm (Equiv. 1.938 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
52.22
mm + 0.00 / - 0.07 (Equiv. 2.056 in.) |
Approx. Loose Circlip OD (Dr)
54.38
mm + 0.89 / - 0.64 |
Groove Width (W)
1.73
mm + 0.10 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 38.61 mm
Clearance in Groove (C1): 41.66 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04923-C (5 Pcs)
Internal Retaining Rings - 49.23x1.57x52.22 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$7.23 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
49.23
mm (Equiv. 1.938 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
52.22
mm + 0.00 / - 0.07 (Equiv. 2.056 in.) |
Approx. Loose Circlip OD (Dr)
54.38
mm + 0.89 / - 0.64 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.73 mm + 0.10 / - 0.00
Clearance in Bore (C): 38.61 mm
Clearance in Groove (C1): 41.66 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04923-C (5 Pcs)
Internal Retaining Rings - 49.23x1.57x52.22 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$7.23 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
49.23
mm (Equiv. 1.938 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
52.22
mm +/- 0.13 (Equiv. 2.056 in.) |
Approx. Loose Circlip OD (Dr)
52.86
mm + 1.80 / - 0.00 |
Radial Wall (S)
3.96
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 44.94 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0492-LS-N
Internal Retaining Rings - 49.23x1.58x52.22 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
49.23
mm (Equiv. 1.938 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
52.22
mm +/- 0.13 (Equiv. 2.056 in.) |
Approx. Loose Circlip OD (Dr)
52.86
mm + 1.80 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 3.96 mm +/- 0.13
Groove Width (W): 1.73 mm
Clearance in Groove (C1): 44.94 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0492-LS-N
Internal Retaining Rings - 49.23x1.58x52.22 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
49.99
mm (Equiv. 1.968 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
52.53
mm +/- 0.13 (Equiv. 2.068 in.) |
Approx. Loose Circlip OD (Dr)
53.29
mm + 1.20 / - 0.00 |
Radial Wall (S)
3.96
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 45.37 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0500-LS-O
Internal Retaining Rings - 49.99x1.58x52.53 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
49.99
mm (Equiv. 1.968 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
52.53
mm +/- 0.13 (Equiv. 2.068 in.) |
Approx. Loose Circlip OD (Dr)
53.29
mm + 1.20 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 3.96 mm +/- 0.13
Groove Width (W): 1.73 mm
Clearance in Groove (C1): 45.37 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0500-LS-O
Internal Retaining Rings - 49.99x1.58x52.53 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
50.00
mm (Equiv. 1.969 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
51.20
mm + 0.19 / - 0.00 (Equiv. 2.016 in.) |
Approx. Loose Circlip OD (Dr)
51.80
mm |
Radial Wall (S)
2.30
mm + 0 / - 0.10 |
Groove Width (W)
1.60
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 47.2 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0500-LS (1000 Pcs)
Internal Retaining Rings - 50x1.5x51.2 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Mon, Apr 20, 2026 Regular price
$940.23 AUD
Regular price
Unit price
per
Per 1000
|
||||||
|
Housing Bore (B)
50.00
mm (Equiv. 1.969 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
51.20
mm + 0.19 / - 0.00 (Equiv. 2.016 in.) |
Approx. Loose Circlip OD (Dr)
51.80
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 2.30 mm + 0 / - 0.10
Groove Width (W): 1.60 mm
Clearance in Groove (C1): 47.2 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0500-LS (1000 Pcs)
Internal Retaining Rings - 50x1.5x51.2 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Mon, Apr 20, 2026 Regular price
$940.23 AUD
Regular price
Unit price
per
Per 1000
|
||||||
|
||||||
|
Housing Bore (B)
50.00
mm (Equiv. 1.969 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
53.00
mm + 0.00 / - 0.07 (Equiv. 2.087 in.) |
Approx. Loose Circlip OD (Dr)
54.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.15
mm + 0.10 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 36.30 mm
Clearance in Groove (C1): 40.00 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05000-C (5 Pcs)
Internal Retaining Rings - 50x2x53 mm Circlips - Carbon Steel Circlip 27 units (135 pcs) Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$8.86 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
50.00
mm (Equiv. 1.969 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
53.00
mm + 0.00 / - 0.07 (Equiv. 2.087 in.) |
Approx. Loose Circlip OD (Dr)
54.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.15 mm + 0.10 / - 0.00
Clearance in Bore (C): 36.30 mm
Clearance in Groove (C1): 40.00 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05000-C (5 Pcs)
Internal Retaining Rings - 50x2x53 mm Circlips - Carbon Steel Circlip 27 units (135 pcs) Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$8.86 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
50.00
mm (Equiv. 1.969 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
53.00
mm + 0.00 / - 0.07 (Equiv. 2.087 in.) |
Approx. Loose Circlip OD (Dr)
54.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.15
mm + 0.10 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 36.30 mm
Clearance in Groove (C1): 40.00 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05000-S15 (2 Pcs)
Internal Retaining Rings - 50x2x53 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$32.14 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
50.00
mm (Equiv. 1.969 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
53.00
mm + 0.00 / - 0.07 (Equiv. 2.087 in.) |
Approx. Loose Circlip OD (Dr)
54.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.15 mm + 0.10 / - 0.00
Clearance in Bore (C): 36.30 mm
Clearance in Groove (C1): 40.00 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05000-S15 (2 Pcs)
Internal Retaining Rings - 50x2x53 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$32.14 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
49.23
mm (Equiv. 1.938 in.) |
Clip Thickness (T)
1.50
mm + 0.13 / - 0.00 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
52.88
mm +/- 0.08 (Equiv. 2.082 in.) |
Approx. Loose Circlip OD (Dr)
53.75
mm + 1.52 / - 0.00 |
Radial Wall (S)
2.16 - 4.32
mm |
Groove Width (W)
1.24
mm + 0.03 / - 0.00 |
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-04923-C (4 Pcs)
Internal Retaining Rings - 49.23x1.5x52.88 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$10.05 AUD
Regular price
Unit price
per
Per 4
|
||||||
|
Housing Bore (B)
49.23
mm (Equiv. 1.938 in.) |
Clip Thickness (T)
1.50
mm + 0.13 / - 0.00 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
52.88
mm +/- 0.08 (Equiv. 2.082 in.) |
Approx. Loose Circlip OD (Dr)
53.75
mm + 1.52 / - 0.00 |
|
||
|
Material: Carbon Steel
Radial Wall (S): 2.16 - 4.32 mm
Groove Width (W): 1.24 mm + 0.03 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-04923-C (4 Pcs)
Internal Retaining Rings - 49.23x1.5x52.88 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$10.05 AUD
Regular price
Unit price
per
Per 4
|
||||||
|
||||||
|
Housing Bore (B)
50.00
mm (Equiv. 1.969 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
53.00
mm + 0.00 / - 0.07 (Equiv. 2.087 in.) |
Approx. Loose Circlip OD (Dr)
54.20
mm + 1.10 / - 0.46 |
Radial Wall (S)
5.0 - 5.2
mm |
Groove Width (W)
2.15
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05000-C-V (500 Pcs)
Internal Retaining Rings - 50x2x53 mm Circlips - Carbon Spring Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025 Regular price
$2,083.05 AUD
Regular price
Unit price
per
Per 500
|
||||||
|
Housing Bore (B)
50.00
mm (Equiv. 1.969 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
53.00
mm + 0.00 / - 0.07 (Equiv. 2.087 in.) |
Approx. Loose Circlip OD (Dr)
54.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 5.0 - 5.2 mm
Groove Width (W): 2.15 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05000-C-V (500 Pcs)
Internal Retaining Rings - 50x2x53 mm Circlips - Carbon Spring Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025 Regular price
$2,083.05 AUD
Regular price
Unit price
per
Per 500
|
||||||
|
||||||
|
Housing Bore (B)
50.00
mm (Equiv. 1.969 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
53.30
mm + 0.00 / - 0.07 (Equiv. 2.098 in.) |
Approx. Loose Circlip OD (Dr)
53.76 - 55.30
mm |
Radial Wall (S)
4.70
mm |
Groove Width (W)
2.15
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-050
Internal Retaining Rings - 50x2x53.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
50.00
mm (Equiv. 1.969 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
53.30
mm + 0.00 / - 0.07 (Equiv. 2.098 in.) |
Approx. Loose Circlip OD (Dr)
53.76 - 55.30
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 4.70 mm
Groove Width (W): 2.15 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-050
Internal Retaining Rings - 50x2x53.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
50.00
mm (Equiv. 1.969 in.) |
Clip Thickness (T)
2.5
mm B DIN 2076 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
52.50
mm + 0.8 / - 0.0 (Equiv. 2.067 in.) |
Approx. Loose Circlip OD (Dr)
53.00
mm |
Groove Width (W)
2.80
mm |
|
|
|
Material: Carbon Spring Steel
Clearance in Bore (C): 48 mm

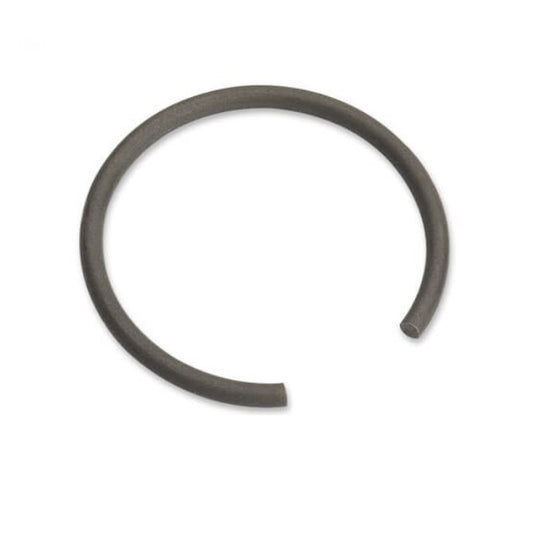

Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0500-RD
Internal Retaining Rings - 50x2.5x52.5 mm Round Wire - Carbon Spring Steel Wire Clip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
50.00
mm (Equiv. 1.969 in.) |
Clip Thickness (T)
2.5
mm B DIN 2076 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
52.50
mm + 0.8 / - 0.0 (Equiv. 2.067 in.) |
Approx. Loose Circlip OD (Dr)
53.00
mm |
|
||
|
Material: Carbon Spring Steel
Groove Width (W): 2.80 mm
Clearance in Bore (C): 48 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0500-RD
Internal Retaining Rings - 50x2.5x52.5 mm Round Wire - Carbon Spring Steel Wire Clip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
49.23
mm (Equiv. 1.938 in.) |
Clip Thickness (T)
1.58
mm +/- 0.08 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
51.82
mm (Equiv. 2.04 in.) |
Approx. Loose Circlip OD (Dr)
52.28
mm + 0.51 / - 0.00 |
Radial Wall (S)
3.25
mm +/- 0.10 |
Groove Width (W)
1.78
mm +/- 0.13 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 45.78 mm +/- 0.05
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRT-193 (8 Pcs)
Internal Retaining Rings - 49.23x1.58x51.82 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$6.95 AUD
Regular price
Unit price
per
Per 8
|
||||||
|
Housing Bore (B)
49.23
mm (Equiv. 1.938 in.) |
Clip Thickness (T)
1.58
mm +/- 0.08 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
51.82
mm (Equiv. 2.04 in.) |
Approx. Loose Circlip OD (Dr)
52.28
mm + 0.51 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 3.25 mm +/- 0.10
Groove Width (W): 1.78 mm +/- 0.13
Clearance in Groove (C1): 45.78 mm +/- 0.05
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRT-193 (8 Pcs)
Internal Retaining Rings - 49.23x1.58x51.82 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$6.95 AUD
Regular price
Unit price
per
Per 8
|
||||||
|
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
52.25
mm (Equiv. 2.057 in.) |
Approx. Loose Circlip OD (Dr)
53.24
mm + 0.51 / - 0.00 |
Radial Wall (S)
3.00
mm + 0.08 / - 0.13 |
Groove Width (W)
1.00
mm +/- 0.13 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 47.24 mm + 0.07 / - 0.00
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: UR-200 (2 Pcs)
Internal Retaining Rings - 50.8x0.79x52.25 mm Spiral Rings - Carbon Spring Steel Spiral Ring 496 units (992 pcs) Available Now | Item Discontinued - Up to 496 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$5.14 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
52.25
mm (Equiv. 2.057 in.) |
Approx. Loose Circlip OD (Dr)
53.24
mm + 0.51 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 3.00 mm + 0.08 / - 0.13
Groove Width (W): 1.00 mm +/- 0.13
Clearance in Groove (C1): 47.24 mm + 0.07 / - 0.00
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: UR-200 (2 Pcs)
Internal Retaining Rings - 50.8x0.79x52.25 mm Spiral Rings - Carbon Spring Steel Spiral Ring 496 units (992 pcs) Available Now | Item Discontinued - Up to 496 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$5.14 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.07
mm +/- 0.06 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
53.09
mm +/- 0.13 (Equiv. 2.09 in.) |
Approx. Loose Circlip OD (Dr)
53.72
mm + 1.58 / - 0.00 |
Radial Wall (S)
3.96
mm +/- 0.13 |
Groove Width (W)
1.17
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 45.8 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0508-LS-O
Internal Retaining Rings - 50.8x1.07x53.09 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.07
mm +/- 0.06 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
53.09
mm +/- 0.13 (Equiv. 2.09 in.) |
Approx. Loose Circlip OD (Dr)
53.72
mm + 1.58 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 3.96 mm +/- 0.13
Groove Width (W): 1.17 mm
Clearance in Groove (C1): 45.8 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0508-LS-O
Internal Retaining Rings - 50.8x1.07x53.09 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.25
mm +/- 0.08 (Equiv. 0.049 in.) |
Groove Dia. (Dg)
52.60
mm (Equiv. 2.071 in.) |
Approx. Loose Circlip OD (Dr)
53.04
mm + 0.51 / - 0.00 |
Radial Wall (S)
3.25
mm +/- 0.10 |
Groove Width (W)
1.47
mm +/- 0.13 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 46.54 mm +/- 0.05
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RR-200
Internal Retaining Rings - 50.8x1.25x52.6 mm Spiral Rings - Carbon Spring Steel Spiral Ring 60 Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$7.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.25
mm +/- 0.08 (Equiv. 0.049 in.) |
Groove Dia. (Dg)
52.60
mm (Equiv. 2.071 in.) |
Approx. Loose Circlip OD (Dr)
53.04
mm + 0.51 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 3.25 mm +/- 0.10
Groove Width (W): 1.47 mm +/- 0.13
Clearance in Groove (C1): 46.54 mm +/- 0.05
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RR-200
Internal Retaining Rings - 50.8x1.25x52.6 mm Spiral Rings - Carbon Spring Steel Spiral Ring 60 Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$7.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.50
mm + 0.13 / - 0.00 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
54.46
mm +/- 0.08 (Equiv. 2.144 in.) |
Approx. Loose Circlip OD (Dr)
55.50
mm + 1.52 / - 0.00 |
Radial Wall (S)
2.16 - 4.32
mm |
Groove Width (W)
1.22
mm + 0.03 / - 0.00 |
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-05080-C (4 Pcs)
Internal Retaining Rings - 50.8x1.5x54.46 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$10.14 AUD
Regular price
Unit price
per
Per 4
|
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.50
mm + 0.13 / - 0.00 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
54.46
mm +/- 0.08 (Equiv. 2.144 in.) |
Approx. Loose Circlip OD (Dr)
55.50
mm + 1.52 / - 0.00 |
|
||
|
Material: Carbon Steel
Radial Wall (S): 2.16 - 4.32 mm
Groove Width (W): 1.22 mm + 0.03 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-05080-C (4 Pcs)
Internal Retaining Rings - 50.8x1.5x54.46 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$10.14 AUD
Regular price
Unit price
per
Per 4
|
||||||
|
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
53.90
mm + 0.00 / - 0.07 (Equiv. 2.122 in.) |
Approx. Loose Circlip OD (Dr)
56.13
mm + 0.89 / - 0.64 |
Groove Width (W)
1.73
mm + 0.10 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 40.39 mm
Clearance in Groove (C1): 43.43 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05080-CZY (5 Pcs)
Internal Retaining Rings - 50.8x1.57x53.9 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$14.14 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
53.90
mm + 0.00 / - 0.07 (Equiv. 2.122 in.) |
Approx. Loose Circlip OD (Dr)
56.13
mm + 0.89 / - 0.64 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 1.73 mm + 0.10 / - 0.00
Clearance in Bore (C): 40.39 mm
Clearance in Groove (C1): 43.43 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05080-CZY (5 Pcs)
Internal Retaining Rings - 50.8x1.57x53.9 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$14.14 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
53.90
mm + 0.00 / - 0.07 (Equiv. 2.122 in.) |
Approx. Loose Circlip OD (Dr)
56.13
mm + 0.89 / - 0.64 |
Groove Width (W)
1.73
mm + 0.10 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 40.39 mm
Clearance in Groove (C1): 43.43 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05080-S15
Internal Retaining Rings - 50.8x1.57x53.9 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 27 Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$23.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
53.90
mm + 0.00 / - 0.07 (Equiv. 2.122 in.) |
Approx. Loose Circlip OD (Dr)
56.13
mm + 0.89 / - 0.64 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.73 mm + 0.10 / - 0.00
Clearance in Bore (C): 40.39 mm
Clearance in Groove (C1): 43.43 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05080-S15
Internal Retaining Rings - 50.8x1.57x53.9 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 27 Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$23.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
53.90
mm + 0.00 / - 0.07 (Equiv. 2.122 in.) |
Approx. Loose Circlip OD (Dr)
56.13
mm + 0.89 / - 0.64 |
Groove Width (W)
1.73
mm + 0.10 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 40.39 mm
Clearance in Groove (C1): 43.43 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05080-C (5 Pcs)
Internal Retaining Rings - 50.8x1.57x53.9 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$7.59 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
53.90
mm + 0.00 / - 0.07 (Equiv. 2.122 in.) |
Approx. Loose Circlip OD (Dr)
56.13
mm + 0.89 / - 0.64 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.73 mm + 0.10 / - 0.00
Clearance in Bore (C): 40.39 mm
Clearance in Groove (C1): 43.43 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05080-C (5 Pcs)
Internal Retaining Rings - 50.8x1.57x53.9 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$7.59 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
53.90
mm +/- 0.076 (Equiv. 2.122 in.) |
Approx. Loose Circlip OD (Dr)
56.13
mm |
Radial Wall (S)
2.54 - 5.28
mm |
Groove Width (W)
1.73
mm |
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05080-C-V (2 Pcs)
Internal Retaining Rings - 50.8x1.57x53.9 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$29.86 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
53.90
mm +/- 0.076 (Equiv. 2.122 in.) |
Approx. Loose Circlip OD (Dr)
56.13
mm |
|
||
|
Material: Carbon Steel
Radial Wall (S): 2.54 - 5.28 mm
Groove Width (W): 1.73 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05080-C-V (2 Pcs)
Internal Retaining Rings - 50.8x1.57x53.9 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$29.86 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.58
mm +/- 0.08 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
53.60
mm (Equiv. 2.11 in.) |
Approx. Loose Circlip OD (Dr)
53.95
mm + 0.51 / - 0.00 |
Radial Wall (S)
3.51
mm +/- 0.11 |
Groove Width (W)
1.78
mm +/- 0.13 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 46.93 mm +/- 0.05
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRT-200
Internal Retaining Rings - 50.8x1.58x53.6 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$6.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.58
mm +/- 0.08 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
53.60
mm (Equiv. 2.11 in.) |
Approx. Loose Circlip OD (Dr)
53.95
mm + 0.51 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 3.51 mm +/- 0.11
Groove Width (W): 1.78 mm +/- 0.13
Clearance in Groove (C1): 46.93 mm +/- 0.05
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRT-200
Internal Retaining Rings - 50.8x1.58x53.6 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$6.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
