| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) | Groove Width (W) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
44.45
mm (Equiv. 1.75 in.) |
Clip Thickness (T)
1.50
mm + 0.13 / - 0.00 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
47.70
mm +/- 0.08 (Equiv. 1.878 in.) |
Approx. Loose Circlip OD (Dr)
48.69
mm + 1.52 / - 0.00 |
Radial Wall (S)
2.11 - 4.34
mm |
Groove Width (W)
1.27
mm + 0.03 / - 0.00 |
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-04445-C (5 Pcs)
Internal Retaining Rings - 44.45x1.5x47.7 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$10.59 AUD
Regular price
Unit price
per
Per 5
|
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
44.45
mm (Equiv. 1.75 in.) |
Clip Thickness (T)
1.50
mm + 0.13 / - 0.00 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
47.70
mm +/- 0.08 (Equiv. 1.878 in.) |
Approx. Loose Circlip OD (Dr)
48.69
mm + 1.52 / - 0.00 |
|
||
|
Material: Carbon Steel
Radial Wall (S): 2.11 - 4.34 mm
Groove Width (W): 1.27 mm + 0.03 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-04445-C (5 Pcs)
Internal Retaining Rings - 44.45x1.5x47.7 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$10.59 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
44.45
mm (Equiv. 1.75 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
47.19
mm + 0.00 / - 0.06 (Equiv. 1.858 in.) |
Approx. Loose Circlip OD (Dr)
49.33
mm + 0.89 / - 0.64 |
Groove Width (W)
1.73
mm + 0.10 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 34.04 mm
Clearance in Groove (C1): 36.58 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04445-S15
Internal Retaining Rings - 44.45x1.57x47.19 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 4 Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$17.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
44.45
mm (Equiv. 1.75 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
47.19
mm + 0.00 / - 0.06 (Equiv. 1.858 in.) |
Approx. Loose Circlip OD (Dr)
49.33
mm + 0.89 / - 0.64 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.73 mm + 0.10 / - 0.00
Clearance in Bore (C): 34.04 mm
Clearance in Groove (C1): 36.58 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04445-S15
Internal Retaining Rings - 44.45x1.57x47.19 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 4 Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$17.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
44.45
mm (Equiv. 1.75 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
47.19
mm + 0.00 / - 0.06 (Equiv. 1.858 in.) |
Approx. Loose Circlip OD (Dr)
49.33
mm + 0.89 / - 0.64 |
Groove Width (W)
1.73
mm + 0.10 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 34.04 mm
Clearance in Groove (C1): 36.58 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04445-CZY (4 Pcs)
Internal Retaining Rings - 44.45x1.57x47.19 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$8.95 AUD
Regular price
Unit price
per
Per 4
|
||||||
|
Housing Bore (B)
44.45
mm (Equiv. 1.75 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
47.19
mm + 0.00 / - 0.06 (Equiv. 1.858 in.) |
Approx. Loose Circlip OD (Dr)
49.33
mm + 0.89 / - 0.64 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 1.73 mm + 0.10 / - 0.00
Clearance in Bore (C): 34.04 mm
Clearance in Groove (C1): 36.58 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04445-CZY (4 Pcs)
Internal Retaining Rings - 44.45x1.57x47.19 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$8.95 AUD
Regular price
Unit price
per
Per 4
|
||||||
|
||||||
|
Housing Bore (B)
44.45
mm (Equiv. 1.75 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
47.19
mm + 0.00 / - 0.06 (Equiv. 1.858 in.) |
Approx. Loose Circlip OD (Dr)
49.33
mm + 0.89 / - 0.64 |
Groove Width (W)
1.73
mm + 0.10 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 34.04 mm
Clearance in Groove (C1): 36.58 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04445-C (5 Pcs)
Internal Retaining Rings - 44.45x1.57x47.19 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$8.95 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
44.45
mm (Equiv. 1.75 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
47.19
mm + 0.00 / - 0.06 (Equiv. 1.858 in.) |
Approx. Loose Circlip OD (Dr)
49.33
mm + 0.89 / - 0.64 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.73 mm + 0.10 / - 0.00
Clearance in Bore (C): 34.04 mm
Clearance in Groove (C1): 36.58 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04445-C (5 Pcs)
Internal Retaining Rings - 44.45x1.57x47.19 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$8.95 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
44.45
mm (Equiv. 1.75 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
47.19
mm +/- 0.076 (Equiv. 1.858 in.) |
Approx. Loose Circlip OD (Dr)
49.33
mm |
Radial Wall (S)
2.08 - 4.32
mm |
Groove Width (W)
1.73
mm |
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04445-C-V (5 Pcs)
Internal Retaining Rings - 44.45x1.57x47.19 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$8.32 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
44.45
mm (Equiv. 1.75 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
47.19
mm +/- 0.076 (Equiv. 1.858 in.) |
Approx. Loose Circlip OD (Dr)
49.33
mm |
|
||
|
Material: Carbon Steel
Radial Wall (S): 2.08 - 4.32 mm
Groove Width (W): 1.73 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04445-C-V (5 Pcs)
Internal Retaining Rings - 44.45x1.57x47.19 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$8.32 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
44.45
mm (Equiv. 1.75 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
46.79
mm +/- 0.13 (Equiv. 1.842 in.) |
Approx. Loose Circlip OD (Dr)
47.50
mm + 1.20 / - 0.00 |
Radial Wall (S)
3.96
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 39.58 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0445-LS-HO
Internal Retaining Rings - 44.45x1.58x46.79 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
44.45
mm (Equiv. 1.75 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
46.79
mm +/- 0.13 (Equiv. 1.842 in.) |
Approx. Loose Circlip OD (Dr)
47.50
mm + 1.20 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 3.96 mm +/- 0.13
Groove Width (W): 1.73 mm
Clearance in Groove (C1): 39.58 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0445-LS-HO
Internal Retaining Rings - 44.45x1.58x46.79 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
44.45
mm (Equiv. 1.75 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
47.19
mm +/- 0.13 (Equiv. 1.858 in.) |
Approx. Loose Circlip OD (Dr)
47.70
mm + 1.80 / - 0.00 |
Radial Wall (S)
3.96
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 39.78 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0445-LS-N
Internal Retaining Rings - 44.45x1.58x47.19 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
44.45
mm (Equiv. 1.75 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
47.19
mm +/- 0.13 (Equiv. 1.858 in.) |
Approx. Loose Circlip OD (Dr)
47.70
mm + 1.80 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 3.96 mm +/- 0.13
Groove Width (W): 1.73 mm
Clearance in Groove (C1): 39.78 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0445-LS-N
Internal Retaining Rings - 44.45x1.58x47.19 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
44.45
mm (Equiv. 1.75 in.) |
Clip Thickness (T)
1.58
mm +/- 0.08 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
46.87
mm (Equiv. 1.845 in.) |
Approx. Loose Circlip OD (Dr)
47.21
mm + 0.51 / - 0.00 |
Radial Wall (S)
3.00
mm +/- 0.10 |
Groove Width (W)
1.78
mm +/- 0.13 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 41.21 mm +/- 0.05
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRT-175 (332 Pcs)
Internal Retaining Rings - 44.45x1.58x46.87 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 05, 2025 Regular price
$1,742.95 AUD
Regular price
Unit price
per
Per 332
|
||||||
|
Housing Bore (B)
44.45
mm (Equiv. 1.75 in.) |
Clip Thickness (T)
1.58
mm +/- 0.08 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
46.87
mm (Equiv. 1.845 in.) |
Approx. Loose Circlip OD (Dr)
47.21
mm + 0.51 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 3.00 mm +/- 0.10
Groove Width (W): 1.78 mm +/- 0.13
Clearance in Groove (C1): 41.21 mm +/- 0.05
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRT-175 (332 Pcs)
Internal Retaining Rings - 44.45x1.58x46.87 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 05, 2025 Regular price
$1,742.95 AUD
Regular price
Unit price
per
Per 332
|
||||||
|
||||||
|
Housing Bore (B)
45.00
mm (Equiv. 1.772 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
46.20
mm + 0.16 / - 0.00 (Equiv. 1.819 in.) |
Approx. Loose Circlip OD (Dr)
46.80
mm |
Radial Wall (S)
2.30
mm + 0 / - 0.10 |
Groove Width (W)
1.60
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 42.2 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0450-LS (5 Pcs)
Internal Retaining Rings - 45x1.5x46.2 mm Snap Rings - Carbon Spring Steel Snap Ring 8 units (40 pcs) Available Now | Further orders can be expected around Mon, Apr 20, 2026 Regular price
$6.77 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
45.00
mm (Equiv. 1.772 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
46.20
mm + 0.16 / - 0.00 (Equiv. 1.819 in.) |
Approx. Loose Circlip OD (Dr)
46.80
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 2.30 mm + 0 / - 0.10
Groove Width (W): 1.60 mm
Clearance in Groove (C1): 42.2 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0450-LS (5 Pcs)
Internal Retaining Rings - 45x1.5x46.2 mm Snap Rings - Carbon Spring Steel Snap Ring 8 units (40 pcs) Available Now | Further orders can be expected around Mon, Apr 20, 2026 Regular price
$6.77 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
45.00
mm (Equiv. 1.772 in.) |
Clip Thickness (T)
1.75
mm + 0.25 / - 0.00 (Equiv. 0.069 in.) |
Groove Dia. (Dg)
47.50
mm + 0.00 / - 0.06 (Equiv. 1.87 in.) |
Approx. Loose Circlip OD (Dr)
48.50
mm + 0.90 / - 0.39 |
Groove Width (W)
1.85
mm + 0.10 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 32.00 mm
Clearance in Groove (C1): 35.10 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04500-S15 (2 Pcs)
Internal Retaining Rings - 45x1.75x47.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$8.41 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
45.00
mm (Equiv. 1.772 in.) |
Clip Thickness (T)
1.75
mm + 0.25 / - 0.00 (Equiv. 0.069 in.) |
Groove Dia. (Dg)
47.50
mm + 0.00 / - 0.06 (Equiv. 1.87 in.) |
Approx. Loose Circlip OD (Dr)
48.50
mm + 0.90 / - 0.39 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.85 mm + 0.10 / - 0.00
Clearance in Bore (C): 32.00 mm
Clearance in Groove (C1): 35.10 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04500-S15 (2 Pcs)
Internal Retaining Rings - 45x1.75x47.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$8.41 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
45.00
mm (Equiv. 1.772 in.) |
Clip Thickness (T)
1.75
mm + 0.25 / - 0.00 (Equiv. 0.069 in.) |
Groove Dia. (Dg)
47.50
mm + 0.00 / - 0.06 (Equiv. 1.87 in.) |
Approx. Loose Circlip OD (Dr)
48.50
mm + 0.90 / - 0.39 |
Groove Width (W)
1.85
mm + 0.10 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 32.00 mm
Clearance in Groove (C1): 35.10 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04500-C (5 Pcs)
Internal Retaining Rings - 45x1.75x47.5 mm Circlips - Carbon Steel Circlip 119 units (595 pcs) Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$7.14 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
45.00
mm (Equiv. 1.772 in.) |
Clip Thickness (T)
1.75
mm + 0.25 / - 0.00 (Equiv. 0.069 in.) |
Groove Dia. (Dg)
47.50
mm + 0.00 / - 0.06 (Equiv. 1.87 in.) |
Approx. Loose Circlip OD (Dr)
48.50
mm + 0.90 / - 0.39 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.85 mm + 0.10 / - 0.00
Clearance in Bore (C): 32.00 mm
Clearance in Groove (C1): 35.10 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04500-C (5 Pcs)
Internal Retaining Rings - 45x1.75x47.5 mm Circlips - Carbon Steel Circlip 119 units (595 pcs) Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$7.14 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
45.00
mm (Equiv. 1.772 in.) |
Clip Thickness (T)
1.75
mm + 0.25 / - 0.00 (Equiv. 0.069 in.) |
Groove Dia. (Dg)
47.50
mm + 0.00 / - 0.06 (Equiv. 1.87 in.) |
Approx. Loose Circlip OD (Dr)
48.50
mm + 0.90 / - 0.39 |
Radial Wall (S)
4.0 - 4.2
mm |
Groove Width (W)
1.85
mm |
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04500-C-V (500 Pcs)
Internal Retaining Rings - 45x1.75x47.5 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025 Regular price
$807.68 AUD
Regular price
Unit price
per
Per 500
|
||||||
|
Housing Bore (B)
45.00
mm (Equiv. 1.772 in.) |
Clip Thickness (T)
1.75
mm + 0.25 / - 0.00 (Equiv. 0.069 in.) |
Groove Dia. (Dg)
47.50
mm + 0.00 / - 0.06 (Equiv. 1.87 in.) |
Approx. Loose Circlip OD (Dr)
48.50
mm + 0.90 / - 0.39 |
|
||
|
Material: Carbon Steel
Radial Wall (S): 4.0 - 4.2 mm
Groove Width (W): 1.85 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04500-C-V (500 Pcs)
Internal Retaining Rings - 45x1.75x47.5 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025 Regular price
$807.68 AUD
Regular price
Unit price
per
Per 500
|
||||||
|
||||||
|
Housing Bore (B)
45.00
mm (Equiv. 1.772 in.) |
Clip Thickness (T)
1.75
mm + 0.00 / - 0.25 (Equiv. 0.069 in.) |
Groove Dia. (Dg)
47.75
mm + 0.00 / - 0.06 (Equiv. 1.88 in.) |
Approx. Loose Circlip OD (Dr)
48.11
mm |
Radial Wall (S)
4.30
mm |
Groove Width (W)
1.85
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-045
Internal Retaining Rings - 45x1.75x47.75 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
45.00
mm (Equiv. 1.772 in.) |
Clip Thickness (T)
1.75
mm + 0.00 / - 0.25 (Equiv. 0.069 in.) |
Groove Dia. (Dg)
47.75
mm + 0.00 / - 0.06 (Equiv. 1.88 in.) |
Approx. Loose Circlip OD (Dr)
48.11
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 4.30 mm
Groove Width (W): 1.85 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-045
Internal Retaining Rings - 45x1.75x47.75 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
45.00
mm (Equiv. 1.772 in.) |
Clip Thickness (T)
2.00
mm + 0.25 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
47.50
mm + 0.00 / - 0.07 (Equiv. 1.87 in.) |
Approx. Loose Circlip OD (Dr)
48.50
mm + 0.90 / - 0.39 |
Groove Width (W)
2.15
mm + 0.10 / - 0.00 |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04500H-C (50 Pcs)
Internal Retaining Rings - 45x2x47.5 mm Circlips - Carbon Spring Steel Self Finish Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025 Regular price
$159.95 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
45.00
mm (Equiv. 1.772 in.) |
Clip Thickness (T)
2.00
mm + 0.25 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
47.50
mm + 0.00 / - 0.07 (Equiv. 1.87 in.) |
Approx. Loose Circlip OD (Dr)
48.50
mm + 0.90 / - 0.39 |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 2.15 mm + 0.10 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04500H-C (50 Pcs)
Internal Retaining Rings - 45x2x47.5 mm Circlips - Carbon Spring Steel Self Finish Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025 Regular price
$159.95 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
45.00
mm (Equiv. 1.772 in.) |
Clip Thickness (T)
2.5
mm B DIN 2076 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
47.50
mm + 0.8 / - 0.0 (Equiv. 1.87 in.) |
Approx. Loose Circlip OD (Dr)
48.80
mm |
Groove Width (W)
2.80
mm |
|
|
|
Material: Carbon Spring Steel
Clearance in Bore (C): 43.8 mm

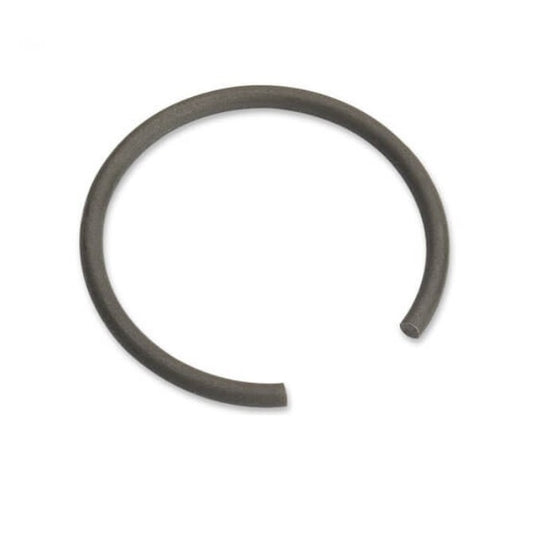

Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0450-RD
Internal Retaining Rings - 45x2.5x47.5 mm Round Wire - Carbon Spring Steel Wire Clip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
45.00
mm (Equiv. 1.772 in.) |
Clip Thickness (T)
2.5
mm B DIN 2076 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
47.50
mm + 0.8 / - 0.0 (Equiv. 1.87 in.) |
Approx. Loose Circlip OD (Dr)
48.80
mm |
|
||
|
Material: Carbon Spring Steel
Groove Width (W): 2.80 mm
Clearance in Bore (C): 43.8 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0450-RD
Internal Retaining Rings - 45x2.5x47.5 mm Round Wire - Carbon Spring Steel Wire Clip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
46.00
mm (Equiv. 1.811 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
47.20
mm + 0.16 / - 0.00 (Equiv. 1.858 in.) |
Approx. Loose Circlip OD (Dr)
47.80
mm |
Radial Wall (S)
2.30
mm + 0 / - 0.10 |
Groove Width (W)
1.60
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 43.2 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0460-LS
Internal Retaining Rings - 46x1.5x47.2 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
46.00
mm (Equiv. 1.811 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
47.20
mm + 0.16 / - 0.00 (Equiv. 1.858 in.) |
Approx. Loose Circlip OD (Dr)
47.80
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 2.30 mm + 0 / - 0.10
Groove Width (W): 1.60 mm
Clearance in Groove (C1): 43.2 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0460-LS
Internal Retaining Rings - 46x1.5x47.2 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
46.00
mm (Equiv. 1.811 in.) |
Clip Thickness (T)
1.75
mm + 0.25 / - 0.00 (Equiv. 0.069 in.) |
Groove Dia. (Dg)
48.50
mm + 0.00 / - 0.06 (Equiv. 1.909 in.) |
Approx. Loose Circlip OD (Dr)
49.50
mm + 1.10 / - 0.46 |
Groove Width (W)
1.85
mm + 0.10 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 33.00 mm
Clearance in Groove (C1): 36.10 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04600-C (50 Pcs)
Internal Retaining Rings - 46x1.75x48.5 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$47.23 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
46.00
mm (Equiv. 1.811 in.) |
Clip Thickness (T)
1.75
mm + 0.25 / - 0.00 (Equiv. 0.069 in.) |
Groove Dia. (Dg)
48.50
mm + 0.00 / - 0.06 (Equiv. 1.909 in.) |
Approx. Loose Circlip OD (Dr)
49.50
mm + 1.10 / - 0.46 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.85 mm + 0.10 / - 0.00
Clearance in Bore (C): 33.00 mm
Clearance in Groove (C1): 36.10 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04600-C (50 Pcs)
Internal Retaining Rings - 46x1.75x48.5 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$47.23 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
46.03
mm (Equiv. 1.812 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
48.36
mm +/- 0.13 (Equiv. 1.904 in.) |
Approx. Loose Circlip OD (Dr)
49.10
mm + 1.20 / - 0.00 |
Radial Wall (S)
3.96
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 41.18 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0460-LS-O
Internal Retaining Rings - 46.03x1.58x48.36 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
46.03
mm (Equiv. 1.812 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
48.36
mm +/- 0.13 (Equiv. 1.904 in.) |
Approx. Loose Circlip OD (Dr)
49.10
mm + 1.20 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 3.96 mm +/- 0.13
Groove Width (W): 1.73 mm
Clearance in Groove (C1): 41.18 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0460-LS-O
Internal Retaining Rings - 46.03x1.58x48.36 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
46.03
mm (Equiv. 1.812 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
48.82
mm +/- 0.13 (Equiv. 1.922 in.) |
Approx. Loose Circlip OD (Dr)
49.33
mm + 1.80 / - 0.00 |
Radial Wall (S)
3.96
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 41.41 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0460-LS-N
Internal Retaining Rings - 46.03x1.58x48.82 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
46.03
mm (Equiv. 1.812 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
48.82
mm +/- 0.13 (Equiv. 1.922 in.) |
Approx. Loose Circlip OD (Dr)
49.33
mm + 1.80 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 3.96 mm +/- 0.13
Groove Width (W): 1.73 mm
Clearance in Groove (C1): 41.41 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0460-LS-N
Internal Retaining Rings - 46.03x1.58x48.82 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
46.04
mm (Equiv. 1.813 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
48.82
mm + 0.00 / - 0.06 (Equiv. 1.922 in.) |
Approx. Loose Circlip OD (Dr)
51.10
mm + 0.89 / - 0.64 |
Groove Width (W)
1.73
mm + 0.10 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 35.56 mm
Clearance in Groove (C1): 38.35 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04604-S15 (2 Pcs)
Internal Retaining Rings - 46.04x1.57x48.82 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$15.86 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
46.04
mm (Equiv. 1.813 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
48.82
mm + 0.00 / - 0.06 (Equiv. 1.922 in.) |
Approx. Loose Circlip OD (Dr)
51.10
mm + 0.89 / - 0.64 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.73 mm + 0.10 / - 0.00
Clearance in Bore (C): 35.56 mm
Clearance in Groove (C1): 38.35 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04604-S15 (2 Pcs)
Internal Retaining Rings - 46.04x1.57x48.82 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$15.86 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
46.04
mm (Equiv. 1.813 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
48.82
mm + 0.00 / - 0.06 (Equiv. 1.922 in.) |
Approx. Loose Circlip OD (Dr)
51.10
mm + 0.89 / - 0.64 |
Groove Width (W)
1.73
mm + 0.10 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 35.56 mm
Clearance in Groove (C1): 38.35 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04604-C (5 Pcs)
Internal Retaining Rings - 46.04x1.57x48.82 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$6.68 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
46.04
mm (Equiv. 1.813 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
48.82
mm + 0.00 / - 0.06 (Equiv. 1.922 in.) |
Approx. Loose Circlip OD (Dr)
51.10
mm + 0.89 / - 0.64 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.73 mm + 0.10 / - 0.00
Clearance in Bore (C): 35.56 mm
Clearance in Groove (C1): 38.35 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04604-C (5 Pcs)
Internal Retaining Rings - 46.04x1.57x48.82 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$6.68 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
46.04
mm (Equiv. 1.813 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
48.82
mm + 0.00 / - 0.06 (Equiv. 1.922 in.) |
Approx. Loose Circlip OD (Dr)
51.10
mm + 0.89 / - 0.64 |
Groove Width (W)
1.73
mm + 0.10 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 35.56 mm
Clearance in Groove (C1): 38.35 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04604-CZY (125 Pcs)
Internal Retaining Rings - 46.04x1.57x48.82 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$307.77 AUD
Regular price
Unit price
per
Per 125
|
||||||
|
Housing Bore (B)
46.04
mm (Equiv. 1.813 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
48.82
mm + 0.00 / - 0.06 (Equiv. 1.922 in.) |
Approx. Loose Circlip OD (Dr)
51.10
mm + 0.89 / - 0.64 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 1.73 mm + 0.10 / - 0.00
Clearance in Bore (C): 35.56 mm
Clearance in Groove (C1): 38.35 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04604-CZY (125 Pcs)
Internal Retaining Rings - 46.04x1.57x48.82 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$307.77 AUD
Regular price
Unit price
per
Per 125
|
||||||
|
||||||
|
Housing Bore (B)
46.99
mm (Equiv. 1.85 in.) |
Clip Thickness (T)
1.50
mm + 0.13 / - 0.00 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
50.39
mm +/- 0.08 (Equiv. 1.984 in.) |
Approx. Loose Circlip OD (Dr)
51.54
mm + 1.52 / - 0.00 |
Radial Wall (S)
2.16 - 4.32
mm |
Groove Width (W)
1.27
mm + 0.03 / - 0.00 |
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-04699-C (3 Pcs)
Internal Retaining Rings - 46.99x1.5x50.39 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$9.32 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
Housing Bore (B)
46.99
mm (Equiv. 1.85 in.) |
Clip Thickness (T)
1.50
mm + 0.13 / - 0.00 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
50.39
mm +/- 0.08 (Equiv. 1.984 in.) |
Approx. Loose Circlip OD (Dr)
51.54
mm + 1.52 / - 0.00 |
|
||
|
Material: Carbon Steel
Radial Wall (S): 2.16 - 4.32 mm
Groove Width (W): 1.27 mm + 0.03 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-04699-C (3 Pcs)
Internal Retaining Rings - 46.99x1.5x50.39 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$9.32 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
||||||
|
Housing Bore (B)
46.99
mm (Equiv. 1.85 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
49.83
mm + 0.00 / - 0.06 (Equiv. 1.962 in.) |
Approx. Loose Circlip OD (Dr)
52.17
mm + 0.89 / - 0.64 |
Groove Width (W)
1.73
mm + 0.10 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 36.58 mm
Clearance in Groove (C1): 39.37 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04699-C (5 Pcs)
Internal Retaining Rings - 46.99x1.57x49.83 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$7.59 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
46.99
mm (Equiv. 1.85 in.) |
Clip Thickness (T)
1.57
mm +/- 0.127 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
49.83
mm + 0.00 / - 0.06 (Equiv. 1.962 in.) |
Approx. Loose Circlip OD (Dr)
52.17
mm + 0.89 / - 0.64 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.73 mm + 0.10 / - 0.00
Clearance in Bore (C): 36.58 mm
Clearance in Groove (C1): 39.37 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-04699-C (5 Pcs)
Internal Retaining Rings - 46.99x1.57x49.83 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$7.59 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
