| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) | Groove Width (W) |

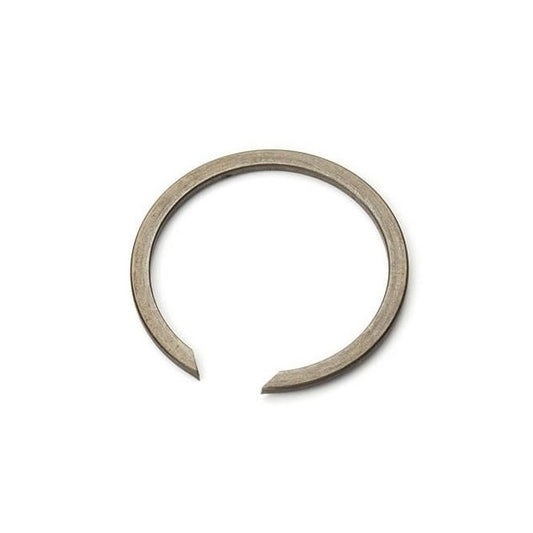

Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
53.90
mm +/- 0.13 (Equiv. 2.122 in.) |
Approx. Loose Circlip OD (Dr)
54.53
mm + 1.80 / - 0.00 |
Radial Wall (S)
3.96
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 46.61 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0508-LS-N
Internal Retaining Rings - 50.8x1.58x53.9 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |

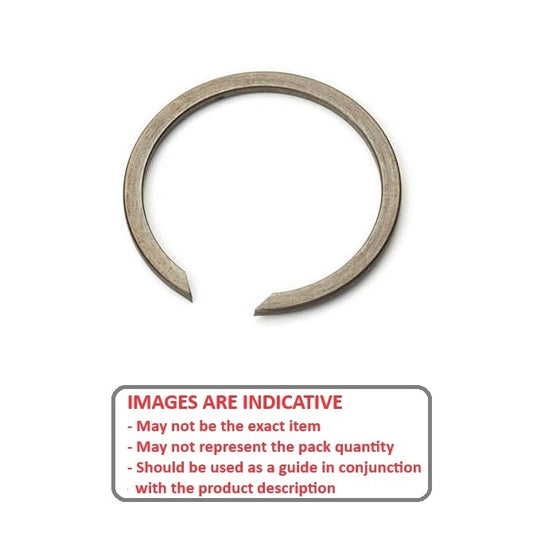

Indicative Image |
||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
53.90
mm +/- 0.13 (Equiv. 2.122 in.) |
Approx. Loose Circlip OD (Dr)
54.53
mm + 1.80 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 3.96 mm +/- 0.13
Groove Width (W): 1.73 mm
Clearance in Groove (C1): 46.61 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0508-LS-N
Internal Retaining Rings - 50.8x1.58x53.9 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
53.34
mm +/- 0.13 (Equiv. 2.1 in.) |
Approx. Loose Circlip OD (Dr)
54.13
mm + 1.20 / - 0.00 |
Radial Wall (S)
3.96
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 46.21 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0508-LS-HO (250 Pcs)
Internal Retaining Rings - 50.8x1.58x53.34 mm Snap Rings - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025 Regular price
$286.14 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
53.34
mm +/- 0.13 (Equiv. 2.1 in.) |
Approx. Loose Circlip OD (Dr)
54.13
mm + 1.20 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 3.96 mm +/- 0.13
Groove Width (W): 1.73 mm
Clearance in Groove (C1): 46.21 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0508-LS-HO (250 Pcs)
Internal Retaining Rings - 50.8x1.58x53.34 mm Snap Rings - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025 Regular price
$286.14 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.58
mm +/- 0.08 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
53.90
mm (Equiv. 2.122 in.) |
Approx. Loose Circlip OD (Dr)
54.20
mm + 0.51 / - 0.00 |
Radial Wall (S)
4.01
mm +/- 0.10 |
Groove Width (W)
1.78
mm +/- 0.13 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Clearance in Groove (C1): 46.18 mm +/- 0.05
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRN-200-S02
Internal Retaining Rings - 50.8x1.58x53.9 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$13.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.58
mm +/- 0.08 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
53.90
mm (Equiv. 2.122 in.) |
Approx. Loose Circlip OD (Dr)
54.20
mm + 0.51 / - 0.00 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S): 4.01 mm +/- 0.10
Groove Width (W): 1.78 mm +/- 0.13
Clearance in Groove (C1): 46.18 mm +/- 0.05
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRN-200-S02
Internal Retaining Rings - 50.8x1.58x53.9 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$13.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.58
mm +/- 0.08 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
53.90
mm (Equiv. 2.122 in.) |
Approx. Loose Circlip OD (Dr)
54.20
mm + 0.51 / - 0.00 |
Radial Wall (S)
4.01
mm +/- 0.10 |
Groove Width (W)
1.78
mm +/- 0.13 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 46.18 mm +/- 0.05
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRN-200
Internal Retaining Rings - 50.8x1.58x53.9 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$5.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
50.80
mm (Equiv. 2 in.) |
Clip Thickness (T)
1.58
mm +/- 0.08 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
53.90
mm (Equiv. 2.122 in.) |
Approx. Loose Circlip OD (Dr)
54.20
mm + 0.51 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 4.01 mm +/- 0.10
Groove Width (W): 1.78 mm +/- 0.13
Clearance in Groove (C1): 46.18 mm +/- 0.05
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRN-200
Internal Retaining Rings - 50.8x1.58x53.9 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$5.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
51.00
mm (Equiv. 2.008 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
54.00
mm + 0.00 / - 0.07 (Equiv. 2.126 in.) |
Approx. Loose Circlip OD (Dr)
55.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.15
mm + 0.10 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 37.30 mm
Clearance in Groove (C1): 41.00 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05100-C (5 Pcs)
Internal Retaining Rings - 51x2x54 mm Circlips - Carbon Steel Circlip 1370 units (6850 pcs) Available Now | Further orders can be expected around Sun, Nov 23, 2025 Regular price
$4.50 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
51.00
mm (Equiv. 2.008 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
54.00
mm + 0.00 / - 0.07 (Equiv. 2.126 in.) |
Approx. Loose Circlip OD (Dr)
55.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.15 mm + 0.10 / - 0.00
Clearance in Bore (C): 37.30 mm
Clearance in Groove (C1): 41.00 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05100-C (5 Pcs)
Internal Retaining Rings - 51x2x54 mm Circlips - Carbon Steel Circlip 1370 units (6850 pcs) Available Now | Further orders can be expected around Sun, Nov 23, 2025 Regular price
$4.50 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
51.00
mm (Equiv. 2.008 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
54.00
mm + 0.00 / - 0.07 (Equiv. 2.126 in.) |
Approx. Loose Circlip OD (Dr)
55.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.15
mm + 0.10 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 37.30 mm
Clearance in Groove (C1): 41.00 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05100-S15
Internal Retaining Rings - 51x2x54 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
51.00
mm (Equiv. 2.008 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
54.00
mm + 0.00 / - 0.07 (Equiv. 2.126 in.) |
Approx. Loose Circlip OD (Dr)
55.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.15 mm + 0.10 / - 0.00
Clearance in Bore (C): 37.30 mm
Clearance in Groove (C1): 41.00 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05100-S15
Internal Retaining Rings - 51x2x54 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
51.99
mm (Equiv. 2.047 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
55.14
mm +/- 0.15 (Equiv. 2.171 in.) |
Approx. Loose Circlip OD (Dr)
55.91
mm + 1.80 / - 0.00 |
Radial Wall (S)
4.34
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 47.23 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0520-LS-N
Internal Retaining Rings - 51.99x1.98x55.14 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
51.99
mm (Equiv. 2.047 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
55.14
mm +/- 0.15 (Equiv. 2.171 in.) |
Approx. Loose Circlip OD (Dr)
55.91
mm + 1.80 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 4.34 mm +/- 0.13
Groove Width (W): 2.18 mm
Clearance in Groove (C1): 47.23 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0520-LS-N
Internal Retaining Rings - 51.99x1.98x55.14 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
52.00
mm (Equiv. 2.047 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
53.50
mm + 0.19 / - 0.00 (Equiv. 2.106 in.) |
Approx. Loose Circlip OD (Dr)
54.30
mm |
Radial Wall (S)
2.30
mm + 0 / - 0.10 |
Groove Width (W)
1.60
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 49.7 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0520-LS (5 Pcs)
Internal Retaining Rings - 52x1.5x53.5 mm Snap Rings - Carbon Spring Steel Snap Ring 835 units (4175 pcs) Available Now | Further orders can be expected around Tue, Sep 30, 2025 Regular price
$22.77 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
52.00
mm (Equiv. 2.047 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
53.50
mm + 0.19 / - 0.00 (Equiv. 2.106 in.) |
Approx. Loose Circlip OD (Dr)
54.30
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 2.30 mm + 0 / - 0.10
Groove Width (W): 1.60 mm
Clearance in Groove (C1): 49.7 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0520-LS (5 Pcs)
Internal Retaining Rings - 52x1.5x53.5 mm Snap Rings - Carbon Spring Steel Snap Ring 835 units (4175 pcs) Available Now | Further orders can be expected around Tue, Sep 30, 2025 Regular price
$22.77 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
52.00
mm (Equiv. 2.047 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
55.00
mm + 0.00 / - 0.07 (Equiv. 2.165 in.) |
Approx. Loose Circlip OD (Dr)
56.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.15
mm + 0.10 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 37.90 mm
Clearance in Groove (C1): 41.60 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05200-S15
Internal Retaining Rings - 52x2x55 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 14 Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$11.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
52.00
mm (Equiv. 2.047 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
55.00
mm + 0.00 / - 0.07 (Equiv. 2.165 in.) |
Approx. Loose Circlip OD (Dr)
56.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.15 mm + 0.10 / - 0.00
Clearance in Bore (C): 37.90 mm
Clearance in Groove (C1): 41.60 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05200-S15
Internal Retaining Rings - 52x2x55 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 14 Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$11.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
52.00
mm (Equiv. 2.047 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
55.00
mm + 0.00 / - 0.07 (Equiv. 2.165 in.) |
Approx. Loose Circlip OD (Dr)
56.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.15
mm + 0.10 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 37.90 mm
Clearance in Groove (C1): 41.60 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05200-C (2 Pcs)
Internal Retaining Rings - 52x2x55 mm Circlips - Carbon Steel Circlip 12 units (24 pcs) Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$2.41 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
52.00
mm (Equiv. 2.047 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
55.00
mm + 0.00 / - 0.07 (Equiv. 2.165 in.) |
Approx. Loose Circlip OD (Dr)
56.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.15 mm + 0.10 / - 0.00
Clearance in Bore (C): 37.90 mm
Clearance in Groove (C1): 41.60 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05200-C (2 Pcs)
Internal Retaining Rings - 52x2x55 mm Circlips - Carbon Steel Circlip 12 units (24 pcs) Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$2.41 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
52.00
mm (Equiv. 2.047 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
55.00
mm + 0.00 / - 0.07 (Equiv. 2.165 in.) |
Approx. Loose Circlip OD (Dr)
56.20
mm + 1.10 / - 0.46 |
Radial Wall (S)
5.0 - 5.2
mm |
Groove Width (W)
2.15
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05200-C-V (125 Pcs)
Internal Retaining Rings - 52x2x55 mm Circlips - Carbon Spring Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025 Regular price
$405.68 AUD
Regular price
Unit price
per
Per 125
|
||||||
|
Housing Bore (B)
52.00
mm (Equiv. 2.047 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
55.00
mm + 0.00 / - 0.07 (Equiv. 2.165 in.) |
Approx. Loose Circlip OD (Dr)
56.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 5.0 - 5.2 mm
Groove Width (W): 2.15 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05200-C-V (125 Pcs)
Internal Retaining Rings - 52x2x55 mm Circlips - Carbon Spring Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025 Regular price
$405.68 AUD
Regular price
Unit price
per
Per 125
|
||||||
|
||||||
|
Housing Bore (B)
52.00
mm (Equiv. 2.047 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
55.30
mm + 0.00 / - 0.07 (Equiv. 2.177 in.) |
Approx. Loose Circlip OD (Dr)
55.76
mm |
Radial Wall (S)
4.70
mm |
Groove Width (W)
2.15
mm |
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-052 (125 Pcs)
Internal Retaining Rings - 52x2x55.3 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$201.23 AUD
Regular price
Unit price
per
Per 125
|
||||||
|
Housing Bore (B)
52.00
mm (Equiv. 2.047 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
55.30
mm + 0.00 / - 0.07 (Equiv. 2.177 in.) |
Approx. Loose Circlip OD (Dr)
55.76
mm |
|
||
|
Material: Carbon Steel
Radial Wall (S): 4.70 mm
Groove Width (W): 2.15 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-052 (125 Pcs)
Internal Retaining Rings - 52x2x55.3 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$201.23 AUD
Regular price
Unit price
per
Per 125
|
||||||
|
||||||
|
Housing Bore (B)
51.99
mm (Equiv. 2.047 in.) |
Clip Thickness (T)
1.91
mm + 0.13 / - 0.00 (Equiv. 0.075 in.) |
Groove Dia. (Dg)
55.75
mm +/- 0.08 (Equiv. 2.195 in.) |
Approx. Loose Circlip OD (Dr)
57.15
mm + 1.52 / - 0.00 |
Radial Wall (S)
2.31 - 4.72
mm |
Groove Width (W)
1.65
mm + 0.03 / - 0.00 |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-05199-C
Internal Retaining Rings - 51.99x1.91x55.75 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
51.99
mm (Equiv. 2.047 in.) |
Clip Thickness (T)
1.91
mm + 0.13 / - 0.00 (Equiv. 0.075 in.) |
Groove Dia. (Dg)
55.75
mm +/- 0.08 (Equiv. 2.195 in.) |
Approx. Loose Circlip OD (Dr)
57.15
mm + 1.52 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 2.31 - 4.72 mm
Groove Width (W): 1.65 mm + 0.03 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-05199-C
Internal Retaining Rings - 51.99x1.91x55.75 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
52.00
mm (Equiv. 2.047 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
55.00
mm + 0.00 / - 0.07 (Equiv. 2.165 in.) |
Approx. Loose Circlip OD (Dr)
56.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.65
mm + 0.10 / - 0.00 |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05200H-C (125 Pcs)
Internal Retaining Rings - 52x2.5x55 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025 Regular price
$280.32 AUD
Regular price
Unit price
per
Per 125
|
||||||
|
Housing Bore (B)
52.00
mm (Equiv. 2.047 in.) |
Clip Thickness (T)
2.50
mm + 0.30 / - 0.00 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
55.00
mm + 0.00 / - 0.07 (Equiv. 2.165 in.) |
Approx. Loose Circlip OD (Dr)
56.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.65 mm + 0.10 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05200H-C (125 Pcs)
Internal Retaining Rings - 52x2.5x55 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025 Regular price
$280.32 AUD
Regular price
Unit price
per
Per 125
|
||||||
|
||||||
|
Housing Bore (B)
52.38
mm (Equiv. 2.062 in.) |
Clip Thickness (T)
1.07
mm +/- 0.06 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
54.66
mm +/- 0.15 (Equiv. 2.152 in.) |
Approx. Loose Circlip OD (Dr)
55.30
mm + 1.58 / - 0.00 |
Radial Wall (S)
3.96
mm +/- 0.13 |
Groove Width (W)
1.17
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 47.38 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0524-LS-O
Internal Retaining Rings - 52.38x1.07x54.66 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
52.38
mm (Equiv. 2.062 in.) |
Clip Thickness (T)
1.07
mm +/- 0.06 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
54.66
mm +/- 0.15 (Equiv. 2.152 in.) |
Approx. Loose Circlip OD (Dr)
55.30
mm + 1.58 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 3.96 mm +/- 0.13
Groove Width (W): 1.17 mm
Clearance in Groove (C1): 47.38 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0524-LS-O
Internal Retaining Rings - 52.38x1.07x54.66 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
52.38
mm (Equiv. 2.062 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
55.02
mm +/- 0.15 (Equiv. 2.166 in.) |
Approx. Loose Circlip OD (Dr)
55.80
mm + 1.20 / - 0.00 |
Radial Wall (S)
3.96
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 47.88 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0524-LS-HO
Internal Retaining Rings - 52.38x1.58x55.02 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
52.38
mm (Equiv. 2.062 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
55.02
mm +/- 0.15 (Equiv. 2.166 in.) |
Approx. Loose Circlip OD (Dr)
55.80
mm + 1.20 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 3.96 mm +/- 0.13
Groove Width (W): 1.73 mm
Clearance in Groove (C1): 47.88 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0524-LS-HO
Internal Retaining Rings - 52.38x1.58x55.02 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
52.39
mm (Equiv. 2.063 in.) |
Clip Thickness (T)
1.91
mm + 0.15 / - 0.00 (Equiv. 0.075 in.) |
Groove Dia. (Dg)
56.13
mm +/- 0.08 (Equiv. 2.21 in.) |
Approx. Loose Circlip OD (Dr)
57.15
mm + 1.78 / - 0.00 |
Radial Wall (S)
2.31 - 4.72
mm |
Groove Width (W)
1.65
mm + 0.04 / - 0.00 |
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-05239-C (3 Pcs)
Internal Retaining Rings - 52.39x1.91x56.13 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$9.59 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
Housing Bore (B)
52.39
mm (Equiv. 2.063 in.) |
Clip Thickness (T)
1.91
mm + 0.15 / - 0.00 (Equiv. 0.075 in.) |
Groove Dia. (Dg)
56.13
mm +/- 0.08 (Equiv. 2.21 in.) |
Approx. Loose Circlip OD (Dr)
57.15
mm + 1.78 / - 0.00 |
|
||
|
Material: Carbon Steel
Radial Wall (S): 2.31 - 4.72 mm
Groove Width (W): 1.65 mm + 0.04 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-05239-C (3 Pcs)
Internal Retaining Rings - 52.39x1.91x56.13 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$9.59 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
||||||
|
Housing Bore (B)
52.39
mm (Equiv. 2.063 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
55.52
mm + 0.00 / - 0.07 (Equiv. 2.186 in.) |
Approx. Loose Circlip OD (Dr)
57.91
mm + 1.02 / - 0.76 |
Groove Width (W)
2.18
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 40.89 mm
Clearance in Groove (C1): 43.94 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05239-S15
Internal Retaining Rings - 52.39x1.98x55.52 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$22.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
52.39
mm (Equiv. 2.063 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
55.52
mm + 0.00 / - 0.07 (Equiv. 2.186 in.) |
Approx. Loose Circlip OD (Dr)
57.91
mm + 1.02 / - 0.76 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.18 mm + 0.13 / - 0.00
Clearance in Bore (C): 40.89 mm
Clearance in Groove (C1): 43.94 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05239-S15
Internal Retaining Rings - 52.39x1.98x55.52 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$22.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
52.39
mm (Equiv. 2.063 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
55.52
mm + 0.00 / - 0.07 (Equiv. 2.186 in.) |
Approx. Loose Circlip OD (Dr)
57.91
mm + 1.02 / - 0.76 |
Groove Width (W)
2.18
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 40.89 mm
Clearance in Groove (C1): 43.94 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05239-CZY (4 Pcs)
Internal Retaining Rings - 52.39x1.98x55.52 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$14.86 AUD
Regular price
Unit price
per
Per 4
|
||||||
|
Housing Bore (B)
52.39
mm (Equiv. 2.063 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
55.52
mm + 0.00 / - 0.07 (Equiv. 2.186 in.) |
Approx. Loose Circlip OD (Dr)
57.91
mm + 1.02 / - 0.76 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 2.18 mm + 0.13 / - 0.00
Clearance in Bore (C): 40.89 mm
Clearance in Groove (C1): 43.94 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05239-CZY (4 Pcs)
Internal Retaining Rings - 52.39x1.98x55.52 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$14.86 AUD
Regular price
Unit price
per
Per 4
|
||||||
|
||||||
|
Housing Bore (B)
52.39
mm (Equiv. 2.063 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
55.52
mm + 0.00 / - 0.07 (Equiv. 2.186 in.) |
Approx. Loose Circlip OD (Dr)
57.91
mm + 1.02 / - 0.76 |
Groove Width (W)
2.18
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 40.89 mm
Clearance in Groove (C1): 43.94 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05239-C (5 Pcs)
Internal Retaining Rings - 52.39x1.98x55.52 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$8.86 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
52.39
mm (Equiv. 2.063 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
55.52
mm + 0.00 / - 0.07 (Equiv. 2.186 in.) |
Approx. Loose Circlip OD (Dr)
57.91
mm + 1.02 / - 0.76 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.18 mm + 0.13 / - 0.00
Clearance in Bore (C): 40.89 mm
Clearance in Groove (C1): 43.94 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05239-C (5 Pcs)
Internal Retaining Rings - 52.39x1.98x55.52 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$8.86 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
53.00
mm (Equiv. 2.087 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
54.50
mm + 0.19 / - 0.00 (Equiv. 2.146 in.) |
Approx. Loose Circlip OD (Dr)
55.30
mm |
Radial Wall (S)
2.30
mm + 0 / - 0.10 |
Groove Width (W)
1.60
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 50.7 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0530-LS
Internal Retaining Rings - 53x1.5x54.5 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
53.00
mm (Equiv. 2.087 in.) |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
54.50
mm + 0.19 / - 0.00 (Equiv. 2.146 in.) |
Approx. Loose Circlip OD (Dr)
55.30
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 2.30 mm + 0 / - 0.10
Groove Width (W): 1.60 mm
Clearance in Groove (C1): 50.7 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0530-LS
Internal Retaining Rings - 53x1.5x54.5 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
53.00
mm (Equiv. 2.087 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
56.00
mm + 0.00 / - 0.07 (Equiv. 2.205 in.) |
Approx. Loose Circlip OD (Dr)
57.20
mm + 1.10 / - 0.46 |
Groove Width (W)
2.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 38.90 mm
Clearance in Groove (C1): 42.60 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05300-C (5 Pcs)
Internal Retaining Rings - 53x2x56 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$6.32 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
53.00
mm (Equiv. 2.087 in.) |
Clip Thickness (T)
2.00
mm + 0.30 / - 0.00 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
56.00
mm + 0.00 / - 0.07 (Equiv. 2.205 in.) |
Approx. Loose Circlip OD (Dr)
57.20
mm + 1.10 / - 0.46 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 38.90 mm
Clearance in Groove (C1): 42.60 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05300-C (5 Pcs)
Internal Retaining Rings - 53x2x56 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$6.32 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
52.37
mm (Equiv. 2.062 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
54.31
mm (Equiv. 2.138 in.) |
Approx. Loose Circlip OD (Dr)
54.88
mm + 0.64 / - 0.00 |
Radial Wall (S)
4.01
mm + 0.08 / - 0.13 |
Groove Width (W)
1.00
mm +/- 0.16 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 46.86 mm + 0.07 / - 0.00
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: UR-206 (74 Pcs)
Internal Retaining Rings - 52.37x0.79x54.31 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 05, 2025 Regular price
$242.95 AUD
Regular price
Unit price
per
Per 74
|
||||||
|
Housing Bore (B)
52.37
mm (Equiv. 2.062 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
54.31
mm (Equiv. 2.138 in.) |
Approx. Loose Circlip OD (Dr)
54.88
mm + 0.64 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S): 4.01 mm + 0.08 / - 0.13
Groove Width (W): 1.00 mm +/- 0.16
Clearance in Groove (C1): 46.86 mm + 0.07 / - 0.00
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: UR-206 (74 Pcs)
Internal Retaining Rings - 52.37x0.79x54.31 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 05, 2025 Regular price
$242.95 AUD
Regular price
Unit price
per
Per 74
|
||||||
|
||||||
|
Housing Bore (B)
52.39
mm (Equiv. 2.063 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
55.52
mm +/- 0.076 (Equiv. 2.186 in.) |
Approx. Loose Circlip OD (Dr)
57.91
mm |
Radial Wall (S)
2.69 - 5.54
mm |
Groove Width (W)
2.18
mm |
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05239-C-V (3 Pcs)
Internal Retaining Rings - 52.39x1.98x55.52 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$10.68 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
Housing Bore (B)
52.39
mm (Equiv. 2.063 in.) |
Clip Thickness (T)
1.98
mm +/- 0.152 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
55.52
mm +/- 0.076 (Equiv. 2.186 in.) |
Approx. Loose Circlip OD (Dr)
57.91
mm |
|
||
|
Material: Carbon Steel
Radial Wall (S): 2.69 - 5.54 mm
Groove Width (W): 2.18 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-05239-C-V (3 Pcs)
Internal Retaining Rings - 52.39x1.98x55.52 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$10.68 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
||||||
