Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)
Housing Bore (B) 16.00 mm (Equiv. 0.63 in.)	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.11} (Equiv. 0.039 in.)	Groove Dia. (Dg) 16.91 mm _{+ 0.00 / - 0.06} (Equiv. 0.666 in.)	Approx. Loose Circlip OD (Dr) 17.17 - 17.73 mm	Radial Wall (S) 2.10 mm	Groove Width (W) 1.10 mm
Material: Carbon Spring Steel Category: Retaining Rings - Internal - Circlips - Tabbed
Part Number: DJK-016 Internal Retaining Rings - 16x1x16.91 mm Circlips - Carbon Spring Steel Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Housing Bore (B) 16.00 mm (Equiv. 0.63 in.)	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.11} (Equiv. 0.039 in.)	Groove Dia. (Dg) 16.91 mm _{+ 0.00 / - 0.06} (Equiv. 0.666 in.)	Approx. Loose Circlip OD (Dr) 17.17 - 17.73 mm
Material: Carbon Spring Steel Radial Wall (S): 2.10 mm Groove Width (W): 1.10 mm Category: Retaining Rings - Internal - Circlips - Tabbed
Part Number: DJK-016 Internal Retaining Rings - 16x1x16.91 mm Circlips - Carbon Spring Steel Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B) 17.00 mm (Equiv. 0.669 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 17.80 mm _{+ 0.00 / - 0.06} (Equiv. 0.701 in.)	Approx. Loose Circlip OD (Dr) 18.30 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00

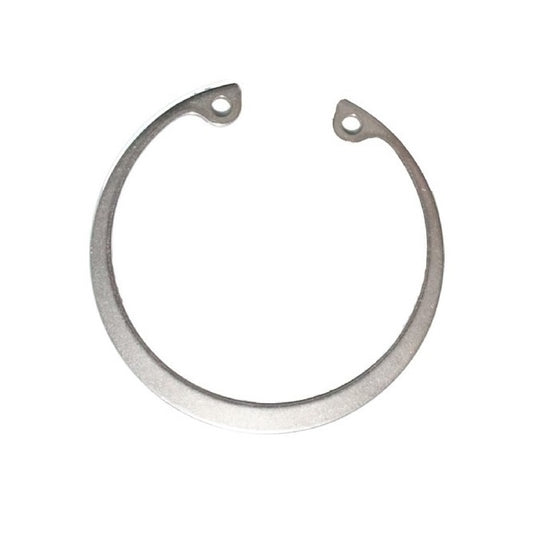

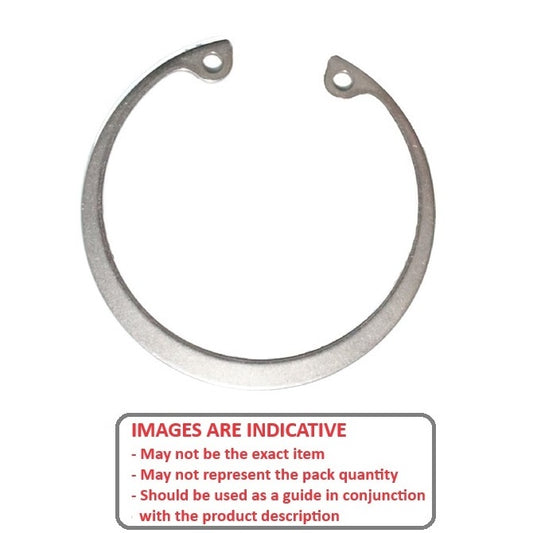

Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 8.80 mm Clearance in Groove (C1): 10.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01700-S15 (5 Pcs) Internal Retaining Rings - 17x1x17.8 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 5 units (25 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.14 AUD Regular price ~~$8.82 AUD~~ Sale price $3.14 AUD Unit price per Per 5 Quantity Required 5 units (25 pcs) Available Now. Backorder if more than 5.
Housing Bore (B) 17.00 mm (Equiv. 0.669 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 17.80 mm _{+ 0.00 / - 0.06} (Equiv. 0.701 in.)	Approx. Loose Circlip OD (Dr) 18.30 mm + 0.42 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 8.80 mm Clearance in Groove (C1): 10.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01700-S15 (5 Pcs) Internal Retaining Rings - 17x1x17.8 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 5 units (25 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.14 AUD Regular price ~~$8.82 AUD~~ Sale price $3.14 AUD Unit price per Per 5 Quantity Required 5 units (25 pcs) Available Now. Backorder if more than 5.
CCI-01700-S15 (5 Pcs) --- Internal Retaining Rings - 17x1x17.8 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-01700-S15 (5 Pcs) --- Internal Retaining Rings - 17x1x17.8 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $3.14 AUD Regular price ~~$8.82 AUD~~ Sale price $3.14 AUD Unit price per 5 Available Now Sale
Housing Bore (B) 17.00 mm (Equiv. 0.669 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 17.80 mm _{+ 0.00 / - 0.06} (Equiv. 0.701 in.)	Approx. Loose Circlip OD (Dr) 18.30 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00

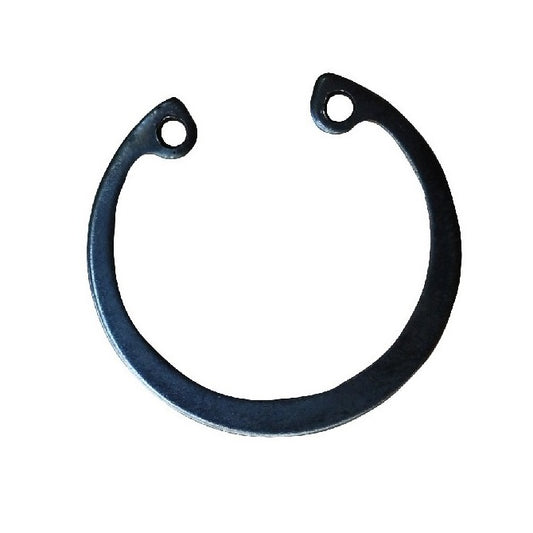

Material: Carbon Steel Clearance in Bore (C): 8.80 mm Clearance in Groove (C1): 10.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01700-C (20 Pcs) Internal Retaining Rings - 17x1x17.8 mm Circlips - Carbon Steel Circlip 1 pack (20 pcs) Available Now \| Further orders can be expected around Fri, Nov 21, 2025 Regular price $2.32 AUD Regular price ~~$4.27 AUD~~ Sale price $2.32 AUD Unit price per Per 20 Quantity Required 1 pack (20 pcs) Available Now. Backorder if more than 1.
Housing Bore (B) 17.00 mm (Equiv. 0.669 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 17.80 mm _{+ 0.00 / - 0.06} (Equiv. 0.701 in.)	Approx. Loose Circlip OD (Dr) 18.30 mm + 0.42 / - 0.13
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 8.80 mm Clearance in Groove (C1): 10.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01700-C (20 Pcs) Internal Retaining Rings - 17x1x17.8 mm Circlips - Carbon Steel Circlip 1 pack (20 pcs) Available Now \| Further orders can be expected around Fri, Nov 21, 2025 Regular price $2.32 AUD Regular price ~~$4.27 AUD~~ Sale price $2.32 AUD Unit price per Per 20 Quantity Required 1 pack (20 pcs) Available Now. Backorder if more than 1.
CCI-01700-C (20 Pcs) --- Internal Retaining Rings - 17x1x17.8 mm Circlips - Carbon Steel Circlip Sale CCI-01700-C (20 Pcs) --- Internal Retaining Rings - 17x1x17.8 mm Circlips - Carbon Steel Circlip Regular price $2.32 AUD Regular price ~~$4.27 AUD~~ Sale price $2.32 AUD Unit price per 1 Available Now Sale
Housing Bore (B) 17.00 mm (Equiv. 0.669 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 17.80 mm _{+ 0.00 / - 0.06} (Equiv. 0.701 in.)	Approx. Loose Circlip OD (Dr) 18.30 mm + 0.42 / - 0.13	Radial Wall (S) 2.0 - 2.1 mm	Groove Width (W) 1.10 mm
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-01700-C-V (100 Pcs) Internal Retaining Rings - 17x1x17.8 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $26.32 AUD Regular price ~~$61.60 AUD~~ Sale price $26.32 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 17.00 mm (Equiv. 0.669 in.)	Clip Thickness (T) 1.00 mm _{+ 0.11 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 17.80 mm _{+ 0.00 / - 0.06} (Equiv. 0.701 in.)	Approx. Loose Circlip OD (Dr) 18.30 mm + 0.42 / - 0.13
Material: Carbon Steel Radial Wall (S): 2.0 - 2.1 mm Groove Width (W): 1.10 mm Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-01700-C-V (100 Pcs) Internal Retaining Rings - 17x1x17.8 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $26.32 AUD Regular price ~~$61.60 AUD~~ Sale price $26.32 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
CCI-01700-C-V (100 Pcs) --- Internal Retaining Rings - 17x1x17.8 mm Circlips - Carbon Steel Circlip Sale CCI-01700-C-V (100 Pcs) --- Internal Retaining Rings - 17x1x17.8 mm Circlips - Carbon Steel Circlip Regular price $26.32 AUD Regular price ~~$61.60 AUD~~ Sale price $26.32 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 17.00 mm (Equiv. 0.669 in.)	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.11} (Equiv. 0.039 in.)	Groove Dia. (Dg) 17.91 mm _{+ 0.00 / - 0.06} (Equiv. 0.705 in.)	Approx. Loose Circlip OD (Dr) 18.17 - 18.73 mm	Radial Wall (S) 2.20 mm	Groove Width (W) 1.10 mm
Material: Carbon Spring Steel Category: Retaining Rings - Internal - Circlips - Tabbed
Part Number: DJK-017 Internal Retaining Rings - 17x1x17.91 mm Circlips - Carbon Spring Steel Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B) 17.00 mm (Equiv. 0.669 in.)	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.11} (Equiv. 0.039 in.)	Groove Dia. (Dg) 17.91 mm _{+ 0.00 / - 0.06} (Equiv. 0.705 in.)	Approx. Loose Circlip OD (Dr) 18.17 - 18.73 mm
Material: Carbon Spring Steel Radial Wall (S): 2.20 mm Groove Width (W): 1.10 mm Category: Retaining Rings - Internal - Circlips - Tabbed
Part Number: DJK-017 Internal Retaining Rings - 17x1x17.91 mm Circlips - Carbon Spring Steel Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B) 17.46 mm (Equiv. 0.687 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 18.59 mm _{+ 0.00 / - 0.06} (Equiv. 0.732 in.)	Approx. Loose Circlip OD (Dr) 19.38 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 10.41 mm Clearance in Groove (C1): 11.43 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01746-C (10 Pcs) Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Carbon Steel Circlip 58 units (580 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.68 AUD Regular price ~~$5.02 AUD~~ Sale price $2.68 AUD Unit price per Per 10 Quantity Required 58 units (580 pcs) Available Now. Backorder if more than 58.
Housing Bore (B) 17.46 mm (Equiv. 0.687 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 18.59 mm _{+ 0.00 / - 0.06} (Equiv. 0.732 in.)	Approx. Loose Circlip OD (Dr) 19.38 mm + 0.25 / - 0.13
Material: Carbon Steel Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 10.41 mm Clearance in Groove (C1): 11.43 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01746-C (10 Pcs) Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Carbon Steel Circlip 58 units (580 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.68 AUD Regular price ~~$5.02 AUD~~ Sale price $2.68 AUD Unit price per Per 10 Quantity Required 58 units (580 pcs) Available Now. Backorder if more than 58.
CCI-01746-C (10 Pcs) --- Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Carbon Steel Circlip Sale CCI-01746-C (10 Pcs) --- Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Carbon Steel Circlip Regular price $2.68 AUD Regular price ~~$5.02 AUD~~ Sale price $2.68 AUD Unit price per 58 Available Now Sale
Housing Bore (B) 17.46 mm (Equiv. 0.687 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 18.59 mm _{+ 0.00 / - 0.06} (Equiv. 0.732 in.)	Approx. Loose Circlip OD (Dr) 19.38 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00

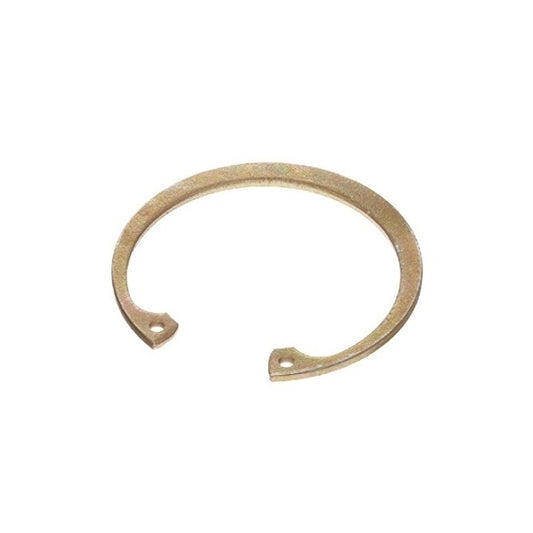

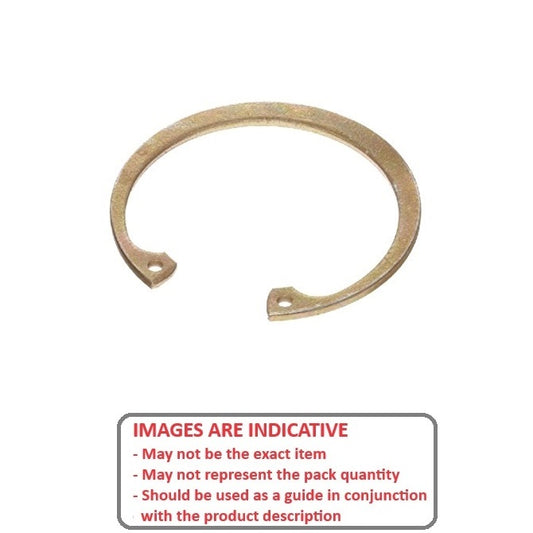

Material: Carbon Steel Zinc Plated Clearance in Bore (C): 10.41 mm Clearance in Groove (C1): 11.43 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01746-CZY (100 Pcs) Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $38.68 AUD Regular price ~~$90.80 AUD~~ Sale price $38.68 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 17.46 mm (Equiv. 0.687 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 18.59 mm _{+ 0.00 / - 0.06} (Equiv. 0.732 in.)	Approx. Loose Circlip OD (Dr) 19.38 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 10.41 mm Clearance in Groove (C1): 11.43 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01746-CZY (100 Pcs) Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $38.68 AUD Regular price ~~$90.80 AUD~~ Sale price $38.68 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
CCI-01746-CZY (100 Pcs) --- Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-01746-CZY (100 Pcs) --- Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $38.68 AUD Regular price ~~$90.80 AUD~~ Sale price $38.68 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 17.46 mm (Equiv. 0.687 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 18.59 mm _{+ 0.00 / - 0.06} (Equiv. 0.732 in.)	Approx. Loose Circlip OD (Dr) 19.38 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 10.41 mm Clearance in Groove (C1): 11.43 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01746-S15 (5 Pcs) Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $8.68 AUD Regular price ~~$20.02 AUD~~ Sale price $8.68 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 17.46 mm (Equiv. 0.687 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 18.59 mm _{+ 0.00 / - 0.06} (Equiv. 0.732 in.)	Approx. Loose Circlip OD (Dr) 19.38 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 10.41 mm Clearance in Groove (C1): 11.43 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01746-S15 (5 Pcs) Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $8.68 AUD Regular price ~~$20.02 AUD~~ Sale price $8.68 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
CCI-01746-S15 (5 Pcs) --- Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-01746-S15 (5 Pcs) --- Internal Retaining Rings - 17.46x0.89x18.59 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $8.68 AUD Regular price ~~$20.02 AUD~~ Sale price $8.68 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 18.00 mm (Equiv. 0.709 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 19.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.748 in.)	Approx. Loose Circlip OD (Dr) 19.50 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 9.40 mm Clearance in Groove (C1): 10.80 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01800-S15 (50 Pcs) Internal Retaining Rings - 18x1x19 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $39.86 AUD Regular price ~~$93.60 AUD~~ Sale price $39.86 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 18.00 mm (Equiv. 0.709 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 19.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.748 in.)	Approx. Loose Circlip OD (Dr) 19.50 mm + 0.42 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 9.40 mm Clearance in Groove (C1): 10.80 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01800-S15 (50 Pcs) Internal Retaining Rings - 18x1x19 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $39.86 AUD Regular price ~~$93.60 AUD~~ Sale price $39.86 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
CCI-01800-S15 (50 Pcs) --- Internal Retaining Rings - 18x1x19 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-01800-S15 (50 Pcs) --- Internal Retaining Rings - 18x1x19 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $39.86 AUD Regular price ~~$93.60 AUD~~ Sale price $39.86 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 18.00 mm (Equiv. 0.709 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 19.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.748 in.)	Approx. Loose Circlip OD (Dr) 19.50 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 9.40 mm Clearance in Groove (C1): 10.80 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01800-C (20 Pcs) Internal Retaining Rings - 18x1x19 mm Circlips - Carbon Steel Circlip 3 units (60 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per Per 20 Quantity Required 3 units (60 pcs) Available Now. Backorder if more than 3.
Housing Bore (B) 18.00 mm (Equiv. 0.709 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 19.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.748 in.)	Approx. Loose Circlip OD (Dr) 19.50 mm + 0.42 / - 0.13
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 9.40 mm Clearance in Groove (C1): 10.80 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01800-C (20 Pcs) Internal Retaining Rings - 18x1x19 mm Circlips - Carbon Steel Circlip 3 units (60 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per Per 20 Quantity Required 3 units (60 pcs) Available Now. Backorder if more than 3.
CCI-01800-C (20 Pcs) --- Internal Retaining Rings - 18x1x19 mm Circlips - Carbon Steel Circlip CCI-01800-C (20 Pcs) --- Internal Retaining Rings - 18x1x19 mm Circlips - Carbon Steel Circlip Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per 3 Available Now
Housing Bore (B) 18.00 mm (Equiv. 0.709 in.)	Clip Thickness (T) 1.00 mm _{+ 0.15 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 19.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.748 in.)	Approx. Loose Circlip OD (Dr) 19.50 mm + 0.42 / - 0.13	Radial Wall (S) 2.1 - 2.2 mm	Groove Width (W) 1.10 mm
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-01800-C-V (500 Pcs) Internal Retaining Rings - 18x1x19 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 21, 2025 Regular price $148.05 AUD Regular price ~~$348.00 AUD~~ Sale price $148.05 AUD Unit price per Per 500 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 18.00 mm (Equiv. 0.709 in.)	Clip Thickness (T) 1.00 mm _{+ 0.15 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 19.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.748 in.)	Approx. Loose Circlip OD (Dr) 19.50 mm + 0.42 / - 0.13
Material: Carbon Steel Radial Wall (S): 2.1 - 2.2 mm Groove Width (W): 1.10 mm Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-01800-C-V (500 Pcs) Internal Retaining Rings - 18x1x19 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 21, 2025 Regular price $148.05 AUD Regular price ~~$348.00 AUD~~ Sale price $148.05 AUD Unit price per Per 500 Quantity Required Backorder: Out of Stock.
CCI-01800-C-V (500 Pcs) --- Internal Retaining Rings - 18x1x19 mm Circlips - Carbon Steel Circlip Sale CCI-01800-C-V (500 Pcs) --- Internal Retaining Rings - 18x1x19 mm Circlips - Carbon Steel Circlip Regular price $148.05 AUD Regular price ~~$348.00 AUD~~ Sale price $148.05 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 18.00 mm (Equiv. 0.709 in.)	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.15} (Equiv. 0.039 in.)	Groove Dia. (Dg) 19.15 mm _{+ 0.00 / - 0.06} (Equiv. 0.754 in.)	Approx. Loose Circlip OD (Dr) 19.37 mm	Radial Wall (S) 2.30 mm	Groove Width (W) 1.10 mm
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Tabbed
Part Number: DJK-018 (100 Pcs) Internal Retaining Rings - 18x1x19.15 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $29.86 AUD Regular price ~~$70.00 AUD~~ Sale price $29.86 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 18.00 mm (Equiv. 0.709 in.)	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.15} (Equiv. 0.039 in.)	Groove Dia. (Dg) 19.15 mm _{+ 0.00 / - 0.06} (Equiv. 0.754 in.)	Approx. Loose Circlip OD (Dr) 19.37 mm
Material: Carbon Steel Radial Wall (S): 2.30 mm Groove Width (W): 1.10 mm Category: Retaining Rings - Internal - Circlips - Tabbed
Part Number: DJK-018 (100 Pcs) Internal Retaining Rings - 18x1x19.15 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $29.86 AUD Regular price ~~$70.00 AUD~~ Sale price $29.86 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
DJK-018 (100 Pcs) --- Internal Retaining Rings - 18x1x19.15 mm Circlips - Carbon Steel Circlip Sale DJK-018 (100 Pcs) --- Internal Retaining Rings - 18x1x19.15 mm Circlips - Carbon Steel Circlip Regular price $29.86 AUD Regular price ~~$70.00 AUD~~ Sale price $29.86 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 19.00 mm (Equiv. 0.748 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 20.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.787 in.)	Approx. Loose Circlip OD (Dr) 20.50 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 10.40 mm Clearance in Groove (C1): 11.80 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01900-S15 (4 Pcs) Internal Retaining Rings - 19x1x20 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $9.14 AUD Regular price ~~$20.75 AUD~~ Sale price $9.14 AUD Unit price per Per 4 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 19.00 mm (Equiv. 0.748 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 20.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.787 in.)	Approx. Loose Circlip OD (Dr) 20.50 mm + 0.42 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 10.40 mm Clearance in Groove (C1): 11.80 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01900-S15 (4 Pcs) Internal Retaining Rings - 19x1x20 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $9.14 AUD Regular price ~~$20.75 AUD~~ Sale price $9.14 AUD Unit price per Per 4 Quantity Required Backorder: Out of Stock.
CCI-01900-S15 (4 Pcs) --- Internal Retaining Rings - 19x1x20 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-01900-S15 (4 Pcs) --- Internal Retaining Rings - 19x1x20 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $9.14 AUD Regular price ~~$20.75 AUD~~ Sale price $9.14 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 19.00 mm (Equiv. 0.748 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 20.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.787 in.)	Approx. Loose Circlip OD (Dr) 20.50 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 10.40 mm Clearance in Groove (C1): 11.80 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01900-C (100 Pcs) Internal Retaining Rings - 19x1x20 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $21.68 AUD Regular price ~~$26.02 AUD~~ Sale price $21.68 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 19.00 mm (Equiv. 0.748 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 20.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.787 in.)	Approx. Loose Circlip OD (Dr) 20.50 mm + 0.42 / - 0.13
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 10.40 mm Clearance in Groove (C1): 11.80 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01900-C (100 Pcs) Internal Retaining Rings - 19x1x20 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $21.68 AUD Regular price ~~$26.02 AUD~~ Sale price $21.68 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
CCI-01900-C (100 Pcs) --- Internal Retaining Rings - 19x1x20 mm Circlips - Carbon Steel Circlip Sale CCI-01900-C (100 Pcs) --- Internal Retaining Rings - 19x1x20 mm Circlips - Carbon Steel Circlip Regular price $21.68 AUD Regular price ~~$26.02 AUD~~ Sale price $21.68 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 19.00 mm (Equiv. 0.748 in.)	Clip Thickness (T) 1.00 mm _{+ 0.15 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 20.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.787 in.)	Approx. Loose Circlip OD (Dr) 20.50 mm + 0.42 / - 0.13	Radial Wall (S) 2.1 - 2.2 mm	Groove Width (W) 1.10 mm
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-01900-C-V (5 Pcs) Internal Retaining Rings - 19x1x20 mm Circlips - Carbon Steel Circlip 80 units (400 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.41 AUD Regular price ~~$3.76 AUD~~ Sale price $1.41 AUD Unit price per Per 5 Quantity Required 80 units (400 pcs) Available Now. Backorder if more than 80.
Housing Bore (B) 19.00 mm (Equiv. 0.748 in.)	Clip Thickness (T) 1.00 mm _{+ 0.15 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 20.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.787 in.)	Approx. Loose Circlip OD (Dr) 20.50 mm + 0.42 / - 0.13
Material: Carbon Steel Radial Wall (S): 2.1 - 2.2 mm Groove Width (W): 1.10 mm Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-01900-C-V (5 Pcs) Internal Retaining Rings - 19x1x20 mm Circlips - Carbon Steel Circlip 80 units (400 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.41 AUD Regular price ~~$3.76 AUD~~ Sale price $1.41 AUD Unit price per Per 5 Quantity Required 80 units (400 pcs) Available Now. Backorder if more than 80.
CCI-01900-C-V (5 Pcs) --- Internal Retaining Rings - 19x1x20 mm Circlips - Carbon Steel Circlip Sale CCI-01900-C-V (5 Pcs) --- Internal Retaining Rings - 19x1x20 mm Circlips - Carbon Steel Circlip Regular price $1.41 AUD Regular price ~~$3.76 AUD~~ Sale price $1.41 AUD Unit price per 80 Available Now Sale
Housing Bore (B) 19.00 mm (Equiv. 0.748 in.)	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.15} (Equiv. 0.039 in.)	Groove Dia. (Dg) 20.15 mm _{+ 0.00 / - 0.06} (Equiv. 0.793 in.)	Approx. Loose Circlip OD (Dr) 20.37 - 20.92 mm	Radial Wall (S) 2.30 mm	Groove Width (W) 1.10 mm
Material: Carbon Spring Steel Category: Retaining Rings - Internal - Circlips - Tabbed
Part Number: DJK-019 Internal Retaining Rings - 19x1x20.15 mm Circlips - Carbon Spring Steel Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B) 19.00 mm (Equiv. 0.748 in.)	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.15} (Equiv. 0.039 in.)	Groove Dia. (Dg) 20.15 mm _{+ 0.00 / - 0.06} (Equiv. 0.793 in.)	Approx. Loose Circlip OD (Dr) 20.37 - 20.92 mm
Material: Carbon Spring Steel Radial Wall (S): 2.30 mm Groove Width (W): 1.10 mm Category: Retaining Rings - Internal - Circlips - Tabbed
Part Number: DJK-019 Internal Retaining Rings - 19x1x20.15 mm Circlips - Carbon Spring Steel Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 20.22 mm _{+ 0.00 / - 0.06} (Equiv. 0.796 in.)	Approx. Loose Circlip OD (Dr) 21.11 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 11.43 mm Clearance in Groove (C1): 12.70 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01905-CZY (5 Pcs) Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Zinc Plated Circlip 60 units (300 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.86 AUD Regular price ~~$5.10 AUD~~ Sale price $1.86 AUD Unit price per Per 5 Quantity Required 60 units (300 pcs) Available Now. Backorder if more than 60.
Housing Bore (B) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 20.22 mm _{+ 0.00 / - 0.06} (Equiv. 0.796 in.)	Approx. Loose Circlip OD (Dr) 21.11 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 11.43 mm Clearance in Groove (C1): 12.70 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01905-CZY (5 Pcs) Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Zinc Plated Circlip 60 units (300 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.86 AUD Regular price ~~$5.10 AUD~~ Sale price $1.86 AUD Unit price per Per 5 Quantity Required 60 units (300 pcs) Available Now. Backorder if more than 60.
CCI-01905-CZY (5 Pcs) --- Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-01905-CZY (5 Pcs) --- Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $1.86 AUD Regular price ~~$5.10 AUD~~ Sale price $1.86 AUD Unit price per 60 Available Now Sale
Housing Bore (B) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 20.22 mm _{+ 0.00 / - 0.06} (Equiv. 0.796 in.)	Approx. Loose Circlip OD (Dr) 21.11 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 11.43 mm Clearance in Groove (C1): 12.70 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01905-S15 (5 Pcs) Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $9.23 AUD Regular price ~~$21.10 AUD~~ Sale price $9.23 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 20.22 mm _{+ 0.00 / - 0.06} (Equiv. 0.796 in.)	Approx. Loose Circlip OD (Dr) 21.11 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 11.43 mm Clearance in Groove (C1): 12.70 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01905-S15 (5 Pcs) Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $9.23 AUD Regular price ~~$21.10 AUD~~ Sale price $9.23 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
CCI-01905-S15 (5 Pcs) --- Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-01905-S15 (5 Pcs) --- Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $9.23 AUD Regular price ~~$21.10 AUD~~ Sale price $9.23 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 20.22 mm _{+ 0.00 / - 0.06} (Equiv. 0.796 in.)	Approx. Loose Circlip OD (Dr) 21.11 mm + 0.25 / - 0.13		Groove Width (W) 0.99 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 11.43 mm Clearance in Groove (C1): 12.70 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01905-C (10 Pcs) Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Circlip 6 units (60 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per Per 10 Quantity Required 6 units (60 pcs) Available Now. Backorder if more than 6.
Housing Bore (B) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 20.22 mm _{+ 0.00 / - 0.06} (Equiv. 0.796 in.)	Approx. Loose Circlip OD (Dr) 21.11 mm + 0.25 / - 0.13
Material: Carbon Steel Groove Width (W): 0.99 mm + 0.08 / - 0.00 Clearance in Bore (C): 11.43 mm Clearance in Groove (C1): 12.70 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01905-C (10 Pcs) Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Circlip 6 units (60 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per Per 10 Quantity Required 6 units (60 pcs) Available Now. Backorder if more than 6.
CCI-01905-C (10 Pcs) --- Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Circlip CCI-01905-C (10 Pcs) --- Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Circlip Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per 6 Available Now
Housing Bore (B) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 20.22 mm _{+/- 0.052} (Equiv. 0.796 in.)	Approx. Loose Circlip OD (Dr) 21.11 mm	Radial Wall (S) 1.07 - 2.16 mm	Groove Width (W) 0.99 mm
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-01905-C-V (50 Pcs) Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $47.95 AUD Regular price ~~$112.42 AUD~~ Sale price $47.95 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.050} (Equiv. 0.035 in.)	Groove Dia. (Dg) 20.22 mm _{+/- 0.052} (Equiv. 0.796 in.)	Approx. Loose Circlip OD (Dr) 21.11 mm
Material: Carbon Steel Radial Wall (S): 1.07 - 2.16 mm Groove Width (W): 0.99 mm Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-01905-C-V (50 Pcs) Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 22, 2025 Regular price $47.95 AUD Regular price ~~$112.42 AUD~~ Sale price $47.95 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
CCI-01905-C-V (50 Pcs) --- Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Circlip Sale CCI-01905-C-V (50 Pcs) --- Internal Retaining Rings - 19.05x0.89x20.22 mm Circlips - Carbon Steel Circlip Regular price $47.95 AUD Regular price ~~$112.42 AUD~~ Sale price $47.95 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 19.74 mm (Equiv. 0.777 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.96 mm _{+ 0.00 / - 0.06} (Equiv. 0.825 in.)	Approx. Loose Circlip OD (Dr) 21.82 mm + 0.25 / - 0.13		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 11.94 mm Clearance in Groove (C1): 13.21 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01974-S15 (4 Pcs) Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $8.86 AUD Regular price ~~$20.24 AUD~~ Sale price $8.86 AUD Unit price per Per 4 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 19.74 mm (Equiv. 0.777 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.96 mm _{+ 0.00 / - 0.06} (Equiv. 0.825 in.)	Approx. Loose Circlip OD (Dr) 21.82 mm + 0.25 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 11.94 mm Clearance in Groove (C1): 13.21 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01974-S15 (4 Pcs) Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $8.86 AUD Regular price ~~$20.24 AUD~~ Sale price $8.86 AUD Unit price per Per 4 Quantity Required Backorder: Out of Stock.
CCI-01974-S15 (4 Pcs) --- Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-01974-S15 (4 Pcs) --- Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $8.86 AUD Regular price ~~$20.24 AUD~~ Sale price $8.86 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 19.74 mm (Equiv. 0.777 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.96 mm _{+ 0.00 / - 0.06} (Equiv. 0.825 in.)	Approx. Loose Circlip OD (Dr) 21.82 mm + 0.25 / - 0.13		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 11.94 mm Clearance in Groove (C1): 13.21 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01974-CZY (50 Pcs) Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $22.05 AUD Regular price ~~$51.60 AUD~~ Sale price $22.05 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 19.74 mm (Equiv. 0.777 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.96 mm _{+ 0.00 / - 0.06} (Equiv. 0.825 in.)	Approx. Loose Circlip OD (Dr) 21.82 mm + 0.25 / - 0.13
Material: Carbon Steel Zinc Plated Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 11.94 mm Clearance in Groove (C1): 13.21 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01974-CZY (50 Pcs) Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $22.05 AUD Regular price ~~$51.60 AUD~~ Sale price $22.05 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
CCI-01974-CZY (50 Pcs) --- Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-01974-CZY (50 Pcs) --- Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $22.05 AUD Regular price ~~$51.60 AUD~~ Sale price $22.05 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 19.74 mm (Equiv. 0.777 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.96 mm _{+ 0.00 / - 0.06} (Equiv. 0.825 in.)	Approx. Loose Circlip OD (Dr) 21.82 mm + 0.25 / - 0.13		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 11.94 mm Clearance in Groove (C1): 13.21 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01974-C (10 Pcs) Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Carbon Steel Circlip 15 units (150 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 10 Quantity Required 15 units (150 pcs) Available Now. Backorder if more than 15.
Housing Bore (B) 19.74 mm (Equiv. 0.777 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.96 mm _{+ 0.00 / - 0.06} (Equiv. 0.825 in.)	Approx. Loose Circlip OD (Dr) 21.82 mm + 0.25 / - 0.13
Material: Carbon Steel Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 11.94 mm Clearance in Groove (C1): 13.21 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-01974-C (10 Pcs) Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Carbon Steel Circlip 15 units (150 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 10 Quantity Required 15 units (150 pcs) Available Now. Backorder if more than 15.
CCI-01974-C (10 Pcs) --- Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Carbon Steel Circlip CCI-01974-C (10 Pcs) --- Internal Retaining Rings - 19.74x1.07x20.96 mm Circlips - Carbon Steel Circlip Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per 15 Available Now
Housing Bore (B) 20.00 mm (Equiv. 0.787 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 21.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.827 in.)	Approx. Loose Circlip OD (Dr) 21.50 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 11.20 mm Clearance in Groove (C1): 12.60 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02000-C (20 Pcs) Internal Retaining Rings - 20x1x21 mm Circlips - Carbon Steel Circlip 38 units (760 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.23 AUD Regular price ~~$6.09 AUD~~ Sale price $3.23 AUD Unit price per Per 20 Quantity Required 38 units (760 pcs) Available Now. Backorder if more than 38.
Housing Bore (B) 20.00 mm (Equiv. 0.787 in.)	Clip Thickness (T) 1.00 mm _{+ 0.13 / - 0.00} (Equiv. 0.039 in.)	Groove Dia. (Dg) 21.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.827 in.)	Approx. Loose Circlip OD (Dr) 21.50 mm + 0.42 / - 0.13
Material: Carbon Steel Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 11.20 mm Clearance in Groove (C1): 12.60 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02000-C (20 Pcs) Internal Retaining Rings - 20x1x21 mm Circlips - Carbon Steel Circlip 38 units (760 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.23 AUD Regular price ~~$6.09 AUD~~ Sale price $3.23 AUD Unit price per Per 20 Quantity Required 38 units (760 pcs) Available Now. Backorder if more than 38.
CCI-02000-C (20 Pcs) --- Internal Retaining Rings - 20x1x21 mm Circlips - Carbon Steel Circlip Sale CCI-02000-C (20 Pcs) --- Internal Retaining Rings - 20x1x21 mm Circlips - Carbon Steel Circlip Regular price $3.23 AUD Regular price ~~$6.09 AUD~~ Sale price $3.23 AUD Unit price per 38 Available Now Sale

Country/region

Collection: Retaining Rings - Internal - Circlips

Filter

Filter

Subscribe to our emails
