Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)
Housing Bore (B) 22.23 mm (Equiv. 0.875 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.65 mm _{+ 0.00 / - 0.06} (Equiv. 0.931 in.)	Approx. Loose Circlip OD (Dr) 24.66 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 13.97 mm Clearance in Groove (C1): 15.24 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02223-CZY (50 Pcs) Internal Retaining Rings - 22.23x1.07x23.65 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $21.14 AUD Regular price ~~$49.40 AUD~~ Sale price $21.14 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Housing Bore (B) 22.23 mm (Equiv. 0.875 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.65 mm _{+ 0.00 / - 0.06} (Equiv. 0.931 in.)	Approx. Loose Circlip OD (Dr) 24.66 mm + 0.38 / - 0.25
Material: Carbon Steel Zinc Plated Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 13.97 mm Clearance in Groove (C1): 15.24 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02223-CZY (50 Pcs) Internal Retaining Rings - 22.23x1.07x23.65 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $21.14 AUD Regular price ~~$49.40 AUD~~ Sale price $21.14 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
CCI-02223-CZY (50 Pcs) --- Internal Retaining Rings - 22.23x1.07x23.65 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-02223-CZY (50 Pcs) --- Internal Retaining Rings - 22.23x1.07x23.65 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $21.14 AUD Regular price ~~$49.40 AUD~~ Sale price $21.14 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 22.89 mm (Equiv. 0.901 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 24.36 mm _{+ 0.00 / - 0.06} (Equiv. 0.959 in.)	Approx. Loose Circlip OD (Dr) 25.40 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 14.73 mm Clearance in Groove (C1): 16.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02289-CZY (50 Pcs) Internal Retaining Rings - 22.89x1.07x24.36 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $65.59 AUD Regular price ~~$154.00 AUD~~ Sale price $65.59 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 22.89 mm (Equiv. 0.901 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 24.36 mm _{+ 0.00 / - 0.06} (Equiv. 0.959 in.)	Approx. Loose Circlip OD (Dr) 25.40 mm + 0.38 / - 0.25
Material: Carbon Steel Zinc Plated Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 14.73 mm Clearance in Groove (C1): 16.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02289-CZY (50 Pcs) Internal Retaining Rings - 22.89x1.07x24.36 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $65.59 AUD Regular price ~~$154.00 AUD~~ Sale price $65.59 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
CCI-02289-CZY (50 Pcs) --- Internal Retaining Rings - 22.89x1.07x24.36 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-02289-CZY (50 Pcs) --- Internal Retaining Rings - 22.89x1.07x24.36 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $65.59 AUD Regular price ~~$154.00 AUD~~ Sale price $65.59 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 22.89 mm (Equiv. 0.901 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 24.36 mm _{+ 0.00 / - 0.06} (Equiv. 0.959 in.)	Approx. Loose Circlip OD (Dr) 25.40 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 14.73 mm Clearance in Groove (C1): 16.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02289-C (100 Pcs) Internal Retaining Rings - 22.89x1.07x24.36 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $128.14 AUD Regular price ~~$153.76 AUD~~ Sale price $128.14 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 22.89 mm (Equiv. 0.901 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 24.36 mm _{+ 0.00 / - 0.06} (Equiv. 0.959 in.)	Approx. Loose Circlip OD (Dr) 25.40 mm + 0.38 / - 0.25
Material: Carbon Steel Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 14.73 mm Clearance in Groove (C1): 16.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02289-C (100 Pcs) Internal Retaining Rings - 22.89x1.07x24.36 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $128.14 AUD Regular price ~~$153.76 AUD~~ Sale price $128.14 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.

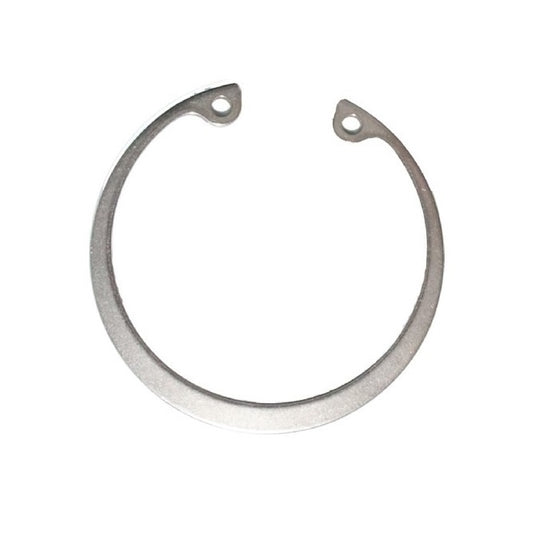

CCI-02289-C (100 Pcs) --- Internal Retaining Rings - 22.89x1.07x24.36 mm Circlips - Carbon Steel Circlip Sale CCI-02289-C (100 Pcs) --- Internal Retaining Rings - 22.89x1.07x24.36 mm Circlips - Carbon Steel Circlip Regular price $128.14 AUD Regular price ~~$153.76 AUD~~ Sale price $128.14 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 22.89 mm (Equiv. 0.901 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 24.36 mm _{+ 0.00 / - 0.06} (Equiv. 0.959 in.)	Approx. Loose Circlip OD (Dr) 25.40 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 14.73 mm Clearance in Groove (C1): 16.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02289-S15 (500 Pcs) Internal Retaining Rings - 22.89x1.07x24.36 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 21, 2025 Regular price $1,812.68 AUD Regular price ~~$4,264.00 AUD~~ Sale price $1,812.68 AUD Unit price per Per 500 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 22.89 mm (Equiv. 0.901 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 24.36 mm _{+ 0.00 / - 0.06} (Equiv. 0.959 in.)	Approx. Loose Circlip OD (Dr) 25.40 mm + 0.38 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 14.73 mm Clearance in Groove (C1): 16.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02289-S15 (500 Pcs) Internal Retaining Rings - 22.89x1.07x24.36 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 21, 2025 Regular price $1,812.68 AUD Regular price ~~$4,264.00 AUD~~ Sale price $1,812.68 AUD Unit price per Per 500 Quantity Required Backorder: Out of Stock.
CCI-02289-S15 (500 Pcs) --- Internal Retaining Rings - 22.89x1.07x24.36 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-02289-S15 (500 Pcs) --- Internal Retaining Rings - 22.89x1.07x24.36 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $1,812.68 AUD Regular price ~~$4,264.00 AUD~~ Sale price $1,812.68 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 23.00 mm (Equiv. 0.906 in.)	Clip Thickness (T) 1.20 mm _{+ 0.21 / - 0.00} (Equiv. 0.047 in.)	Groove Dia. (Dg) 24.10 mm _{+ 0.00 / - 0.06} (Equiv. 0.949 in.)	Approx. Loose Circlip OD (Dr) 24.60 mm + 0.42 / - 0.21		Groove Width (W) 1.30 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 14.20 mm Clearance in Groove (C1): 15.70 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02300-S15 Internal Retaining Rings - 23x1.2x24.1 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 44 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.77 AUD Regular price ~~$7.23 AUD~~ Sale price $2.77 AUD Unit price per Each Quantity Required 44 Available Now. Backorder if more than 44.
Housing Bore (B) 23.00 mm (Equiv. 0.906 in.)	Clip Thickness (T) 1.20 mm _{+ 0.21 / - 0.00} (Equiv. 0.047 in.)	Groove Dia. (Dg) 24.10 mm _{+ 0.00 / - 0.06} (Equiv. 0.949 in.)	Approx. Loose Circlip OD (Dr) 24.60 mm + 0.42 / - 0.21
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.30 mm + 0.08 / - 0.00 Clearance in Bore (C): 14.20 mm Clearance in Groove (C1): 15.70 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02300-S15 Internal Retaining Rings - 23x1.2x24.1 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 44 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.77 AUD Regular price ~~$7.23 AUD~~ Sale price $2.77 AUD Unit price per Each Quantity Required 44 Available Now. Backorder if more than 44.
CCI-02300-S15 --- Internal Retaining Rings - 23x1.2x24.1 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-02300-S15 --- Internal Retaining Rings - 23x1.2x24.1 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $2.77 AUD Regular price ~~$7.23 AUD~~ Sale price $2.77 AUD Unit price per 44 Available Now Sale
Housing Bore (B) 23.00 mm (Equiv. 0.906 in.)	Clip Thickness (T) 1.20 mm _{+ 0.21 / - 0.00} (Equiv. 0.047 in.)	Groove Dia. (Dg) 24.10 mm _{+ 0.00 / - 0.06} (Equiv. 0.949 in.)	Approx. Loose Circlip OD (Dr) 24.60 mm + 0.42 / - 0.21		Groove Width (W) 1.30 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 14.20 mm Clearance in Groove (C1): 15.70 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02300-C (20 Pcs) Internal Retaining Rings - 23x1.2x24.1 mm Circlips - Carbon Steel Circlip 21 units (420 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.14 AUD Regular price ~~$7.74 AUD~~ Sale price $4.14 AUD Unit price per Per 20 Quantity Required 21 units (420 pcs) Available Now. Backorder if more than 21.
Housing Bore (B) 23.00 mm (Equiv. 0.906 in.)	Clip Thickness (T) 1.20 mm _{+ 0.21 / - 0.00} (Equiv. 0.047 in.)	Groove Dia. (Dg) 24.10 mm _{+ 0.00 / - 0.06} (Equiv. 0.949 in.)	Approx. Loose Circlip OD (Dr) 24.60 mm + 0.42 / - 0.21
Material: Carbon Steel Groove Width (W): 1.30 mm + 0.08 / - 0.00 Clearance in Bore (C): 14.20 mm Clearance in Groove (C1): 15.70 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02300-C (20 Pcs) Internal Retaining Rings - 23x1.2x24.1 mm Circlips - Carbon Steel Circlip 21 units (420 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.14 AUD Regular price ~~$7.74 AUD~~ Sale price $4.14 AUD Unit price per Per 20 Quantity Required 21 units (420 pcs) Available Now. Backorder if more than 21.
CCI-02300-C (20 Pcs) --- Internal Retaining Rings - 23x1.2x24.1 mm Circlips - Carbon Steel Circlip Sale CCI-02300-C (20 Pcs) --- Internal Retaining Rings - 23x1.2x24.1 mm Circlips - Carbon Steel Circlip Regular price $4.14 AUD Regular price ~~$7.74 AUD~~ Sale price $4.14 AUD Unit price per 21 Available Now Sale
Housing Bore (B) 23.00 mm (Equiv. 0.906 in.)	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.15} (Equiv. 0.047 in.)	Groove Dia. (Dg) 24.25 mm _{+ 0.00 / - 0.06} (Equiv. 0.955 in.)	Approx. Loose Circlip OD (Dr) 24.47 - 25.02 mm	Radial Wall (S) 2.60 mm	Groove Width (W) 1.30 mm
Material: Carbon Spring Steel Category: Retaining Rings - Internal - Circlips - Tabbed
Part Number: DJK-023 Internal Retaining Rings - 23x1.2x24.25 mm Circlips - Carbon Spring Steel Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B) 23.00 mm (Equiv. 0.906 in.)	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.15} (Equiv. 0.047 in.)	Groove Dia. (Dg) 24.25 mm _{+ 0.00 / - 0.06} (Equiv. 0.955 in.)	Approx. Loose Circlip OD (Dr) 24.47 - 25.02 mm
Material: Carbon Spring Steel Radial Wall (S): 2.60 mm Groove Width (W): 1.30 mm Category: Retaining Rings - Internal - Circlips - Tabbed
Part Number: DJK-023 Internal Retaining Rings - 23x1.2x24.25 mm Circlips - Carbon Spring Steel Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B) 23.81 mm (Equiv. 0.937 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 25.40 mm _{+ 0.00 / - 0.06} (Equiv. 1 in.)	Approx. Loose Circlip OD (Dr) 26.44 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 15.49 mm Clearance in Groove (C1): 17.02 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02381-S15 Internal Retaining Rings - 23.81x1.07x25.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 2 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.68 AUD Regular price ~~$7.18 AUD~~ Sale price $2.68 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
Housing Bore (B) 23.81 mm (Equiv. 0.937 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 25.40 mm _{+ 0.00 / - 0.06} (Equiv. 1 in.)	Approx. Loose Circlip OD (Dr) 26.44 mm + 0.38 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 15.49 mm Clearance in Groove (C1): 17.02 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02381-S15 Internal Retaining Rings - 23.81x1.07x25.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 2 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.68 AUD Regular price ~~$7.18 AUD~~ Sale price $2.68 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
CCI-02381-S15 --- Internal Retaining Rings - 23.81x1.07x25.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-02381-S15 --- Internal Retaining Rings - 23.81x1.07x25.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $2.68 AUD Regular price ~~$7.18 AUD~~ Sale price $2.68 AUD Unit price per 2 Available Now Sale
Housing Bore (B) 23.81 mm (Equiv. 0.937 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 25.40 mm _{+ 0.00 / - 0.06} (Equiv. 1 in.)	Approx. Loose Circlip OD (Dr) 26.44 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 15.49 mm Clearance in Groove (C1): 17.02 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02381-C (10 Pcs) Internal Retaining Rings - 23.81x1.07x25.4 mm Circlips - Carbon Steel Circlip 126 units (1260 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per Per 10 Quantity Required 126 units (1260 pcs) Available Now. Backorder if more than 126.
Housing Bore (B) 23.81 mm (Equiv. 0.937 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 25.40 mm _{+ 0.00 / - 0.06} (Equiv. 1 in.)	Approx. Loose Circlip OD (Dr) 26.44 mm + 0.38 / - 0.25
Material: Carbon Steel Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 15.49 mm Clearance in Groove (C1): 17.02 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02381-C (10 Pcs) Internal Retaining Rings - 23.81x1.07x25.4 mm Circlips - Carbon Steel Circlip 126 units (1260 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per Per 10 Quantity Required 126 units (1260 pcs) Available Now. Backorder if more than 126.
CCI-02381-C (10 Pcs) --- Internal Retaining Rings - 23.81x1.07x25.4 mm Circlips - Carbon Steel Circlip CCI-02381-C (10 Pcs) --- Internal Retaining Rings - 23.81x1.07x25.4 mm Circlips - Carbon Steel Circlip Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per 126 Available Now
Housing Bore (B) 23.81 mm (Equiv. 0.937 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 25.40 mm _{+ 0.00 / - 0.06} (Equiv. 1 in.)	Approx. Loose Circlip OD (Dr) 26.44 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 15.49 mm Clearance in Groove (C1): 17.02 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02381-CZY (250 Pcs) Internal Retaining Rings - 23.81x1.07x25.4 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $108.95 AUD Regular price ~~$256.00 AUD~~ Sale price $108.95 AUD Unit price per Per 250 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 23.81 mm (Equiv. 0.937 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 25.40 mm _{+ 0.00 / - 0.06} (Equiv. 1 in.)	Approx. Loose Circlip OD (Dr) 26.44 mm + 0.38 / - 0.25
Material: Carbon Steel Zinc Plated Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 15.49 mm Clearance in Groove (C1): 17.02 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02381-CZY (250 Pcs) Internal Retaining Rings - 23.81x1.07x25.4 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $108.95 AUD Regular price ~~$256.00 AUD~~ Sale price $108.95 AUD Unit price per Per 250 Quantity Required Backorder: Out of Stock.
CCI-02381-CZY (250 Pcs) --- Internal Retaining Rings - 23.81x1.07x25.4 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-02381-CZY (250 Pcs) --- Internal Retaining Rings - 23.81x1.07x25.4 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $108.95 AUD Regular price ~~$256.00 AUD~~ Sale price $108.95 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 23.81 mm (Equiv. 0.937 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.076} (Equiv. 0.042 in.)	Groove Dia. (Dg) 25.40 mm _{+/- 0.052} (Equiv. 1 in.)	Approx. Loose Circlip OD (Dr) 26.44 mm	Radial Wall (S) 1.30 - 2.69 mm	Groove Width (W) 1.17 mm
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-02381-C-V (250 Pcs) Internal Retaining Rings - 23.81x1.07x25.4 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $140.77 AUD Regular price ~~$331.00 AUD~~ Sale price $140.77 AUD Unit price per Per 250 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 23.81 mm (Equiv. 0.937 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.076} (Equiv. 0.042 in.)	Groove Dia. (Dg) 25.40 mm _{+/- 0.052} (Equiv. 1 in.)	Approx. Loose Circlip OD (Dr) 26.44 mm
Material: Carbon Steel Radial Wall (S): 1.30 - 2.69 mm Groove Width (W): 1.17 mm Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-02381-C-V (250 Pcs) Internal Retaining Rings - 23.81x1.07x25.4 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $140.77 AUD Regular price ~~$331.00 AUD~~ Sale price $140.77 AUD Unit price per Per 250 Quantity Required Backorder: Out of Stock.
CCI-02381-C-V (250 Pcs) --- Internal Retaining Rings - 23.81x1.07x25.4 mm Circlips - Carbon Steel Circlip Sale CCI-02381-C-V (250 Pcs) --- Internal Retaining Rings - 23.81x1.07x25.4 mm Circlips - Carbon Steel Circlip Regular price $140.77 AUD Regular price ~~$331.00 AUD~~ Sale price $140.77 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 24.00 mm (Equiv. 0.945 in.)	Clip Thickness (T) 1.20 mm _{+ 0.21 / - 0.00} (Equiv. 0.047 in.)	Groove Dia. (Dg) 25.20 mm _{+ 0.00 / - 0.06} (Equiv. 0.992 in.)	Approx. Loose Circlip OD (Dr) 25.90 mm + 0.42 / - 0.21		Groove Width (W) 1.30 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 14.80 mm Clearance in Groove (C1): 16.40 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02400-S15 (3 Pcs) Internal Retaining Rings - 24x1.2x25.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $10.14 AUD Regular price ~~$22.82 AUD~~ Sale price $10.14 AUD Unit price per Per 3 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 24.00 mm (Equiv. 0.945 in.)	Clip Thickness (T) 1.20 mm _{+ 0.21 / - 0.00} (Equiv. 0.047 in.)	Groove Dia. (Dg) 25.20 mm _{+ 0.00 / - 0.06} (Equiv. 0.992 in.)	Approx. Loose Circlip OD (Dr) 25.90 mm + 0.42 / - 0.21
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.30 mm + 0.08 / - 0.00 Clearance in Bore (C): 14.80 mm Clearance in Groove (C1): 16.40 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02400-S15 (3 Pcs) Internal Retaining Rings - 24x1.2x25.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $10.14 AUD Regular price ~~$22.82 AUD~~ Sale price $10.14 AUD Unit price per Per 3 Quantity Required Backorder: Out of Stock.
CCI-02400-S15 (3 Pcs) --- Internal Retaining Rings - 24x1.2x25.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-02400-S15 (3 Pcs) --- Internal Retaining Rings - 24x1.2x25.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $10.14 AUD Regular price ~~$22.82 AUD~~ Sale price $10.14 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 24.00 mm (Equiv. 0.945 in.)	Clip Thickness (T) 1.20 mm _{+ 0.21 / - 0.00} (Equiv. 0.047 in.)	Groove Dia. (Dg) 25.20 mm _{+ 0.00 / - 0.06} (Equiv. 0.992 in.)	Approx. Loose Circlip OD (Dr) 25.90 mm + 0.42 / - 0.21		Groove Width (W) 1.30 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 14.80 mm Clearance in Groove (C1): 16.40 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02400-C (20 Pcs) Internal Retaining Rings - 24x1.2x25.2 mm Circlips - Carbon Steel Circlip 21 units (420 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.23 AUD Regular price ~~$8.01 AUD~~ Sale price $4.23 AUD Unit price per Per 20 Quantity Required 21 units (420 pcs) Available Now. Backorder if more than 21.
Housing Bore (B) 24.00 mm (Equiv. 0.945 in.)	Clip Thickness (T) 1.20 mm _{+ 0.21 / - 0.00} (Equiv. 0.047 in.)	Groove Dia. (Dg) 25.20 mm _{+ 0.00 / - 0.06} (Equiv. 0.992 in.)	Approx. Loose Circlip OD (Dr) 25.90 mm + 0.42 / - 0.21
Material: Carbon Steel Groove Width (W): 1.30 mm + 0.08 / - 0.00 Clearance in Bore (C): 14.80 mm Clearance in Groove (C1): 16.40 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02400-C (20 Pcs) Internal Retaining Rings - 24x1.2x25.2 mm Circlips - Carbon Steel Circlip 21 units (420 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.23 AUD Regular price ~~$8.01 AUD~~ Sale price $4.23 AUD Unit price per Per 20 Quantity Required 21 units (420 pcs) Available Now. Backorder if more than 21.
CCI-02400-C (20 Pcs) --- Internal Retaining Rings - 24x1.2x25.2 mm Circlips - Carbon Steel Circlip Sale CCI-02400-C (20 Pcs) --- Internal Retaining Rings - 24x1.2x25.2 mm Circlips - Carbon Steel Circlip Regular price $4.23 AUD Regular price ~~$8.01 AUD~~ Sale price $4.23 AUD Unit price per 21 Available Now Sale
Housing Bore (B) 24.00 mm (Equiv. 0.945 in.)	Clip Thickness (T) 1.20 mm _{+ 0.21 / - 0.00} (Equiv. 0.047 in.)	Groove Dia. (Dg) 25.20 mm _{+ 0.00 / - 0.06} (Equiv. 0.992 in.)	Approx. Loose Circlip OD (Dr) 26.11 mm + 0.42 / - 0.21	Radial Wall (S) 2.7 - 2.9 mm	Groove Width (W) 1.10 mm
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-02400-C-V (5 Pcs) Internal Retaining Rings - 24x1.2x25.2 mm Circlips - Carbon Steel Circlip 18 units (90 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.59 AUD Regular price ~~$4.38 AUD~~ Sale price $1.59 AUD Unit price per Per 5 Quantity Required 18 units (90 pcs) Available Now. Backorder if more than 18.
Housing Bore (B) 24.00 mm (Equiv. 0.945 in.)	Clip Thickness (T) 1.20 mm _{+ 0.21 / - 0.00} (Equiv. 0.047 in.)	Groove Dia. (Dg) 25.20 mm _{+ 0.00 / - 0.06} (Equiv. 0.992 in.)	Approx. Loose Circlip OD (Dr) 26.11 mm + 0.42 / - 0.21
Material: Carbon Steel Radial Wall (S): 2.7 - 2.9 mm Groove Width (W): 1.10 mm Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-02400-C-V (5 Pcs) Internal Retaining Rings - 24x1.2x25.2 mm Circlips - Carbon Steel Circlip 18 units (90 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.59 AUD Regular price ~~$4.38 AUD~~ Sale price $1.59 AUD Unit price per Per 5 Quantity Required 18 units (90 pcs) Available Now. Backorder if more than 18.
CCI-02400-C-V (5 Pcs) --- Internal Retaining Rings - 24x1.2x25.2 mm Circlips - Carbon Steel Circlip Sale CCI-02400-C-V (5 Pcs) --- Internal Retaining Rings - 24x1.2x25.2 mm Circlips - Carbon Steel Circlip Regular price $1.59 AUD Regular price ~~$4.38 AUD~~ Sale price $1.59 AUD Unit price per 18 Available Now Sale
Housing Bore (B) 24.00 mm (Equiv. 0.945 in.)	Clip Thickness (T) 1.50 mm _{+ 0.21 / - 0.00} (Equiv. 0.059 in.)	Groove Dia. (Dg) 25.20 mm _{+ 0.00 / - 0.06} (Equiv. 0.992 in.)	Approx. Loose Circlip OD (Dr) 25.90 mm + 0.42 / - 0.21		Groove Width (W) 1.60 mm + 0.08 / - 0.00
Material: Carbon Spring Steel Self Finish Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02400H-C Internal Retaining Rings - 24x1.5x25.2 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B) 24.00 mm (Equiv. 0.945 in.)	Clip Thickness (T) 1.50 mm _{+ 0.21 / - 0.00} (Equiv. 0.059 in.)	Groove Dia. (Dg) 25.20 mm _{+ 0.00 / - 0.06} (Equiv. 0.992 in.)	Approx. Loose Circlip OD (Dr) 25.90 mm + 0.42 / - 0.21
Material: Carbon Spring Steel Self Finish Groove Width (W): 1.60 mm + 0.08 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02400H-C Internal Retaining Rings - 24x1.5x25.2 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B) 24.00 mm (Equiv. 0.945 in.)	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.21} (Equiv. 0.047 in.)	Groove Dia. (Dg) 25.41 mm _{+ 0.00 / - 0.06} (Equiv. 1 in.)	Approx. Loose Circlip OD (Dr) 25.69 - 26.32 mm	Radial Wall (S) 2.60 mm	Groove Width (W) 1.30 mm
Material: Carbon Spring Steel Category: Retaining Rings - Internal - Circlips - Tabbed
Part Number: DJK-024 Internal Retaining Rings - 24x1.2x25.41 mm Circlips - Carbon Spring Steel Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B) 24.00 mm (Equiv. 0.945 in.)	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.21} (Equiv. 0.047 in.)	Groove Dia. (Dg) 25.41 mm _{+ 0.00 / - 0.06} (Equiv. 1 in.)	Approx. Loose Circlip OD (Dr) 25.69 - 26.32 mm
Material: Carbon Spring Steel Radial Wall (S): 2.60 mm Groove Width (W): 1.30 mm Category: Retaining Rings - Internal - Circlips - Tabbed
Part Number: DJK-024 Internal Retaining Rings - 24x1.2x25.41 mm Circlips - Carbon Spring Steel Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B) 25.00 mm (Equiv. 0.984 in.)	Clip Thickness (T) 1.20 mm _{+ 0.21 / - 0.00} (Equiv. 0.047 in.)	Groove Dia. (Dg) 26.20 mm _{+ 0.00 / - 0.06} (Equiv. 1.031 in.)	Approx. Loose Circlip OD (Dr) 26.90 mm + 0.42 / - 0.21		Groove Width (W) 1.30 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 15.50 mm Clearance in Groove (C1): 17.20 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02500-S15 Internal Retaining Rings - 25x1.2x26.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 4 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.77 AUD Regular price ~~$7.46 AUD~~ Sale price $2.77 AUD Unit price per Each Quantity Required 4 Available Now. Backorder if more than 4.
Housing Bore (B) 25.00 mm (Equiv. 0.984 in.)	Clip Thickness (T) 1.20 mm _{+ 0.21 / - 0.00} (Equiv. 0.047 in.)	Groove Dia. (Dg) 26.20 mm _{+ 0.00 / - 0.06} (Equiv. 1.031 in.)	Approx. Loose Circlip OD (Dr) 26.90 mm + 0.42 / - 0.21
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.30 mm + 0.08 / - 0.00 Clearance in Bore (C): 15.50 mm Clearance in Groove (C1): 17.20 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02500-S15 Internal Retaining Rings - 25x1.2x26.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 4 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.77 AUD Regular price ~~$7.46 AUD~~ Sale price $2.77 AUD Unit price per Each Quantity Required 4 Available Now. Backorder if more than 4.
CCI-02500-S15 --- Internal Retaining Rings - 25x1.2x26.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-02500-S15 --- Internal Retaining Rings - 25x1.2x26.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $2.77 AUD Regular price ~~$7.46 AUD~~ Sale price $2.77 AUD Unit price per 4 Available Now Sale
Housing Bore (B) 25.00 mm (Equiv. 0.984 in.)	Clip Thickness (T) 1.20 mm _{+ 0.21 / - 0.00} (Equiv. 0.047 in.)	Groove Dia. (Dg) 26.20 mm _{+ 0.00 / - 0.06} (Equiv. 1.031 in.)	Approx. Loose Circlip OD (Dr) 26.90 mm + 0.42 / - 0.21		Groove Width (W) 1.30 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 15.50 mm Clearance in Groove (C1): 17.20 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02500-C (20 Pcs) Internal Retaining Rings - 25x1.2x26.2 mm Circlips - Carbon Steel Circlip 7 units (140 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.77 AUD Regular price ~~$8.92 AUD~~ Sale price $4.77 AUD Unit price per Per 20 Quantity Required 7 units (140 pcs) Available Now. Backorder if more than 7.
Housing Bore (B) 25.00 mm (Equiv. 0.984 in.)	Clip Thickness (T) 1.20 mm _{+ 0.21 / - 0.00} (Equiv. 0.047 in.)	Groove Dia. (Dg) 26.20 mm _{+ 0.00 / - 0.06} (Equiv. 1.031 in.)	Approx. Loose Circlip OD (Dr) 26.90 mm + 0.42 / - 0.21
Material: Carbon Steel Groove Width (W): 1.30 mm + 0.08 / - 0.00 Clearance in Bore (C): 15.50 mm Clearance in Groove (C1): 17.20 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02500-C (20 Pcs) Internal Retaining Rings - 25x1.2x26.2 mm Circlips - Carbon Steel Circlip 7 units (140 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.77 AUD Regular price ~~$8.92 AUD~~ Sale price $4.77 AUD Unit price per Per 20 Quantity Required 7 units (140 pcs) Available Now. Backorder if more than 7.
CCI-02500-C (20 Pcs) --- Internal Retaining Rings - 25x1.2x26.2 mm Circlips - Carbon Steel Circlip Sale CCI-02500-C (20 Pcs) --- Internal Retaining Rings - 25x1.2x26.2 mm Circlips - Carbon Steel Circlip Regular price $4.77 AUD Regular price ~~$8.92 AUD~~ Sale price $4.77 AUD Unit price per 7 Available Now Sale
Housing Bore (B) 25.00 mm (Equiv. 0.984 in.)	Clip Thickness (T) 1.20 mm _{+ 0.21 / - 0.00} (Equiv. 0.047 in.)	Groove Dia. (Dg) 26.20 mm _{+ 0.00 / - 0.06} (Equiv. 1.031 in.)	Approx. Loose Circlip OD (Dr) 26.90 mm + 0.42 / - 0.21	Radial Wall (S) 2.7 - 2.8 mm	Groove Width (W) 1.30 mm
Material: Carbon Spring Steel Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-02500-C-V (600 Pcs) Internal Retaining Rings - 25x1.2x26.2 mm Circlips - Carbon Spring Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 21, 2025 Regular price $252.05 AUD Regular price ~~$592.80 AUD~~ Sale price $252.05 AUD Unit price per Per 600 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 25.00 mm (Equiv. 0.984 in.)	Clip Thickness (T) 1.20 mm _{+ 0.21 / - 0.00} (Equiv. 0.047 in.)	Groove Dia. (Dg) 26.20 mm _{+ 0.00 / - 0.06} (Equiv. 1.031 in.)	Approx. Loose Circlip OD (Dr) 26.90 mm + 0.42 / - 0.21
Material: Carbon Spring Steel Radial Wall (S): 2.7 - 2.8 mm Groove Width (W): 1.30 mm Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-02500-C-V (600 Pcs) Internal Retaining Rings - 25x1.2x26.2 mm Circlips - Carbon Spring Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 21, 2025 Regular price $252.05 AUD Regular price ~~$592.80 AUD~~ Sale price $252.05 AUD Unit price per Per 600 Quantity Required Backorder: Out of Stock.
CCI-02500-C-V (600 Pcs) --- Internal Retaining Rings - 25x1.2x26.2 mm Circlips - Carbon Spring Steel Circlip Sale CCI-02500-C-V (600 Pcs) --- Internal Retaining Rings - 25x1.2x26.2 mm Circlips - Carbon Spring Steel Circlip Regular price $252.05 AUD Regular price ~~$592.80 AUD~~ Sale price $252.05 AUD Unit price per Out of stock! Backorder Now Sale
Housing Bore (B) 25.00 mm (Equiv. 0.984 in.)	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.21} (Equiv. 0.047 in.)	Groove Dia. (Dg) 26.41 mm _{+ 0.00 / - 0.06} (Equiv. 1.04 in.)	Approx. Loose Circlip OD (Dr) 26.69 mm	Radial Wall (S) 2.80 mm	Groove Width (W) 1.30 mm
Material: Carbon Spring Steel Category: Retaining Rings - Internal - Circlips - Tabbed
Part Number: DJK-025 Internal Retaining Rings - 25x1.2x26.41 mm Circlips - Carbon Spring Steel Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B) 25.00 mm (Equiv. 0.984 in.)	Clip Thickness (T) 1.20 mm _{+ 0.00 / - 0.21} (Equiv. 0.047 in.)	Groove Dia. (Dg) 26.41 mm _{+ 0.00 / - 0.06} (Equiv. 1.04 in.)	Approx. Loose Circlip OD (Dr) 26.69 mm
Material: Carbon Spring Steel Radial Wall (S): 2.80 mm Groove Width (W): 1.30 mm Category: Retaining Rings - Internal - Circlips - Tabbed
Part Number: DJK-025 Internal Retaining Rings - 25x1.2x26.41 mm Circlips - Carbon Spring Steel Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 1.02 mm _{+ 0.08 / - 0.00} (Equiv. 0.04 in.)	Groove Dia. (Dg) 27.33 mm _{+/- 0.05} (Equiv. 1.076 in.)	Approx. Loose Circlip OD (Dr) 27.97 mm + 0.63 / - 0.00	Radial Wall (S) 1.32 - 2.64 mm	Groove Width (W) 0.91 mm + 0.03 / - 0.00
Material: Carbon Spring Steel Category: Retaining Rings - Internal - Circlips - Bevelled
Part Number: CIB-02540-C Internal Retaining Rings - 25.4x1.02x27.33 mm Circlips - Carbon Spring Steel Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 1.02 mm _{+ 0.08 / - 0.00} (Equiv. 0.04 in.)	Groove Dia. (Dg) 27.33 mm _{+/- 0.05} (Equiv. 1.076 in.)	Approx. Loose Circlip OD (Dr) 27.97 mm + 0.63 / - 0.00
Material: Carbon Spring Steel Radial Wall (S): 1.32 - 2.64 mm Groove Width (W): 0.91 mm + 0.03 / - 0.00 Category: Retaining Rings - Internal - Circlips - Bevelled
Part Number: CIB-02540-C Internal Retaining Rings - 25.4x1.02x27.33 mm Circlips - Carbon Spring Steel Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 27.08 mm _{+ 0.00 / - 0.06} (Equiv. 1.066 in.)	Approx. Loose Circlip OD (Dr) 28.22 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 17.27 mm Clearance in Groove (C1): 18.80 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02540-C (10 Pcs) Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Circlip 10 units (100 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.86 AUD Regular price ~~$7.32 AUD~~ Sale price $3.86 AUD Unit price per Per 10 Quantity Required 10 units (100 pcs) Available Now. Backorder if more than 10.
Housing Bore (B) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 27.08 mm _{+ 0.00 / - 0.06} (Equiv. 1.066 in.)	Approx. Loose Circlip OD (Dr) 28.22 mm + 0.38 / - 0.25
Material: Carbon Steel Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 17.27 mm Clearance in Groove (C1): 18.80 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02540-C (10 Pcs) Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Circlip 10 units (100 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.86 AUD Regular price ~~$7.32 AUD~~ Sale price $3.86 AUD Unit price per Per 10 Quantity Required 10 units (100 pcs) Available Now. Backorder if more than 10.
CCI-02540-C (10 Pcs) --- Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Circlip Sale CCI-02540-C (10 Pcs) --- Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Circlip Regular price $3.86 AUD Regular price ~~$7.32 AUD~~ Sale price $3.86 AUD Unit price per 10 Available Now Sale
Housing Bore (B) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 27.08 mm _{+ 0.00 / - 0.06} (Equiv. 1.066 in.)	Approx. Loose Circlip OD (Dr) 28.22 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 17.27 mm Clearance in Groove (C1): 18.80 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02540-S15 Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 2 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.23 AUD Regular price ~~$5.98 AUD~~ Sale price $2.23 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
Housing Bore (B) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 27.08 mm _{+ 0.00 / - 0.06} (Equiv. 1.066 in.)	Approx. Loose Circlip OD (Dr) 28.22 mm + 0.38 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 17.27 mm Clearance in Groove (C1): 18.80 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02540-S15 Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 2 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.23 AUD Regular price ~~$5.98 AUD~~ Sale price $2.23 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
CCI-02540-S15 --- Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCI-02540-S15 --- Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $2.23 AUD Regular price ~~$5.98 AUD~~ Sale price $2.23 AUD Unit price per 2 Available Now Sale
Housing Bore (B) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 27.08 mm _{+ 0.00 / - 0.06} (Equiv. 1.066 in.)	Approx. Loose Circlip OD (Dr) 28.22 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 17.27 mm Clearance in Groove (C1): 18.80 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-02540-CZY (50 Pcs) Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $25.59 AUD Regular price ~~$60.00 AUD~~ Sale price $25.59 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Housing Bore (B) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.075} (Equiv. 0.042 in.)	Groove Dia. (Dg) 27.08 mm _{+ 0.00 / - 0.06} (Equiv. 1.066 in.)	Approx. Loose Circlip OD (Dr) 28.22 mm + 0.38 / - 0.25
Material: Carbon Steel Zinc Plated Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 17.27 mm Clearance in Groove (C1): 18.80 mm Category: Retaining Rings - Internal - Circlips - Standard

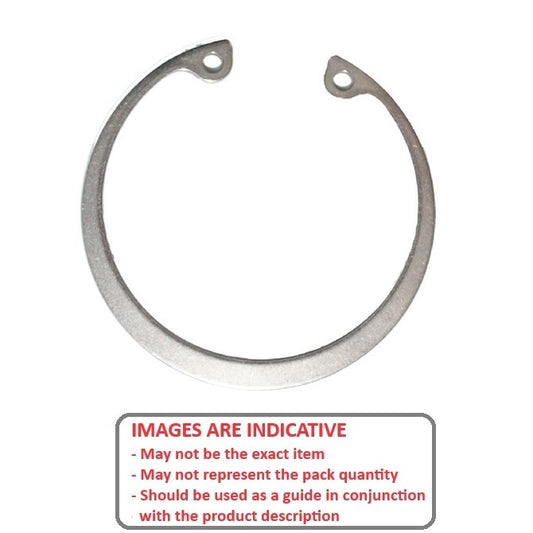

Part Number: CCI-02540-CZY (50 Pcs) Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $25.59 AUD Regular price ~~$60.00 AUD~~ Sale price $25.59 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
CCI-02540-CZY (50 Pcs) --- Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Zinc Plated Circlip Sale CCI-02540-CZY (50 Pcs) --- Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Zinc Plated Circlip Regular price $25.59 AUD Regular price ~~$60.00 AUD~~ Sale price $25.59 AUD Unit price per Out of stock! Backorder Now Sale

Country/region

Collection: Retaining Rings - Internal - Circlips

Filter

Filter

Subscribe to our emails
