CCI-02300-C (PK-20)

Name: Internal Retaining Rings - 23x1.2x24.1 mm Circlips - Carbon Steel Circlip (Sold Per PK-20) - - CCI-02300-C
Brand: MBA
SKU: CCI02300C
Price: 3.95 AUD
Availability: InStock

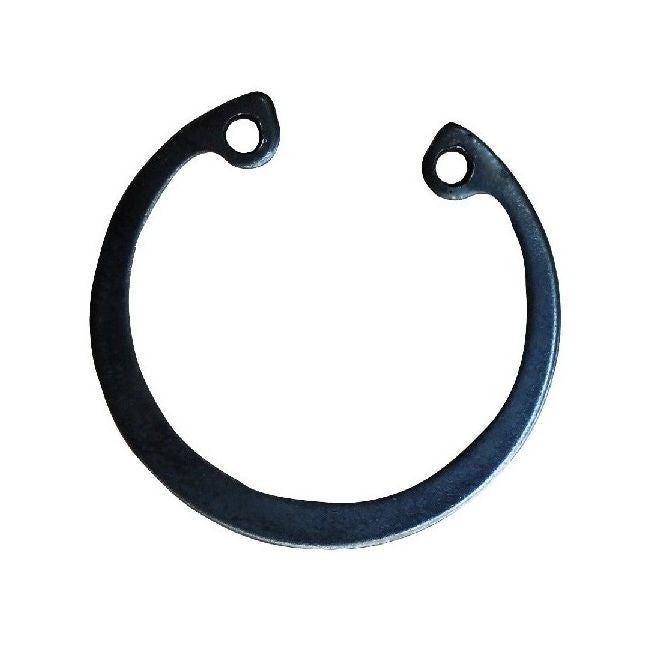

Internal Retaining Rings - 23x1.2x24.1 mm Circlips - Carbon Steel Circlip

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

Price:

$3.95 AUD

~~$7.37 AUD~~ $3.95 AUD

Priced, Stocked and Sold Per 20 Units

Excludes GST and overseas Taxes & Duties

Qty: 21 packs (420 pcs) available now

Order 50 or more packss of 20 (1000 pcs)
for $3.56 AUD per 20 pack

Product Details

Additional stock available from USA subject to Prior Sale = 1461

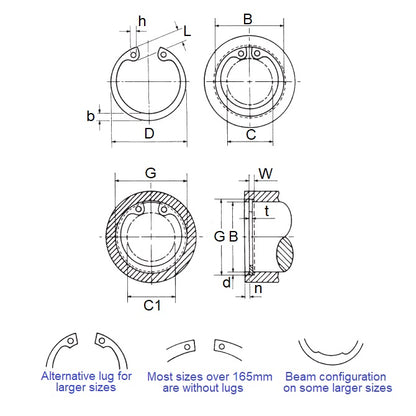

Housing Bore (B): 23.00mm
_{(23.00mm is 0.906 in.)}

Carbon Steel

Housing Bore (B): 23.00mm
_{(23.00mm is 0.906 in.)}
Clip Thickness (T): 1.20mm
_{+ 0.00 / - 0.06}
_{(1.20mm is 0.047 in.)}
Groove Dia. (Dg): 24.10mm
_{+ 0.21 / - 0.00}
_{(24.10mm is 0.949 in.)}
Approx. Loose Circlip OD (Dr): 24.60mm
_{+ 0.42 / - 0.21}
Groove Width (W): 1.30mm
_{+ 0.08 / - 0.00}
Clearance in Bore (C): 14.20mm
Clearance in Groove (C1): 15.70mm
Min. Lug Diameter (h): 2.00mm
Min. Extension (n): 1.70
Standard: DIN472

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

Ellison® 472-023
Bossard® BN-822-023
Waldes® D1300-023
Huyett® DHO-023
NoCor® DHO-023
Rotor Clip® DHO-023
Seeger® J-023
Seeger® J23
Seeger® J23-BLS
Seeger® J23X1.2
Seeger® NZT.J23
BN822023
J23BLS
J023
DHO023
D1300-0230APP
D13000230APP
472023

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
