| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) min/max | Groove Width (W) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft Diameter (Ds)
4.78
mm (Equiv. 0.188 in.) |
Clip Thickness (T)
0.89
mm (Equiv. 0.035 in.) |
Approx. Loose Circlip ID (A)
4.570
mm |
|
|||
|

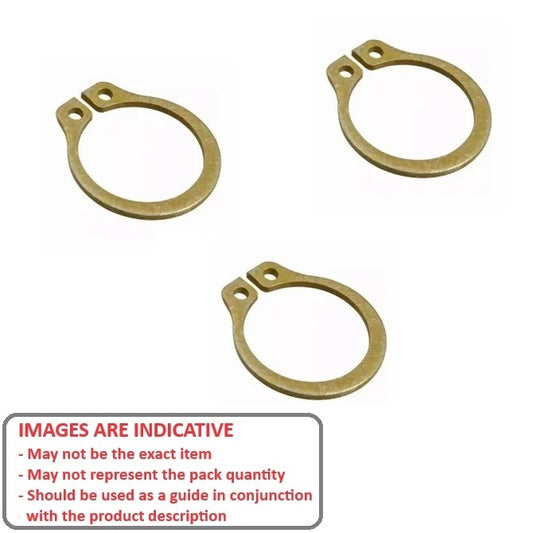

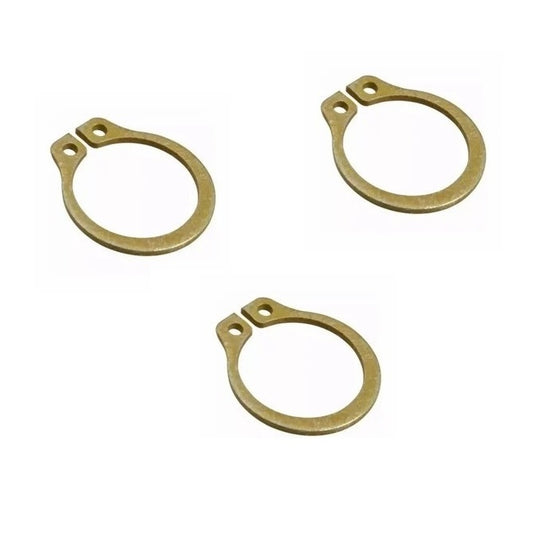

Material: Carbon Steel Zinc Plated Yellow
Clearance on Shaft (C1): 11.18 mm
Clearance in Groove (C1): 81 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-00478-CZ (500 Pcs)
External Retaining Rings - 4.78x0.89 - - Circlips - Carbon Steel Zinc Plated Yellow Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025 Regular price
$125.95 AUD
Regular price
Unit price
per
Per 500
|
||||||
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft Diameter (Ds)
4.78
mm (Equiv. 0.188 in.) |
Clip Thickness (T)
0.89
mm (Equiv. 0.035 in.) |
Approx. Loose Circlip ID (A)
4.570
mm |
|
|||
|
Material: Carbon Steel Zinc Plated Yellow
Clearance on Shaft (C1): 11.18 mm
Clearance in Groove (C1): 81 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-00478-CZ (500 Pcs)
External Retaining Rings - 4.78x0.89 - - Circlips - Carbon Steel Zinc Plated Yellow Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025 Regular price
$125.95 AUD
Regular price
Unit price
per
Per 500
|
||||||
|
||||||
|
Shaft Diameter (Ds)
5.00
mm (Equiv. 0.197 in.) |
Clip Thickness (T)
0.40
mm +/- 0.02 (Equiv. 0.016 in.) |
Groove Dia. (Dg)
4.60
mm + 0 / - 0.05 (Equiv. 0.181 in.) |
Approx. Loose Circlip ID (A)
4.50
mm |
Radial Wall (S) min/max
0.70
mm + 0 / - 0.10 |
Groove Width (W)
0.44
mm |
|
|
Material: Stainless Steel 301 S11/S22
Clearance in Groove (C1): 5.9 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0050-LS-S1 (5 Pcs)
External Retaining Rings - 5x0.4x4.6 mm Snap Rings - Stainless Steel 301 S11/S22 Snap Ring 95 units (475 pcs) Available Now | Further orders can be expected around Mon, Oct 20, 2025 Regular price
$7.23 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Shaft Diameter (Ds)
5.00
mm (Equiv. 0.197 in.) |
Clip Thickness (T)
0.40
mm +/- 0.02 (Equiv. 0.016 in.) |
Groove Dia. (Dg)
4.60
mm + 0 / - 0.05 (Equiv. 0.181 in.) |
Approx. Loose Circlip ID (A)
4.50
mm |
|
||
|
Material: Stainless Steel 301 S11/S22
Radial Wall (S) min/max: 0.70 mm + 0 / - 0.10
Groove Width (W): 0.44 mm
Clearance in Groove (C1): 5.9 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0050-LS-S1 (5 Pcs)
External Retaining Rings - 5x0.4x4.6 mm Snap Rings - Stainless Steel 301 S11/S22 Snap Ring 95 units (475 pcs) Available Now | Further orders can be expected around Mon, Oct 20, 2025 Regular price
$7.23 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Shaft Diameter (Ds)
5.00
mm (Equiv. 0.197 in.) |
Clip Thickness (T)
0.50
mm + 0 / - 0.10 (Equiv. 0.02 in.) |
Groove Dia. (Dg)
4.80
mm + 0 / - 0.09 (Equiv. 0.189 in.) |
Approx. Loose Circlip ID (A)
4.70
mm |
Radial Wall (S) min/max
1.00
mm + 0 / - 0.10 |
Groove Width (W)
0.60
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 6.7 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0050-LS (10 Pcs)
External Retaining Rings - 5x0.5x4.8 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Apr 18, 2026 Regular price
$14.41 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Shaft Diameter (Ds)
5.00
mm (Equiv. 0.197 in.) |
Clip Thickness (T)
0.50
mm + 0 / - 0.10 (Equiv. 0.02 in.) |
Groove Dia. (Dg)
4.80
mm + 0 / - 0.09 (Equiv. 0.189 in.) |
Approx. Loose Circlip ID (A)
4.70
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 1.00 mm + 0 / - 0.10
Groove Width (W): 0.60 mm
Clearance in Groove (C1): 6.7 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0050-LS (10 Pcs)
External Retaining Rings - 5x0.5x4.8 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Sat, Apr 18, 2026 Regular price
$14.41 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Shaft Diameter (Ds)
5.00
mm (Equiv. 0.197 in.) |
Clip Thickness (T)
0.60
mm + 0.00 / - 0.04 (Equiv. 0.024 in.) |
Groove Dia. (Dg)
4.78
mm + 0.00 / - 0.05 (Equiv. 0.188 in.) |
Approx. Loose Circlip ID (A)
4.70
mm |
Groove Width (W)
0.70
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance on Shaft (C1): 10.30 mm
Clearance in Groove (C1): 9.80 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00500-S15 (10 Pcs)
External Retaining Rings - 5x0.6x4.78 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 43 units (430 pcs) Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$3.05 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Shaft Diameter (Ds)
5.00
mm (Equiv. 0.197 in.) |
Clip Thickness (T)
0.60
mm + 0.00 / - 0.04 (Equiv. 0.024 in.) |
Groove Dia. (Dg)
4.78
mm + 0.00 / - 0.05 (Equiv. 0.188 in.) |
Approx. Loose Circlip ID (A)
4.70
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 0.70 mm
Clearance on Shaft (C1): 10.30 mm
Clearance in Groove (C1): 9.80 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00500-S15 (10 Pcs)
External Retaining Rings - 5x0.6x4.78 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 43 units (430 pcs) Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$3.05 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Shaft Diameter (Ds)
5.00
mm (Equiv. 0.197 in.) |
Clip Thickness (T)
0.60
mm + 0.00 / - 0.04 (Equiv. 0.024 in.) |
Groove Dia. (Dg)
4.78
mm + 0.00 / - 0.05 (Equiv. 0.188 in.) |
Approx. Loose Circlip ID (A)
4.70
mm |
Groove Width (W)
0.70
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 10.30 mm
Clearance in Groove (C1): 9.80 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00500-C (100 Pcs)
External Retaining Rings - 5x0.6x4.78 mm Circlips - Carbon Steel Circlip 33 units (3300 pcs) Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$5.95 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Shaft Diameter (Ds)
5.00
mm (Equiv. 0.197 in.) |
Clip Thickness (T)
0.60
mm + 0.00 / - 0.04 (Equiv. 0.024 in.) |
Groove Dia. (Dg)
4.78
mm + 0.00 / - 0.05 (Equiv. 0.188 in.) |
Approx. Loose Circlip ID (A)
4.70
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 0.70 mm
Clearance on Shaft (C1): 10.30 mm
Clearance in Groove (C1): 9.80 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00500-C (100 Pcs)
External Retaining Rings - 5x0.6x4.78 mm Circlips - Carbon Steel Circlip 33 units (3300 pcs) Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$5.95 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Shaft Diameter (Ds)
5.00
mm (Equiv. 0.197 in.) |
Clip Thickness (T)
0.80
mm (Equiv. 0.031 in.) |
Groove Dia. (Dg)
4.2
mm + 0 / - 0.20 (Equiv. 0.165 in.) |
Approx. Loose Circlip ID (A)
4.1
mm |
Radial Wall (S) min/max
4.2
mm +/- 0.05 |
Groove Width (W)
1.0
mm Min. |
|
|
Material: Carbon Spring Steel
Clearance on Shaft (C1): 5.7 mm
Clearance in Groove (C1): Round Section mm

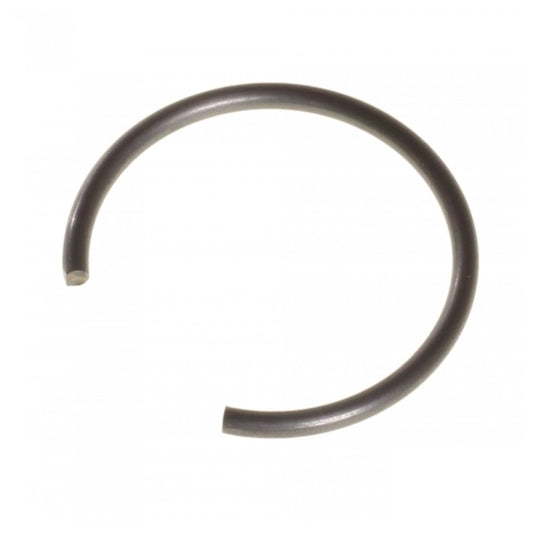

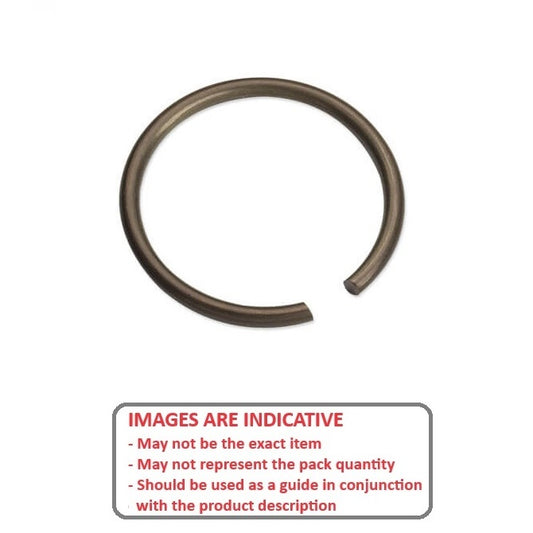

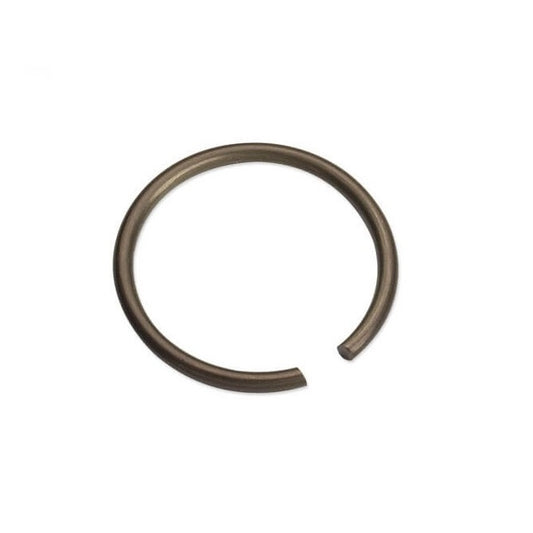

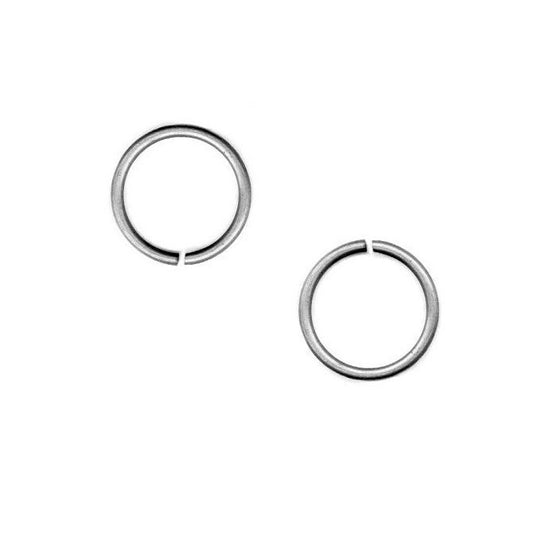

Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0050-RD (5 Pcs)
External Retaining Rings - 5x0.8x4.2 mm Round Wire - Carbon Spring Steel Circlip 129 units (645 pcs) Available Now | Item Discontinued - Up to 129 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$4.00 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Shaft Diameter (Ds)
5.00
mm (Equiv. 0.197 in.) |
Clip Thickness (T)
0.80
mm (Equiv. 0.031 in.) |
Groove Dia. (Dg)
4.2
mm + 0 / - 0.20 (Equiv. 0.165 in.) |
Approx. Loose Circlip ID (A)
4.1
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 4.2 mm +/- 0.05
Groove Width (W): 1.0 mm Min.
Clearance on Shaft (C1): 5.7 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0050-RD (5 Pcs)
External Retaining Rings - 5x0.8x4.2 mm Round Wire - Carbon Spring Steel Circlip 129 units (645 pcs) Available Now | Item Discontinued - Up to 129 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$4.00 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Shaft Diameter (Ds)
5.00
mm +/- 0.06
(Equiv. 0.197 in.) |
Clip Thickness (T)
0.80
mm (Equiv. 0.031 in.) |
Approx. Loose Circlip ID (A)
4.75
mm |
|
|||
|
Material: Carbon Steel
Clearance on Shaft (C1): 11.00 mm
Clearance in Groove (C1): 127 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-00500-C (100 Pcs)
External Retaining Rings - 5x0.8 - - Circlips - Carbon Steel Circlip 8 units (800 pcs) Available Now | Item Discontinued - Up to 8 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$10.00 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Shaft Diameter (Ds)
5.00
mm +/- 0.06 (Equiv. 0.197 in.) |
Clip Thickness (T)
0.80
mm (Equiv. 0.031 in.) |
Approx. Loose Circlip ID (A)
4.75
mm |
|
|||
|
Material: Carbon Steel
Clearance on Shaft (C1): 11.00 mm
Clearance in Groove (C1): 127 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-00500-C (100 Pcs)
External Retaining Rings - 5x0.8 - - Circlips - Carbon Steel Circlip 8 units (800 pcs) Available Now | Item Discontinued - Up to 8 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$10.00 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Shaft Diameter (Ds)
5.01
mm (Equiv. 0.197 in.) |
Clip Thickness (T)
0.40
mm +/- 0.038 (Equiv. 0.016 in.) |
Groove Dia. (Dg)
4.78
mm +/- 0.051 (Equiv. 0.188 in.) |
Approx. Loose Circlip ID (A)
4.60
mm |
Groove Width (W)
0.50
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00501-C
External Retaining Rings - 5.01x0.4x4.78 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
5.01
mm (Equiv. 0.197 in.) |
Clip Thickness (T)
0.40
mm +/- 0.038 (Equiv. 0.016 in.) |
Groove Dia. (Dg)
4.78
mm +/- 0.051 (Equiv. 0.188 in.) |
Approx. Loose Circlip ID (A)
4.60
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 0.50 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00501-C
External Retaining Rings - 5.01x0.4x4.78 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
5.01
mm (Equiv. 0.197 in.) |
Clip Thickness (T)
0.38
mm +/- 0.038 (Equiv. 0.015 in.) |
Groove Dia. (Dg)
4.78
mm +/- 0.051 (Equiv. 0.188 in.) |
Approx. Loose Circlip ID (A)
4.60
mm |
Groove Width (W)
0.46
mm |
|
|
|
Material: Beryllium Copper
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00501-B (5 Pcs)
External Retaining Rings - 5.01x0.38x4.78 mm Circlips - Beryllium Copper Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$1.59 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Shaft Diameter (Ds)
5.01
mm (Equiv. 0.197 in.) |
Clip Thickness (T)
0.38
mm +/- 0.038 (Equiv. 0.015 in.) |
Groove Dia. (Dg)
4.78
mm +/- 0.051 (Equiv. 0.188 in.) |
Approx. Loose Circlip ID (A)
4.60
mm |
|
||
|
Material: Beryllium Copper
Groove Width (W): 0.46 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00501-B (5 Pcs)
External Retaining Rings - 5.01x0.38x4.78 mm Circlips - Beryllium Copper Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$1.59 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Shaft Diameter (Ds)
5.56
mm (Equiv. 0.219 in.) |
Clip Thickness (T)
0.38
mm +/- 0.02 (Equiv. 0.015 in.) |
Groove Dia. (Dg)
5.11
mm (Equiv. 0.201 in.) |
Approx. Loose Circlip ID (A)
5.21
mm + 0.00 / - 0.31 |
Radial Wall (S) min/max
0.64
mm |
Groove Width (W)
0.43
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 6.49 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0056-LS
External Retaining Rings - 5.56x0.38x5.11 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
5.56
mm (Equiv. 0.219 in.) |
Clip Thickness (T)
0.38
mm +/- 0.02 (Equiv. 0.015 in.) |
Groove Dia. (Dg)
5.11
mm (Equiv. 0.201 in.) |
Approx. Loose Circlip ID (A)
5.21
mm + 0.00 / - 0.31 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 0.64 mm
Groove Width (W): 0.43 mm
Clearance in Groove (C1): 6.49 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0056-LS
External Retaining Rings - 5.56x0.38x5.11 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
5.56
mm (Equiv. 0.219 in.) |
Clip Thickness (T)
0.38
mm (Equiv. 0.015 in.) |
Groove Dia. (Dg)
5.18
mm (Equiv. 0.204 in.) |
Approx. Loose Circlip ID (A)
5.03
mm |
Radial Wall (S) min/max
5.18
mm + 0.08 / - 0.00 |
Groove Width (W)
0.38
mm + 0.08 / - 0.00 |
|
|
Material: Carbon Spring Steel
Clearance on Shaft (C1): 5.79 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0056-RD
External Retaining Rings - 5.56x0.38x5.18 mm Round Wire - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
5.56
mm (Equiv. 0.219 in.) |
Clip Thickness (T)
0.38
mm (Equiv. 0.015 in.) |
Groove Dia. (Dg)
5.18
mm (Equiv. 0.204 in.) |
Approx. Loose Circlip ID (A)
5.03
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 5.18 mm + 0.08 / - 0.00
Groove Width (W): 0.38 mm + 0.08 / - 0.00
Clearance on Shaft (C1): 5.79 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0056-RD
External Retaining Rings - 5.56x0.38x5.18 mm Round Wire - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
5.56
mm (Equiv. 0.219 in.) |
Clip Thickness (T)
0.40
mm +/- 0.038 (Equiv. 0.016 in.) |
Groove Dia. (Dg)
5.21
mm +/- 0.051 (Equiv. 0.205 in.) |
Approx. Loose Circlip ID (A)
5.00
mm |
Groove Width (W)
0.50
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 8.64 mm
Clearance in Groove (C1): 8.23 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00556-C (50 Pcs)
External Retaining Rings - 5.56x0.4x5.21 mm Circlips - Carbon Steel Circlip 1 pack (50 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Shaft Diameter (Ds)
5.56
mm (Equiv. 0.219 in.) |
Clip Thickness (T)
0.40
mm +/- 0.038 (Equiv. 0.016 in.) |
Groove Dia. (Dg)
5.21
mm +/- 0.051 (Equiv. 0.205 in.) |
Approx. Loose Circlip ID (A)
5.00
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 0.50 mm
Clearance on Shaft (C1): 8.64 mm
Clearance in Groove (C1): 8.23 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00556-C (50 Pcs)
External Retaining Rings - 5.56x0.4x5.21 mm Circlips - Carbon Steel Circlip 1 pack (50 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Shaft Diameter (Ds)
5.56
mm (Equiv. 0.219 in.) |
Clip Thickness (T)
0.40
mm +/- 0.038 (Equiv. 0.016 in.) |
Groove Dia. (Dg)
5.21
mm +/- 0.051 (Equiv. 0.205 in.) |
Approx. Loose Circlip ID (A)
5.00
mm |
Groove Width (W)
0.50
mm |
|
|
|
Material: Beryllium Copper
Clearance on Shaft (C1): 8.64 mm
Clearance in Groove (C1): 8.23 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00556-B (50 Pcs)
External Retaining Rings - 5.56x0.4x5.21 mm Circlips - Beryllium Copper Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$23.86 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Shaft Diameter (Ds)
5.56
mm (Equiv. 0.219 in.) |
Clip Thickness (T)
0.40
mm +/- 0.038 (Equiv. 0.016 in.) |
Groove Dia. (Dg)
5.21
mm +/- 0.051 (Equiv. 0.205 in.) |
Approx. Loose Circlip ID (A)
5.00
mm |
|
||
|
Material: Beryllium Copper
Groove Width (W): 0.50 mm
Clearance on Shaft (C1): 8.64 mm
Clearance in Groove (C1): 8.23 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00556-B (50 Pcs)
External Retaining Rings - 5.56x0.4x5.21 mm Circlips - Beryllium Copper Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$23.86 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Shaft Diameter (Ds)
5.56
mm (Equiv. 0.219 in.) |
Clip Thickness (T)
0.56
mm +/- 0.10 (Equiv. 0.022 in.) |
Groove Dia. (Dg)
5.21
mm + 0.08 / - 0.00 (Equiv. 0.205 in.) |
Approx. Loose Circlip ID (A)
5.13
mm |
Radial Wall (S) min/max
5.21
mm |
Groove Width (W)
0.61
mm |
|
|
Material: Carbon Spring Steel
Clearance on Shaft (C1): 6.25 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0056-RD-C
External Retaining Rings - 5.56x0.56x5.21 mm Round Wire - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
5.56
mm (Equiv. 0.219 in.) |
Clip Thickness (T)
0.56
mm +/- 0.10 (Equiv. 0.022 in.) |
Groove Dia. (Dg)
5.21
mm + 0.08 / - 0.00 (Equiv. 0.205 in.) |
Approx. Loose Circlip ID (A)
5.13
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 5.21 mm
Groove Width (W): 0.61 mm
Clearance on Shaft (C1): 6.25 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0056-RD-C
External Retaining Rings - 5.56x0.56x5.21 mm Round Wire - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
5.56
mm (Equiv. 0.219 in.) |
Clip Thickness (T)
0.56
mm +/- 0.10 (Equiv. 0.022 in.) |
Groove Dia. (Dg)
5.21
mm + 0.08 / - 0.00 (Equiv. 0.205 in.) |
Approx. Loose Circlip ID (A)
5.13
mm |
Radial Wall (S) min/max
5.21
mm |
Groove Width (W)
0.61
mm |
|
|
Material: Carbon Spring Steel
Clearance on Shaft (C1): 6.25 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0056-RD-O
External Retaining Rings - 5.56x0.56x5.21 mm Round Wire - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
5.56
mm (Equiv. 0.219 in.) |
Clip Thickness (T)
0.56
mm +/- 0.10 (Equiv. 0.022 in.) |
Groove Dia. (Dg)
5.21
mm + 0.08 / - 0.00 (Equiv. 0.205 in.) |
Approx. Loose Circlip ID (A)
5.13
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 5.21 mm
Groove Width (W): 0.61 mm
Clearance on Shaft (C1): 6.25 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0056-RD-O
External Retaining Rings - 5.56x0.56x5.21 mm Round Wire - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
5.56
mm (Equiv. 0.219 in.) |
Clip Thickness (T)
0.64
mm +/- 0.08 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
5.26
mm + 0.10 / - 0.00 (Equiv. 0.207 in.) |
Approx. Loose Circlip ID (A)
5.16
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
0.64
mm +/- 0.08 |
Groove Width (W)
0.74
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 6.44 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0056-SQ-C
External Retaining Rings - 5.56x0.64x5.26 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
5.56
mm (Equiv. 0.219 in.) |
Clip Thickness (T)
0.64
mm +/- 0.08 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
5.26
mm + 0.10 / - 0.00 (Equiv. 0.207 in.) |
Approx. Loose Circlip ID (A)
5.16
mm + 0.00 / - 2.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 0.64 mm +/- 0.08
Groove Width (W): 0.74 mm
Clearance in Groove (C1): 6.44 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0056-SQ-C
External Retaining Rings - 5.56x0.64x5.26 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
5.56
mm (Equiv. 0.219 in.) |
Clip Thickness (T)
0.64
mm +/- 0.08 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
5.26
mm + 0.10 / - 0.00 (Equiv. 0.207 in.) |
Approx. Loose Circlip ID (A)
5.16
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
0.64
mm +/- 0.08 |
Groove Width (W)
0.74
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 6.44 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0056-SQ-O
External Retaining Rings - 5.56x0.64x5.26 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
5.56
mm (Equiv. 0.219 in.) |
Clip Thickness (T)
0.64
mm +/- 0.08 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
5.26
mm + 0.10 / - 0.00 (Equiv. 0.207 in.) |
Approx. Loose Circlip ID (A)
5.16
mm + 0.00 / - 2.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 0.64 mm +/- 0.08
Groove Width (W): 0.74 mm
Clearance in Groove (C1): 6.44 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0056-SQ-O
External Retaining Rings - 5.56x0.64x5.26 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
5.95
mm (Equiv. 0.234 in.) |
Clip Thickness (T)
0.40
mm +/- 0.038 (Equiv. 0.016 in.) |
Groove Dia. (Dg)
5.60
mm +/- 0.051 (Equiv. 0.22 in.) |
Approx. Loose Circlip ID (A)
5.50
mm |
Radial Wall (S) min/max
B (Square Ends)
mm |
Groove Width (W)
0.50
mm |
|
|
Material: Beryllium Copper
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00595-B (50 Pcs)
External Retaining Rings - 5.95x0.4x5.6 mm Circlips - Beryllium Copper Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$22.68 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Shaft Diameter (Ds)
5.95
mm (Equiv. 0.234 in.) |
Clip Thickness (T)
0.40
mm +/- 0.038 (Equiv. 0.016 in.) |
Groove Dia. (Dg)
5.60
mm +/- 0.051 (Equiv. 0.22 in.) |
Approx. Loose Circlip ID (A)
5.50
mm |
|
||
|
Material: Beryllium Copper
Radial Wall (S) min/max: B (Square Ends) mm
Groove Width (W): 0.50 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00595-B (50 Pcs)
External Retaining Rings - 5.95x0.4x5.6 mm Circlips - Beryllium Copper Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$22.68 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Shaft Diameter (Ds)
5.95
mm (Equiv. 0.234 in.) |
Clip Thickness (T)
0.40
mm +/- 0.038 (Equiv. 0.016 in.) |
Groove Dia. (Dg)
5.60
mm +/- 0.051 (Equiv. 0.22 in.) |
Approx. Loose Circlip ID (A)
5.50
mm |
Groove Width (W)
0.50
mm |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00595-C (100 Pcs)
External Retaining Rings - 5.95x0.4x5.6 mm Circlips - Carbon Steel Circlip 3 units (300 pcs) Available Now | Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Shaft Diameter (Ds)
5.95
mm (Equiv. 0.234 in.) |
Clip Thickness (T)
0.40
mm +/- 0.038 (Equiv. 0.016 in.) |
Groove Dia. (Dg)
5.60
mm +/- 0.051 (Equiv. 0.22 in.) |
Approx. Loose Circlip ID (A)
5.50
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 0.50 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00595-C (100 Pcs)
External Retaining Rings - 5.95x0.4x5.6 mm Circlips - Carbon Steel Circlip 3 units (300 pcs) Available Now | Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Shaft Diameter (Ds)
5.95
mm (Equiv. 0.234 in.) |
Clip Thickness (T)
0.99
mm (Equiv. 0.039 in.) |
Approx. Loose Circlip ID (A)
5.690
mm |
|
|||
|
Material: Carbon Steel Zinc Plated Yellow
Clearance on Shaft (C1): 12.70 mm
Clearance in Groove (C1): 142 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-00595-CZ (100 Pcs)
External Retaining Rings - 5.95x0.99 - - Circlips - Carbon Steel Zinc Plated Yellow Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$39.23 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Shaft Diameter (Ds)
5.95
mm (Equiv. 0.234 in.) |
Clip Thickness (T)
0.99
mm (Equiv. 0.039 in.) |
Approx. Loose Circlip ID (A)
5.690
mm |
|
|||
|
Material: Carbon Steel Zinc Plated Yellow
Clearance on Shaft (C1): 12.70 mm
Clearance in Groove (C1): 142 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-00595-CZ (100 Pcs)
External Retaining Rings - 5.95x0.99 - - Circlips - Carbon Steel Zinc Plated Yellow Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$39.23 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Shaft Diameter (Ds)
5.95
mm +/- 0.08
(Equiv. 0.234 in.) |
Clip Thickness (T)
0.99
mm (Equiv. 0.039 in.) |
Approx. Loose Circlip ID (A)
5.69
mm |
|
|||
|
Material: Carbon Steel
Clearance on Shaft (C1): 12.70 mm
Clearance in Groove (C1): 142 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-00595-C (100 Pcs)
External Retaining Rings - 5.95x0.99 - - Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$24.59 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Shaft Diameter (Ds)
5.95
mm +/- 0.08 (Equiv. 0.234 in.) |
Clip Thickness (T)
0.99
mm (Equiv. 0.039 in.) |
Approx. Loose Circlip ID (A)
5.69
mm |
|
|||
|
Material: Carbon Steel
Clearance on Shaft (C1): 12.70 mm
Clearance in Groove (C1): 142 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CNG-00595-C (100 Pcs)
External Retaining Rings - 5.95x0.99 - - Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$24.59 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Shaft Diameter (Ds)
6.00
mm (Equiv. 0.236 in.) |
Clip Thickness (T)
0.40
mm +/- 0.02 (Equiv. 0.016 in.) |
Groove Dia. (Dg)
5.60
mm + 0 / - 0.05 (Equiv. 0.22 in.) |
Approx. Loose Circlip ID (A)
5.45
mm |
Radial Wall (S) min/max
0.70
mm + 0 / - 0.10 |
Groove Width (W)
0.44
mm |
|
|
Material: Stainless Steel 301 S11/S22
Clearance in Groove (C1): 6.85 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0060-LS-S1 (1000 Pcs)
External Retaining Rings - 6x0.4x5.6 mm Snap Rings - Stainless Steel 301 S11/S22 Snap Ring Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 20, 2025 Regular price
$1,205.77 AUD
Regular price
Unit price
per
Per 1000
|
||||||
|
Shaft Diameter (Ds)
6.00
mm (Equiv. 0.236 in.) |
Clip Thickness (T)
0.40
mm +/- 0.02 (Equiv. 0.016 in.) |
Groove Dia. (Dg)
5.60
mm + 0 / - 0.05 (Equiv. 0.22 in.) |
Approx. Loose Circlip ID (A)
5.45
mm |
|
||
|
Material: Stainless Steel 301 S11/S22
Radial Wall (S) min/max: 0.70 mm + 0 / - 0.10
Groove Width (W): 0.44 mm
Clearance in Groove (C1): 6.85 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0060-LS-S1 (1000 Pcs)
External Retaining Rings - 6x0.4x5.6 mm Snap Rings - Stainless Steel 301 S11/S22 Snap Ring Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 20, 2025 Regular price
$1,205.77 AUD
Regular price
Unit price
per
Per 1000
|
||||||
|
||||||
|
Shaft Diameter (Ds)
6.00
mm (Equiv. 0.236 in.) |
Clip Thickness (T)
0.60
mm (Equiv. 0.024 in.) |
Groove Dia. (Dg)
5.4
mm + 0 / - 0.20 (Equiv. 0.213 in.) |
Approx. Loose Circlip ID (A)
5.2
mm |
Radial Wall (S) min/max
5.4
mm +/- 0.05 |
Groove Width (W)
0.8
mm Min. |
|
|
Material: Carbon Spring Steel
Clearance on Shaft (C1): 6.4 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0060-RD-N (100 Pcs)
External Retaining Rings - 6x0.6x5.4 mm Round Wire - Carbon Spring Steel Circlip 3 units (300 pcs) Available Now | Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$10.00 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Shaft Diameter (Ds)
6.00
mm (Equiv. 0.236 in.) |
Clip Thickness (T)
0.60
mm (Equiv. 0.024 in.) |
Groove Dia. (Dg)
5.4
mm + 0 / - 0.20 (Equiv. 0.213 in.) |
Approx. Loose Circlip ID (A)
5.2
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 5.4 mm +/- 0.05
Groove Width (W): 0.8 mm Min.
Clearance on Shaft (C1): 6.4 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0060-RD-N (100 Pcs)
External Retaining Rings - 6x0.6x5.4 mm Round Wire - Carbon Spring Steel Circlip 3 units (300 pcs) Available Now | Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$10.00 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Shaft Diameter (Ds)
6.00
mm (Equiv. 0.236 in.) |
Clip Thickness (T)
0.70
mm + 0.00 / - 0.04 (Equiv. 0.028 in.) |
Groove Dia. (Dg)
5.70
mm + 0.00 / - 0.05 (Equiv. 0.224 in.) |
Approx. Loose Circlip ID (A)
5.60
mm |
Groove Width (W)
0.80
mm |
|
|
|

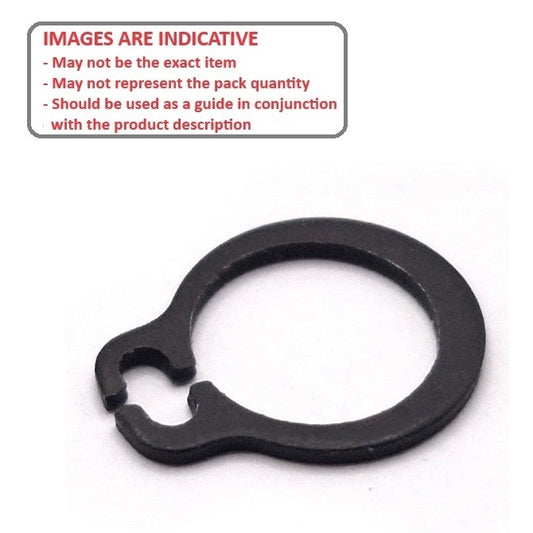

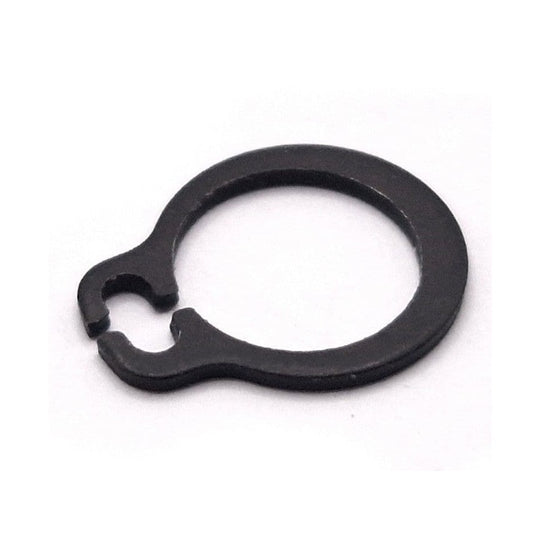

Material: Carbon Steel
Clearance on Shaft (C1): 11.70 mm
Clearance in Groove (C1): 11.10 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00600-C (100 Pcs)
External Retaining Rings - 6x0.7x5.7 mm Circlips - Carbon Steel Circlip 18 units (1800 pcs) Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$7.32 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Shaft Diameter (Ds)
6.00
mm (Equiv. 0.236 in.) |
Clip Thickness (T)
0.70
mm + 0.00 / - 0.04 (Equiv. 0.028 in.) |
Groove Dia. (Dg)
5.70
mm + 0.00 / - 0.05 (Equiv. 0.224 in.) |
Approx. Loose Circlip ID (A)
5.60
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 0.80 mm
Clearance on Shaft (C1): 11.70 mm
Clearance in Groove (C1): 11.10 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-00600-C (100 Pcs)
External Retaining Rings - 6x0.7x5.7 mm Circlips - Carbon Steel Circlip 18 units (1800 pcs) Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$7.32 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
