CCE-00595-B (PK-50)

Name: External Retaining Rings - 5.95x0.4x5.6 mm Circlips - Beryllium Copper Circlip (Sold Per PK-50) - - CCE-00595-B
Brand: MBA
SKU: CCE00595B
Price: 18.50 AUD
Availability: BackOrder

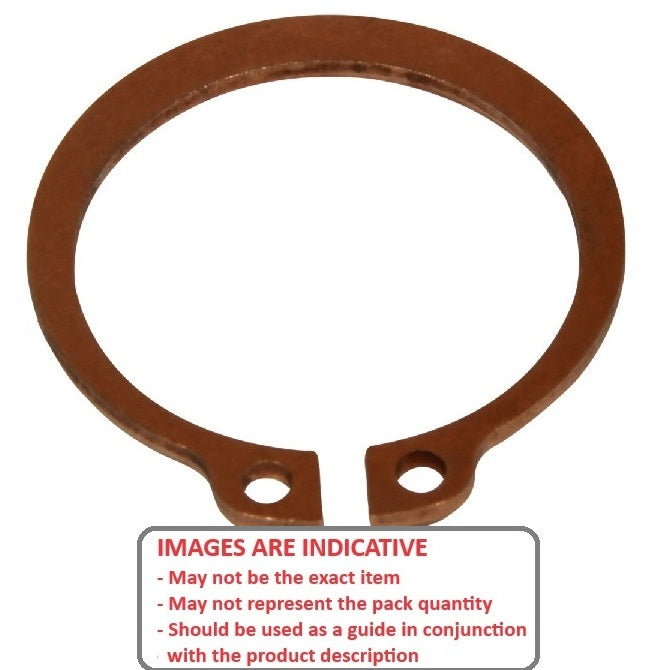

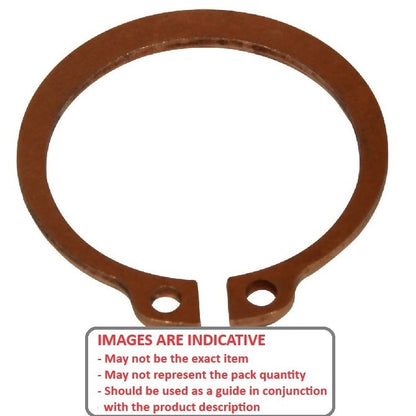

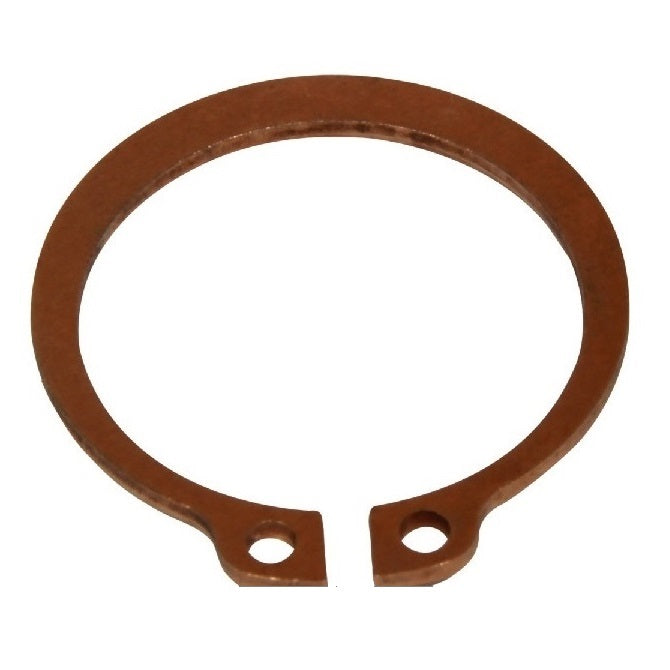

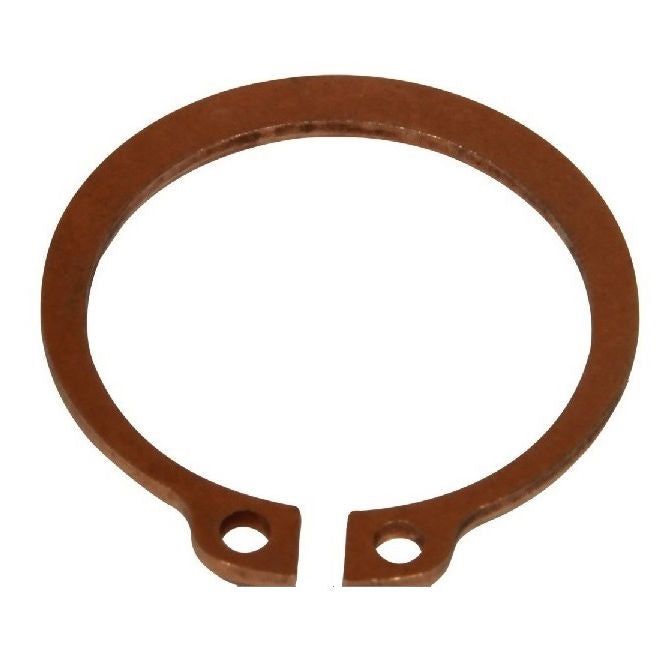

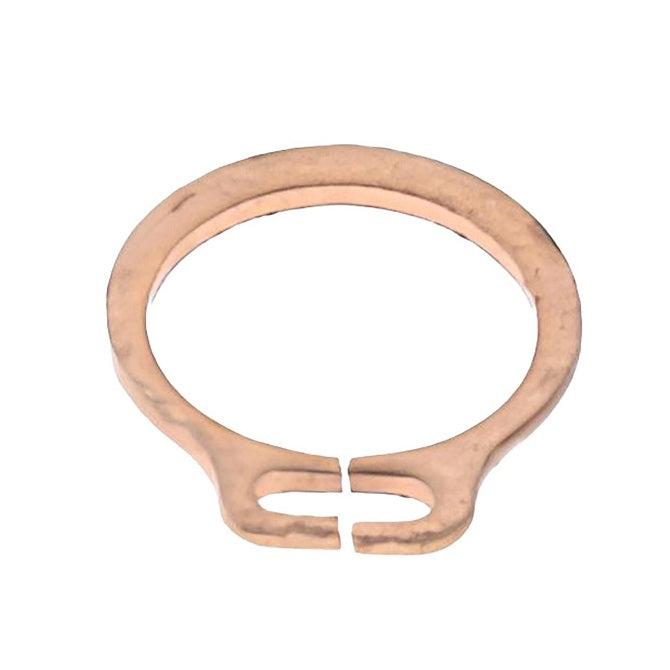

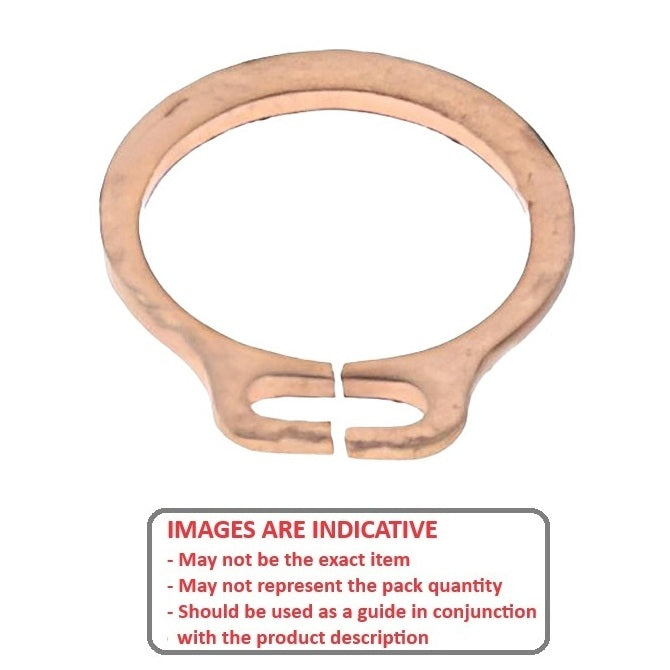

External Retaining Rings - 5.95x0.4x5.6 mm Circlips - Beryllium Copper Circlip

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Retaining Rings - External - Circlips - Standard - Beryllium Copper

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

Price:

$18.50 AUD

~~$43.20 AUD~~ $18.50 AUD

Priced, Stocked and Sold Per 50 Units

Excludes GST and overseas Taxes & Duties

Backorder

Order 50 or more pack (2500 pcs)
for $16.65 AUD per 50

Product Details

Additional stock available from USA subject to Prior Sale = 2169

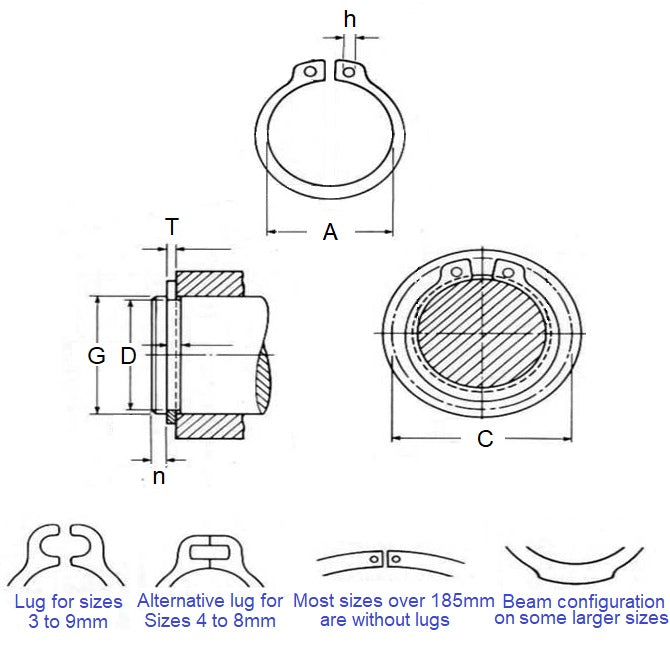

Shaft Diameter (Ds): 5.95mm
_{(5.95mm is 0.234 in.)}

Beryllium Copper

Shaft Diameter (Ds): 5.95mm
_{(5.95mm is 0.234 in.)}
Clip Thickness (T): 0.40mm
_{+/- 0.051}
_{(0.40mm is 0.016 in.)}
Groove Dia. (Dg): 5.60mm
_{+/- 0.038}
_{(5.60mm is 0.22 in.)}
Approx. Loose Circlip ID (A): 5.50mm
Groove Width (W): 0.50mm
Standard: MIL-16624

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

Huyett® SH-023-BC
NoCor® SH-023-BC
SH023BC
N14000023BC
N1400-0023BC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details
