CCE-00595-B - Datasheet
MBA
Category Information

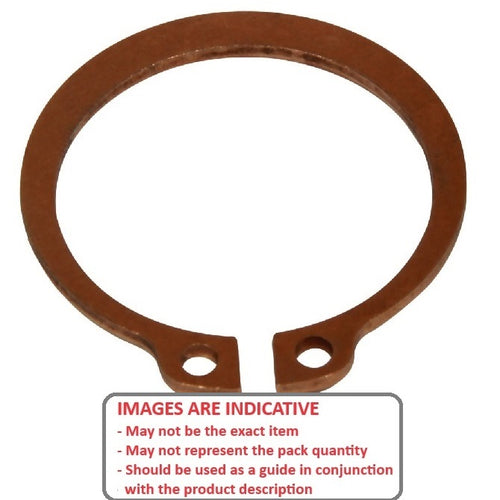

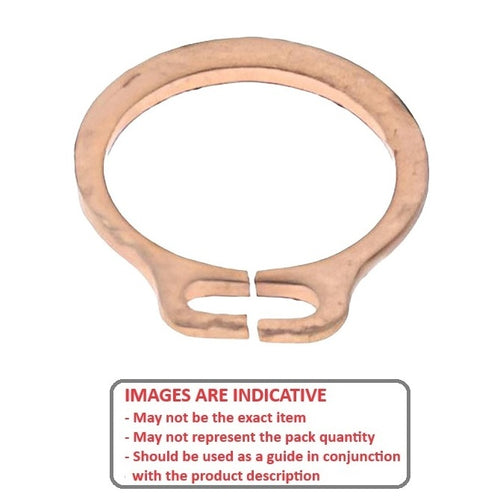

Retaining Rings - External - Circlips - Standard - Beryllium CopperBeryllium Copper Standard Circlips External Retaining Rings. Imperial and metric DIN471 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
Product Data
- Shaft Diameter (Ds)
:
5.95
mm
(Equiv. 0.234 in.) - Clip Thickness (T)
0.40
mm
+/- 0.038
(Equiv. 0.016 in.) - Groove Dia. (Dg)
5.60
mm
+/- 0.051
(Equiv. 0.22 in.) - Approx. Loose Circlip ID (A) 5.50 mm
- Radial Wall (S) min/max B (Square Ends) mm
- Groove Width (W) 0.50 mm
- Standard MIL-16624
- Material Beryllium Copper
Product Compliance and Data
Additional Resources
Cross References
- NoCor SH-023-BC
- SH023BC
- N1400-0023BC
- N14000023BC
