WRE-0060-LS-S1 (PK-1000)
External Retaining Rings - 6x0.4x5.6 mm Snap Rings - Stainless Steel 301 S11/S22 Snap Ring
Myonic
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Snap Rings and Spiral Rings PDF
Order 50 or more packs of 1000 (50000 pcs)
for $1,085.19 AUD per 1000 pack
6x0.4x5.6 mm External Retaining Rings - Stainless Steel 301 S11/S22 - Sold per pack of 1000:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Snap Rings - Stainless Steel
Product Details

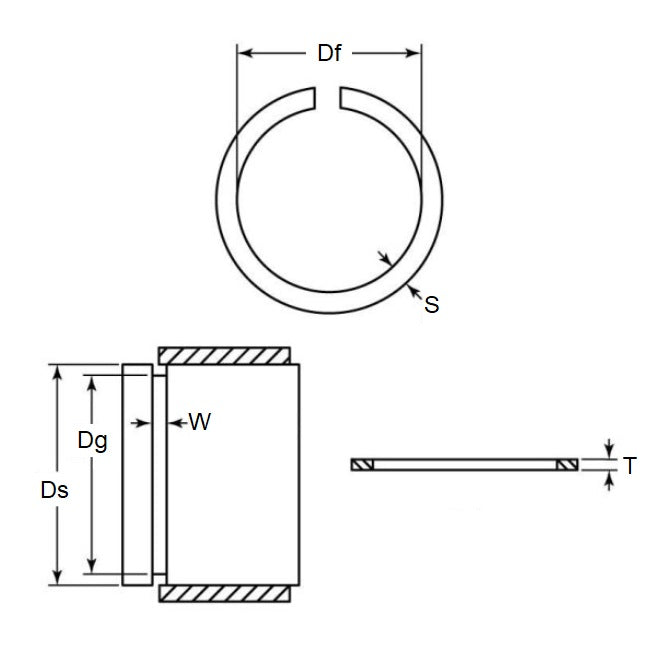

Shaft or Bearing OD (d1): 6.00mm(6.00mm is 0.236 in.)
Stainless Steel 301 S11/S22
- Shaft or Bearing OD (d1): 6.00mm
(6.00mm is 0.236 in.)
- Clip Thickness (T): 0.40mm
+/- 0.02
(0.40mm is 0.016 in.)
- Groove Dia. (Dg): 5.60mm
+ 0 / - 0.05
(5.60mm is 0.22 in.)
- Approx. Loose Circlip ID (A): 5.45mm
- Radial Wall (S) Approx.: 0.70mm
+ 0 / - 0.10
- Groove Width (W): 0.44mm
- Approx. Loose Clip OD: 6.85
- Section Profile: Rectangular with Square Edge
Brand: Myonic
Country of Origin: DE
Product Compliance and Data
Similar to
- RMB® WSR6
- WIB WSR6
- WRE0060SQS1
- WSR06
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
WRE0060LSS1, WRE0060
