CNG-00478-CZ (PK-500)
External Retaining Rings - 4.78x0.89 - - Circlips - Carbon Steel Zinc Plated Yellow Circlip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Order 50 or more packs of 500 (25000 pcs)
for $116.39 AUD per 500 pack
3/16 inch Circlip - 4.78x0.89 - - External Retaining Rings - Carbon Steel Zinc Plated Yellow - Sold per pack of 500:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Circlips - Grooveless
Product Details

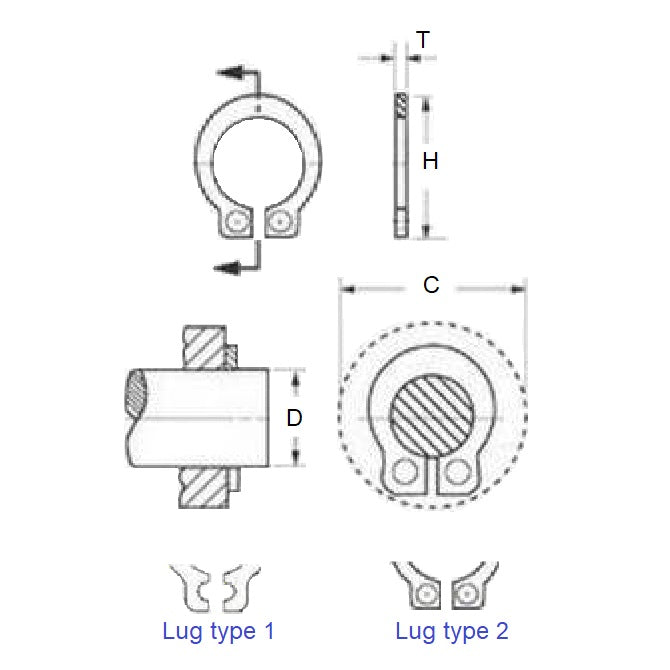

Shaft Diameter (Ds): 4.78mm(4.78mm is 0.188 in.)
Carbon Steel Zinc Plated Yellow
- Shaft Diameter (Ds): 4.78mm
(4.78mm is 0.188 in.)
- Clip Thickness (T): 0.89mm
(0.89mm is 0.035 in.)
- Groove Dia. (Dg): -mm
- Approx. Loose Circlip ID (A): 4.570mm
- Assemb. Clearance on Shaft (C): 11.18
- Allowable Load: 81N
- Lug Type: 2 (Closed)mm
- Tool: PRS-E047-X
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Huyett® SHF-018-ZD
- NoCor® SHF-018-ZD
- SHF018ZD
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CNG00478CZ, CNG00478
