Collection: Retaining Rings - External - Circlips - Grooveless

Retaining Rings -> External -> Circlips -> Grooveless

There are 35 products in the sub-categories of Retaining Rings - External - Circlips - Grooveless. Scroll down or follow the link to Retaining Rings - External - Circlips - Grooveless in the products table to see all these items combined into a handy table with filters.

Category Details

A selection of Grooveless Circlips External Retaining Rings. Includes MIL-R-21248/MS 90707 - Styles M1440 / Ellison GR / Seeger G and GA. Retaining rings. Snap Rings (USA).

An expanded range may be available on special order. Please enquire.
Reusable tapered section rings for grooveless shafts like plastics, tubes or castings.
Can be used where adjustable ring placement is desired - like progressively tightening a compression spring.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Retaining Rings - External - Circlips - Grooveless category on the Small Parts & Bearings online store.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max
Shaft Diameter (Ds) 2.39 mm _{+/- 0.05} (Equiv. 0.094 in.)	Clip Thickness (T) 0.64 mm (Equiv. 0.025 in.)		Approx. Loose Circlip ID (A) 2.26 mm

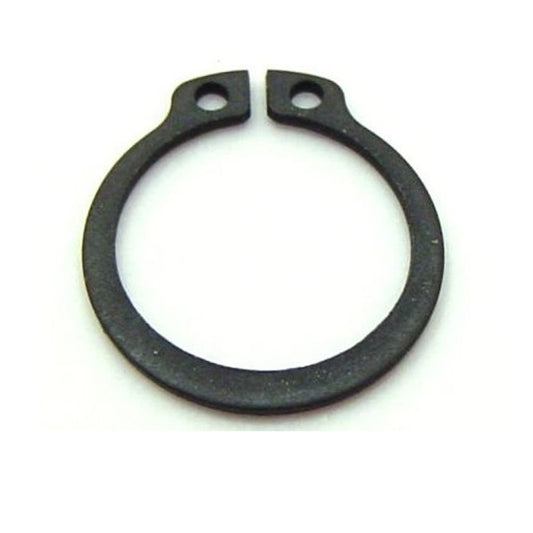

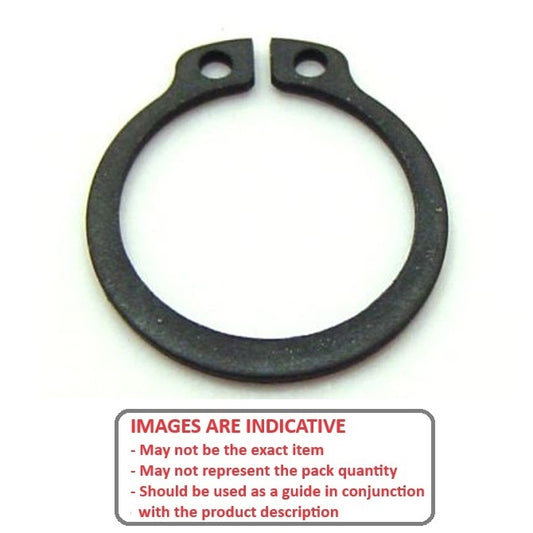

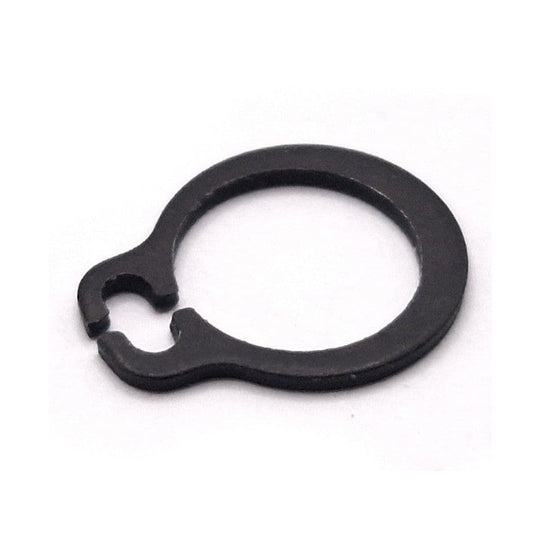

Material: Carbon Steel Assemb. Clearance on Shaft (C): 6.60 Allowable Load: 41 N Lug Type: 1 (Open) mm Tool: PRS-E034
Part Number: CNG-00239-C (5 Pcs) External Retaining Rings - 2.39x0.64 - - Circlips - Carbon Steel Circlip 179 units (895 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.05 AUD Regular price Sale price $2.05 AUD Unit price per Per 5 Quantity Required 179 units (895 pcs) Available Now. Backorder if more than 179.
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 2.39 mm _{+/- 0.05} (Equiv. 0.094 in.)	Clip Thickness (T) 0.64 mm (Equiv. 0.025 in.)		Approx. Loose Circlip ID (A) 2.26 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 6.60 Allowable Load: 41 N Lug Type: 1 (Open) mm Tool: PRS-E034
Part Number: CNG-00239-C (5 Pcs) External Retaining Rings - 2.39x0.64 - - Circlips - Carbon Steel Circlip 179 units (895 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.05 AUD Regular price Sale price $2.05 AUD Unit price per Per 5 Quantity Required 179 units (895 pcs) Available Now. Backorder if more than 179.
CNG-00239-C (5 Pcs) --- External Retaining Rings - 2.39x0.64 - - Circlips - Carbon Steel Circlip CNG-00239-C (5 Pcs) --- External Retaining Rings - 2.39x0.64 - - Circlips - Carbon Steel Circlip Regular price $2.05 AUD Regular price Sale price $2.05 AUD Unit price per 179 Available Now
Shaft Diameter (Ds) 2.39 mm _{+/- 0.05} (Equiv. 0.094 in.)	Clip Thickness (T) 0.64 mm (Equiv. 0.025 in.)		Approx. Loose Circlip ID (A) 2.26 mm

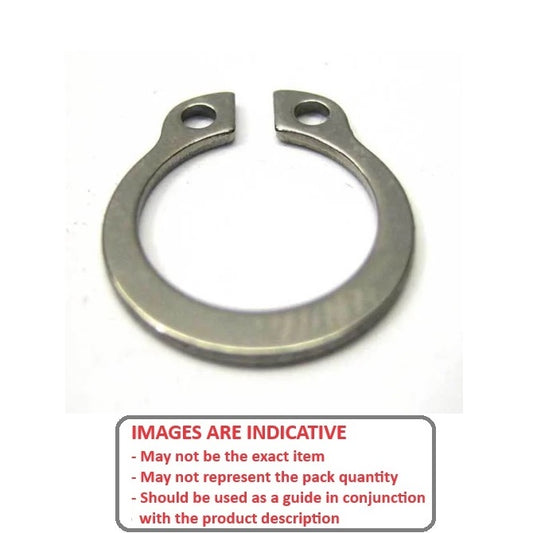

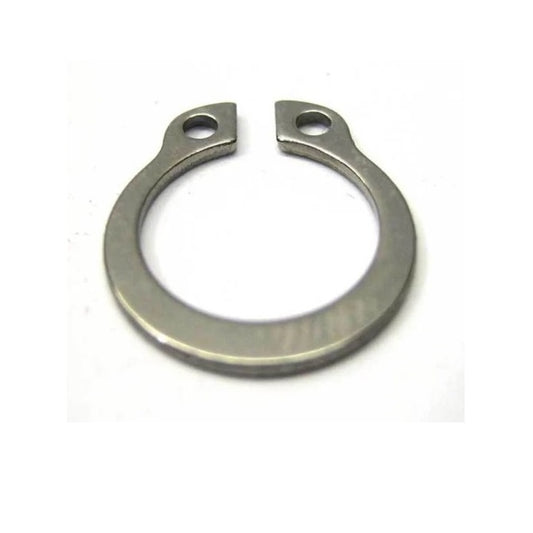

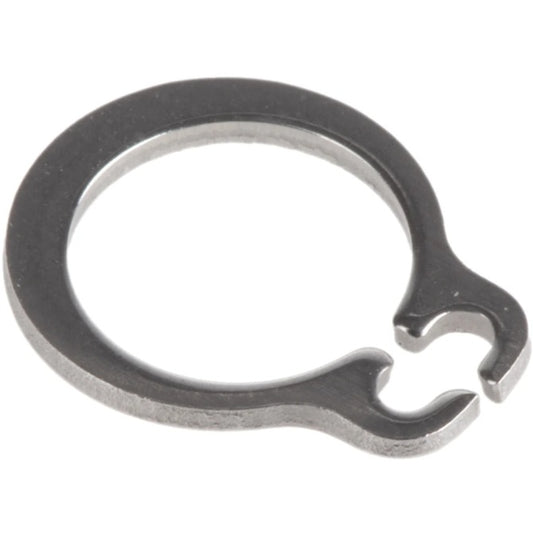

Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 6.60 Allowable Load: 33 N Lug Type: 1 (Open) mm Tool: PRS-E034
Part Number: CNG-00239-06-420-2 External Retaining Rings - 2.39x0.64 - - Circlips - Stainless Steel AISI 420C Circlip 90 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.23 AUD Regular price ~~$5.95 AUD~~ Sale price $2.23 AUD Unit price per Each Quantity Required 90 Available Now. Backorder if more than 90.
Shaft Diameter (Ds) 2.39 mm _{+/- 0.05} (Equiv. 0.094 in.)	Clip Thickness (T) 0.64 mm (Equiv. 0.025 in.)		Approx. Loose Circlip ID (A) 2.26 mm
Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 6.60 Allowable Load: 33 N Lug Type: 1 (Open) mm Tool: PRS-E034
Part Number: CNG-00239-06-420-2 External Retaining Rings - 2.39x0.64 - - Circlips - Stainless Steel AISI 420C Circlip 90 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.23 AUD Regular price ~~$5.95 AUD~~ Sale price $2.23 AUD Unit price per Each Quantity Required 90 Available Now. Backorder if more than 90.
CNG-00239-06-420-2 --- External Retaining Rings - 2.39x0.64 - - Circlips - Stainless Steel AISI 420C Circlip Sale CNG-00239-06-420-2 --- External Retaining Rings - 2.39x0.64 - - Circlips - Stainless Steel AISI 420C Circlip Regular price $2.23 AUD Regular price ~~$5.95 AUD~~ Sale price $2.23 AUD Unit price per 90 Available Now Sale
Shaft Diameter (Ds) 2.50 mm _{+ 0 / - 0.025} (Equiv. 0.098 in.)	Clip Thickness (T) 0.60 mm (Equiv. 0.024 in.)		Approx. Loose Circlip ID (A) 2.35 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 6.50 Allowable Load: 60 N Lug Type: 1 (Open) mm Tool: PRS-ZGG0
Part Number: CNG-00250-C (100 Pcs) External Retaining Rings - 2.5x0.6 - - Circlips - Carbon Steel Circlip 3 units (300 pcs) Available Now \| Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 100 Quantity Required 3 units (300 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) 2.50 mm _{+ 0 / - 0.025} (Equiv. 0.098 in.)	Clip Thickness (T) 0.60 mm (Equiv. 0.024 in.)		Approx. Loose Circlip ID (A) 2.35 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 6.50 Allowable Load: 60 N Lug Type: 1 (Open) mm Tool: PRS-ZGG0
Part Number: CNG-00250-C (100 Pcs) External Retaining Rings - 2.5x0.6 - - Circlips - Carbon Steel Circlip 3 units (300 pcs) Available Now \| Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 100 Quantity Required 3 units (300 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
CNG-00250-C (100 Pcs) --- External Retaining Rings - 2.5x0.6 - - Circlips - Carbon Steel Circlip Sale CNG-00250-C (100 Pcs) --- External Retaining Rings - 2.5x0.6 - - Circlips - Carbon Steel Circlip Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per 3 Available Now Sale
Shaft Diameter (Ds) 3.00 mm _{+/- 0.06} (Equiv. 0.118 in.)	Clip Thickness (T) 0.60 mm (Equiv. 0.024 in.)		Approx. Loose Circlip ID (A) 2.84 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 7.40 Allowable Load: 73 N Lug Type: 1 (Open) mm Tool: PRS-ZGG0
Part Number: CNG-00300-C (100 Pcs) External Retaining Rings - 3x0.6 - - Circlips - Carbon Steel Circlip 1 pack (100 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 100 Quantity Required 1 pack (100 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) 3.00 mm _{+/- 0.06} (Equiv. 0.118 in.)	Clip Thickness (T) 0.60 mm (Equiv. 0.024 in.)		Approx. Loose Circlip ID (A) 2.84 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 7.40 Allowable Load: 73 N Lug Type: 1 (Open) mm Tool: PRS-ZGG0
Part Number: CNG-00300-C (100 Pcs) External Retaining Rings - 3x0.6 - - Circlips - Carbon Steel Circlip 1 pack (100 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 100 Quantity Required 1 pack (100 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
CNG-00300-C (100 Pcs) --- External Retaining Rings - 3x0.6 - - Circlips - Carbon Steel Circlip Sale CNG-00300-C (100 Pcs) --- External Retaining Rings - 3x0.6 - - Circlips - Carbon Steel Circlip Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per 1 Available Now Sale
Shaft Diameter (Ds) 3.18 mm _{+/- 0.05} (Equiv. 0.125 in.)	Clip Thickness (T) 0.64 mm (Equiv. 0.025 in.)		Approx. Loose Circlip ID (A) 3.05 mm
Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 8.38 Allowable Load: 41 N Lug Type: 2 (Closed) mm Tool: PRS-E040
Part Number: CNG-00318-06-420-2 External Retaining Rings - 3.18x0.64 - - Circlips - Stainless Steel AISI 420C Circlip 1 Available Now \| Further orders can be expected around Fri, Nov 21, 2025 Regular price $1.68 AUD Regular price ~~$4.54 AUD~~ Sale price $1.68 AUD Unit price per Each Quantity Required 1 Available Now. Backorder if more than 1.
Shaft Diameter (Ds) 3.18 mm _{+/- 0.05} (Equiv. 0.125 in.)	Clip Thickness (T) 0.64 mm (Equiv. 0.025 in.)		Approx. Loose Circlip ID (A) 3.05 mm
Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 8.38 Allowable Load: 41 N Lug Type: 2 (Closed) mm Tool: PRS-E040
Part Number: CNG-00318-06-420-2 External Retaining Rings - 3.18x0.64 - - Circlips - Stainless Steel AISI 420C Circlip 1 Available Now \| Further orders can be expected around Fri, Nov 21, 2025 Regular price $1.68 AUD Regular price ~~$4.54 AUD~~ Sale price $1.68 AUD Unit price per Each Quantity Required 1 Available Now. Backorder if more than 1.
CNG-00318-06-420-2 --- External Retaining Rings - 3.18x0.64 - - Circlips - Stainless Steel AISI 420C Circlip Sale CNG-00318-06-420-2 --- External Retaining Rings - 3.18x0.64 - - Circlips - Stainless Steel AISI 420C Circlip Regular price $1.68 AUD Regular price ~~$4.54 AUD~~ Sale price $1.68 AUD Unit price per 1 Available Now Sale
Shaft Diameter (Ds) 3.18 mm _{+/- 0.05} (Equiv. 0.125 in.)	Clip Thickness (T) 0.64 mm (Equiv. 0.025 in.)		Approx. Loose Circlip ID (A) 3.05 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 8.38 Allowable Load: 81 N Lug Type: 2 (Closed) mm Tool: PRS-E040
Part Number: CNG-00318-C (5 Pcs) External Retaining Rings - 3.18x0.64 - - Circlips - Carbon Steel Circlip 119 units (595 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $0.77 AUD Regular price ~~$2.08 AUD~~ Sale price $0.77 AUD Unit price per Per 5 Quantity Required 119 units (595 pcs) Available Now. Backorder if more than 119.
Shaft Diameter (Ds) 3.18 mm _{+/- 0.05} (Equiv. 0.125 in.)	Clip Thickness (T) 0.64 mm (Equiv. 0.025 in.)		Approx. Loose Circlip ID (A) 3.05 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 8.38 Allowable Load: 81 N Lug Type: 2 (Closed) mm Tool: PRS-E040
Part Number: CNG-00318-C (5 Pcs) External Retaining Rings - 3.18x0.64 - - Circlips - Carbon Steel Circlip 119 units (595 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $0.77 AUD Regular price ~~$2.08 AUD~~ Sale price $0.77 AUD Unit price per Per 5 Quantity Required 119 units (595 pcs) Available Now. Backorder if more than 119.
CNG-00318-C (5 Pcs) --- External Retaining Rings - 3.18x0.64 - - Circlips - Carbon Steel Circlip Sale CNG-00318-C (5 Pcs) --- External Retaining Rings - 3.18x0.64 - - Circlips - Carbon Steel Circlip Regular price $0.77 AUD Regular price ~~$2.08 AUD~~ Sale price $0.77 AUD Unit price per 119 Available Now Sale
Shaft Diameter (Ds) 3.97 mm _{+/- 0.05} (Equiv. 0.156 in.)	Clip Thickness (T) 0.64 mm (Equiv. 0.025 in.)		Approx. Loose Circlip ID (A) 3.79 mm
Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 9.14 Allowable Load: 49 N Lug Type: 2 (Closed) mm Tool: PRS-E040
Part Number: CNG-00397-4 (250 Pcs) External Retaining Rings - 3.97x0.64 - - Circlips - Stainless Steel AISI 420C Circlip Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 21, 2025 Regular price $692.68 AUD Regular price ~~$1,629.00 AUD~~ Sale price $692.68 AUD Unit price per Per 250 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 3.97 mm _{+/- 0.05} (Equiv. 0.156 in.)	Clip Thickness (T) 0.64 mm (Equiv. 0.025 in.)		Approx. Loose Circlip ID (A) 3.79 mm
Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 9.14 Allowable Load: 49 N Lug Type: 2 (Closed) mm Tool: PRS-E040
Part Number: CNG-00397-4 (250 Pcs) External Retaining Rings - 3.97x0.64 - - Circlips - Stainless Steel AISI 420C Circlip Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 21, 2025 Regular price $692.68 AUD Regular price ~~$1,629.00 AUD~~ Sale price $692.68 AUD Unit price per Per 250 Quantity Required Backorder: Out of Stock.
CNG-00397-4 (250 Pcs) --- External Retaining Rings - 3.97x0.64 - - Circlips - Stainless Steel AISI 420C Circlip Sale CNG-00397-4 (250 Pcs) --- External Retaining Rings - 3.97x0.64 - - Circlips - Stainless Steel AISI 420C Circlip Regular price $692.68 AUD Regular price ~~$1,629.00 AUD~~ Sale price $692.68 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 3.97 mm _{+/- 0.05} (Equiv. 0.156 in.)	Clip Thickness (T) 0.64 mm (Equiv. 0.025 in.)		Approx. Loose Circlip ID (A) 3.79 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 9.14 Allowable Load: 89 N Lug Type: 2 (Closed) mm Tool: PRS-E040
Part Number: CNG-00397-06-C-2 (100 Pcs) External Retaining Rings - 3.97x0.64 - - Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $17.14 AUD Regular price ~~$40.00 AUD~~ Sale price $17.14 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 3.97 mm _{+/- 0.05} (Equiv. 0.156 in.)	Clip Thickness (T) 0.64 mm (Equiv. 0.025 in.)		Approx. Loose Circlip ID (A) 3.79 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 9.14 Allowable Load: 89 N Lug Type: 2 (Closed) mm Tool: PRS-E040
Part Number: CNG-00397-06-C-2 (100 Pcs) External Retaining Rings - 3.97x0.64 - - Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $17.14 AUD Regular price ~~$40.00 AUD~~ Sale price $17.14 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
CNG-00397-06-C-2 (100 Pcs) --- External Retaining Rings - 3.97x0.64 - - Circlips - Carbon Steel Circlip Sale CNG-00397-06-C-2 (100 Pcs) --- External Retaining Rings - 3.97x0.64 - - Circlips - Carbon Steel Circlip Regular price $17.14 AUD Regular price ~~$40.00 AUD~~ Sale price $17.14 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 4.78 mm _{+/- 0.05} (Equiv. 0.188 in.)	Clip Thickness (T) 0.89 mm (Equiv. 0.035 in.)		Approx. Loose Circlip ID (A) 4.57 mm
Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 11.18 Allowable Load: 81 N Lug Type: 2 (Closed) mm Tool: PRS-E047-X
Part Number: CNG-00478-4 (5 Pcs) External Retaining Rings - 4.78x0.89 - - Circlips - Stainless Steel AISI 420C Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $13.59 AUD Regular price ~~$31.26 AUD~~ Sale price $13.59 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 4.78 mm _{+/- 0.05} (Equiv. 0.188 in.)	Clip Thickness (T) 0.89 mm (Equiv. 0.035 in.)		Approx. Loose Circlip ID (A) 4.57 mm
Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 11.18 Allowable Load: 81 N Lug Type: 2 (Closed) mm Tool: PRS-E047-X
Part Number: CNG-00478-4 (5 Pcs) External Retaining Rings - 4.78x0.89 - - Circlips - Stainless Steel AISI 420C Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $13.59 AUD Regular price ~~$31.26 AUD~~ Sale price $13.59 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
CNG-00478-4 (5 Pcs) --- External Retaining Rings - 4.78x0.89 - - Circlips - Stainless Steel AISI 420C Circlip Sale CNG-00478-4 (5 Pcs) --- External Retaining Rings - 4.78x0.89 - - Circlips - Stainless Steel AISI 420C Circlip Regular price $13.59 AUD Regular price ~~$31.26 AUD~~ Sale price $13.59 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 4.78 mm _{+/- 0.08} (Equiv. 0.188 in.)	Clip Thickness (T) 0.89 mm (Equiv. 0.035 in.)		Approx. Loose Circlip ID (A) 4.57 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 11.18 Allowable Load: 101 N Lug Type: 2 (Closed) mm Tool: PRS-E047-X
Part Number: CNG-00478-C (5 Pcs) External Retaining Rings - 4.78x0.89 - - Circlips - Carbon Steel Circlip 4 units (20 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.41 AUD Regular price Sale price $2.41 AUD Unit price per Per 5 Quantity Required 4 units (20 pcs) Available Now. Backorder if more than 4.
Shaft Diameter (Ds) 4.78 mm _{+/- 0.08} (Equiv. 0.188 in.)	Clip Thickness (T) 0.89 mm (Equiv. 0.035 in.)		Approx. Loose Circlip ID (A) 4.57 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 11.18 Allowable Load: 101 N Lug Type: 2 (Closed) mm Tool: PRS-E047-X
Part Number: CNG-00478-C (5 Pcs) External Retaining Rings - 4.78x0.89 - - Circlips - Carbon Steel Circlip 4 units (20 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.41 AUD Regular price Sale price $2.41 AUD Unit price per Per 5 Quantity Required 4 units (20 pcs) Available Now. Backorder if more than 4.
CNG-00478-C (5 Pcs) --- External Retaining Rings - 4.78x0.89 - - Circlips - Carbon Steel Circlip CNG-00478-C (5 Pcs) --- External Retaining Rings - 4.78x0.89 - - Circlips - Carbon Steel Circlip Regular price $2.41 AUD Regular price Sale price $2.41 AUD Unit price per 4 Available Now
Shaft Diameter (Ds) 4.78 mm (Equiv. 0.188 in.)	Clip Thickness (T) 0.89 mm (Equiv. 0.035 in.)		Approx. Loose Circlip ID (A) 4.570 mm

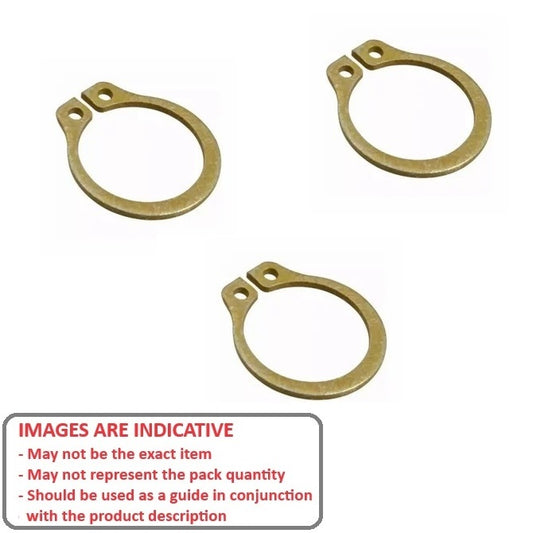

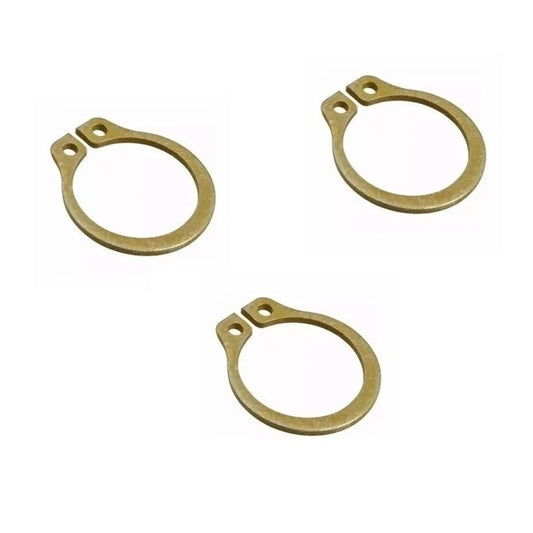

Material: Carbon Steel Zinc Plated Yellow Assemb. Clearance on Shaft (C): 11.18 Allowable Load: 81 N Lug Type: 2 (Closed) mm Tool: PRS-E047-X
Part Number: CNG-00478-CZ (500 Pcs) External Retaining Rings - 4.78x0.89 - - Circlips - Carbon Steel Zinc Plated Yellow Circlip Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 21, 2025 Regular price $125.95 AUD Regular price ~~$296.00 AUD~~ Sale price $125.95 AUD Unit price per Per 500 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 4.78 mm (Equiv. 0.188 in.)	Clip Thickness (T) 0.89 mm (Equiv. 0.035 in.)		Approx. Loose Circlip ID (A) 4.570 mm
Material: Carbon Steel Zinc Plated Yellow Assemb. Clearance on Shaft (C): 11.18 Allowable Load: 81 N Lug Type: 2 (Closed) mm Tool: PRS-E047-X
Part Number: CNG-00478-CZ (500 Pcs) External Retaining Rings - 4.78x0.89 - - Circlips - Carbon Steel Zinc Plated Yellow Circlip Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 21, 2025 Regular price $125.95 AUD Regular price ~~$296.00 AUD~~ Sale price $125.95 AUD Unit price per Per 500 Quantity Required Backorder: Out of Stock.
CNG-00478-CZ (500 Pcs) --- External Retaining Rings - 4.78x0.89 - - Circlips - Carbon Steel Zinc Plated Yellow Circlip Sale CNG-00478-CZ (500 Pcs) --- External Retaining Rings - 4.78x0.89 - - Circlips - Carbon Steel Zinc Plated Yellow Circlip Regular price $125.95 AUD Regular price ~~$296.00 AUD~~ Sale price $125.95 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 5.00 mm _{+/- 0.06} (Equiv. 0.197 in.)	Clip Thickness (T) 0.80 mm (Equiv. 0.031 in.)		Approx. Loose Circlip ID (A) 4.75 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 11.00 Allowable Load: 127 N Lug Type: 1 (Open) mm Tool: PRS-ZGG1
Part Number: CNG-00500-C (100 Pcs) External Retaining Rings - 5x0.8 - - Circlips - Carbon Steel Circlip 8 units (800 pcs) Available Now \| Item Discontinued - Up to 8 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 100 Quantity Required 8 units (800 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) 5.00 mm _{+/- 0.06} (Equiv. 0.197 in.)	Clip Thickness (T) 0.80 mm (Equiv. 0.031 in.)		Approx. Loose Circlip ID (A) 4.75 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 11.00 Allowable Load: 127 N Lug Type: 1 (Open) mm Tool: PRS-ZGG1
Part Number: CNG-00500-C (100 Pcs) External Retaining Rings - 5x0.8 - - Circlips - Carbon Steel Circlip 8 units (800 pcs) Available Now \| Item Discontinued - Up to 8 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 100 Quantity Required 8 units (800 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
CNG-00500-C (100 Pcs) --- External Retaining Rings - 5x0.8 - - Circlips - Carbon Steel Circlip Sale CNG-00500-C (100 Pcs) --- External Retaining Rings - 5x0.8 - - Circlips - Carbon Steel Circlip Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per 8 Available Now Sale
Shaft Diameter (Ds) 5.95 mm (Equiv. 0.234 in.)	Clip Thickness (T) 0.99 mm (Equiv. 0.039 in.)		Approx. Loose Circlip ID (A) 5.690 mm
Material: Carbon Steel Zinc Plated Yellow Assemb. Clearance on Shaft (C): 12.70 Allowable Load: 142 N Lug Type: 1 (Open) mm Tool: PRS-E047-X
Part Number: CNG-00595-CZ (100 Pcs) External Retaining Rings - 5.95x0.99 - - Circlips - Carbon Steel Zinc Plated Yellow Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $39.23 AUD Regular price ~~$92.00 AUD~~ Sale price $39.23 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 5.95 mm (Equiv. 0.234 in.)	Clip Thickness (T) 0.99 mm (Equiv. 0.039 in.)		Approx. Loose Circlip ID (A) 5.690 mm
Material: Carbon Steel Zinc Plated Yellow Assemb. Clearance on Shaft (C): 12.70 Allowable Load: 142 N Lug Type: 1 (Open) mm Tool: PRS-E047-X
Part Number: CNG-00595-CZ (100 Pcs) External Retaining Rings - 5.95x0.99 - - Circlips - Carbon Steel Zinc Plated Yellow Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $39.23 AUD Regular price ~~$92.00 AUD~~ Sale price $39.23 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
CNG-00595-CZ (100 Pcs) --- External Retaining Rings - 5.95x0.99 - - Circlips - Carbon Steel Zinc Plated Yellow Circlip Sale CNG-00595-CZ (100 Pcs) --- External Retaining Rings - 5.95x0.99 - - Circlips - Carbon Steel Zinc Plated Yellow Circlip Regular price $39.23 AUD Regular price ~~$92.00 AUD~~ Sale price $39.23 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 5.95 mm _{+/- 0.08} (Equiv. 0.234 in.)	Clip Thickness (T) 0.99 mm (Equiv. 0.039 in.)		Approx. Loose Circlip ID (A) 5.69 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 12.70 Allowable Load: 142 N Lug Type: 1 (Open) mm Tool: PRS-E047-X
Part Number: CNG-00595-C (100 Pcs) External Retaining Rings - 5.95x0.99 - - Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $24.59 AUD Regular price ~~$57.60 AUD~~ Sale price $24.59 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 5.95 mm _{+/- 0.08} (Equiv. 0.234 in.)	Clip Thickness (T) 0.99 mm (Equiv. 0.039 in.)		Approx. Loose Circlip ID (A) 5.69 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 12.70 Allowable Load: 142 N Lug Type: 1 (Open) mm Tool: PRS-E047-X
Part Number: CNG-00595-C (100 Pcs) External Retaining Rings - 5.95x0.99 - - Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $24.59 AUD Regular price ~~$57.60 AUD~~ Sale price $24.59 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
CNG-00595-C (100 Pcs) --- External Retaining Rings - 5.95x0.99 - - Circlips - Carbon Steel Circlip Sale CNG-00595-C (100 Pcs) --- External Retaining Rings - 5.95x0.99 - - Circlips - Carbon Steel Circlip Regular price $24.59 AUD Regular price ~~$57.60 AUD~~ Sale price $24.59 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 6.00 mm _{+/- 0.08} (Equiv. 0.236 in.)	Clip Thickness (T) 1.00 mm (Equiv. 0.039 in.)		Approx. Loose Circlip ID (A) 5.72 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 12.60 Allowable Load: 166 N Lug Type: 1 (Open) mm Tool: PRS-ZGG1
Part Number: CNG-00600-C (100 Pcs) External Retaining Rings - 6x1 - - Circlips - Carbon Steel Circlip 4 units (400 pcs) Available Now \| Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 100 Quantity Required 4 units (400 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) 6.00 mm _{+/- 0.08} (Equiv. 0.236 in.)	Clip Thickness (T) 1.00 mm (Equiv. 0.039 in.)		Approx. Loose Circlip ID (A) 5.72 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 12.60 Allowable Load: 166 N Lug Type: 1 (Open) mm Tool: PRS-ZGG1
Part Number: CNG-00600-C (100 Pcs) External Retaining Rings - 6x1 - - Circlips - Carbon Steel Circlip 4 units (400 pcs) Available Now \| Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 100 Quantity Required 4 units (400 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
CNG-00600-C (100 Pcs) --- External Retaining Rings - 6x1 - - Circlips - Carbon Steel Circlip Sale CNG-00600-C (100 Pcs) --- External Retaining Rings - 6x1 - - Circlips - Carbon Steel Circlip Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per 4 Available Now Sale
Shaft Diameter (Ds) 6.35 mm _{+/- 0.08} (Equiv. 0.25 in.)	Clip Thickness (T) 0.89 mm (Equiv. 0.035 in.)		Approx. Loose Circlip ID (A) 6.00 mm
Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 12.45 Allowable Load: 142 N Lug Type: 2 (Closed) mm Tool: PRS-E047-X
Part Number: CNG-00635-4 (5 Pcs) External Retaining Rings - 6.35x0.89 - - Circlips - Stainless Steel AISI 420C Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $12.23 AUD Regular price ~~$28.10 AUD~~ Sale price $12.23 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 6.35 mm _{+/- 0.08} (Equiv. 0.25 in.)	Clip Thickness (T) 0.89 mm (Equiv. 0.035 in.)		Approx. Loose Circlip ID (A) 6.00 mm
Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 12.45 Allowable Load: 142 N Lug Type: 2 (Closed) mm Tool: PRS-E047-X
Part Number: CNG-00635-4 (5 Pcs) External Retaining Rings - 6.35x0.89 - - Circlips - Stainless Steel AISI 420C Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $12.23 AUD Regular price ~~$28.10 AUD~~ Sale price $12.23 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
CNG-00635-4 (5 Pcs) --- External Retaining Rings - 6.35x0.89 - - Circlips - Stainless Steel AISI 420C Circlip Sale CNG-00635-4 (5 Pcs) --- External Retaining Rings - 6.35x0.89 - - Circlips - Stainless Steel AISI 420C Circlip Regular price $12.23 AUD Regular price ~~$28.10 AUD~~ Sale price $12.23 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 6.35 mm (Equiv. 0.25 in.)	Clip Thickness (T) 0.89 mm (Equiv. 0.035 in.)		Approx. Loose Circlip ID (A) 6.000 mm
Material: Carbon Steel Zinc Plated Yellow Assemb. Clearance on Shaft (C): 12.45 Allowable Load: 142 N Lug Type: 2 (Closed) mm Tool: PRS-E047-X
Part Number: CNG-00635-CZ (100 Pcs) External Retaining Rings - 6.35x0.89 - - Circlips - Carbon Steel Zinc Plated Yellow Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $38.50 AUD Regular price ~~$90.40 AUD~~ Sale price $38.50 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 6.35 mm (Equiv. 0.25 in.)	Clip Thickness (T) 0.89 mm (Equiv. 0.035 in.)		Approx. Loose Circlip ID (A) 6.000 mm
Material: Carbon Steel Zinc Plated Yellow Assemb. Clearance on Shaft (C): 12.45 Allowable Load: 142 N Lug Type: 2 (Closed) mm Tool: PRS-E047-X
Part Number: CNG-00635-CZ (100 Pcs) External Retaining Rings - 6.35x0.89 - - Circlips - Carbon Steel Zinc Plated Yellow Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $38.50 AUD Regular price ~~$90.40 AUD~~ Sale price $38.50 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
CNG-00635-CZ (100 Pcs) --- External Retaining Rings - 6.35x0.89 - - Circlips - Carbon Steel Zinc Plated Yellow Circlip Sale CNG-00635-CZ (100 Pcs) --- External Retaining Rings - 6.35x0.89 - - Circlips - Carbon Steel Zinc Plated Yellow Circlip Regular price $38.50 AUD Regular price ~~$90.40 AUD~~ Sale price $38.50 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 6.35 mm _{+/- 0.05} (Equiv. 0.25 in.)	Clip Thickness (T) 0.89 mm (Equiv. 0.035 in.)		Approx. Loose Circlip ID (A) 6.00 mm
Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 12.45 Allowable Load: 93 N Lug Type: 2 (Closed) mm Tool: PRS-E047-X
Part Number: CNG-00635-09-420-2 (5 Pcs) External Retaining Rings - 6.35x0.89 - - Circlips - Stainless Steel AISI 420C Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $12.23 AUD Regular price ~~$28.10 AUD~~ Sale price $12.23 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 6.35 mm _{+/- 0.05} (Equiv. 0.25 in.)	Clip Thickness (T) 0.89 mm (Equiv. 0.035 in.)		Approx. Loose Circlip ID (A) 6.00 mm
Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 12.45 Allowable Load: 93 N Lug Type: 2 (Closed) mm Tool: PRS-E047-X
Part Number: CNG-00635-09-420-2 (5 Pcs) External Retaining Rings - 6.35x0.89 - - Circlips - Stainless Steel AISI 420C Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $12.23 AUD Regular price ~~$28.10 AUD~~ Sale price $12.23 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
CNG-00635-09-420-2 (5 Pcs) --- External Retaining Rings - 6.35x0.89 - - Circlips - Stainless Steel AISI 420C Circlip Sale CNG-00635-09-420-2 (5 Pcs) --- External Retaining Rings - 6.35x0.89 - - Circlips - Stainless Steel AISI 420C Circlip Regular price $12.23 AUD Regular price ~~$28.10 AUD~~ Sale price $12.23 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 6.35 mm (Equiv. 0.25 in.)	Clip Thickness (T) 0.89 mm (Equiv. 0.035 in.)		Approx. Loose Circlip ID (A) 6.000 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 12.45 Allowable Load: 142 N Lug Type: 2 (Closed) mm Tool: PRS-E047-X
Part Number: CNG-00635-C (100 Pcs) External Retaining Rings - 6.35x0.89 - - Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $22.05 AUD Regular price ~~$51.60 AUD~~ Sale price $22.05 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 6.35 mm (Equiv. 0.25 in.)	Clip Thickness (T) 0.89 mm (Equiv. 0.035 in.)		Approx. Loose Circlip ID (A) 6.000 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 12.45 Allowable Load: 142 N Lug Type: 2 (Closed) mm Tool: PRS-E047-X
Part Number: CNG-00635-C (100 Pcs) External Retaining Rings - 6.35x0.89 - - Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $22.05 AUD Regular price ~~$51.60 AUD~~ Sale price $22.05 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
CNG-00635-C (100 Pcs) --- External Retaining Rings - 6.35x0.89 - - Circlips - Carbon Steel Circlip Sale CNG-00635-C (100 Pcs) --- External Retaining Rings - 6.35x0.89 - - Circlips - Carbon Steel Circlip Regular price $22.05 AUD Regular price ~~$51.60 AUD~~ Sale price $22.05 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 7.94 mm (Equiv. 0.313 in.)	Clip Thickness (T) 1.07 mm (Equiv. 0.042 in.)

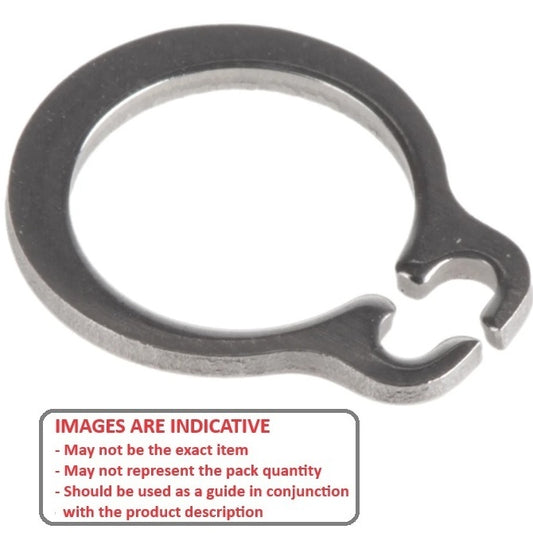

Material: Stainless Steel AISI 420C Lug Type: 2 (Closed) mm
Part Number: CNG-00794-4 (3 Pcs) External Retaining Rings - 7.94x1.07 - - Circlips - Stainless Steel AISI 420C Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $8.86 AUD Regular price ~~$19.94 AUD~~ Sale price $8.86 AUD Unit price per Per 3 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 7.94 mm (Equiv. 0.313 in.)	Clip Thickness (T) 1.07 mm (Equiv. 0.042 in.)
Material: Stainless Steel AISI 420C Lug Type: 2 (Closed) mm
Part Number: CNG-00794-4 (3 Pcs) External Retaining Rings - 7.94x1.07 - - Circlips - Stainless Steel AISI 420C Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $8.86 AUD Regular price ~~$19.94 AUD~~ Sale price $8.86 AUD Unit price per Per 3 Quantity Required Backorder: Out of Stock.
CNG-00794-4 (3 Pcs) --- External Retaining Rings - 7.94x1.07 - - Circlips - Stainless Steel AISI 420C Circlip Sale CNG-00794-4 (3 Pcs) --- External Retaining Rings - 7.94x1.07 - - Circlips - Stainless Steel AISI 420C Circlip Regular price $8.86 AUD Regular price ~~$19.94 AUD~~ Sale price $8.86 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 7.94 mm (Equiv. 0.313 in.)	Clip Thickness (T) 1.07 mm (Equiv. 0.042 in.)

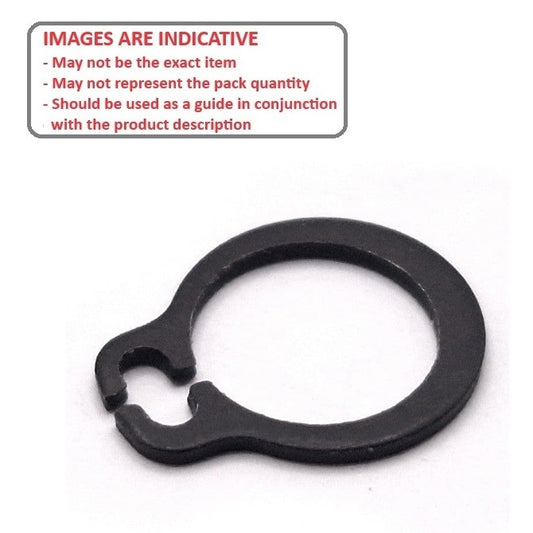

Material: Carbon Steel Lug Type: 2 (Closed) mm
Part Number: CNG-00794-C (50 Pcs) External Retaining Rings - 7.94x1.07 - - Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $22.68 AUD Regular price ~~$53.00 AUD~~ Sale price $22.68 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 7.94 mm (Equiv. 0.313 in.)	Clip Thickness (T) 1.07 mm (Equiv. 0.042 in.)
Material: Carbon Steel Lug Type: 2 (Closed) mm
Part Number: CNG-00794-C (50 Pcs) External Retaining Rings - 7.94x1.07 - - Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $22.68 AUD Regular price ~~$53.00 AUD~~ Sale price $22.68 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
CNG-00794-C (50 Pcs) --- External Retaining Rings - 7.94x1.07 - - Circlips - Carbon Steel Circlip Sale CNG-00794-C (50 Pcs) --- External Retaining Rings - 7.94x1.07 - - Circlips - Carbon Steel Circlip Regular price $22.68 AUD Regular price ~~$53.00 AUD~~ Sale price $22.68 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 7.94 mm _{+/- 0.08} (Equiv. 0.313 in.)	Clip Thickness (T) 1.07 mm (Equiv. 0.042 in.)		Approx. Loose Circlip ID (A) 7.70 mm
Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 17.27 Allowable Load: 102 N Lug Type: 2 (Closed) mm Tool: PRS-E070-X
Part Number: CNG-00794-11-420-2 (3 Pcs) External Retaining Rings - 7.94x1.07 - - Circlips - Stainless Steel AISI 420C Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $8.95 AUD Regular price ~~$20.33 AUD~~ Sale price $8.95 AUD Unit price per Per 3 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 7.94 mm _{+/- 0.08} (Equiv. 0.313 in.)	Clip Thickness (T) 1.07 mm (Equiv. 0.042 in.)		Approx. Loose Circlip ID (A) 7.70 mm
Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 17.27 Allowable Load: 102 N Lug Type: 2 (Closed) mm Tool: PRS-E070-X
Part Number: CNG-00794-11-420-2 (3 Pcs) External Retaining Rings - 7.94x1.07 - - Circlips - Stainless Steel AISI 420C Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $8.95 AUD Regular price ~~$20.33 AUD~~ Sale price $8.95 AUD Unit price per Per 3 Quantity Required Backorder: Out of Stock.
CNG-00794-11-420-2 (3 Pcs) --- External Retaining Rings - 7.94x1.07 - - Circlips - Stainless Steel AISI 420C Circlip Sale CNG-00794-11-420-2 (3 Pcs) --- External Retaining Rings - 7.94x1.07 - - Circlips - Stainless Steel AISI 420C Circlip Regular price $8.95 AUD Regular price ~~$20.33 AUD~~ Sale price $8.95 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 8.00 mm _{+/- 0.08} (Equiv. 0.315 in.)	Clip Thickness (T) 1.00 mm (Equiv. 0.039 in.)		Approx. Loose Circlip ID (A) 7.70 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 17.30 Allowable Load: 196 N Lug Type: 1 (Open) mm Tool: PRS-ZGG1
Part Number: CNG-00800-C (5 Pcs) External Retaining Rings - 8x1 - - Circlips - Carbon Steel Circlip 526 units (2630 pcs) Available Now \| Further orders can be expected around Sat, Apr 18, 2026 Regular price $1.32 AUD Regular price Sale price $1.32 AUD Unit price per Per 5 Quantity Required 526 units (2630 pcs) Available Now. Backorder if more than 526.
Shaft Diameter (Ds) 8.00 mm _{+/- 0.08} (Equiv. 0.315 in.)	Clip Thickness (T) 1.00 mm (Equiv. 0.039 in.)		Approx. Loose Circlip ID (A) 7.70 mm
Material: Carbon Steel Assemb. Clearance on Shaft (C): 17.30 Allowable Load: 196 N Lug Type: 1 (Open) mm Tool: PRS-ZGG1
Part Number: CNG-00800-C (5 Pcs) External Retaining Rings - 8x1 - - Circlips - Carbon Steel Circlip 526 units (2630 pcs) Available Now \| Further orders can be expected around Sat, Apr 18, 2026 Regular price $1.32 AUD Regular price Sale price $1.32 AUD Unit price per Per 5 Quantity Required 526 units (2630 pcs) Available Now. Backorder if more than 526.
CNG-00800-C (5 Pcs) --- External Retaining Rings - 8x1 - - Circlips - Carbon Steel Circlip CNG-00800-C (5 Pcs) --- External Retaining Rings - 8x1 - - Circlips - Carbon Steel Circlip Regular price $1.32 AUD Regular price Sale price $1.32 AUD Unit price per 526 Available Now
Shaft Diameter (Ds) 9.53 mm _{+/- 0.08} (Equiv. 0.375 in.)	Clip Thickness (T) 1.07 mm (Equiv. 0.042 in.)		Approx. Loose Circlip ID (A) 8.97 mm
Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 18.80 Allowable Load: 122 N Lug Type: 2 (Closed) mm Tool: PRS-E070-X
Part Number: CNG-00953-4 External Retaining Rings - 9.53x1.07 - - Circlips - Stainless Steel AISI 420C Circlip 48 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.59 AUD Regular price ~~$6.82 AUD~~ Sale price $2.59 AUD Unit price per Each Quantity Required 48 Available Now. Backorder if more than 48.
Shaft Diameter (Ds) 9.53 mm _{+/- 0.08} (Equiv. 0.375 in.)	Clip Thickness (T) 1.07 mm (Equiv. 0.042 in.)		Approx. Loose Circlip ID (A) 8.97 mm
Material: Stainless Steel AISI 420C Assemb. Clearance on Shaft (C): 18.80 Allowable Load: 122 N Lug Type: 2 (Closed) mm Tool: PRS-E070-X
Part Number: CNG-00953-4 External Retaining Rings - 9.53x1.07 - - Circlips - Stainless Steel AISI 420C Circlip 48 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.59 AUD Regular price ~~$6.82 AUD~~ Sale price $2.59 AUD Unit price per Each Quantity Required 48 Available Now. Backorder if more than 48.
CNG-00953-4 --- External Retaining Rings - 9.53x1.07 - - Circlips - Stainless Steel AISI 420C Circlip Sale CNG-00953-4 --- External Retaining Rings - 9.53x1.07 - - Circlips - Stainless Steel AISI 420C Circlip Regular price $2.59 AUD Regular price ~~$6.82 AUD~~ Sale price $2.59 AUD Unit price per 48 Available Now Sale

Country/region

Collection: Retaining Rings - External - Circlips - Grooveless

Category Details

Filter

Filter

Subscribe to our emails
