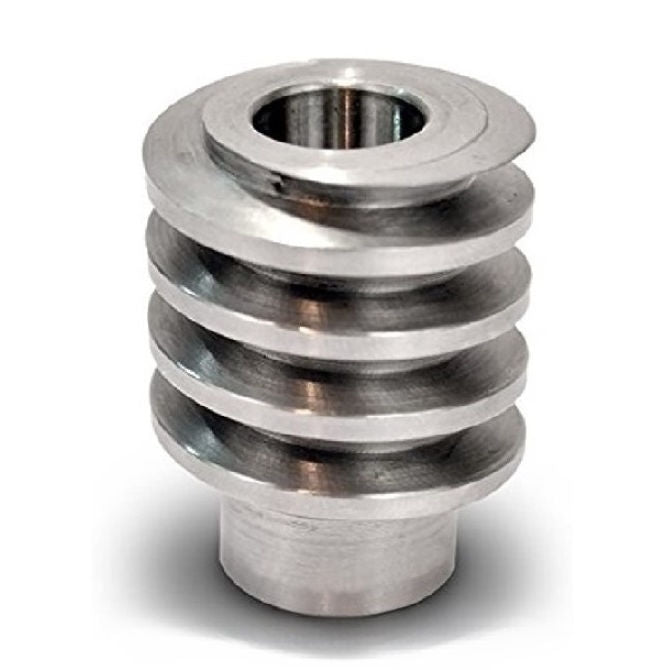

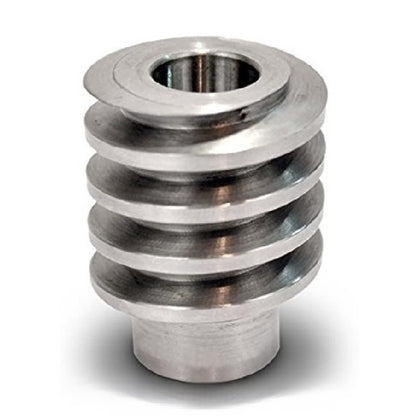

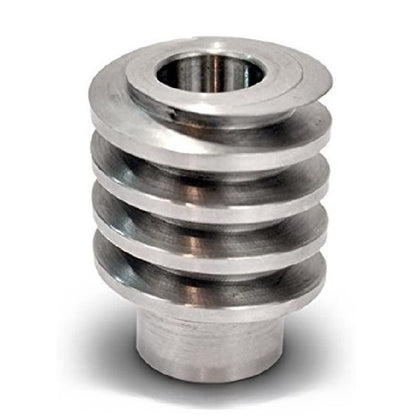

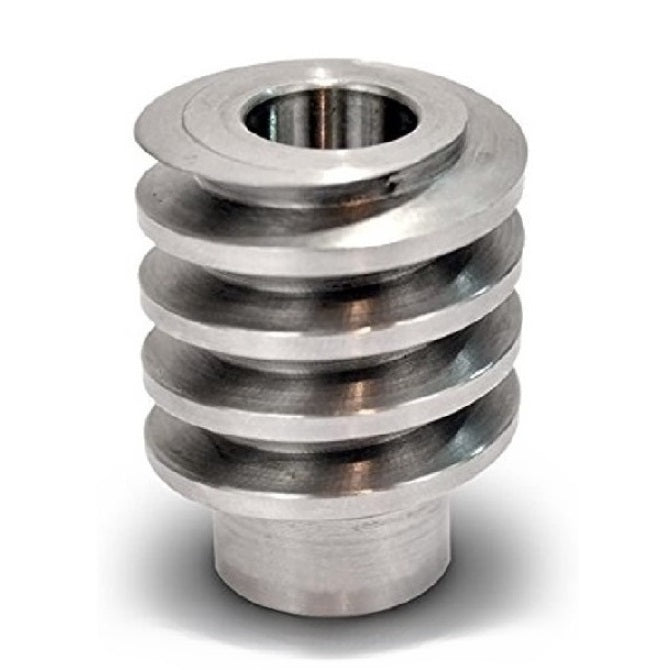

WM1R48-1-019HS048-303 (Each)

Worm Gears - Pitch 48DP - Worm - 1 Start tooth - 3 Deg 45 Min with 14.5 Deg Pressure Angle 48DP - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

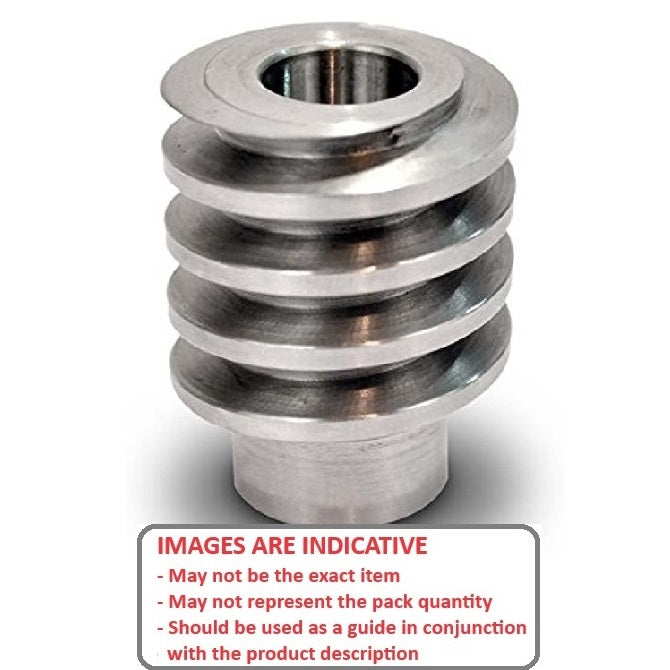

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Worm Gears - Pitch 48DP Worm - 1 Start - 3 Deg 45 Min with 14.5 Deg Pressure Angle - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
1 4

ENQUIRE

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Special Order Only
This item is discontinued. Please contact us for a special quote if you require a large quantity.

Base Category: Gears - Worm

Top Level Category: Gears - Worm - 48DP

Product Details

Pitch: 48DP

Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80
  • Pitch: 48DP
  • Teeth: Worm - 1 Start
  • Lead Angle: 3 Deg 45 Min with 14.5 Deg Pressure Angle
  • Direction: Right Hand

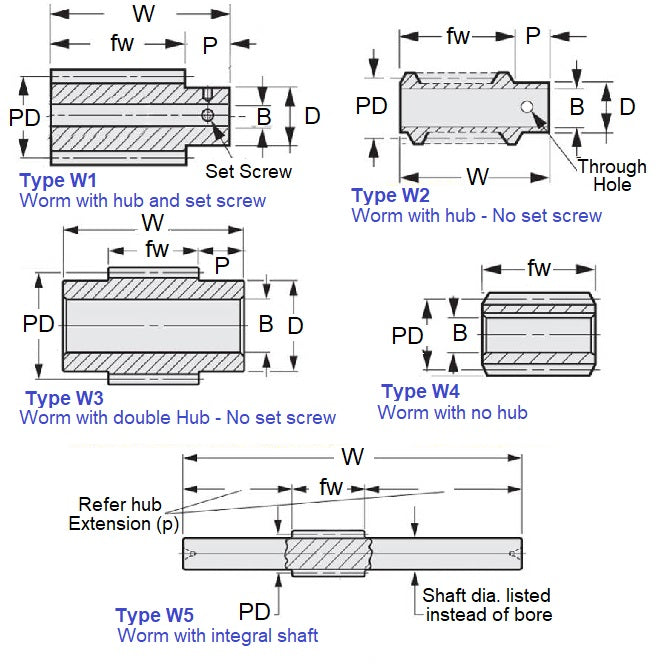

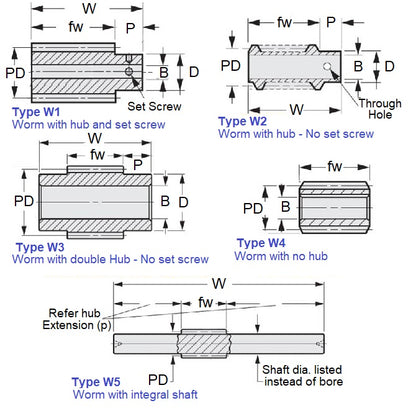

  • Bore (B): 4.757
  • Overall Length (l): 19.050
  • Pitch Diameter (C): 8.382mm
  • Face Width (fw): 14.288mm
  • Bore Type: Finished
  • Hub Diameter (Dh): 7.925mm
  • Locking Type: Set Screw (4-40)

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • S1D94ZP048SS
  • S1D94Z-P048SS

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
