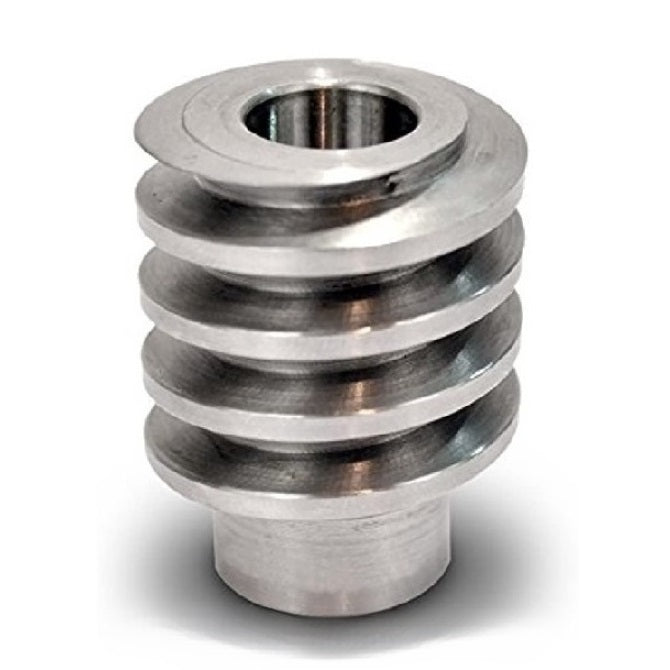

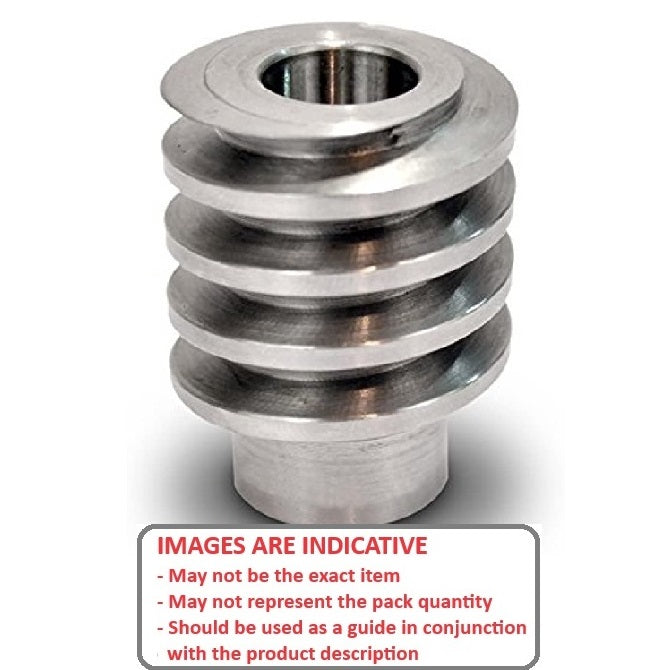

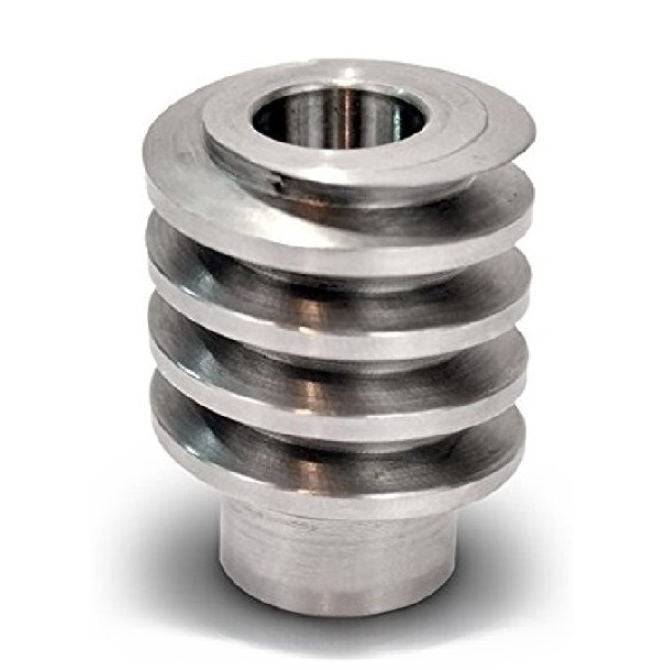

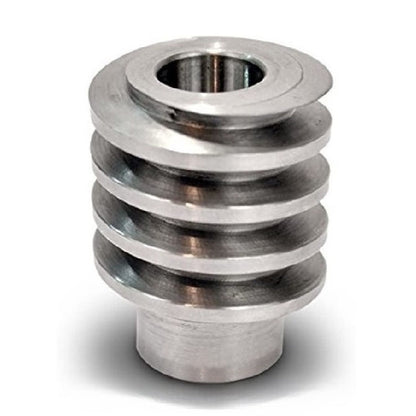

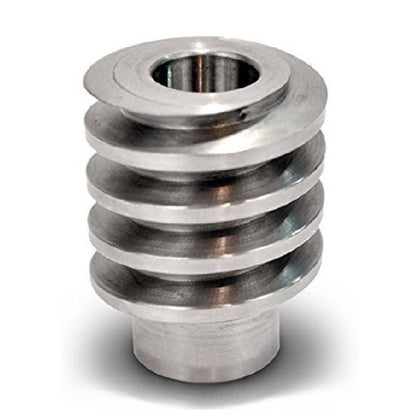

WM1R48-1-019HS032-303 (Each)
Worm Gears - Pitch 48DP - Worm - 1 Start tooth - 3 Deg 45 Min with 14.5 Deg Pressure Angle 48DP - Stainless Steel 303/304 Similar to A2 or 18-8 HRB80
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesalePitch 48DP - Worm - 1 Start tooth - 3 Deg 45 Min with 14.5 Deg Pressure Angle Worm Gears - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 - Sold per Each:
Base Category: Gears - Worm
Top Level Category: Gears - Worm - 48DP
Product Details
Pitch: 48DPStainless Steel 303/304 (Similar to A2, 18-8) HRB80
- Pitch: 48DP
- Teeth: Worm - 1 Start
- Lead Angle: 3 Deg 45 Min with 14.5 Deg Pressure Angle
- Direction: Right Hand

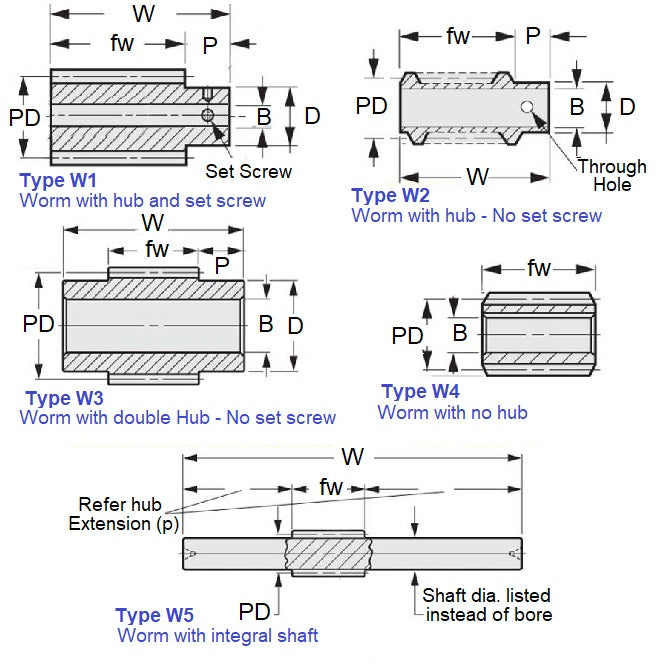

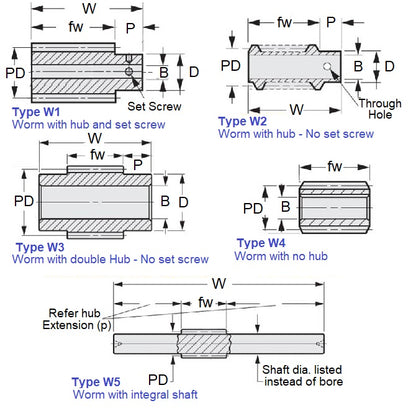

- Bore (B): 3.170
- Overall Length (l): 19.050
- Pitch Diameter (C): 8.382mm
- Face Width (fw): 14.288mm
- Bore Type: Finished
- Hub Diameter (Dh): 7.925mm
- Locking Type: Set Screw (2-56)
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- S1D93Z-P048SS
- S1D93ZP048SS
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
WM1R481019HS032303, WM1R481019HS032
