WM1R32-1-022HD056-CSHDP (Each)

Worm Gears - Pitch 32DP - Worm - 1 Start tooth - 4 Deg 5 Min with 14.5 Deg Pressure Angle 32DP - Carbon Steel Hardened and Polished

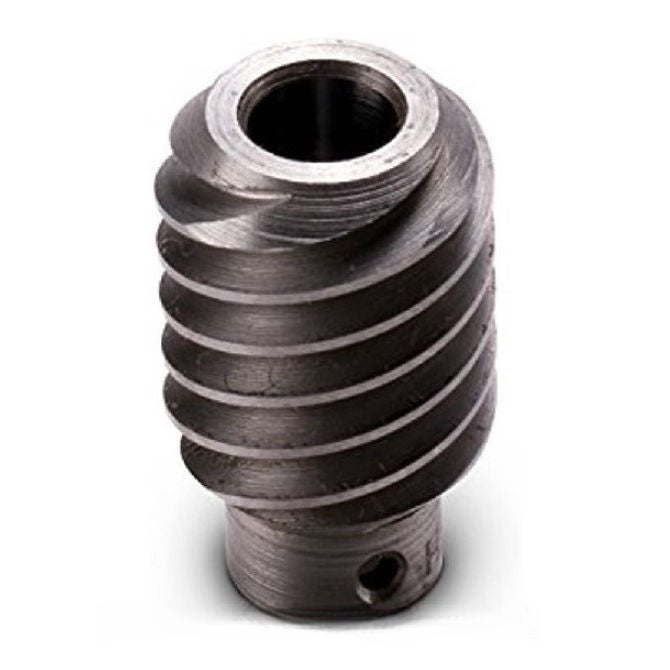

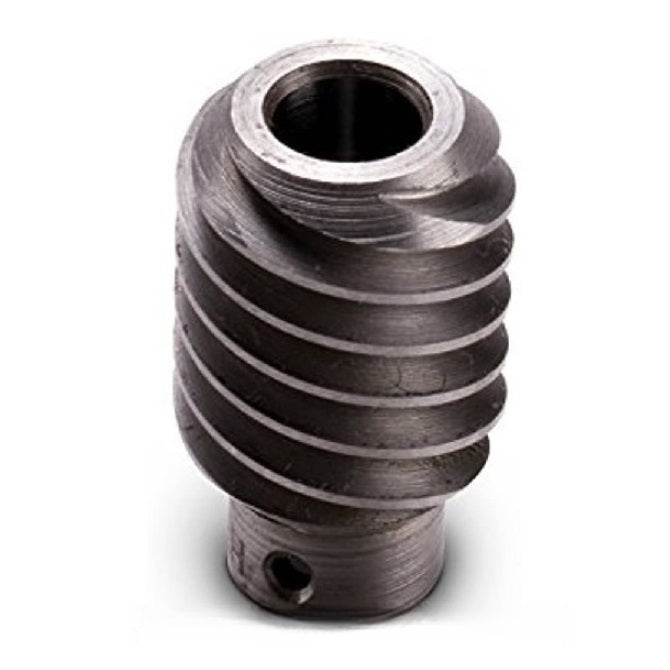

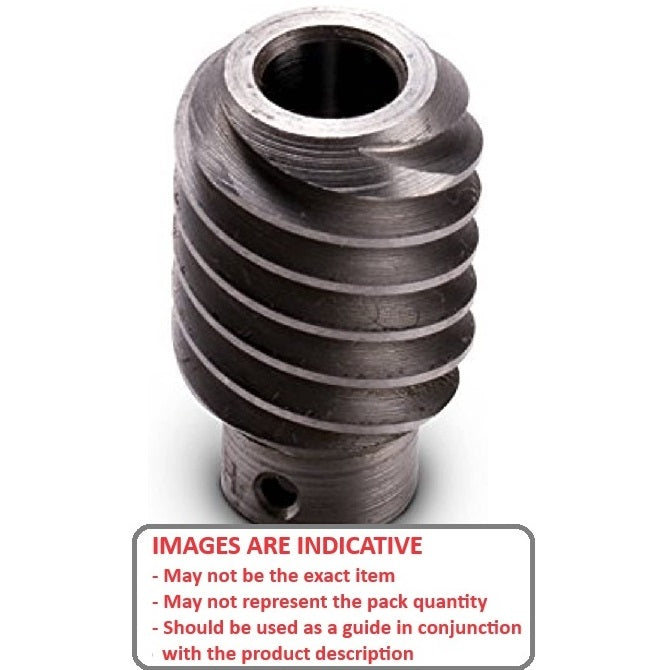

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Worm Gears - Pitch 32DP Worm - 1 Start - 4 Deg 5 Min with 14.5 Deg Pressure Angle - Carbon Steel Hardened and Polished
1 4

ENQUIRE

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Special Order Only
This item is discontinued. Please contact us for a special quote if you require a large quantity.

Pitch 32DP - Worm - 1 Start tooth - 4 Deg 5 Min with 14.5 Deg Pressure Angle Worm Gears - Carbon Steel Hardened and Polished - Sold per Each:

Base Category: Gears - Worm

Top Level Category: Gears - Worm - 32DP

Product Details

Pitch: 32DP

Carbon Steel Hardened and Polished
  • Pitch: 32DP
  • Teeth: Worm - 1 Start
  • Lead Angle: 4 Deg 5 Min with 14.5 Deg Pressure Angle
  • Direction: Right Hand

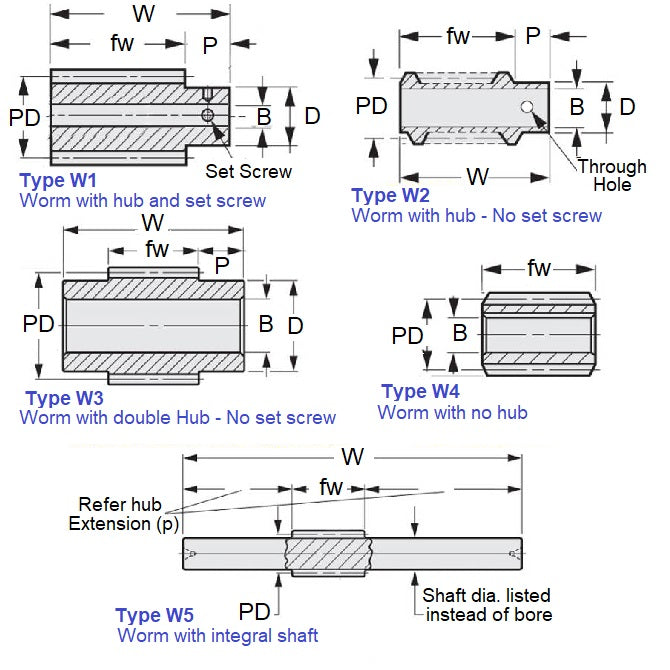

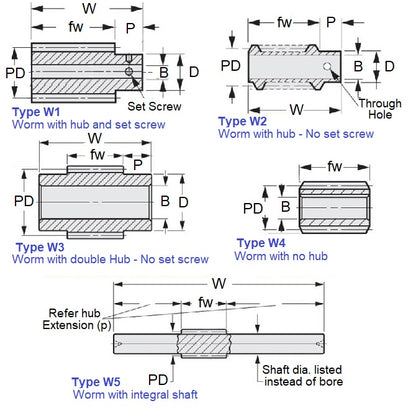

  • Bore (B): 5.556
  • Overall Length (l): 22.225
  • Pitch Diameter (C): 11.125mm
  • Face Width (fw): 17.462mm
  • Bore Type: Finished
  • Hub Diameter (Dh): 8.128mm
  • Locking Type: No. 47 Hole

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • A1Q5N32
  • A1Q5-N32

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
WM1R321022HD056CSHDP, WM1R321022HD056
