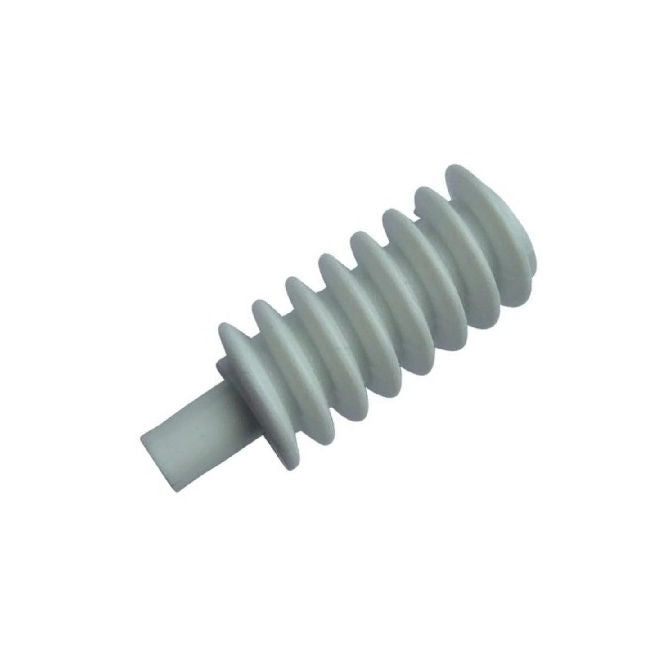

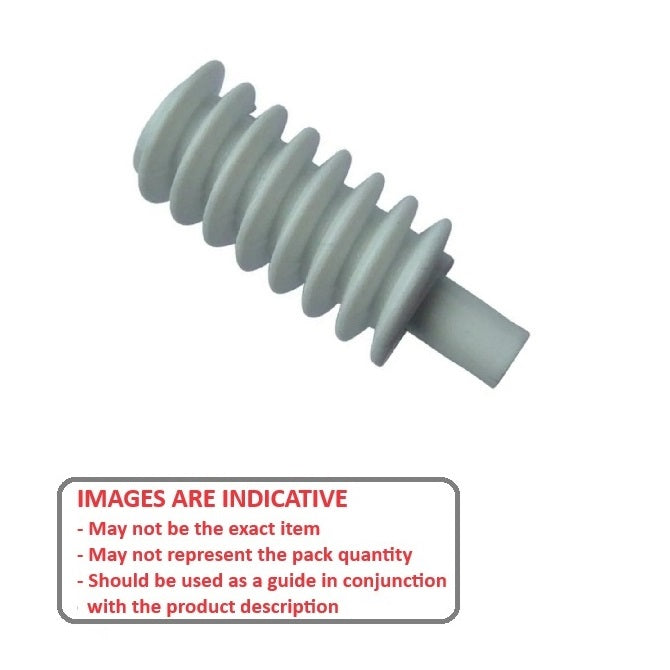

WM1R24-1-023HP048-NY (Each)
Worm Gears - Pitch 24DP - Worm - 1 Start tooth - 4 Deg 46 Min with 14.5 Deg Pressure Angle 24DP - Nylon Polyamide 6/6
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesalePitch 24DP - Worm - 1 Start tooth - 4 Deg 46 Min with 14.5 Deg Pressure Angle Worm Gears - Nylon (Polyamide 6/6) - Sold per Each:
Base Category: Gears - Worm
Top Level Category: Gears - Worm - 24DP
Product Details
Pitch: 24DPNylon (Polyamide 6/6)
- Pitch: 24DP
- Teeth: Worm - 1 Start
- Lead Angle: 4 Deg 46 Min with 14.5 Deg Pressure Angle
- Direction: Right Hand

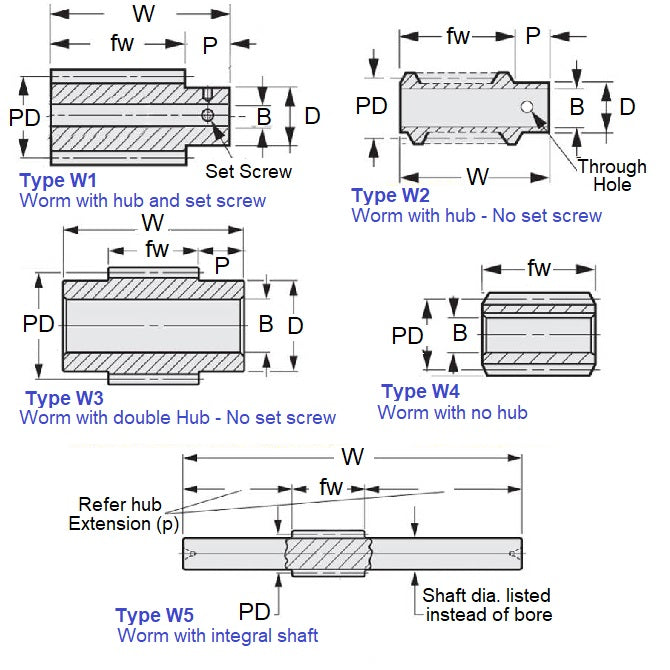

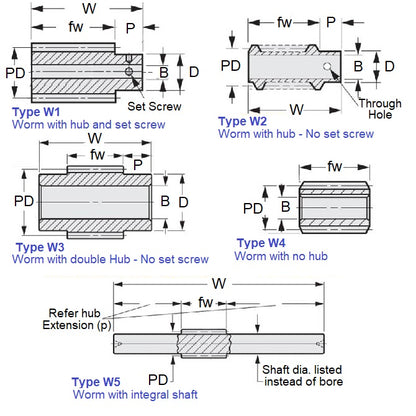

- Bore (B): 4.762
- Overall Length (l): 22.622
- Pitch Diameter (C): 12.700mm
- Face Width (fw): 16.271mm
- Bore Type: Finished
- Hub Diameter (Dh): 9.398mm
- Locking Type: No Locking
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- A1M5-N24
- A1M5N24
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
WM1R241023HP048NY, WM1R241023HP048
