PLBT-080M-160-CZ-020 (PK-10)

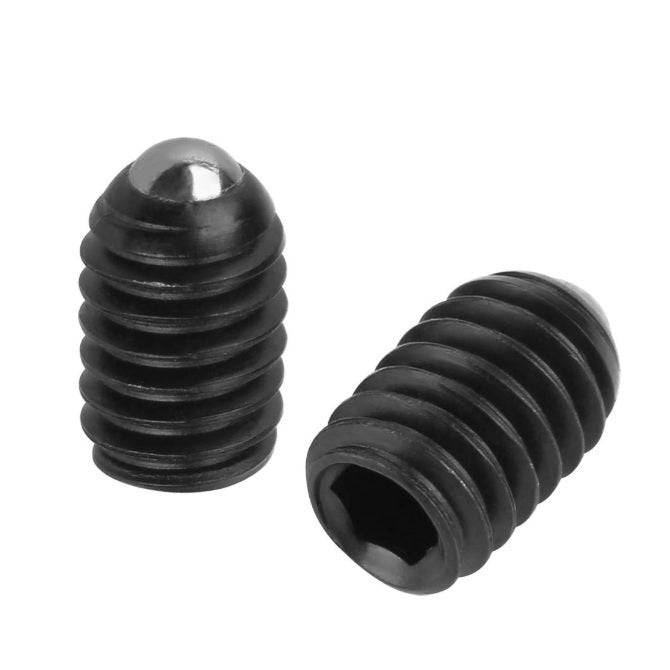

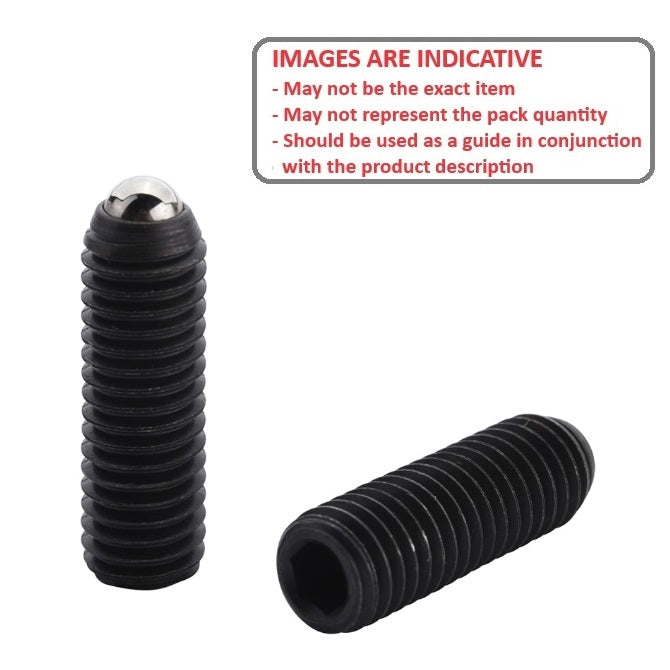

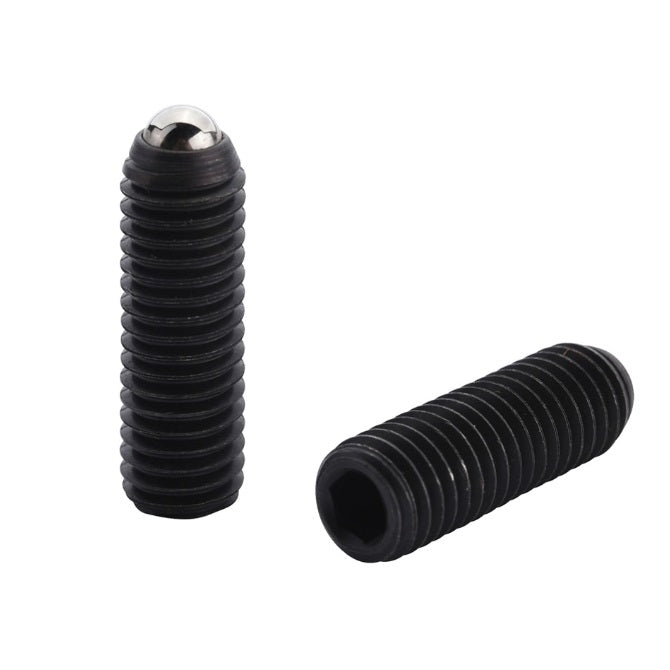

Ball Threaded Plungers - M8 - 8x1.25mm - 16 mm - 7 N Steel Body - Carbon Steel Zinc Plated Plunger
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Spring Plungers
Spring Plunger Wrench
Push Fit Ball Plungers
Order 50 or more packs of 10 (500 pcs)
for $18.13 AUD per 10 pack
M8 (8x1.25mm) 16 mm - 7 N Ball Threaded Plungers - Carbon Steel Zinc Plated - Sold per pack of 10:
Base Category: Plungers - Ball Threaded
Top Level Category: Plungers - Ball Threaded - Steel Body - Stainless Ball
Product Details

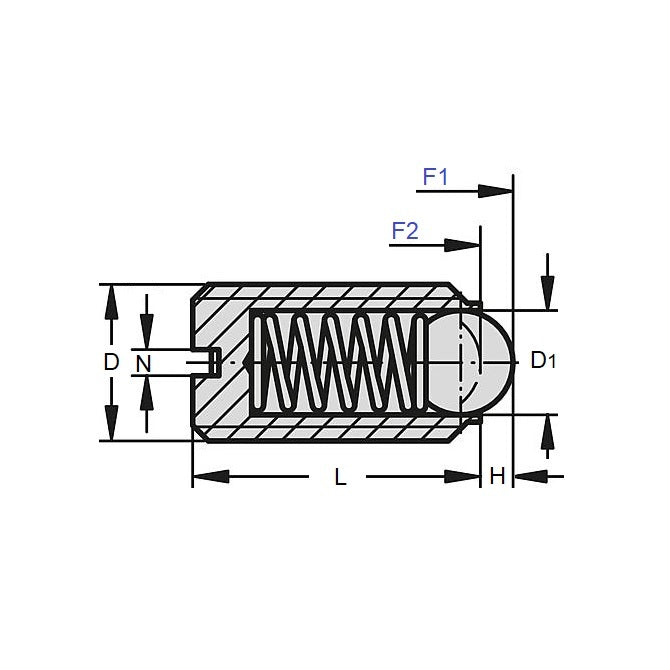

Thread Size (D): M8 (8x1.25mm)Carbon Steel Zinc Plated
- Thread Size (D): M8 (8x1.25mm)
- Body Length (L): 16.0mm
(16.0mm is 0.63 in.)
- Initial Pressure (F1): 7.00N
- Final Pressure (F2): 20.00N
- Ball Diameter (D1): 5.00mm
- Ball Height (H): 1.60mm
- 304 Stainless
- Body Material: Alloy Steel
- Finish: Zinc Plated
- Drive: 1.6mm Hex
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- Misumi® C-BPU8-10P
- CBPU810P
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
PLBT080M160CZ020, PLBT080M160
