Collection: Plungers - Spring

Plungers -> Spring

There are 703 products in the sub-categories of Plungers - Spring. Scroll down or follow the link to Plungers - Spring in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

Spring Plungers - 1/4-20 UNC - 6.35mm - 12.7 mm - 0.5 N Acetal Handle - Steel

Plungers - Spring - Acetal Handle

This category includes various types of spring plungers. A compact mechanical component...

Plungers - Spring - Acetal Handle

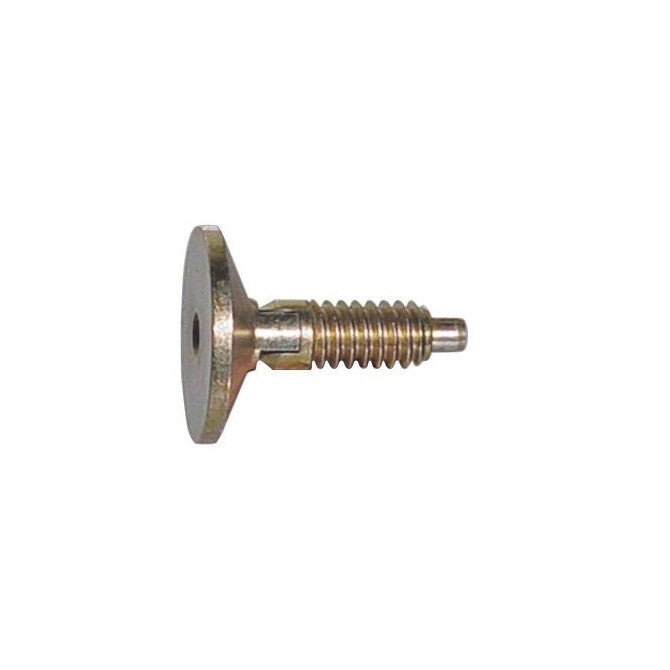

Spring Plungers - 1/4-20 UNC - 6.35mm - 10.2 mm - 4.5 N Hex Drive Handle - Steel

Plungers - Spring - Hex Drive Handle

This category includes various types of spring plungers. A compact mechanical component...

Plungers - Spring - Hex Drive Handle

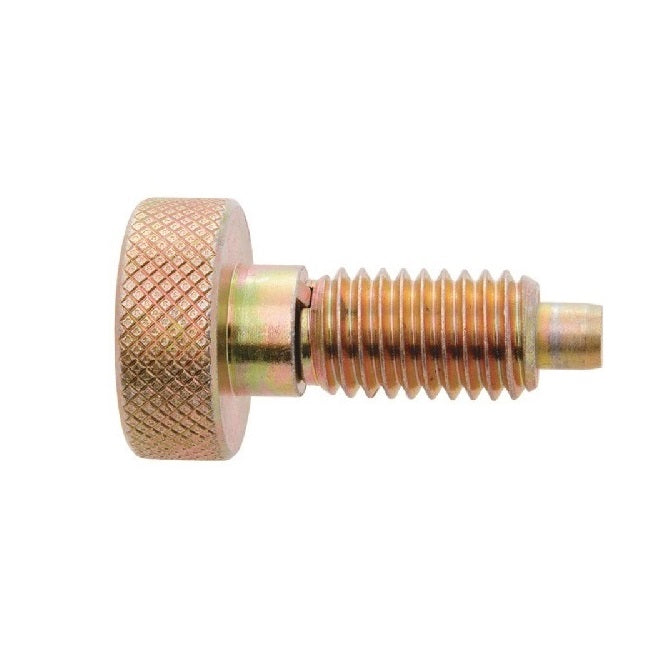

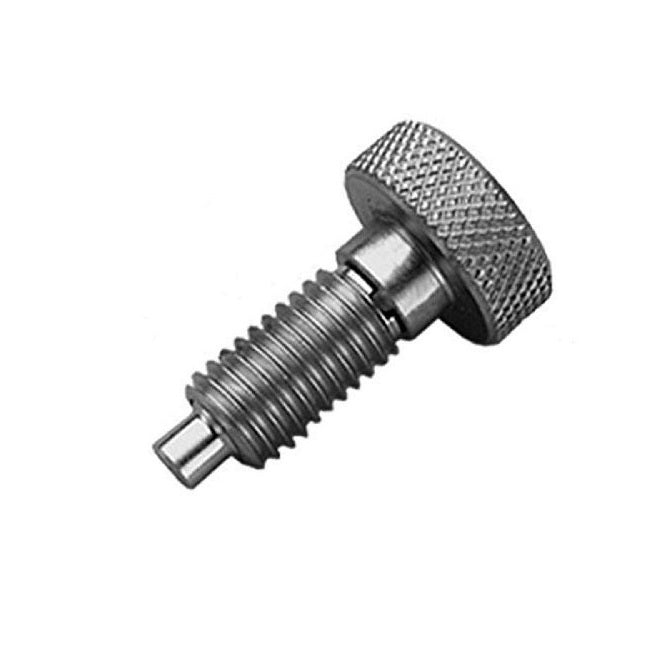

Spring Plungers - 10-32 UNF - 4.76mm - 10.2 mm - 2.2 N Knurled Handle - Stainless Steel

Plungers - Spring - Knurled Handle

This category includes various types of spring plungers. A compact mechanical component...

Plungers - Spring - Knurled Handle

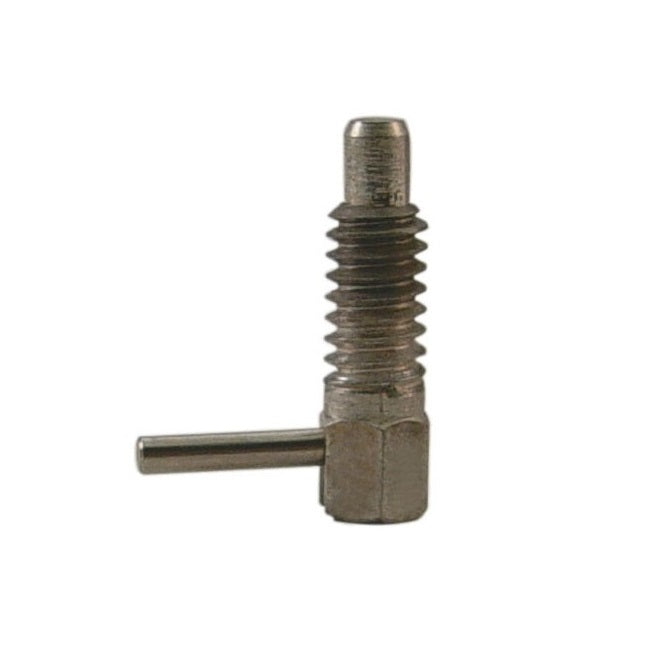

Spring Plungers - M6 - 6x1mm - 20 mm - 2.2 N L Handle - Steel

Plungers - Spring - L Handle

This category includes various types of spring plungers. A compact mechanical component...

Plungers - Spring - L Handle

Spring Plungers - M10 - 10x1.5mm - 16 mm - 4 N No Handle - Stainless Steel

Plungers - Spring - No Handle

This category includes various types of spring plungers. A compact mechanical component...

Plungers - Spring - No Handle

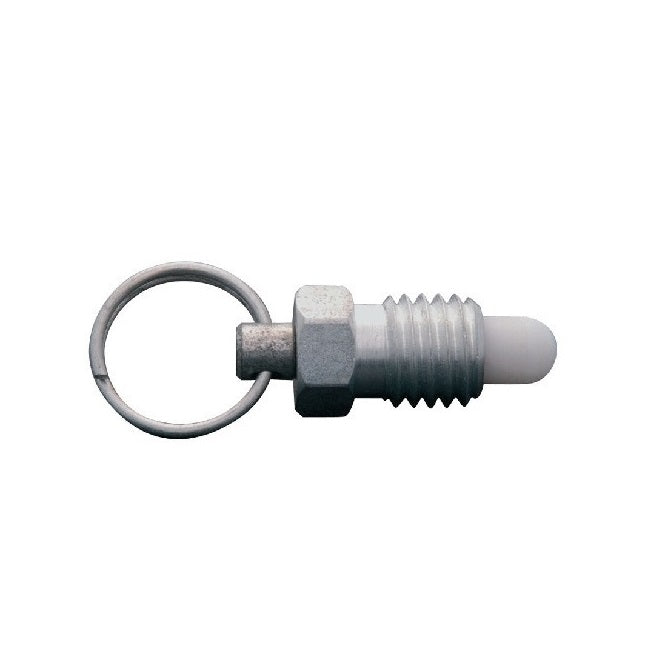

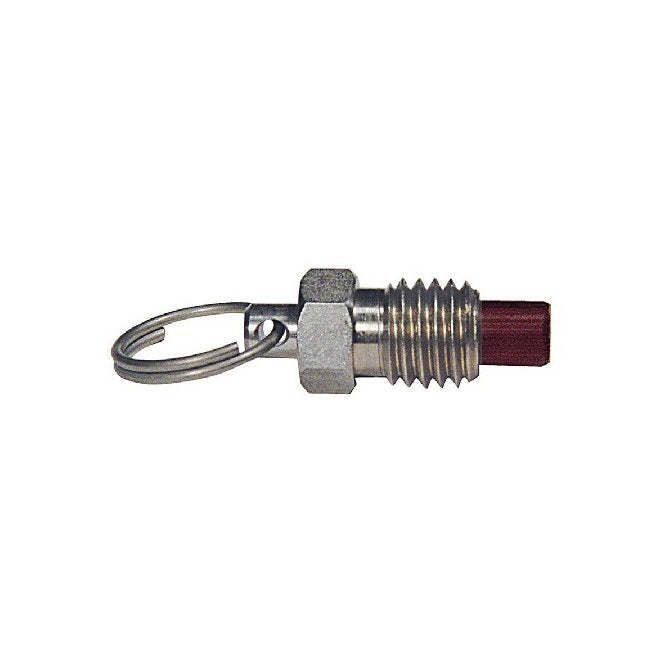

Spring Plungers - 1/4-20 UNC - 6.35mm - 6.4 mm - 2.2 N Pull Ring - Stainless Steel Body with Acetal

Plungers - Spring - Pull Ring

This category includes various types of spring plungers. A compact mechanical component...

Plungers - Spring - Pull Ring

Spring Plungers - 1/4-20 UNC - 6.35mm - 6.4 mm - 2.2 N Ring Handle - Stainless Steel Body with Phenolic

Plungers - Spring - Ring Handle

This category includes various types of spring plungers. A compact mechanical component...

Plungers - Spring - Ring Handle

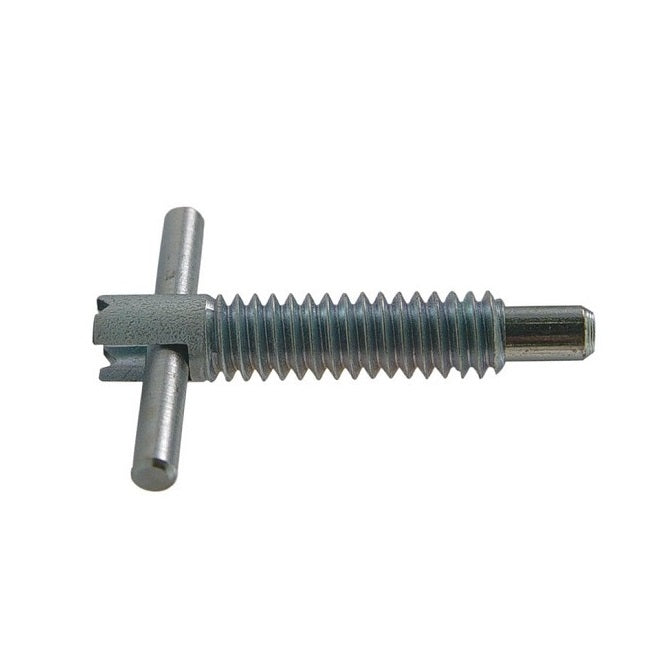

Spring Plungers - 1/4-20 UNC - 6.35mm - 20.3 mm - 4.5 N Tee Handle - Steel

Plungers - Spring - Tee Handle

This category includes various types of spring plungers. A compact mechanical component...

Plungers - Spring - Tee Handle

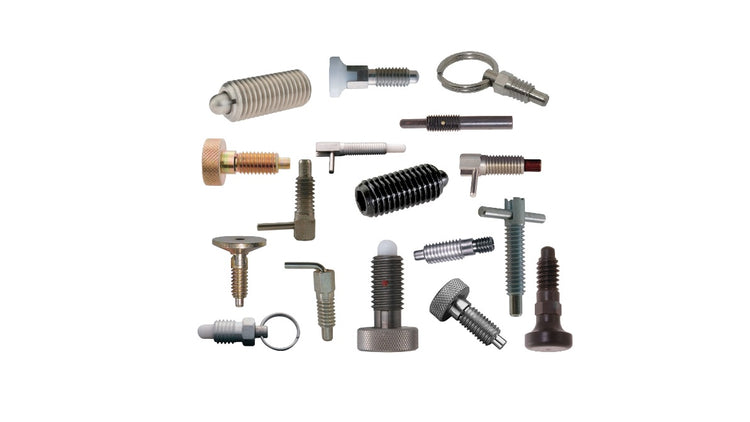

Category Details

This category includes various types of spring plungers.

A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
Also known as ball plungers or spring-loaded pins.

Plungers - Spring

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Plungers - Spring category on the Small Parts & Bearings online store.

Thread Size (A)	Thread Length (B)	Initial Pressure (F1)	Final Pressure (F2)	Tip Diameter (D)	Tip Length (C)	Indicative Image

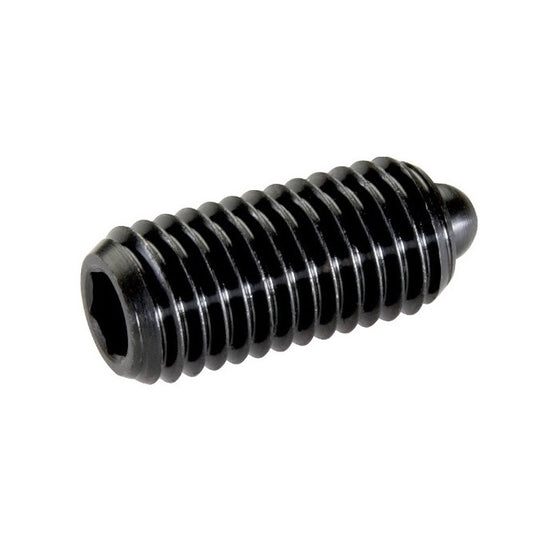

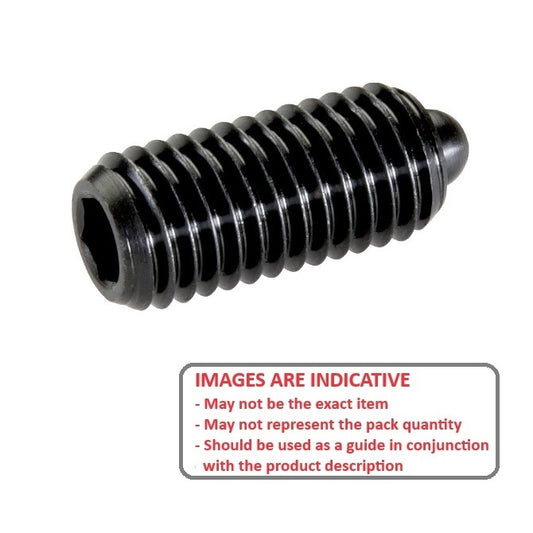

Thread Size (A) 1/4-20 UNC (6.35mm)	Thread Length (B) 12.7 mm (Equiv. 0.5 in.)	Initial Pressure (F1) 0.5 N	Final Pressure (F2) 1.6 N	Tip Diameter (D) 4.0 mm	Tip Length (C) 3.3 mm
Material: Steel Head Diameter (E): 12.7 mm Category: Plungers - Spring - Acetal Handle
Part Number: PLST-064C-127-HC-002 Spring Plungers - 1/4-20 UNC - 6.35mm - 12.7 mm - 0.5 N Acetal Handle - Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $23.32 AUD Regular price ~~$27.98 AUD~~ Sale price $23.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A)	Thread Length (B)	Initial Pressure (F1)	Final Pressure (F2)	Indicative Image
Thread Size (A) 1/4-20 UNC (6.35mm)	Thread Length (B) 12.7 mm (Equiv. 0.5 in.)	Initial Pressure (F1) 0.5 N	Final Pressure (F2) 1.6 N
Material: Steel Tip Diameter (D): 4.0 mm Tip Length (C): 3.3 mm Head Diameter (E): 12.7 mm Category: Plungers - Spring - Acetal Handle
Part Number: PLST-064C-127-HC-002 Spring Plungers - 1/4-20 UNC - 6.35mm - 12.7 mm - 0.5 N Acetal Handle - Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $23.32 AUD Regular price ~~$27.98 AUD~~ Sale price $23.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PLST-064C-127-HC-002 --- Spring Plungers - 1/4-20 UNC - 6.35mm - 12.7 mm - 0.5 N Acetal Handle - Steel Plunger Sale PLST-064C-127-HC-002 --- Spring Plungers - 1/4-20 UNC - 6.35mm - 12.7 mm - 0.5 N Acetal Handle - Steel Plunger Regular price $23.32 AUD Regular price ~~$27.98 AUD~~ Sale price $23.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

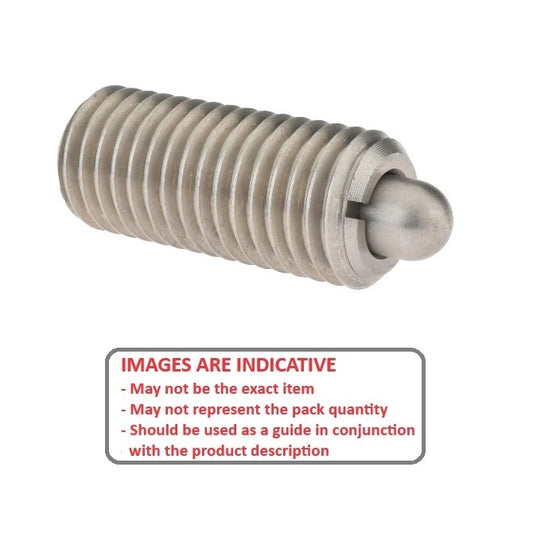

Thread Size (A) M10 (10x1.5mm)	Thread Length (B) 16.0 mm (Equiv. 0.63 in.)	Initial Pressure (F1) 4.000 N	Final Pressure (F2) 15.00 N	Tip Diameter (D) 5.00 mm	Tip Length (C) 2.50 mm
Material: Stainless Steel Head Diameter (E): 16 mm Category: Plungers - Spring - No Handle
Part Number: PLST-100M-016-S3-015 Spring Plungers - M10 - 10x1.5mm - 16 mm - 4 N No Handle - Stainless Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 07, 2025 Regular price $6.32 AUD Regular price ~~$7.58 AUD~~ Sale price $6.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M10 (10x1.5mm)	Thread Length (B) 16.0 mm (Equiv. 0.63 in.)	Initial Pressure (F1) 4.000 N	Final Pressure (F2) 15.00 N
Material: Stainless Steel Tip Diameter (D): 5.00 mm Tip Length (C): 2.50 mm Head Diameter (E): 16 mm Category: Plungers - Spring - No Handle
Part Number: PLST-100M-016-S3-015 Spring Plungers - M10 - 10x1.5mm - 16 mm - 4 N No Handle - Stainless Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 07, 2025 Regular price $6.32 AUD Regular price ~~$7.58 AUD~~ Sale price $6.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PLST-100M-016-S3-015 --- Spring Plungers - M10 - 10x1.5mm - 16 mm - 4 N No Handle - Stainless Steel Plunger Sale PLST-100M-016-S3-015 --- Spring Plungers - M10 - 10x1.5mm - 16 mm - 4 N No Handle - Stainless Steel Plunger Regular price $6.32 AUD Regular price ~~$7.58 AUD~~ Sale price $6.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M3 (3x0.5mm)	Thread Length (B) 10.0 mm (Equiv. 0.394 in.)	Initial Pressure (F1) 1.000 N	Final Pressure (F2) 2.00 N	Tip Diameter (D) 1.20 mm	Tip Length (C) 1.00 mm
Material: Stainless Steel Head Diameter (E): 10 mm Category: Plungers - Spring - No Handle
Part Number: PLST-030M-100-S3-002 Spring Plungers - M3 - 3x0.5mm - 10 mm - 1 N No Handle - Stainless Steel Plunger 10 Available Now \| Further orders can be expected around Fri, Nov 07, 2025 Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 10 Available Now. Backorder if more than 10.
Thread Size (A) M3 (3x0.5mm)	Thread Length (B) 10.0 mm (Equiv. 0.394 in.)	Initial Pressure (F1) 1.000 N	Final Pressure (F2) 2.00 N
Material: Stainless Steel Tip Diameter (D): 1.20 mm Tip Length (C): 1.00 mm Head Diameter (E): 10 mm Category: Plungers - Spring - No Handle
Part Number: PLST-030M-100-S3-002 Spring Plungers - M3 - 3x0.5mm - 10 mm - 1 N No Handle - Stainless Steel Plunger 10 Available Now \| Further orders can be expected around Fri, Nov 07, 2025 Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 10 Available Now. Backorder if more than 10.
PLST-030M-100-S3-002 --- Spring Plungers - M3 - 3x0.5mm - 10 mm - 1 N No Handle - Stainless Steel Plunger PLST-030M-100-S3-002 --- Spring Plungers - M3 - 3x0.5mm - 10 mm - 1 N No Handle - Stainless Steel Plunger Regular price $6.50 AUD Regular price Sale price $6.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 10 Available Now
Thread Size (A) M3 (3x0.5mm)	Thread Length (B) 10.0 mm (Equiv. 0.394 in.)	Initial Pressure (F1) 2.000 N	Final Pressure (F2) 5.00 N	Tip Diameter (D) 1.00 mm	Tip Length (C) 2.00 mm
Material: Stainless Steel Head Diameter (E): 10 mm Category: Plungers - Spring - No Handle
Part Number: PLST-030M-010-S3-005 Spring Plungers - M3 - 3x0.5mm - 10 mm - 2 N No Handle - Stainless Steel Plunger 17 Available Now \| Further orders can be expected around Fri, Nov 07, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 17 Available Now. Backorder if more than 17.
Thread Size (A) M3 (3x0.5mm)	Thread Length (B) 10.0 mm (Equiv. 0.394 in.)	Initial Pressure (F1) 2.000 N	Final Pressure (F2) 5.00 N
Material: Stainless Steel Tip Diameter (D): 1.00 mm Tip Length (C): 2.00 mm Head Diameter (E): 10 mm Category: Plungers - Spring - No Handle
Part Number: PLST-030M-010-S3-005 Spring Plungers - M3 - 3x0.5mm - 10 mm - 2 N No Handle - Stainless Steel Plunger 17 Available Now \| Further orders can be expected around Fri, Nov 07, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 17 Available Now. Backorder if more than 17.
PLST-030M-010-S3-005 --- Spring Plungers - M3 - 3x0.5mm - 10 mm - 2 N No Handle - Stainless Steel Plunger PLST-030M-010-S3-005 --- Spring Plungers - M3 - 3x0.5mm - 10 mm - 2 N No Handle - Stainless Steel Plunger Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 17 Available Now
Thread Size (A) 3/8-16 UNC (9.53mm)	Thread Length (B) 22.1 mm (Equiv. 0.87 in.)	Initial Pressure (F1) 10.0 N	Final Pressure (F2) 47.0 N	Tip Diameter (D) 4.1 mm	Tip Length (C) 3.1 mm
Material: Stainless Steel Head Diameter (E): 22.1 mm Category: Plungers - Spring - No Handle
Part Number: PLST-095C-221-S3-047 (5 Pcs) Spring Plungers - 3/8-16 UNC - 9.53mm - 22.1 mm - 10 N No Handle - Stainless Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $142.14 AUD Regular price Sale price $142.14 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 3/8-16 UNC (9.53mm)	Thread Length (B) 22.1 mm (Equiv. 0.87 in.)	Initial Pressure (F1) 10.0 N	Final Pressure (F2) 47.0 N
Material: Stainless Steel Tip Diameter (D): 4.1 mm Tip Length (C): 3.1 mm Head Diameter (E): 22.1 mm Category: Plungers - Spring - No Handle
Part Number: PLST-095C-221-S3-047 (5 Pcs) Spring Plungers - 3/8-16 UNC - 9.53mm - 22.1 mm - 10 N No Handle - Stainless Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $142.14 AUD Regular price Sale price $142.14 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PLST-095C-221-S3-047 (5 Pcs) --- Spring Plungers - 3/8-16 UNC - 9.53mm - 22.1 mm - 10 N No Handle - Stainless Steel Plunger PLST-095C-221-S3-047 (5 Pcs) --- Spring Plungers - 3/8-16 UNC - 9.53mm - 22.1 mm - 10 N No Handle - Stainless Steel Plunger Regular price $142.14 AUD Regular price Sale price $142.14 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Thread Size (A) 6-32 UNC (3.5mm)	Thread Length (B) 9.5 mm (Equiv. 0.374 in.)	Initial Pressure (F1) 2.2 N	Final Pressure (F2) 15.6 N	Tip Diameter (D) 1.2 mm	Tip Length (C) 1.6 mm
Material: Steel Head Diameter (E): 9.5 mm Category: Plungers - Spring - No Handle
Part Number: PLST-035C-095-C-016 Spring Plungers - 6-32 UNC - 3.5mm - 9.5 mm - 2.2 N No Handle - Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $14.86 AUD Regular price ~~$17.84 AUD~~ Sale price $14.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 6-32 UNC (3.5mm)	Thread Length (B) 9.5 mm (Equiv. 0.374 in.)	Initial Pressure (F1) 2.2 N	Final Pressure (F2) 15.6 N
Material: Steel Tip Diameter (D): 1.2 mm Tip Length (C): 1.6 mm Head Diameter (E): 9.5 mm Category: Plungers - Spring - No Handle
Part Number: PLST-035C-095-C-016 Spring Plungers - 6-32 UNC - 3.5mm - 9.5 mm - 2.2 N No Handle - Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $14.86 AUD Regular price ~~$17.84 AUD~~ Sale price $14.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PLST-035C-095-C-016 --- Spring Plungers - 6-32 UNC - 3.5mm - 9.5 mm - 2.2 N No Handle - Steel Plunger Sale PLST-035C-095-C-016 --- Spring Plungers - 6-32 UNC - 3.5mm - 9.5 mm - 2.2 N No Handle - Steel Plunger Regular price $14.86 AUD Regular price ~~$17.84 AUD~~ Sale price $14.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 6-32 UNC (3.5mm)	Thread Length (B) 9.5 mm (Equiv. 0.374 in.)	Initial Pressure (F1) 2.2 N	Final Pressure (F2) 15.6 N	Tip Diameter (D) 1.2 mm	Tip Length (C) 1.6 mm
Material: Steel Body with Acetal Nose Head Diameter (E): 9.5 mm Category: Plungers - Spring - No Handle
Part Number: PLST-035C-095-C-016-A Spring Plungers - 6-32 UNC - 3.5mm - 9.5 mm - 2.2 N No Handle - Steel Body with Acetal Nose Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $14.86 AUD Regular price ~~$17.84 AUD~~ Sale price $14.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 6-32 UNC (3.5mm)	Thread Length (B) 9.5 mm (Equiv. 0.374 in.)	Initial Pressure (F1) 2.2 N	Final Pressure (F2) 15.6 N
Material: Steel Body with Acetal Nose Tip Diameter (D): 1.2 mm Tip Length (C): 1.6 mm Head Diameter (E): 9.5 mm Category: Plungers - Spring - No Handle
Part Number: PLST-035C-095-C-016-A Spring Plungers - 6-32 UNC - 3.5mm - 9.5 mm - 2.2 N No Handle - Steel Body with Acetal Nose Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $14.86 AUD Regular price ~~$17.84 AUD~~ Sale price $14.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PLST-035C-095-C-016-A --- Spring Plungers - 6-32 UNC - 3.5mm - 9.5 mm - 2.2 N No Handle - Steel Body with Acetal Nose Plunger Sale PLST-035C-095-C-016-A --- Spring Plungers - 6-32 UNC - 3.5mm - 9.5 mm - 2.2 N No Handle - Steel Body with Acetal Nose Plunger Regular price $14.86 AUD Regular price ~~$17.84 AUD~~ Sale price $14.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 6-32 UNC (3.5mm)	Thread Length (B) 9.5 mm (Equiv. 0.374 in.)	Initial Pressure (F1) 2.2 N	Final Pressure (F2) 6.7 N	Tip Diameter (D) 1.2 mm	Tip Length (C) 1.6 mm
Material: Steel Head Diameter (E): 9.5 mm Category: Plungers - Spring - No Handle
Part Number: PLST-035C-095-C-007 Spring Plungers - 6-32 UNC - 3.5mm - 9.5 mm - 2.2 N No Handle - Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $14.86 AUD Regular price ~~$17.84 AUD~~ Sale price $14.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 6-32 UNC (3.5mm)	Thread Length (B) 9.5 mm (Equiv. 0.374 in.)	Initial Pressure (F1) 2.2 N	Final Pressure (F2) 6.7 N
Material: Steel Tip Diameter (D): 1.2 mm Tip Length (C): 1.6 mm Head Diameter (E): 9.5 mm Category: Plungers - Spring - No Handle
Part Number: PLST-035C-095-C-007 Spring Plungers - 6-32 UNC - 3.5mm - 9.5 mm - 2.2 N No Handle - Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $14.86 AUD Regular price ~~$17.84 AUD~~ Sale price $14.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PLST-035C-095-C-007 --- Spring Plungers - 6-32 UNC - 3.5mm - 9.5 mm - 2.2 N No Handle - Steel Plunger Sale PLST-035C-095-C-007 --- Spring Plungers - 6-32 UNC - 3.5mm - 9.5 mm - 2.2 N No Handle - Steel Plunger Regular price $14.86 AUD Regular price ~~$17.84 AUD~~ Sale price $14.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 6-32 UNC (3.5mm)	Thread Length (B) 9.5 mm (Equiv. 0.374 in.)	Initial Pressure (F1) 2.2 N	Final Pressure (F2) 6.7 N	Tip Diameter (D) 1.2 mm	Tip Length (C) 1.6 mm
Material: Steel Body with Acetal Nose Head Diameter (E): 9.5 mm Category: Plungers - Spring - No Handle
Part Number: PLST-035C-095-C-007-A Spring Plungers - 6-32 UNC - 3.5mm - 9.5 mm - 2.2 N No Handle - Steel Body with Acetal Nose Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $19.50 AUD Regular price ~~$23.40 AUD~~ Sale price $19.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 6-32 UNC (3.5mm)	Thread Length (B) 9.5 mm (Equiv. 0.374 in.)	Initial Pressure (F1) 2.2 N	Final Pressure (F2) 6.7 N
Material: Steel Body with Acetal Nose Tip Diameter (D): 1.2 mm Tip Length (C): 1.6 mm Head Diameter (E): 9.5 mm Category: Plungers - Spring - No Handle
Part Number: PLST-035C-095-C-007-A Spring Plungers - 6-32 UNC - 3.5mm - 9.5 mm - 2.2 N No Handle - Steel Body with Acetal Nose Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $19.50 AUD Regular price ~~$23.40 AUD~~ Sale price $19.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PLST-035C-095-C-007-A --- Spring Plungers - 6-32 UNC - 3.5mm - 9.5 mm - 2.2 N No Handle - Steel Body with Acetal Nose Plunger Sale PLST-035C-095-C-007-A --- Spring Plungers - 6-32 UNC - 3.5mm - 9.5 mm - 2.2 N No Handle - Steel Body with Acetal Nose Plunger Regular price $19.50 AUD Regular price ~~$23.40 AUD~~ Sale price $19.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 6-32 UNC (3.5mm)	Thread Length (B) 9.5 mm (Equiv. 0.374 in.)	Initial Pressure (F1) 4.5 N	Final Pressure (F2) 7.1 N	Tip Diameter (D) 1.1 mm	Tip Length (C) 1.6 mm
Material: Steel Head Diameter (E): 9.5 mm Category: Plungers - Spring - No Handle
Part Number: PLST-035C-095-C-007A Spring Plungers - 6-32 UNC - 3.5mm - 9.5 mm - 4.5 N No Handle - Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $13.59 AUD Regular price ~~$16.31 AUD~~ Sale price $13.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 6-32 UNC (3.5mm)	Thread Length (B) 9.5 mm (Equiv. 0.374 in.)	Initial Pressure (F1) 4.5 N	Final Pressure (F2) 7.1 N
Material: Steel Tip Diameter (D): 1.1 mm Tip Length (C): 1.6 mm Head Diameter (E): 9.5 mm Category: Plungers - Spring - No Handle
Part Number: PLST-035C-095-C-007A Spring Plungers - 6-32 UNC - 3.5mm - 9.5 mm - 4.5 N No Handle - Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $13.59 AUD Regular price ~~$16.31 AUD~~ Sale price $13.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PLST-035C-095-C-007A --- Spring Plungers - 6-32 UNC - 3.5mm - 9.5 mm - 4.5 N No Handle - Steel Plunger Sale PLST-035C-095-C-007A --- Spring Plungers - 6-32 UNC - 3.5mm - 9.5 mm - 4.5 N No Handle - Steel Plunger Regular price $13.59 AUD Regular price ~~$16.31 AUD~~ Sale price $13.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 6-32 UNC (3.5mm)	Thread Length (B) 9.5 mm (Equiv. 0.374 in.)	Initial Pressure (F1) 4.5 N	Final Pressure (F2) 7.1 N	Tip Diameter (D) 1.1 mm	Tip Length (C) 1.6 mm
Material: Stainless Steel Head Diameter (E): 9.5 mm Category: Plungers - Spring - No Handle
Part Number: PLST-035C-095-S3-007 Spring Plungers - 6-32 UNC - 3.5mm - 9.5 mm - 4.5 N No Handle - Stainless Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $15.86 AUD Regular price ~~$19.04 AUD~~ Sale price $15.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 6-32 UNC (3.5mm)	Thread Length (B) 9.5 mm (Equiv. 0.374 in.)	Initial Pressure (F1) 4.5 N	Final Pressure (F2) 7.1 N
Material: Stainless Steel Tip Diameter (D): 1.1 mm Tip Length (C): 1.6 mm Head Diameter (E): 9.5 mm Category: Plungers - Spring - No Handle
Part Number: PLST-035C-095-S3-007 Spring Plungers - 6-32 UNC - 3.5mm - 9.5 mm - 4.5 N No Handle - Stainless Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $15.86 AUD Regular price ~~$19.04 AUD~~ Sale price $15.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PLST-035C-095-S3-007 --- Spring Plungers - 6-32 UNC - 3.5mm - 9.5 mm - 4.5 N No Handle - Stainless Steel Plunger Sale PLST-035C-095-S3-007 --- Spring Plungers - 6-32 UNC - 3.5mm - 9.5 mm - 4.5 N No Handle - Stainless Steel Plunger Regular price $15.86 AUD Regular price ~~$19.04 AUD~~ Sale price $15.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 6-32 UNC (3.5mm)	Thread Length (B) 12.7 mm (Equiv. 0.5 in.)	Initial Pressure (F1) 4.5 N	Final Pressure (F2) 7.1 N	Tip Diameter (D) 1.1 mm	Tip Length (C) 1.6 mm
Material: Steel Head Diameter (E): 12.7 mm Category: Plungers - Spring - No Handle
Part Number: PLST-035C-127-C-007 Spring Plungers - 6-32 UNC - 3.5mm - 12.7 mm - 4.5 N No Handle - Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $12.68 AUD Regular price ~~$15.22 AUD~~ Sale price $12.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 6-32 UNC (3.5mm)	Thread Length (B) 12.7 mm (Equiv. 0.5 in.)	Initial Pressure (F1) 4.5 N	Final Pressure (F2) 7.1 N
Material: Steel Tip Diameter (D): 1.1 mm Tip Length (C): 1.6 mm Head Diameter (E): 12.7 mm Category: Plungers - Spring - No Handle
Part Number: PLST-035C-127-C-007 Spring Plungers - 6-32 UNC - 3.5mm - 12.7 mm - 4.5 N No Handle - Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $12.68 AUD Regular price ~~$15.22 AUD~~ Sale price $12.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PLST-035C-127-C-007 --- Spring Plungers - 6-32 UNC - 3.5mm - 12.7 mm - 4.5 N No Handle - Steel Plunger Sale PLST-035C-127-C-007 --- Spring Plungers - 6-32 UNC - 3.5mm - 12.7 mm - 4.5 N No Handle - Steel Plunger Regular price $12.68 AUD Regular price ~~$15.22 AUD~~ Sale price $12.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 6-32 UNC (3.5mm)	Thread Length (B) 12.7 mm (Equiv. 0.5 in.)	Initial Pressure (F1) 4.5 N	Final Pressure (F2) 7.1 N	Tip Diameter (D) 1.1 mm	Tip Length (C) 1.6 mm
Material: Stainless Steel Head Diameter (E): 12.7 mm Category: Plungers - Spring - No Handle
Part Number: PLST-035C-127-S3HX-007 Spring Plungers - 6-32 UNC - 3.5mm - 12.7 mm - 4.5 N No Handle - Stainless Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $16.23 AUD Regular price Sale price $16.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 6-32 UNC (3.5mm)	Thread Length (B) 12.7 mm (Equiv. 0.5 in.)	Initial Pressure (F1) 4.5 N	Final Pressure (F2) 7.1 N
Material: Stainless Steel Tip Diameter (D): 1.1 mm Tip Length (C): 1.6 mm Head Diameter (E): 12.7 mm Category: Plungers - Spring - No Handle
Part Number: PLST-035C-127-S3HX-007 Spring Plungers - 6-32 UNC - 3.5mm - 12.7 mm - 4.5 N No Handle - Stainless Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $16.23 AUD Regular price Sale price $16.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PLST-035C-127-S3HX-007 --- Spring Plungers - 6-32 UNC - 3.5mm - 12.7 mm - 4.5 N No Handle - Stainless Steel Plunger PLST-035C-127-S3HX-007 --- Spring Plungers - 6-32 UNC - 3.5mm - 12.7 mm - 4.5 N No Handle - Stainless Steel Plunger Regular price $16.23 AUD Regular price Sale price $16.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Thread Size (A) 6-32 UNC (3.5mm)	Thread Length (B) 13.5 mm (Equiv. 0.531 in.)	Initial Pressure (F1) 2.2 N	Final Pressure (F2) 6.7 N	Tip Diameter (D) 1.1 mm	Tip Length (C) 1.6 mm
Material: Steel Head Diameter (E): 13.5 mm Category: Plungers - Spring - No Handle
Part Number: PLST-035C-135-C-007 Spring Plungers - 6-32 UNC - 3.5mm - 13.5 mm - 2.2 N No Handle - Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $13.32 AUD Regular price ~~$15.98 AUD~~ Sale price $13.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 6-32 UNC (3.5mm)	Thread Length (B) 13.5 mm (Equiv. 0.531 in.)	Initial Pressure (F1) 2.2 N	Final Pressure (F2) 6.7 N
Material: Steel Tip Diameter (D): 1.1 mm Tip Length (C): 1.6 mm Head Diameter (E): 13.5 mm Category: Plungers - Spring - No Handle
Part Number: PLST-035C-135-C-007 Spring Plungers - 6-32 UNC - 3.5mm - 13.5 mm - 2.2 N No Handle - Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $13.32 AUD Regular price ~~$15.98 AUD~~ Sale price $13.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PLST-035C-135-C-007 --- Spring Plungers - 6-32 UNC - 3.5mm - 13.5 mm - 2.2 N No Handle - Steel Plunger Sale PLST-035C-135-C-007 --- Spring Plungers - 6-32 UNC - 3.5mm - 13.5 mm - 2.2 N No Handle - Steel Plunger Regular price $13.32 AUD Regular price ~~$15.98 AUD~~ Sale price $13.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 6-32 UNC (3.5mm)	Thread Length (B) 13.5 mm (Equiv. 0.531 in.)	Initial Pressure (F1) 2.2 N	Final Pressure (F2) 6.7 N	Tip Diameter (D) 1.1 mm	Tip Length (C) 1.6 mm
Material: Steel Head Diameter (E): 13.5 mm Category: Plungers - Spring - No Handle
Part Number: PLST-035C-135-C-007A Spring Plungers - 6-32 UNC - 3.5mm - 13.5 mm - 2.2 N No Handle - Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $10.41 AUD Regular price ~~$12.49 AUD~~ Sale price $10.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 6-32 UNC (3.5mm)	Thread Length (B) 13.5 mm (Equiv. 0.531 in.)	Initial Pressure (F1) 2.2 N	Final Pressure (F2) 6.7 N
Material: Steel Tip Diameter (D): 1.1 mm Tip Length (C): 1.6 mm Head Diameter (E): 13.5 mm Category: Plungers - Spring - No Handle
Part Number: PLST-035C-135-C-007A Spring Plungers - 6-32 UNC - 3.5mm - 13.5 mm - 2.2 N No Handle - Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $10.41 AUD Regular price ~~$12.49 AUD~~ Sale price $10.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PLST-035C-135-C-007A --- Spring Plungers - 6-32 UNC - 3.5mm - 13.5 mm - 2.2 N No Handle - Steel Plunger Sale PLST-035C-135-C-007A --- Spring Plungers - 6-32 UNC - 3.5mm - 13.5 mm - 2.2 N No Handle - Steel Plunger Regular price $10.41 AUD Regular price ~~$12.49 AUD~~ Sale price $10.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 6-32 UNC (3.5mm)	Thread Length (B) 13.5 mm (Equiv. 0.531 in.)	Initial Pressure (F1) 2.2 N	Final Pressure (F2) 6.7 N	Tip Diameter (D) 1.1 mm	Tip Length (C) 1.6 mm
Material: Stainless Steel Head Diameter (E): 13.5 mm Category: Plungers - Spring - No Handle
Part Number: PLST-035C-135-S3HX-007A Spring Plungers - 6-32 UNC - 3.5mm - 13.5 mm - 2.2 N No Handle - Stainless Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $14.41 AUD Regular price ~~$17.29 AUD~~ Sale price $14.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 6-32 UNC (3.5mm)	Thread Length (B) 13.5 mm (Equiv. 0.531 in.)	Initial Pressure (F1) 2.2 N	Final Pressure (F2) 6.7 N
Material: Stainless Steel Tip Diameter (D): 1.1 mm Tip Length (C): 1.6 mm Head Diameter (E): 13.5 mm Category: Plungers - Spring - No Handle
Part Number: PLST-035C-135-S3HX-007A Spring Plungers - 6-32 UNC - 3.5mm - 13.5 mm - 2.2 N No Handle - Stainless Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $14.41 AUD Regular price ~~$17.29 AUD~~ Sale price $14.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PLST-035C-135-S3HX-007A --- Spring Plungers - 6-32 UNC - 3.5mm - 13.5 mm - 2.2 N No Handle - Stainless Steel Plunger Sale PLST-035C-135-S3HX-007A --- Spring Plungers - 6-32 UNC - 3.5mm - 13.5 mm - 2.2 N No Handle - Stainless Steel Plunger Regular price $14.41 AUD Regular price ~~$17.29 AUD~~ Sale price $14.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 6-32 UNC (3.5mm)	Thread Length (B) 13.5 mm (Equiv. 0.531 in.)	Initial Pressure (F1) 2.2 N	Final Pressure (F2) 6.7 N	Tip Diameter (D) 1.1 mm	Tip Length (C) 1.6 mm
Material: Stainless Steel Head Diameter (E): 13.5 mm Category: Plungers - Spring - No Handle
Part Number: PLST-035C-135-S3-007 Spring Plungers - 6-32 UNC - 3.5mm - 13.5 mm - 2.2 N No Handle - Stainless Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $13.05 AUD Regular price ~~$15.65 AUD~~ Sale price $13.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 6-32 UNC (3.5mm)	Thread Length (B) 13.5 mm (Equiv. 0.531 in.)	Initial Pressure (F1) 2.2 N	Final Pressure (F2) 6.7 N
Material: Stainless Steel Tip Diameter (D): 1.1 mm Tip Length (C): 1.6 mm Head Diameter (E): 13.5 mm Category: Plungers - Spring - No Handle
Part Number: PLST-035C-135-S3-007 Spring Plungers - 6-32 UNC - 3.5mm - 13.5 mm - 2.2 N No Handle - Stainless Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $13.05 AUD Regular price ~~$15.65 AUD~~ Sale price $13.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PLST-035C-135-S3-007 --- Spring Plungers - 6-32 UNC - 3.5mm - 13.5 mm - 2.2 N No Handle - Stainless Steel Plunger Sale PLST-035C-135-S3-007 --- Spring Plungers - 6-32 UNC - 3.5mm - 13.5 mm - 2.2 N No Handle - Stainless Steel Plunger Regular price $13.05 AUD Regular price ~~$15.65 AUD~~ Sale price $13.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 6-32 UNC (3.5mm)	Thread Length (B) 13.5 mm (Equiv. 0.531 in.)	Initial Pressure (F1) 6.7 N	Final Pressure (F2) 20.0 N	Tip Diameter (D) 1.1 mm	Tip Length (C) 1.6 mm
Material: Stainless Steel Head Diameter (E): 13.5 mm Category: Plungers - Spring - No Handle
Part Number: PLST-035C-135-S3-020 Spring Plungers - 6-32 UNC - 3.5mm - 13.5 mm - 6.7 N No Handle - Stainless Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $16.14 AUD Regular price ~~$19.36 AUD~~ Sale price $16.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 6-32 UNC (3.5mm)	Thread Length (B) 13.5 mm (Equiv. 0.531 in.)	Initial Pressure (F1) 6.7 N	Final Pressure (F2) 20.0 N
Material: Stainless Steel Tip Diameter (D): 1.1 mm Tip Length (C): 1.6 mm Head Diameter (E): 13.5 mm Category: Plungers - Spring - No Handle
Part Number: PLST-035C-135-S3-020 Spring Plungers - 6-32 UNC - 3.5mm - 13.5 mm - 6.7 N No Handle - Stainless Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $16.14 AUD Regular price ~~$19.36 AUD~~ Sale price $16.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PLST-035C-135-S3-020 --- Spring Plungers - 6-32 UNC - 3.5mm - 13.5 mm - 6.7 N No Handle - Stainless Steel Plunger Sale PLST-035C-135-S3-020 --- Spring Plungers - 6-32 UNC - 3.5mm - 13.5 mm - 6.7 N No Handle - Stainless Steel Plunger Regular price $16.14 AUD Regular price ~~$19.36 AUD~~ Sale price $16.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) 6-32 UNC (3.5mm)	Thread Length (B) 13.5 mm (Equiv. 0.531 in.)	Initial Pressure (F1) 6.7 N	Final Pressure (F2) 20.0 N	Tip Diameter (D) 1.1 mm	Tip Length (C) 1.6 mm
Material: Steel Head Diameter (E): 13.5 mm Category: Plungers - Spring - No Handle
Part Number: PLST-035C-135-C-020 Spring Plungers - 6-32 UNC - 3.5mm - 13.5 mm - 6.7 N No Handle - Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $14.05 AUD Regular price ~~$16.85 AUD~~ Sale price $14.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) 6-32 UNC (3.5mm)	Thread Length (B) 13.5 mm (Equiv. 0.531 in.)	Initial Pressure (F1) 6.7 N	Final Pressure (F2) 20.0 N
Material: Steel Tip Diameter (D): 1.1 mm Tip Length (C): 1.6 mm Head Diameter (E): 13.5 mm Category: Plungers - Spring - No Handle
Part Number: PLST-035C-135-C-020 Spring Plungers - 6-32 UNC - 3.5mm - 13.5 mm - 6.7 N No Handle - Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $14.05 AUD Regular price ~~$16.85 AUD~~ Sale price $14.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PLST-035C-135-C-020 --- Spring Plungers - 6-32 UNC - 3.5mm - 13.5 mm - 6.7 N No Handle - Steel Plunger Sale PLST-035C-135-C-020 --- Spring Plungers - 6-32 UNC - 3.5mm - 13.5 mm - 6.7 N No Handle - Steel Plunger Regular price $14.05 AUD Regular price ~~$16.85 AUD~~ Sale price $14.05 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M4 (4x0.7mm)	Thread Length (B) 9.0 mm (Equiv. 0.354 in.)	Initial Pressure (F1) 16.00 N	Final Pressure (F2) 15.00 N	Tip Diameter (D) 1.50 mm	Tip Length (C) 1.50 mm
Material: Steel Head Diameter (E): 5.0 mm Category: Plungers - Spring - No Handle
Part Number: PLST-040M-150-C-016 Spring Plungers - M4 - 4x0.7mm - 9 mm - 16 N No Handle - Steel Plunger 5 Available Now \| Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 5 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Thread Size (A) M4 (4x0.7mm)	Thread Length (B) 9.0 mm (Equiv. 0.354 in.)	Initial Pressure (F1) 16.00 N	Final Pressure (F2) 15.00 N
Material: Steel Tip Diameter (D): 1.50 mm Tip Length (C): 1.50 mm Head Diameter (E): 5.0 mm Category: Plungers - Spring - No Handle
Part Number: PLST-040M-150-C-016 Spring Plungers - M4 - 4x0.7mm - 9 mm - 16 N No Handle - Steel Plunger 5 Available Now \| Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 5 Available Now. These are priced to quit. Please contact us for a quote if you require more.
PLST-040M-150-C-016 --- Spring Plungers - M4 - 4x0.7mm - 9 mm - 16 N No Handle - Steel Plunger Sale PLST-040M-150-C-016 --- Spring Plungers - M4 - 4x0.7mm - 9 mm - 16 N No Handle - Steel Plunger Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 5 Available Now Sale
Thread Size (A) M4 (4x0.7mm)	Thread Length (B) 9.0 mm (Equiv. 0.354 in.)	Initial Pressure (F1) 2.0 N	Final Pressure (F2) 7.0 N	Tip Diameter (D) 1.8 mm	Tip Length (C) 1.5 mm
Material: Steel Head Diameter (E): 9.0 mm Category: Plungers - Spring - No Handle
Part Number: PLST-040M-090-C-007 Spring Plungers - M4 - 4x0.7mm - 9 mm - 2 N No Handle - Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $7.86 AUD Regular price ~~$9.44 AUD~~ Sale price $7.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M4 (4x0.7mm)	Thread Length (B) 9.0 mm (Equiv. 0.354 in.)	Initial Pressure (F1) 2.0 N	Final Pressure (F2) 7.0 N
Material: Steel Tip Diameter (D): 1.8 mm Tip Length (C): 1.5 mm Head Diameter (E): 9.0 mm Category: Plungers - Spring - No Handle
Part Number: PLST-040M-090-C-007 Spring Plungers - M4 - 4x0.7mm - 9 mm - 2 N No Handle - Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $7.86 AUD Regular price ~~$9.44 AUD~~ Sale price $7.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PLST-040M-090-C-007 --- Spring Plungers - M4 - 4x0.7mm - 9 mm - 2 N No Handle - Steel Plunger Sale PLST-040M-090-C-007 --- Spring Plungers - M4 - 4x0.7mm - 9 mm - 2 N No Handle - Steel Plunger Regular price $7.86 AUD Regular price ~~$9.44 AUD~~ Sale price $7.86 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M4 (4x0.7mm)	Thread Length (B) 9.0 mm (Equiv. 0.354 in.)	Initial Pressure (F1) 2.0 N	Final Pressure (F2) 7.0 N	Tip Diameter (D) 1.8 mm	Tip Length (C) 1.5 mm
Material: Stainless Steel Head Diameter (E): 9.0 mm Category: Plungers - Spring - No Handle
Part Number: PLST-040M-090-S3-007 Spring Plungers - M4 - 4x0.7mm - 9 mm - 2 N No Handle - Stainless Steel Plunger 1 Available Now \| Further orders can be expected around Fri, Oct 24, 2025 Regular price $10.41 AUD Regular price ~~$21.23 AUD~~ Sale price $10.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 1 Available Now. Backorder if more than 1.
Thread Size (A) M4 (4x0.7mm)	Thread Length (B) 9.0 mm (Equiv. 0.354 in.)	Initial Pressure (F1) 2.0 N	Final Pressure (F2) 7.0 N
Material: Stainless Steel Tip Diameter (D): 1.8 mm Tip Length (C): 1.5 mm Head Diameter (E): 9.0 mm Category: Plungers - Spring - No Handle
Part Number: PLST-040M-090-S3-007 Spring Plungers - M4 - 4x0.7mm - 9 mm - 2 N No Handle - Stainless Steel Plunger 1 Available Now \| Further orders can be expected around Fri, Oct 24, 2025 Regular price $10.41 AUD Regular price ~~$21.23 AUD~~ Sale price $10.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 1 Available Now. Backorder if more than 1.
PLST-040M-090-S3-007 --- Spring Plungers - M4 - 4x0.7mm - 9 mm - 2 N No Handle - Stainless Steel Plunger Sale PLST-040M-090-S3-007 --- Spring Plungers - M4 - 4x0.7mm - 9 mm - 2 N No Handle - Stainless Steel Plunger Regular price $10.41 AUD Regular price ~~$21.23 AUD~~ Sale price $10.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 1 Available Now Sale
Thread Size (A) M4 (4x0.7mm)	Thread Length (B) 9.0 mm (Equiv. 0.354 in.)	Initial Pressure (F1) 6.0 N	Final Pressure (F2) 20.0 N	Tip Diameter (D) 1.8 mm	Tip Length (C) 1.5 mm
Material: Steel Head Diameter (E): 9.0 mm Category: Plungers - Spring - No Handle
Part Number: PLST-040M-090-C-020 Spring Plungers - M4 - 4x0.7mm - 9 mm - 6 N No Handle - Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $7.41 AUD Regular price ~~$8.89 AUD~~ Sale price $7.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M4 (4x0.7mm)	Thread Length (B) 9.0 mm (Equiv. 0.354 in.)	Initial Pressure (F1) 6.0 N	Final Pressure (F2) 20.0 N
Material: Steel Tip Diameter (D): 1.8 mm Tip Length (C): 1.5 mm Head Diameter (E): 9.0 mm Category: Plungers - Spring - No Handle
Part Number: PLST-040M-090-C-020 Spring Plungers - M4 - 4x0.7mm - 9 mm - 6 N No Handle - Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $7.41 AUD Regular price ~~$8.89 AUD~~ Sale price $7.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PLST-040M-090-C-020 --- Spring Plungers - M4 - 4x0.7mm - 9 mm - 6 N No Handle - Steel Plunger Sale PLST-040M-090-C-020 --- Spring Plungers - M4 - 4x0.7mm - 9 mm - 6 N No Handle - Steel Plunger Regular price $7.41 AUD Regular price ~~$8.89 AUD~~ Sale price $7.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size (A) M4 (4x0.7mm)	Thread Length (B) 9.0 mm (Equiv. 0.354 in.)	Initial Pressure (F1) 6.0 N	Final Pressure (F2) 20.0 N	Tip Diameter (D) 1.8 mm	Tip Length (C) 1.5 mm
Material: Stainless Steel Head Diameter (E): 9.0 mm Category: Plungers - Spring - No Handle
Part Number: PLST-040M-090-S3-020 (10 Pcs) Spring Plungers - M4 - 4x0.7mm - 9 mm - 6 N No Handle - Stainless Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $129.95 AUD Regular price Sale price $129.95 AUD Unit price per 10 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size (A) M4 (4x0.7mm)	Thread Length (B) 9.0 mm (Equiv. 0.354 in.)	Initial Pressure (F1) 6.0 N	Final Pressure (F2) 20.0 N
Material: Stainless Steel Tip Diameter (D): 1.8 mm Tip Length (C): 1.5 mm Head Diameter (E): 9.0 mm Category: Plungers - Spring - No Handle
Part Number: PLST-040M-090-S3-020 (10 Pcs) Spring Plungers - M4 - 4x0.7mm - 9 mm - 6 N No Handle - Stainless Steel Plunger Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 24, 2025 Regular price $129.95 AUD Regular price Sale price $129.95 AUD Unit price per 10 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
PLST-040M-090-S3-020 (10 Pcs) --- Spring Plungers - M4 - 4x0.7mm - 9 mm - 6 N No Handle - Stainless Steel Plunger PLST-040M-090-S3-020 (10 Pcs) --- Spring Plungers - M4 - 4x0.7mm - 9 mm - 6 N No Handle - Stainless Steel Plunger Regular price $129.95 AUD Regular price Sale price $129.95 AUD Unit price per 10 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now

Miniature Bearings Australia Pty Ltd
3/8 Boyland Avenue
Coopers Plains, Queensland, Australia.
(ABN: 94 069 113 800)
