WG1R-050-050-050-BR (Each)

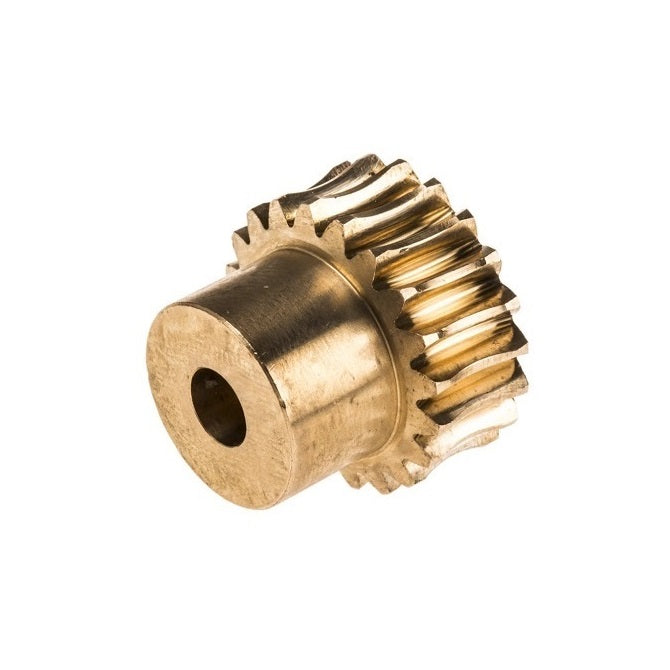

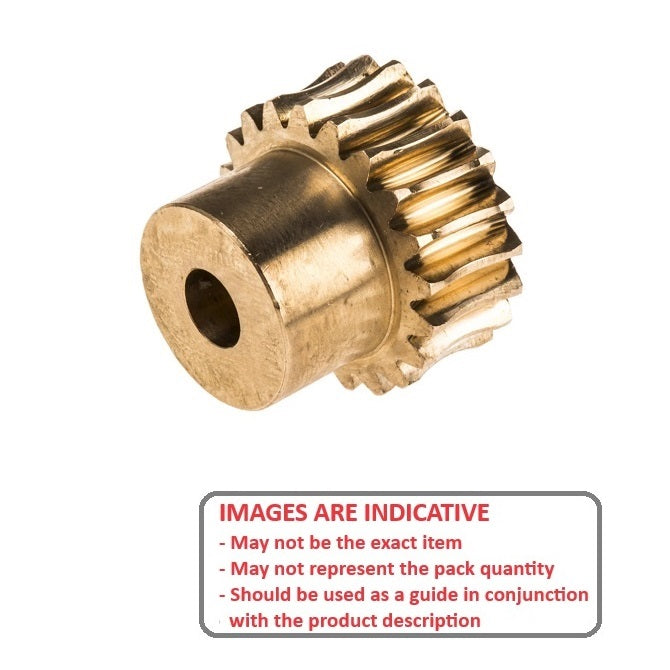

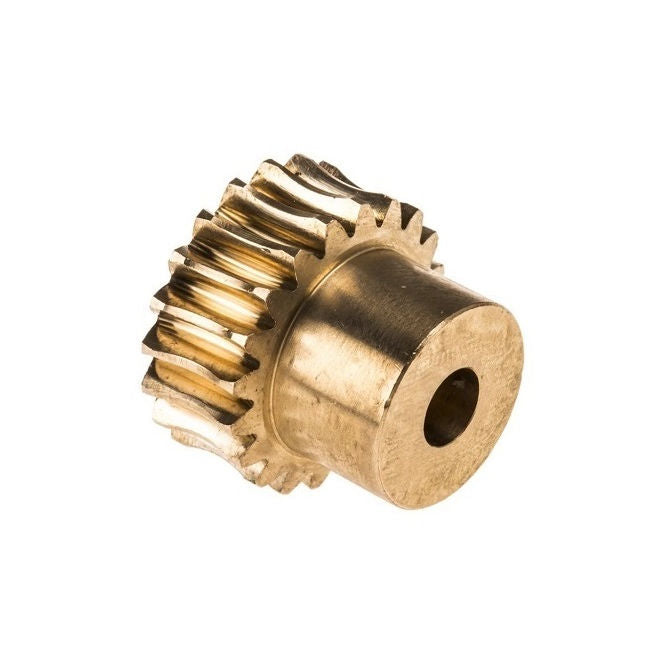

Worm Gears - Pitch Module 0.5 - 50 tooth - 3 Deg 11 Min Module 0.5 - Brass - C3604B Gear
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesalePitch Module 0.5 - 50 tooth - 3 Deg 11 Min Worm Gears - Brass - C3604B - Sold per Each:
Base Category: Gears - Worm
Top Level Category: Gears - Worm - Module 0.5
Product Details
Pitch: Module 0.5Brass - C3604B
- Pitch: Module 0.5
- Teeth: 50
- Lead Angle: 3 Deg 11 Min
- Direction: Right

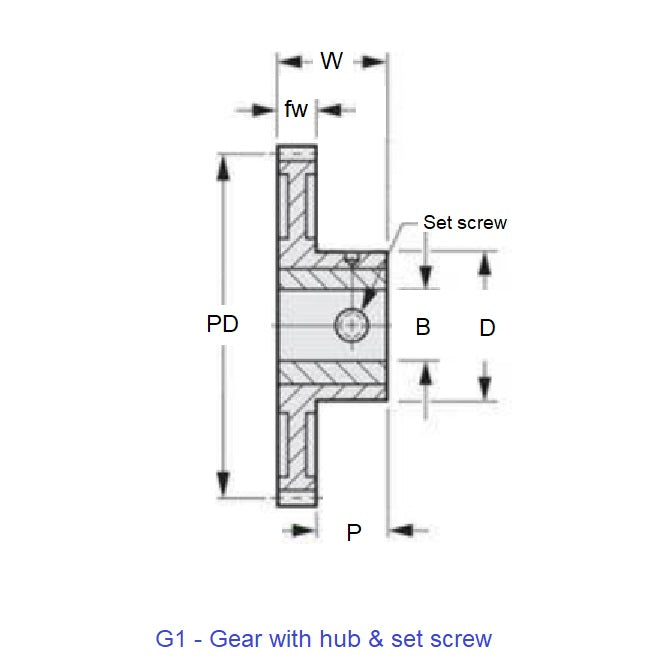

- Bore (B): 5.000
- Overall Length (l): 13
- Pitch Diameter (C): 25mm
- Face Width (fw): 5.00mm
- Bore Type: Finished (H8)
- Hub Diameter (Dh): 16mm
- Locking Type: Set Screw
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- WG1R050050050RBR
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
WG1R050050050BR, WG1R050050
