6202-Z-NR-C3-ECO (Each)
Single Row Ball Bearings - 15x35x11 mm with Snap Ring - Chrome Steel SAE 52100 Bearing
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Tolerances
Standard Bearings PDF Catalogue
Shafting
Order 50 or more
for $2.83 AUD Each
Couldn't load pickup availability
15x35x11 mm Single Row Ball Bearings - Chrome Steel SAE 52100 - Sold per Each:
Base Category: Bearings - Single Row Ball
Top Level Category: Bearings - Single Row Ball - with Snap Ring - Standard - Chrome Steel
Product Details

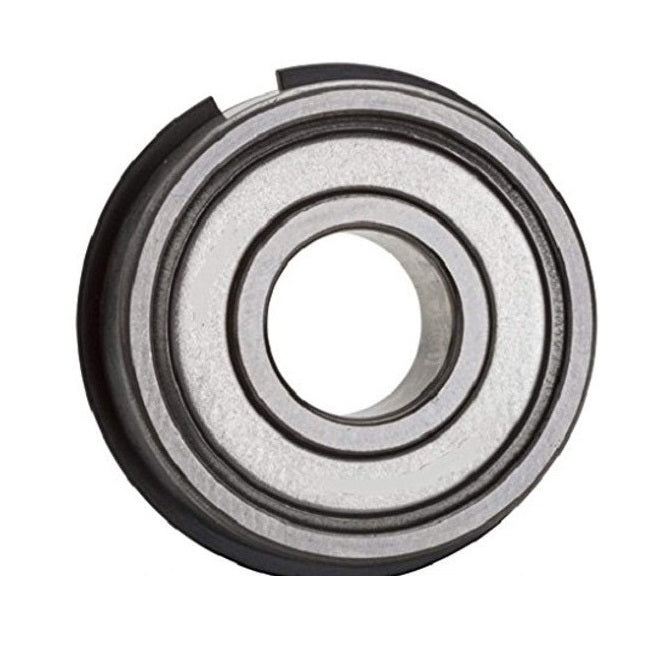

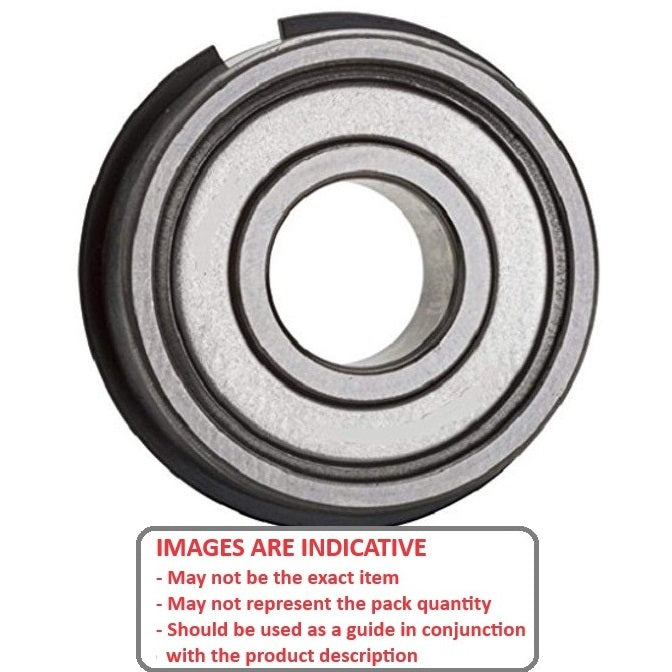

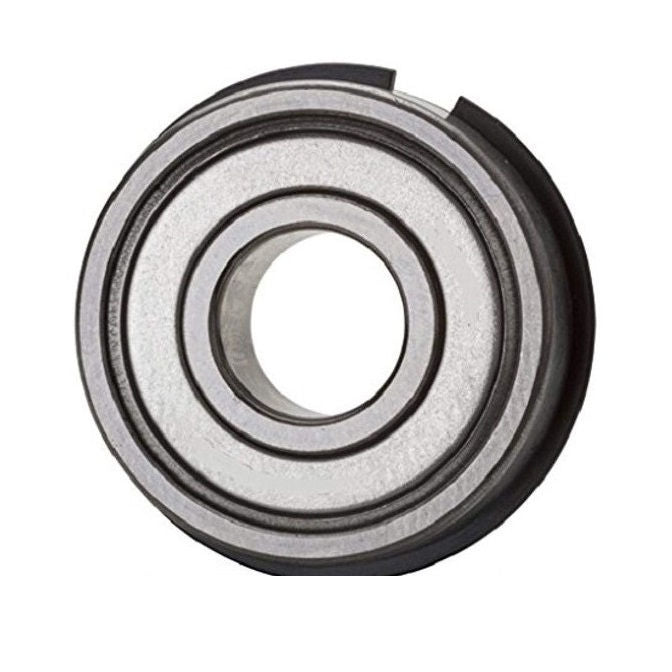

This bearing has a snap ring on the OD
ID (d): 15.000mm
+ 0.000 / - 0.0075
(15.000mm is 0.591 in.)
Chrome Steel SAE 52100

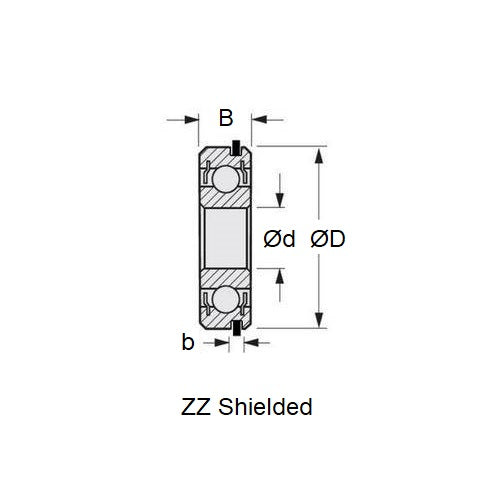

- ID (d): 15.000mm
+ 0.000 / - 0.0075
(15.000mm is 0.591 in.)
- O.D. (D): 35.000mm
+ 0.000 / - 0.011
(35.000mm is 1.378 in.)
- Width (B): 11.000mm
+ 0.000 / - 0.125
(11.000mm is 0.433 in.)
- Groove Width (b): 1.350mm
- Closure Type: Z
- Bearing Type: Radial with Snp Ring
- Snap Ring Thickness: 1.120mm
- Max. Dist. To Groove Edge: 2.060mm
Brand: MBA
Country of Origin: TW
Product Compliance and Data
Similar to
- 6202
- 6202ZENRC3
- 6202BASIC
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
6202ZNRC3ECO, 6202
