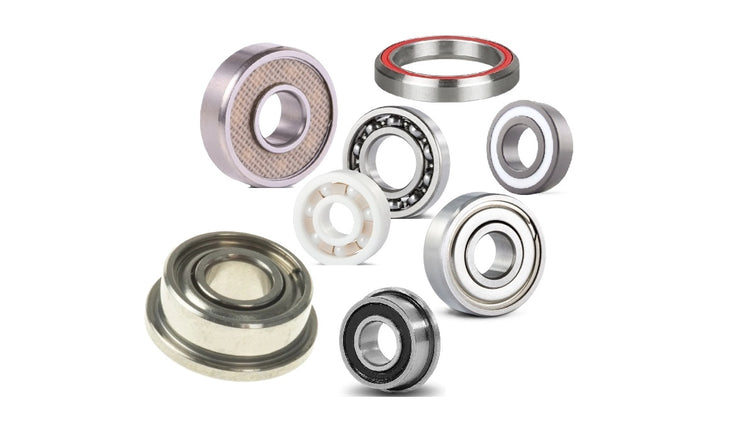

Collection: Bearings - Single Row Ball
Bearings -> Single Row BallThere are 4120 products in the sub-categories of Bearings - Single Row Ball. Scroll down or follow the link to Bearings - Single Row Ball in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.
Bearings - Single Row Ball - Chamfered Edges
A selection of Chamfered Edges Single Row Ball Bearings. Chamfered edge bearings...
Bearings - Single Row Ball - Flanged
This category includes various types of single row ball bearings. Single row...

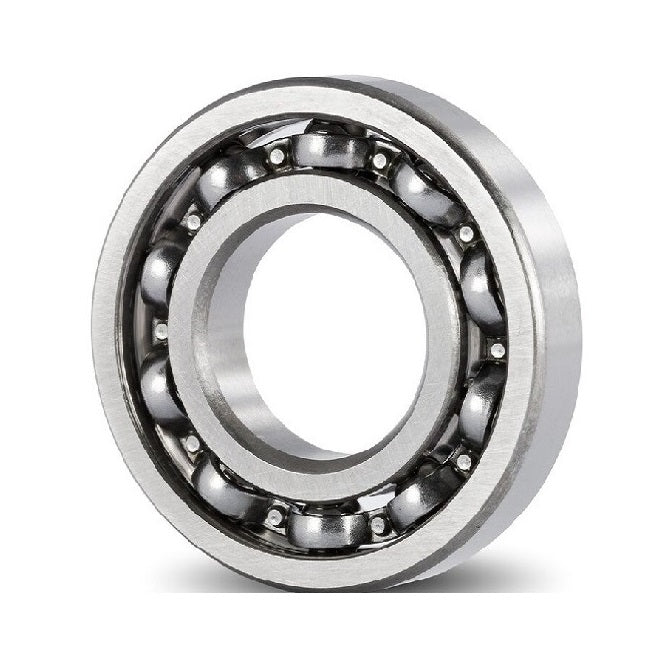

Bearings - Single Row Ball - Unflanged
This category includes various types of single row ball bearings. Single row...
Bearings - Single Row Ball - with Snap Ring
This category includes various types of single row ball bearings. Single row...
Bearings - Single Row Ball - with Snap Ring Groove
A selection of with Snap Ring Groove Single Row Ball Bearings. Chrome...
Category Details
This category includes various types of single row ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Bearings - Single Row Ball category on the Small Parts & Bearings online store.
| ID (d) | O.D. (D) | Width (B) | Inner Ring Width (Bn) | Flange Diameter (DF) | Flange Width (BF) |
Indicative Image |
|---|---|---|---|---|---|---|
| Single Row Ball Bearings - 0.6x2.5x1 mm Unflanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
0.600
mm + 0.000 / - 0.007
(Equiv. 0.024 in.) |
O.D. (D)
2.500
mm + 0.000 / - 0.007 (Equiv. 0.098 in.) |
Width (B)
1.000
mm + 0.000 / - 0.040 (Equiv. 0.039 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Precision Grade: P6
Category: Bearings - Single Row Ball - Unflanged |
||||||
|
Part Number: SMR25-0060-MC3-JP6 (Each)
58 Available Now | Further orders can be expected around Sun, Aug 30, 2026 Regular price
$30.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| ID (d) | O.D. (D) | Width (B) | Inner Ring Width (Bn) |
Indicative Image |
||
| Single Row Ball Bearings - 0.6x2.5x1 mm Unflanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
0.600
mm + 0.000 / - 0.007 (Equiv. 0.024 in.) |
O.D. (D)
2.500
mm + 0.000 / - 0.007 (Equiv. 0.098 in.) |
Width (B)
1.000
mm + 0.000 / - 0.040 (Equiv. 0.039 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Precision Grade: P6
Category: Bearings - Single Row Ball - Unflanged |
||||||
|
Part Number: SMR25-0060-MC3-JP6 (Each)
58 Available Now | Further orders can be expected around Sun, Aug 30, 2026 Regular price
$30.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 0.6x2x0.8 mm Unflanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
0.600
mm + 0.000 / - 0.005
(Equiv. 0.024 in.) |
O.D. (D)
2.000
mm + 0.000 / - 0.005 (Equiv. 0.079 in.) |
Width (B)
0.800
mm + 0.000 / - 0.040 (Equiv. 0.031 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 5
Category: Bearings - Single Row Ball - Unflanged |
||||||
|
Part Number: SMR2-0060-J5-MC3 (PK-10)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Single Row Ball Bearings - 0.6x2x0.8 mm Unflanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
0.600
mm + 0.000 / - 0.005 (Equiv. 0.024 in.) |
O.D. (D)
2.000
mm + 0.000 / - 0.005 (Equiv. 0.079 in.) |
Width (B)
0.800
mm + 0.000 / - 0.040 (Equiv. 0.031 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 5
Category: Bearings - Single Row Ball - Unflanged |
||||||
|
Part Number: SMR2-0060-J5-MC3 (PK-10)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Fri, Apr 23, 2027 |
||||||
| Single Row Ball Bearings - 1x3x1 mm Unflanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
1.000
mm + 0.000 / - 0.007
(Equiv. 0.039 in.) |
O.D. (D)
3.000
mm + 0.000 / - 0.007 (Equiv. 0.118 in.) |
Width (B)
1.000
mm + 0.000 / - 0.040 (Equiv. 0.039 in.) |
|
|||
|
Material: Chrome Steel SAE 52100
Precision Grade: P6
Category: Bearings - Single Row Ball - Unflanged |
||||||
|
Part Number: 681-MC3-JP6-AF12 (PK-50)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Single Row Ball Bearings - 1x3x1 mm Unflanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
1.000
mm + 0.000 / - 0.007 (Equiv. 0.039 in.) |
O.D. (D)
3.000
mm + 0.000 / - 0.007 (Equiv. 0.118 in.) |
Width (B)
1.000
mm + 0.000 / - 0.040 (Equiv. 0.039 in.) |
|
|||
|
Material: Chrome Steel SAE 52100
Precision Grade: P6
Category: Bearings - Single Row Ball - Unflanged |
||||||
|
Part Number: 681-MC3-JP6-AF12 (PK-50)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 21, 2029 |
||||||
| Single Row Ball Bearings - 1.016x3.175x1.191 mm Unflanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
1.016
mm + 0.000 / - 0.007
(Equiv. 0.04 in.) |
O.D. (D)
3.175
mm + 0.000 / - 0.007 (Equiv. 0.125 in.) |
Width (B)
1.191
mm + 0.000 / - 0.040 (Equiv. 0.047 in.) |
|
|||
|
Material: Chrome Steel SAE 52100
Precision Grade: P6
Category: Bearings - Single Row Ball - Unflanged |
||||||
|
Part Number: R09-MC3-JP6-AF12 (PK-100)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Single Row Ball Bearings - 1.016x3.175x1.191 mm Unflanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
1.016
mm + 0.000 / - 0.007 (Equiv. 0.04 in.) |
O.D. (D)
3.175
mm + 0.000 / - 0.007 (Equiv. 0.125 in.) |
Width (B)
1.191
mm + 0.000 / - 0.040 (Equiv. 0.047 in.) |
|
|||
|
Material: Chrome Steel SAE 52100
Precision Grade: P6
Category: Bearings - Single Row Ball - Unflanged |
||||||
|
Part Number: R09-MC3-JP6-AF12 (PK-100)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 21, 2029 |
||||||

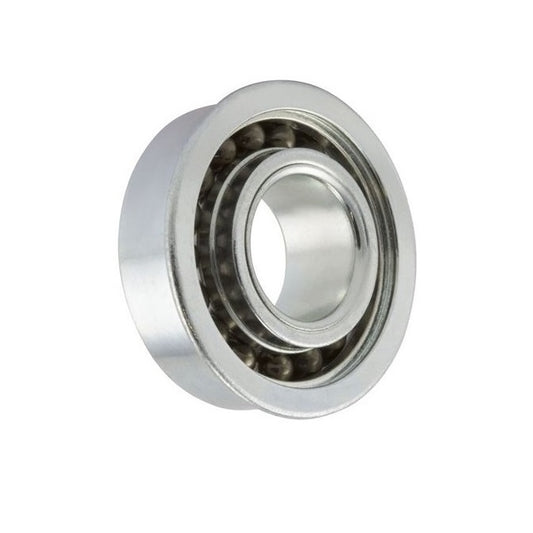

| Single Row Ball Bearings - 1.016x3.175x1.191 mm / 1.984 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.016
mm + 0.000 / - 0.007
(Equiv. 0.04 in.) |
O.D. (D)
3.175
mm + 0.000 / - 0.007 (Equiv. 0.125 in.) |
Width (B)
1.191
mm + 0.000 / - 0.040 (Equiv. 0.047 in.) |
Inner Ring Width (Bn)
1.984
mm |
Flange Diameter (DF)
4.343
mm |
Flange Width (BF)
0.330
mm |
|
|
Material: Stainless Steel AISI 440C
Precision Grade: P6
Category: Bearings - Single Row Ball - Flanged |
||||||
|
Part Number: SFWR09-MC3-JP6 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Single Row Ball Bearings - 1.016x3.175x1.191 mm / 1.984 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.016
mm + 0.000 / - 0.007 (Equiv. 0.04 in.) |
O.D. (D)
3.175
mm + 0.000 / - 0.007 (Equiv. 0.125 in.) |
Width (B)
1.191
mm + 0.000 / - 0.040 (Equiv. 0.047 in.) |
Inner Ring Width (Bn)
1.984
mm |
|
||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 4.343 mm
Flange Width (BF): 0.330 mm
Precision Grade: P6
Category: Bearings - Single Row Ball - Flanged |
||||||
|
Part Number: SFWR09-MC3-JP6 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 21, 2029 |
||||||
| Single Row Ball Bearings - 1.191x3.967x1.588 mm Flanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
1.191
mm + 0.000 / - 0.0075
(Equiv. 0.047 in.) |
O.D. (D)
3.967
mm + 0.000 / - 0.0075 (Equiv. 0.156 in.) |
Width (B)
1.588
mm + 0.000 / - 0.125 (Equiv. 0.063 in.) |
Flange Diameter (DF)
5.156
mm |
Flange Width (BF)
0.330
mm |
|
|
|
Material: Chrome Steel SAE 52100
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged |
||||||
|
Part Number: FR0-MC3-AF12 (PK-50)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Single Row Ball Bearings - 1.191x3.967x1.588 mm Flanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
1.191
mm + 0.000 / - 0.0075 (Equiv. 0.047 in.) |
O.D. (D)
3.967
mm + 0.000 / - 0.0075 (Equiv. 0.156 in.) |
Width (B)
1.588
mm + 0.000 / - 0.125 (Equiv. 0.063 in.) |
|
|||
|
Material: Chrome Steel SAE 52100
Flange Diameter (DF): 5.156 mm
Flange Width (BF): 0.330 mm
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged |
||||||
|
Part Number: FR0-MC3-AF12 (PK-50)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 21, 2029 |
||||||
| Single Row Ball Bearings - 1.191x3.967x1.588 mm / 2.381 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.191
mm + 0.000 / - 0.005
(Equiv. 0.047 in.) |
O.D. (D)
3.967
mm + 0.000 / - 0.0075 (Equiv. 0.156 in.) |
Width (B)
1.588
mm + 0.000 / - 0.125 (Equiv. 0.063 in.) |
Inner Ring Width (Bn)
2.381
mm |
Flange Diameter (DF)
5.156
mm |
Flange Width (BF)
0.330
mm |
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 3
Category: Bearings - Single Row Ball - Flanged |
||||||
|
Part Number: SFWR0-MC34-U3-AF12 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Single Row Ball Bearings - 1.191x3.967x1.588 mm / 2.381 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.191
mm + 0.000 / - 0.005 (Equiv. 0.047 in.) |
O.D. (D)
3.967
mm + 0.000 / - 0.0075 (Equiv. 0.156 in.) |
Width (B)
1.588
mm + 0.000 / - 0.125 (Equiv. 0.063 in.) |
Inner Ring Width (Bn)
2.381
mm |
|
||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 5.156 mm
Flange Width (BF): 0.330 mm
Precision Grade: Abec 3
Category: Bearings - Single Row Ball - Flanged |
||||||
|
Part Number: SFWR0-MC34-U3-AF12 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 21, 2029 |
||||||
| Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.191
mm + 0.000 / - 0.005
(Equiv. 0.047 in.) |
O.D. (D)
3.967
mm + 0.000 / - 0.0075 (Equiv. 0.156 in.) |
Width (B)
2.381
mm + 0.000 / - 0.125 (Equiv. 0.094 in.) |
Inner Ring Width (Bn)
3.175
mm |
Flange Diameter (DF)
5.156
mm |
Flange Width (BF)
0.787
mm |
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 3
Category: Bearings - Single Row Ball - Flanged |
||||||
|
Part Number: SFWR0A-ZZS-MC34-U3-AF12 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.191
mm + 0.000 / - 0.005 (Equiv. 0.047 in.) |
O.D. (D)
3.967
mm + 0.000 / - 0.0075 (Equiv. 0.156 in.) |
Width (B)
2.381
mm + 0.000 / - 0.125 (Equiv. 0.094 in.) |
Inner Ring Width (Bn)
3.175
mm |
|
||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 5.156 mm
Flange Width (BF): 0.787 mm
Precision Grade: Abec 3
Category: Bearings - Single Row Ball - Flanged |
||||||
|
Part Number: SFWR0A-ZZS-MC34-U3-AF12 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 21, 2029 |
||||||
| Single Row Ball Bearings - 1.397x4.763x1.984 mm / 2.779 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.397
mm + 0.000 / - 0.005
(Equiv. 0.055 in.) |
O.D. (D)
4.763
mm + 0.000 / - 0.0075 (Equiv. 0.188 in.) |
Width (B)
1.984
mm + 0.000 / - 0.125 (Equiv. 0.078 in.) |
Inner Ring Width (Bn)
2.779
mm |
Flange Diameter (DF)
5.944
mm |
Flange Width (BF)
0.584
mm |
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 3
Category: Bearings - Single Row Ball - Flanged |
||||||
|
Part Number: SFWR1-MC34-U3-AF12 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Single Row Ball Bearings - 1.397x4.763x1.984 mm / 2.779 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.397
mm + 0.000 / - 0.005 (Equiv. 0.055 in.) |
O.D. (D)
4.763
mm + 0.000 / - 0.0075 (Equiv. 0.188 in.) |
Width (B)
1.984
mm + 0.000 / - 0.125 (Equiv. 0.078 in.) |
Inner Ring Width (Bn)
2.779
mm |
|
||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 5.944 mm
Flange Width (BF): 0.584 mm
Precision Grade: Abec 3
Category: Bearings - Single Row Ball - Flanged |
||||||
|
Part Number: SFWR1-MC34-U3-AF12 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 21, 2029 |
||||||
| Single Row Ball Bearings - 1.397x4.763x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.397
mm + 0.000 / - 0.005
(Equiv. 0.055 in.) |
O.D. (D)
4.763
mm + 0.000 / - 0.0075 (Equiv. 0.188 in.) |
Width (B)
2.779
mm + 0.000 / - 0.125 (Equiv. 0.109 in.) |
Inner Ring Width (Bn)
3.571
mm |
Flange Diameter (DF)
5.944
mm |
Flange Width (BF)
0.787
mm |
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 3
Category: Bearings - Single Row Ball - Flanged |
||||||
|
Part Number: SFWR1B-ZZS-MC34-U3-AF12 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Single Row Ball Bearings - 1.397x4.763x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.397
mm + 0.000 / - 0.005 (Equiv. 0.055 in.) |
O.D. (D)
4.763
mm + 0.000 / - 0.0075 (Equiv. 0.188 in.) |
Width (B)
2.779
mm + 0.000 / - 0.125 (Equiv. 0.109 in.) |
Inner Ring Width (Bn)
3.571
mm |
|
||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 5.944 mm
Flange Width (BF): 0.787 mm
Precision Grade: Abec 3
Category: Bearings - Single Row Ball - Flanged |
||||||
|
Part Number: SFWR1B-ZZS-MC34-U3-AF12 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 21, 2029 |
||||||
| Single Row Ball Bearings - 1.5x4x1.2 mm Unflanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
1.500
mm + 0.000 / - 0.007
(Equiv. 0.059 in.) |
O.D. (D)
4.000
mm + 0.000 / - 0.007 (Equiv. 0.157 in.) |
Width (B)
1.200
mm + 0.000 / - 0.040 (Equiv. 0.047 in.) |
|
|||
|
Material: Chrome Steel SAE 52100
Precision Grade: P6
Category: Bearings - Single Row Ball - Unflanged |
||||||
|
Part Number: 681X-MC3-JP6-AF12 (PK-50)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Single Row Ball Bearings - 1.5x4x1.2 mm Unflanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
1.500
mm + 0.000 / - 0.007 (Equiv. 0.059 in.) |
O.D. (D)
4.000
mm + 0.000 / - 0.007 (Equiv. 0.157 in.) |
Width (B)
1.200
mm + 0.000 / - 0.040 (Equiv. 0.047 in.) |
|
|||
|
Material: Chrome Steel SAE 52100
Precision Grade: P6
Category: Bearings - Single Row Ball - Unflanged |
||||||
|
Part Number: 681X-MC3-JP6-AF12 (PK-50)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 21, 2029 |
||||||
| Single Row Ball Bearings - 1.5x4x2 mm Unflanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
1.500
mm + 0.000 / - 0.007
(Equiv. 0.059 in.) |
O.D. (D)
4.000
mm + 0.000 / - 0.007 (Equiv. 0.157 in.) |
Width (B)
2.000
mm + 0.000 / - 0.040 (Equiv. 0.079 in.) |
|
|||
|
Material: Chrome Steel SAE 52100
Precision Grade: P6
Category: Bearings - Single Row Ball - Unflanged |
||||||
|
Part Number: 681XA-ZZ-MC3-JP6 (PK-20)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Single Row Ball Bearings - 1.5x4x2 mm Unflanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
1.500
mm + 0.000 / - 0.007 (Equiv. 0.059 in.) |
O.D. (D)
4.000
mm + 0.000 / - 0.007 (Equiv. 0.157 in.) |
Width (B)
2.000
mm + 0.000 / - 0.040 (Equiv. 0.079 in.) |
|
|||
|
Material: Chrome Steel SAE 52100
Precision Grade: P6
Category: Bearings - Single Row Ball - Unflanged |
||||||
|
Part Number: 681XA-ZZ-MC3-JP6 (PK-20)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 21, 2029 |
||||||
| Single Row Ball Bearings - 1.5x5x2.6 mm Unflanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
1.500
mm + 0.000 / - 0.007
(Equiv. 0.059 in.) |
O.D. (D)
5.000
mm + 0.000 / - 0.007 (Equiv. 0.197 in.) |
Width (B)
2.600
mm + 0.000 / - 0.040 (Equiv. 0.102 in.) |
|
|||
|
Material: Chrome Steel SAE 52100
Precision Grade: P6
Category: Bearings - Single Row Ball - Unflanged |
||||||
|
Part Number: 691XA-ZZ-MC3-JP6 (PK-50)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Single Row Ball Bearings - 1.5x5x2.6 mm Unflanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
1.500
mm + 0.000 / - 0.007 (Equiv. 0.059 in.) |
O.D. (D)
5.000
mm + 0.000 / - 0.007 (Equiv. 0.197 in.) |
Width (B)
2.600
mm + 0.000 / - 0.040 (Equiv. 0.102 in.) |
|
|||
|
Material: Chrome Steel SAE 52100
Precision Grade: P6
Category: Bearings - Single Row Ball - Unflanged |
||||||
|
Part Number: 691XA-ZZ-MC3-JP6 (PK-50)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 21, 2029 |
||||||
| Single Row Ball Bearings - 1.5x6x3 mm Unflanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
1.500
mm + 0.000 / - 0.007
(Equiv. 0.059 in.) |
O.D. (D)
6.000
mm + 0.000 / - 0.007 (Equiv. 0.236 in.) |
Width (B)
3.000
mm + 0.000 / - 0.040 (Equiv. 0.118 in.) |
|
|||
|
Material: Chrome Steel SAE 52100
Precision Grade: P6
Category: Bearings - Single Row Ball - Unflanged |
||||||
|
Part Number: 601XA-ZZ-MC3-JP6 (PK-50)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Single Row Ball Bearings - 1.5x6x3 mm Unflanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
1.500
mm + 0.000 / - 0.007 (Equiv. 0.059 in.) |
O.D. (D)
6.000
mm + 0.000 / - 0.007 (Equiv. 0.236 in.) |
Width (B)
3.000
mm + 0.000 / - 0.040 (Equiv. 0.118 in.) |
|
|||
|
Material: Chrome Steel SAE 52100
Precision Grade: P6
Category: Bearings - Single Row Ball - Unflanged |
||||||
|
Part Number: 601XA-ZZ-MC3-JP6 (PK-50)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 21, 2029 |
||||||
| Single Row Ball Bearings - 1x3x1 mm Unflanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.000
mm + 0.000 / - 0.007
(Equiv. 0.039 in.) |
O.D. (D)
3.000
mm + 0.000 / - 0.007 (Equiv. 0.118 in.) |
Width (B)
1.000
mm + 0.000 / - 0.040 (Equiv. 0.039 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Precision Grade: P6
Category: Bearings - Single Row Ball - Unflanged |
||||||
|
Part Number: S681-MC3-JP6-AF12 (Pack of 100)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Aug 30, 2026 Regular price
$1,002.32 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 1x3x1 mm Unflanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.000
mm + 0.000 / - 0.007 (Equiv. 0.039 in.) |
O.D. (D)
3.000
mm + 0.000 / - 0.007 (Equiv. 0.118 in.) |
Width (B)
1.000
mm + 0.000 / - 0.040 (Equiv. 0.039 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Precision Grade: P6
Category: Bearings - Single Row Ball - Unflanged |
||||||
|
Part Number: S681-MC3-JP6-AF12 (Pack of 100)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Aug 30, 2026 Regular price
$1,002.32 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 1x3x1 mm Unflanged - Stainless Steel AISI 440C - Ribbon Retainer Low Torque Bearing | ||||||
|
ID (d)
1.000
mm + 0.000 / - 0.005
(Equiv. 0.039 in.) |
O.D. (D)
3.000
mm + 0.000 / - 0.005 (Equiv. 0.118 in.) |
Width (B)
1.000
mm + 0.000 / - 0.040 (Equiv. 0.039 in.) |
|
|||
|
Material: Stainless Steel AISI 440C - Ribbon Retainer Low Torque
Precision Grade: Abec 5
Category: Bearings - Single Row Ball - Unflanged |
||||||
|
Part Number: S681-MC34-GR5-R-L23 (Pack of 20)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Sep 22, 2026 Regular price
$1,348.05 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 1x3x1 mm Unflanged - Stainless Steel AISI 440C - Ribbon Retainer Low Torque Bearing | ||||||
|
ID (d)
1.000
mm + 0.000 / - 0.005 (Equiv. 0.039 in.) |
O.D. (D)
3.000
mm + 0.000 / - 0.005 (Equiv. 0.118 in.) |
Width (B)
1.000
mm + 0.000 / - 0.040 (Equiv. 0.039 in.) |
|
|||
|
Material: Stainless Steel AISI 440C - Ribbon Retainer Low Torque
Precision Grade: Abec 5
Category: Bearings - Single Row Ball - Unflanged |
||||||
|
Part Number: S681-MC34-GR5-R-L23 (Pack of 20)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Sep 22, 2026 Regular price
$1,348.05 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 1x3x1 mm Unflanged - Stainless Steel AISI 440C - Ribbon Retainer Low Torque Bearing | ||||||
|
ID (d)
1.000
mm + 0.000 / - 0.004
(Equiv. 0.039 in.) |
O.D. (D)
3.000
mm + 0.000 / - 0.005 (Equiv. 0.118 in.) |
Width (B)
1.000
mm + 0.000 / - 0.040 (Equiv. 0.039 in.) |
|
|||
|
Material: Stainless Steel AISI 440C - Ribbon Retainer Low Torque
Precision Grade: Abec 7
Category: Bearings - Single Row Ball - Unflanged |
||||||
|
Part Number: S681-MC34-GR7-R-L23 (Pack of 40)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Sep 22, 2026 Regular price
$3,046.05 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 40 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 1x3x1 mm Unflanged - Stainless Steel AISI 440C - Ribbon Retainer Low Torque Bearing | ||||||
|
ID (d)
1.000
mm + 0.000 / - 0.004 (Equiv. 0.039 in.) |
O.D. (D)
3.000
mm + 0.000 / - 0.005 (Equiv. 0.118 in.) |
Width (B)
1.000
mm + 0.000 / - 0.040 (Equiv. 0.039 in.) |
|
|||
|
Material: Stainless Steel AISI 440C - Ribbon Retainer Low Torque
Precision Grade: Abec 7
Category: Bearings - Single Row Ball - Unflanged |
||||||
|
Part Number: S681-MC34-GR7-R-L23 (Pack of 40)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Sep 22, 2026 Regular price
$3,046.05 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 40 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 1x3x1 mm Unflanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.000
mm + 0.000 / - 0.0075
(Equiv. 0.039 in.) |
O.D. (D)
3.000
mm + 0.000 / - 0.0075 (Equiv. 0.118 in.) |
Width (B)
1.000
mm + 0.000 / - 0.125 (Equiv. 0.039 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Unflanged Open standard stainless steel bearing |
||||||
|
Part Number: S681-MC3-AF12 (Pack of 100)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Aug 30, 2026 Regular price
$1,396.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 1x3x1 mm Unflanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.000
mm + 0.000 / - 0.0075 (Equiv. 0.039 in.) |
O.D. (D)
3.000
mm + 0.000 / - 0.0075 (Equiv. 0.118 in.) |
Width (B)
1.000
mm + 0.000 / - 0.125 (Equiv. 0.039 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Unflanged Open standard stainless steel bearing |
||||||
|
Part Number: S681-MC3-AF12 (Pack of 100)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Aug 30, 2026 Regular price
$1,396.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 1x3x1 mm Unflanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
1.000
mm + 0.000 / - 0.0075
(Equiv. 0.039 in.) |
O.D. (D)
3.000
mm + 0.000 / - 0.0075 (Equiv. 0.118 in.) |
Width (B)
1.000
mm + 0.000 / - 0.125 (Equiv. 0.039 in.) |
|
|||
|
Material: Chrome Steel SAE 52100
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Unflanged |
||||||
|
Part Number: 681-MC3-AF12 (Pack of 100)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Aug 30, 2026 Regular price
$864.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 1x3x1 mm Unflanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
1.000
mm + 0.000 / - 0.0075 (Equiv. 0.039 in.) |
O.D. (D)
3.000
mm + 0.000 / - 0.0075 (Equiv. 0.118 in.) |
Width (B)
1.000
mm + 0.000 / - 0.125 (Equiv. 0.039 in.) |
|
|||
|
Material: Chrome Steel SAE 52100
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Unflanged |
||||||
|
Part Number: 681-MC3-AF12 (Pack of 100)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Aug 30, 2026 Regular price
$864.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 1x3x1 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.000
mm + 0.000 / - 0.0075
(Equiv. 0.039 in.) |
O.D. (D)
3.000
mm + 0.000 / - 0.0075 (Equiv. 0.118 in.) |
Width (B)
1.000
mm + 0.000 / - 0.125 (Equiv. 0.039 in.) |
Flange Diameter (DF)
3.800
mm |
Flange Width (BF)
0.300
mm |
|
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged |
||||||
|
Part Number: SF681-MC3-ACO (Pack of 100)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Aug 30, 2026 Regular price
$1,078.68 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 1x3x1 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.000
mm + 0.000 / - 0.0075 (Equiv. 0.039 in.) |
O.D. (D)
3.000
mm + 0.000 / - 0.0075 (Equiv. 0.118 in.) |
Width (B)
1.000
mm + 0.000 / - 0.125 (Equiv. 0.039 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 3.800 mm
Flange Width (BF): 0.300 mm
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged |
||||||
|
Part Number: SF681-MC3-ACO (Pack of 100)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Aug 30, 2026 Regular price
$1,078.68 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 1x3x1 mm Flanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
1.000
mm + 0.000 / - 0.0075
(Equiv. 0.039 in.) |
O.D. (D)
3.000
mm + 0.000 / - 0.0075 (Equiv. 0.118 in.) |
Width (B)
1.000
mm + 0.000 / - 0.125 (Equiv. 0.039 in.) |
Flange Diameter (DF)
3.800
mm |
Flange Width (BF)
0.300
mm |
|
|
|
Material: Chrome Steel SAE 52100
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged |
||||||
|
Part Number: F681-MC3-ACO (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Sep 04, 2026 Regular price
$44.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 1x3x1 mm Flanged - Chrome Steel SAE 52100 Bearing | ||||||
|
ID (d)
1.000
mm + 0.000 / - 0.0075 (Equiv. 0.039 in.) |
O.D. (D)
3.000
mm + 0.000 / - 0.0075 (Equiv. 0.118 in.) |
Width (B)
1.000
mm + 0.000 / - 0.125 (Equiv. 0.039 in.) |
|
|||
|
Material: Chrome Steel SAE 52100
Flange Diameter (DF): 3.800 mm
Flange Width (BF): 0.300 mm
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Flanged |
||||||
|
Part Number: F681-MC3-ACO (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Sep 04, 2026 Regular price
$44.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 1x3x1.5 mm Unflanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.000
mm + 0.000 / - 0.0075
(Equiv. 0.039 in.) |
O.D. (D)
3.000
mm + 0.000 / - 0.0075 (Equiv. 0.118 in.) |
Width (B)
1.500
mm + 0.000 / - 0.125 (Equiv. 0.059 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Unflanged |
||||||
|
Part Number: S681A-MC3-AF12 (Pack of 50)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Nov 24, 2026 Regular price
$765.68 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 1x3x1.5 mm Unflanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.000
mm + 0.000 / - 0.0075 (Equiv. 0.039 in.) |
O.D. (D)
3.000
mm + 0.000 / - 0.0075 (Equiv. 0.118 in.) |
Width (B)
1.500
mm + 0.000 / - 0.125 (Equiv. 0.059 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 1
Category: Bearings - Single Row Ball - Unflanged |
||||||
|
Part Number: S681A-MC3-AF12 (Pack of 50)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Nov 24, 2026 Regular price
$765.68 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 1x3x1.5 mm Unflanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.000
mm + 0.000 / - 0.007
(Equiv. 0.039 in.) |
O.D. (D)
3.000
mm + 0.000 / - 0.007 (Equiv. 0.118 in.) |
Width (B)
1.500
mm + 0.000 / - 0.040 (Equiv. 0.059 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Precision Grade: P6
Category: Bearings - Single Row Ball - Unflanged Deleted Item. Available while stocks last. |
||||||
|
Part Number: S681A-MC3-JP6-L23 (Each)
20 Available Now | Further orders can be expected around Tue, Nov 24, 2026 Regular price
$7.06 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Single Row Ball Bearings - 1x3x1.5 mm Unflanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.000
mm + 0.000 / - 0.007 (Equiv. 0.039 in.) |
O.D. (D)
3.000
mm + 0.000 / - 0.007 (Equiv. 0.118 in.) |
Width (B)
1.500
mm + 0.000 / - 0.040 (Equiv. 0.059 in.) |
|
|||
|
Material: Stainless Steel AISI 440C
Precision Grade: P6
Category: Bearings - Single Row Ball - Unflanged Deleted Item. Available while stocks last. |
||||||
|
Part Number: S681A-MC3-JP6-L23 (Each)
20 Available Now | Further orders can be expected around Tue, Nov 24, 2026 Regular price
$7.06 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Single Row Ball Bearings - 1.984x6.35x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.984
mm + 0.000 / - 0.005
(Equiv. 0.078 in.) |
O.D. (D)
6.350
mm + 0.000 / - 0.0075 (Equiv. 0.25 in.) |
Width (B)
2.381
mm + 0.000 / - 0.125 (Equiv. 0.094 in.) |
Inner Ring Width (Bn)
3.175
mm |
Flange Diameter (DF)
7.518
mm |
Flange Width (BF)
0.584
mm |
|
|
Material: Stainless Steel AISI 440C
Precision Grade: Abec 3
Category: Bearings - Single Row Ball - Flanged |
||||||
|
Part Number: SFWR1-4-MC34-U3-AF12 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Single Row Ball Bearings - 1.984x6.35x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing | ||||||
|
ID (d)
1.984
mm + 0.000 / - 0.005 (Equiv. 0.078 in.) |
O.D. (D)
6.350
mm + 0.000 / - 0.0075 (Equiv. 0.25 in.) |
Width (B)
2.381
mm + 0.000 / - 0.125 (Equiv. 0.094 in.) |
Inner Ring Width (Bn)
3.175
mm |
|
||
|
Material: Stainless Steel AISI 440C
Flange Diameter (DF): 7.518 mm
Flange Width (BF): 0.584 mm
Precision Grade: Abec 3
Category: Bearings - Single Row Ball - Flanged |
||||||
|
Part Number: SFWR1-4-MC34-U3-AF12 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Apr 21, 2029 |
||||||
