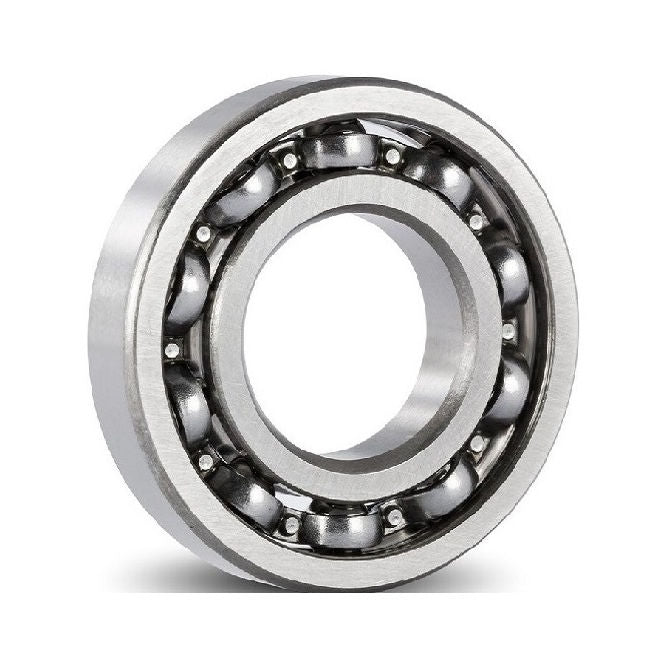

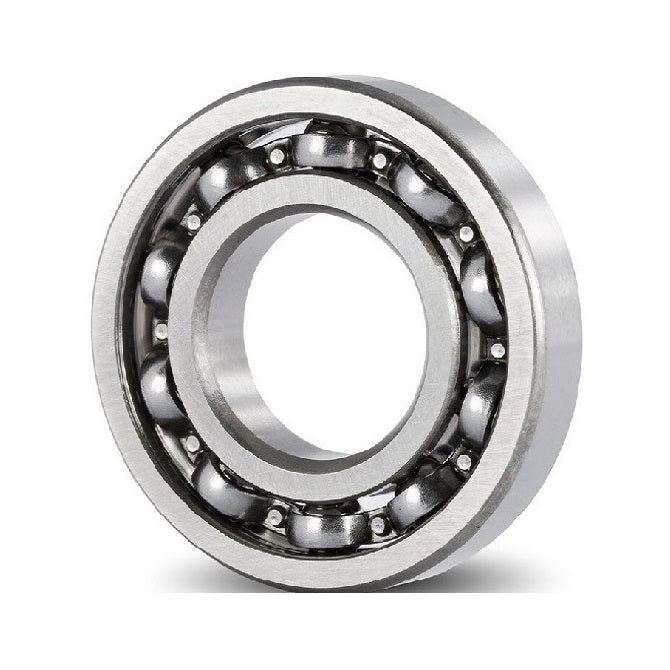

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

Single Row Ball Bearings - 1.016 mm x 3.175 mm x 1.191 mm
SR09-MC34-GR7-R-L23 (40 Pcs)

MBA

Additional resources:
Tolerances
High Precision Bearings Catalogue PDF
Shafting
Price:
$3,072.14 AUD
$3,072.14 AUD
per 40
Out Of Stock
Order 50 or more (2000 pcs) for $2,764.93 AUD per 40
Pre-Order now! Backorders for more than the stock quantity are expected before Apr 03, 2025

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Unflanged - High Precision - Standard

Product Details:

ID (d): 1.016mm
+ 0.000 / - 0.004

Stainless Steel AISI 440C - Ribbon Retainer Low Torque
  • OD (D): 3.175mm
    + 0.000 / - 0.005
  • Width (B): 1.191mm
    + 0.000 / - 0.040
  • Precision Grade: Abec 7
  • Closure Type: Open
  • Bearing Type: Radial
  • Lubricant: Windsorlube L245X - L23 Oil

Brand: MBA
Country of Origin: DE

Alternatives: R09, S1016-P4, S9912Y9-G0412PS0, SR09MC3GR7L23, SR09RGR7MC34L23, UL-1304X-48-A7P-6/15-L23, UL1304X-A7P-L23

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
