Miniature Bearings Australia
6202-Z-NR-C3-ECO - Datasheet
MBA
Category Information
Bearings - Single Row Ball - with Snap Ring - Standard - Chrome SteelChrome Steel Standard with Snap Ring Single Row Ball Bearings. Chrome Steel Bearings with a Snap Ring on the OD
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with snap ring.
Product Data

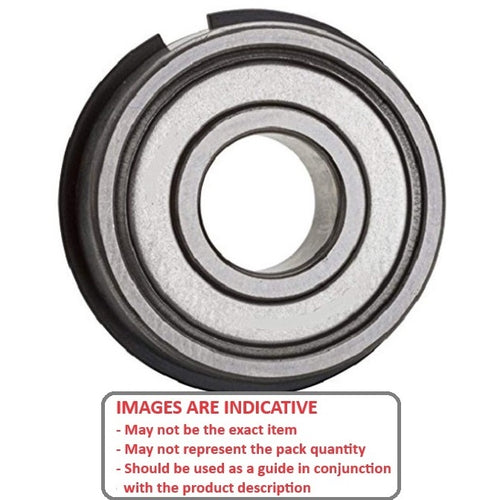

This bearing has a snap ring on the OD

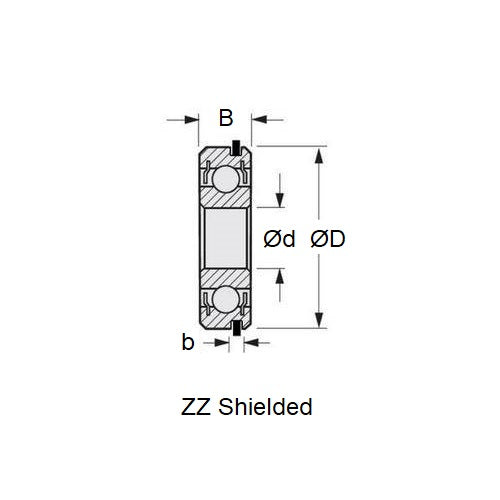

- ID (d)
:
15.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.591 in.) - OD (D)
35.000
mm
+ 0.000 / - 0.011
(Equiv. 1.378 in.) - Width (B)
11.000
mm
+ 0.000 / - 0.125
(Equiv. 0.433 in.) - Groove Width (b) 1.350 mm
- Closure Type Z
- Bearing Type Radial with Snp Ring
- Snap Ring Thickness 1.120 mm
- Max. Dist. To Groove Edge 2.060 mm
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 6202
- Limiting Speed 19000
- Cage Type Standard
- Static Load Rating KGf 363.8
- Dynamic Load Rating KGf 740
- Radii 0.60 mm
- Inner Shoulder (UI) 21.70mm
- Outer Shoulder (UO) 31.40 mm
- Number of Balls 8
- Clearance C3 (11 to 25)
- Precision Grade ECO
- Closure Type Z
- Max Temperature 120 Deg. C
