SFWR144A-ZZS-MC34-U3-AF12 (Each)

Single Row Ball Bearings - 3.175x6.35x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing

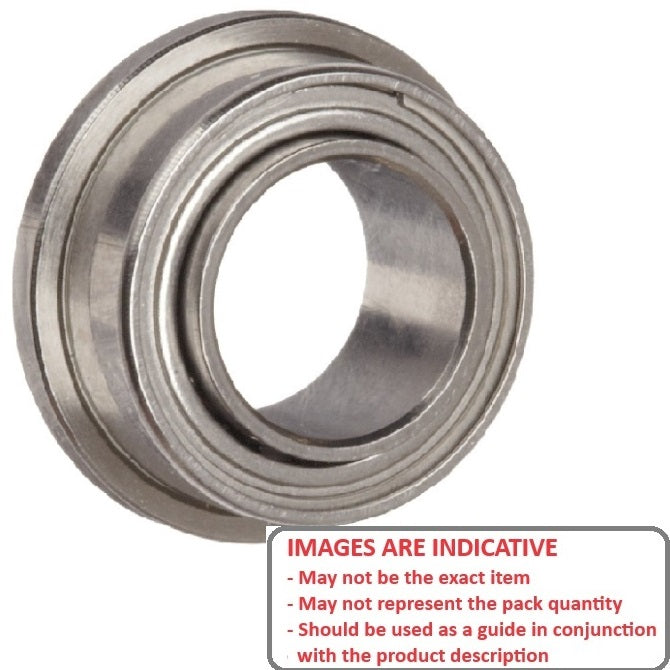

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 3.175x6.35x2.779 mm / 3.571 mm - Stainless Steel AISI 440C
1 4

ENQUIRE

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Special Order Only
This item is discontinued. Please contact us for a special quote if you require a large quantity.

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Flanged - Precision - Extended Inner

Product Details

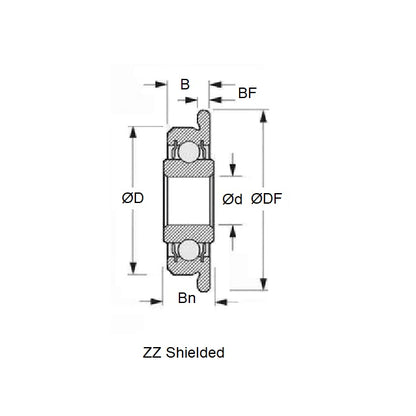

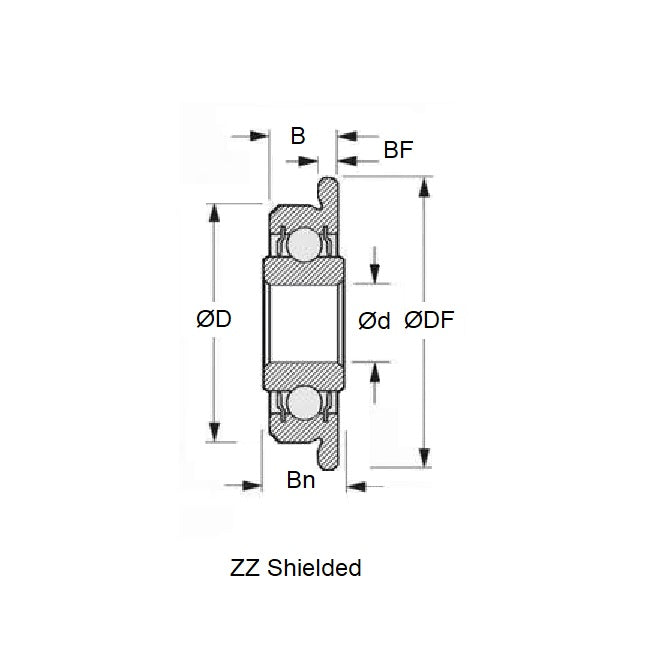

Double shielded flanged Abec 3 stainless steel bearing with extended inner ring and light oil lubrication

ID (d): 3.175mm
+ 0.000 / - 0.005
(3.175mm is 0.125 in.)

Stainless Steel AISI 440C
  • ID (d): 3.175mm
    + 0.000 / - 0.005
    (3.175mm is 0.125 in.)
  • O.D. (D): 6.350mm
    + 0.000 / - 0.0075
    (6.350mm is 0.25 in.)
  • Width (B): 2.779mm
    + 0.000 / - 0.125
    (2.779mm is 0.109 in.)
  • Inner Ring Width (Bn): 3.571mm
  • Flange Diameter (DF): 7.518mm
  • Flange Width (BF): 0.787mm
  • Precision Grade: Abec 3
  • Closure Type: ZZS
  • Bearing Type: Radial Flanged with Extended Inner

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • FWR144A
  • A7Y55GSS2512
  • A7Y55-GSS2512
  • FWR144ABASIC

Used for

  • RC Helicopter Parts
  • Schluter® - 0232 3532 - Replacement Flanged Bearing
    We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
